Thread: [Quick Testing)OCZ Platinum "Animal" ---OCZ3P1333LVA6GK--- -

  1. #1
    Team ID - Indonesia
    Join Date
    Oct 2003
    Location
    Jakarta - Indonesia
    Posts
    832

    [Quick Testing)OCZ Platinum "Animal" ---OCZ3P1333LVA6GK--- -

    Got this kit a few days ago from OCZ USA, it's OCZ Platinum "Animal" series, 6 GB kit (2GB x3) rated at 1333 MHz (PC10666) CAS 7-7-7 @1.65v.

    Not special isn't ???

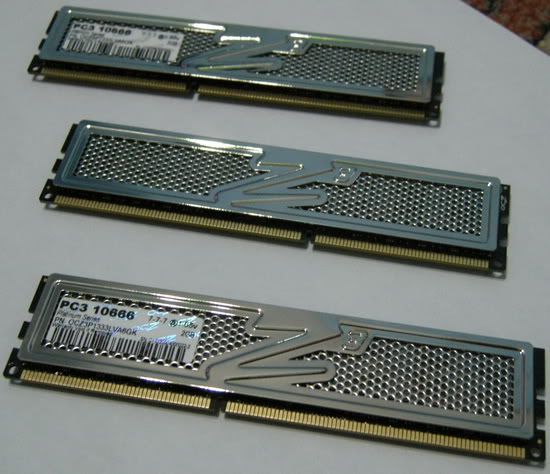

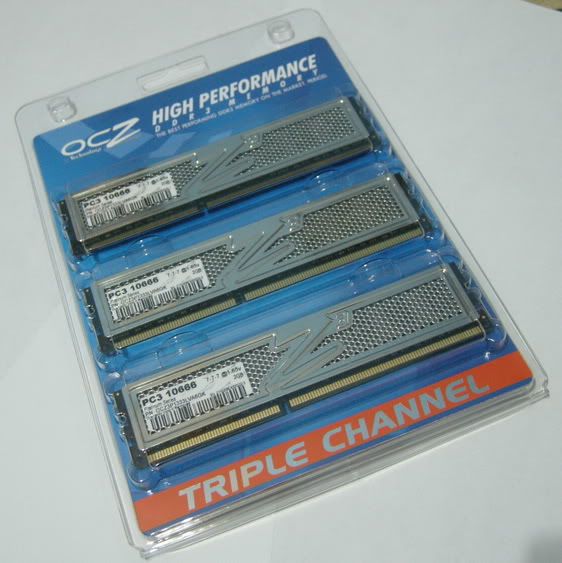

    Some photos :







    Testing Specification

    • Processor Intel Core i7-920
    • Motherboard GIGABYTE EX58-Extreme
    • Motherboard Foxconn Flaming Blade X58
    • Memory OCZ3P1333LVA6GK
    • VGA GIGABYTE GeForce 9800GTX+
    • PSU GIGABYTE Odin Pro 1200 Watt
    • Hardisk WDC2500AAKS


    PS : EX58-Extreme can't continue the testing because must be sign to "another job"

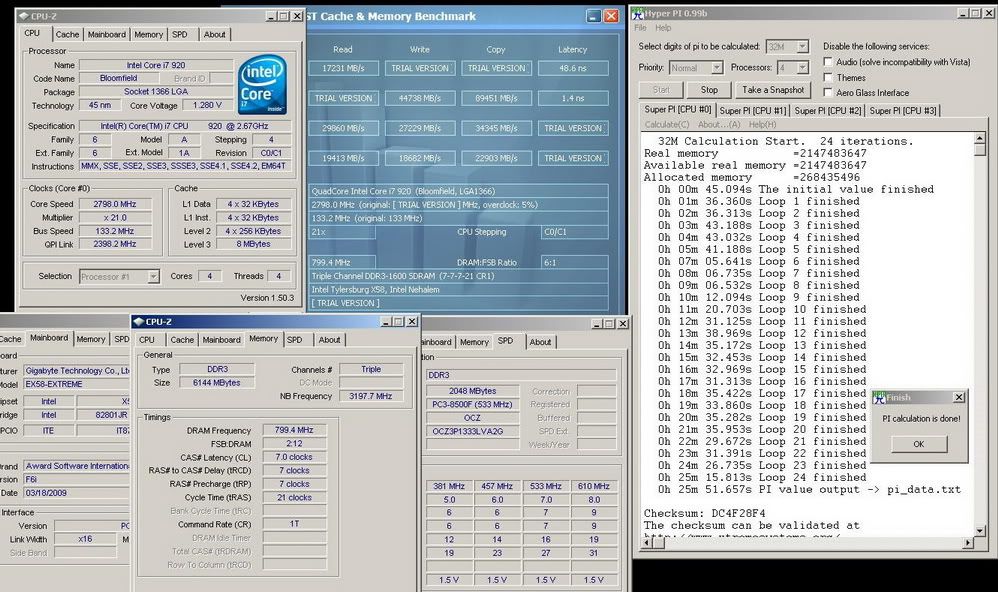

    DDR3-1600 CAS 7-7-7 @1.65v

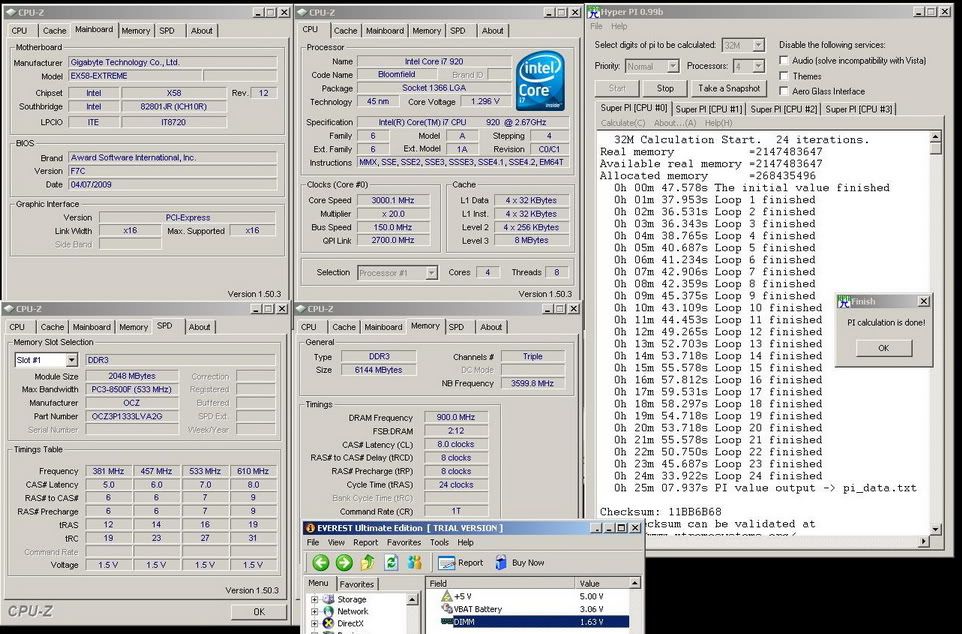

    DDR3-1800 CAS 8-8-8 @1.65v

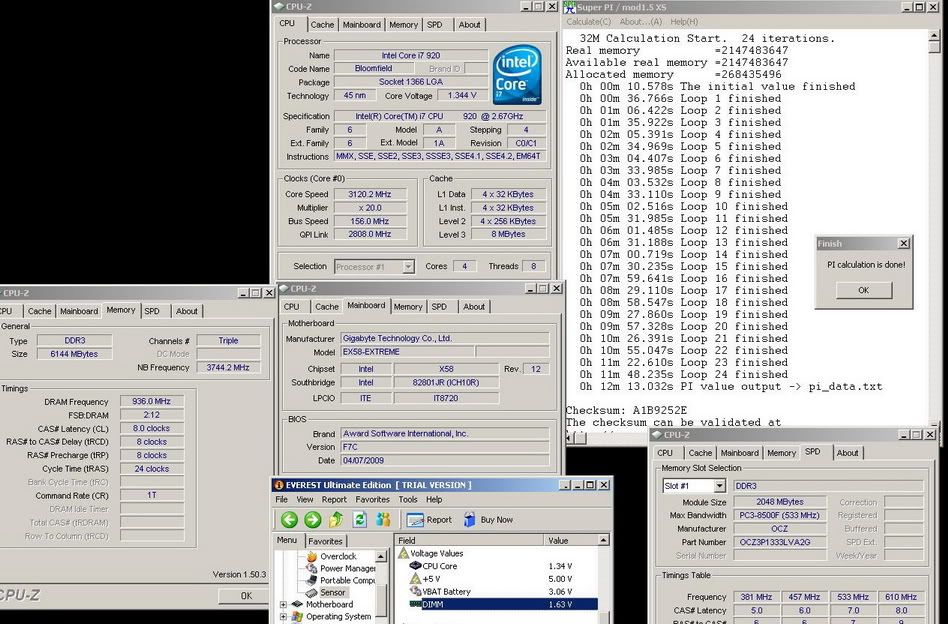

    DDR3-1866 CAS 8-8-8-8 @1.65v

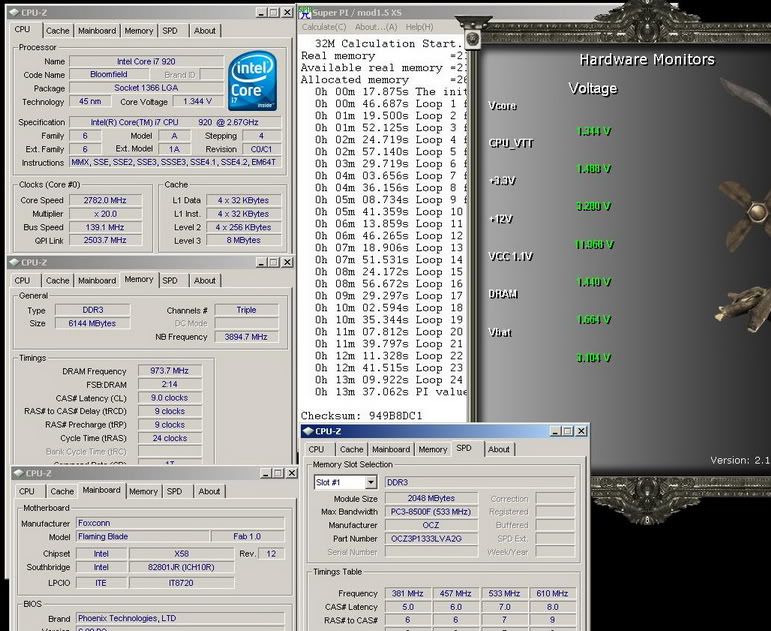

    DDR3-1950 CAS 9-9-9 @1.65v

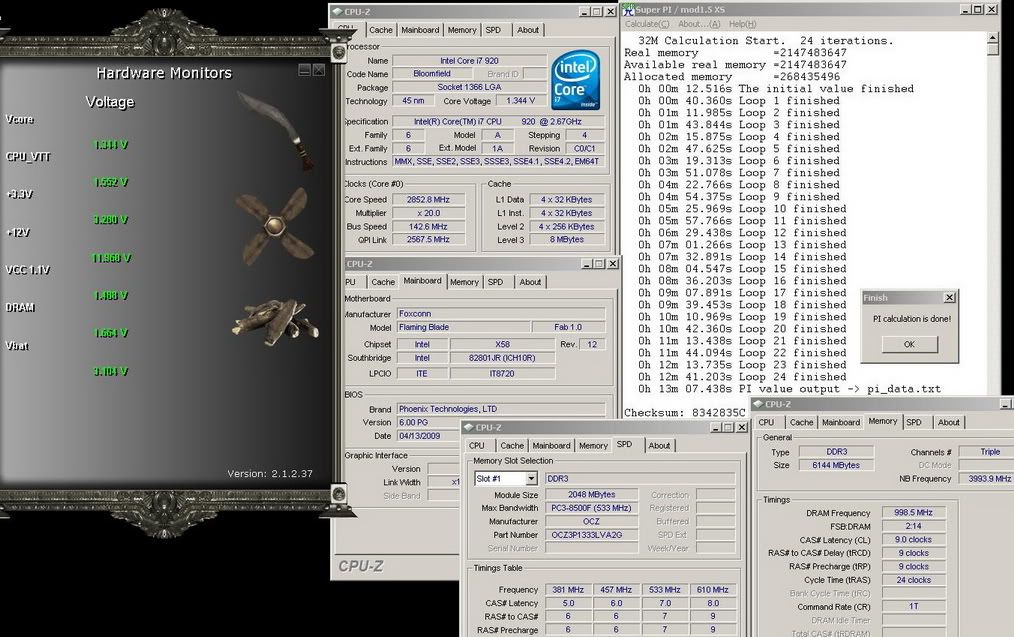

    DDR3-2000 CAS 9-9-9 @1.65v

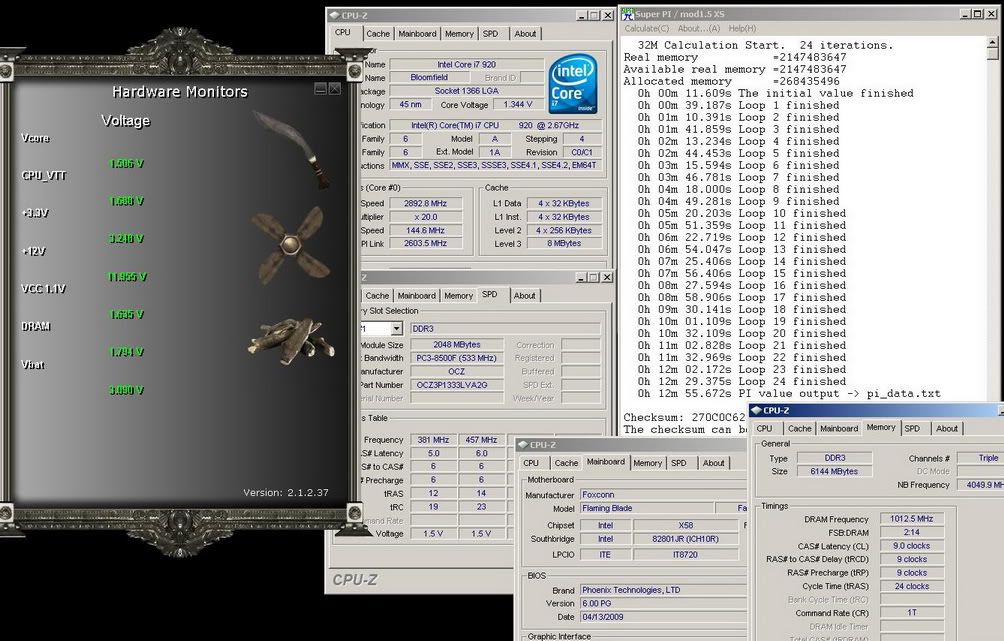

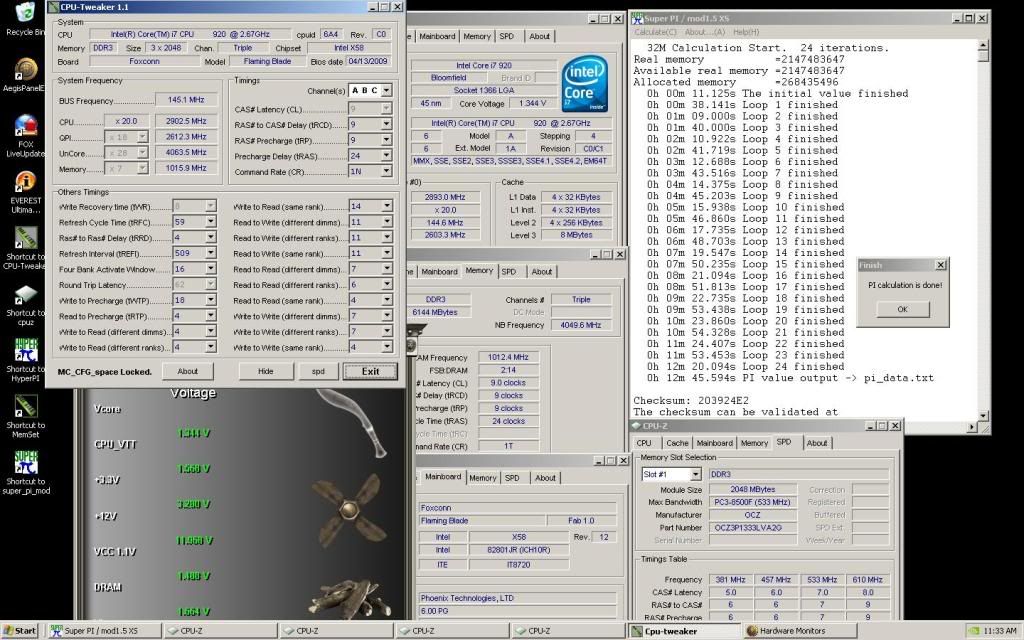

    DDR3-2024 CAS 9-9-9 @1.65v



    How about the price ?? http://www.mwave.com/mwave/DeepSearc...A6GK&ALL=y&TP= under 100 US$ after MIR...


    Amazing overclocking performance memory module with very low price.
    Last edited by Benny Lodewijk; 04-28-2009 at 06:21 PM.

  2. #2
    Xtreme Member
    Join Date
    Nov 2008
    Location
    Georgia, Tbilisi
    Posts
    195
    Great run on 1.65v

    I've got platinium 1600 CL7 3Gb
    OCs like a hell, could run 2000/CL7 @ 2.055 vDIMM fully stable
    BTW chips are D9JNM AFAIK...


    Core i7 920 <|> DFI LANPARTY UT X58 T3eH8 <|> OCZ Platinium 3GB DDR3 CL7 1600Mhz <|> ZOTAC GTX260 c216 <|> Ultra120 2X Noctua 1300RPM <|> Gigabyte ODIN PRO 800W <|> Samsung 275T 27" PVA





  3. #3
    Xtreme Member
    Join Date
    Sep 2004
    Posts
    180
    Your last 3 screens show 1.664 and 1.794 for your vDimm voltage on the software reading. Were those raised and you just forgot to include it? Nice work regardless. Way to push some ram from the bottom to the top.

  4. #4
    Team ID - Indonesia
    Join Date
    Oct 2003
    Location
    Jakarta - Indonesia
    Posts
    832
    Quote Originally Posted by nebuchanezzar View Post
    Your last 3 screens show 1.664 and 1.794 for your vDimm voltage on the software reading. Were those raised and you just forgot to include it? Nice work regardless. Way to push some ram from the bottom to the top.
    I'm sure i give 1.65 volt in BIOS for the last screen, but i will check it again. This memory not like vdimm more than 1.65v

  5. #5
    Banned
    Join Date
    Jan 2009
    Posts
    1,510
    where can i get the cl7 1600 mhz 1?

  6. #6
    Xtreme X.I.P.
    Join Date
    Nov 2002
    Location
    Shipai
    Posts
    31,147
    nice, hope you have the time to update this with the d0 once you get it, so far nobody compared mem clocking of c0 vs d0
    im sure youll need notably less vtt for the same clocks on d0, and you might even get higher max clocks, or at least tighter timings out of the d0... im curious myself

  7. #7
    Brotherhood
    Join Date
    Apr 2005
    Location
    Land Of KADISOKA
    Posts
    1,227
    I think chipset same Blade PC 2000C9 look at that PCB same with Blade Series...

    Quote Originally Posted by LardArse View Post
    i think you are asking the wrong person about safety limits, but

  8. #8
    Xtreme Member
    Join Date
    Jul 2007
    Posts
    396
    ^
    same ic's as i have on my Super talent 1333
    My Loop: mcr320/d5 vario/d tek fuzion/3x ultra kaze 2000's
    Case: Modified RocketFish
    Rig: AMD 720BE X3 Biostar TA790GX A3+ Super Talent 2x2GB WD 320AAKS His HD3870x2 Ultra X3 600W

  9. #9
    Team ID - Indonesia
    Join Date
    Oct 2003
    Location
    Jakarta - Indonesia
    Posts
    832
    Quote Originally Posted by saaya View Post
    nice, hope you have the time to update this with the d0 once you get it, so far nobody compared mem clocking of c0 vs d0
    im sure youll need notably less vtt for the same clocks on d0, and you might even get higher max clocks, or at least tighter timings out of the d0... im curious myself
    Yes, i will test D0 once i get it. Thanks for your help Saaya

  10. #10
    Team ID - Indonesia
    Join Date
    Oct 2003
    Location
    Jakarta - Indonesia
    Posts
    832
    Quote Originally Posted by nebuchanezzar View Post
    Your last 3 screens show 1.664 and 1.794 for your vDimm voltage on the software reading. Were those raised and you just forgot to include it? Nice work regardless. Way to push some ram from the bottom to the top.
    After check it again, it's 100% 1.65v... Aegis Panel sometimes show incorrect value, up and down, when i take the screenshot vdimm shown higher in AEGIS Panel. In BIOS, PChealth and Everest detect 1.65v

  11. #11
    Xtreme X.I.P.
    Join Date
    Nov 2002
    Location
    Shipai
    Posts
    31,147
    ill send you a newer version on msn now, let me know if it still shows vdimm wrong

  12. #12
    Team ID - Indonesia
    Join Date
    Oct 2003
    Location
    Jakarta - Indonesia
    Posts
    832

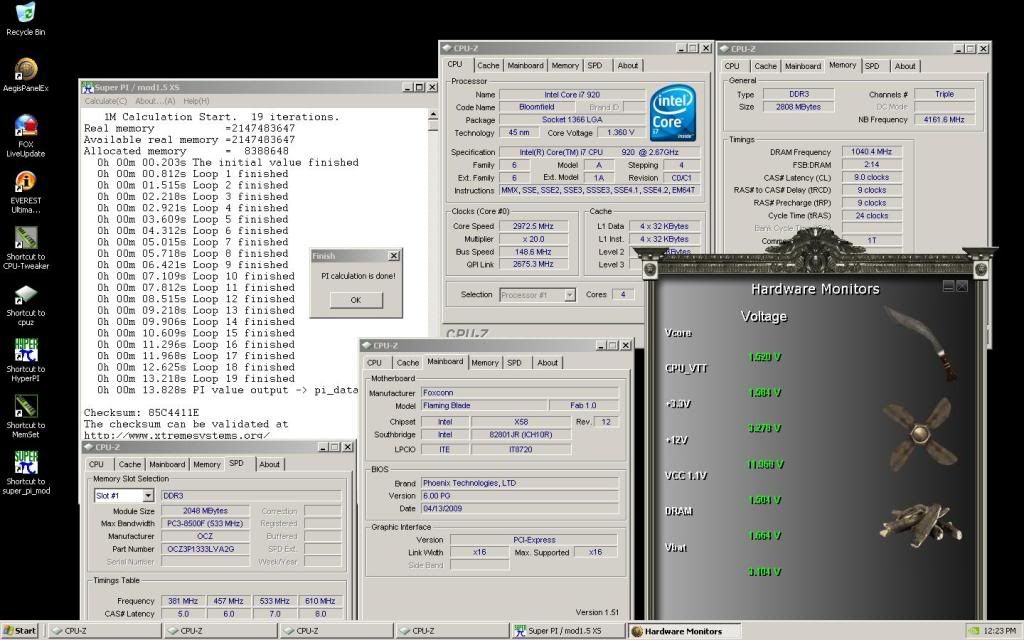

    Look at this screenshot, show 1.65v already :




    Maks Pi 1M DDR3-2080 CAS 9-9-9



    Max Clock

    http://valid.canardpc.com/show_oc.php?id=555890

  13. #13
    Crunch-Fu Adept
    Join Date
    Sep 2005
    Location
    Czech Rep.
    Posts
    1,485
    hey, I just bought OCZ Platinum 3x2GB 1600 C7 bad boys. Wonder if their the same. But so far 100% Linpack + Memtest stable 1820 8-8-8 and I'll try higher once I get back to my rig. Cpu 1,2 VTT 1,34 MEM 1,68

    Benny, what's your cpu and VTT voltage on the 1800 and 1866 runs?

    We should try some action with higher voltage on the memory
    Last edited by Aerou; 04-29-2009 at 04:58 AM.
    Sometimes a good slap in the face is all you need

    Bios my arss.....
    I can fix this problem with a hardware mod....
    Hipro5


    "Overclock till death. Overclocking is life." Hipro5

  14. #14
    Xtreme Addict
    Join Date
    Aug 2007
    Location
    Greece
    Posts
    1,692
    Excellent memory performance for only a hundred buck !

    Benny what's your experience from Foxconn Flaming Blade GTI so far ?

  15. #15
    Team ID - Indonesia
    Join Date
    Oct 2003
    Location
    Jakarta - Indonesia
    Posts
    832
    Quote Originally Posted by [XC] Aerosupra View Post
    hey, I just bought OCZ Platinum 3x2GB 1600 C7 bad boys. Wonder if their the same. But so far 100% Linpack + Memtest stable 1820 8-8-8 and I'll try higher once I get back to my rig. Cpu 1,2 VTT 1,34 MEM 1,68

    Benny, what's your cpu and VTT voltage on the 1800 and 1866 runs?

    We should try some action with higher voltage on the memory
    1800 and 1866 around 1.45 to 1.5v

    Quote Originally Posted by George_o/c View Post
    Excellent memory performance for only a hundred buck !

    Benny what's your experience from Foxconn Flaming Blade GTI so far ?
    So far max stable blk 208 Mhz on air, but i use crappy CPU .. must wait for my i920 D0 next week and see how's going.

    And btw i'm using Flaming Blade not GTI, i like this board, the layout, BIOS and stability. But still some issue about the BIOS, i hope the engineers can fix it soon.

  16. #16
    Xtreme Addict
    Join Date
    Aug 2004
    Location
    Austin, TX
    Posts
    1,346
    Awesome, nice to see the Animal RAM doing so well! I picked up a set after RyderOCZ urged me to do so. Plus, a $10 MWAVE.COM coupon + $20 MIR made the deal so much sweeter

    I can't test it yet since I'm looking for a budget high performance motherboard. I'm very interested in the Flaming Blade for this reason. Can you post your experiences in this thread that I started in the Intel hw section? Thanks!

    http://www.xtremesystems.org/forums/...d.php?t=223477
    oh man

  17. #17
    Xtreme Enthusiast
    Join Date
    Dec 2006
    Location
    Dallas, TX
    Posts
    565
    Quote Originally Posted by Hazzan View Post
    I think chipset same Blade PC 2000C9 look at that PCB same with Blade Series...

    The ram does have these chips

    ---------------------------------------------------------------------------------------------------------------
    MV-G
    3770K 5.00
    7970 1200/1700
    GSkill 2400
    Seasonic Platinum 1000
    Silverstone TJ08-E
    - Koolance AC-370 - Swiftech MCP-35X - Phobya Xtreme 200mm Rad - Koolance VID-AR797 -
    ---------------------------------------------------------------------------------------------------------------



    USA National Debt



  18. #18
    /dev/zero
    Join Date
    Nov 2002
    Location
    Germany, Berlin
    Posts
    3,625
    Impressive ram... that's what I call overclocking potential!
    Xtremesystems.org
    i7-4820K * ryba 2-stager + 1-stager * EVGA X79 Dark * 32G Team Xtreem 2666C11 * EVGA GTX 680 SC Sig. * Intel G2 80G * Corsair HX1000 * Lian Li PC-70B * Watercool Heatkiller, EK Fullcover/Backplate for GTX, MCP355 Dual Setup@Koolance RP-402X2, PA120.3+Alphacool 360, Tubing 16/10.


  19. #19
    SSD faster than your HDD
    Join Date
    Feb 2005
    Location
    Kalamazoo, MI
    Posts
    2,627


    The animal is really good stuff guys, some of you have figured out its secret it seems

  20. #20
    Crunch-Fu Adept
    Join Date
    Sep 2005
    Location
    Czech Rep.
    Posts
    1,485
    Quote Originally Posted by RyderOCZ View Post


    The animal is really good stuff guys, some of you have figured out its secret it seems
    Well, it's your fault you put such good stuff in it
    Sometimes a good slap in the face is all you need

    Bios my arss.....
    I can fix this problem with a hardware mod....
    Hipro5


    "Overclock till death. Overclocking is life." Hipro5

  21. #21
    Xtreme Member
    Join Date
    Jul 2006
    Posts
    212
    I dont understand why these sets are so incredible cheap! They are half the price of the other brands in same league... Anyone care to explain why?

    And why do these 1333mhz set go so high in mhz in testing? Why bother going for a 1600mhz set?..

    Also, picking up 2 of these sets, in total 12gb, would it still be easy to OC em? I am thinking about a new i7 920 rig, and choosing ram is giving a problem.

    Also, have someone tried this 12gb set out? http://www.komplett.no/k/ki.aspx?sku=449940

    Most likely going for a Asus P6T Deluxe V2 board.

    EDIT:
    I am not sure about the price, I was thinking I were looking at these ones but were instead looking at the price for OCZ3P1333LV6GK. The A is missing...

    JH_man
    Last edited by JH_man; 05-04-2009 at 09:06 AM.
    Old Comp:
    Antec 182
    Asus Maximus Formula (Bios 1302)
    Q6600 G0 @3.2GHz @ 1.3V (can easily go higher but NB/SB heat is a problem sadly...)
    Ultra 120-Extreme w/Nexus 12cm realsilent fan
    Corsair Dominator TWIN2X PC8500 4GB DDR2 @ stock/400MHz strap, 1:1 with cpu
    XFX Radeon 6950
    1 x WD Raptor X 150GB
    1 x WD Caviar SE 16 750GB
    Corsair HX620
    Vista Ultimate 64bit

  22. #22
    Banned
    Join Date
    Jun 2008
    Location
    Ireland
    Posts
    190
    awesome results :o, im looking at buying some tri channel for my new i7 system, i wonder are ocz using the same chips in the 1600mhz ocz gold as they are in there 2000mhz gold series :S, anyone know ?

  23. #23
    SSD faster than your HDD
    Join Date
    Feb 2005
    Location
    Kalamazoo, MI
    Posts
    2,627
    Guys.. it is a special part.. just for you overclockers.

    High bin.... 1333 price. I pretty much guarantee you will love it

  24. #24
    Xtreme Member
    Join Date
    Oct 2006
    Location
    South Africa
    Posts
    388
    Awesome stuff..

    So which'd be better, the 2000c9s or these?
    920 c0
    6gig Mushkin 1600 6-7-6-18 (Many thanks to TheGoatEater)
    285gtx
    Dfi x58 t3eh6

  25. #25
    SSD faster than your HDD
    Join Date
    Feb 2005
    Location
    Kalamazoo, MI
    Posts
    2,627
    Quote Originally Posted by I34z1k View Post
    Awesome stuff..

    So which'd be better, the 2000c9s or these?
    These.
