Thread: Lian Li V1K+2 evolution (MK I -> II -> III)

  1. #1
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459

    Lian Li V1K+2 evolution (MK I -> II -> III)

    Mark I




    Swiftech Apogee GT
    Swiftech MCW30
    Swiftech MCP350
    Swiftech Micro Res
    Black Ice GTS120
    Swiftech HydrX
    Last edited by Philwong; 02-03-2010 at 09:38 PM.

  2. #2
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459
    Mark II












    Swiftech GTZ
    Swiftech MCW30
    Swiftech MCW60
    Swiftech MCP655B
    Swiftech MCR220
    Black Ice GTS120 x 2
    Feser One
    Last edited by Philwong; 02-03-2010 at 03:39 AM.

  3. #3
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459

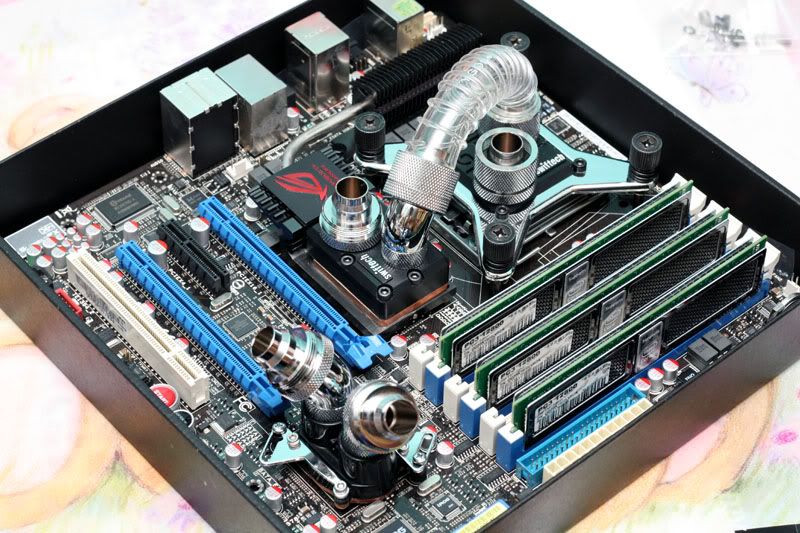

    MK III

    Work in progress.










    Swiftech GTZ
    Swiftech Komodo 5800
    Swiftech MCW-NBMAX
    Swiftech MCW30
    Swiftech MCP655B
    Swiftech MCR220
    Black Ice GTS120 x 2
    Fluid XP+ Eco Earth
    Last edited by Philwong; 02-03-2010 at 03:33 AM.

  4. #4
    Xtreme Member
    Join Date
    Nov 2009
    Location
    Portugal
    Posts
    463
    Good project , i dont like the tubing with the coils and noctua fans dont fit in there very good , you could paint them red or something like that, how did you do the Biohazar symbol? ( Vinyl ?)

    You could also paint the inside of the case.. ( all black)

    Edit: oh its a work in progress looks better now but try to paint the case all black on the inside of it

  5. #5
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459
    MK III configuration is basically introduced for these purposes;

    - Full face block to cool the Asus 5870's VRM
    - Full auto thermal throttling of radiator fans via the Asus R2G and 5870. Two AC F12s are controlled via the CPU PWM header, while another pair is handled by the GFX.
    - Switch from 3/8" to 1/2" tubes using compression barbs and rotary fittings
    - A little bling for the fans

    Phil

  6. #6
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459
    Quote Originally Posted by Raiden View Post
    Good project , i dont like the tubing with the coils and noctua fans dont fit in there very good , you could paint them red or something like that, how did you do the Biohazar symbol? ( Vinyl ?)

    You could also paint the inside of the case.. ( all black)

    Edit: oh its a work in progress looks better now but try to paint the case all black on the inside of it
    Thanks. I'm using acoustic foam to blend in the cables and actually prefer a contrasting silver instead of an all black interior.






    The biohazard artwork is custom airbrushed.


    The upgrade is almost completed except my Orbital Matrix Typhoon GX is down and waiting for RMA. Sigh.

    Phil
    Last edited by Philwong; 02-03-2010 at 03:35 AM.

  7. #7
    Xtreme Enthusiast
    Join Date
    Aug 2007
    Location
    Sweden
    Posts
    722
    Look really nice! 1606 Mhz tho?
    Loonym...You are missed.

    The element of one

    Breathe me in
    Breathe me in

    I disbelieve in separation. I close my eyes to see you.
    This is for you, everything I am. This is for you, take it from me.
    I, I disbelieve separation. I close my eyes
    there's no escaping me
    This is for you, everything I am. This is for you, take it from me.
    In your heart in your soul. I perceive rejuvenation

    Breathe me in. I am forever. Deep within I am eternal.

    I will return to you. I am with you always. I will never turn away from you.

  8. #8
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459
    Quote Originally Posted by Anemic View Post
    Look really nice! 1606 Mhz tho?
    I've enabled SpeedStep in the bios. I only need 4GHz for my games and resource hungry apps, not for web browsing, MS Words, etc. Anyway, that's an outdated shot, my rig is now idling at 2.3GHz.

    Phil

  9. #9
    Xtreme Member
    Join Date
    Feb 2008
    Posts
    155
    I like it so far.

    How many rads are you using?

  10. #10
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459
    Quote Originally Posted by .:R32 View Post
    I like it so far.

    How many rads are you using?
    Thanks. 2 x 120mm + 1 x 240mm.

    Phil

  11. #11
    Xtreme Member
    Join Date
    Feb 2008
    Posts
    155
    Quote Originally Posted by Philwong View Post
    Thanks. 2 x 120mm + 1 x 240mm.

    Phil
    That is very, very impressive in that case!

  12. #12
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459
    Quote Originally Posted by .:R32 View Post
    That is very, very impressive in that case!
    Thanks man. This is about the most optimal layout IMHO without a major rework for the interior.

    Phil

  13. #13
    Assistant Administrator systemviper's Avatar
    Join Date
    Nov 2007
    Location
    Newtown, CT
    Posts
    2,875
    WOW, that is one sweet build!
    HWbot - Team: XtremeSystems
    XS cruncher - Team: XtremeSystems
    OCN Feedback
    HEAT


    *** Being kind is sometimes better then being right.

  14. #14
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459
    Quote Originally Posted by systemviper View Post
    WOW, that is one sweet build!
    Thanks... some night shots.






    Damn that LCD poster's blue backlit is near impossible to mod!!

    Phil
    Last edited by Philwong; 02-05-2010 at 01:31 AM.

  15. #15
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459

    Finally managed to mod it! World's first red Asus LCD poster! :b1:

    Phil

  16. #16
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459

    Show time.

    Phil

  17. #17
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459





    A Matrix Orbital GX Typhoon inverted tri-color to replace my faulty unit. At the "right" viewing angle, the background is supposed to be black, while the text is red. LOL. Just can't get the color right with my cam and too lazy to set custom white balance.

    I love the flexibility of LCD Studio combined with Everest Ultimate plug-in.

    Phil
    Last edited by Philwong; 02-22-2010 at 06:30 AM.

  18. #18
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459




    This is it for my humble project.

    Phil

  19. #19
    Moderator
    Join Date
    Aug 2007
    Location
    Back and forth between Florida and Maine
    Posts
    4,097
    Congrats on completing your "humble" (Not!) project. It really came out nice.


  20. #20
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459
    Quote Originally Posted by shazza View Post
    Congrats on completing your "humble" (Not!) project. It really came out nice.

    Thanks.. too many epic projects here in XS!

    Phil

  21. #21
    Xtreme Member
    Join Date
    Dec 2007
    Location
    Thailand
    Posts
    373
    very nice V1000
    • i7 920 D0
    • Gigabyte X58A-UD3R
    • Corsair Dominator 12GB
    • MSI GTX 660 Ti Power Edition OC 2GB
    • OCZ Vertex 4 128GB
    • WD1002FAEX 1TB
    • Corsair HX850W
    • CaseLabs Magnum TH10
    • Dell UltraSharp U2410
    • Logitech G500
    • SteelSeries QcK Mass
    • Klipsch ProMedia 2.1 THX

  22. #22
    Xtreme Member
    Join Date
    Jul 2006
    Location
    Singapore
    Posts
    459
    Quote Originally Posted by PaRn ssR View Post
    very nice V1000
    Thanks. Please show us your V1K too.

    Phil

  23. #23
    Xtreme Member
    Join Date
    Oct 2008
    Location
    O-VL, Belgium
    Posts
    364
    now that's a neat v1000, bit old skool but nice

    shame its under your desk, it should be on it !
    Duality: Q9550 - P5Q Deluxe - 8GB OCZ - HD5850 - 4,64TB WD - HX650 - X-fi - Aquaero 4 - Lian Li V1000b II Plus @Dual loops watercooling

    Loop 1 => DDC18w w/ EK X-top V2 - EK Supreme HF - EK FC5850 - PA120.3 - Multires 150
    Loop 2 => DDC18w w/ EK X-top V2 - PA120.1 - MIPS mosfet 1&2 - mips NB - Mips Ramfreezer 4 - MIPS SB - Multires 150

  24. #24
    Xtreme Cable Management Freak
    Join Date
    Dec 2008
    Location
    Ontario, Canada
    Posts
    1,304
    2 Questions:

    1. Where did you get that screen and what is it?
    2. how are those fans?

    awesome build btw!
    Project: HeadShot
    Intel i7 3770k | Corsair H100
    EVGA GTX-590 Classified | XSPC GTX 590 Waterblock
    Gigabyte G1.Sniper 2 MotherBoard | Swiftech MCR-320 Res/Rad/Pump
    16GB Corsair Vengeance Low Profile Ram
    Crucial M4 128GB / Intel X25-M 160GB / WD 1TB Black
    Corsair AX850W PSU
    27" Apple Cinema Display (2560x1440)
    Corsair 600t White

    You best be Crunching and Folding/GPUgrid'ing!

  25. #25
    Registered User
    Join Date
    Oct 2009
    Posts
    26
    800d -
    q6600 @ 3.2, Asus p5n-d 750i, 4gb Mushkin ram, Evga 285 Classified, 8800gts for second and third monitor, PC Power and Cooling Silencer 750

    Swiftech gtz, mcr320 & 3x panaflos, mcp355 & xspc top, Bitspower z-multi resivoir, bitspower matt black 1/2
