New Multi-Threaded Pi Program - Faster than SuperPi and PiFast

[poke349]

In an attempt to answer the call for a decent multi-threaded pi program, here's what I've come up with:

y-cruncher: Multi-Threaded Pi-Benchmark for Multi-Core Systems...
2011 World Record for the most digits of Pi ever computed - 10 trillion digits
2010 World Record for the most digits of Pi ever computed - 5 trillion digits

60x faster than SuperPi on Core i7 for 32M Pi.
5x faster than PiFast 4.3 on Core i7 for 10m Pi.
32M Pi in 6.273 seconds on 4.53 GHz Core i7 980X.
1 billion digits in 3 minutes, 28 seconds on 4.8 GHz Core i7 3930K.

Latest Version: v0.5.5.9180 (fix 2) Now with support for AVX instructions!
Backward-compatibility is maintained for x64 SSE4.1, x64 SSE3, x86 SSE3, and x86.

The benchmark is also available for 64-bit Linux.



Warning... This program can be more intensive than prime95.
Version 0.4.3 stress test runs hotter than both prime95 and Linpack on Core i7 with HT enabled.
We've had our first dead motherboard as a result of this program.
So watch your hardware if your overclock is borderline unsafe under prime95 and Linpack.


Download:
http://www.numberworld.org/y-cruncher/


This is NOT another HyperPi-like program that runs multiple computations to satisfy all cores.
This program uses multiple cores to compute a SINGLE result - much faster.

Multi-threading improves computation speeds by up to:

• 4.3 x on Core i7 920 (4 cores + Hyper Threading) ----- (Updated 10/23/2009: v0.4.3 scales better than v0.4.2 on Core i7.)
• 3.9 x on Phenom II X4 (4 cores)
• 3.7 x on Core 2 Extreme QX9770 (4 cores)
• 7.0 x on 2 x Xeon X5482 (8 cores)

Note: Speed MAY NOT be consistent between versions.
Each version may be faster or slower than the previous. (usually faster)
However, I will make it very clear whether or not each new release is speed consistent with the previous version.


Benchmark Results: Where do YOU stand? Post your benchmarks!!!
(Last updated: 6/19/2012)

Versions of different speeds are color-coded accordingly:
Grey = v0.2.1 - v0.3.1, 0% - 8% faster than v0.1.0 depending on # of threads.
Black = v0.3.2, ~2% slower to 3% faster than previous depending on computation size and # of threads.
Red = v0.4.1 - v0.4.2, ~2 - 6% faster than previous.
Magenta = v0.4.3 - v0.4.4, 0 - ~20% faster than previous.
Yellow = v0.5.2, 2 - 12% faster than previous.
Orange = v0.5.3 - v0.5.4, 10% - 15% faster than previous depending on computation size.
Green = v0.5.5, ~1% faster without AVX. 5 - 15% faster with AVX.
Blue = v0.6.1, ~10 - 15% faster


Color-codes for different class of systems:
Green = Single-Processor
Purple = 2 Processors
Red = 4 or more Processors

Underline = Not Overclocked


All times are in seconds.

----------------------------------------------------------------------------------------------------------------------------------------------------------------
Small Benchmarks

25,000,000 digits:

See all results: http://www.numberworld.org/y-crunche...harts/25m.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
3.606 - v0.5.5 x64 AVX ~ Hina - CARDB0ARDfoxx - Intel Core i7 3930K @ 4.95 GHz - 16 GB DDR3
3.849 - v0.5.3 x64 SSE4.1 ~ Ushio - sRHunt3r - 2 x Intel Xeon X5680 Westmere-EP @ 4.30 GHz - 12 GB DDR3
3.895 - v0.5.5 x64 AVX ~ Hina - SpeedwayNative - Intel Core i7 2600K @ 5.40 GHz - 4 GB DDR3 @ ? MHz
3.991 - v0.5.5 x64 AVX ~ Hina - AngryChief - Intel Core i7 3930K @ 4.90 GHz - 64 GB DDR3
4.059 - v0.6.1 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.6 GHz - 16 GB DDR3 @ 1333 MHz
4.344 - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5680 Westmere-EP @ 3.33 GHz - 96 GB DDR3 @ 1066 MHz
4.402 - v0.5.5 x64 AVX ~ Hina - LagunaX - Intel Core i7 2600K @ 4.90 GHz - 4 GB DDR3
4.463 - v0.4.4 x64 SSE4.1 ~ Ushio - Movieman - 2 x Intel Xeon X5680 Westmere-EP @ 4.29 GHz - 12 GB DDR3
4.495 - v0.5.5 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.90 GHz - 16 GB DDR3 @ 1333 MHz
4.755 - v0.5.5 x64 SSE4.1 ~ Ushio - NapalmV5 - Intel Core i7 980X @ 4.72 GHz - 6 GB DDR3 @ 2050 MHz
5.051 - v0.5.4 x64 SSE4.1 ~ Ushio - hlonipha - Intel Core i7 980X @ 4.63 GHz - 6 GB DDR3 @ 1914 MHz
5.062 - v0.5.4 x64 SSE4.1 ~ Ushio - tet5uo - Intel Core i7 980X @ 4.48 GHz - ? GB DDR3 @ 2000 MHz
5.625 - v0.5.4 x64 SSE4.1 ~ Ushio - alpha754293 - Intel Core i7 980X @ 4.00 GHz - 24 GB DDR3 @ 1333 MHz
5.833 - v0.5.4 x64 SSE4.1 ~ Ushio - amrgb - Intel Core i7 950 @ 4.39 GHz - 24 GB DDR3 @ 1830 MHz
6.273 - v0.4.4 x64 SSE4.1 ~ Ushio - rge - Intel Core i7 950 @ 4.83 GHz (no turbo)


50,000,000 digits:

See all results: http://www.numberworld.org/y-crunche...harts/50m.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
6.888 - v0.5.5 x64 AVX ~ Hina - CARDB0ARDfoxx - Intel Core i7 3930K @ 4.95 GHz - 16 GB DDR3
7.110 - v0.5.5 x64 AVX ~ Hina - AngryChief - Intel Core i7 3930K @ 4.90 GHz - 64 GB DDR3
7.585 - v0.5.3 x64 SSE4.1 ~ Ushio - sRHunt3r - 2 x Intel Xeon X5680 Westmere-EP @ 4.30 GHz - 12 GB DDR3
8.421 - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5680 Westmere-EP @ 3.33 GHz - 96 GB DDR3 @ 1066 MHz
8.673 - v0.6.1 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.6 GHz - 16 GB DDR3 @ 1333 MHz
8.796 - v0.4.4 x64 SSE4.1 ~ Ushio - Movieman - 2 x Intel Xeon X5680 Westmere-EP @ 4.2 GHz - 12 GB DDR3
9.379 - v0.5.5 x64 AVX ~ Hina - LagunaX - Intel Core i7 2600K @ 4.90 GHz - 4 GB DDR3
10.355 - v0.5.4 x64 SSE4.1 ~ Ushio - tet5uo - Intel Core i7 980X @ 4.48 GHz - ? GB DDR3 @ 2000 MHz
11.964 - v0.5.4 x64 SSE4.1 ~ Ushio - alpha754293 - Intel Core i7 980X @ 4.00 GHz - 24 GB DDR3 @ 1333 MHz
12.583 - v0.4.4 x64 SSE4.1 ~ Ushio - jcool - Intel Xeon X5650 Westmere-EP @ 3.82 GHz (4.2 GHz Turbo Boost)
12.791 - v0.5.4 x64 SSE4.1 ~ Ushio - amrgb - Intel Core i7 950 @ 4.39 GHz - 24 GB DDR3 @ 1830 MHz
12.831 - v0.5.3 x64 SSE4.1 ~ Ushio - pleskinen - Intel Core i7 920 @ 4.15 GHz (4.36 GHz Turbo Boost) - 6 GB DDR3 @ 1600 MHz
13.513 - v0.5.3 x64 SSE4.1 ~ Kasumi - mAJORD - AMD Phenom II X6 1055T @ 4.19 GHz - 4 GB DDR3 @ 1600 MHz
13.533 - v0.4.4 x64 SSE4.1 ~ Ushio - rge - Intel Core i7 950 @ 4.83 GHz (no turbo)


100,000,000 digits:

See all results: http://www.numberworld.org/y-crunche...arts/100m.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
14.512 - v0.5.3 x64 SSE4.1 ~ Ushio - sRHunt3r - 2 x Intel Xeon X5680 Westmere-EP @ 4.30 GHz - 12 GB DDR3
14.895 - v0.5.5 x64 AVX ~ Hina - CARDB0ARDfoxx - Intel Core i7 3930K @ 4.95 GHz - 16 GB DDR3
15.215 - v0.5.5 x64 AVX ~ Hina - AngryChief - Intel Core i7 3930K @ 4.90 GHz - 64 GB DDR3
16.285 - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5680 Westmere-EP @ 3.33 GHz - 96 GB DDR3 @ 1066 MHz
16.689 - v0.4.4 x64 SSE4.1 ~ Ushio - Movieman - 2 x Intel Xeon X5680 Westmere-EP @ 4.2 GHz - 12 GB DDR3
19.093 - v0.6.1 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.6 GHz - 16 GB DDR3 @ 1333 MHz
20.857 - v0.5.5 x64 AVX ~ Hina - LagunaX - Intel Core i7 2600K @ 4.90 GHz - 4 GB DDR3
22.506 - v0.5.4 x64 SSE4.1 ~ Ushio - tet5uo - Intel Core i7 980X @ 4.48 GHz - ? GB DDR3 @ 2000 MHz
26.055 - v0.5.4 x64 SSE4.1 ~ Ushio - alpha754293 - Intel Core i7 980X @ 4.00 GHz - 24 GB DDR3 @ 1333 MHz
26.935 - v0.4.4 x64 SSE4.1 ~ Ushio - jcool - Intel Xeon X5650 Westmere-EP @ 3.82 GHz (4.2 GHz Turbo Boost)
27.954 - v0.5.4 x64 SSE4.1 ~ Ushio - amrgb - Intel Core i7 950 @ 4.39 GHz - 24 GB DDR3 @ 1830 MHz
28.030 - v0.5.2 x64 SSE4.1 ~ Ushio - tj_jackson - 2 x Intel Xeon X5550 Gainestown @ 2.66 GHz
28.493 - v0.5.3 x64 SSE4.1 ~ Ushio - pleskinen - Intel Core i7 920 @ 4.15 GHz (4.36 GHz Turbo Boost) - 6 GB DDR3 @ 1600 MHz
29.053 - v0.5.3 x64 SSE4.1 ~ Kasumi - mAJORD - AMD Phenom II X6 1055T @ 4.19 GHz - 4 GB DDR3 @ 1600 MHz


250,000,000 digits:

See all results: http://www.numberworld.org/y-crunche...arts/250m.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
38.582 - v0.5.3 x64 SSE4.1 ~ Ushio - sRHunt3r - 2 x Intel Xeon X5680 Westmere-EP @ 4.30 GHz - 12 GB DDR3
42.435 - v0.5.5 x64 AVX ~ Hina - CARDB0ARDfoxx - Intel Core i7 3930K @ 4.95 GHz - 16 GB DDR3
43.642 - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5680 Westmere-EP @ 3.33 GHz - 96 GB DDR3 @ 1066 MHz
43.660 - v0.4.4 x64 SSE4.1 ~ Ushio - Movieman - 2 x Intel Xeon X5680 Westmere-EP @ 4.2 GHz - 12 GB DDR3
43.971 - v0.5.5 x64 AVX ~ Hina - AngryChief - Intel Core i7 3930K @ 4.80 GHz - 64 GB DDR3
55.991 - v0.6.1 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.6 GHz - 16 GB DDR3 @ 1333 MHz
60.601 - v0.5.4 x64 SSE4.1 ~ Ushio - hlonipha - Intel Core i7 980X @ 4.61 GHz - 6 GB DDR3
62.434 - v0.5.4 x64 SSE4.1 ~ Ushio - tet5uo - Intel Core i7 980X @ 4.48 GHz - ? GB DDR3 @ 2000 MHz
65.184 - v0.5.5 x64 AVX ~ Hina - theELVISCERATOR - Intel Core i7 2600K @ 4.50 GHz - 4 GB DDR3 @ 1600 MHz
65.510 - v0.5.2 x64 SSE4.1 ~ Ushio - external* - 4 x Intel Xeon X7560 Beckton @ 2.27 GHz - 128 GB DDR3 @ 1066 MHz
72.584 - v0.5.4 x64 SSE4.1 ~ Ushio - alpha754293 - Intel Core i7 980X @ 4.00 GHz - 24 GB DDR3 @ 1333 MHz
73.908 - v0.4.4 x64 SSE4.1 ~ Ushio - jcool - Intel Xeon X5650 Westmere-EP @ 3.82 GHz (4.2 GHz Turbo Boost)
75.734 - v0.5.2 x64 SSE4.1 ~ Ushio - tj_jackson - 2 x Intel Xeon X5550 Gainestown @ 2.66 GHz


----------------------------------------------------------------------------------------------------------------------------------------------------------------
Large Benchmarks (64-bit is required to use more than 2GB of ram.)

500,000,000 digits:
5002477883 0364214864 5906800532 7052368734 3293261427 : 500,000,000

Required Memory:
Ram Only: 2.49 GB ram
Basic Swap: 1.11 GB ram + 1.18 GB disk
Advanced Swap: minimum ~136 MB ram (user selectable) + 2.39 GB disk

See all results: http://www.numberworld.org/y-crunche...arts/500m.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
79.311 - v0.5.3 x64 SSE4.1 ~ Ushio - sRHunt3r - 2 x Intel Xeon X5680 Westmere-EP @ 4.30 GHz - 12 GB DDR3
91.083 - v0.4.4 x64 SSE4.1 ~ Ushio - Movieman - 2 x Intel Xeon X5680 Westmere-EP @ 4.2 GHz - 12 GB DDR3
93.078 - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5680 Westmere-EP @ 3.33 GHz - 96 GB DDR3 @ 1066 MHz
94.758 - v0.5.5 x64 AVX ~ Hina - AngryChief - Intel Core i7 3930K @ 4.80 GHz - 64 GB DDR3
119.003 - v0.5.2 x64 SSE4.1 ~ Ushio - external* - 4 x Intel Xeon X7560 Beckton @ 2.27 GHz - 128 GB DDR3 @ 1066 MHz
123.437 - v0.6.1 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.6 GHz - 16 GB DDR3 @ 1333 MHz
126.367 - v0.5.4 x64 SSE4.1 ~ Ushio - hlonipha - Intel Core i7 980X @ 4.59 GHz - 6 GB DDR3 @ 1995 MHz
135.432 - v0.5.4 x64 SSE4.1 ~ Ushio - tet5uo - Intel Core i7 980X @ 4.48 GHz - ? GB DDR3 @ 2000 MHz
158.177 - v0.4.4 x64 SSE4.1 ~ Ushio - jcool - Intel Xeon X5650 Westmere-EP @ 3.82 GHz (4.2 GHz Turbo Boost) - ? DDR3
159.800 - v0.5.4 x64 SSE4.1 ~ Ushio - alpha754293 - Intel Core i7 980X @ 4.00 GHz - 24 GB DDR3 @ 1333 MHz
163.128 - v0.5.2 x64 SSE4.1 ~ Ushio - tj_jackson - 2 x Intel Xeon X5550 Gainestown @ 2.66 GHz - 12 GB DDR3
177.855 - v0.5.4 x64 SSE4.1 ~ Ushio - amrgb - Intel Core i7 950 @ 4.39 GHz - 24 GB DDR3 @ 1830 MHz


1,000,000,000 digits:
7139868209 3196353628 2046127557 1517139511 5275045519 : 1,000,000,000

Required Memory:
Ram Only: 4.88 GB ram
Basic Swap: 2.12 GB ram + 2.36 GB disk
Advanced Swap: minimum ~176 MB ram (user selectable) + 4.79 GB disk

See all results: http://www.numberworld.org/y-crunche...charts/1b.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
174.470 - v0.5.3 x64 SSE4.1 ~ Ushio - sRHunt3r - 2 x Intel Xeon X5680 Westmere-EP @ 4.30 GHz - 12 GB DDR3
193.893 - v0.4.4 x64 SSE4.1 ~ Ushio - Movieman - 2 x Intel Xeon X5680 Westmere-EP @ 4.2 GHz - 12 GB DDR3
202.487 - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5680 Westmere-EP @ 3.33 GHz - 96 GB DDR3 @ 1066 MHz
208.226 - v0.5.5 x64 AVX ~ Hina - AngryChief - Intel Core i7 3930K @ 4.80 GHz - 64 GB DDR3
223.769 - v0.5.2 x64 SSE4.1 ~ Ushio - external* - 4 x Intel Xeon X7560 Beckton @ 2.27 GHz - 128 GB DDR3 @ 1066 MHz
278.945 - v0.6.1 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.6 GHz - 16 GB DDR3 @ 1333 MHz
279.048 - v0.5.5 x64 AVX ~ Hina - st0ned - Intel Core i7 2600K @ 5.2 GHz - 8 GB DDR3 @ 2133 MHz
281.317 - v0.5.5 x64 SSE4.1 ~ Ushio - NapalmV5 - Intel Core i7 980X @ 4.72 GHz - 6 GB DDR3 @ 2050 MHz
302.847 - v0.5.4 x64 SSE4.1 ~ Ushio - tet5uo - Intel Core i7 980X @ 4.48 GHz - ? GB DDR3 @ 2000 MHz
303.717 - v0.6.1 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.2 GHz - 16 GB DDR3 @ 1333 MHz
344.698 - v0.4.4 x64 SSE4.1 ~ Ushio - jcool - Intel Xeon X5650 Westmere-EP @ 3.82 GHz (4.2 GHz Turbo Boost) - ? GB DDR3
352.537 - v0.5.2 x64 SSE4.1 ~ Ushio - tj_jackson - 2 x Intel Xeon X5550 Gainestown @ 2.66 GHz - 12 GB DDR3
353.819 - v0.5.4 x64 SSE4.1 ~ Ushio - alpha754293 - Intel Core i7 980X @ 4.00 GHz - 24 GB DDR3 @ 1333 MHz
392.506 - v0.5.5 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz
403.010 - v0.5.4 x64 SSE4.1 ~ Ushio - amrgb - Intel Core i7 950 @ 4.30 GHz - 24 GB DDR3 @ 1790 MHz


2,500,000,000 digits:
9228502005 4677489552 2459688725 5242233502 7255998083 : 2,500,000,000

Required Memory:
Ram Only: 11.6 GB ram
Basic Swap: 5.09 GB ram + 6.01 GB disk
Advanced Swap: minimum ~146 MB ram (user selectable) + 11.5 GB disk

See all results: http://www.numberworld.org/y-crunche...arts/2.5b.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
552.673 - v0.5.2 x64 SSE4.1 ~ Ushio - external* - 4 x Intel Xeon X7560 Beckton @ 2.27 GHz - 128 GB DDR3 @ 1066 MHz
553.103 - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5680 Westmere-EP @ 3.33 GHz - 96 GB DDR3 @ 1066 MHz
560.151 - v0.5.5 x64 AVX ~ Hina - AngryChief - Intel Core i7 3930K @ 4.80 GHz - 64 GB DDR3
794.004 - v0.6.1 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.4 GHz - 16 GB DDR3 @ 1333 MHz
956.499 - v0.4.4 x64 SSE4.1 ~ Ushio - jcool - Intel Xeon X5650 Westmere-EP @ 3.82 GHz (4.2 GHz Turbo Boost)
965.318 - v0.5.4 x64 SSE4.1 ~ Ushio - alpha754293 - Intel Core i7 980X @ 4.00 GHz - 24 GB DDR3 @ 1333 MHz
1,109.92 - v0.5.4 x64 SSE4.1 ~ Ushio - amrgb - Intel Core i7 950 @ 4.30 GHz - 24 GB DDR3 @ 1790 MHz
1,110.67 - v0.5.3 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz
1,257.51 - v0.5.2 x64 SSE3 ~ Kasumi - skycrane - 4 x AMD Opteron 8356 Barcelona @ 2.31 GHz - 16 GB DDR2
1,388.96 - v0.4.4 x64 SSE4.1 ~ Ushio - mk_dir - 2 x Intel Xeon E5520 Gainestown @ 2.26 GHz - 24 GB DDR3
1,956.60 - v0.4.4 x64 SSE3 - Alpha - 2 x Intel Xeon E5320 Clovertown @ 2.33 GHz - 16 GB DDR2
2,405.00 - v0.4.2 x64 SSE3 - SamHughe - Intel Xeon W3520 @ 2.66 GHz - 12 GB DDR3


----------------------------------------------------------------------------------------------------------------------------------------------------------------
Memory Monsters ()

5,000,000,000 digits:
0914971996 1298184401 9216126684 9425834935 5440797257 : 5,000,000,000

Required Memory:
Ram Only: 23.1 GB ram
Basic Swap: 10.0 GB ram + 12.0 GB disk
Advanced Swap: minimum ~195 MB ram (user selectable) + 23.0 GB disk

See all results: http://www.numberworld.org/y-crunche...charts/5b.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
1,143.75 - v0.5.2 x64 SSE4.1 ~ Ushio - external* - 4 x Intel Xeon X7560 Beckton @ 2.27 GHz - 128 GB DDR3 @ 1066 MHz
1,218.79 - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5680 Westmere-EP @ 3.33 GHz - 96 GB DDR3 @ 1066 MHz
1,230.62 - v0.5.5 x64 AVX ~ Hina - AngryChief - Intel Core i7 3930K @ 4.80 GHz - 64 GB DDR3
2,056.50 - v0.5.4 x64 SSE3 ~ Kasumi - alpha754293 - 4 x AMD Opteron 6174 @ 2.20 GHz - 64 GB DDR3 @ 1333 MHz
2,157.53 - v0.5.4 x64 SSE3 ~ Kasumi - (external) - 4 x AMD Opteron 8435 Istanbul @ 2.61 GHz - 32 GB DDR2?
2,448.68 - v0.5.3 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz
2,583.18 - v0.5.4 x64 SSE4.1 ~ Ushio - amrgb - Intel Core i7 950 @ 4.30 GHz - 24 GB DDR3 @ 1790 MHz
2,839.55 - v0.4.4 x64 SSE4.1 ~ Ushio - mk_dir - 2 x Intel Xeon E5520 Gainestown @ 2.26 GHz - 24 GB DDR3
3,178.09 - v0.5.3 x64 SSE3 ~ Kasumi - skycrane - 4 x AMD Opteron 8356 Barcelona @ 2.31 GHz - 32 GB DDR2
8,656.55 - v0.5.3 x64 SSE3 ~ Kasumi - CRFX - AMD Phenom II X4 940 @ 3.5 GHz - 8 GB DDR2 (Advanced Swap: Ram = 6.89 GB, HDs = 150 GB VelociRaptor + 34 GB Raptor + 1 TB WD + 500 GB WD)


10,000,000,000 digits:
9403994581 8580686529 2375008092 3106244131 4758821220 : 10,000,000,000

Required Memory:
Ram Only: 46.1 GB ram
Basic Swap: 20.1 GB ram + 24.0 GB disk
Advanced Swap: minimum ~294 MB ram (user selectable) + 46.1 GB disk

See all results: http://www.numberworld.org/y-crunche...harts/10b.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
2,121.99 - v0.5.5 x64 SSE3 ~ Kasumi - Sheik - 4 x AMD Opteron 6168 @ 1.90 GHz - 64 GB DDR3 @ 1333 MHz
2,276.57 - v0.5.2 x64 SSE4.1 ~ Ushio - external* - 4 x Intel Xeon X7560 Beckton @ 2.27 GHz - 128 GB DDR3 @ ? MHz
2,683.43 - v0.5.5 x64 AVX ~ Hina - AngryChief - Intel Core i7 3930K @ 4.80 GHz - 64 GB DDR3
2,721.37 - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5680 Westmere-EP @ 3.33 GHz - 96 GB DDR3 @ 1066 MHz
2,802.06 - v0.5.5 x64 AVX ~ Hina - AngryChief - Intel Core i7 3930K @ 4.60 GHz - 64 GB DDR3
3,977.10 - v0.5.4 x64 SSE3 ~ Kasumi - alpha754293 - 4 x AMD Opteron 6174 @ 2.20 GHz - 64 GB DDR3 @ 1333 MHz
4,657.09 - v0.6.1 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz
5,302.97 - v0.5.4 x64 SSE3 (Linux) - [XC] gomeler - 2 x Intel Xeon L5520 Gainestown @ 2.26 GHz - 72 GB DDR3
5,338.61 - v0.5.3 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz
10,544.35 - v0.5.3 x64 SSE3 ~ Kasumi - skycrane - 4 x AMD Opteron 8356 Barcelona @ 2.31 GHz - 32 GB DDR2 (Basic Swap: HDs = ?)
19,213.44 - v0.5.3 x64 SSE3 ~ Kasumi - CRFX - AMD Phenom II X4 940 @ 3.5 GHz - 8 GB DDR2 (Advanced Swap: Ram = 7.03 GB, HDs = 150 GB VelociRaptor + 34 GB Raptor + 1 TB WD + 500 GB WD)


25,000,000,000 digits:
1309759846 5364560010 7388984278 8403481193 9913806533 : 25,000,000,000

Required Memory:
Ram Only: 116 GB ram
Basic Swap: 50.1 GB ram + 59.2 GB disk
Advanced Swap: minimum ~220 MB ram (user selectable) + 116 GB disk

See all results: http://www.numberworld.org/y-crunche...harts/25b.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
1.720 hours - v0.5.2 x64 SSE4.1 ~ Ushio - external* - 4 x Intel Xeon X7560 Beckton @ 2.27 GHz - 128 GB DDR3 @ 1066 MHz
3.908 hours - v0.5.4 x64 SSE3 ~ Kasumi - alpha754293 - 4 x AMD Opteron 6174 @ 2.20 GHz - 128 GB DDR3 @ 1333 MHz
4.292 hours - v0.4.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon W5590 Gainestown @ 3.33 GHz - 72 GB DDR3 (Basic Swap: HDs = ?)
5.333 hours - v0.5.3 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz (Basic Swap: HDs = 1.5 TB + 4 x 1 TB)
14.254 hours - v0.5.3 x64 SSE3 ~ Kasumi - skycrane - 4 x AMD Opteron 8356 Barcelona @ 2.31 GHz - 32 GB DDR2 (Advanced Swap: Ram = 29.6 GB, HDs = ?)
15.817 hours - v0.5.4 x64 SSE4.1 ~ Ushio - amrgb - Intel Core i7 950 @ 4.30 GHz - 24 GB DDR3 @ 1790 MHz (One pause with restart.)


50,000,000,000 digits:
6599559400 3447556105 3766739199 8513398712 7510930042 : 50,000,000,000

Required Memory:
Ram Only: 233 GB ram
Basic Swap: 100 GB ram + 118 GB disk
Advanced Swap: minimum ~343 MB ram (user selectable) + 233 GB disk

See all results: http://www.numberworld.org/y-crunche...harts/50b.html

Top Ten Results: (Limit one per person - excluding unreleased versions)
11.979 hours - v0.5.4 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz (Advanced Swap: Ram = 61.0 GB, HDs = 8 x 2 TB Hitachi)
20.860 hours - v0.5.2 x64 SSE3 ~ Kasumi - (external) - 8 x AMD Opteron 8356 Barcelona @ 2.3 GHz - 144 GB DDR2 (Basic Swap: HDs = FusionIO)
31.182 hours - v0.4.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon W5590 Gainestown @ 3.33 GHz - 72 GB DDR3 (Basic Swap: HDs = ?) + page thrashing


----------------------------------------------------------------------------------------------------------------------------------------------------------------
What are you trying to prove?* (64-bit is required to go above 80 billion digits)
You better have a LOT of hard drives and a LOT of patience to pull these off... This isn't about overclocking anymore.
*Stole this from L4D...

100,000,000,000 digits:
9536515199 6948432428 3185077669 0674614692 0191295669 : 100,000,000,000

Required Memory:
Ram Only: 467 GB ram
Basic Swap: 200 GB ram + 237 GB disk
Advanced Swap: minimum ~387 MB ram (user selectable) + 467 GB disk

17.283 hours - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5650 Westmere-EP @ 2.66 GHz - 144 GB DDR3 @ 800 MHz (Advanced Swap: Ram = 140 GB, HDs = 16 x 2 TB)
24.431 hours - v0.5.2 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon W5590 Gainestown @ 3.33 GHz - 144 GB DDR3 (Advanced Swap: Ram = 140 GB, HDs = 8 x 2 TB)
28.297 hours - v0.5.4 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz (Advanced Swap: Ram = 61.0 GB, HDs = 1.5 TB + 4 x 1 TB + 6 x 2 TB)
28.514 hours - v0.5.4 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz (Advanced Swap: Ram = 61.0 GB, HDs = 8 x 2 TB Hitachi)
31.085 hours - v0.5.3 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz (Advanced Swap: Ram = 60.0 GB, HDs = 1.5 TB + 4 x 1 TB)
36.486 hours - v0.5.5 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.60 GHz - 16 GB DDR3 @ 1333 MHz (Advanced Swap: Ram = 14.4 GB, HDs = 1.5 TB 7200RPM + 4 x 1 TB 7200RPM)
40.025 hours - v0.5.2 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - Intel Core i7 975 @ 4.00 GHz - 12 GB DDR3 (Advanced Swap: Ram = 11.00 GB, HDs = 8 x 1 TB)
46.275 hours - v0.5.3 x64 SSE4.1 ~ Ushio - poke349 - Intel Core i7 920 @ 3.34 GHz (3.5 GHz Turbo Boost) - 12 GB DDR3 @ 1333 MHz (Advanced Swap: Ram = 10.5 GB, HDs = 4 x 2 TB Hitachi)
53.665 hours - v0.5.2 x64 SSE4.1 ~ Ushio - poke349 - Intel Core i7 920 @ 3.34 GHz (3.5 GHz Turbo Boost) - 12 GB DDR3 @ 1333 MHz (Advanced Swap: Ram = 9.00 GB, HDs = 4 x 2 TB Hitachi)
490.722 hours - v0.5.5 x64 SSE3 ~ Kasumi - Jacka - AMD Athlon Neo N36L @ 1.20 GHz - 8 GB (Advanced Swap: Ram = 4.00 GB, HDs = ?)


250,000,000,000 digits:
2663943310 3540041907 7074675913 3026287289 2295830629 : 250,000,000,000

Required Memory:
Ram Only: 1.14 TB ram
Basic Swap: 520 GB ram + 571 GB disk
Advanced Swap: minimum ~851 MB ram (user selectable) + 1.11 TB disk

83.586 hours - v0.5.2 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon W5590 Gainestown @ 3.33 GHz - 144 GB DDR3 (Advanced Swap: Ram = 140 GB, HDs = 8 x 2 TB)

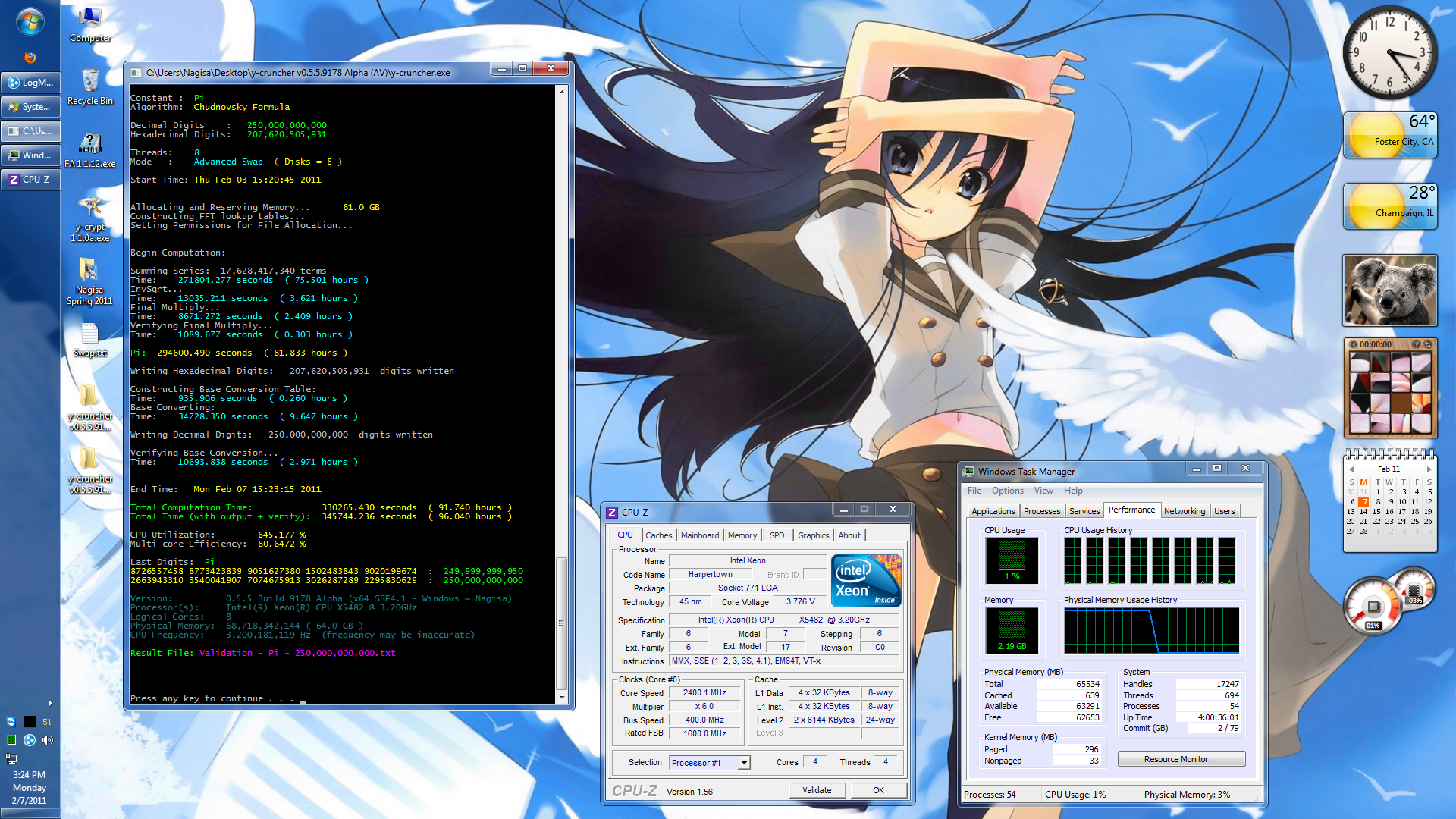

91.740 hours - v0.5.5 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz (Advanced Swap: Ram = 61.0 GB, HDs = 8 x 2 TB)
103.806 hours - v0.5.3 x64 SSE4.1 ~ Nagisa - poke349 - 2 x Intel Xeon X5482 Harpertown @ 3.2 GHz - 64 GB DDR2 @ 800 MHz (Advanced Swap: Ram = 61.0 GB, HDs = 1.5 TB + 4 x 1 TB)

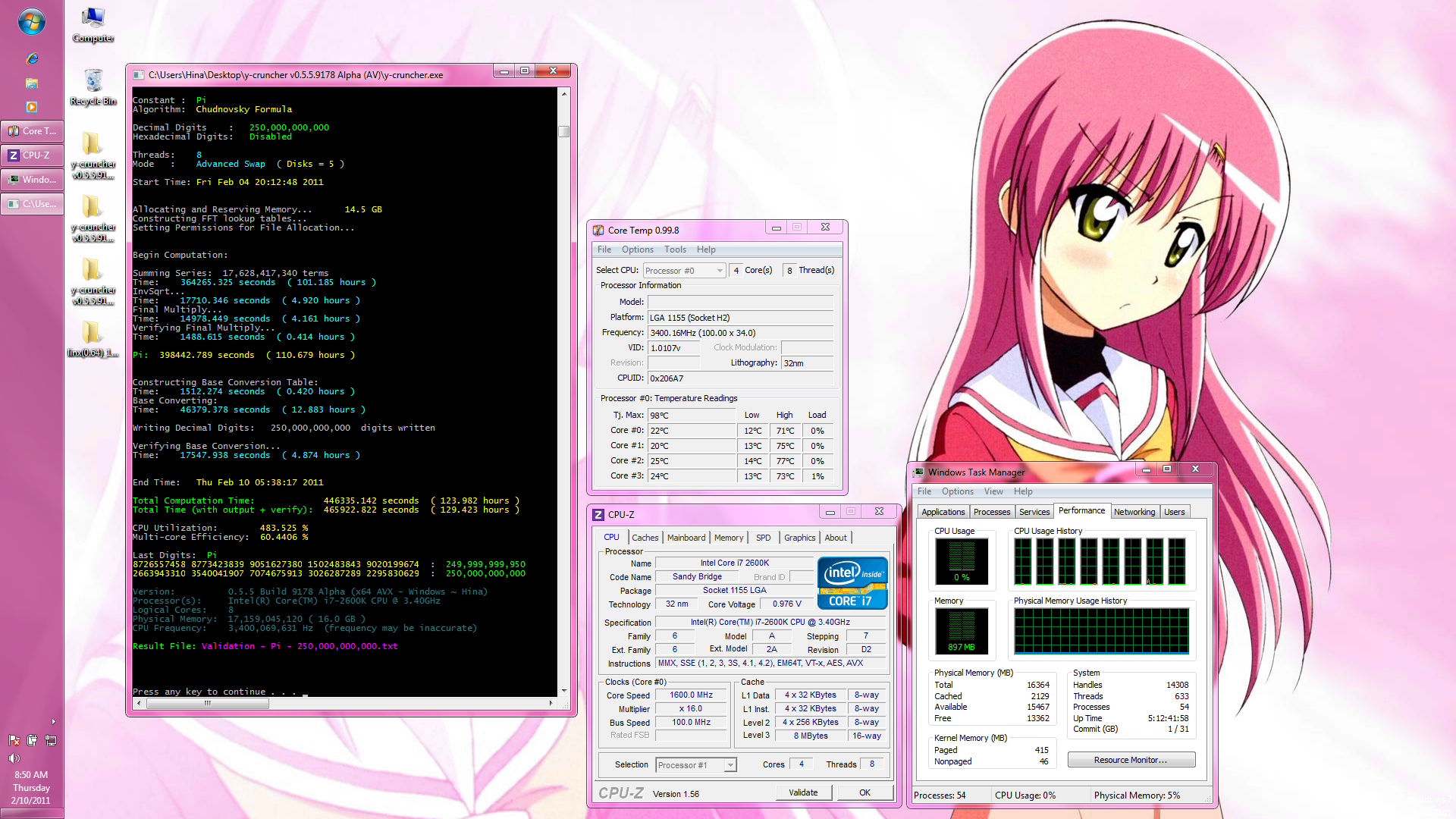

123.982 hours - v0.5.5 x64 AVX ~ Hina - poke349 - Intel Core i7 2600K @ 4.4 GHz - 16 GB DDR3 @ 1333 MHz (Advanced Swap: Ram = 14.5 GB, HDs = 1.5 TB + 4 x 1 TB)
92 days - v0.5.5 x64 SSE3 ~ Kasumi - Jacka - AMD Athlon II Neo N32L @ 1.30 GHz - 8 GB DDR3 (Advanced Swap: Ram = 4.00 GB, HDs = ?)


500,000,000,000 digits:
0505992340 4464069733 2573501014 7391768971 9054201320 : 500,000,000,000

Required Memory:
Ram Only: 2.29 TB ram
Basic Swap: 1.01 TB ram + 1.11 TB disk
Advanced Swap: minimum ~851 MB ram (user selectable) + 2.19 TB disk

172.396 hours - v0.5.2 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon W5590 Gainestown @ 3.33 GHz - 144 GB DDR3 (Advanced Swap: Ram = 140 GB, HDs = 16 x 2 TB)


1,000,000,000,000 digits:
2976735807 0882130902 2460461146 5810642210 6680122702 : 1,000,000,000,000

Required Memory:
Ram Only: 4.60 TB ram
Basic Swap: 2.03 TB ram + 2.23 TB disk
Advanced Swap: minimum ~1.56 GB ram (user selectable) + 4.45 TB disk

12.360 days - v0.5.3 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5650 Westmere-EP @ 2.66 GHz - 96 GB DDR3 @ 1066 MHz (Advanced Swap: Ram = 88.5 GB, HDs = 16 x 2 TB)

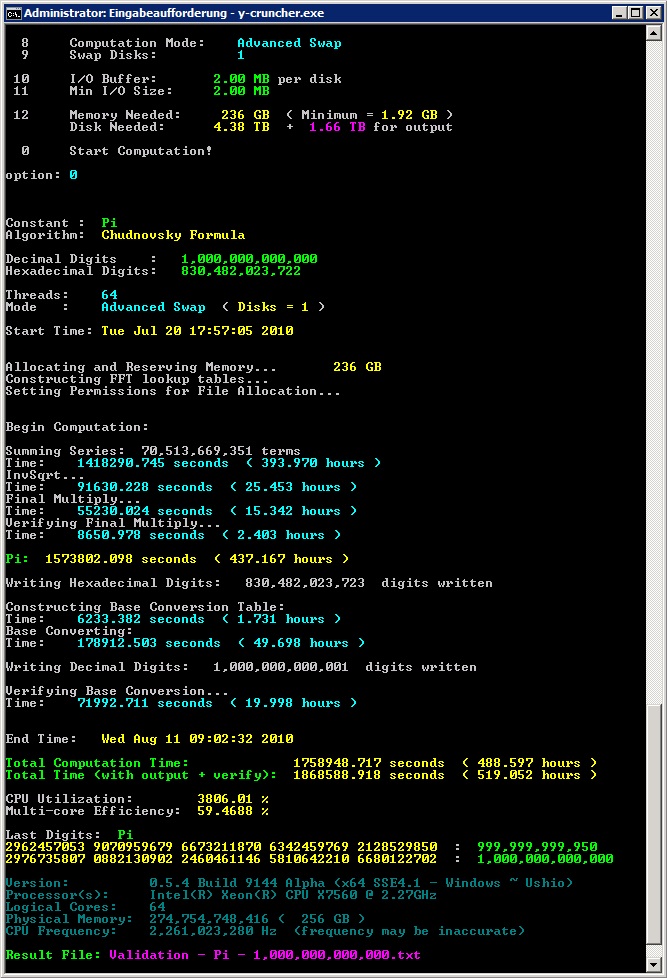

22.358 days - v0.5.4 x64 SSE4.1 ~ Ushio - Andreas Stiller* - 4 x Intel Xeon X7560 Beckton @ 2.27 GHz - 256 GB DDR3 (Advanced Swap: Ram = 236 GB, HDs = ?) - Suboptimal Memory and HD Configuration


2,500,000,000,000 digits:
7023378492 4587524911 1838622539 0987058051 8718886518 : 2,500,000,000,000

Required Memory:
Ram Only: 11.2 TB ram
Basic Swap: 5.00 TB ram + 4.62 TB disk
Advanced Swap: minimum ~3.10 GB ram (user selectable) + 10.8 TB disk

Well... What can I say?


5,000,000,000,000 digits:
6399906735 0873400641 7497120374 4023826421 9484283852 : 5,000,000,000,000

Required Memory:
Ram Only: 22.6 TB ram
Basic Swap: 10.0 TB ram + 9.26 TB disk
Advanced Swap: minimum ~3.71 GB ram (user selectable) + 21.6 TB disk

90.6 days - v0.5.4 x64 SSE4.1 ~ Ushio - Shigeru Kondo* - 2 x Intel Xeon X5680 Westmere-EP @ 3.33 GHz - 96 GB DDR3 @ 1066 MHz (Advanced Swap: Ram = 88.5 GB, HDs = 16 x 2 TB)

*Shigeru Kondo is the actual name of the person. Not a screen name. He does not have an account on XtremeSystems.

[poke349]

2.4 GHz Kentsfield

32m

SuperPi: 1289.29 seconds
PiFast 4.3: 122.41 seconds
QuickPi 4.5 (x86): 58.84 seconds
y-cruncher (x64): 30.357 seconds

64-bit QuickPi surprisingly ran slower than 32-bit.

(click to enlarge)

[Serotoninn]

Hi guys I ran a comparison too computing pi to 32m with a core i7 920 @ 3.2ghz

superpi: 660.614s
pifast 4.3: 77.50s
quickpi x64: 32.95s
y-cruncher x64 16.692s

and not shown on the screenie, quickpi 32bit took 34.35s



y-cruncher = full of win

[poke349]

wth... XS reverted...

Anyways... New version is out! This one has benchmark validation and anti-cheat protection!!!

[ChaosMinionX]

Cool


Checking it out now

[spdycpu]

wth... XS reverted...

Anyways... New version is out! This one has benchmark validation and anti-cheat protection!!!

Wish I had saved all the results posted in this thread.

I'm curious again about a few things:
Do you think you'll maintain a result list?
In the Validation.txt output could you include the time?
Could you bring back the ability to change the number of running threads?
Maybe add an efficiency number (cycles per digit for example)?

For example my work system is an E7200 (Penryn dual core 2.53GHz), here are the results with the x86 SSE3 binary:

Processor(s):   Intel(R) Core(TM)2 Duo CPU E7200 @ 2.53GHz
CPU Frequency:  2,527,040,841 Hz
Thread(s):      2
Digits:         25,000,000
Total Time:     56.4712 seconds
Checksum:       46d5028e60d7bba608077b159b3d8a4b

If we do...
( (CPU Frequency * number of actual cores) * seconds) / digits calculated
we get 11416.4 cycles per digit. Would it be something worth adding you think? The CPD timing would likely only be valid for a set number of digits, but, if people like to test one size (100,000,000 for example) then it could be useful for comparison and tweaking.

What do you think?

[poke349]

About half the old posts are still in the Google cache. Should we grab them and re-post?


Result List:
I'll start by listing them all on this thread (on my first post.)
I'll keep track of the top few times on each size. But I won't split them into different binaries (x86 vs. x64) because that would be too much. (Yes, let 64-bit rule!!!)

Change Threads:
Yes I can bring that back. But it can only have 2 modes: 1 thread, or threads >= cores (first power of 2 that's >= # of cores).
This is because of the way the program uses more threads than selected, so "extra cores" will skew results. There's no way I can enforce CPU affinity.

Efficiency Number:
Yes I can do that. But keep in mind that it won't scale across different sizes and # of cores.
Computing Pi isn't linear. It's roughly O( n*log(n)^3 ). So larger computations will have lower efficiency.
Also, the program doesn't quite scale linearly with the # of cores. So multi-threaded benchmarks will have lower efficiency.



Aside from that:

The next version, will use less memory. 1 billion digits will only require 5.25GB as opposed to 5.98GB of ram in the current release. Which means that it'll be possible for the "standard" Core i7 with 6GB of ram to bench 1 billion digits.

For the "very large" end, 10 billion digits will require 52.9 GB of ram (in the new version). By the looks of it, I "might" be able to squeeze that down to 46GB - which would make it possible for a fully-loaded 12-slot Gainestown server to do. And THAT would be interesting...

Anyways... Post your benchmarks everyone!!!

[moogle]

Anyways... Post your benchmarks everyone!!!

Nice to see a new Pi software finally made

[WhiteFireDragon]

how do you cheat in benching with superpi?

[poke349]

Updated the list of benchmarks with old results (from before the XS revert) and with results from other forums.


Stuff like tampering with the system clock, output tampering... is standard for cheating.

I've made sure none of that will work on y-cruncher.



Also, if everyone copy and pastes the validation text into your posts too. It would make it easier for me to validate.

[tet5uo]

Cool program!

Here's a quick test on my new rig.



It's core i7 @ 4.0gHz with 1600mHz DDR3 (QPI is only stock , oc'ed for 24/7 use with multiplier since It's a 965.)

[poke349]

Interesting... Your benchmark is valid (the checksum is good). But the CPU frequency is wrong... And by the very impressive timing, I can tell it really IS at 4GHz.

I swear there's something wrong with the rdtsc instruction... Because it doesn't detect turbo boost from 3.2 to 3.4 on my friend's computer. (it reports it at 3.2 even with turbo kicked on)

Maybe I'm not using it right.

Problem is: I actually don't know how to fix it. Anyone, by any random chance, know how to do this properly?

[tet5uo]

I'm awful at programming, so not much help here

Is there any way to get this data from the BIOS directly?

I noticed that alot of apps misread my CPU speed, the only thing that seems to get it right is CPU-Z or the EVGA version.

[poke349]

Okay, then I guess I'm not alone...

Would you mind if you try some of the smaller benchmarks?

At 4Ghz, you might be able to beat my dual-Harpertown rig at 25 and 50 mil.

Someone with a 920 OC'ed to 4.1 had a faster 25m and 50m time than my dual-Harpertown rig. But it's gone from the revert and it isn't in the Google cache, so I can't recover it.

[tet5uo]

Sure, I'll run a couple more tests and edit them into this for you.

Thanks for making this program I'm sure we all love to play with new benches

[spdycpu]

I did some runs at 4.1 (20x205) but I'm messing around now at 21x200 w/ turbo mode. As mentioned before it doesn't seem to detect that I'm running at 4.2GHz. I tried 21x205 for 4.3GHz but unfortunately my 2lbs of ice magically disappeared after about 2 seconds. I only managed a single run of 25m:

4.3GHz @ 21x205

Processor(s):   Intel(R) Core(TM) i7 CPU 920 @ 2.67GHz
CPU Frequency:  4,105,000,554 Hz
Thread(s):      8
Digits:         25,000,000
Total Time:     9.56572 seconds
Checksum:       3c277379f4ec9d5316e5b430710d0cbf

Interestingly enough 4.2GHz is stable in Prime95 and Linx, 4.3 just gives me fits however. 4.1GHz seems to run slightly faster in y-cruncher than 4.2GHz, I'd imagine due to the faster L3 and memory. More ice (MUCH more) is in the freezer, I'll try some 4.3GHz runs at 50, 100, 250 tomorrow.

Okay, then I guess I'm not alone...

Would you mind if you try some of the smaller benchmarks?

At 4Ghz, you might be able to beat my dual-Harpertown rig at 25 and 50 mil.

Someone with a 920 OC'ed to 4.1 had a faster 25m and 50m time than my dual-Harpertown rig. But it's gone from the revert and it isn't in the Google cache, so I can't recover it.

[poke349]

Awesomeness... I'll be looking forward to those...

Finally I can kick myself off the top spot for one of the sizes.

I expect to hold the top spot only for the larger sizes... simply because no (overclockable) machine has the memory for it...

I'd love to see someone with dual W5580s and 72GB of ram show up and clean sweep these benchmarks...

Yes, I'll need to put the single-thread mode back in. Otherwise, y-cruncher is going to turn into a who-has-the-most-money server competition... (especially so with the ram requirement)
I don't exactly want to see the top spots being dominated by quad socket Dunningtons of some sort or whatever the new one coming out is... (As is the wprime benchmarks on hwbot...)

[Movieman]

Awesomeness... I'll be looking forward to those...

Finally I can kick myself off the top spot for one of the sizes.

I expect to hold the top spot only for the larger sizes... simply because no (overclockable) machine has the memory for it...

I'd love to see someone with dual W5580s and 72GB of ram show up and clean sweep these benchmarks...

Yes, I'll need to put the single-thread mode back in. Otherwise, y-cruncher is going to turn into a who-has-the-most-money server competition... (especially so with the ram requirement)
I don't exactly want to see the top spots being dominated by quad socket Dunningtons of some sort or whatever the new one coming out is... (As is the wprime benchmarks on hwbot...)

Will dual X5570's do for now?

[poke349]

Are you SERIOUS?!?!?!


Let it roll!!!

You should be able to boot me off of everything you have enough ram for...

[Movieman]

Are you SERIOUS?!?!?!


Let it roll!!!

You should be able to boot me off of everything you have enough ram for...

Just 6 gig..YGPM

[[XC] Hicks121]

Just 6 gig..YGPM

aww come on Dave, lets see it.

[Movieman]

This any good?

[poke349]

Oh wait, use the newest version, v0.3.1.

It has a benchmark mode fully equipped with my "lame" attempt at validation.

Also see if you guys can cheat the times too... I'm no expert in cheating benchmarks so I wouldn't know how to write a decent anti-cheat protection.

[Movieman]

Here's 25M and 50M with the latest version of the app:

[poke349]

Updated Your 25m re-run is slower probably because of normal variation. +/- .1 seconds is very typical for so many threads. (I see it myself on my Harpertowns...)

You should try some of the larger sizes... The program doesn't scale well with multi-threading for small computations.

You'll need to super-size it to at least 250 million before it can bring out the power of those 16-virtual cores.
