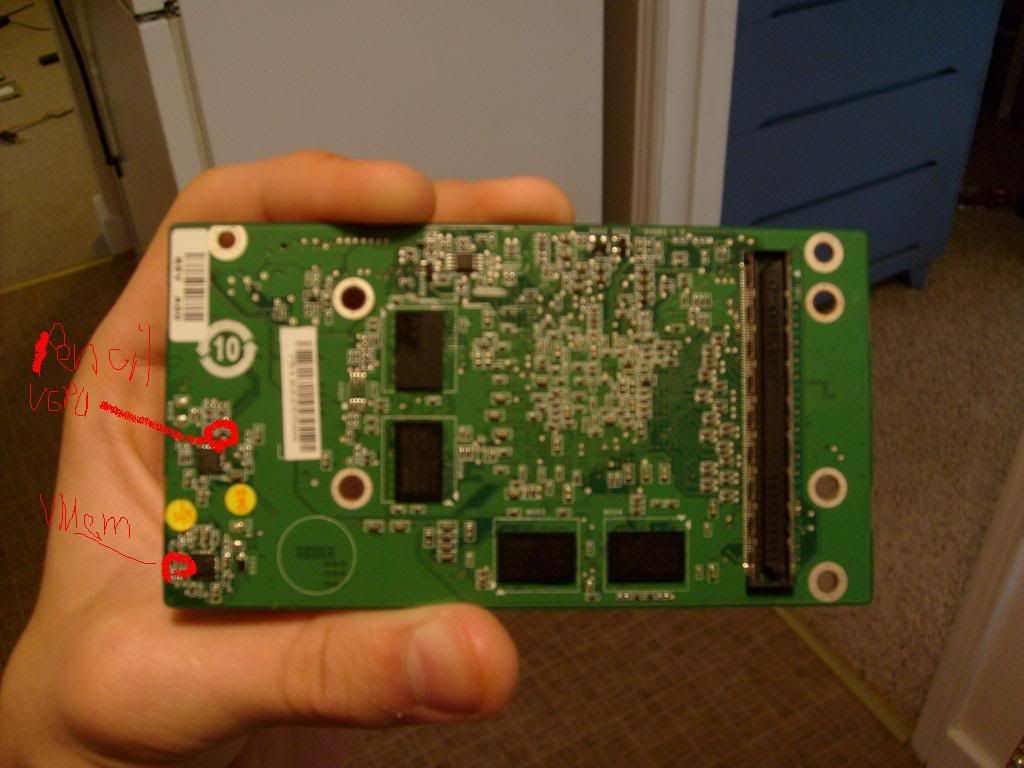

8600m Gt DDR2 for dell vmod, DO AT OWN RISK

[andrew2004gto]

Note: Stock clocks 475/950/400, overclock without vmod: 650/1350/445
With Vmod:685/1566/605 stock: 3dmark: 3300/ overclock: 4100 and vmod: 5250

I can get the gpu alot high with more volts i was up to 910 on the core but it would overheat and was laging because not another power avaliable

[Planet]

Pics arent really all that clear so its hard to see what resistor you should pencil. Also should have taken measurements to see how many ohms you had to lower it to get it to oc better.

[Spectrobozo]

very good result, the memory is 2,5ns?

[andrew2004gto]

Sorry I dont know what kind of memory they were except hynix, im also sorry im not sure which resistors exactly to shade but ill tell you, ok it has two chips and they are exactly the same for the vmem and vgpu, look up its code on google and then find FB pin and follow it to the first resistor and then shade, idk where to test the volt though i was just guessing, taking a chance
