Do you still have your old one?
Some boards looks like they dont like some psu or memory, not just Dfi.
Printable View
Do you still have your old one?
Some boards looks like they dont like some psu or memory, not just Dfi.
yes I have ODIN 800 with me and seems it booted up without a problem. However it fails again once if I pump VTT to 1.37v (vCore @ 1.2375v BIOS ATM)Quote:
Originally Posted by The Water Dog
Has somebody tried a 920 D0 on the new 0805 Beta bios...?
yupp, but my memory destroy every hope about some oc:P
W3520 and 920 D0 works fine.
5/08? Yep.Quote:
Originally Posted by PRJ
DrNip: Are you pleased with Kingston HyperX 2000 on the Dfi?
Have the opportunity to buy a 3x1 sett of them.
Any good for your setup?Quote:
Originally Posted by drnip
I can't use same memmory settings with 5/08.
812 @ 8-8-8-24 1.665 Vdimm ( closes durring 32 MB Superpi )
4/28 and 5/08 are major changes in bioses so settings for memory might change compared to previous bioses.Quote:
Originally Posted by PRJ
Yes, it seems much different, in my case in a bad way.Quote:
Originally Posted by eva2000
Not even@ 812 9-9-9-24 1.665 will it pass superpi 32 Mb :eek:
Must be another factor than ram timings or Vdimm :shrug:
So I got my T3EH8 today and attempted to flash the BIOS to the newest rev:
http://img.photobucket.com/albums/v4...iled_flash.jpg
Note the one block that stands out...
I tried hot-flashing the BIOS using a Supermicro X8STi (I'm currently at work), since it also uses the same BIOS socket type, and it went through without any errors/failed blocks, however my board still functions as though it's bricked when I try to boot using the BIOS chip.
When the green memory DIMMs populated, I get the "C1" POST code (I'm referring to the on-PCB diagnostic LEDs, the system doesn't actually POST on the monitor) and the board makes beeps at me. With the yellow DIMMs populated, I get the "CF" POST code and the board doesn't beep at all. Resetting the CMOS has no effect. The board exhibited this behavior after the bad flash and after the good hot-flash using the Supermicro board. The system seemed to function a-OK before I tried flashing the BIOS.
Looks like I'm going to have call in for a RMA or overnight a new board if I can't get an overnighted cross-ship. :(
Starting from "scratch" with burn-in, and I'm pretty happy with the law Vcore :) . My new air-cooing seams to be handling this HOT babe pretty good too (at least for now with just 1.15v Vcore).
DFI LP UT X58-T3eH8, 05/08 BIOS
Xeon W3520 (# 3848A352)
Prolimatech Megahalems, 2x1200RPM Scythe Slip Stream
3x2GB OCZ 1333MHZ CL7 @1266MHz 6-7-6-22 1.65v
XFX GTX 295 @684/1246/1476
OCZ Vertex V1.10 30G + F1 750GB
Corsair HX 1000W
Vcore: 1.20/1.15v :) (BIOS/Load)
QPI/VVT: 1.24/1.26v
NB Core: 1.13/1.12v
Everything else @Stock/default
EDIT: Prime95 has been running overnight, adding the final picture
@4.01GHZ (211x19) HT:On, 12 hours primestable
http://img10.imageshack.us/img10/209...12hours.th.jpg
This is not the final OC, but just yhe burn inn av this HOT babe. More OC vil be coming ..
I've had great luck with the 3x2 set of Kingston 2000s on the DFI board. Easily overclocked to 2150 mhz at 1.65 volts.Quote:
Originally Posted by The Water Dog
post???Quote:
Originally Posted by Aivas47a
I have everything mounted except for my PSU with this board, W3520 and G.Skill DDR3-2000 memory...hopefully I will have time tonight to put my RAID controller and SSDs into it along with PSU to test it...I hope I can hit 4ghz with low volts...I'm not even looking for some super high overclock...just 4ghz day to day at low volts, is all I want.
@ACE76
I believe you have a good chance to hit @4ghz with a good D0-batch easily.
Yesterday my W3520 surprised me with 12 hours primestablility @4.01GHZ with very low volts , specially very law Vcore 1.15v) :), and did it again today with priming at BCLK 219 with almost everything @stock/default :)
Vcore: 1.25/1.20v (BIOS/Load)
QPI-VVT: 1.24/1.28v
NB Core: 1.13/1.12v
Everything else @stock/default
@4.16GHZ (219x19) HT:on, 1.20v 1 hour primestable
http://img207.imageshack.us/img207/1724/prime8.th.jpg
The system has been running very smooth and i believe it could prime more. 219 seams to be the sweetspot for my CPU, (it seams to need more VVT-volts/tewaks for prime stability at 220+ BCLK). This seams to be the the best I can get with 19x, but the OC is not final and more will be coming ..
I'm more interested in which bios and ram settings are you using. Please share.Quote:
Originally Posted by Aivas47a
Great news Eva, it was the memory:D
I picked up 1024x3 Kingston KHX16000D3ULT( handpicked ), everything was fine when i booted up with them.
180bclk right away, so i will come with some pics. when i have tested the mobo and the memory.
But then we know that, my Dfi UT HATES Takems:down:
And a friend of me tested the same chips( Kingston ) and DFI UT loves them with the new beta-bios.
4/28 bios is working best for me so far for 6GB Kingston HyperX. 226 BCLK boot from bios 1.45vcore 1.37vtt, 1.7vdimm using phase. 5/08 bios would even boot with same settings.
Thanks for the tip Nemesis, i will try 4\28=)
try 211 bclk or 216 to start, I may be booting so high because of phase. I'll post screen shot when I get home.Quote:
Originally Posted by The Water Dog
I just got this board today.
I am having a crap load of problems with it....
BIOS 4/28
The past few hours I have been fighting this board to get it stable at the same clocks that my R2E would do....
But the f*cking thing that is REAALLY pissing me off ATM is that I can only get a 12x multi even with Turbo enabled and EIST enabled in BIOS!! CPU-z is showing a 200x12 and I have no clue WTF is going on.
I would GREATLY appreciate soem help.
Thanks
EDIT: I have BIOS 2/27 installed. I will update BIOs to 4/28 and report back.
You do have power saving set to performance and windows activated this gave me hell too. I switched back to xp on the bench for now.Quote:
Originally Posted by BLHealthy4life
Yes, power is set to performance. I'm on W7 x64 and it hasn't been activated yet.Quote:
Originally Posted by The Nemesis
However, it was running 21x multi earlier, now only 12x!
I'm going to update to 4/28
BL
You might actually be at 21x multi and CPU-z just isn't reading the change with W7
i think its a win7 64bit issue because i have same problem (build 7068) with it but not the 32bit. i downloaded rc 1 from micro$oft but too lazy to install
I'm preparing to drop this board for my bench rig. It simply won't hit high enough bclk for me to reach 5GHz. I tried this chip in my friends classified and hit 5GHz with ease with less cold. Time to join the classified bandwagon I suppose.
http://img29.imageshack.us/img29/5769/4990ghz.jpg
http://valid.canardpc.com/cache/banner/571721.png
Then this would be VERY strange if true. Earlier this evening when I first installed the board, It was reading 21x...now it will not.Quote:
Originally Posted by ecidious
It's not W7 x64 because I've been using it since build 7000 on my R2E and NEVER had this problem....
I have a lot of reading to do about this board...I cannot OC it at all at the moment...any attempts and the board will not POST.
My first impressions of this board aren't very good.
BL
no probs with win7 64bit rc and 21x
lets see how this i7 920 3851A368 D0 handles memory clocking with 10x memory multiplier. First stop at DDR3-2000Mhz 7-8-7-20 1T at 1.65v
Room ambient temp = 25-26C
- Win 7 Ultimate 64bit RC OS used
- Powermate wattage meter reads peak system power consumption of ~620 watts drawn from wall
Linx 0.5.8.2 Load
http://fileshosts.com/intel/DFI/DFI_.../linx_load.png
Linx 0.5.8.2 5pass
http://fileshosts.com/intel/DFI/DFI_...s_finished.png
System:
- i7 920 3851A368 D0 stepping
- EK Supreme LT 1366 / FESER 480 / MCP655
- DFI UT X58-T3EH8 04/28 beta
- 2x HD4870x2 Crossfire (Powercolor + Gigabyte flashed to Asus Top bios) with ATI Win7 9.4 (8.612 WHQL)
- 6GB Corsair Dominator GT DDR3-2000Mhz 7-8-7-20
- 750GB Samsung SATAII
- Silverstone OP1200 PSU
- Triple boot - WinXP Pro SP3 / Vista Ultimate 64Bit SP2 / Win7 Ultimate 64bit RC
5 passes not enough? How about 20 passes + 3dmark06 :)
Room ambient temp = 23.5-26C
- Win 7 Ultimate 64bit RC OS used
- Powermate wattage meter reads peak system power consumption of ~628 watts drawn from wall
Linx 0.5.8.2 Load
http://fileshosts.com/intel/DFI/DFI_...ss_load_tn.png
Linx 0.5.8.2 20 pass
http://fileshosts.com/intel/DFI/DFI_...ark06_2_tn.png
eva nice clocks
just for info
another forumer from lyn bought my kingston hypers with his dfi ut latos is it
for him to run 2000mhz Cl8 on his 920 d0
so far he needs vdimm 1.65v vtt 1.5
thats 0.1v more on vdimm and vtt compared when the ram was running with my cpu.
Thanks Kavin, yeah cpu could determine what voltages memory needs, so far 2x i7 920 c0 and 1x i7 920 d0 all require me to have 1.65v vdimm for GT at 2000mhz 7-8-7-20.
Guys just remembered one thing, for my Win7 setup in bios power management I have HPET support enabled and set at 64bit. Not sure if it that is what is allowing me 21x Turbo without problems. Worth a try :)
yeah trueQuote:
Originally Posted by eva2000
but really interesting part was
i always thought that different procs was vtt dependent
but now vdimm also??
and this is another weird part
all the 2k c8 hypers i have tested has one thing in common
the 2kC8,1866C7,1600 C6 vdimm is the same.
He has no problem with 1866C7 and 1600C6 at 1.56set like on my proc
but his 2k C8 needs 1.65v set.
also this changes my opinion on higher vcore procs usually needs higher vtt.
like ures doesnt ..
looks like the 2k rams .. seriously up to luck on procs..since i had a few procs
latency is not the issue but the ram speed and vtt required is.
but one thing my proc is very vtt sensitive. a slight overvolt everythings goes out of the window.
not surprising cpu vtt and vdimm are cpu dependent, since cpu vtt drives uncore frequency/and memory related stuff on processor :)
hmm can imagine the no of ppl are going to have issues with 2k ramQuote:
Originally Posted by eva2000
since ram prices are dropping and a lot of 2k rams C9-C7 rams are getting cheaper and cheaper
ocz blade 2k C7 now Rm1450 .. thats around AUD 543..USD 415
Haven't tried 6GB samsung hcf0/micron modules but i suspect same can be said for all DDR3-1866+ and higher rated modules - you'd be somewhat at mercy of the cpu mem controller, board and board bios etc.
I'm near done with my build now and ready to boot 'her up. What bios would you recommend as a starting point for an Xeon and 6GB of Corsair GT's? Keep in mind that this will be my first experience with this board and i7 as a whole.
start with 2/17 or 2/27 and if you have problems clocking GT memory, try 4/28 beta or 05/08 (some folks aren't having much luck with D0 cpus and 4/28 and 05/08 betas though).
might start sounding like a broken record, but threads worth reading
- DFI UT X58-T3EH8 notes, findings & tips
- Intel Core i7 920 Overclocking Introduction Guide on X58
- Prime95/LinX/Super Pi 32M stability tweaks
- DFI UT X58 - tRRD, RTL, tFAW timing discussion.
- DFI Lanparty UT X58-T3EH8 LGA1366 Photos, Bios and Overclocking Information Guide
- DFI LP UT X58-T3EH8 - Bios Template
- DFI UT X58-T3EH8 - Bios Download / Change Log
- DFI LP UT X58-T3EH8 - Bios Screenshots
- Memtest86+ (v2.11)
Try 4/28 if you have a DO. The 05/08 didn't work well with my Kingstons.
5GHz with this board finally achieved but not stable.
http://img4.imageshack.us/img4/3714/5ghz.jpg
32Mb Pi
http://img13.imageshack.us/img13/573...9204811mhz.jpg
Aquamark
http://img13.imageshack.us/img13/502...9204811mhz.jpg
3DMark 05
http://img13.imageshack.us/img13/114...9204811mhz.jpg
3DMark06
http://img4.imageshack.us/img4/5233/...9204811mhz.jpg
DFI LP UT X58-T3eH8, 02/17 BIOS
Xeon W3520 (# 3848A352)
Prolimatech Megahalems, 2x1200RPM Scythe Slip Stream
Vcore: 1.28/1.23v :) (BIOS/Load)
NB Core: 1.13/1.12v :)
Everything else: @Stock/default, including QPI-VVT: 1.21/1.24v :D
@4.20GHZ (210x20) HT:On, 1.23v, 1 hour primestable
http://img23.imageshack.us/img23/843/prime36n.th.jpg
Hm.. my board refuses to POST with memory in any of the yellow slots. One, two or three sticks, doesn't matter. Works fine with all the green slots populated. Now I just to the rig together so I have not updated the bios yet, but is this normal? Memory voltage is set at 1.65v.
yup normal read tip #29 http://i4memory.com/102537-post3.html ;)Quote:
Originally Posted by jagt
Thanks eva! I promise I'll take the time to read your threads before I ask any more silly questions :D
Still no luck with 21x on W7 RC 64bit here.Quote:
Originally Posted by eva2000
My 21x-settings workes fine with Vista but falls to 12x on W7. I'm wondering if you have changed some setting on W7 (besides High Performance) which i haven't found yet.
I'm having an incredibly stupid issue that I can't find the cause of. I've been trying to fix it for over 6 hours now and I've pretty much given up.
Windows will only boot if the Vista DVD is present in the DVD drive and the DVD drive is chosen as first boot device. It will ask me to "press any key to boot from disk", but I just let the timer run out and it will boot normally. If I take out the Vista disc the system will halt after "Saving CMOS". The same thing happens if I set "hard disk" to first boot device in the bios. I've reinstalled Vista twice with different raid drivers but nothing helps. It really looks like the board is trying to boot off the DVD drive no matter what I do. I have a raid setup with two drives in raid 0. The DVDRW is connected to the IDE port on the motherboard. I have tried disabling the IDE controller too, but that made no difference. Is there something stupid I've missed here? I've never seen this problem for all the years I've had raid running on, and that's a long freaking time!
Found the problem... turns out Vista has installed the boot files on the HDD's located on the Jmicron controller. These show up as IDE drives, so I guess in all it's wisdom Vista thought it would be better to place them there. Bloody stupid!
Edit: is it actually possible to boot from a raid array on this board at all?! I've taken out every single drive except two 320GB drives that run in RAID0 from port 0 and 1. These are bootable according to the Intel matrix raid manager, but Vista will NOT boot no matter what I do. I've done 5 Vista installs now! DVDRW runs in IDE mode from the Jmicron controller. I tried IDE + RAID, but Vista didn't even want to install with that option checked.
Edit 2: Finally! I nailed it. I set the Jmicron controller to IDE mode, only the two raid0 drives in, and then I rebuilt the raid in the Intel matrix CP. This time the Vista setup picked up the Intel raid drivers on my USB stick and things worked after that. This is seriously the most painful Windows installation I've ever been through! :P

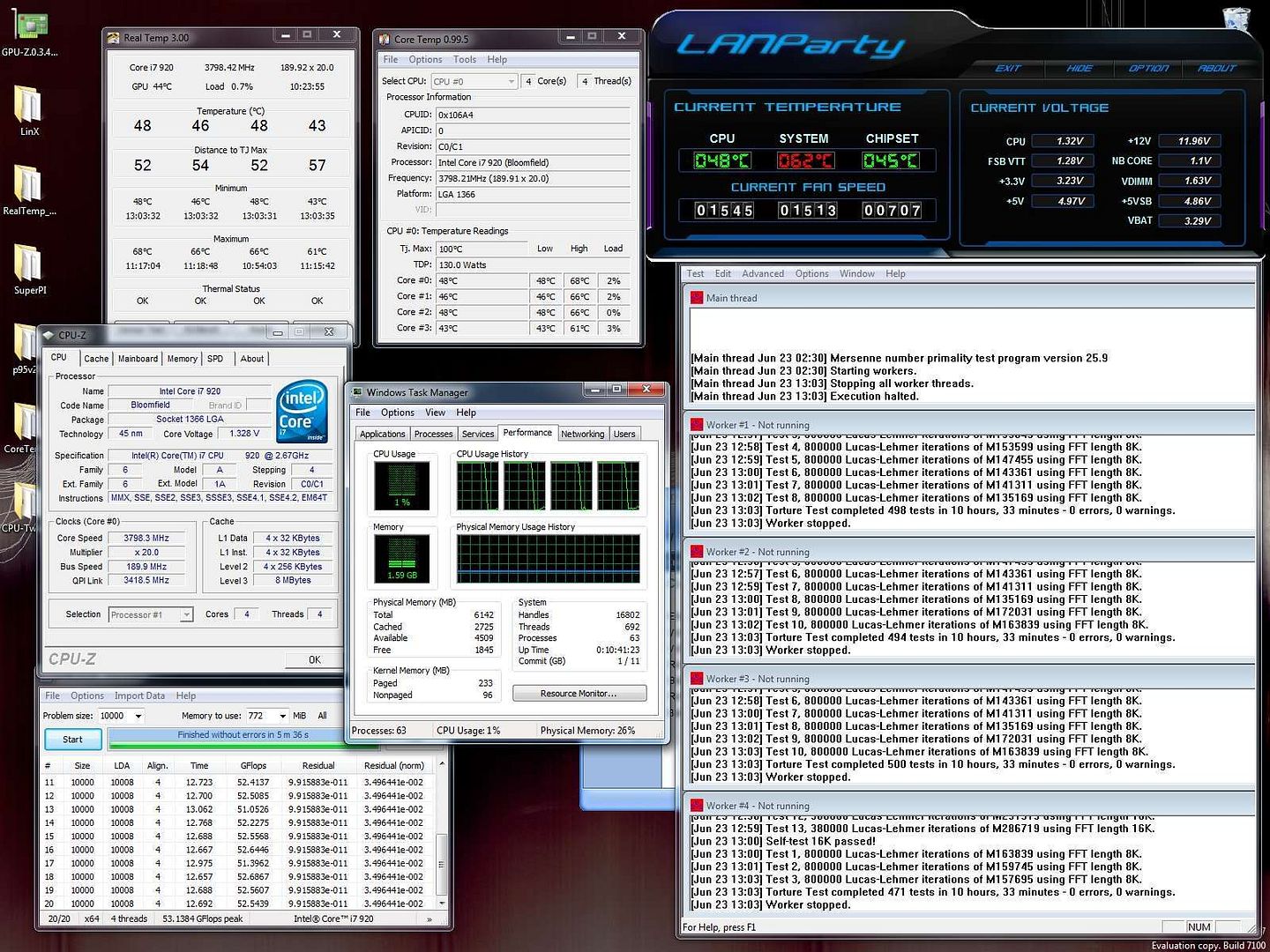

An early result for my OCing:
http://img.photobucket.com/albums/v4...ghz-stable.jpg
I haven't done anything with the memory yet and I haven't found a max stable on the CPU either. I've got some work to do :)
Care to share those settings? :DQuote:
Originally Posted by The Nemesis
Quote:
Originally Posted by drnip
These are the settings I boot with then use setfsb to clock further. This is an open test bed with active airflow over nb chipset.
Code:Genie BIOS Setting
***** CPU Feature *****
Set VR Current Limit Max: Disabled
Thermal Management Control: Disabled
EIST Function: Enabled
CxE Function: Disabled
Execute Disable Bit: Disabled
Virtualization Technology: Disabled
***** Logical Processor Setting *****
Intel HT Technology: Enabled
Active Processor Cores: All
***** DRAM Timing *****
Memory Control Setting: AUTO
Memory LowGap: 1536M
DRAM Command Rate: AUTO
CAS Latency Time (tCL): 7
RAS# to CAS# Delay (tRCD): 8
RAS# Precharge (tRP): 7
Precharge Delay (tRAS): 20
REF to ACT Delay (tRFC): Auto
Write to PRE Delay (tWR): AUTO
Rank Write to Read (tWTR): AUTO
ACT to ACT Delay (tRRD): AUTO
Row Cycle Time (tRC): AUTO
Read CAS# Precharge (tRTP): AUTO
Four ACT WIN Time (tFAW): AUTO
***** Voltage Setting *****
O.C. Shut Down Free: Enable O.C.S.D.F
CPU VID Control: 1.4v = 1.456v (misreported) in windows 1.45v=1.504v(misreported) for 5GHz & 3DMark06
CPU VID Special Add Limit: Enabled
CPU VID Special Add: Auto
Vcore Droop Control: Disabled
DRAM Bus Voltage: 1.65v
DRAM PWM Switch Frequency: Normal
DRAM PWM Phase Control: 2 Phase Operation
CPU VTT Special Add: AUTO
CPU VTT Voltage: 1.31v 1.37v for 5GHz & 3DMark06
VTT PWM Switch Frequency: Normal
VTT PWM Phase Control: 2 Phase Operation
CPU PLL Voltage: 1.80v
IOH/ICH 1.1V Voltage: 1.30v
IOH Analog Voltage: 1.25v
ICH 1.5 Voltage: 1.7v
ICH 1.05V Voltage: 1.05v
DIMM 1/2 DQ/DQSTB Bus VREF: -00.0%
DIMM 3/4 DQ/DQSTB Bus VREF: -00.0%
DIMM 5/6 DQ/DQSTB Bus VREF: -00.0%
ADDR/CMD VREF Control: Disabled
x DIMM 1/2 ADDR/CMD Bus VREF: 110
x DIMM 3/4 ADDR/CMD Bus VREF: 110
x DIMM 5/6 ADDR/CMD Bus VREF: 110
CPU QPI Drive Strength: Normal
IOH QPI Drive Strength: Strong
Exit Setup Shut down: Mode 2
O.C. Fail Retry Counter: Enabled
O.C. Fail CMOS Reload: Disabled
PPM Function: Enabled
Turbo Mode Function: Disabled
1 core Max Turbo Ratio: 26x
2 core Max Turbo Ratio: 25x
3 core Max Turbo Ratio: 25x
4 core Max Turbo Ratio: 25x
CPU Non-Turbo Clock Ratio: 20x
****** BCLK/UCLK/QPI Controller Settings ******
QPI Control Settings: Enabled
QPI Link Fast Mode: Enabled
QPI Frequency: AUTO
CPU Base Clock (BCLK): 226 Mhz
Boot Up CPU Base Clock: AUTO
PCIE Clock: 114 Mhz
DRAM Frequency: 8
UnCore Frequency: 16
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled
Good lookin out. That is about what I used except your pcie is set to 114 as mine was 110 and you have your ich 1.5 voltage set to 1.7v where I left mine at 1.5v. which might be my problem.
What cooling you using?
single stage phase -54c idle -45'c load.
I need your advice !
DFI LP UT X58-T3eH8 :up:
Intel Core i7 920 Nehalem 2.66GHz :shocked:
ZALMAN CNPS9900LED 120mm :yepp:
http://www.newegg.com/Product/Produc...82E16820227375
GIGABYTE GV-R489-B Radeon HD 4890 1GB
500 x 1 - 4x160 - 2x80 GB HD's :woot:
COOLERMASTER ATCS 840 Black :surf:
Antec Signature SG850 850W PSU :comp10:
On Board Sound :clap::clap::clap:
Vista Ultimate 32 bit-SP1 :up:
Good choice of motherboad :)
Core i7 920 is actually Bloomfield not Nehalem but same architecture - make sure you get D0 stepping.
Not sure about air coolers but most seem to go for TRUE 120 - someone else may recommend one or check other's sigs.
Good luck - it is an awesome CPU!
Thanks for the reply......... How is my choice of ram. Just don't want to go through the hassle of going through all types of setting to get it to boot.
If you plan to oc i had picked up some 1600mhz memory:)
And go over to 64 bit;)
I am a big fan of OCZ so Yes, nice choice if you want low latency but if you want to OC then I would go for the Reapers .......
Guys...an out of topic question...
G.Skill 16000CL7D-6GBPS Perfect Storm for $450 USD worth a try?
The CL7 Perfect Storms are great but I personally would recommend the CL8 for about $200 less.
2nd D0 twin 3851A368 results are up - pretty similar to my 2x C0 and other D0 - 230bclk easy as pie http://i4memory.com/f80/second-i7-92...results-17969/ :)
http://nx.i4memory.com/reviewimages/...851a368_01.jpg
230.9 Bclk @CPU VTT 1.50 + 0.375v bios set / PCI-E 108Mhz
http://fileshosts.com/intel/DFI/DFI_...dmark06_tn.png
CPUZ Max Validation @CPU VTT 1.50 + 0.375v / PCI-E 108Mhz
http://valid.canardpc.com/cache/banner/574590.png
http://fileshosts.com/intel/DFI/DFI_...cpuz_valid.png
System:
- i7 920 3851A368 #2
- EK Supreme LT 1366 / FESER 480 / MCP655
- DFI UT X58-T3EH8 04/28 beta
- 2x HD4870x2 Crossfire (Powercolor + Gigabyte flashed to Asus Top bios) with ATI Win7 9.4 (8.612 WHQL)
- 6GB Corsair Dominator GT DDR3-2000Mhz 7-8-7-20
- 750GB Samsung SATAII
- Silverstone OP1200 PSU
- Triple boot - WinXP Pro SP3 / Vista Ultimate 64Bit SP2 / Win7 Ultimate 64bit RC
Great going George over 234 Bclk :eek: ,Very nice. How many 920s you owned now bro ?
Keep pushing it m8.
Angelo.
4x i7 920 all 230+ bclk monsters for air/h20!
2x i7 920 3836A756 C0
2x i7 920 3851A368 D0
And now my first W3520 and this batch has been proven to be a nice high clocker!
http://nx.i4memory.com/reviewimages/...845a935_tn.jpg
Did anybody test his system with the new OCZ Flex watercooled rams?
[QUOTE=eva2000;3812675]4x i7 920 all 230+ bclk monsters for air/h20!
2x i7 920 3836A756 C0
2x i7 920 3851A368 D0
And now my first W3520 and this batch has been proven to be a nice high clocker!
Thanks for the info. Yes ,nice batch Xeon there bro :up::up::up:,Great collection of i7s you got there. i think its time for you to dust off that Single Stage of yours George and go sub-sero for the weekend to find Max Clocks on that Monster i7s family you got and Xeon too ;). They will perform at their best.
Lets push it a little higher :sonic:.
Angelo.
Also this looks like max-benching for my god old C0, but this is a 24/7 setup.
DFI LP UT X58-T3EH8 (BIOS 05/08)
Xoen W3250 @4.2GHZ (210x20) , Cinebench rendring (XCPU) score: 24540 :)
http://img140.imageshack.us/img140/8...ebenchz.th.jpg
Playing around with this setup to decide if i should keep this for 24/7 or go for a higher OC.
hehe my 1/4HP SS doesn't have 1366 mount/evap only LGA775. Need to get 1366 mount/enclosure off Kayl later hehe.Quote:
Originally Posted by chispyQuote:
Originally Posted by eva2000

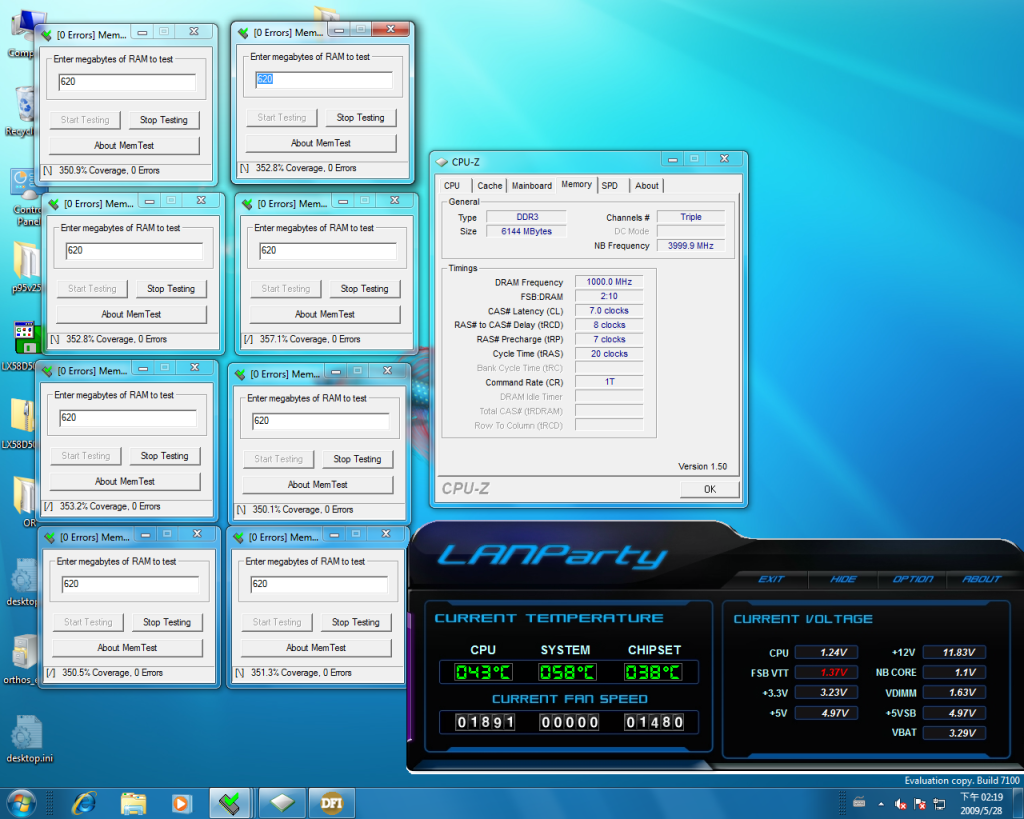

Kingston HyperX @ UT really rocks!
http://i317.photobucket.com/albums/m...stan/X58/3.png
when was the support for D0 added in DFI BIOS? Are currently shipping mobos have BIOS which supports w3520? I would hate to get the board only to find that I can't boot it with my w3520.
I have been experimenting with the latest official BIOS (02-17) and it has been working fine with w3250. I guess this is the currently shipping BIOS, and in case you should be fine.Quote:
Originally Posted by devsk
Guys I'm having trouble getting turbo to work...any suggestions?
PPM, Turbo, C3, EIST, VR Current ALL enabled, Windows7 in High performance mode
but when in 200bclk with EIST on, the multi will drop and freeze to 12x, even I stopped the prime 95 it still stick on 12x multi. VTT special add is in auto as well.
Please help :(
Get used to it....that is what happens when this board and W7 get together....I have the problem as well as others...Quote:
Originally Posted by ci2kla
BL
Here is a thread I started on the subject back when The RC was released. There are many of solutions/possibilities in the thread but all have failed. Just FYI to get you caught up in the matter.Quote:
Originally Posted by ci2kla
http://i4memory.com/f80/windows-7-df...8-t3eh8-17336/
Yeah some folks have turbo issues in windows 7 only but other folks like myself have no problems - hopefully DFI does get it fixed for those folks :)
Now to a new cpu I just bought
http://nx.i4memory.com/reviewimages/...845a935_tn.jpg
System:
- Intel Xeon W3520 3845A935 D0 (Xeon equivalent of Core i7 920 D0)
- EK Supreme LT 1366 / FESER 480 / MCP655
- DFI UT X58-T3EH8 04/28 beta
- 2x HD4870x2 Crossfire (Powercolor + Gigabyte flashed to Asus Top bios) with ATI Win7 9.4 (8.612 WHQL)
- 6GB Corsair Dominator GT DDR3-2000Mhz 7-8-7-20
- 750GB Samsung SATAII
- Silverstone OP1200 PSU
- Triple boot - WinXP Pro SP3 / Vista Ultimate 64Bit SP2 / Win7 Ultimate 64bit RC
Still early testing as only put my W3520 3945A935 in 3hrs ago and it's priming with custom large ffts 5400mb allocated @20x200 = 4000Mhz at 1.184v vcore and 1.26v set cpu vtt with coretemp load temps of 56-60C in 26.5C ambients!
But it's first cpu that i've experienced that according to SG overvolts CPU VTT from what is set in bios at idle as well under load
i.e. 1.26v cpu vtt set bios = 1.29v idle and 1.31-1.32v load for cpu vtt. Still on 4/28 bios here. For my i7 920 c0/d0 cpu vtt set in bios, under volts slightly at idle but jumps at load.
http://fileshosts.com/intel/DFI/DFI_...ge_load_tn.png
blood awesome 7-10C cooler than my other i7 920 c0 and d0 cpus!
Hi! , the intel virtualization resource 64bits is not functioning. :(
I use Vmware workstation.
Just burned my motherboard, i saw a spark around the ram area and now there is a chattering sound from the board. The PWM temp shows 30 celcius more than before....... Damn :o(
I Was running ~1.40 Vcore & ~1.40 VVT on bios 4/28 on D0 & Corsair 2000 GT
did you replace stock heatpipe assembly or as is out of the box ?Quote:
Originally Posted by PRJ
I used thermal pad under a licquid cooled MIPS cooler...Quote:
Originally Posted by eva2000
I have just installed Windows Server 2008 R2 RC in order to use Hyper-V but it is failing and the message says that VMX in the BIOS is not enabled ..... I checked that Vitualisation is Enabled in my BIOS version 05/08.Quote:
Originally Posted by hel_19
Anyone else seen this?
try setting virtualisation in bios to disabled - some folks reported some bioses have the switch for enable/disabled reversedQuote:
Originally Posted by Russ_64
i seeQuote:
Originally Posted by PRJ
@eva2000 - thanks I will try tonight.
@PRJ - I don't think it is recommended to use thermal pads with waterblocks .............. bummer
Force is very strong on this W3520!
4446Mhz at 1.360v
Very strong on BCLK'ing even on 20x multiplier!
http://fileshosts.com/intel/DFI/DFI_...8m17s079ms.png
4534Mhz at 1.376v
http://fileshosts.com/intel/DFI/DFI_...8m07s470ms.png
Good one! :up: Keep up the good job.Quote:
Originally Posted by eva2000
I'm having similar results too, this CPU seams to love this board. It has been running very smooth at high speeds with minimal tweaks.
But my air cooling is not good enough for 24/7 use with Vcore > 1.3v, specially in this sumer-heat. This can be a good 24/7 with your 4-rad!
What cooler did you have before?Quote:
Originally Posted by Sam_oslo
NorthQ 3590 Water Cooling Kit with 4x1200RPM push/pull was the last one, (and it was making a good deal av turbulent and noise), but and it was running 3 to 5'C cooler than Noctua NH-U12P 2x1200RPM push/pull (which i used before that) on my good old i7 C0 (which was a good deal cooler than w3520 with the same Vcore).Quote:
Originally Posted by Ice009
Prolimatech Megahalems with 2x1200 RPM Push/Pull, has worked best for me so far. It is running this hot w3520 about 6-10'C cooler than the NorthQ 3590.
Yeah this W3520 is bloody awesome - FESER 480 Rad helps :DQuote:
Originally Posted by Sam_oslo
4600Mhz at 1.472v
Bumped up vcore and tried 20x230bclk = 4600Mhz and 32M Pi passed easily :D Haven't tried lower vcore yet though :)
http://fileshosts.com/intel/DFI/DFI_...8m02s602ms.png
Has anybody tryed the EVGA X 58 Classifeid, does it compare with the DFI X58 T3EH8?
Burned my card and don't know wich way to go ;o)
PRJ
For LN2/DI definitely EVGA Classified has higher operating bclk. But for H20/water i'd still prefer DFI. Here in OZ, DFI UT X58 AUD$444 while EVGA X58 classified ranges from AUD$638-769 depending on model!. Money saved I could put towards a nice 60GB OCZ Vertex SSD heheQuote:
Originally Posted by PRJ
Thanks for your input, I think the Evga looks good and there is a realy cool watercooler for that board, but I think guides like yours are way better than OC guides for Evga. But i don't know yet
Well you already have the waterblocks for DFI - just leave the Heatpipe on and stick the EK block on the NB .....
Gosh, I can't even get over 206bclk. 205 is stable 8 threads, but 206 dies out quick. Anyone know if D0 does bclk any better than C0s?
Any tips otherwise to get bclk up? On the 4/28 bios. T3eh6. Willp post settings a bit later :)
Thanks... next board i'll be testing will either be DFI JR X58-T3H6, Gigabyte X58-UD4P or waiting on word from Asus about a P6T WS Pro - expect similar oc guides for them as long as the work right :)Quote:
Originally Posted by PRJ
Or just a 120x25mm fan over NB /GPU area helps too :)Quote:
Originally Posted by Russ_64
all 5x cpus i have can hit 230-235bclk on DFI UT X58-T3EH8 4/28 bios easy on air/water.Quote:
Originally Posted by I34z1k
- i7 920 3836A756 C0 CPU #1
- i7 920 3836A756 C0 CPU #2
- i7 920 3851A368 D0 CPU #1
- i7 920 3851A368 D0 CPU #2
- Xeon W3520 3845A935 D0
C0
http://fileshosts.com/intel/DFI/DFI_...8m11s859ms.png
D0
http://fileshosts.com/intel/DFI/DFI_...dmark06_tn.png
Differences are varying CPU VTT / IOH/ICH volateg requirements to reach such bclks. D0 seem to reach the 230bclk target with slightly less CPU VTT than C0.
[QUOTE=eva2000;3816545]Thanks... next board i'll be testing will either be DFI JR X58-T3H6, Gigabyte X58-UD4P or waiting on word from Asus about a P6T WS Pro - expect similar oc guides for them as long as the work right :)[quote=eva2000;3816545]
Come on, you gotta go for the Evga, you'd love it :up:
:)
No love from EVGA Australia right now - no sample boards for me to use :( Getting some lovin from DFI, Gigabyte and Asus (back in the fold after loosing my contact before) :)Quote:
Originally Posted by PRJ
Wow that's embarrassing lol :D
Well I'll put a run down of my settings now now and hopefully we can spot what I'm doing wrong :P
Gonna start taking em down now.
Code:enie BIOS Setting
CPU Feature
Set VR Current Limit Max: Disabled
Thermal Management Control: Disabled
EIST Function: Disabled
CxE Function: Disabled
Execute Disable Bit: Disabled
Virtualization Technology: Disabled
***** Logical Processor Setting *****
Intel HT Technology: Enabled
Active Processor Cores: All
DRAM Timing
Channel Interleave Setting: Auto
Bank Interleave Setting: Auto
Memory LowGap: 1536M
DRAM Command Rate: 1N
CAS Latency Time (tCL): 8
RAS# to CAS# Delay (tRCD): 8
RAS# Precharge (tRP): 8
Precharge Delay (tRAS): 24
REF to ACT Delay (tRFC): AUTO
Write to PRE Delay (tWR): AUTO
Rank Write to Read (tWTR): AUTO
ACT to ACT Delay (tRRD): AUTO
Row Cycle Time (tRC): AUTO
Read CAS# Precharge (tRTP): AUTO
Four ACT WIN Time (tFAW): AUTO
Voltage Setting
O.C. Shut Down Free: Enable O.C.S.D.F
CPU VID Control: 1.4250V
Power Saving: Standard
Super Vid: OFF
Vcore Auto PSI: Disabled
OCP: 140A
DRAM Bus Voltage: 1.650V
DRAM PWM Switch Frequency: Nominal
DRAM PWM Phase Control: 2 Phase Operation
CPU VTT Special Add: AUTO
CPU VTT Voltage: 1.45v
VTT PWM Switch Frequency: Nominal Frequency
VTT PWM Phase Control: 2 Phase Operation
CPU PLL Voltage: 1.80v
IOH/ICH 1.1V Voltage: 1.35v
IOH Analog Voltage: 1.15v
ICH 1.5 Voltage: 1.5v
ICH 1.05V Voltage: 1.05v
DIMM 1/2 DQ/DQSTB Bus VREF: -00.0%
DIMM 3/4 DQ/DQSTB Bus VREF: -00.0%
DIMM 5/6 DQ/DQSTB Bus VREF: -00.0%
x DIMM 1/2 ADDR/CMD Bus VREF: 110
x DIMM 3/4 ADDR/CMD Bus VREF: 110
x DIMM 5/6 ADDR/CMD Bus VREF: 110
CPU QPI Drive Strength: Strong
IOH QPI Drive Strength: Normal
Exit Setup Shut down: Mode 2
O.C. Fail Retry Counter: Enabled
O.C. Fail CMOS Reload: Disabled
PPM Function: Disabled
Turbo Mode Function: Disabled
1 core Max Turbo Ratio: 22x
2 core Max Turbo Ratio: 21x
3 core Max Turbo Ratio: 21x
4 core Max Turbo Ratio: 21x
CPU Non-Turbo Clock Ratio: 20x
* BCLK/UCLK/QPI Controller Settings *
QPI Control Settings: Enabled
QPI Link Fast Mode: Enabled
QPI Frequency: 4.800GT/s(BCLK*18*2)
CPU Base Clock (BCLK): 200 Mhz
Boot Up CPU Base Clock: AUTO
PCIE Clock: 105 Mhz
DRAM Frequency: BCLK*8 1200MHz
UnCore Frequency: BCLK*16 3200MHz
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled
I can't speak specifically for the EK block, but I needed longer 4-40 screws/posts (1" was JUST long enough) to mount my Swiftech MCW30 on the northbridge. Even then mounting the block wasn't perfect; I needed about half a mm closer spacing so the posts are angled inward ever so slightly. I'm happy with the mount and it does mate well with the northbridge unisink so just a word of warning in case anybody runs into something like this while putting a block on the northbridge unisink.Quote:
Originally Posted by Russ_64
Doing som testing with my memory, Kingston...not yet on 1.65 so maybe i can get them a little tighter.
Elpida-chips in them if someone wonder:)
And its 1.20 under load and stable...worse then many others D0 but not the worse either.
http://i39.tinypic.com/2s7w4xz.jpg
@PRJ - I don't think it is recommended to use thermal pads with waterblocks .............. bummer[/QUOTE]
Seems so, but uptil now i had great temps <60 celcius
I dont think thermal paste would have stayed in place under installation of hoses, small movements. The mips mosfet cooler does not have a very big supporting surface and is a bit under pressure from CPU hoses tight bend. Flexible pad seemed better.
Well done is done :)
so if i want to have a waterblock on nb on my DFI mobo , you dont need to remove the heatsink?
Maybe make one big block to cover the hole :banana::banana::banana::banana:.
Why cant someone make a block thatcovers evverthing like EK made to gigabytes X58:(
I have to read Evas memory tweak tips, after what i know so are these Elpida some monsters.
You can use the stock bolts supplied with the AMD kit in the MCW30 package if you do a hardmount and ditch the springs. Works just fine, no need for springs. Still have around 0.5cm left on top of the bolt.Quote:
Originally Posted by Volkum
Yes, I'm using the hardmount kit. I didn't even think to check out the AMD hardware that comes with it; instead, I just ran out to Home Depot haha.Quote:
Originally Posted by jagt
My Xeon W3520 on water!:)
SuperPi 1Mb - 4840Mhz:
http://img2.imageshack.us/img2/7019/72991105.th.jpg
SuperPi 32Mb - 4778Mhz:
http://img2.imageshack.us/img2/769/58800867.th.jpg
Very good Motherboard DFI!:up:
When a new bios to DFI LP UT X58-T3EH8?:)
