A rebadged 1000w Xilence PSU. Yeah I was asking for everything I got, but funds were tight and this psu got the job done for nearly 2 years.Quote:
Originally Posted by andressergio
Will be looking at getting an 850 or 1000HX this time round.
A rebadged 1000w Xilence PSU. Yeah I was asking for everything I got, but funds were tight and this psu got the job done for nearly 2 years.Quote:
Originally Posted by andressergio
Will be looking at getting an 850 or 1000HX this time round.
Yes it the XSPC RX360Quote:
Originally Posted by In-Fluence
Blend stays around 55c I forgot to check the NB at load, but it idles at 42c and theQuote:
Originally Posted by MrDucky
5850 stays at 41c in Furmark:eek: that is amazing to me.
What PSU where you using? Odd to have them blow from an overclock.Quote:
Originally Posted by jjjc_93
Opps, just seen your post.
get the HX850 hella PSU :up:Quote:
Originally Posted by jjjc_93
NoGuru,very nice WCing build.looks like andressergios and yours and mine are family.
all gigabyte,all blue and all look great.
Thanks radaja!:) Sergio helped me build the whole thing except the blocks, I bought them used about a month ago.Quote:
Originally Posted by radaja
Might have to do some blue LED's too.
Agreed, HX850 (or 1000 if you've got the room). I've heard the 850 can manage up to 1000 anyway so probably a little more bang for your bucks ;)
@NoGuru - nice - the XSPC rads are probably the only worthy competitor to the thermochills from what I've read, and the big fins are great if you're after a quieter setup, plus the price is reasonable. I think my XSPC pump is probably suffering a little now though, so I'm thinking of going for a dual loop reservoir and a single laing pump next. After that I may build on a bit more GFX cooling and mosfets when my USB3P arrives. I think I've fathomed a way to fit it all in and around the case and can probably make room for another 240 rad at least, but it's so heavy already I probably won't be able to lift it with yet more addons & water!
I need help getting my E8500 to 4.275ghz, my EP45-UD3R is using the F12 BIOS
i can run prime95 for about 10 minuets until one core stops, and the highest CPU core temp is 63cCode:MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster ...............: Auto
CPU Clock Ratio .......................: 9
Fine CPU Clock Ratio...................:.0.5
CPU Frequency .........................: 4.275GHz (450*9.5)
Clock Chip Control
Standard Clock Control
CPU Host Clock Control.................: [Enabled]
CPU Host Frequency (Mhz) ..............: 450
PCI Express Frequency (Mhz) ...........: 100
C.I.A.2 .................................:[Disabled]
CPU Clock Drive........................: 800
PCI Express Clock Drive................: 900
CPU Clock Skew (ps)....................: 50
MCH Clock Skew (ps)....................: 0
DRAM Performance Control
Performance Enhance....................: [Extreme]
Extreme Memory Profile (X.M.P.)........: Profile 2
(G)MCH Frequency Latch.................: AUTO
System Memory Multiplier ..............: 2.00D
Memory Frequency (Mhz) ................: 900
DRAM Timing Selectable ................: [Auto]
Motherboard Voltage Control
Voltage Type. ... Manual
LLC....................................: [Enabled]
CPU Vcore . .........................: 1.38125v
CPU Termination .......................: 1.28v
CPU PLL .........................: 1.5v
CPU Referen. .......................: 0.795v
MCH/ICH
MCH Core .....1.100V...............: 1.36v
MCH Reference . .0.800V...............: 0.790
MCH/DRAM Ref. ......0.900V.............: Normal
ICH I/O .....1.500V...............: Normal
ICH Core ... 1.100V................: Normal
DRAM
DRAM Voltage ....1.800V..............: 2.000V
DRAM Termination . 0.900V..............: Normal
Channel A Reference 0.900V.............: Normal
Channel B Reference 0.900V.............: Normal
put turbo not extreme and profile1 mateQuote:
Originally Posted by dustin_ds3000
900/900/0/50
PCIE= 101
for 1,2vtt set .785CPU ref and .80MCH then up vtt to ya current value ;)
try
Cheers :up:
Sergio
in the BIOS for Extreme Memory Profile i have Auto, profile2, and disable. No profile1 unless disable is profile1Quote:
Originally Posted by andressergio
*10 minutes later*
Those BIOS settings give the the blue screen after windows starts to load
*10 minutes later*
i changed the MCH ref to .760 and i booted into windows and im running prime95 now
a giga family :rofl:Quote:
Originally Posted by radaja
Cheers Rob :up:
Sergio
well pime95 failed after a few minutes so i started to try other settings, after getting blue screen after blue screen i just went back to my 9.5x422 4Ghz settings.
did u use my settings mate ?Quote:
Originally Posted by dustin_ds3000
remember that you have to set .785 CPU REF and .80 MCH and put VTT 1.2 then up just VTT to the value you want letting other change alone
you have to try skews
800/800/0/50
900/900/0/50
800/900/50/100
seek wich fits best for ya
MCH on 1,4 if you are pushing
vdimm a bit overvolted
and NO extreme , just use STANDARD to try then you have time to put TURBO
try CUSTOM BLEND 8k to 8k at first if it passes that
go blend all. if fails...notch vcore
Cheers hope it helps :up:
Fan controller is installed.:D
Quote:
Originally Posted by dustin_ds3000
Give this a try.
Code:MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster ...............: Auto
CPU Clock Ratio .......................: 9
Fine CPU Clock Ratio...................:.0.5
CPU Frequency .........................: 4.275GHz (450*9.5)
Clock Chip Control
Standard Clock Control
CPU Host Clock Control.................: [Enabled]
CPU Host Frequency (Mhz) ..............: 450
PCI Express Frequency (Mhz) ...........: 100
C.I.A.2 .................................:[Disabled]
CPU Clock Drive........................: 800
PCI Express Clock Drive................: 900
CPU Clock Skew (ps)....................: 0
MCH Clock Skew (ps)....................: 0
DRAM Performance Control
Performance Enhance....................: Standard
Extreme Memory Profile (X.M.P.)........: disabled
(G)MCH Frequency Latch.................: 400
System Memory Multiplier ..............: 2.00D
Memory Frequency (Mhz) ................: 900
DRAM Timing Selectable ................: [Auto]
Motherboard Voltage Control
Voltage Type. ... Manual
LLC....................................: [Enabled]
CPU Vcore . .........................: 1.38125v
CPU Termination .......................: 1.26v
CPU PLL .........................: 1.50v
CPU Referen. .......................: 0.798v
MCH/ICH
MCH Core .....1.100V...............: 1.32v
MCH Reference . .0.800V...............: 0.718 - 0.758
MCH/DRAM Ref. ......0.900V.............: Auto
ICH I/O .....1.500V...............: 1.500
ICH Core ... 1.100V................: 1.100
DRAM
DRAM Voltage ....1.800V..............: 2.000V
DRAM Termination . 0.900V..............: Auto
Channel A Reference 0.900V.............: Auto
Channel B Reference 0.900V.............: Auto
Looking good :up:Quote:
Originally Posted by NoGuru
Hi Hoss, great stuff with the uD3P,
I would love to see your template for the Q9650
in the high 4.8+ ghz to 5ghz/////
any chance of that? :shrug:
best regards/steve
Quote:
Originally Posted by Hoss331
this is very frustrating o/c in hot summer days is a pita. Just got a new USB3P and man the idle temp for my q6600 is 58-60'C. Even with a/c on is like 53-55'C. Seeing how you guys clock above 3.8ghz is crazy.
That can't be right, idle 60C :eek:Quote:
Originally Posted by NeoGeo333
Remount you cooler. Make sure the fan is working.
Quote:
Originally Posted by systemviper
Thanks, Im not good at keeping track of old settings but this should be pretty close for the 5.0 spi 1m and 4.95 wprime 1024 water runs.
Code:******Motherboard Intelligent Tweaker (M.I.T.)******
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 9 ]
Fine CPU Clock Ratio............................[ + 0.0 ]
CPU Frequency 4.95GHz...........................[ 550 x 9.0]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 550 ]
PCI Express Frequency (Mhz).....................[ 101 ]
C.I.A 2.........................................[ Disabled ]
******Advanced Clock Control******
CPU Clock Drive.................................[ 1000mv ]
PCI Express Clock Drive.........................[ 1000mv ]
CPU Clock Skew..................................[ 100ps ]
MCH Clock Skew..................................[ 50ps ]
******DRAM Performance Control******
Performance Enhance.............................[ Standard ]
(G) MCH Frequency Latch.........................[ 400 ]
System Memory Multipler.........................[ 2.00D ]
Memory Frequency 1066...........................[ 1100 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 4 ]
tRCD............................................[ 4 ]
tRP.............................................[ 4 ]
tRAS............................................[ 10 ]
******Advanced Timing Control******
tRRD[3].........................................[ 3 ]
tWTR[3].........................................[ 3 ]
tWR[6]..........................................[ 6 ]
tRFC[54]........................................[ 34 ]
tRTP[3].........................................[ 3 ]
Command Rate (cmd)[0]...........................[ Auto ]
******Channel A Timing Settings******
Static tRead Value [ 8 ].................[ 8 ]
tRD Phase0 Adjustment [ 0 ].................[ Auto ]
tRD Phase1 Adjustment [ 0 ].................[ Auto ]
tRD Phase2 Adjustment [ 0 ].................[ Auto ]
tRD Phase3 Adjustment [ 0 ].................[ Auto ]
tRD 2rd (Differnt Rank) [ 8 ].................[ Auto ]
tWR 2wr (Differnt Rank) [ 8 ].................[ Auto ]
tWR 2rd (Differnt Rank) [ 7 ].................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 9 ].................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel A Driving Settings******
Drive Strength Profile..........................[ 1200 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Channel B Timing Settings******
Static tRead Value [ 8 ].................[ 8 ]
tRD Phase0 Adjustment [ 0 ].................[ Auto ]
tRD Phase1 Adjustment [ 0 ].................[ Auto ]
tRD Phase2 Adjustment [ 0 ].................[ Auto ]
tRD Phase3 Adjustment [ 0 ].................[ Auto ]
tRD 2rd (Differnt Rank) [ 8 ].................[ Auto ]
tWR 2wr (Differnt Rank) [ 8 ].................[ Auto ]
tWR 2rd (Differnt Rank) [ 7 ].................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 9 ].................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel B Driving Settings******
Drive Strength Profile..........................[ 1200 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Motherboard Voltage Control******
Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.15 ].....................[ 1.600 ]
CPU Termination [ 1.20 ].....................[ 1.520 ]
CPU PLL [ 1.50 ].....................[ 1.670 ]
CPU Reference [ 0.760 ].....................[ 1.003 ]
MCH Core [ 1.100 ].....................[ 1.560 ]
MCH Reference [ 0.760 ].....................[ 0.963 ]
MCH/DRAM Refernce [ 0.900 ].....................[ 1.230 ]
ICH I/O [ 1.500 ].....................[ 1.500 ]
ICH Core [ 1.100 ].....................[ 1.100 ]
DRAM Voltage [ 1.800 ].....................[ 2.460 ]
DRAM Termination [ 0.900 ].....................[ 1.230 ]
Channel A Ref [ 0.900 ].....................[ 1.230 ]
Channel B Ref [ 0.900 ].....................[ 1.230 ]
******Advanced BIOS Features******
Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]
These are my current boot settings for 5.1+ and so far are good for spi 1m up to 5.13(570).
Code:******Motherboard Intelligent Tweaker (M.I.T.)******
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 9 ]
Fine CPU Clock Ratio............................[ + 0.0 ]
CPU Frequency 5.1GHz............................[ 567 x 9.0]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 567 ]
PCI Express Frequency (Mhz).....................[ 101 ]
C.I.A 2.........................................[ Disabled ]
******Advanced Clock Control******
CPU Clock Drive.................................[ 1000mv ]
PCI Express Clock Drive.........................[ 1000mv ]
CPU Clock Skew..................................[ 100ps ]
MCH Clock Skew..................................[ 100ps ]
******DRAM Performance Control******
Performance Enhance.............................[ Standard ]
(G) MCH Frequency Latch.........................[ 333 ]
System Memory Multipler.........................[ 2.00B ]
Memory Frequency 1066...........................[ 1134 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 4 ]
tRCD............................................[ 4 ]
tRP.............................................[ 4 ]
tRAS............................................[ 8 ]
******Advanced Timing Control******
tRRD[3].........................................[ 4 ]
tWTR[3].........................................[ 4 ]
tWR[6]..........................................[ 8 ]
tRFC[54]........................................[ 26 ]
tRTP[3].........................................[ 4 ]
Command Rate (cmd)[0]...........................[ Auto ]
******Channel A Timing Settings******
Static tRead Value [ 8 ].................[ 9 ]
tRD Phase0 Adjustment [ 0 ].................[ Auto ]
tRD Phase1 Adjustment [ 0 ].................[ Auto ]
tRD Phase2 Adjustment [ 0 ].................[ Auto ]
tRD Phase3 Adjustment [ 0 ].................[ Auto ]
tRD 2rd (Differnt Rank) [ 8 ].................[ Auto ]
tWR 2wr (Differnt Rank) [ 8 ].................[ Auto ]
tWR 2rd (Differnt Rank) [ 7 ].................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 9 ].................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel A Driving Settings******
Drive Strength Profile..........................[ 1200 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Channel B Timing Settings******
Static tRead Value [ 8 ].................[ 9 ]
tRD Phase0 Adjustment [ 0 ].................[ Auto ]
tRD Phase1 Adjustment [ 0 ].................[ Auto ]
tRD Phase2 Adjustment [ 0 ].................[ Auto ]
tRD Phase3 Adjustment [ 0 ].................[ Auto ]
tRD 2rd (Differnt Rank) [ 8 ].................[ Auto ]
tWR 2wr (Differnt Rank) [ 8 ].................[ Auto ]
tWR 2rd (Differnt Rank) [ 7 ].................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 9 ].................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel B Driving Settings******
Drive Strength Profile..........................[ 1200 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Motherboard Voltage Control******
Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.15 ].....................[ 1.640 ]
CPU Termination [ 1.20 ].....................[ 1.600 ]
CPU PLL [ 1.50 ].....................[ 1.710 ]
CPU Reference [ 0.760 ].....................[ 1.038 ]
MCH Core [ 1.100 ].....................[ 1.600 ]
MCH Reference [ 0.760 ].....................[ 1.013 ]
MCH/DRAM Refernce [ 0.900 ].....................[ 1.270 ]
ICH I/O [ 1.500 ].....................[ 1.570 ]
ICH Core [ 1.100 ].....................[ 1.200 ]
DRAM Voltage [ 1.800 ].....................[ 2.540 ]
DRAM Termination [ 0.900 ].....................[ 1.270 ]
Channel A Ref [ 0.900 ].....................[ 1.270 ]
Channel B Ref [ 0.900 ].....................[ 1.270 ]
******Advanced BIOS Features******
Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]
opened the case and notice way too many micro bubbles in the loop. anyone with advice to take care of that?Quote:
Originally Posted by NoGuru
To get the bubbles out you need to shake the case a bit and open the res and bleed them.Quote:
Originally Posted by NeoGeo333
I don't think the is your problem though. I would remount the cooler.
Thanks mucho Hoss, i was very interested in the skews and a few subtle settings.
I'll give them a shot tomorrow. :up:
best regards/steve
Quote:
Originally Posted by Hoss331
bleed the bubbles out by slowing the pump down a few minutes and opening the res. that took care of the bubbles, remounted cpu block and now idle at 45'C, still think is high for a Q6600 at 3.6ghz at 1.38v?Quote:
Originally Posted by NoGuru
A lot better but still a little high for those volts. Is your CPU/cooler surface flat? If you remove the block, is the paste unevenly spread?
I agree.Quote:
Originally Posted by In-Fluence
What CPU block do you have, or the whole loop for that matter?
What method of applying TIM do you use?
Im using MX-3 and theres no formal way to apply other than a drop of it in the middle and thats it. Using a XSPC Rasa CPU Acetal block, dont know if its good for Q6600, or should have stock with Swiftech Apogee.Quote:
Originally Posted by NoGuru
i use the same just use a card to place a thin layer over the chipQuote:
Originally Posted by NeoGeo333
I wonder if ambient at 85 to 86'F is the culprit. Hot nights in Puerto Rico is killer, now with a/c at max got it down to 38'C idle.
That' why your country ships the coke over here, it's hot LMAO.Quote:
Originally Posted by NeoGeo333
Sure you know where Puerto Rico is? Its not in Mexico:rofl:Quote:
Originally Posted by truehighroller
Quick Question - I've been running my E8400 at 4.0GHz at 1.2vcore on my P45-UD3P since I received the components, and I've never updated the BIOS on my motherboard. It's still running the F4 BIOS! Are there any advantaged to update to the latest BIOS? I've never messed around with updating BIOS's before, that's why I'm asking.
Hello fellow Michigander. Not really, if it's working fine no reason too change it.Quote:
Originally Posted by OCX600RR
Thanks NoGuru, that's what I figured, just wasn't certain on the issue. Cheers
nice system u have thereQuote:
Originally Posted by NoGuru
a friend of mine will come from the states in about two weeks ... I have Cooler Master HAF922 and wanna make a water cooling loop for the cpu only
can u make a list off the components used in your water cooling gear with links? the same request for andresergio
please provide some links from where and what to get
for andressergio: how is named that distancier between the radiator and the case and the support that holds the reservoir that clears the bubless from the loop? where can my friend order them from? (he is in the states now)
with respect
kagula323
Pump http://www.sidewindercomputers.com/swmc12vdcpu.html
Pump top, "optional" but helps performance. http://www.sidewindercomputers.com/ekwaekxforla.html
I have 10 feet of hose http://www.sidewindercomputers.com/fetuftacuvho2.html
tube cutter, but not necessary http://www.sidewindercomputers.com/kwadtucubl.html
RAD http://www.performance-pcs.com/catal...ducts_id=25389
RAD box http://www.performance-pcs.com/catal...ducts_id=25631
Metal clamps http://www.performance-pcs.com/catal...ducts_id=25625
Fan controller http://www.frozencpu.com/products/96...?tl=g34c17s286
Fans http://www.petrastechshop.com/12yalod1cafa1.html
PT Nuke http://www.petrastechshop.com/peptpcobi1.html
Res http://www.sidewindercomputers.com/swmcmire2re.html
That should cover it. I have an Enzotech CPU block, EK NB block, and a Koolance GPU block, because they where all used.
Hope this helps.
Thanks NoGuru :up:
kagula you can check my HAF922 watercooled worklog if you want hereQuote:
Originally Posted by kagula323
http://www.xtremesystems.org/forums/...=249147&page=3
Cheers :up:
Sergio
well I finally got around to playing with this X3380 some more and it isn't as bad as I thought, well it loves volts but it is a freakishly cool running chip.
http://i45.tinypic.com/2gwt6j5.png
that was on air with a lapped TRUE w/ two San Ace fans in push pull. I can't wait to get my socket 775 backplate for my Apogee XT:)
grats mate !!! its just a higher vid will need more volts but will be cooler on you water rig you will go to 4500 easy :up:Quote:
Originally Posted by l0ud_sil3nc3
Seeing some nice clocks with the USB3P - mine's not far away apparently so I'll be joining you soon. Just one thing - I'm assuming as it's P45 the ram straps are just same and you just use higher rated dividers (e.g 2.66c e.t.c)?
lo guys
i just got this on the mail yesterday (thanks T :up:)
http://img198.imageshack.us/img198/2739/p10405941.jpg

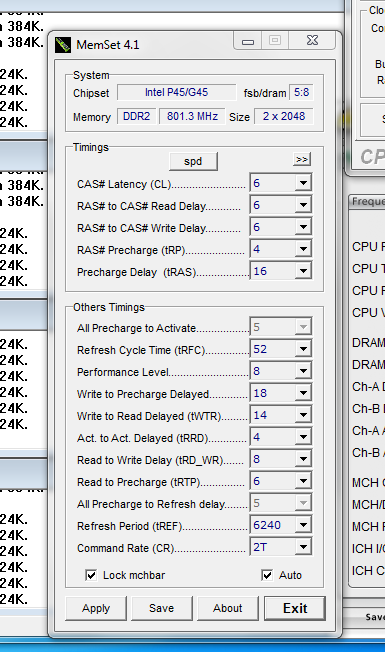

needed some MCH to do rated 1600 6-9-6-24 but stock vdimm

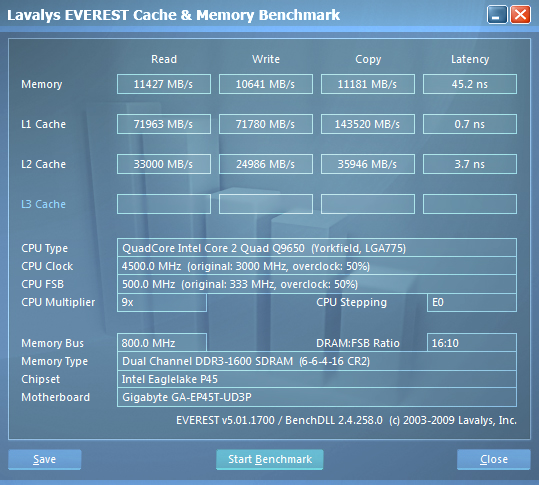

1600 6-9-6-24 @ 1,65 stock vdimm
http://img35.imageshack.us/img35/976...cr2hyper32.jpg
and as im new on DDR3 and im on a P45 chipset, this mem are for P55+ i though that for 2000 9-9-9-24 1T will need more volts...i was very wrong i needed LESS MCH and vdimm to pass wich is the first time i see this

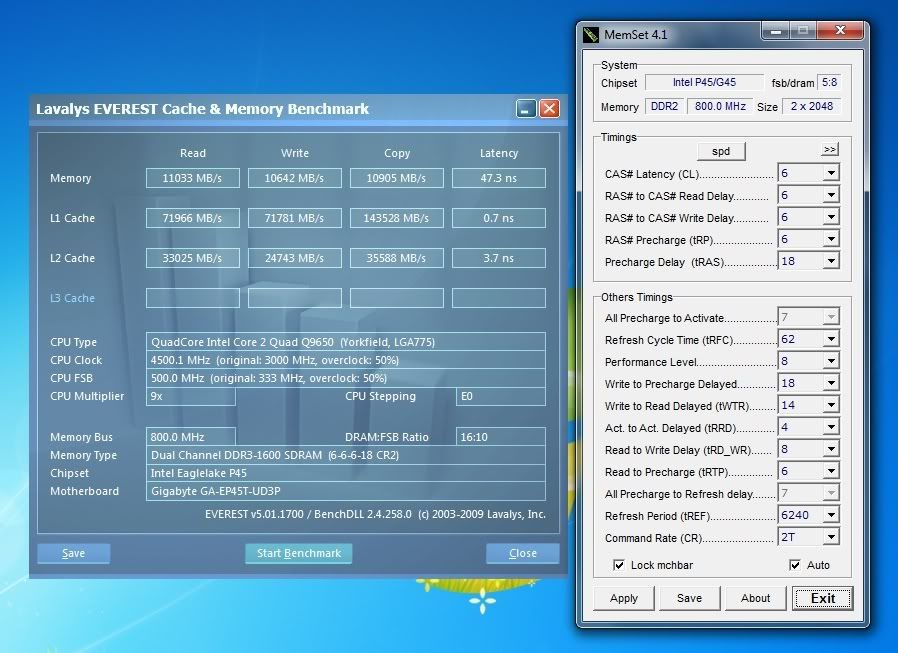

2000 9-9-9-24 1T @ 1,62 vdimm
http://img35.imageshack.us/img35/755...cr1pl8hype.jpg
http://img401.imageshack.us/img401/4...cr1pl8ever.jpg
Thanks zsamz_ for the help :up:
Cheers :toast:
Sergio
hey In-FluenceQuote:
Originally Posted by In-Fluence
mine loves 3.20B /4.0B tough i can boot on all its has a better speed from what i tested
Cheers !
Sergio
Cheers mate, good to hear all the dividers work ok, lots of flexibility is nice! Can performance levels go any lower or is it FSB that determines that more than divider?
Cute kid btw :D
Umm, I getting jealous of all the USB3P going around! Grats on the new board In-Fluance.
Love your new Ram Serg!
Hey influence !
Cheers mate, good to hear all the dividers work ok, lots of flexibility is nice!
***Yes they work all need diff settings but its supposed to be like that, im happy now that i found that i dont need higher volts to make it go on 2000 1T...will reduce latency will try 2000 8-9-8-24 and 2000 7-8-9-24 and see what i can do, kit arrived yesteday and thats are my firsts test
Can performance levels go any lower or is it FSB that determines that more than divider?
***I think that PL8 with the quad at 4500 and 2000 its some limit but i need more ppl to test that so join the USB3P club :)
Cute kid btw :D
***Thanks my we are really proud of Valentino its 2,5 month now but looks like 4 lol
Cheers :up:
Sergio
Thanks mate :up:Quote:
Originally Posted by NoGuru
Those are some very nice clocks on your new board Sergio, and cute kid as well! :up:
Nice going Serg...for both the clocks and the kid !!!
Quote:
Originally Posted by Don_Dan
Thank you very much for your comments guys :up:Quote:
Originally Posted by bluestang
Cheers from South America !
Sergio
damn Sergio getting us all jealous with that new board and ram here... looks likea lot more fun for my q9650 soon :)
that memory is very nice andres, I am very glad to see DDR3 2000 on a P45 mobo, and whats crazy is it took less MCH voltage to run at higher speed with looser timings.
Thanks buddy :up: hopping more ppl can join and help its a very nice mobo, yesterday it was the first time i got a reboot loop that coudlnt recover lol i tried to boot them at XPS profile lmao :rofl: 2000 CL6 had to put CMOS jumper jaaaaa but this is the first time after many OC's and 2 sets of RAMQuote:
Originally Posted by the_real_7
Cheers :up:
Sergio
I see you've got GRID on your desktop Andre' I'm having lots of fun with that in full 1080p at the moment - my 5770 plays it very nicely on full settings. Very nice work with the memory too, let's see those timings tightened! :D
Quote:
Originally Posted by In-Fluence
thanks mate
yeah i have GRID, DIRT2 love them, i also have NFS SHIFT but could never made it not stutter...i read many ppl having this issue...inside car wont do it so i play like that :)
yes i will tight them for sure lets see how it goes :up:
Thanks mateQuote:
Originally Posted by l0ud_sil3nc3
Well i dont have good news pc bsod today and it was stable yesterday...its getting kinda random at 2000 mem 1T...and for the low volts i dunno its weird maybe i need to tweak some references skews or some volts...
Any help will be appreciated, it would be nice seeing other ppl trying :up:
Cheers
Sergio
well about that. . . I just sold my X3380 and my EP45T USB3P. I know its crazy but I think I am going to take a break from 775 for a while and then try to find a nice VID X3380. I am glad that the chip went on to somebody who is going to (ab)use it. . .
enjoy it steve:up:
I am going to focus on my X5660 and my golden W3540 with a new X58A UD7 that I have coming.
Andressergio I can tell you for sure that the USB3P does not seem to clock memory high and have the ability to maintain stability as well as the UD3P.
i dont agree with you in that mate not at all, you had a normal vid X3380 experience but look at mine on the USB3P with mem that are 1600 CL7 2x2 ECO Gskills, this was done at 23C ambient closed room.Quote:
Originally Posted by l0ud_sil3nc3
http://img204.imageshack.us/img204/7...9turb0linx.png
problem is with 2000 1T wich is what im investiganting, can be a bios issue i PM stasio, remeber the UD3P rev 1.0 has 10 stable BIOS...this one just 1 and 1 on beta...
USB3P rev 1.0 i can say that is stable as the UD3P rev 1.0 and with less issues like the reboots loops as on the UD3P, i just takes more time with DDR3 :up:
Luck on your new toys
Sergio
andressergio,hope you get it figured out,as i cant wait to see you
run them at their rated specs of ddr3-2000 pc16000 6-9-6-24.but it does
look like they are rated at 2t for those speeds according to newegg?
is this correct?
When I am saying higher memory speeds i am talking about DDR3 2000 + speeds. And don't worry I am going to find a low VID X3380, its on my list of things to hunt down. As for your overclock, its simply stunning, 1.376 actual volts for IBT stable is incredible, I needed 1.44 actual for 4.4 on air last night, but it was still very cool.Quote:
Originally Posted by andressergio
I will find a low VID X3380:mad:
It will be interesting to see how that chip likes:surf: -40c and lots of :explode2:Vcore....
:scope::bravo:mahaahahahmaha:hammer::shock2: :explode:
yes i know the pain i just go for safe now and not random to get batches i can afford getting a bad chip i live in South America so i got only 1 shotQuote:
Originally Posted by l0ud_sil3nc3
i know you will mate :up: wasnt a shot for you is to demostrate that this mobo still rocks
now look at this i just did for you to see
4500 Mhz / 1600 6-9-6-24 room temp 23,5C
http://img31.imageshack.us/img31/945...cr2linxpas.png
Cheers :up:
Sergio
lol how are you mate would be awesome in cold water :up:Quote:
Originally Posted by systemviper
hey radaja how are you mate ;)Quote:
Originally Posted by radaja
dunno i just put 2 in BIOS and comes out 1 :rofl: so i think some bios is messing around i talked to stasio let's see
for now i changed skews 900/900/0/50 and trfc = 100 and booted 2000 8-9-8-24 PL8 givin a bit of MCH and same vdimm runt a loop of linx and failed so almost there
i will find out or die :ROTF:
yea, i will be hitting it with my SS so we'll see what she's got..Quote:
Originally Posted by andressergio
I have a very sweet ud3p that lovess quads, so it should be fun to
put that x3360 thru the torture test, i got to fune tune the board for some
of the non brute force benchies....
here is what just i did with the x3360...
and it still had more, i only pushed it a little...
I need to get better fine tuning my ram and system,,,,
#1 Xeon X3360 in CPU-Z with 4717.47 mhz
#1 Xeon X3360 in SuperPi with 10sec 327ms
#1 Xeon X3360 in wPrime 32m with 8sec 676ms
#1 Xeon X3360 in PiFast with 21.08 sec
#3 Xeon X3360 in wPrime 1024m with 4min 40sec 551ms
So that X3380 should be here by the weekend, hope it cools down, it was
frekin 95 and super humid today... :rolleyes:
:shocked::shocked::shocked::shocked::shocked::shoc ked::shocked:Quote:
Originally Posted by andressergio
that is what I am talking about, 1600 cas6, any everest benches with that setup?
sure mate hereQuote:
Originally Posted by l0ud_sil3nc3
http://img696.imageshack.us/img696/4...cr2everest.png
Cheers :up:
Sergio
well i know running my set at 2000 6-9-6-24 on the x58 and P55 takes a lotQuote:
Originally Posted by andressergio
of Qpi/Vtt voltage(1.40v) with vdimm of 1.66v in bios.so im not sure how much vMCH
it will take to do it on the P45.i mean thats a lot of stress on the NB to run such high
speeds and low cas.you will have to probably go from pl8 to pl 9 or 10 i would think
very nice mate :up: i did 5005 9,2 SPI 1M thats my record on the UD3P not using anything special just water coolling at 9,5multiQuote:
Originally Posted by systemviper
Cheers and congrats on the chip show us some results :up:
yea, that is where i need a bunch of practice,Quote:
Originally Posted by andressergio
is tightening up the ram
figuring out better skews
and finding a nice sweet slim OS....
so lots of work/learning still to do
booted but on CL7 but still not stable and yes needs VTT and MCH for now im tightening CL6 1600Quote:
Originally Posted by radaja
this i get now still stable
1600 6-8-8-6-24 / trfc 70 @ 1.65
http://img34.imageshack.us/img34/4180/captura1bc.png
Cheers :up:
Sergio
Yes mate all my tests are on PL8 even 2000 ones but look, at 2000 8-9-8-24 i get 11k / 10.6 / 10.6 / 48 latency so if i fo less timmings and more PL it think i will quit using 2000 and going tighten on 1600 CL6 as you can see in my last pic i like that speed and easier to get stable...the ECOS couldnt hold that stable so still a nice upgrade.Quote:
Originally Posted by radaja
Cheers :toast:
Sergio
Sergio...I know you want to stay at 9x500 but I would love to see if you can get 8.5x525 with mem @ 1680 / PL8 / 7-6-6-16 (or 20) / tRFC 60. You Everest scores should go through the roof. I got this at 8x525 with above mem settings, but couldn't get it stable on the UD3LR...
http://img378.imageshack.us/img378/8...hemem8x525.png
Right now my 24/7 is running 8x500 with my mem @ 1600 / PL8 / 7-6-6-16 / tRFC 60...
http://img260.imageshack.us/img260/4...pc247setup.jpg
So image what your 8.5x525 could do :D
hey mate nice speed :up: i can do better on lower CPU speed mate for sure but i want my good 4500, will try on those settings mate and report back ok ?Quote:
Originally Posted by bluestang
Thanks for your screens :up:
some more results tweaking pumping jumping :ROTF: not benching as i dont have XP anymore just want to be stable
2000 9-9-8-24 1T PL8 subs tweaked @ 1,73 yes giga needs volts :D makes me remember my old PI1200 :D
http://img155.imageshack.us/img155/7...cr1pl8spi3.png
http://img526.imageshack.us/img526/8...cr1pl8ever.png
http://img267.imageshack.us/img267/1...cr1pl8dosm.jpg
http://img232.imageshack.us/img232/3...cr1pl8cust.png
Cheers :up:
Sergio
Nice work Sergio! I just ram Superpi 32 in XP at 4.5 GHz and 5-5-15 DDR2 @500 and got 11.10.541
So nice work.
thanks mate :up: took me some work but going stable :up:Quote:
Originally Posted by NoGuru
very nice andres, that is a solid oc on the cpu and the memory oc is awesome, it is nice to see such high speed and 1T:up:
thanks mate :up:Quote:
Originally Posted by l0ud_sil3nc3
i was not passing memtest failed at 44% so i upped MCH to DRAM ref to .80 then passed.. went to game and BC2 made it reboot so i nothed vcore to 1.392 load and shoot blend and now im playing no issues will keep testing seems that this is hard for this mobo at this CPU speed but can do it
maybe with hypers is better dunno for now im pretty happy volts are kinda high but normal on giga, i had the same with the PIS 1200
Cheers :toast:
Sergio
andressergio,those are some great results there:thumb:
thanks radaja :up: i have 24C ambient almost passed linx failed on last loop seconds before finishing, will shoot it tomorrow morning will be cooler :up:Quote:
Originally Posted by radaja
for now this is the most stable 2000 setup i have with nice timmings and latency
Cheers :up:
Sergio
Well i did it guys :up::up::up:
this is my first full stable 4500 / 2000 1T setup :D
http://img227.imageshack.us/img227/6...cr1pl8linx.png
Cheers :toast:
Sergio
muy bueno Sergio, now i got the itch to get a xeon like you. This board sure got the potential.
Nice work Andre', and nice gflops too - still waiting on my USB3P to turn up...NNNGGGGHHH!!
gracias !!!Quote:
Originally Posted by NeoGeo333
Cheers mate :up:
Thanks mate seems you have to wait ages as me to get stuff but don't worry you will have fun and a lot...i think someone has to try the Corsairs GT hypers chips on this...Quote:
Originally Posted by In-Fluence
Cheers :up:
Sergio
Fantastic work Serg! Very inspiring.
thanks friendQuote:
Originally Posted by NoGuru
i feel the Gskills kinda stiff for timmings (sorry i dunno the word) what i mean is this or that you wanna play hard you need to loose timmings...maybe if someone has some 2x2 hypers kit to sell i appreciatte a PM i wanna try some
Cheers :up:
Sergio
thats what I was running on both my X58 and P45 setup and they could do 1600 6-6-6-18 on both, but I had run crazy MCH volts (1.48-1.5).Quote:
Originally Posted by andressergio
yes i choose the Gskills cauz they where 100 less to get it here...but the dif of 1600 6-9-6-24 to 1600 6-6-6-18 its min in P45---i also have to use 1,48 to 1,52 MCH wich is normal for giga boardsQuote:
Originally Posted by l0ud_sil3nc3
Cheers mate :up:
Sergio
After all those test passed gaming on BC2 or DIRT2 i get BSOD...so or its too much for P45 or need some more tweaking or maybe a better bios to support this fast mem
So i settled at 1600 6-9-6-24 for now
Cheers !
Sergio
That's still pretty good going, I always suspect things like PCI-E related bios options like PCI-E frequency and SB volts if I get BSOD in games, then again 6-6-6 at those speeds is a lot to expect for a p45 to handle, but it is a marvellous northbridge which continues to impress!
The bios are also still quite early maybe we can hope they make some improvements. I wonder how bandwidth on this board compares to other EP45T boards running at the same speeds - might be worth comparing and even swapping bios memory tables for better performance / higher clocks...
Still no parcel yet :(
damn sorry to hear mateQuote:
Originally Posted by In-Fluence
well for 1600 6-8-6-18 and tight timmings that is what i am i need 1,52 MCH for a solid OC, pases linx, game whatever
i also passed linx at 2000 1T on 1,52MCH but games will crash so...i will settle on this
i also saw other ppl on the EP45T UD3P that need 1.5+ and also on the EP45T USB3P
http://img443.imageshack.us/img443/1...cr2tweaked.jpg
Cheers mate best of lucks to get the mobo
Sergio
Guys
Each day im loving this mobo more and more, never thought that PL7 would be so easy...i decided to try today and look :D
http://img202.imageshack.us/img202/6...cr2spi32pl.png
http://img708.imageshack.us/img708/4...cr2everest.png
Just runing it on my 24/7 very happy !
Im starting to think they toned that board down some vs the older T boards. :confused:
1600 C6 PL8 daily timings
http://i131.photobucket.com/albums/p...s281/tight.png
1600 C6 PL7 same timings
http://i131.photobucket.com/albums/p...1/1600c6p7.png
Sorry hoss i dunno what you mean :confused:Quote:
Originally Posted by Hoss331
Meaning like the way there setting up the bios for these newer boards, for one reason or other, having reduced bandwidth vs the older boards. The same as what they did with the bios for the ud3p, after f10b the reads were reduced and with higher latency.
its true about f10b but really i dont think its that your mem can do better than my PIS yours are hypers and mine not, gskill is kinda tough on bining, and costed me 100 $ lessQuote:
Originally Posted by Hoss331
this is also a nice setting i have but i cant do 6-6-4-18 PL7
http://img266.imageshack.us/img266/5268/captura2i.png
http://img62.imageshack.us/img62/956...cr1pl7cust.jpg
Cheers :up:
Sergio
The difference between my timings and yours should be pretty minimal, guessing less than 100mb, so I really dont think its the memory itself causing the difference. Heres an older one done at looser timings and really not much difference. :shrug: The trfc on the first run I posted was at 52.
http://i131.photobucket.com/albums/p...ss281/band.jpg
These are the sub timings on the first runs posted.
http://i131.photobucket.com/albums/p...ss281/subs.png
yes Hoss can be what you say remember this mobo is on second beta bios F2D i asked stasio to keep updatingQuote:
Originally Posted by Hoss331
i dont agree as 6-6-6-18 and that timmings will give me kinda same speeds, but my mem cant do it
Either way very happy never tought that PL7 can be done :up:
Thanks for your input Hoss
Hello guys; I used to hang around in this thread, but I've been away for a while.
Question is: I'm using F9a bios version. My computer is still running great, but I wanna know if im missing anything running this old bios. Ie... Did they ever get sleep to work correctly? I'm running 24/7 @4.0Ghz. Any super good bios upgrades? Something that I cant live without?
Thanks guys
sup mate F10b was the best for me anything over is very stable but put some brakes on mem speed...a bit nothing serious it was hoss was talking aboutQuote:
Originally Posted by mreld3r
Cheers :up:
Sergio
