these numbers have been marked as stable nowQuote:
Originally Posted by Manicdan
http://img832.imageshack.us/img832/3453/stableb.th.png
Printable View
these numbers have been marked as stable nowQuote:
Originally Posted by Manicdan
http://img832.imageshack.us/img832/3453/stableb.th.png
dont waste your time updating with my last results, due to the fact it was stable for 10 hours kinda made me pissed cause i knew i could get more out of it
so i found out 3780 isnt stable, and currently trying 3752, will have an update when i get off work tonight.
i honestly didnt expect this to be stable, no idea whats working considering a few weeks ago i couldnt get 3.4ghz stable at this voltage, lol.
Might be a bit higher then what it's showing maybe 10C higher then.Quote:
Originally Posted by mrcmark
maybe the a lower ambient is helping ?Quote:
Originally Posted by Manicdan
My cores max speed is 4.3ghz at 1.55 volts
and NB can hit 3.2ghzat 1.5 volts
too much of a heat limit for me to run both at speed.
well i think my temp sensor is way off, the bios showed like 18C idle, when the room is 22, and when in windows its showing 23C which might be right, or the same number as the bios just 5C hotter due to being in windows instead of a bios. so when its at 45C i think its possible the cpu is closer to 50C, which is a the touchiest point for these chips. and i think i remounted and got much better contact so when i use to dump on that extra heat, it wouldnt go anywhere, and now keeps it cooler and at lower volts (thuban prefers temp over volts if i had to summarize it for someone else)Quote:
Originally Posted by demonkevy666
i also still wonder what will happen if i raised it up a notch more on the volts, and dropped my HT (NB is stuck and thats whats screwing me over, i havnt been able to load windows at 270ish bus ever, nomatter how low everything else is)
I was looking awhile back for a thorough article on NB frequency effects, and I just stumbled upon one (that's quite old, actually, don't know how I missed it) that does a good job of it:
http://hwbot.org/article/news/hwbot_...rmance_scaling
They even reference back to Xtreme Systems here
And here was my own personal struggle for NB frequency.
Bottomline, there is no universal ratio where anything less bottlenecks ALL apps. But, generally, you want to strive for at least 2:1 NB-to-RAM ratio (or at the very very least, 1.7:1, eg. 2300NB:1333RAM). 1090T owners have a supreme advantage here, since the NB multiplier on 1055T's won't go past 10x, so the frugal ones like myself are held back by FSB limits. But it breaks my heart (well, not really, but for dramatic effect...) to see a 1090T at over 4GHz, RAM at over 1800... and the NB still sitting at 2000.
are you sure about that limit of 10x? then i wouldnt be able to adjust my NB at all, since my bios is very funny. i cant lower it from stock, and i can only raise it at the same rate as my HT link. basically im just short on adjustment options, lol.
also, what do people recommend for testing turbo stability? something that only uses 2-3 cores at a time, without me forcing core affinity.
On the 1055T? Yes, I'm sure. The only way to raise it is with FSB (which starts at 200, then 10 mult =2000 default)Quote:
Originally Posted by Manicdan
Around the 2400 area (ie ~240fsb) you'll need to start adding "CPU-NB" voltage (not the one labelled "NB Voltage")
Regarding the HT Link: you won't see a benefit in performance beyond stock, but supposedly, for ultimate stability, it's best left in-sync with the NB freq (then again, for ultimate stability, AMD's current implementation of Turbo is best turned off... the proof is in the pudding: my out-of-sync settings are plenty stable), so if you can't modify the multipliers at all, don't sweat it.
So, at your current 257FSB, that means your NB is running at 2570... if you haven't already increased CPU-NB voltage, you need to do so. If you can't, then it's unfortunate, but you'll have to back way off on your OC. Feel free to flip your MB the bird.
As for the CPU frequency: you can generally get 3.6 to 3.7 on stock voltage, so you're fine there, but your turbo is probably giving you problems. Try setting the turbo multiplier to 15.5 for just-under 4GHz. Can't change that multiplier either? Well, then... feel free to flip your MB the bird again. (or just disable turbo... for the love of crap, please tell me your MB at least does THAT. If not, it's back to scaling your OC waaay back so that the Turbo freq is stable)
Quote:
Originally Posted by SergeantNathan
i hope your not talking about in AOD, that program is not interactive with my bios. i only have one voltage for NB in my bios, and i honestly do not know if it helps any, so just put it up to a decent value so its not stupidly dangerous
those are my old clocks too, my current is 266x14, and at 270x14 is unstable to where it locks up, rather than spiting out an error.
i can adjust my turbo multi, and i have that at 16 now instead of 16.5x so its right around 4.3 still. which has never really given me an issue, but i still havnt given it a good few hour test.
Not too much of a heat limit now.Quote:
Originally Posted by demonkevy666
just need better ram for more speed else where
9-9-9-24 (40) isn't very fast for 1600mhz, but only single channel anyways.
My load voltage dose drop a bit 1.454 heavy and 1.464 sometimes.
make sure turbo is off as well, one time I forgot to disable it and it kept going into the turbo multipliers (default 16x) when I set it for 22x -_-Quote:
Originally Posted by mrcmark
Here is mine for now.
*CPU Model: AMD Phenom II X6 1090T BE
*CPU Stepping: -
*CPU Frequency: 4219 MHz
*CPU vCore: 1.392V
*CPU Multiplier: 21x
*CPU Turbo: Disabled
*CPU NB Speed: 3000 MHz
*HT Ref Speed: 2000 MHz
*RAM Speed: DDR3-1600
*RAM Timings: 8-8-8-21-2T
*RAM Configuration: 4 GB (2 x 2 GB)
*RAM vDIMM: 1.65V
*Motherboard: Gigabyte 890FXA-UD5
*Chipset/Socket: AM3, 890FX + SB850
*Cooling: Air (Hyper 212+)
*Temps: 17C Idle / 65C Load
*Operating System: Windows 7
*32/64-Bit: 64
*Stable/Suicide/Untested: Untested
A final question. I must run LinX for 8 hours at least for be added to the stable table rig? I ask this because maybe in the other 24 pages the requirements has change. Thanks for the reply.
saint 19, looks good, only with 1.4V? Show more for us, maybe will great chip (1.48V and 4300 MHZ +???)
Here are some little test that I did.Quote:
Originally Posted by FlanK3r
http://img243.imageshack.us/img243/1128/pifast.th.jpg
http://img209.imageshack.us/img209/2...perpi1m.th.jpg
http://img837.imageshack.us/img837/1...rime32m.th.jpg
http://img221.imageshack.us/img221/2...me1024m.th.jpg
I was thinking the same about 4300MHz I will try it this weekend I hope don't kill the chip :rofl:
think not, 1.48V is safe for 24/7
pff, 1.7v isnt even a suicide run if you have water coolingQuote:
Originally Posted by saint19
So FlanK3r and Manicdan what voltage and temp do u thing that is safe? With my 955 C2 hit the 70ºC without problems.
turbo adds like .2v to whatever your settings are. so stock it gives it about 1.5vQuote:
Originally Posted by saint19
check the very first page of this thread for what kind of clocks and cooling people have used for 8 hours of stress testing.
i would say 1.55v is probably the highest you can go for 24/7 and not get any degradation. 1.6 should be fine if you have water
and temps on thuban seem to be better lower in any case. as ive found out, any voltage you want, probably wont help if your over 60C
just read like everything from the very first post and it will give you lots of ideas for what is possible. (temps, clocks, volts, cooling methods, motherboards, max NB/HT, etc)
for Deneb up 1.5-1.55V (if your temps OK, means about 55-58C only) and about 1.45-1.488 for Thuban
i had come across a weird conclusion this past weekend.
my clocks were not being stable at 3.71ghz @1.368v. the temps would hit 42C or so which caused my fans to speed up, after a while it would stable out around 44-45C, but never more. but i got constant errors in y-curncher
so i dropped the voltage down to 1.346, and guess what, the temps never broke 40C (which is when the fans start to speed up), and after an hour or so i was still rock solid and temps still under 40C. its crazy to think that going down in voltage helped. but now my rig is completely silent, and seems to be very stable. i wont have time for the full 8 hours until wed though.
so my tip to people out there, max out the clocks on the lowest voltages first, and increase them later since its a very slipper slope once temps get just a hair too high.
Ok guys 4.3GHz @ 1.48V.
http://valid.canardpc.com/cache/banner/1468598.png
You can see more pics here
but what about some LINX or PRIME???
I will do this weekend, I'm waiting my C300 SSD to get better results. ;)
Quite tempted to grab a newer batch 1090t, now a days the majority seems to do really well with low voltage :)
Hi guys.
If I run LinX 8+ I must run y-cruncher too, or with LinX is enough. What are the advantages of y-cruncher?
1023GPMW | 24 degrees ambient
http://b.imagehost.org/t/0145/4_1GHz.jpg
I'm not finished with it, but it seems that it's weaker than my 1010MPMW. The real voltage was steady all the time (1389 - 1391mV).
At least it runs cooler. The fifth core is the weakest one, others don't need this vCore.
Seems a good start Ivan. 4.1G with <1.4V is not too shabby is it? What's default Vid?
Yes, not that bad, but not better than the other one I have. I think most of the new 1090T can do the same with water cooling. Default VID is 1.3V, if CoreTemp is a good way to see it. It idles at ~1.28V (multimeter) with "auto" set in bios.
The first test I did was to put it in the socket and see if it's stable with the settings I use for the other one. Well, it locked up. 4.3GHz is doable with around 1.5V real voltage.
It doesn't mean that It will remain the same when an overclocked CPU-NB is added to it.
I've already read tons of reviews on the Crosshair IV, so I was about to pass this by, but I thought I would take a look at their overclock:
http://hardocp.com/article/2010/11/1...board_review/7
I was always curious how some were able to exceed 300fsb, beyond just luck. Well, I found my answer: "CPU VDDA voltage", or, on other boards, CPU PLL voltage. I generally leave PLL voltages alone, but it looks like this particular setting helps with high FSB overclocks (also see their MSI results: http://hardocp.com/article/2010/07/2...board_review/1, again, higher CPU PLL voltage)
Even with my posted stable settings, I found myself sometimes being booted to desktop after long gaming sessions... lowering the FSB one notch sorted that out. After bumping the CPU PLL up one notch to 2.54, it looks like I can go back to my initial "untested" settings of 289fsb... I just past a 50-run on IntelBurnTest this afternoon. I'll do a 400-run tonight to confirm and update this post.
***Update***
Bah. 289 didn't pass overnight testing. Even 288. Back to 287. Looks like my RAM is at it's limit. Dropping timings and clockspeed down and upping CPU PLL to 2.7 for a max-fsb-test got me to almost 300, but it would not perform as well as my highly optimized timings. So, I'll stick with what I got.
They didnt seem to tweak the CPU-NB any with 1.45 on the CPu-NB I figured they would make a little more head way on the CPU-NB anyways I will give the VDDA voltage a go and see if it stabalizes things for me.Quote:
Originally Posted by SergeantNathan
is Particle still updating the list? i FINALLY got my highest stable that im happy with. 3.7ghz while i believe is actually undervolted (if stock is 1.35v)
CPU Model: AMD Phenom II X6 1055T
CPU Stepping: unknown
CPU Frequency: 3710 MHz
CPU vCore: 1.336V
CPU Multiplier: 14x
CPU Turbo: 4240 / 16.0x / 1.52v
CPU NB Speed: 2650 MHz
HT Ref Speed: 265 MHz
RAM Speed: DDR2-882
RAM Timings: 5-5-5-13-2T
RAM Configuration: 4 GB (4 x 1 GB)
RAM vDIMM: 2.20V
Motherboard: MSI K9A2-Platinum 1.0
Chipset/Socket: AM3, 790FX + SB600
Cooling: water (Corsair H50, GT15 1750rpm pull)
Temps: 22C Idle / 37C Load
Operating System: Windows 7
32/64-Bit: 64
Stable/Suicide/Untested: Stable
http://a.imageshack.us/img338/7644/3710stable.png
Rock and roll.
I've been known to update the charts periodically when some results pile up. I just don't do them daily.
CPU Model: AMD Phenom II X6 1055T
CPU Stepping: unknown
CPU Frequency: 3900 MHz
CPU vCore: 1.40V
CPU Multiplier: 13x
CPU Turbo: Disabled
CPU NB Speed: 2700 MHz
HT Ref Speed: 300 MHz
RAM Speed: DDR3-1600
RAM Timings: 8-8-8-24-2T
RAM Configuration: 4 GB (2 x 2 GB)
RAM vDIMM: 1.6V
Motherboard: MSI 790FX-GD70
Chipset/Socket: AM3, 790FX
Cooling: Zalman 9700
Temps: 19C Idle / 45C Load
Operating System: Windows 7 Home Premium
32/64-Bit: 64
Stable/Suicide/Untested: Stable Prime Blend 8.5 Hours
Am looking to buy a 1090T. Any particular weeks that I should be looking for?
1010, 1012, 1015, 1022
Quote:
Originally Posted by mav2000
The newest batch you can find imo :)
Got an 1015 and a 1022 and none of them was great :(Quote:
Originally Posted by FlanK3r
i have 2x 1015, some guys have here 1015 too and chips very good, most of 4200+ MHz stable at Aircooling
the is cheap now guys, keep it coming :D
Quick question, should I lower my ht link speed on that overclock? I notice a lot of people have it around 2100, I have mine at 2700.
ht link is for cpu to graphics, which is quite fine even at 2000, so i would say yes, but after some testing.
some people i believe notice a loss in perf if NB and HT are not identical. not sure how true that is.
but lower the HT might let you get some extra clocks out of it. i would just drop it 1 multi so your around 2300-2500ish
darn double post
match HT and NB. in everest you'll notice cache and memory latencies improve quite dramatically.
Alright thanks, I'll play around with it then to see how it goes.
Can you give me some proof?I have same board as you,only i got 955BE c3.I have a pretty good CPU-Nb,doing 2800 1600 6-6-6 full stable at 1,25.But there is no difference if i match HTT with CPU-NB or not,it gives me zero performance,no difference whatsoever.Maybe it has something to do with Thuban?If you can give us some Everest screens would be great :DQuote:
Originally Posted by biohead
For some reason this is true with the newer 890 amd chip boards.Quote:
Originally Posted by Alex-Ro
When matching the NB with HT speeds performance is increase very noticeably, for example my minfps in BC2 with my nb in sync with ht is about 110 - 115fps
But with my nb at x6 times which gives me 2190mhz HT my min fps with the same ram settings cpu oc and everything is 75 fps, Bare in mind i run 5850x2 crossfire and 4.38ghz with everything on high except shadows and effects, 16af and 2aa, All games run alot smooth when syncing the NB with the HT.
I have read it alot on here especially with the 890amd mobo's, I tried it myself and it turns out to be true, When overclocking with FSB on a 1055t its best to keep NB and HT sync on 890amd boards, but if are you going to you'd need to increase PLL voltage and NB/HT voltage.
CPU Model: AMD Phenom II X6 1090T BE
CPU Stepping: Not know
CPU Frequency: 3817.6 MHz
CPU vCore: 1.325V in BIOS / 1.312V in CPU-Z
CPU Multiplier: 19x
CPU Turbo: Disabled
CPU NB Speed: 3000 MHz
HT Ref Speed: 2000 MHz
RAM Speed: DDR3-1600
RAM Timings: 8-8-8-21-2T
RAM Configuration: 4 GB (2 x 2 GB)
RAM vDIMM: 1.65V
Motherboard: GAGABYTE 890FAX-UD5 Rev. 2.0 with F4 BIOS
Chipset/Socket: AM3, 890FX + SB850
Cooling: Air (CM Hyper 212+ single fan)
Temps: 15.5ºC Idle / 43ºC Load
Operating System: Windows 7
32/64-Bit: x64
Stable/Suicide/Untested: Stable
http://img222.imageshack.us/img222/9...8ghzstable.jpg
I will test it with 4GHz or 4.2GHz and come back with more results.
CPU Model: AMD Phenom II X6 1090T
CPU Stepping: CCBBE CB 1010MPMW
CPU Frequency: 4006 MHz
CPU vCore: 1.336V real
CPU Multiplier: 17.5x
CPU Turbo: Disabled
CPU NB Speed: 3202 MHz
HT Ref Speed: 229 MHz
RAM Speed: DDR3-1830
RAM Timings: 6-6-5-17-22 1T 90ns
RAM Configuration: 4 GB (2 x 2 GB)
RAM vDIMM: 1.69V
Motherboard: Asus Crosshair IV Formula (bios v.905)
Chipset/Socket: AM3, 890FX + SB850
Cooling: Water (EK Supreme HF)
Temps: 30ºC Idle / 42ºC Load
Operating System: Windows 7
32/64-Bit: x64
Stable/Suicide/Untested: Untested (1h Prime95)
Just for reference, I'm not gonna test it 8+ hours, 'cause I won't use it as 24/7. Maybe I could try how high I can go above 4300MHz with acceptable temps.
http://b.imagehost.org/t/0650/4GHz.jpg
Nice chip there.
I have a question for the CH IV guys. Just started playing with this board and it seems to over volt quite a bit. For eg. for 4.2 Ghz, am running prime and it moves from the 1.45v i set in bios to 1.50V....now thats a huge movement in voltages. This is basically becasue of CPU load calibaration being on. When I put it off, it undervolts and basically black/blue screens during testing...Damn I cant get the volatages to be stable. On my earlier board, the MSI 790FX GD70, it would undervolt a bit, but would generally stay in the same range. In this board, it either undervolts or overvolts a lot. Now the issue for me is that even with a water cooled system, I am touching 60 degrees on the cpu when running it at 4.2 Ghz 1.5V (1.45V in bios). Can someone help me here.
Are you wanting to replace your previous entry with this?Quote:
Originally Posted by I.nfraR.ed
---
Charts are up to date.
just have to get used to chIV overvolting so much :shrug: what is your water set up? i was able to run 1.56v @ load with temps around 55-56c but i have 3x120 worth of very high fpi rads with some 100+cfm fans on them to keep those temps. x6 gets much hotter than x4 with same volts, but is usually able to get higher freq with same voltsQuote:
Originally Posted by mav2000
No :). I can add my second Thuban, but I need more free time to test it completely.Quote:
Originally Posted by Particle
Thanks...figured out a way to get things under control. The Asus turbo V software really helped.Quote:
Originally Posted by crazydiamond
I run 1x360 BIX and 1x120 XSPC all on Sythe GT 1850's. But it obviously is still not enough to hold 1.5v plus. The below run topped out at around 52 degrees on the core. Whats the safe temp for AMD these days?? My ambients are around 23-25 degrees.
Here's where I am . 3 hours prime 4.06 ghz. Set to 1.385v in bios. With load line went to 1.41v in CPUZ. CPU NB at 2.7 and ram at 1800 CL8
http://farm5.static.flickr.com/4089/...56d6a969_b.jpg
Next up 4.2 Ghz.
Without load line, the board tends to under volt a lot and that kills stability.
Oh, I see. In the future make sure to mention that it's a new entry / chip as otherwise I have no way to know. The only reason I asked in this particular case is because the clocks were lower. :) I'll hold off until you're ready if you still need some time with it first.Quote:
Originally Posted by I.nfraR.ed
Looking good!:) Noctua NH-D14 cooling, 25c ambients, censor on different room so here might be even warmer cause cpu warms a LOT!
1.475 for CPU from bios.. actual stress-voltage on cpu-z.
http://i10.aijaa.com/b/00133/7131552.png
And here is the final result. Ambient temp started falling after i just opened my rooms door, so the air could chance!:yepp: No cold air or anything.
http://i6.aijaa.com/b/00030/7132332.png
very nice Asmola!
looking good :) if you click the link in my sig it shows voltages i needed for clocks ranging from 3.2ghz to 4.3ghz (which will obviously be different than yours) but more importantly it shows my temps at said voltages which might give you some insight. my water is also listed in my sig, both rads using 100+ cfm fans for those tests thoughQuote:
Originally Posted by mav2000
To a system with less cpu-nb voltage is not constant.
voltage is much that I use; will destroy the IMC ?
1055t
FSB/Multiplier:13
CPU Speed:4004
NB Speed:3080
CPU Voltage:1.475
CPU-NB Voltage:1.45
nb voltage:auto (1.1)
RAM Speed:1643
Motherboard:c4f
Model: 125w
____________
Hello, a question:
Right now I test my new 1090T, it is currently stable at 4GHz with 1.44 v, and wanted to know, how much is the maximum voltage recommended for use 24 / 7.
I've been looking for, and some say it is 1.50 v, one that is 155V, but I clarified.
Greetings and Merry Christmas to all!
Update, CPU now are stable (1H Prime95)
CPU Model: AMD Phenom II X6 1090T BE
CPU Stepping: ccbbe cb 1022cpmw
CPU Frequency: 4179 MHz
CPU vCore: 1.44V
CPU Multiplier: 17x
CPU Turbo: Disabled
CPU NB Speed: 2458 MHz
HT Ref Speed: 245 MHz
RAM Speed: DDR3-2133
RAM Timings: 9-11-9-28-1T
RAM Configuration: 8 GB (2 x 4 GB) G.Skill F3-17000CL9D-8GBXLD
RAM vDIMM: 1.65V
Motherboard: ASUS Crosshair Formula IV
Chipset/Socket: AM3, 890FX + SB850
Cooling: Prolimatech Armageddon Push->Pull 120mm
Temps: 31C Idle / 56C Load
Operating System: Windows 7
32/64-Bit: 64
Stable/Suicide/Untested: Stable
http://valid.canardpc.com/cache/banner/2136342.png
http://img15.hostingpics.net/pics/3060654179cpuz.png http://img15.hostingpics.net/pics/13...78cachemem.png
http://img15.hostingpics.net/pics/32...8cinebench.png
Is NB multi locked upwards for Phenom 1055/1075?
NB multiplier is locked only +upwards. U can chage it down (clocked this CPU with busspeed)
Hi guys.
Currently I have a Gigabyte 890FXA-UD5 with a 1090T @ 3.8GHz, NB@3000 and HT@2000MHz, the voltage are: 1.325V for CPU, 1.150 for NB and 1.375 for CPU/NB. Some people has tell me that run the CPU/NB with a voltage above of CPU voltage is dangerous, Is that true?.
I think FlanK3r meant those non BE-processors, which have locked multi.Quote:
Originally Posted by QuietIce
Doh! :brick:Quote:
Originally Posted by Asmola
This 1100T seems to like overclocking better than my 1090T did. Don't read too much into NB or memory clocks as they're relaxed for CPU clock testing. I was stable at 3GHz NB for instance at 3.8 GHz, but 4.0 GHz was a wash at any voltage. Relaxed NB and 4GHz was doable at stock turbo voltage (1.45V)--maybe even less (I didn't check).
http://pcrpg.org/pics/misc/1100t_occt_4026.png
Charts are up to date.
---
It looks like I'm first to the punch with an 1100T--what gives? :)
CPU Model: AMD Phenom II X6 1090T BE
CPU Stepping: ............
CPU Frequency: 4200 MHz
CPU vCore: 1.48V idle 1.504v load
CPU Multiplier: 21
CPU Turbo: Disabled
CPU NB Speed: 3000 MHz
HT ref Speed: 200
RAM Speed: DDR3-1600
RAM Timings: 8-9-8-24-1T
RAM Configuration: 4 GB (2 x 2 GB)
RAM vDIMM: 1.65V
Motherboard: Gigabyte 790XTA UD4
Chipset/Socket: AM3, 790X / SB750
Cooling: Ek Supreme HF
Temps: +/-18C Idle / 33C Load
Operating System: Windows 7
32/64-Bit: 64
Stable/Suicide/Untested: so far, has 2h prime95 in blend
http://img232.imageshack.us/img232/5...ttuloys.th.jpg
Voltages:
CPU: 1,48v-1,50v load
NB:1,16v
CPU/NB:1.37v
CPU PLL: 2.54v
HT:1,24v
RAM:1,65v
SB/PCIe/PLL:1,80v
As you can see these voltages, for use 24/7?
CPU Model: AMD Phenom II X6 1075T
CPU Stepping: /
CPU Frequency: 4515 MHz
CPU vCore: 1.56V
CPU Multiplier: 15x
CPU Turbo: Disabled
CPU NB Speed: 3010 MHz
HT Ref Speed: 301 MHz
RAM Speed: DDR3-1600
RAM Timings: 6-6-6-18-1T
RAM Configuration: 4 GB (2 x 2 GB)
RAM vDIMM: 1.88V
Motherboard: ASUS M4A89GTD PRO/USB3
Chipset/Socket: AM3, 890GX + SB850
Cooling: H2O (EK wave)
Temps: /
Operating System: Windows 7
32/64-Bit: 64
Stable/Suicide/Untested: Untested
http://www.shrani.si/f/23/MY/1WEhFO0E/1/spi1m.png
Running up against some sort of hard wall. I can do 4030 at 1.45V and pass 10+ hours of OCCT, but 4100 is a bust at any voltage, NB clock, or memory clock within seconds to minutes.
temps are too high
Mid-50s? Nah, that's pretty comfortable. We're talking about +70 MHz here.
A load core temp of 55 or so is typically where Phenom II's, including the X6, start getting unstable.Quote:
Originally Posted by Particle
Sure, you can run 60-65 (maybe) at stock speeds but who runs that slow?!? ;)
Frick'n heck. I'm already using a Tuniq Tower 120 Extreme with two Scythe S-FLEX G fans.
Do you have 80+ CFM of exhaust fan(s) on the case to go with that?
The case is skeletonized. It's completely open.
I think my chip is high leakage. vid at stock is 1.275, will sometimes drop under load to 1.257.
right now I I just did 4.0ghz with 1.38 4 hours volts dropping on load to 1.332. :/ LLC is disabled.
My Nb is at 3.0ghz on 1.3 volts too.
Finally got this 1090T straightend out. :up:
For some wierd reason it didn't want to play well with my Corsair Hypers reguardless of timings. Swapped it out for a BBSE kit and all is golden!
I can probably tighten mem timings, but after all my hassle with the other kit I wanted to make sure it was out of the equation.
CPU Model: AMD Phenom II X6 1090T BE
CPU Stepping: CCBBE CB 1025 GPWM
CPU Frequency: 4156 MHz
CPU vCore: 1.45V
IMC vCore: 1.265V
CPU Multiplier: 19x
CPU Turbo: Disabled
CPU NB Speed: 3062 MHz
HT Ref Speed: 218 MHz
RAM Speed: DDR3-1750
RAM Timings: 6-9-6-18-1T
RAM Configuration: 4 GB (2 x 2 GB)
RAM vDIMM: 1.6V
Motherboard: ASUS Crosshair IV Formula
Chipset/Socket: AM3, 890FX + SB850
Cooling: Custom Water
Temps: 26C Idle / 49C Load
Operating System: Windows 7
32/64-Bit: 64
Stable/Suicide/Untested: Stable

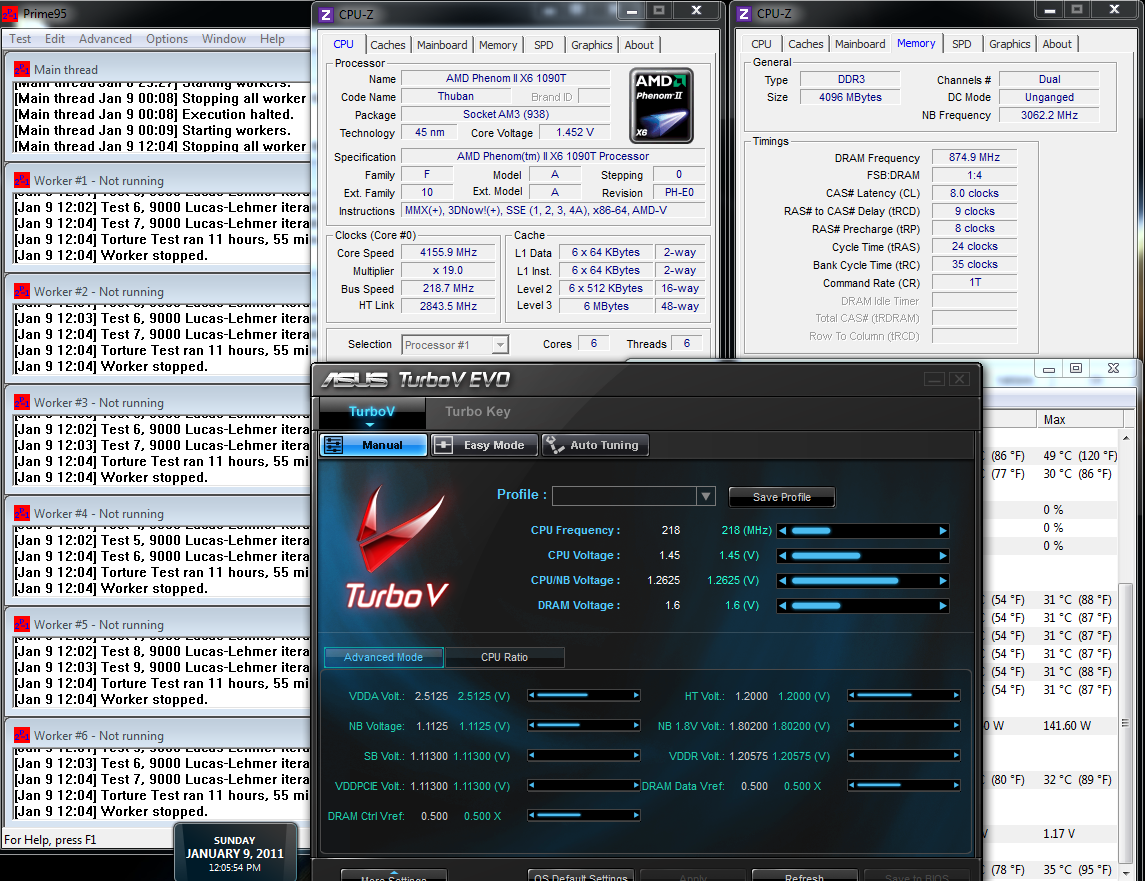

http://i30.photobucket.com/albums/c3...12hr_Prime.png
Particle: I tightened up Ram timings and let it run this afternoon while I was out (over 4hrs)....
It's your call how you want to list it, but these are much better. :up:
http://i30.photobucket.com/albums/c3...TighterMem.png
By these standards I guess I'm "Untested". Never did much believe in such long stability tests.
* CPU Model: AMD Phenom II X6 1055T 95w
* CPU Stepping:
* CPU Frequency: 4004 MHz
* CPU vCore: 1.504V
* CPU Multiplier: 14x
* CPU Turbo: Disabled
* CPU NB Speed: 2860 MHz
* HT Ref Speed: 286 MHz
* RAM Speed: DDR3-1524
* RAM Timings: 7-9-9-30-1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.70V
* Motherboard: Gigabyte GA-890GPA-UD3H
* Chipset/Socket: AM3, 890GX + SB850
* Cooling: Air (Thermalright Archon)
* Temps: 22C Idle / 62C Load
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Untested
--Matt
I don't usually either, but I thought I had it stable until it kept throwing errors in WCG...Quote:
Originally Posted by mattkosem
Just figured since I had ran it that long I might as well get a chip on the stable list. ;)
I know I seem like sort of a hard-ass when it comes to stability requirements, but it doesn't do us much good if we list unstable clocks in the chart as stable. The whole idea is to give people a realistic idea of what are fairly reliable trends. You can see the discrepency, too, as I did even with one 1090T I used. It would run great at 4.2 GHz. I played games and whatnot. Turns out it wasn't actually fully stable above about 3850. It would do a reliable 7-10 minutes before crashing most of the time, so it was probably a heat management problem. People like us tend to run chips like that all the time. "Seems fine for daily use" but not actually stable for one reason or another.
WCG is a good test, but it's hard to translate its usage scenario into a formal requirement for validation. It doesn't really have a "prove to the user it ran full tilt for x hours" burn-in mode that can be nicely captured in a screen shot.
http://i735.photobucket.com/albums/w...rimestable.jpgQuote:
Originally Posted by Particle
before anyone says anyone says anything those are knees not a butt. LOL
* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: CCBBE CB 1020 FPWM
* CPU Frequency: 4000mhz
* CPU vCore: 1.4125 in bios On load 1.380-1.392(off set settings)
* CPU Multiplier: 16x
* CPU Turbo: Disabled/ Cool and quite on.
* CPU NB Speed: 3000mhz 1.3125 volts
* HT Ref Speed: 250 MHz
* RAM Speed: DDR3 - 2000mhz
* RAM Timings: 9-10-9-28
* RAM Configuration: 8gbs GB (2 x 4 GB)
* RAM vDIMM: 1.56V
* Motherboard: ASUS M4A89 TD Pro/USB3.0
* Chipset/Socket: AM3 890FX
* Cooling: Air Scythe Mugen 2 with TX3 paste
* Temps 28c idle/56C load (coretemp off set 15C)
* Operating system vista 64 bit SP2
Have a minor update. I'd like to get on the "stable" list :-)
* CPU Model: AMD Phenom II X6 1055T 95w
* CPU Stepping:
* CPU Frequency: 4004 MHz
* CPU vCore: 1.504V
* CPU Multiplier: 14x
* CPU Turbo: Disabled
* CPU NB Speed: 2860 MHz
* HT Ref Speed: 286 MHz
* RAM Speed: DDR3-1906
* RAM Timings: 9-11-11-30-2T
* RAM Configuration: 8 GB (2 x 4 GB)
* RAM vDIMM: 1.56V
* Motherboard: Gigabyte GA-890GPA-UD3H
* Chipset/Socket: AM3, 890GX + SB850
* Cooling: Air (Thermalright Archon)
* Temps: 22C Idle / 62C Load
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable
--Matt
CPU Model: AMD Phenom II X6 1090T BE
CPU Stepping: ............
CPU Frequency: 4000 MHz
CPU vCore: 1.42v
CPU Multiplier: 20
CPU Turbo: Disabled
CPU NB Speed: 3000 MHz
HT ref Speed: 200
RAM Speed: DDR3-1600
RAM Timings: 8-9-8-24-1T
RAM Configuration: 4 GB (2 x 2 GB)
RAM vDIMM: 1.65V
Motherboard: Gigabyte 790XTA UD4
Chipset/Socket: AM3, 790X / SB750
Cooling: Ek Supreme HF
Temps: +/-15C Idle / 33C Load
Operating System: Windows 7
32/64-Bit: 64
Stable/Suicide/Untested:Stable 13H 48Min Prime95
http://img706.imageshack.us/img706/8...4horas4ghz.jpg
Voltages:
CPU: 1,42
NB:1,12v
CPU/NB:1.35v
CPU PLL: 2.50v
HT:1,20v
RAM:1,65v
Hope this is ok, I didn't see any other "suicide runs" posted here but the verbiage was in the last bullet point.
CPU Model: AMD Phenom II X6 1090T BE
CPU Stepping: CCBBE CB 1014EPMW
CPU Frequency: 5016 MHz
CPU vCore: 1.62V
CPU Multiplier: 25x
CPU Turbo: Disabled
CPU NB Speed: 2000 MHz
HT Ref Speed: 200 MHz
RAM Speed: DDR3-1600
RAM Timings: 8-8-8-24-2T
RAM Configuration: 4 GB (2 x 2 GB)
RAM vDIMM: 1.65V
Motherboard: ASUS Crosshair IV Formula
Chipset/Socket: AM3, 890FX + SB850
Cooling: ss phase
Temps: -60C Idle / -57C Load
Operating System: Windows 7
32/64-Bit: 64
Stable/Suicide/Untested: Suicide
http://valid.canardpc.com/cache/banner/1636323.png
http://i52.tinypic.com/2ufw19i.jpg
AMD Phenom II X6 1055T
pH-EO
4228.39 MHz
1.624v
14X
Disabled
2114 MHz
302 MHz
DDR2-1006
5-5-5-13
4 GB (2 x 2 GB)
2.1V
MSI 790XT-G45
AM2+, 790X + SB710
Water - 1x - Swiftech 120mm Radiator, Enzotech SCW-REV.A, Quiet one 1200 Aquarium pump, Scythe Ultra Kaze 120
Temps: Coretemp - 21C Idle 29C Load - Overdrive 22C Idle - 40C Load
Windows 7
64
Untested (partially)
I could've gone higher but It would've required more voltage. Not bad for a 790XT AM2+ MOBO with a simple NB cooler and no VRM cooling (added some little copper dudes). Got another radiator coming in in two days, might decide to push a bit more if temps drop any. All fans are on low and case is open right now because of troubleshooting. 600W Rosewill PSU is pushing it as it is (smoked up the other day), so I don't want to stress it yet. Waiting on a new 1200W Mushkin, came in today and popped right off the bat w/ stock settings. I think I can probably suicide a 4400 on this thang but I think I'ma stick to 4.2. There is certainly still headroom although vcore is high already.
http://valid.canardpc.com/cache/banner/1645659.png
Charts are up to date now.
Added a neat new core clock vs. vcore plot on the OP. It is automatically updated with the other charts.
Sample:
http://www.pcrpg.org/pics/computer/o...replot_all.png
cool chart, now i wonder if anyone is going to try and be the first 4ghz stable with 1.4v or less
Wow. There is none yet?
Can i enter with my deneb? :D
4GHz with less than 1.4V is really no problem :) There are many chips which can do it.
Could be easily marked as stable @ close to that frequency if I want to. And that's the weaker chip :p
I'm sure it can do 4GHz full stable with vCore lower than 1.4V.
http://www.xtremesystems.org/forums/...&postcount=625
mine sure cant,Quote:
Originally Posted by I.nfraR.ed
i just tested 4004mhz at 1.392v, instant error, at 1.404v errors after a few seconds.
its temps dont even go up before mine has an issue, so i know its not cooling related.
My 1055 behaves similarly. I don't get much past the point where all of the cores jump up to 100% on the first pass of linpak at 4Ghz with anything less than ~1.45v.Quote:
Originally Posted by Manicdan
--Matt
i looked at the charts and noticed MOST people need 1.45v for anything around 4ghz,
so i set mine to 1.476v and its been running 2 hours now at 4018mhz with the cores at 46c, and the cpu at 57c and no issues.
so i might bump up the clock later and try again. but right now im scared to look at the power draw. a decent OC is 200W load, the highest i pushed was 250W, this has to be more..
Try 1.45?
200W load? I see 400W at the wall max under linpak with the video card idle! I see 110-115 at idle.Quote:
Originally Posted by Manicdan
--Matt
YMMV!
My 1055t needs 1.5 set (droops to 1.488 load) for 4004 mhz. I thought it was stable with 1.475, but the 3d11 physics tests, of all things, required a bump.
it passed the 8 hour test, so i officially have 4ghz stable YAY, SS saved so ill have it all updated later tonight.Quote:
Originally Posted by mattkosem
my idle power consumption is 70W from the wall
load is 180W with 2800mhz 1.3v
OCed using my proffered settings 3696mhz 1.336v its 200W and my turbo 4356mhz and 1.52v is 215W
and with 4ghz 1.476v it was 265W
i tried to find out if i can do 4.1ghz but at 1.488v it still wasnt happy, and i really dont care about having such a high clock anyway, its just too loud to keep it cool. i was thinking about doing a quick review of power consumption relative to performance across the whole range of voltages from 1v to 1.5v. but if i have the time for that, i should probably be working on other things, lol.
I am officially claiming the highest ddr2 overclock. :D Just need a new power supply so I can test stable and go higher!
I think mine managed 6hr stability... I'd need to check... no idea where my post has gone with it <1.4v
[EDIT] Can't find the 4Ghz at 1.38v but I did find the ultra low voltage 4ghz run - benching stable but not prime stable XD
Asus CHIV for me Phenom II 1090T @ 4Ghz :)
http://valid.canardpc.com/cache/screenshot/1441094.png
http://valid.canardpc.com/show_oc.php?id=1441094
http://i207.photobucket.com/albums/b...ghz300x135.jpg
Oh and 1 quick run @ 4.2ghz
http://i207.photobucket.com/albums/b...2ghz300x14.jpg
Not bad for stock cooling :rofl:
