12-22-2009, 02:25 AM
In-Fluence

Quote:

Originally Posted by humeyboy

You can get from E Bay USA and it will cost about £100 inc Shipping.

Just make sure you get box marked as GIFT or RMA and value at MAX of about £40 or you could get hit with a TAX when you get it and then its not worth the cost.

I just had a really good look at a High RES photo of this Mobo and its sure one ugly f00ker, had a bad layout and looking at build quality which is basic with some parts cooled by non heatpipes and only push pins holding the sinks you wonder how the hell it clocks so far better than the Asus ROG's which look good and are built well with every part heatpiped cooled and all screwed down

After I got the board, I certainly wasn't attracted to the colour scheme (if that exists), but the build quality is far better imo. Ok, so it has a lot less features, but if you look closely enough, you can see that the placement of the SMDs look more accurate, and the solder has a nicer shine to it than my MIIF did. The heatsinks around the board may seem somewhat flimsy with push-pins etc, but it actually makes a much more solid contact with the parts, in particular the mosfets. After removing the heatsink (which I had to gently pull and peel away),the indentations on the thermal pads were consistent and covered all of the devices. The MIIF is quite tricky because you can't easily see if it's making good contact, and it's assembly is often skewed or simply doesn't match the board - it's a good idea, but cumbersome and too much to go wrong imo.
12-23-2009, 07:06 AM
GOZ

I have the EP45-UD3P rev 1.6 with a Q6600 (for now) and I can run linX with no probs, but sometimes on cold boot I get a double boot. Anybody got a idea on how to fix this it getting me pissed off lol.
12-23-2009, 09:43 AM
gurusan

Don't shut down :p
12-23-2009, 11:44 AM
radaja

Happy Holidays to Everyone in my favorite thread
:party:........................................... ....:party:
12-23-2009, 12:00 PM
winston856

Happy Holidays to you radaja :up:

So here I am at those settings above and while I'm stable with the "standard" burn test, going up to the "high" which is the max I can do because it uses all my RAM. I'm getting :banana::banana::banana::banana:ty times and GFlops. I tried upping VTT, MCH and vcore and NOTHING seems to help!!

If I run the standard test I get about 17s with 51GFlops, with the High test it's like 80 seconds with 35-37GFlops which should be around 55.

What do you suggest I do???
12-23-2009, 09:27 PM
truehighroller

Quote:

Originally Posted by winston856

Happy Holidays to you radaja :up:

So here I am at those settings above and while I'm stable with the "standard" burn test, going up to the "high" which is the max I can do because it uses all my RAM. I'm getting :banana::banana::banana::banana:ty times and GFlops. I tried upping VTT, MCH and vcore and NOTHING seems to help!!

If I run the standard test I get about 17s with 51GFlops, with the High test it's like 80 seconds with 35-37GFlops which should be around 55.

What do you suggest I do???

I can help you with this one my friend. You need to make sure your MCH Ref Voltage is perfectly centered or, happy. Then you need to work your CPU Ref up and down until it settles where it likes and it takes a couple of times to get it just right.

You should be able to watch your temps level out and reach the highest levels you have seen when you get it centered just right while under load. You will also notice that your temps while under load don't bounce around as much also when you have it just right. Also your temps while coming down from a load from testing, will go down faster right before the load hits it again then it should shoot right back up nice and level on all cores. Mine does the exact same thing but, I have mastered getting it to sit just right.

You will also notice if you are anal like me with things that if you test it while it is cold from sitting turned off all night that if you don't have it just right it will mess up at first when testing it right away after boot. If you have it set just right 100% you will hit those nice even high temps after first booting it up and testing it, which in turn equals those nice high GFlops as well.

P.S. If you have it set wrong a little you will also notice that some of the test will pass "utilizing lower amounts memory" but, the higher amount of memory test will fail that just means you have more tweaking to do. If you bounce the CPU ref up and down you will find the center point that is just right, it just takes patience.

I will let mine do a couple of small test and if it is good I will let it run until it frees up some space to where I should have about 3500MB~ of free memory and I will stop the test and run the higher memory test to see if it gets through it as well. This process saves allot of time IMO.
12-23-2009, 09:35 PM
mfcm

hi guys..anyone here use UD3P F9(bios) with Q9550?are you able to run it 500x8 stable stress?can gv me ur bios setting if able..perhap can run it for 24/7..tq
12-23-2009, 10:56 PM
winston856

Quote:

Originally Posted by mfcm

hi guys..anyone here use UD3P F9(bios) with Q9550?are you able to run it 500x8 stable stress?can gv me ur bios setting if able..perhap can run it for 24/7..tq

I'm have all that except I'm on a UD3R. I'm working on 500x8 right now and almost there. I'll post my full settings when I'm done.
12-23-2009, 11:02 PM
winston856

Quote:

Originally Posted by truehighroller

I can help you with this one my friend. You need to make sure your MCH Ref Voltage is perfectly centered or, happy. Then you need to work your CPU Ref up and down until it settles where it likes and it takes a couple of times to get it just right.

You should be able to watch your temps level out and reach the highest levels you have seen when you get it centered just right while under load. You will also notice that your temps while under load don't bounce around as much also when you have it just right. Also your temps while coming down from a load from testing, will go down faster right before the load hits it again then it should shoot right back up nice and level on all cores. Mine does the exact same thing but, I have mastered getting it to sit just right.

You will also notice if you are anal like me with things that if you test it while it is cold from sitting turned off all night that if you don't have it just right it will mess up at first when testing it right away after boot. If you have it set just right 100% you will hit those nice even high temps after first booting it up and testing it, which in turn equals those nice high GFlops as well.

P.S. If you have it set wrong a little you will also notice that some of the test will pass "utilizing lower amounts memory" but, the higher amount of memory test will fail that just means you have more tweaking to do. If you bounce the CPU ref up and down you will find the center point that is just right, it just takes patience.

I will let mine do a couple of small test and if it is good I will let it run until it frees up some space to where I should have about 3500MB~ of free memory and I will stop the test and run the higher memory test to see if it gets through it as well. This process saves allot of time IMO.

Thank you for the help, I completely understand where you're coming from and that idea. :up: :wave:

I'm curious as to what the temps are of all your cores under idle and load. Could you tell me?
12-23-2009, 11:16 PM
mfcm

Quote:

Originally Posted by winston856

I'm have all that except I'm on a UD3R. I'm working on 500x8 right now and almost there. I'll post my full settings when I'm done.

thx bro..im still tweak for it..just wanna to comfirm what will be max safe voltage for vtt and vmch that we can put to run 24/7?coz right now im running 1.34v for vtt and 1.38v vmch..izzit safe for running 24/7?the vdrop oso quite large..set in bios 1.4v when load its 1.36v
12-23-2009, 11:37 PM
winston856

Quote:

Originally Posted by mfcm

thx bro..im still tweak for it..just wanna to comfirm what will be max safe voltage for vtt and vmch that we can put to run 24/7?coz right now im running 1.34v for vtt and 1.38v vmch..izzit safe for running 24/7?the vdrop oso quite large..set in bios 1.4v when load its 1.36v

Yes that vDrop is normal I believe, that's what I get on my board with Load Line Calibration enabled.

I've heard you don't want to go over 1.44 for the vtt. The vmch on the other hand can take as much as you can throw at it with enough cooling. Mine's at 1.46 right now down from 1.50 cause I found I didn't need that much. Still tweaking so I might get it to come down more. My vtt is 1.36 right now as well.
12-24-2009, 12:44 AM
mfcm

Quote:

Originally Posted by winston856

Yes that vDrop is normal I believe, that's what I get on my board with Load Line Calibration enabled.

I've heard you don't want to go over 1.44 for the vtt. The vmch on the other hand can take as much as you can throw at it with enough cooling. Mine's at 1.46 right now down from 1.50 cause I found I didn't need that much. Still tweaking so I might get it to come down more. My vtt is 1.36 right now as well.

ic..mean my vtt,vmch still in safe volt to run 24/7..erm u stress them using linX?or blend it using sp2004 to see both ram and proc stable?hows bout the idle and load temp?
12-24-2009, 01:59 AM
gurusan

Are we going to see any new BIOSes for the EP45T series?
12-24-2009, 08:18 AM
GOZ

Quote:

Originally Posted by gurusan

Don't shut down :p

Gee that helped alot.........................:down:
12-24-2009, 05:44 PM
truehighroller

Quote:

Originally Posted by mfcm

ic..mean my vtt,vmch still in safe volt to run 24/7..erm u stress them using linX?or blend it using sp2004 to see both ram and proc stable?hows bout the idle and load temp?

If you use Linx or Intelburntest, you can get your system stable faster then including Prime95 in the mix. If you get everything 100% stable with Intelburntest or LinX then, you should be able to run your Prime95 for 24hrs without a hitch.
12-24-2009, 05:47 PM
truehighroller

Quote:

Originally Posted by GOZ

Gee that helped alot.........................:down:

Make sure you don't have sleep turned on in your Windows Settings is the first thing I would check.
12-24-2009, 06:16 PM
mfcm

Quote:

Originally Posted by truehighroller

If you use Linx or Intelburntest, you can get your system stable faster then including Prime95 in the mix. If you get everything 100% stable with Intelburntest or LinX then, you should be able to run your Prime95 for 24hrs without a hitch.

linX or IBT only stress for the proc right?yeah i know it will be faster way to know wether the proc stable or not compared to prime95..but even u passed the linX or IBT its still not sure yet u can survive blend proc,ram using prime95..if running small ftt yeap no prob u can pass it..saw your setup almost like mine..mind to share the bios setting?coz you running lower vcore 1.31v to run 4.12ghz compared to me 1.36v for 4ghz(500x8)
12-24-2009, 07:36 PM
truehighroller

Quote:

Originally Posted by mfcm

linX or IBT only stress for the proc right?yeah i know it will be faster way to know wether the proc stable or not compared to prime95..but even u passed the linX or IBT its still not sure yet u can survive blend proc,ram using prime95..if running small ftt yeap no prob u can pass it..saw your setup almost like mine..mind to share the bios setting?coz you running lower vcore 1.31v to run 4.12ghz compared to me 1.36v for 4ghz(500x8)

If your memory is off you get errors.
12-26-2009, 02:12 AM
Hoss331

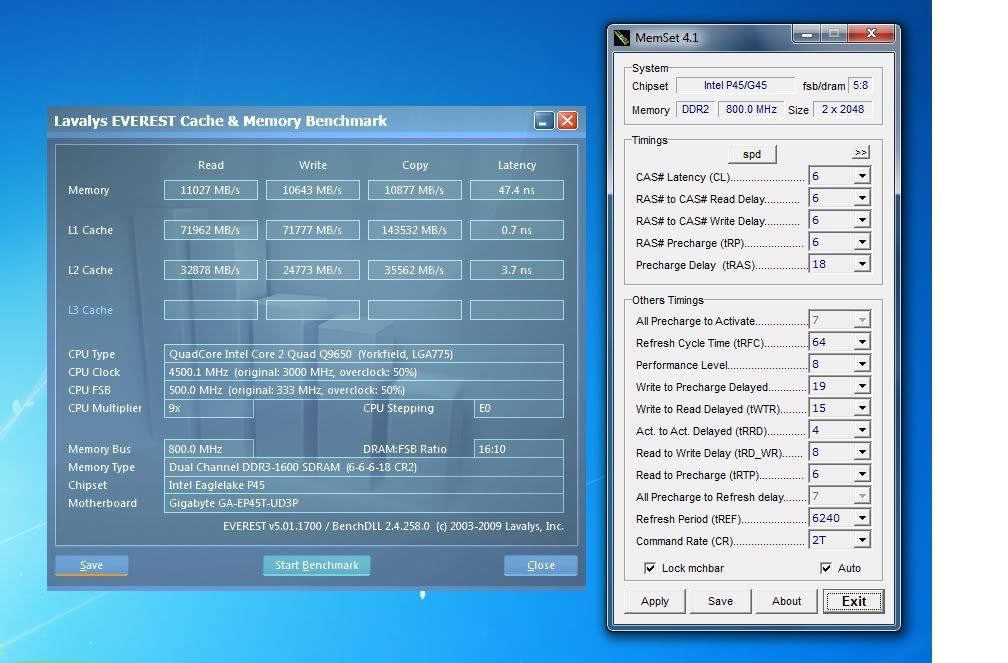

After a few days of testing with the new board I finally have a decent baseline to work with. I still need to transfer over my nb water block to this board and hopefully it will let me drop some mch voltage.

http://i131.photobucket.com/albums/p...281/1600c6.jpg
http://i131.photobucket.com/albums/p...1/ev1600c6.jpg
12-26-2009, 03:00 PM
gurusan

very nice hoss. Which memory modules are those? I have OCZ Platinum 1800MHz CL8 and can't run those low timings :(

This is my 24/7 clock. Worst E8400 I've ever had :mad:
http://img24.imageshack.us/img24/5458/capturefa.png
12-26-2009, 05:58 PM
OldChap

Quote:

Originally Posted by winston856

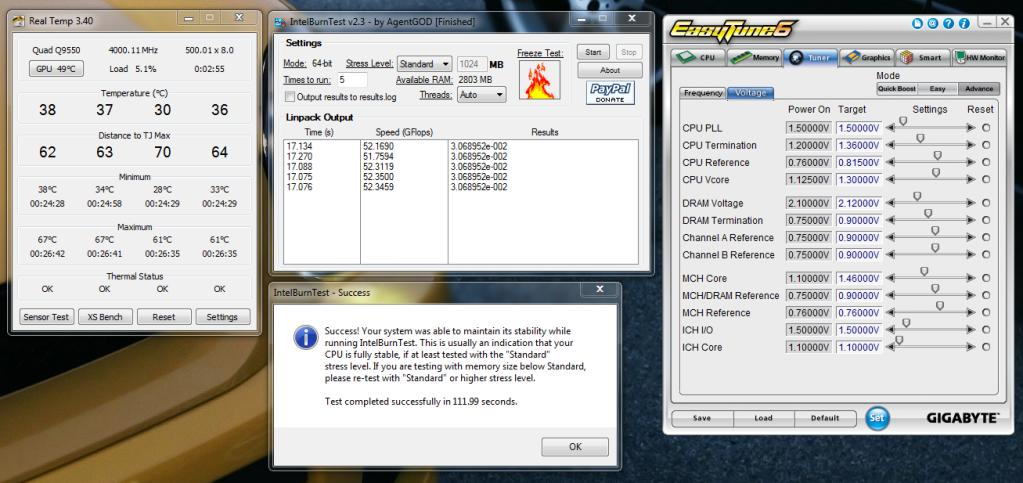

I played around some more and got this:

http://i20.photobucket.com/albums/b2...n856/500x8.png

GTL's are:

CPU REF = 0.916 for a 1.36vtt
MCH REF = 0.861 for a 1.46 MCH core

Still at 150/150 CPU/MCH skew. Haven't played with the vcore yet, I'm sure I can get it lower than 1.3 for 4GHz.

Hi Guys

Came over here and robbed these settings as a start point to get my x3350 crunching but I topped out at 8*480 (ud3r with ddr3). I need a heap of cpu core voltage (1.45) to stay stable but am thinking it may just be because this cpu is just an es version of the 9450.

Does anyone think it is worth spending the time to get this right or should I settle for a lesser clock (3.6) which I can get at around 1.36v...bear in mind this will have to run 24/7
12-26-2009, 08:00 PM
Hoss331

Quote:

Originally Posted by gurusan

very nice hoss. Which memory modules are those? I have OCZ Platinum 1800MHz CL8 and can't run those low timings :(

Thanks. They are OCZ Flex 1866 C7 3x2 kit. I was told they are hypers but not 100% sure.
12-26-2009, 08:25 PM
OC Nub

Hoss, Very nice results on the new board. :up:
12-27-2009, 12:03 AM
GOZ

Quote:

Originally Posted by truehighroller

Make sure you don't have sleep turned on in your Windows Settings is the first thing I would check.

Nah I always disable that crap, but thanks for the help, now any other ideas :p:
12-27-2009, 12:19 AM
gurusan

Quote:

Originally Posted by Hoss331

Thanks. They are OCZ Flex 1866 C7 3x2 kit. I was told they are hypers but not 100% sure.

Very nice. Makes me want to try a different memory kit.
12-27-2009, 01:58 AM
Hoss331

Quote:

Originally Posted by OC Nub

Hoss, Very nice results on the new board. :up:

Thanks :up:

Quote:

Originally Posted by gurusan

Very nice. Makes me want to try a different memory kit.

Im probably going to try a few kits myself, more than likely the crucial value kit next.

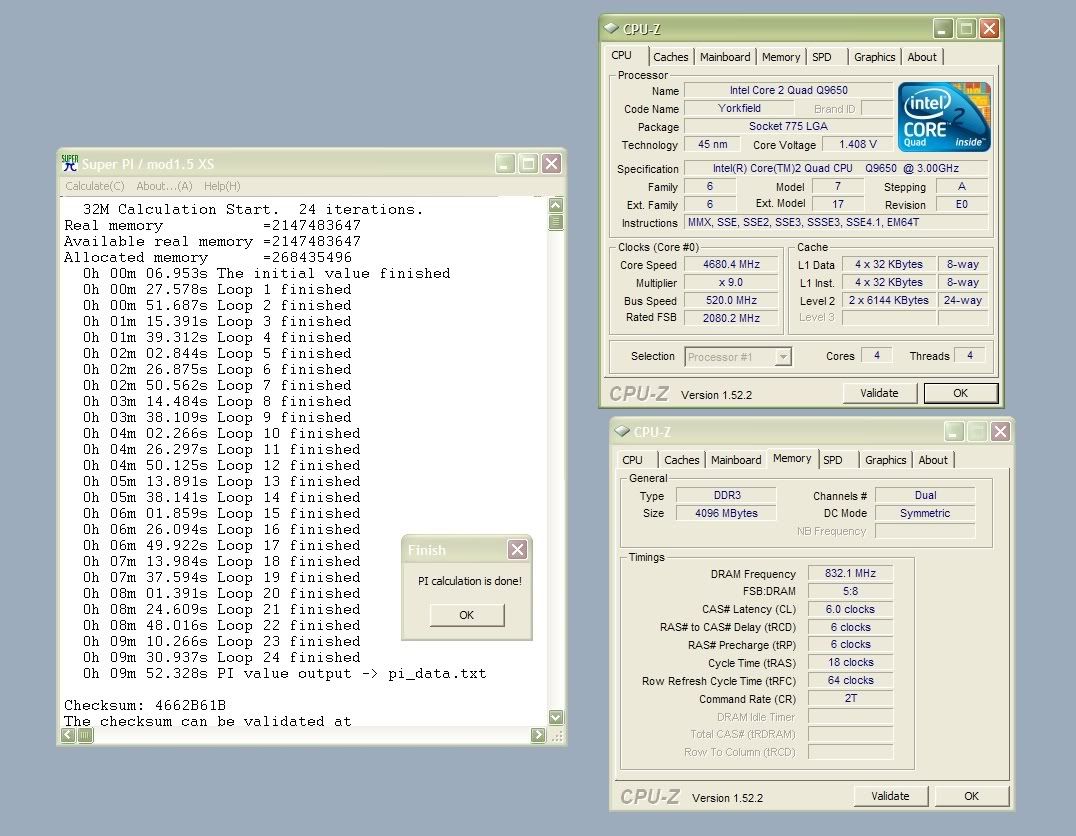

Toyed around with SPI 32m tonight and so far this setup is killing my ddr2 board in this bench. :)
http://i131.photobucket.com/albums/p.../superpi32.jpg
12-27-2009, 04:59 AM
CryptiK

Nice results Hoss. BASE or BBSE is where it's at for 24/7 ram IC's.
12-27-2009, 05:00 AM
Kimi

Which is the best revision in terms of performance and stability when OCing for the DDR2 UD3P/R?
12-27-2009, 06:16 AM
Sadhana

Can someone share the bios template for ocing UD3P version 1.1 with Q9550 @ 500x8.5 and OCZ Reaper PC9200 running @ 2.00D?

Recently I used 10j bios and priming blend beautifuly for 20 hours and suddenly I've got error after that :brick:

My major goal is simple: achieve 4.25Ghz primeable.

TIA, folks.
12-27-2009, 08:02 AM
Hoss331

Quote:

Originally Posted by CryptiK

Nice results Hoss. BASE or BBSE is where it's at for 24/7 ram IC's.

Are you saying in general or for this board?
12-27-2009, 06:59 PM
Jor3lBR

Quote:

Originally Posted by Hoss331

Thanks :up:

Im probably going to try a few kits myself, more than likely the crucial value kit next.

Toyed around with SPI 32m tonight and so far this setup is killing my ddr2 board in this bench. :)

Very Nice Hoss :clap: \\

Yes for Spi32m DDR3 is a killer!
12-27-2009, 07:02 PM
Jor3lBR

Quote:

Originally Posted by CryptiK

Nice results Hoss. BASE or BBSE is where it's at for 24/7 ram IC's.

Cryp how does 2x1gb and 2x2gb DDR3 d9GTR sticks play on the EP45T board?
12-27-2009, 07:04 PM
clo007

Quote:

Originally Posted by radaja

Happy Holidays to Everyone in my favorite thread
:party:........................................... ....:party:

All I want for Xmas is to have my board run in dual channel mode :(

Next stop...pulling everything out of case and see if I have a grounding issue.
12-27-2009, 08:19 PM
truehighroller

Quote:

Originally Posted by GOZ

Nah I always disable that crap, but thanks for the help, now any other ideas :p:

Besides for that my guess would have to be either your MCH is off ref wise a little, or your memory is off a little.. That is about all I can think of besides for the settings in Windows or maybe something is dieing.. I've had this issue when settings were off a little in the BIOS so I think it is that TBH.
12-27-2009, 09:47 PM
Hoss331

Quote:

Originally Posted by Jor3lBR

Very Nice Hoss :clap: \\

Yes for Spi32m DDR3 is a killer!

Thanks. :up: I remember a few people posting that the GTRs dont run to well on these boards.
12-27-2009, 10:10 PM
Jor3lBR

EP45T DDR3 Options

Quote:

Originally Posted by Hoss331

Thanks. :up: I remember a few people posting that the GTRs dont run to well on these boards.

Too bad I wonder if this applies to both 1Gb sticks and 2Gb :shrug: D9GTR is the only DDR3 I got.
12-27-2009, 10:56 PM
Leeghoofd

My EP45T UD3P hated my CSX Diablo sticks (PC1600C8 Micron GTR) and Mushkin GTR's PC12800C. The board worked fine with any low voltage DDR3 ram (but I went I7 a long time ago, last bios I had for the EP45T UD3P was F4 or such), Same story for the EP45T UD3LR, can't stabilise the rams over 1700mhz...
12-27-2009, 11:10 PM
Jor3lBR

Quote:

Originally Posted by Leeghoofd

My EP45T UD3P hated my CSX Diablo sticks (PC1600C8 Micron GTR) and Mushkin GTR's PC12800C. The board worked fine with any low voltage DDR3 ram (but I went I7 a long time ago, last bios I had for the EP45T UD3P was F4 or such), Same story for the EP45T UD3LR, can't stabilise the rams over 1700mhz...

You mean the ones for i5? 1.3-1.5vdimm?

I don't wanna stabilize just do some Spi32m runs! ;)
12-27-2009, 11:41 PM
Leeghoofd

Yep I5/7 models.. I only have 1.65V dimms here Jor (OCZ Blades and Corsair Dominators), I think the older Samsung IC based dimms work fine too with P45... you are planning on rebenching the Q9650 with P45 DDR3 ?
12-28-2009, 12:48 AM
gurusan

I really want to try out the G.Skill ECO ddr3 sticks but they are so expensive. Anyone know other alternative modules that use the same low voltage ICs?
12-28-2009, 01:28 AM
andressergio

Quote:

Originally Posted by Hoss331

After a few days of testing with the new board I finally have a decent baseline to work with. I still need to transfer over my nb water block to this board and hopefully it will let me drop some mch voltage.

Very nice hoss :up: does the board has same vdrop/droop as the UD3P ? It has LLC ?

Cheers
Sergio
12-28-2009, 02:12 AM
tool_462

Quote:

Originally Posted by gurusan

I really want to try out the G.Skill ECO ddr3 sticks but they are so expensive. Anyone know other alternative modules that use the same low voltage ICs?

I have these waiting for me in the apartment office, I'll pick them up tomorrow and can tell you what IC's they have:

http://www.newegg.com/Product/Produc...82E16820144363

1.3v rated voltage.
12-28-2009, 02:49 AM
In-Fluence

Been away for a while, tending to xmas events and the like. During this I tried to lower voltages on my 500x9 profile, but have been having a little trouble getting the CPU 500fsb stable again, as it's not even passing the 8K FFT test on the 4th core now. My biggest concern is degradation after going for some of those HWbot rankings, although further adjustment of vtt, refs and skews have helped me get stable again but they're different from my previous stable settings which has baffled me.

Has anyone experienced this kind of behaviour? I'm 90% certain I've been using the same bios as before, but in case I'm wrong could anyone confirm if they've needed different skew/ref/vtt settings amongst different bios versions?

*edit: the settings I got to failed at 12Kfft test - starting to get a little concerned now - hope I haven't damaged it - it's still good @ stock though...
12-28-2009, 03:04 AM
gurusan

Quote:

Originally Posted by tool_462

I have these waiting for me in the apartment office, I'll pick them up tomorrow and can tell you what IC's they have:

http://www.newegg.com/Product/Produc...82E16820144363

1.3v rated voltage.

excellent, eager to hear your results.
12-28-2009, 06:49 AM
Jor3lBR

Quote:

Originally Posted by Leeghoofd

Yep I5/7 models.. I only have 1.65V dimms here Jor (OCZ Blades and Corsair Dominators), I think the older Samsung IC based dimms work fine too with P45... you are planning on rebenching the Q9650 with P45 DDR3 ?

Yes Q9560 and the Q9550. Both need to rerun under DDR3 for SPi32m.
12-28-2009, 01:36 PM
Hoss331

Quote:

Originally Posted by Jor3lBR

Yes Q9560 and the Q9550. Both need to rerun under DDR3 for SPi32m.

Why not try running them on the RE first.

Quote:

Originally Posted by andressergio

Very nice hoss :up: does the board has same vdrop/droop as the UD3P ? It has LLC ?

Cheers
Sergio

Its essentially the same as the DDR2 version just with a few extra bios options for the DDR3. It is definitely more picky on the settings it likes to run so im having to relearn this setup.
12-28-2009, 01:40 PM
Leeghoofd

REX requires insane volts to go anywhere with a quad over 500FSB...
12-28-2009, 01:49 PM
Hoss331

I figured it would need more voltage but he already has the setup so why not try it out.
12-28-2009, 01:58 PM
maxwedge

I just got one of these boards and finding that I like it a lot!:clap:
Don't have any Yorks here, just a lowly Q6600. It's running way better than the old AB9 Pro this proc was on.:yepp:
This is at 18 1/2 hours...
http://i76.photobucket.com/albums/j7...6ghz-1344v.jpg

Lowered the voltage and it's still going good (P95 shown running in the tray).
http://i76.photobucket.com/albums/j7...6ghz-1296v.jpg
12-28-2009, 02:01 PM
Jor3lBR

Quote:

Originally Posted by Hoss331

I figured it would need more voltage but he already has the setup so why not try it out.

Hey Hoss,

True but I'm keeping things separate. The REX is with Duo's and the bench station with Quads (EP45, EP45T, EP45-Extreme).

I have the boards problem is time to set them all up (the EP45T arrives on the 30th). The only ddr3 ram I have is D9GTR so I have to give it a go. When possible send your bios template. :-)

I will try to do that till next Friday.
12-28-2009, 03:50 PM
amwhitey

Hey everyone I have a UD3R and E8400. I had the cpu stable at 3.8Ghz and decided to update the bios today to F11. I re-entered all my previous stable settings in and now it restarts right before windows loads. What is the best current bios at this time so I can reflash and maybe have better luck.
12-28-2009, 04:44 PM
Hoss331

You cant just reenter your oc settings right after flashing on that bios. You need to load optimized settings first, let it update and boot, then you can restart and load your oc settings.
12-28-2009, 04:58 PM
amwhitey

Thanks Hoss331. That was my exact problem. I am now back up and running at 3.8Ghz.
12-29-2009, 06:02 AM
Musho

Quote:

Originally Posted by In-Fluence

Been away for a while, tending to xmas events and the like. During this I tried to lower voltages on my 500x9 profile, but have been having a little trouble getting the CPU 500fsb stable again, as it's not even passing the 8K FFT test on the 4th core now. My biggest concern is degradation after going for some of those HWbot rankings, although further adjustment of vtt, refs and skews have helped me get stable again but they're different from my previous stable settings which has baffled me.

Has anyone experienced this kind of behaviour? I'm 90% certain I've been using the same bios as before, but in case I'm wrong could anyone confirm if they've needed different skew/ref/vtt settings amongst different bios versions?

*edit: the settings I got to failed at 12Kfft test - starting to get a little concerned now - hope I haven't damaged it - it's still good @ stock though...

Uh, uh, I hope your CPU is fine! If it isn't, mine could have degraded too. I used my Q9650 at 1,6VTT and 1,55Vcore to bench at 9x515 at the MIIF :rofl: As you already know, it needs insane volts to be able to bench at those clocks. :shakes: Let me know how it goes! Hope you can get it figured out.
12-29-2009, 08:22 AM
Touche

Is S3 bug still present in latest BIOS versions?

How come Gigabyte boards don't lower Vcore when idle (when overclocked)? Do P55 and X58 boards also have fixed voltages?

I was going to buy Gigabyte again for my next build, but those two issues really annoy me :(
12-29-2009, 07:04 PM
truehighroller

Quote:

Originally Posted by mfcm

saw your setup almost like mine..mind to share the bios setting?coz you running lower vcore 1.31v to run 4.12ghz compared to me 1.36v for 4ghz(500x8)

Code:

****************************** MB Intelligent Tweaker(M.I.T.) ****************************** Robust Graphics Booster ..............: [Turbo] CPU Clock Ratio ......................: [8X] x Fine CPU Clock Ratio................: +0.5 >>>>> Standard Clock Control CPU Host Clock Control................: [Enabled] x CPU Host Frequency(Mhz).............: [495] PCI Express Frequency(Mhz)............: [100] C.I.A.2...............................: [Disabled] >>>>> Advanced Clock Control..........: CPU Clock Drive.......................: [1000mV] PCI Express Clock Drive...............: [800mV] CPU Clock Skew........................: [ 0ps] MCH Clock Skew........................: [ 50ps] ******** DRAM Performance Control ******** Performance Enhance...................: [Turbo] MCH Frequency................: 333 System Memory Multiplier (SPD)........: [2.40B] Memory Frequency(Mhz).................: 1188 DRAM Timing Selectable (SPD)..........: [Manual] >>>>> Standard Timing Control x CAS Latency Time................5...: [ 5] x tRCD ...........................5...: [ 5] x tRP.............................5...: [ 5] x tRAS...........................18...: [18] >>>>> Advanced Timing Control.........: [Press Enter] (All Auto here) >>>>> Channel A Timing Settings.......: [Press Enter] x Static tRead Value............. (8) (All Auto in Between) x DDR Write Training..................: Disabled >>>>> Channel A Driving Settings......: [Press Enter] x Driving Strength Profile............: [1200MHz] (All Auto in Between) >>>>> Channel B Timing Settings.......: [Press Enter] x Static tRead Value............. (8) (All Auto in Between) x DDR Write Training..................: Disabled >>>>> Channel B Driving Settings......: [Press Enter] x Driving Strength Profile............: [1200MHz] (All Auto in Between) ****** Motherboard Voltage Control ****** ----------------------------------------------- >>> CPU Load-Line Calibration.................: [Enabled] CPU Vcore.....................: [1.37500V] Actual Idle [1.344] Actual Load [1.328] CPU Termination........1.200V.........: [1.420V] CPU PLL................1.500V.........: [1.570V] CPU Reference..........0.760V.........: [.939] >>> MCH/ICH MCH Core...............1.100V.........: [1.52V] MCH Reference..........0.760V.........: [.899] MCH/DRAM Reference.....0.900V.........: [.970] ICH I/O................1.500V.........: [1.500V] ICH Core...............1.100V.........: [1.200V] >>> DRAM DRAM Voltage...........1.800V.........: [2.00V] DRAM Termination.......0.900V.........: [.850] Channel A Reference....0.900V.........: [Auto] Channel B Reference....0.900V.........: [Auto] (All CPU Features Turned Off)
12-29-2009, 07:46 PM
the_real_7

ok im back after doing a nice case cleanup looks really hot and a nice cooling system , advanced my my wc and made in silent and 8 c cooler at 48 c load stable, you guys and Hoss331 helped me lock my system at 4050 at 4 4 4 10 and its been great
so i wanna tweak a lil bit should i update my bios from f8 and try that power saving stuff or should I find some new ram that can do 9 x 500 and hit 4500
or does neither matter and just run system another year without a upgrade to bios or ram :up: you guys got me jealous with all this tweaking , and with a lil more oc I could justify not upgrading to i9
12-29-2009, 10:19 PM
godsa

One thing I've noticed about overclockers especially old school. We look at everything a little deeply. Because with UD39 its so easy to overclock a ...ok I won't say it.

Simply, think basic when you touch this virgin. Keep it simple
12-30-2009, 04:24 AM
In-Fluence

Quote:

Originally Posted by Musho

Uh, uh, I hope your CPU is fine! If it isn't, mine could have degraded too. I used my Q9650 at 1,6VTT and 1,55Vcore to bench at 9x515 at the MIIF :rofl: As you already know, it needs insane volts to be able to bench at those clocks. :shakes: Let me know how it goes! Hope you can get it figured out.

Well, after much messing around, I think it's down to mosfets overheating. Even though my house fan is pointing straight at the board, leaving it off overnight and running a test at 500x9 small ffts runs for about 10 minutes before the 4th core fails, but doesnt last much longer, no matter what the vcore is (with reasonable, and above previously stable volts for that speed). Then I tried it again immediately after, and it fails within seconds.
500x8.5 works fine at the same settings, yet the CPU temps remain about the same as 500x9, so I'm hoping that this is a sign that the CPU hasn't degraded too badly, but then again, not being able to reach the same speeds at the same settings is still a growing concern.
The mosfet sinks are too hot to touch during testing (the ones nearest the i/o backplate in particular), so I've gotta rip out the board and re-seat the sinks, or try to figure out a better solution. I'm really looking out for some mosfet waterblocks now, but I've only seen one rather unsatisfactory solution, but with a 12" house fan on it you'd think it would be enough.
I've still got some family errands to run over the next few days, but rebiulding and testing will resume and I'll hopefully resolve the issue. If not, I'll have to settle for some lower speeds.
12-30-2009, 05:19 AM
Hoss331

Are you sure its not just cpu temps causing the errors, mid 70s is pretty warm to be priming at 4.5.
12-30-2009, 07:53 AM
Gameman

I just recently installed a UD3R (WAITING ON A QUAD CHIP) with my old E8600 (500x7=3.5 ghz) and noticed the Northbridge "Gigabyte" Heatsink is hot to the touch, even though there appears to be no way to monitor this like on the X48...

do you think that's normal when you got the fsb at 500 and the MCH at 1.36 in order to do so, or should the MCH be much lower????

Cause all i know is 500 took at least 1.36 to 1.4 on the T2RsB plus...

I put my spare Dominator fan blowing on it (5000rpm)..... will this be sufficient??? or do Gigabyte Northbridges normally run hot cause of the high fsb attainable on them....
that's all thanks

edit: ps i don't remember the X48 T2RSB Plus Northbridge heatsink getting this hot , just warm

Merry Xmas and New Year:up::up::up:
12-30-2009, 08:25 AM
andressergio

Quote:

Originally Posted by Hoss331

Are you sure its not just cpu temps causing the errors, mid 70s is pretty warm to be priming at 4.5.

+1 Hoss

From my experience on the UD3P and so others IF CPU temp heats 75 constant (cores are around 70+) for a long time will lead to errors...if you can lower temps it'll pass

Cheers :up:
Sergio
12-30-2009, 08:40 AM
truehighroller

Mine was unstable until I stuck la little fan on the Mosfets right above the CPU. I had mentioned this a couple of times but I think no one believed me :P.
12-30-2009, 09:10 AM
godsa

Quote:

Originally Posted by truehighroller

Mine was unstable until I stuck la little fan on the Mosfets right above the CPU. I had mentioned this a couple of times but I think no one believed me :P.

could always do a little reseating

btw sig shows what this did out of the box with only a few tweaks.

I'm pretty sure I can get to 4800 on water ..the problem is won't be as easy as this lol..

So I doubt ill go for it..not worth the headach3
12-30-2009, 09:40 AM
truehighroller

I have mine at 4.2 now. It's fine once you stick a little fan on the ones right above the CPU. If you don't have one on yours and you do benching I'm willing to bet yours get hot as well or if not to bad right now, then when you start reaching 4.8GHz I bet they do. I posted my settings a page back. Here are my settings again since this is a new page and probably every one will miss them.

Code:

****************************** MB Intelligent Tweaker(M.I.T.) ****************************** Robust Graphics Booster ..............: [Turbo] CPU Clock Ratio ......................: [8X] x Fine CPU Clock Ratio................: +0.5 >>>>> Standard Clock Control CPU Host Clock Control................: [Enabled] x CPU Host Frequency(Mhz).............: [495] PCI Express Frequency(Mhz)............: [100] C.I.A.2...............................: [Disabled] >>>>> Advanced Clock Control..........: CPU Clock Drive.......................: [1000mV] PCI Express Clock Drive...............: [800mV] CPU Clock Skew........................: [ 0ps] MCH Clock Skew........................: [ 50ps] ******** DRAM Performance Control ******** Performance Enhance...................: [Turbo] MCH Frequency................: 333 System Memory Multiplier (SPD)........: [2.40B] Memory Frequency(Mhz).................: 1188 DRAM Timing Selectable (SPD)..........: [Manual] >>>>> Standard Timing Control x CAS Latency Time................5...: [ 5] x tRCD ...........................5...: [ 5] x tRP.............................5...: [ 5] x tRAS...........................18...: [18] >>>>> Advanced Timing Control.........: [Press Enter] (All Auto here) >>>>> Channel A Timing Settings.......: [Press Enter] x Static tRead Value............. (8) (All Auto in Between) x DDR Write Training..................: Disabled >>>>> Channel A Driving Settings......: [Press Enter] x Driving Strength Profile............: [1200MHz] (All Auto in Between) >>>>> Channel B Timing Settings.......: [Press Enter] x Static tRead Value............. (8) (All Auto in Between) x DDR Write Training..................: Disabled >>>>> Channel B Driving Settings......: [Press Enter] x Driving Strength Profile............: [1200MHz] (All Auto in Between) ****** Motherboard Voltage Control ****** ----------------------------------------------- >>> CPU Load-Line Calibration.................: [Enabled] CPU Vcore.....................: [1.37500V] Actual Idle [1.344] Actual Load [1.328] CPU Termination........1.200V.........: [1.420V] CPU PLL................1.500V.........: [1.570V] CPU Reference..........0.760V.........: [.939] >>> MCH/ICH MCH Core...............1.100V.........: [1.52V] MCH Reference..........0.760V.........: [.899] MCH/DRAM Reference.....0.900V.........: [.970] ICH I/O................1.500V.........: [1.500V] ICH Core...............1.100V.........: [1.200V] >>> DRAM DRAM Voltage...........1.800V.........: [2.00V] DRAM Termination.......0.900V.........: [.850] Channel A Reference....0.900V.........: [Auto] Channel B Reference....0.900V.........: [Auto] (All CPU Features Turned Off)
12-30-2009, 10:05 AM
In-Fluence

Quote:

Originally Posted by Hoss331

Are you sure its not just cpu temps causing the errors, mid 70s is pretty warm to be priming at 4.5.

It passed fine on the 8.5 multi, and the temps are pretty much the same (in fact they went higher than 9x test because it lasted longer). All settings were identical on both tests. I did notice that one of my mosfet sinks was a little wobbly, so I'm hoping another stab at remounting them shortly might help, but from what I can gather it's one of two things - mosfets overheating, or CPU degradation. One thing I do know is that the mosfets do get too hot for comfort during prime.
12-30-2009, 10:54 AM
maxwedge

Quote:

Originally Posted by godsa

could always do a little reseating

btw sig shows what this did out of the box with only a few tweaks.

I'm pretty sure I can get to 4800 on water ..the problem is won't be as easy as this lol..

So I doubt ill go for it..not worth the headach3

Your sig result is with an air hs?
12-30-2009, 12:25 PM
In-Fluence

I should probably correct my last statement for the record... 8.5 multi did run at lower temps but for some reason it ran hotter on one particular run :confused:

I'm gonna get the board out and go over it with a fine-toothed comb. I'm trying to think of some better solution to mosfet cooling, but without a decent number of fan headers (and no room for a drive-bay fan controller), I could get stuck unless I go for some thermalright sinks, or if I go for some waterblocks I just found. Bit risky if the board is flaky though...
12-30-2009, 01:15 PM
truehighroller

Quote:

Originally Posted by In-Fluence

I should probably correct my last statement for the record... 8.5 multi did run at lower temps but for some reason it ran hotter on one particular run :confused:

I'm gonna get the board out and go over it with a fine-toothed comb. I'm trying to think of some better solution to mosfet cooling, but without a decent number of fan headers (and no room for a drive-bay fan controller), I could get stuck unless I go for some thermalright sinks, or if I go for some waterblocks I just found. Bit risky if the board is flaky though...

Probably just because your reference settings are off a little CPU or MCH. If your settings are off some times it will run hotter then it really should and it is kind of a rare thing to witness, for me it has been far and between.. Usually if my CPU Ref is off by being one step to high is when it happens actually I think.

The board isn't flaky I think the Mosfets that they used were not really the best choice chip wise but your board is probably fine.
12-30-2009, 03:21 PM
Hoss331

Quote:

Originally Posted by In-Fluence

It passed fine on the 8.5 multi, and the temps are pretty much the same (in fact they went higher than 9x test because it lasted longer). All settings were identical on both tests. I did notice that one of my mosfet sinks was a little wobbly, so I'm hoping another stab at remounting them shortly might help, but from what I can gather it's one of two things - mosfets overheating, or CPU degradation. One thing I do know is that the mosfets do get too hot for comfort during prime.

The multi is not the issue, its the cpu speed, the higher you go the more sensitive it becomes to core temps. The 8.5 only gives you 4.25ghz so its obviously going to be far easier to pass than 4.5 and be less sensitive to the heat.
12-30-2009, 03:26 PM
maxwedge

I just noticed today when using a cpu fan on the fan header that there is a delay before the cpu fan starts. Its like a second before the fan starts then it runs slowly and when the board beeps the fan comes on full speed.
I have cpu fan function disabled.

Is this normal?? seems odd:shrug:
12-30-2009, 10:13 PM
dustin_ds3000

Quote:

Originally Posted by maxwedge

I just noticed today when using a cpu fan on the fan header that there is a delay before the cpu fan starts. Its like a second before the fan starts then it runs slowly and when the board beeps the fan comes on full speed.
I have cpu fan function disabled.

Is this normal?? seems odd:shrug:

my ep45-ud3r does the same thing
12-30-2009, 11:09 PM
Don_Dan

Quote:

Originally Posted by maxwedge

I just noticed today when using a cpu fan on the fan header that there is a delay before the cpu fan starts. Its like a second before the fan starts then it runs slowly and when the board beeps the fan comes on full speed.
I have cpu fan function disabled.

Is this normal?? seems odd:shrug:

Yeah, my UD3P does the same.
12-30-2009, 11:49 PM
winston856

Quote:

Originally Posted by truehighroller

I have mine at 4.2 now. It's fine once you stick a little fan on the ones right above the CPU. If you don't have one on yours and you do benching I'm willing to bet yours get hot as well or if not to bad right now, then when you start reaching 4.8GHz I bet they do. I posted my settings a page back. Here are my settings again since this is a new page and probably every one will miss them.

Code:

****************************** MB Intelligent Tweaker(M.I.T.) ****************************** Robust Graphics Booster ..............: [Turbo] CPU Clock Ratio ......................: [8X] x Fine CPU Clock Ratio................: +0.5 >>>>> Standard Clock Control CPU Host Clock Control................: [Enabled] x CPU Host Frequency(Mhz).............: [495] PCI Express Frequency(Mhz)............: [100] C.I.A.2...............................: [Disabled] >>>>> Advanced Clock Control..........: CPU Clock Drive.......................: [1000mV] PCI Express Clock Drive...............: [800mV] CPU Clock Skew........................: [ 0ps] MCH Clock Skew........................: [ 50ps] ******** DRAM Performance Control ******** Performance Enhance...................: [Turbo] MCH Frequency................: 333 System Memory Multiplier (SPD)........: [2.40B] Memory Frequency(Mhz).................: 1188 DRAM Timing Selectable (SPD)..........: [Manual] >>>>> Standard Timing Control x CAS Latency Time................5...: [ 5] x tRCD ...........................5...: [ 5] x tRP.............................5...: [ 5] x tRAS...........................18...: [18] >>>>> Advanced Timing Control.........: [Press Enter] (All Auto here) >>>>> Channel A Timing Settings.......: [Press Enter] x Static tRead Value............. (8) (All Auto in Between) x DDR Write Training..................: Disabled >>>>> Channel A Driving Settings......: [Press Enter] x Driving Strength Profile............: [1200MHz] (All Auto in Between) >>>>> Channel B Timing Settings.......: [Press Enter] x Static tRead Value............. (8) (All Auto in Between) x DDR Write Training..................: Disabled >>>>> Channel B Driving Settings......: [Press Enter] x Driving Strength Profile............: [1200MHz] (All Auto in Between) ****** Motherboard Voltage Control ****** ----------------------------------------------- >>> CPU Load-Line Calibration.................: [Enabled] CPU Vcore.....................: [1.37500V] Actual Idle [1.344] Actual Load [1.328] CPU Termination........1.200V.........: [1.420V] CPU PLL................1.500V.........: [1.570V] CPU Reference..........0.760V.........: [.939] >>> MCH/ICH MCH Core...............1.100V.........: [1.52V] MCH Reference..........0.760V.........: [.899] MCH/DRAM Reference.....0.900V.........: [.970] ICH I/O................1.500V.........: [1.500V] ICH Core...............1.100V.........: [1.200V] >>> DRAM DRAM Voltage...........1.800V.........: [2.00V] DRAM Termination.......0.900V.........: [.850] Channel A Reference....0.900V.........: [Auto] Channel B Reference....0.900V.........: [Auto] (All CPU Features Turned Off)

Did you test he DRAM Term. and the MCH/DRAM Term. up and down like you did the CPU/MCH Ref's?
12-31-2009, 07:13 AM
truehighroller

Quote:

Originally Posted by winston856

Did you test he DRAM Term. and the MCH/DRAM Term. up and down like you did the CPU/MCH Ref's?

Yes I did :up: The memory will start throwing errors when it is off so it is a little more time consuming getting those settings just right. More like find the out side points where it starts erroring out and then hit the middle point and see how it acts.
12-31-2009, 08:00 AM
maxwedge

Quote:

Originally Posted by maxwedge

I just noticed today when using a cpu fan on the fan header that there is a delay before the cpu fan starts. Its like a second before the fan starts then it runs slowly and when the board beeps the fan comes on full speed.
I have cpu fan function disabled.

Is this normal?? seems odd:shrug:

Quote:

Originally Posted by dustin_ds3000

my ep45-ud3r does the same thing

Quote:

Originally Posted by Don_Dan

Yeah, my UD3P does the same.

Really appreciate that guys, I was having thoughts of swapping out the pws to see if it would go away!:eek:
I only have a little Corsair VX450 in this on for now.
12-31-2009, 08:13 AM
truehighroller

Quote:

Originally Posted by maxwedge

Really appreciate that guys, I was having thoughts of swapping out the pws to see if it would go away!:eek:
I only have a little Corsair VX450 in this on for now.

It's just the order the motherboard test everything it really isn't that big of a deal I think as far as the fan thing goes.
12-31-2009, 09:23 AM
maxwedge

Quote:

Originally Posted by truehighroller

It's just the order the motherboard test everything it really isn't that big of a deal I think as far as the fan thing goes.

Thanks, I was thinking it could be normal but I hadn't noticed something like this with the 10-15 boards I've used in the past. Thanks
12-31-2009, 06:30 PM
RAMMAN

my board doesnt have the same dividers as the ud3p on various straps.

266 strap = 4:5, 2:3, 1:2
200 strap = 3:4, 3:5, 1:2
333 strap = 1:1, 5:6, 5:8, 1:2
400 strap = 1:1, 3:4, 3:5

which is the best for high everest bandwidth numbers and is 1333 memory 500 fsb on 3:4 divider 400 strap with a quad a pipe dream without active cooling on the nb?

my best everest bandwidth results so far right here:

http://www.xtremesystems.org/forums/...=239757&page=3

edit: im also considering trying 266 strap 2:3 divider, is that divider+strap likely to be bugged or ok with my board?
12-31-2009, 10:49 PM
Gameman

just got a cheap quad today for a cool 200.00 a lot cheaper than it used to be

I gotta hand it to you guys, taking these quad chips to high fsb's a breeze on these ud3 boards..

I wanna thank you all for continuing to recomend this board, it is as good as you say it is.....

http://i432.photobucket.com/albums/q.../EXCELLENT.jpg

just wondering now whether to exchange this q9400 for a q9550 and pay the difference or keep it... but either way 4.0ghz=4 cores should be a piece of cake

update - this was done with ease
i love this board...sure beats the t2rsb plus for fsb

http://i432.photobucket.com/albums/q...eauteffual.jpg

HAPPY NEW YEAR !!!!
12-31-2009, 11:34 PM
truehighroller

Quote:

Originally Posted by Gameman

HAPPY NEW YEAR !!!!

Happy New Year! :bounces::bounce::banana3::usa::YIPPIE:
12-31-2009, 11:39 PM
Gameman

in order to get this i had to run up a vtt of 1.46 and pll of 1.57, think i should back it down????? cause i already have been able to lower the cpu vcore from 1.44 down to 1.40 for 1.37 in Windows with the droop?????

i just want this cpu to last more than a few months.... that's al..

Thanks folks
01-01-2010, 12:26 AM
truehighroller

Quote:

Originally Posted by Gameman

in order to get this i had to run up a vtt of 1.46 and pll of 1.57, think i should back it down????? cause i already have been able to lower the cpu vcore from 1.44 down to 1.40 for 1.37 in Windows with the droop?????

i just want this cpu to last more than a few months.... that's al..

Thanks folks

Enable Load Line and that will cure some droop, unless you already have done that then cool. I think what voltages you have to use depends on the chipset fate dealt you. In other words if that is what it takes to keep it stable then stay at those settings.

You just have to keep everything cool and you will be fine. Check my post with my settings for 4.2GHz, I'm running this 24/7 have been for awhile now..
01-01-2010, 12:38 AM
Gameman

speaking of which, i just did a little minor tweaking and got 4.2 ghz stable so far, although photobucket and firefox crashed once - maynot be related but there you go.....

no bluescreens yet, just that first time when i forgot all about vtt

although this is a bit high, i personaly wouldn't run it at this around the clock, just for benchmarking, 4.0 is fine

http://i432.photobucket.com/albums/q...gonesdaddy.jpg
01-01-2010, 12:46 AM
Gameman

Quote:

Originally Posted by truehighroller

Enable Load Line and that will cure some droop, unless you already have done that then cool. I think what voltages you have to use depends on the chipset fate dealt you. In other words if that is what it takes to keep it stable then stay at those settings.

You just have to keep everything cool and you will be fine. Check my post with my settings for 4.2GHz, I'm running this 24/7 have been for awhile now..

you are very polite, thank you highroller..i will check your settings in a little bit... but jeez this is a good board - i cold never dream of 525 on a Quad on the other one..

edit, oh sorry for the double post, i thought it would have merged it....oops
01-01-2010, 02:54 PM
In-Fluence

Quote:

Originally Posted by Hoss331

The multi is not the issue, its the cpu speed, the higher you go the more sensitive it becomes to core temps. The 8.5 only gives you 4.25ghz so its obviously going to be far easier to pass than 4.5 and be less sensitive to the heat.

I totally see where you're coming from. After a bit of a cleanup, and mounting the original heatsinks (except NB) and I've had a little more success, but I'm still fighting with temps, and can't really keep any lower than 71°C on the first core... the other three are about 6°C lower, with the 4th core (which runs at the 3rd lowest temp) being the weakest. 0.785 CPU ref (with 1.36vtt) seems to give me the best results, but at 0.760 the 4th core then becomes more stable, but the 1st and 3rd fail quicker. Changing vtt up or down a few notches and testing higheror lower refs also didn't seem to help much.

I reckon I've probably scorched this chip a bit, although it's own temps were reasonable, and rarely got into majorly dangerous zones, I did run very high pll & vtt a couple of times for benching/max fsb and CPU speed. Getting it stable at this speed is definitely not as easy as before. I've stuck with 1000/1000/0/50 in the drive/skew section, but I'm getting quite a few BSODs on shutdown, and sometimes within 2 minutes of booting as well...One of my HDDs are old so it may need replacing.

I'll post up my previously stable settings at 500x9, and wil be open to further advice, but I'm not holding a lot of hope in getting it back to the way it was and might have to back down to something like 4.4 now :( I guess that's still half-decent.
01-01-2010, 03:46 PM
RAMMAN

anyone here tried 266 strap 2:3? because im finding even 400 strap 3:4 isnt enough to push my memory, or maybe i just need more than 1.24 mch voltage to get more than 468fsb 1248 memory speed lol.

edit: unfortunately there is no 2:3 on the 400 strap for my board, just 1:1, 3:4 and 3:5 :(
01-01-2010, 04:04 PM
andressergio

Quote:

Originally Posted by RAMMAN

anyone here tried 266 strap 2:3? because im finding even 400 strap 3:4 isnt enough to push my memory, or maybe i just need more than 1.24 mch voltage to get more than 468fsb 1248 memory speed lol.

edit: unfortunately there is no 2:3 on the 400 strap for my board, just 1:1, 3:4 and 3:5 :(

mate i would for more MCH i use 1,46 24/7 for my 1200 Gskills PI and Q9650@ 4500

maybe 1,3ish

Cheers and have a good 2010 :up:
01-01-2010, 04:16 PM
andressergio

Quote:

Originally Posted by Gameman

in order to get this i had to run up a vtt of 1.46 and pll of 1.57, think i should back it down????? cause i already have been able to lower the cpu vcore from 1.44 down to 1.40 for 1.37 in Windows with the droop?????

i just want this cpu to last more than a few months.... that's al..

Thanks folks

no mate wont harm

im a year now on this settings still passing same tests...and also a vid 1,1875

http://img524.imageshack.us/img524/5784/capturage.png
01-01-2010, 06:51 PM
RAMMAN

im just a little cautious with mch voltage because my last board(ga-p35-ds3p)somehow degraded very quickly with +0.2v mch, went from being capable of 1280 memory speed to incapable of 1000 in a matter of minutes. freak accident, temps or p35 chipset cant handle as much volts? i think the default mch voltage for that board was 1.2 while my current board definitaly defaults to 1.1v. anyone able to to do performance level 6 beyond 400fsb? im thinking of trying some benching with really tight timings, 8x425fsb 1133 4-4-4-12 pl6 200 strap 3:4. apparently defaults to pl6 at 333 fsb 200 strap 3:4 4-4-4-12 so just have to raise mch to 1.3v dram to 2.35 or 2.4v and just raise the fsb with setfsb correct? higher vtt than default 1.2 shouldnt be required at 425 fsb. i would use easytune6 but it raises fsb 11 at a time :/
01-01-2010, 07:13 PM
OC Nub

If you put a good fan blowing on your nb you should have no problems. I ran 1.46v MCH with my q9650 for months, using the same exact settings Sergio is using. I took the blue gigabyte cover off and had a fan blowing on the nb hs.
01-02-2010, 01:32 AM
Hoss331

Finally got my nb block switched over to this board and went back through my 4.5 settings to settle on these, for now. :)

http://i131.photobucket.com/albums/p...600c6prime.jpg
http://i131.photobucket.com/albums/p...600c6linx2.jpg
01-02-2010, 03:05 AM
kagula323

Great overclock Hoss331.:up: What DDR3 kit are u using?
01-02-2010, 05:09 AM
In-Fluence

Damn, those EP45T's really seem to play along nicely with quads too Hoss331, and that vcore is astounding! If I knew a little sooner I would have probably gone for one of these and avoided all the hassle I've had with getting a decent set of DDR2. Since mid-november I've been waiting on nearly £200 worth of refunds from a DOA kit and a pair of mislabelled dominator GTs :mad:

I backed down to 490x9 last night and CPU was stable with 1.40625 vcore (1.36 in CPU-z), so whatever damage I might have done, it doesn't seem too drastic. Just nudging up to 495x9 now, and I'm getting errors about 12 minutes into small ffts which I think is a good point to properly tune the refs and vtt as I've not been 100% on these.
I've gone about finding stability using my knowledge from the MIIF, which has got me a fair bit of success, but I would like to hear a summary of some of your methods in case I'm missing anything if anyone is willing to oblige?
01-02-2010, 06:56 AM
humeyboy

So your GT's were not really GT's ?

http://www.overclockers.co.uk/showpr...d=8&subcat=817

Corsair are stupid (after my RMA anyhow), they shouldn't have made the GT's 1066 but 1200 at least, just as stupid as that new fast Voyager GT that claim is only bottlenecked by USB2.0, so why the hell not make it USB 3.0 now or wait a while.
01-02-2010, 08:01 AM
clo007

Quote:

Originally Posted by andressergio

no mate wont harm

im a year now on this settings still passing same tests...and also a vid 1,1875

http://img524.imageshack.us/img524/5784/capturage.png

andre, could you post up your template please?

Thanks
01-02-2010, 08:03 AM
In-Fluence

No, I assume they were, but they were labelled 1.65v and scan had them rated at 2.1v. There's no info on Corsair's site but on their forums they stated 2.1v too. At the time, my MIIF vDimm only went as low as 1.8v and at 2.1v they threw out tons of errors. For a £120 4GB kit I expected a lot more performance and suport, particularly as these were supposed to be their 'flagship' category, but that appeared to only apply to the DDR3 range. Once again, I wa suckered in by the fancy looks & packaging. They might perform a lot better on this board, but I never got the chance, mind you, as I'm still waiting for a refund, I'm tempted to ask for the kit back to see if lower volts help more..
Here was what I reported on them at the time...
http://www.xtremesystems.org/forums/...ight=dominator

I've just been testing how much mch I need for 495x9 and I'm down to 1.24v (and testing at 1.22). Once I went below 1.26v I had to raise MCH ref to 0.84 (using ET6) to pass 1024k fft. I know there's more testing needed, but it's helped me tune & learn a little more, plus it won't hurt temps!
01-02-2010, 08:39 AM
maxwedge

To anyone

I've been thinking of trying out a GA45T-UD3P and some ddr3 but hardly anyone is stocking them. You think Gigabyte may be coming out with a new revision or just dumping it?

I found a few v1.0 on ebay but if their going to put out a new one I should wait.
01-02-2010, 09:14 AM
andressergio

Quote:

Originally Posted by clo007

andre, could you post up your template please?

Thanks

sure mate :up:

Code:

******Motherboard Intelligent Tweaker (M.I.T.)****** Robust Graphics Booster.........................[ Turbo ] CPU Clock Ratio.................................[ 9 ] Fine CPU Clock Ratio............................[ + 0.0 ] CPU Frequency 4.5GHz............................[ 500 x 9.0] ******Clock Chip Control****** CPU Host Clock Control..........................[ Enabled ] CPU Host Frequency (Mhz)........................[ 500 ] PCI Express Frequency (Mhz).....................[ 100 ] C.I.A 2.........................................[ Disabled ] ******Advanced Clock Control****** CPU Clock Drive.................................[ 900mv ] PCI Express Clock Drive.........................[ 900mv ] CPU Clock Skew..................................[ 0ps ] MCH Clock Skew..................................[ 50ps ] ******DRAM Performance Control****** Performance Enhance.............................[ Turbo ] Extreme Memory Profile (X.M.P)..................[ Profile1 ] (G) MCH Frequency Latch.........................[ 333 ] System Memory Multipler.........................[ 2.40B ] Memory Frequency 1066...........................[ 1200 ] DRAM Timing Selectable..........................[ Manual ] CAS Latency Time................................[ 5 ] tRCD............................................[ 5 ] tRP.............................................[ 5 ] tRAS............................................[ 15 ] ******Advanced Timing Control****** tRRD[4].........................................[ 3 ] tWTR[4].........................................[ 3 ] tWR[13].........................................[ 4 ] tRFC[68] .......................................[ 50 ] tRTP[4].........................................[ 3 ] Command Rate (cmd)[0]...........................[ Auto ] ******Channel A Timing Settings****** Static tRead Value [ 9 ] ................[ 8 ] tRD Phase0 Adjustment [ 0 ] ................[ Auto ] tRD Phase1 Adjustment [ 0 ] ................[ Auto ] tRD Phase2 Adjustment [ 0 ] ................[ Auto ] tRD Phase3 Adjustment [ 0 ] ................[ Auto ] tRD 2rd (Differnt Rank) [ 8 ] ................[ 8 ] tWR 2wr (Differnt Rank) [ 8 ] ................[ 7 ] tWR 2rd (Differnt Rank) [ 7 ] ................[ 8 ] tRD 2wr (Same/Difft Rank) [ 9 ] ................[ 8 ] Dimm 1 Clock Skew Control.......................[ Auto ] Dimm 2 Clock Skew Control.......................[ Auto ] DDR Write Training..............................[ Auto ] ******Channel A Driving Settings****** Drive Strength Profile..........................[ Auto ] Data Driving Pull Up Level......................[ Auto ] cmd Driving Pull Up Level.......................[ Auto ] ctrl Driving Pull Up Level......................[ Auto ] clk Driving Pull Up Level.......................[ Auto ] Data Driving Pull Down Level....................[ Auto ] cmd Driving Pull Down Level.....................[ Auto ] ctrl Driving Pull Down Level....................[ Auto ] clk Driving Pull Down Level.....................[ Auto ] ******Channel B Timing Settings****** Static tRead Value [ 9 ] ................[ 8 ] tRD Phase0 Adjustment [ 0 ] ................[ Auto ] tRD Phase1 Adjustment [ 0 ] ................[ Auto ] tRD Phase2 Adjustment [ 0 ] ................[ Auto ] tRD Phase3 Adjustment [ 0 ] ................[ Auto ] tRD 2rd (Differnt Rank) [ 8 ] ................[ 8 ] tWR 2wr (Differnt Rank) [ 8 ] ................[ 7 ] tWR 2rd (Differnt Rank) [ 7 ] ................[ 8 ] tRD 2wr (Same/Difft Rank) [ 9 ] ................[ 8 ] Dimm 1 Clock Skew Control.......................[ Auto ] Dimm 2 Clock Skew Control.......................[ Auto ] DDR Write Training..............................[ Auto ] ******Channel B Driving Settings****** Drive Strength Profile..........................[ Auto ] Data Driving Pull Up Level......................[ Auto ] cmd Driving Pull Up Level.......................[ Auto ] ctrl Driving Pull Up Level......................[ Auto ] clk Driving Pull Up Level.......................[ Auto ] Data Driving Pull Down Level....................[ Auto ] cmd Driving Pull Down Level.....................[ Auto ] ctrl Driving Pull Down Level....................[ Auto ] clk Driving Pull Down Level.....................[ Auto ] ******Motherboard Voltage Control****** Load-Line Calibration...........................[ Enabled ] CPU Vcore [ 1.1875 ]...................[ 1.4250 ] CPU Termination [ 1.20 ]...................[ 1.360 ] CPU PLL [ 1.50 ]...................[ 1.570 ] CPU Reference [ 0.760 ]...................[ 0.886 ] MCH Core [ 1.100 ]...................[ 1.460 ] MCH Reference [ 0.760 ]...................[ 0.901 ] MCH/DRAM Refernce [ 0.900 ]...................[ Auto ] ICH I/O [ 1.500 ]...................[ 1.500 ] ICH Core [ 1.100 ]...................[ 1.200 ] DRAM Voltage [ 1.800 ]...................[ 2.200 ] DRAM Termination [ 0.900 ]...................[ Auto ] Channel A Ref [ 0.900 ]...................[ Auto ] Channel B Ref [ 0.900 ]...................[ Auto ] ******Advanced BIOS Features****** Limit CPUID Max to 3............................[ Disabled ] No-Execute memory Protect.......................[ Disabled ] CPU Enhance Halt (CIE)..........................[ Disabled ] C2/C2E State Support............................[ Disabled ] C4/C4E State Support............................[ Disabled ] CPU Thermal Monitor.............................[ Disabled ] CPU EIST Function...............................[ Disabled ] Virtualization Technology.......................[ Disabled ]
01-02-2010, 10:10 AM
clo007

ty very much andre :)

Show 100 post(s) from this thread on one page

All times are GMT -8. The time now is 12:48 AM.

XtremeSystems

** Official ** Gigabyte UD3 P45 Series -- EP45-UD3 / EP45-UD3R / EP45-UD3P

Official Gigabyte UD3 P45 Series -- EP45-UD3 / EP45-UD3R / EP45-UD3P
