I haven't seen much discussion on this subject.....what setting are you using now for PCI Freq?

---

100. I thought at auto it would stay at that but evidently not because my Seagate sata 1Tb is so far unreadable by windows and my previos windows xp installation became corrupted.

400*9 attempt with q6600 with f6 bios if any ones wondering what happened, I used a voltage guide for 65nm quads someone posted in this thread a while back.


What exactly does Cpu Termination, Reference and Pll values do?

Do they have to be in some kind of ratio to each other in order for high oc to work?

Thanks to the [XC] Hicks121, Ghostleader, and LiquidReactor for responding to my question on PCI Freq......I haven't had any issues, but I'll try setting it to 100 to start.

I also want to say that this thread has been great reading and I've learned quite a bit. I haven't been able to push the envelope like some people here, but I'm quite happy with my UD3R/E8500 combo at 4.2Ghz (8.5 x 495 stable).

Thanks to all and hope everyone has a great New Years!

LDN

Quote:

---

Originally Posted by fatguy1992

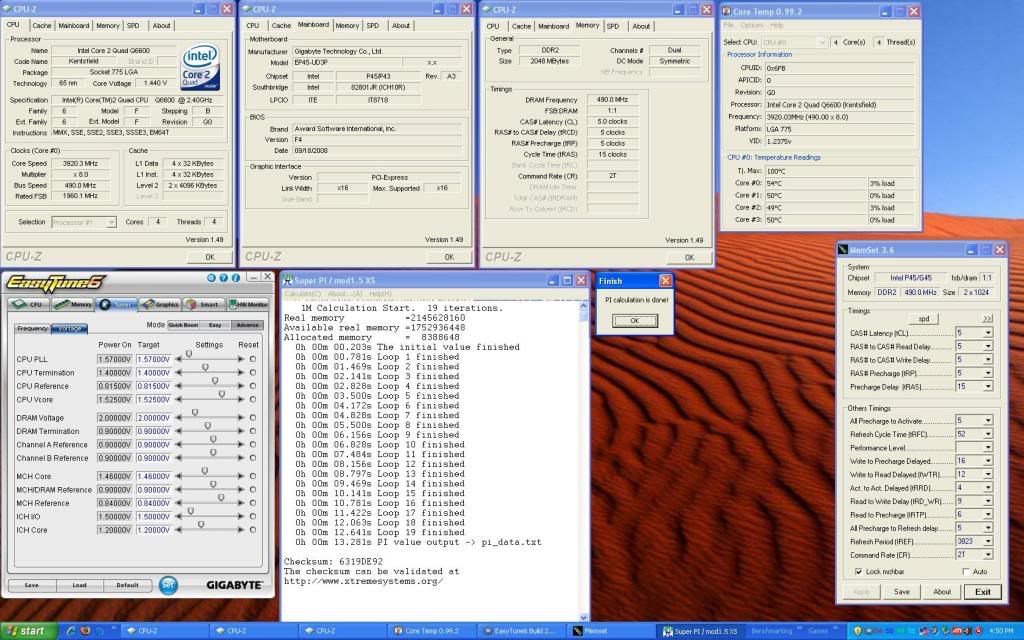

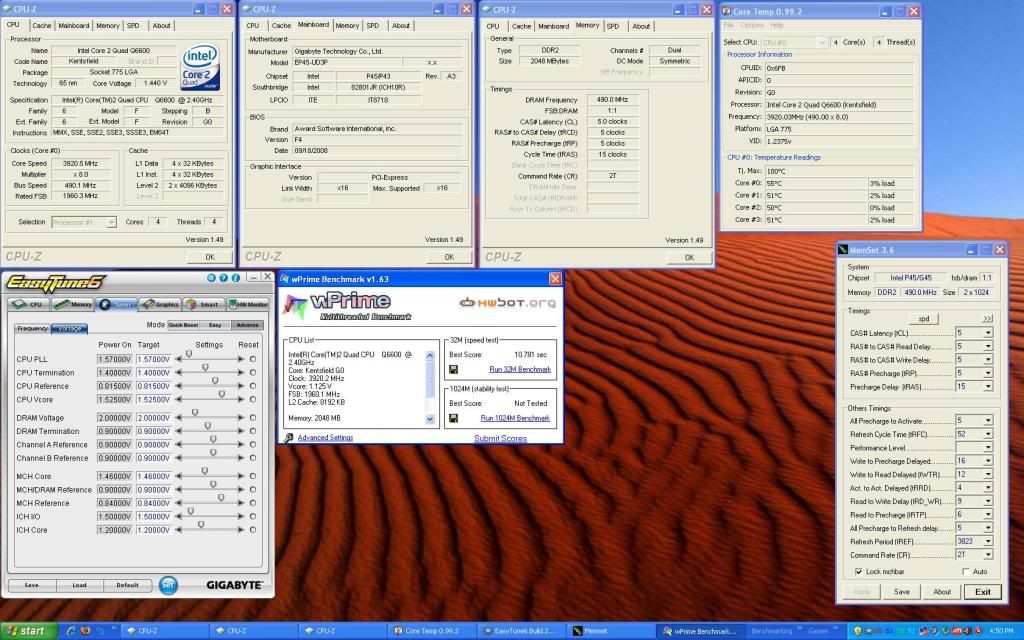

I just got my Q6600 to 3.9GHz :D

http://i292.photobucket.com/albums/m...Overclock1.jpg

http://i292.photobucket.com/albums/m...Overclock2.jpg

I almost got 4.1GHz, but it was 2 hot today 2 push the volts any higher :(.

---

To get your cpu ref at 0.815 what did you set in bios? I notice that setting 0.815 in bios still renders 0.76 in EasyTune

To change those values in in the BIOS to be reflected in Easytune to actual %'s you will need to set your Vtt back to stock, then adjust the % of the Ref. Voltage you want to change, then move Vtt back to where you had it and it will then be changed in ET as well. .815 CPU Ref would be .978 in the BIOS with Vtt at 1.2, then raise Vtt back up to what you use and once you get in windows you will see .815 in EasyTune.

Same applies to all other Ref Voltages and being able to see % changes in Easytune


CPU Termination (Vtt) Automatically changes the following if manually set >>>
CPU Reference Voltage (.63% of Default Vtt/1.20)
CPU Reference2 Voltage (.67% of Default Vtt/1.20)
MCH Reference Voltage (.63% of Default Vtt/1.20)

DRAM Voltage Automatically changes the following if manually set >>>
MCH/DRAM Reference Voltage (.50% of Default Dram Voltage)
DRAM Termination Voltage (.50% of Default Dram Voltage)
Channel A Reference Voltage (.50% of Default Dram Voltage)
Channel B Reference Voltage (.50% of Default Dram Voltage)

If you want a higher or lower than stock % / Value for any of the above settings and see it be reflected in EasyTune you need to set the Dram Voltage or Vtt back to stock (Or above or below to find and be able to choose alternate % Values), then adjust desired setting to the % / Value you wish to use.

Then once you have selected a % range you want to use for said setting then go back and raise your Vtt or Dram Voltage back to what you choose to use and the corresponding settings will self adjust

Quote:

---

Originally Posted by a573573

.815 CPU Ref would be .978 in the BIOS with Vtt at 1.2

---

.978 is very high ref value, around 81.5% :eek: I wounder if that is right.

Should´t not be something like 1,20 x 68% = 0,816 ????


Hope that fatguy1992 respond and can give use an answer to this.

Test running OCZ PC2-9200 Flex II 4GB kit at DDR2-1200

http://img206.imageshack.us/img206/8...1231232li3.png


SuperPi 8M (dual instances) and a single instance of SuperPi 32M only


450 CPU FSB, 3:4 DDR1200, timings 5-5-5-18 / 5-5-10-80-5 tRD 7, 2.04v (BIOS)


http://img356.imageshack.us/img356/5...1215255jy8.png


500 CPU FSB, 5:6 DDR1200 tRD 8


http://img123.imageshack.us/img123/3...1231829kv9.png


http://img206.imageshack.us/img206/2...1225508fc6.png

I am about to give up on this board. This is my second one (UD3R). The first one came DOA. This second one ran fine till yesterday. I tried to boot up and nothing happened ie. monitors read no signal. I clear battery for 12hrs, as I was at work and such. Put things back together this morning and still nothing. One point yesterday with the issues started, it would not boot. I entered into bios and set to fail-safe settings. Saved and exited. It booted up, went into window, then 30 secs later the computer locked up. Tried to clear cmos/battery again and nothing. Back to today. So I powered on and computer set there cycling. It never went to the bios screen. I thought maybe I was having hdd failure b/c i can't hear them spooling up at all, but I can't even get to the bios without the hdd's installed.

Is my second board failing or what?

Specs of set-up in sig. Thanks guys.

What DDR2 do work nicly on UD3P?

Nice results Panging III :up:

Did you have to spend much time to get those to run at that speed?

Seems like you run those in the orange slots, any special reason for that or is the orange better then the yellow at high speed?

Are you stable with LinX and/or Prime blend with those settings?

Quote:

---

Originally Posted by Ghostleader

Nice results Panging III :up:

Did you have to spend much time to get those to run at that speed?

Seems like you run those in the orange slots, any special reason for that or is the orange better then the yellow at high speed?

Are you stable with LinX and/or Prime blend with those settings?

---

it's a very new ram kit on this board i haven't tested HCI memtest, prime's and Linx on it yet.
however, this ram kit passed a DOS memtesting program (when it's running DDR2-1200) at 1.98v vdimm on all 333 strap (375fsb mem multi 3.2x and 500fsb mem multi 2.4x), 266 strap (400fsb mem multi 3.0x), and 400 strap (450fsb mem multi 2.66x), and i just added a little bit more volts to the bios's vdimm settings and use vMCH at 1.30v (thinking about lowering this value down to 1.26v later on) and booted into Windows and run the tests.
i have 4 other 4GB (2x2GB) kits that won't do these. as of now, it seems to me that it should be possible to stable this ram kit for 500fsb DDR2-1200, and i hope it can make it at least at the 500fsb setting.

about the DIMM slots, the ram is too fat to fit in yellow slots, it hit the board stock sink (heatsink cover).
i actually like to use yellow slots, i find that it works better for my ram overcloking sometimes, so i'll probably also try using yellow slots later on.

Quote:

---

Originally Posted by clo007

I am about to give up on this board. This is my second one (UD3R). The first one came DOA. This second one ran fine till yesterday. I tried to boot up and nothing happened ie. monitors read no signal. I clear battery for 12hrs, as I was at work and such. Put things back together this morning and still nothing. One point yesterday with the issues started, it would not boot. I entered into bios and set to fail-safe settings. Saved and exited. It booted up, went into window, then 30 secs later the computer locked up. Tried to clear cmos/battery again and nothing. Back to today. So I powered on and computer set there cycling. It never went to the bios screen. I thought maybe I was having hdd failure b/c i can't hear them spooling up at all, but I can't even get to the bios without the hdd's installed.

Is my second board failing or what?

Specs of set-up in sig. Thanks guys.

---

Not a definate answer, but are you *absolutely* sure that your OC is 112% stable?

I ask because I'm in the process of OC'ing my own Q9650 - although on a DQ6 mobo, and as you probably know, small changes can make or break the stability.

If your board is cycling at boottime, it's usually an unstable setting.

Could also be heat related - do you have proper cooling/airflow?

Another thing you could try is to remove the mobo from your cabinet and lay it all out on a cardboard box or similar and fire it up.

I had great difficulty getting my rig stable when inside my cabinet after exchanging my CPU-cooler and the reason was most likely some sort of short between the mobo and cabinet. The solution was to remove the setup from the cabinet - no problems with stability.

Have actually sold the cabinet now as it was too small anyway and now it's running, dressed in its birthday suit :D

Hope you find the answer!

Quote:

---

Originally Posted by C-N

I posted 4350mhz a few pages back with all my settings which could give you a good start. 4400mhz is all I can call/claim I have got truly stable although 4450~4500 is perfectly stable for everything other than prime/orthos/IBT etc.

I have/did notice something divider/strap dependent I think it was performance level getting set to tight or something like that which stumped me for a minute but other than that I've easily pumped 1.75~1.8v through my NB no problem.

Right now I can get my CPU to run a loop of prime small & then fail large or the other way around depending on how I set up the board for 500 x 9. I am real busy in Jan 09 so wont really get to play with the UD3P until the end of the month & then I think I'll pop the board under my SS & see if that helps.

All in all though the UD3P is an awesome board.

---

Thanks mate, I got it on page 35.

So 'Normal' settings worked better for you then 'Auto' or 'Manual'?

What does this board recognize as Normal?

Sorry for the questions I had to give up my second board and get the first one back as it turns out the MCH core thing was just a strap related problem so I'm waiting again my old board.

Quote:

---

Originally Posted by njl

Not a definate answer, but are you *absolutely* sure that your OC is 112% stable?

I ask because I'm in the process of OC'ing my own Q9650 - although on a DQ6 mobo, and as you probably know, small changes can make or break the stability.

If your board is cycling at boottime, it's usually an unstable setting.

Could also be heat related - do you have proper cooling/airflow?

Another thing you could try is to remove the mobo from your cabinet and lay it all out on a cardboard box or similar and fire it up.

I had great difficulty getting my rig stable when inside my cabinet after exchanging my CPU-cooler and the reason was most likely some sort of short between the mobo and cabinet. The solution was to remove the setup from the cabinet - no problems with stability.

Have actually sold the cabinet now as it was too small anyway and now it's running, dressed in its birthday suit :D

Hope you find the answer!

---

It has been rock solid at 3.6ghz for 2 weeks since I got the new mobo in. Grounding is not an issue as I put electric tape underneath the mobo at the connection points. It does not even boot into bios now.

Quote:

---

Originally Posted by clo007

It has been rock solid at 3.6ghz for 2 weeks since I got the new mobo in. Grounding is not an issue as I put electric tape underneath the mobo at the connection points. It does not even boot into bios now.

---

Have you tried booting with a *completely* minimal setup (no fd, dvd etc.)?

Could it be a faulty PSU?

You can short the green wire with a ground wire (ATX 24-pin plug) and fire up the PSU. Then you can measure the voltages on the 3.3, 5.0 and 12.0V rails and check if anything is out of the ordinary.

Huh..finally can run 32MB super PI.,it took me couple of days to set & run.,set & run..everything else pass.,blend.,linpack.,and OCCT..:clap:

Ghostleader,

just an updated on my previous post...

changed the OS system from 32-bit Vista to XP x64 so later on i can test more ram in windows

also, did some changes in voltage and ref. settinga at BIOS.
then ran a double 32M SuperPi test and the system is now just started to run a prime95 blend test.

http://img206.imageshack.us/img206/9...2024502fr2.png

@Panging III
can i know what is your Vdrop & Vdroop bro.,is Loadline Calibration enabled?

Hello, I just this mobo cpu setup last night. It is intel burn test stable for at least 30 passes. I didnt try more yet. Seems to be a nice mobo.

Quote:

---

Originally Posted by Ghostleader

.978 is very high ref value, around 81.5% :eek: I wounder if that is right.

Should´t not be something like 1,20 x 68% = 0,816 ????


Hope that fatguy1992 respond and can give use an answer to this.

---

Ya, it sure is! But he asked how the user above him got 81.5 in his Easytune Image (Apparently that is what he was using ATM)

So that is why I told him how to get 81.5 shown in Easytune, by setting that % in the BIOS.

Quote:

---

Originally Posted by Jor3lBR

Thanks mate, I got it on page 35.

So 'Normal' settings worked better for you then 'Auto' or 'Manual'?

What does this board recognize as Normal?

Sorry for the questions I had to give up my second board and get the first one back as it turns out the MCH core thing was just a strap related problem so I'm waiting again my old board.

---

You're welcome, I just set Normal rather than Auto as Auto sets un-necessary high voltages for a few things. I have most of the board set manually now but to be honest it has hardly made any real noticeable difference so far so probably not worth the time.

Quote:

---

Originally Posted by njl

Have you tried booting with a *completely* minimal setup (no fd, dvd etc.)?

Could it be a faulty PSU?

You can short the green wire with a ground wire (ATX 24-pin plug) and fire up the PSU. Then you can measure the voltages on the 3.3, 5.0 and 12.0V rails and check if anything is out of the ordinary.

---

Well, I got it up again. Yanked out one stick of my HZs and it posted. Loaded fail-safe settings and booted.

So my question is, what is the issue? I usually have my black pis installed 2x2gig sticks. The first issue occurred and I put in my 2x1gig sticks of HZs. Someone suggested pulling a stick, and it boots now.

So are my ram slots going bad?

Quote:

---

Originally Posted by clo007

Well, I got it up again. Yanked out one stick of my HZs and it posted. Loaded fail-safe settings and booted.

So my question is, what is the issue? I usually have my black pis installed 2x2gig sticks. The first issue occurred and I put in my 2x1gig sticks of HZs. Someone suggested pulling a stick, and it boots now.

So are my ram slots going bad?

---

Maybe ur rams going bad :shrug:.

So my set of black pi's and my set of HZs are going bad? That I would find hard to believe.

C-N, would you recommend BIOS f4 over anything released since for Q9650?
Thanks.

Quote:

---

Originally Posted by clo007

So my set of black pi's and my set of HZs are going bad? That I would find hard to believe.

---

It was only a thought :shrug:. I'v never heard of a ram slot dieing, but i guess it could happen :shrug:.

Edit: When u took a stick out and it worked, did u try putting the one that worked into the slot you think could be dead?
