12-27-2008, 05:46 AM
radaja

X.T.R.E.M.E ICE,why did you downgrade?
12-27-2008, 10:28 AM
big poppa pump

Quote:

Originally Posted by tmgp

weird christmas gift from gigabyte (at least to EP45-UD3): Sound Blaster X-Fi MB utility (vista only)

nothing to do with oc, but perhaps someone with vista can try it out? :)

Installed this on my Vista x64 setup and seems to be working fine. Even though it says Vista x86 only on the gigabyte site, it installed without any problems on x64. However for some reason, the X-Fi MB comes up as a 30 day trial??:confused:
12-27-2008, 10:53 AM
fatguy1992

Could someone tell me how to get .5 multipliers? Like 8.5? Is it possible on a Q6600?

Thanks
12-27-2008, 10:55 AM
Penny

Quote:

Originally Posted by yomny

Guys, i have a weird issue i could run a stable 333 fsb with 1.24 MCH using a multi of 6 but when i try to raise the multi to 9 i can boot to windows but i cant run a stable prime small fft's for more than a few secs. Do you think its my cpu?

Yes its your CPU as small FFT's are stress the cores harder than anything else related to P95.
12-27-2008, 11:58 AM
Leeghoofd

Quote:

Originally Posted by fatguy1992

Could someone tell me how to get .5 multipliers? Like 8.5? Is it possible on a Q6600?

Thanks

Privilege of 45 nm CPU's, not yours
12-27-2008, 05:42 PM
fatguy1992

Quote:

Originally Posted by Leeghoofd

Privilege of 45 nm CPU's, not yours

Dam :(

Oh well thanks for the answer.
12-27-2008, 07:45 PM
X.T.R.E.M.E_ICE

Quote:

Originally Posted by radaja

X.T.R.E.M.E ICE,why did you downgrade?

2 Reasons.

1. Starting new job next week and won't be home for 3 months at least.
2. i7 platform sux when it comes to keeping stable.

I had it stable at 4GHZ 24/7 and 3D stable at 4.2-4.3GHZ but you get programs that randomly crash the whole platform is a disaster. Performance compared to core 2 Quad is fantastic but not worth wasting my time with. Even at stock speed some programs would crash. I will wait for board and CPU revision before i Upgrade again.
12-27-2008, 08:28 PM
fatguy1992

I was having a similar prob before (with my current setup) and it kept getting worse every week. Now I got my UD3P and reformatted all the prob's are gone. I asked on a different forum a while ago and was told that i had a bad windows install :shrug:.
12-27-2008, 08:56 PM
Solid Snake

i have a little problem .

my EP45 UD3P not exceed 520 FSB

I have tested with an E6550 mult x7

any suggestions?:cool:
12-27-2008, 09:01 PM
fatguy1992

Quote:

Originally Posted by Solid Snake

i have a little problem .

my EP45 UD3P not exceed 520 FSB

I have tested with an E6550 mult x7

any suggestions?:cool:

Post all ur settings. That way it'll be easier for ppl 2 help :).
12-28-2008, 12:42 AM
fatguy1992

Could someone please tell me how to set up DRAM Termination, MCH/DRAM Reference and Channel A & B references?

Thanks
12-28-2008, 01:38 AM
Xiode

Is it more important to have a higher RAM speed or tighter timings? Right now I'm running 4.1GHz @ 8GB 4-4-4-12 on a E8400 (455x9, 1:1). I've seen people get faster times on HyperPi 32M with slightly lower clocks though. Just FYI, I'm using XP Pro 64-bit. For whatever reason, Vista 32-bit actually felt faster.
12-28-2008, 01:50 AM
fatguy1992

From my tests I get better bandwidth at higher speeds.
12-28-2008, 02:24 AM
C-N

Quote:

Originally Posted by fatguy1992

Could someone please tell me how to set up DRAM Termination, MCH/DRAM Reference and Channel A & B references?

Thanks

I don't have a how to answer but I can tell you in my efforts to get my Q9650 prime stable at 4450mhz (which I am still failing at btw) I played with most of the reference & voltage settings & found a strange thing.

The board displays the std/normal value e.g. MCH Reference = 0.760, ET6 also displays 0.760 but if with my quad you try booting with this value set to (I think) 0.766 the board wont boot. I found I needed to manually set 0.924 to get my board running prime. ET still displays 0.760 even though I manually set 0.924 in BIOS.

Which brings me to my point....... I would find the value you need to set to boot & simply test/fine tune up & down from there for each value.

I could find no benefit tweaking any of the values you are interested in "DRAM Termination, MCH/DRAM Reference and Channel A & B references" with my rig & 4 x 1GB sticks running up to 1250mhz.

CN :)
12-28-2008, 02:29 AM
Xiode

Quote:

Originally Posted by fatguy1992

From my tests I get better bandwidth at higher speeds.

Right now I'm Priming on 500x8.5 = 4.25GHz at 1:1 5-7-7-19. It gave me about a 30 sec - 1 min greater/worse HyperPi 32M score than 455x9 = 4.1GHz did at 4-4-4-12. Any suggestions? I realize that a better and/or worse HyperPi time doesn't necessarily mean anything in the scope of things, but I was just curious.

EDIT: 4.25GHz failed, but now I'm Priming with 475x9 @ 5-5-5-15 = 4.275Ghz. Got a bit better HyperPi 32M score, but still a ways off of 4.1 @ 4-4-4-12.
12-28-2008, 11:59 AM
fatguy1992

Quote:

Originally Posted by C-N

I don't have a how to answer but I can tell you in my efforts to get my Q9650 prime stable at 4450mhz (which I am still failing at btw) I played with most of the reference & voltage settings & found a strange thing.

The board displays the std/normal value e.g. MCH Reference = 0.760, ET6 also displays 0.760 but if with my quad you try booting with this value set to (I think) 0.766 the board wont boot. I found I needed to manually set 0.924 to get my board running prime. ET still displays 0.760 even though I manually set 0.924 in BIOS.

Which brings me to my point....... I would find the value you need to set to boot & simply test/fine tune up & down from there for each value.

I could find no benefit tweaking any of the values you are interested in "DRAM Termination, MCH/DRAM Reference and Channel A & B references" with my rig & 4 x 1GB sticks running up to 1250mhz.

CN :)

Thanks

The reason I think its effecting my is cause I setting wouldn't work with my DRAM volts at 2.02v but then when I put them to 2.0v it worked great. WTF. So i'm thinking that with 2.0v and whatever the MCH volt was it had a good reference or termination or something. Therefore I want to know how to set them up right so I can always get a good reference or whatever it is. I hope that made some sense.

Quote:

Originally Posted by Xiode

Right now I'm Priming on 500x8.5 = 4.25GHz at 1:1 5-7-7-19. It gave me about a 30 sec - 1 min greater/worse HyperPi 32M score than 455x9 = 4.1GHz did at 4-4-4-12. Any suggestions? I realize that a better and/or worse HyperPi time doesn't necessarily mean anything in the scope of things, but I was just curious.

EDIT: 4.25GHz failed, but now I'm Priming with 475x9 @ 5-5-5-15 = 4.275Ghz. Got a bit better HyperPi 32M score, but still a ways off of 4.1 @ 4-4-4-12.

Well 500MHz (1000MHz) @ 5-7-7-19 is very loose. U should be able to run 5-5-5-15. Maybe a reason y its failing is because ur MCH volts are too low, what are u running it at? I found that when added my extra 2 sticks I needed quite a bit more MCH volts to run it stable. Therefore with 8GB...

Edit: Make sure ur ram performance thingy is set on standard.
12-28-2008, 03:01 PM
pyongmu

Quote:

Originally Posted by fatguy1992

Could someone please tell me how to set up DRAM Termination, MCH/DRAM Reference and Channel A & B references?

Thanks

The default DRAM Termination, MCH/DRAM Reference and Channel A & B references are 50% of the vdimm. Start from that point and go lower to tweak. If working from the ET6 and want to "move" those settings to BIOS, set the vdimm to 1.8V in bios first, followed by setting the DRAM Termination, MCH/DRAM Reference and Channel A & B references to the ET6 values, then raise the vdimm to the previous value. The reference volts will self adjust as the vdimm is adjusted.
12-28-2008, 03:05 PM
fatguy1992

Thanks so much :D

So say i need to run 2.4 vdimm, i'd set my DRAM Termination, MCH/DRAM Reference and Channel A & B references to 1.2?
12-28-2008, 03:28 PM
pyongmu

Quote:

Originally Posted by fatguy1992

Thanks so much :D

So say i need to run 2.4 vdimm, i'd set my DRAM Termination, MCH/DRAM Reference and Channel A & B references to 1.2?

If you boot to windows at 2.4 vdimm and 1.24 refenences and check the settings with the ET6, they will all be .9V, just as if the reference volts were set to "auto." Tweaking is done by adjusting the reference volts lower than the default 50% vdimm levels.
12-28-2008, 04:36 PM
Jor3lBR

Quote:

Originally Posted by pyongmu

If you boot to windows at 2.4 vdimm and 1.24 refenences and check the settings with the ET6, they will all be .9V, just as if the reference volts were set to "auto." Tweaking is done by adjusting the reference volts lower than the default 50% vdimm levels.

Interesting, why lower then 50% is better?
12-28-2008, 05:03 PM
pyongmu

Quote:

Originally Posted by Jor3lBR

Interesting, why lower then 50% is better?

It's based solely on my limited experiments after figuring out how the settings in BIOS relate to what's displayed in the ET6. I haven't yet run into a situation where any of these vdimm referenced termination settings above 50% vdimm had any positive effect. If your experiences were to the contrary, please share.
12-28-2008, 05:17 PM
SpeedEuphoria

Leave the ram references on auto and they will correctly be automatically set to 50% of the Dram voltage, but ET6 will report .90v even though they are really 1/2 of the Dram V.
12-29-2008, 03:50 AM
Ghostleader

Quote:

Originally Posted by pangingIII

Ghostleader,

try the above voltage setting in your BIOS, i just booted with this setting and run a few quick system tests as you see in the pic.

to see if you can get a stable system with the voltage setting, if so, and with 2x1GB RAM, you can try lower MCH core and CPU termination voltages,
and then retest your overclock again, i would say MCH core 1.30-1.36v, CPU termination 1.20-1.30v, also try MCH ref. value 0.68v and maybe 0.72v (of VTT 1.20v),
for memory timings, you may want to first try setting Auto, and if you set Turbo, the board's bios will enter SPD's (usually, it will be using timing of the module when running at DDR2-800) timings and this should work ok with a good overclocking ram kit like yours.

i hope this helps.

-----------------
note-- in order to use the ET6's voltage setting value in your BIOS, for example, if you want to try my voltage setting (above),
the easy way is to first set VTT to 1.20v, Vdimm 1.80v,
and then set the other voltage and ref. settings using the value shown in the ET6 and go back to VTT and Vdimm and change the 2 values last.
----------------------------------

Thank you pangingIII, awesome help as usuall, much appreciated. :up:

Sorry for the late response, I have had some Christmas computer time off.

All my RAM sets are okey according to Memtest86+ and since I can run FSB 450 RAM 1200 CAS5 and FSB 500 RAM 1333 CAS5 without error in LinX, Prime95 blend and HCI design Memtest, I reckon there´s nothing wrong with my RAM, it most be something else.

I remembered when setup FSB 500 RAM 1333 CAS5 I first tried with MCH core 1,40v but no boot, then I tried 1,30v and it boot okey in to Windows.

Well I tried the same with 500 1200 CAS5, start at 1,30, no boot, tried 1,28, no boot and 1,26 and it booted in to Windows.

With P35 and X48 it usually was to low volt if it didn´t boot okey but with this P45 it seems to the other way around, very interresting board this EP45-UD3P.

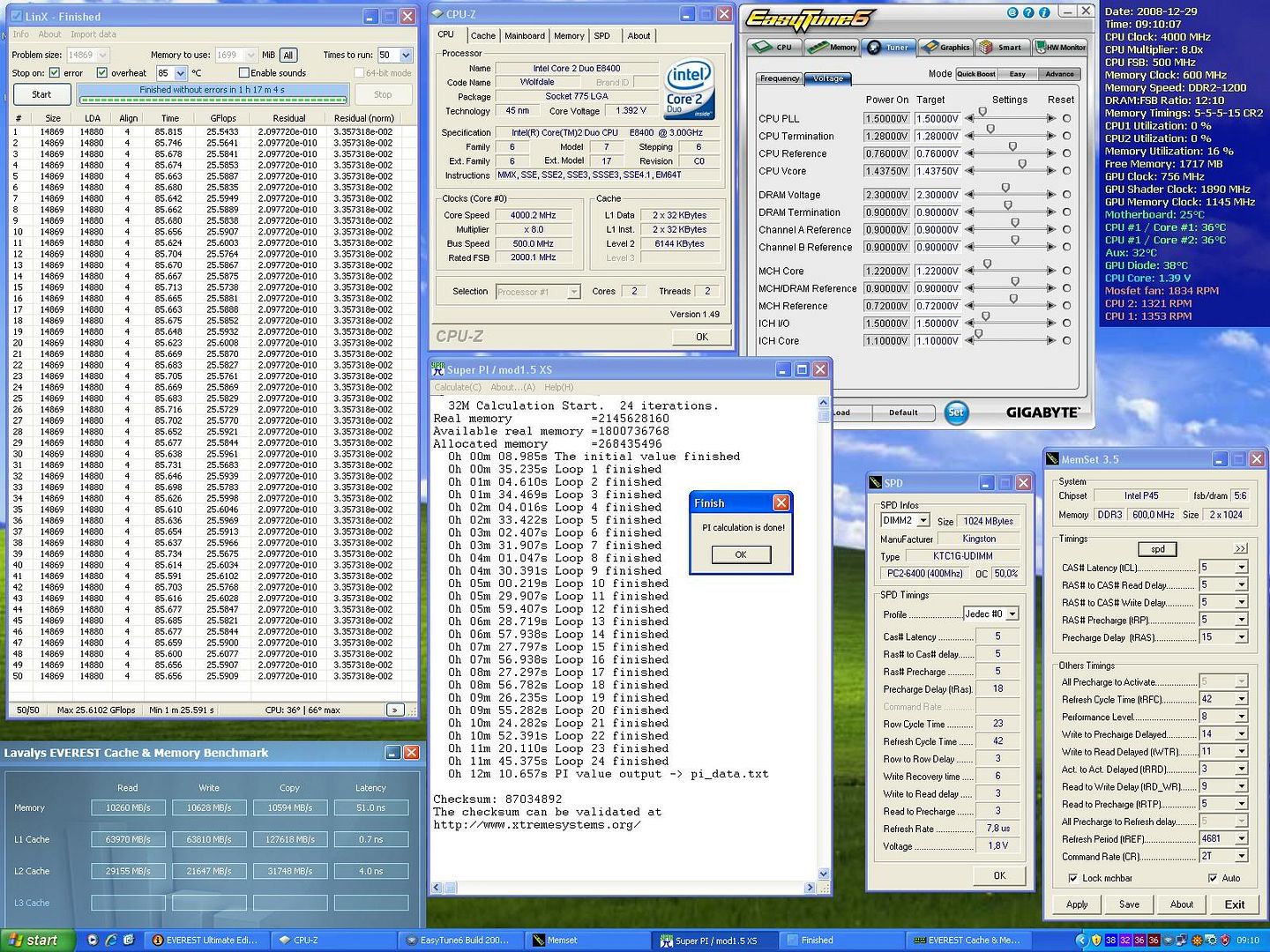

So with CPU Term 1,28, MCH core 1,22 and MCH ref 63,5% I was running 500 1200 555 15 tRD8 Turbo Stable.

http://i282.photobucket.com/albums/k...20055515tR.jpg

PHP Code:

GIGABYTE GA-EP45-UD3P BIOS F4 E8400 C0 2x1 Kingston HyperX PC9600 Micron D9GKX MB Intelligent Tweaker(M.I.T.) Robust Graphics Booster ..................: Auto CPU Clock Ratio ..........................: 8 Fine CPU Clock Ratio......................: 0 CPU Frequency ............................: 4.00GHz (500x9) Clock Chip Control Standard Clock Control CPU Host Clock Control....................: Enabled CPU Host Frequency (Mhz) .................: 500 PCI Express Frequency (Mhz) ..............: 100 C.I.A. 2..................................: Disabled Advanced Clock Control CPU Clock Drive...........................: 700mv PCI Express Clock Drive...................: 700mv CPU Clock Skew (ps).......................: 0ps MCH Clock Skew (ps).......................: 0ps DRAM Performance Control Performance Enhance......................: Turbo Have test Standard MCH Frequency Latch......................: 333MHz System Memory Multiplier ................: 2.40B Memory Frequency (Mhz) ..................: 1200 DRAM Timing Selectable ..................: Manual Standard Timing Control CAS Latency Time.........................: 5 tRCD ....................................: 5 tRP......................................: 5 tRAS.....................................: 15 Advanced Timing Control [Press Enter] tRRD.....................................: 3 [Auto] tWTR.....................................: 3 [Auto] tWR......................................: 6 [Auto] tRFC.....................................: 42 [Auto] tRTP.....................................: 3 [Auto] Command Rate (CMD) ......................: 0 [Auto] Channel A Channel A Timings Settings Static tRead Value......................: 8 Channel B Channel B Timings Settings Static tRead Value......................: 8 Motherboard Voltage Control Load-Line Calibration.....................: Disabled CPU Vcore...............1.22500V..........: 1.43750 CPU Termination.........1.200V............: 1.280 CPU PLL.................1.500V............: 1.500 CPU Reference...........0.760V............: 0,810 (63,5%) MCH/ICH MCH Core................1.100V............: 1.220 MCH Reference...........0.760V............: 0,72 MCH/DRAM Reference......0.900V............: Auto ICH I/O.................1.500V............: 1,500 ICH Core................1.100V............: 1,100 DRAM DRAM Voltage............1.800V............: 2,300 DRAM Termination........0.900V............: Auto Channel A Address Vref..0.900V............: Auto Channel B Address Vref..0.900V............: Auto Advanced Settings Limit CPUID Max. to 3.....................: Disabled No-Execute Memory Protect.................: Enabled CPU Enhanced Halt (C1E)...................: Disabled C2/C2E State Support......................: Disabled x C4/C4E State Support....................: Disabled CPU Thermal Monitor 2(TM2) ...............: Enabled CPU EIST Function.........................: Disabled Virtualization Technology.................: Disabled
12-29-2008, 04:52 AM
ezaleina

@Ghostleader
Nice result man..want to ask.,do u use active cooler for 2.3v ram?and what cooler do u use..tq
12-29-2008, 06:43 AM
Ghostleader

Quote:

Originally Posted by ezaleina

@Ghostleader
Nice result man..want to ask.,do u use active cooler for 2.3v ram?and what cooler do u use..tq

Thank you

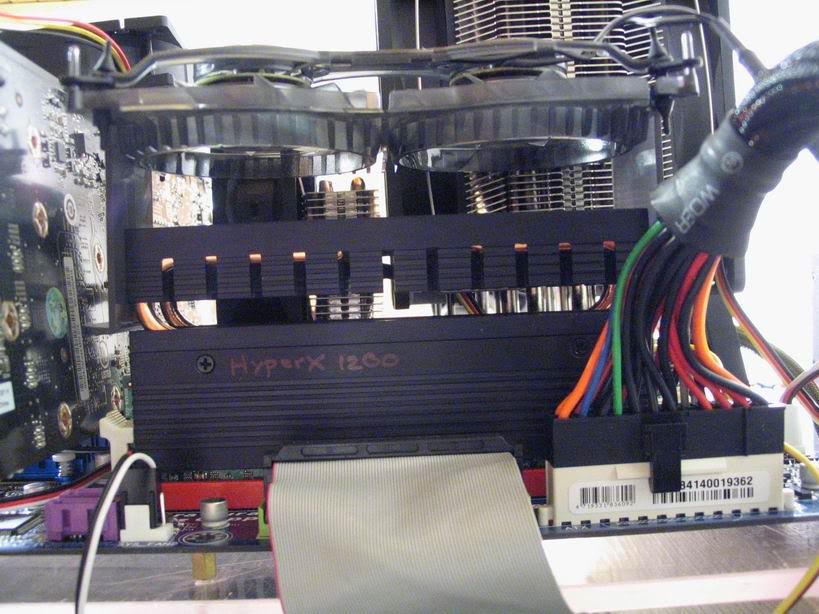

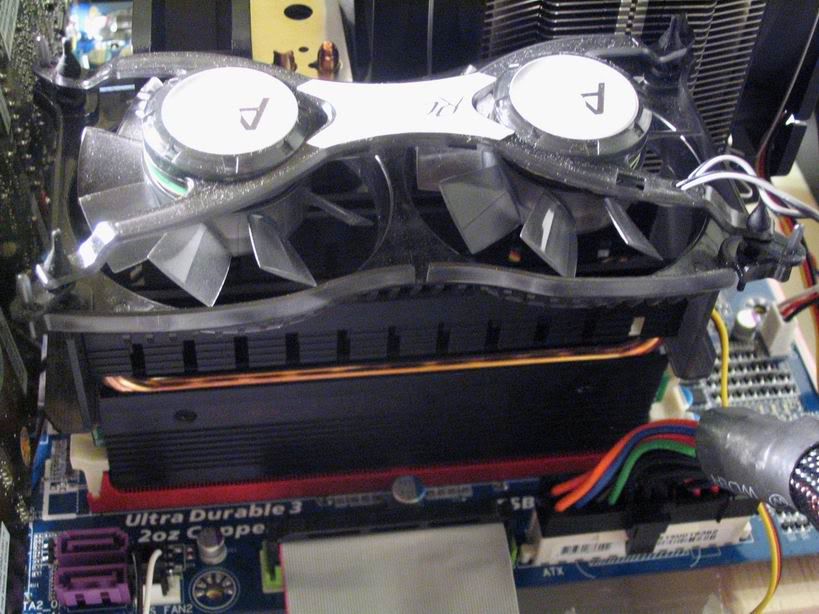

Yes, I´m using active cooling, Arctic cooling RAM Cooler.

I have also change the original heatspreader to Nexus heatspreader.

At 2,30v@1200MHz with original Kingston HyperX heatspreader I was above 60C without fan and with Nexus not above 45C without fan.

So with 2,30v@1200MHz, Nexus heatspreader and Arctic cooling RAM Cooler, around 35C.

This is with a temp probe between the heatspreder and the PCB, this was take with my Rampage Formula Rig.

I´m running EP45-UD3P in a open bench.

http://www.nexustek.nl/images/HXRblack_big.jpg

http://www.arctic-cooling.com/pics/R...Module_00l.jpg

http://i282.photobucket.com/albums/k...-UD3P/Fan1.jpg

http://i282.photobucket.com/albums/k...-UD3P/Fan2.jpg
