I have been playing with BIOS 913 & found it makes a tad more bandwidth with slightly better latency at the expense of a tad more vNB & vDIMM.
The 913 BIOS also benches realy well IMO, I have had tons of fun & seen some awesome numbers from it.
Here is my rigs sweet spot with the 913 BIOS.
==================================
DFI LANPARTY UT P35-T2R (BIOS 913)
INTEL CORE 2 DUO QUAD Q6600 KENTSFIELD 2.4GHZ 4M L2 CACHE
OCZ PC2-8500 SLI 2 x 1GB PN:OCZN1066SR2GK
INNO3D 8800GTS 320MB (162.18 DRIVERS + OVERCLOCK 617 X 955)
4 X HITACHI DJ 80GB HD'S (RAID 0 / 64K STRIPE)
SONY DUAL LAYER DVD RW (DRU-820A)
OCZ GAMEXTREAM 1010W PSU
WINDOWS XP PRO SP2
CPU COOLING: THERMALRIGHT ULTRA-120 EXTREME

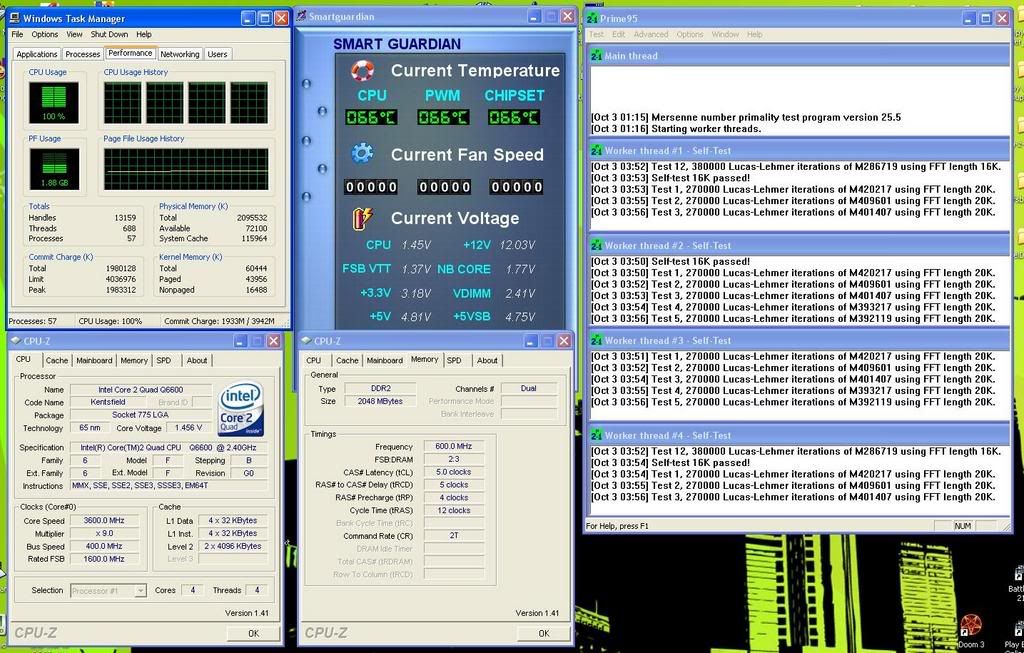

PRIME95 + 3DMARK2001SE + 3x CPU-Z:(SCORE 63,338)Code:>CPU Feature:
Thermal Management Control.......... - Disabled
PPM(EIST) Mode...................... - Disabled
Limit CPUID MaxVal.................. - Disabled
CIE Function........................ - Disabled
Execute Disable Bit................. - Enabled
Virtualization Technology........... - Enabled
Core Multi-Processing............... - Enabled
>DRAM Timing:
Enhance Data transmitting........... - Fast
Enhance Addressing.................. - Fast
T2 Dispatch......................... - Disabled
>Clock Setting Fine Delay Press Enter:
Ch1 Clock Crossing Setting......... - More Aggressive
DIMM1 Clock Fine Delay............. - Current[1]
DIMM2 Clock Fine Delay............. - Current[6]
Ch1 ControlFine Delay.............. - Current[9]
Ch1 ControlFine Delay.............. - Current[6]
Ch2 Clock Crossing Setting......... - More Aggressive
DIMM3 Clock Fine Delay............. - Current[1]
DIMM4 Clock Fine Delay............. - Current[6]
Ch2 ControlFine Delay.............. - Current[9]
Ch2 ControlFine Delay.............. - Current[6]
Ch1 Ch2 Common Clock Setting....... - More Aggressive
Ch1 RDCAS GNT-Chip Delay........... - Auto
Ch1 WRCAS GNT-Chip Delay........... - Auto
Ch1 Command To CS Delay............ - Auto
Ch2 RDCAS GNT-Chip Delay........... - Auto
Ch2 WRCAS GNT-Chip Delay........... - Auto
Ch2 Command To CS Delay............ - Auto
CAS Latency Time (tCL).............. - 5
RAS# to CAS# Delay (tRCD)........... - 5
RAS# Precharge (tRP)................ - 5
Precharge Delay (tRAS).............. - 15
All Precharge to Act................ - 5
REF to ACT Delay (tRFC)............. - 30
Performance Level................... - 7
>Read delay phase adjust Press Enter:
Channel 1 Phase 0 Pull-In.......... - Auto
Channel 1 Phase 1 Pull-In.......... - Auto
Channel 1 Phase 2 Pull-In.......... - Auto
Channel 1 Phase 3 Pull-In.......... - Auto
Channel 1 Phase 4 Pull-In.......... - Auto
Channel 2 Phase 0 Pull-In.......... - Auto
Channel 2 Phase 1 Pull-In.......... - Auto
Channel 2 Phase 2 Pull-In.......... - Auto
Channel 2 Phase 3 Pull-In.......... - Auto
Channel 2 Phase 4 Pull-In.......... - Auto
MCH ODT Latency..................... - Auto
Write to PRE Delay (tWR)............ - 13
Rank Write to Read (tWTR)........... - 11
ACT to ACT Delay (tRRD)............. - 3
Read to Write Delay (tRDWR)......... - 8
Ranks Write to Write (tWRWR)........ - Auto
Ranks Read to Read (tRDRD).......... - Auto
Ranks Write to Read (tWRRD)......... - Auto
Read CAS# Precharge (tRTP).......... - 4
ALL PRE to Refresh.................. - 5
>Voltage Settings:
CPU VID Control..................... - 1.52500v
CPU VID Special Add................. - Auto
DRAM Voltage Control................ - 2.35v
SB 1.05V Voltage.................... - 1.070v
SB Core/CPU PLL Voltage............. - 1.55v
NB Core Voltage..................... - 1.61v
CPU VTT Voltage..................... - 1.60v
Vcore Droop Control................. - Disabled
Clockgen Voltage Control............ - 3.45v
GTL+ Buffers Strength............... - Weak
Host Slew Rate...................... - Weak
GTL REF Voltage Control............. - Disable
CPU GTL1/3 REF Volt................. - 115
CPU GTL 0/2 REF Volt................ - 115
North Bridge GTL REF Volt........... - 115
Genie BIOS Settings:
Exist Setup Shutdown................ - Mode 2
CLOCK VC0 divider................... - Auto
CPU Clock Ratio Unlock.............. - Enabled
CPU Clock Ratio..................... - 8
Target CPU Clock.................... - 3800MHz
CPU Clock........................... - 475
Boot Up Clock....................... - 265
DRAM Speed.......................... - 333/800
Target DRAM Speed................... - 1141MHz
PCIE Clock.......................... - 110mhz
PCIE Slot Config.................... - 1X 1X
CPU Spread Spectrum................. - Disabled
PCIE Spread Spectrum................ - Disabled
SATA Spread Spectrum................ - Disabled
http://i106.photobucket.com/albums/m...Hz3DMARK01.jpg
3DMARK2003:(SCORE 38,156)
http://i106.photobucket.com/albums/m...Hz3DMARK03.jpg
3DMARK2005:(SCORE 19,881)
http://i106.photobucket.com/albums/m...Hz3DMARK05.jpg
3DMARK2006:(SCORE 12,123)
http://i106.photobucket.com/albums/m...Hz3DMARK06.jpg

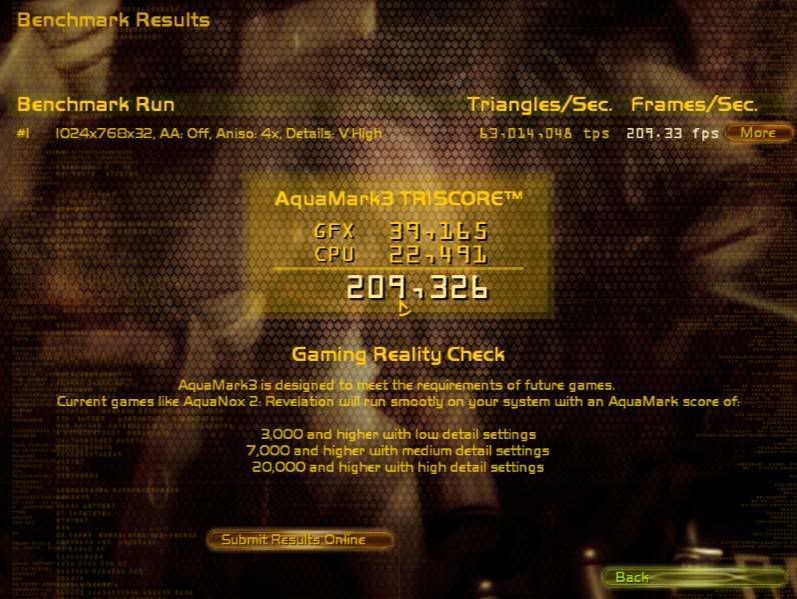

AQUAMARK 3:(SCORE 209,326)
http://i106.photobucket.com/albums/m...3/Aquamark.jpg
SHORT DESCRIPTION:
475 x 8 = 3.8GHZ @ 1.5250v
5-5-5-15 2T @ 2.350V DDR 1141
=================================
I have attached the template I used above if anyone wants to use it be my guest.
CN.
