03-16-2010, 06:55 AM
andressergio

Quote:

Originally Posted by NoGuru

Serg, congrats on the baby. Now let's see some benching on the new board!

Thanks mate :up: yes will take some time to build as baby need all the attention, lol evey time i pass i see the box with the shiny USB3P and the Gskills lol

Cheers :up:
Sergio
03-16-2010, 07:00 AM
paul_

Quote:

Originally Posted by andressergio

but u can consider moving to GIGA EP45T USB3P + some nice DDR3 like the ECO Series form Gskill...

There are two problems with that, though... First, the DDR3 versions of this board don't clock nearly as nicely (read that earlier in this thread), and that would also cost more money... :down:

Just looking for a kit that's solid for OCing and isn't bank-breaking.

How about the G.Skill 9600s? Model # F2-9600CL5D-4GBPI are $150 - if it's truly good RAM, I can pay that much...
03-16-2010, 07:21 AM
MarcusFoX

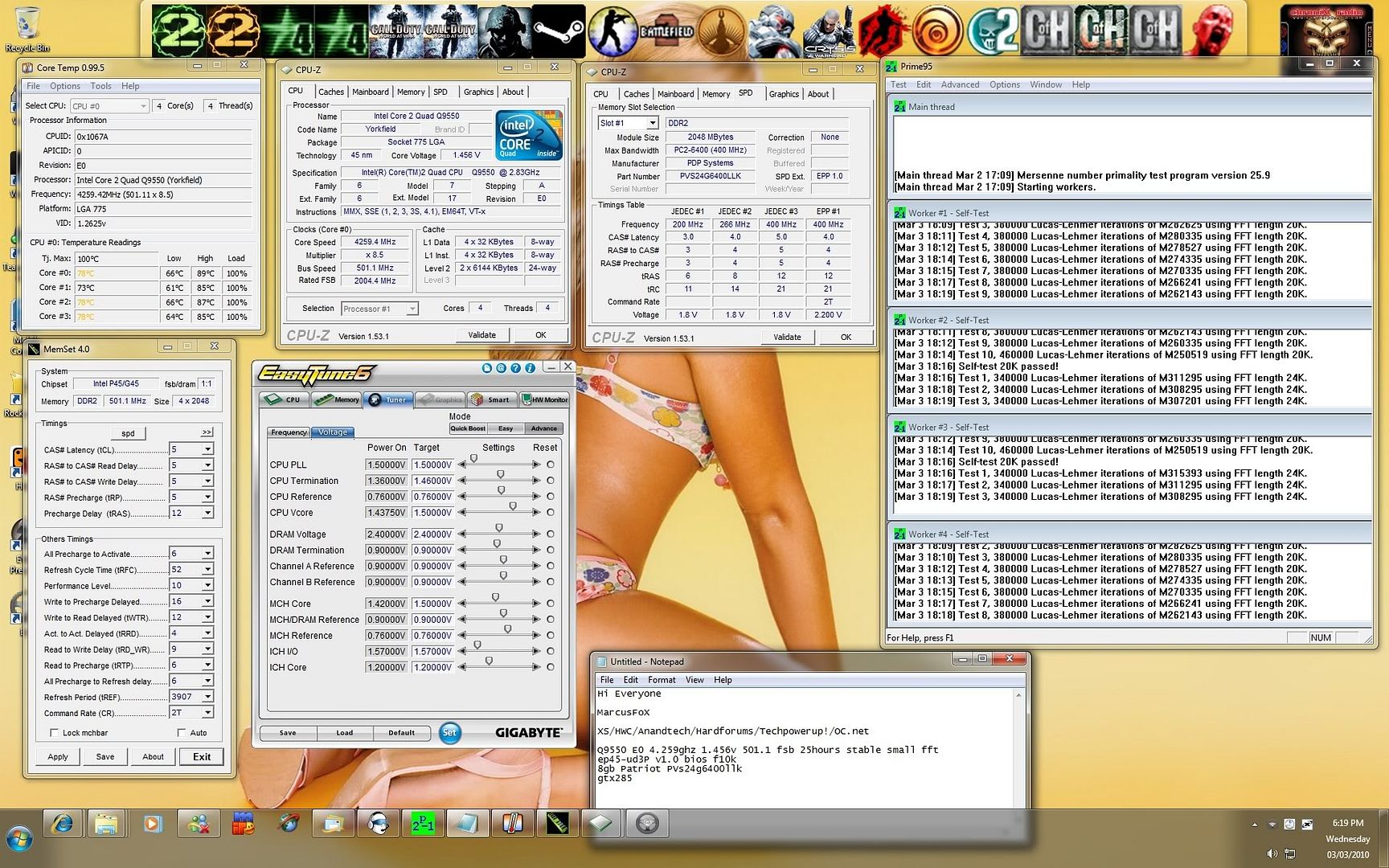

Somthing I finished up at the begining of the month but have been busy with bfbc2 and havent posted.

:D

http://i30.photobucket.com/albums/c3.../Q95504260.jpg
03-16-2010, 08:42 AM
NoGuru

Quote:

Originally Posted by paul_

There are two problems with that, though... First, the DDR3 versions of this board don't clock nearly as nicely (read that earlier in this thread), and that would also cost more money... :down:

Just looking for a kit that's solid for OCing and isn't bank-breaking.

How about the G.Skill 9600s? Model # F2-9600CL5D-4GBPI are $150 - if it's truly good RAM, I can pay that much...

Those seem to be the best set at the moment.
03-16-2010, 08:57 AM
paul_

Buying :P
03-16-2010, 09:36 AM
Hoss331

Quote:

Originally Posted by MarcusFoX

Somthing I finished up at the begining of the month but have been busy with bfbc2 and havent posted.

:D

Personally, with voltages like that id back it down a bit, but thats just me. :shrug:
03-16-2010, 09:52 AM
In-Fluence

Don't wanna jump on the bandwagon but I agree with hoss, they're a little high for 24/7. VTT of 1.46 is about the absolute limit imo, but wouldn't want to run that 24/7, and vcore should be ~1.45 max with real good cooling, ideally h2o or better. I assume your CPU/NB skews and GTLs are not tuned? If so you could probably save a few volts if you tried tuning those. Otherwise I would back down a bit mate or your CPU could suffer.
03-16-2010, 12:38 PM
paul_

oh... *boots BIOS to change vCore* :rolleyes:
03-16-2010, 02:39 PM
andressergio

Quote:

Originally Posted by paul_

There are two problems with that, though... First, the DDR3 versions of this board don't clock nearly as nicely (read that earlier in this thread), and that would also cost more money... :down:

that was old history mate either way get the PIS as i told

CHeers and good luck :up:
Sergio
03-17-2010, 06:52 AM
DTV DRAGON

3 Attachment(s)

he guys Ive had a few of these blue screens over past month or so, usualy happens when computer is idle on desktop, here are a few shots of the error, do you think it has to do with my o/c? or something else
03-17-2010, 02:11 PM
DTV DRAGON

after running intel burn test i used core temp to monitor my temps and they reached 71..is that abit too high? Iam o/cd to 4.0 on my q9650
03-17-2010, 03:59 PM
The Viper

Going back to work on my Q9650 after months off.

Can someone link me or let me know what pages where I can find some templates for 4.5Ghz stable on a Q9650,
I think there were a couple of you who posted months ago a template like this (ie.radaja or andresserigio)

ill take any templates past 4.5ghz also, not sure it will be stable after 500FSB

THANKS

EDIT: DTV Dragon: 71 is not to high...but you will find with a Q9650 you might not be able to pass P95 blend when the temp gets past 65, also IBT is gonna stress your CPU way past what you will need it for.
03-17-2010, 04:33 PM
DTV DRAGON

thanx viper for the information...much appreciated!!
03-17-2010, 05:30 PM
The Viper

Quote:

Originally Posted by DTV DRAGON

thanx viper for the information...much appreciated!!

yeah np...this little piece of info really helped me (temps over 65 fail P95)...some of the gurus of this thread will confirm this.

Keep us posted on things as Im trying to get back to high OCs now that I finally have the best DDR2 memory
03-17-2010, 05:52 PM
OldChap

Quote:

Originally Posted by The Viper

Going back to work on my Q9650 after months off.

Can someone link me or let me know what pages where I can find some templates for 4.5Ghz stable on a Q9650,
I think there were a couple of you who posted months ago a template like this (ie.radja or andresserigio)

ill take any templates past 4.5ghz also, not sure it will be stable after 500FSB

THANKS

EDIT: DTV Dragon: 71 is not to high...but you will find with a Q9650 you might not be able to pass P95 blend when the temp gets past 65, also IBT is gonna stress your CPU way past what you will need it for.

http://www.xtremesystems.org/forums/...postcount=4434 ??? Right processor???
03-17-2010, 06:38 PM
andressergio

Quote:

Originally Posted by The Viper

Going back to work on my Q9650 after months off.

Can someone link me or let me know what pages where I can find some templates for 4.5Ghz stable on a Q9650,
I think there were a couple of you who posted months ago a template like this (ie.radja or andresserigio)

here mate

Code:

******Motherboard Intelligent Tweaker (M.I.T.)****** Robust Graphics Booster.........................[ Turbo ] CPU Clock Ratio.................................[ 9 ] Fine CPU Clock Ratio............................[ + 0.0 ] CPU Frequency 4.5GHz............................[ 500 x 9.0] ******Clock Chip Control****** CPU Host Clock Control..........................[ Enabled ] CPU Host Frequency (Mhz)........................[ 500 ] PCI Express Frequency (Mhz).....................[ 100 ] C.I.A 2.........................................[ Disabled ] ******Advanced Clock Control****** CPU Clock Drive.................................[ 900mv ] PCI Express Clock Drive.........................[ 900mv ] CPU Clock Skew..................................[ 0ps ] MCH Clock Skew..................................[ 50ps ] ******DRAM Performance Control****** Performance Enhance.............................[ Turbo ] Extreme Memory Profile (X.M.P)..................[ Profile1 ] (G) MCH Frequency Latch.........................[ 333 ] System Memory Multipler.........................[ 2.40B ] Memory Frequency 1066...........................[ 1200 ] DRAM Timing Selectable..........................[ Manual ] CAS Latency Time................................[ 5 ] tRCD............................................[ 5 ] tRP.............................................[ 5 ] tRAS............................................[ 15 ] ******Advanced Timing Control****** tRRD[4].........................................[ 3 ] tWTR[4].........................................[ 3 ] tWR[13].........................................[ 4 ] tRFC[68] .......................................[ 50 ] tRTP[4].........................................[ 3 ] Command Rate (cmd)[0]...........................[ Auto ] ******Channel A Timing Settings****** Static tRead Value [ 9 ] ................[ 8 ] tRD Phase0 Adjustment [ 0 ] ................[ Auto ] tRD Phase1 Adjustment [ 0 ] ................[ Auto ] tRD Phase2 Adjustment [ 0 ] ................[ Auto ] tRD Phase3 Adjustment [ 0 ] ................[ Auto ] tRD 2rd (Differnt Rank) [ 8 ] ................[ 8 ] tWR 2wr (Differnt Rank) [ 8 ] ................[ 7 ] tWR 2rd (Differnt Rank) [ 7 ] ................[ 8 ] tRD 2wr (Same/Difft Rank) [ 9 ] ................[ 8 ] Dimm 1 Clock Skew Control.......................[ Auto ] Dimm 2 Clock Skew Control.......................[ Auto ] DDR Write Training..............................[ Auto ] ******Channel A Driving Settings****** Drive Strength Profile..........................[ Auto ] Data Driving Pull Up Level......................[ Auto ] cmd Driving Pull Up Level.......................[ Auto ] ctrl Driving Pull Up Level......................[ Auto ] clk Driving Pull Up Level.......................[ Auto ] Data Driving Pull Down Level....................[ Auto ] cmd Driving Pull Down Level.....................[ Auto ] ctrl Driving Pull Down Level....................[ Auto ] clk Driving Pull Down Level.....................[ Auto ] ******Channel B Timing Settings****** Static tRead Value [ 9 ] ................[ 8 ] tRD Phase0 Adjustment [ 0 ] ................[ Auto ] tRD Phase1 Adjustment [ 0 ] ................[ Auto ] tRD Phase2 Adjustment [ 0 ] ................[ Auto ] tRD Phase3 Adjustment [ 0 ] ................[ Auto ] tRD 2rd (Differnt Rank) [ 8 ] ................[ 8 ] tWR 2wr (Differnt Rank) [ 8 ] ................[ 7 ] tWR 2rd (Differnt Rank) [ 7 ] ................[ 8 ] tRD 2wr (Same/Difft Rank) [ 9 ] ................[ 8 ] Dimm 1 Clock Skew Control.......................[ Auto ] Dimm 2 Clock Skew Control.......................[ Auto ] DDR Write Training..............................[ Auto ] ******Channel B Driving Settings****** Drive Strength Profile..........................[ Auto ] Data Driving Pull Up Level......................[ Auto ] cmd Driving Pull Up Level.......................[ Auto ] ctrl Driving Pull Up Level......................[ Auto ] clk Driving Pull Up Level.......................[ Auto ] Data Driving Pull Down Level....................[ Auto ] cmd Driving Pull Down Level.....................[ Auto ] ctrl Driving Pull Down Level....................[ Auto ] clk Driving Pull Down Level.....................[ Auto ] ******Motherboard Voltage Control****** Load-Line Calibration...........................[ Enabled ] CPU Vcore [ 1.1875 ]...................[ 1.4250 ] CPU Termination [ 1.20 ]...................[ 1.360 ] CPU PLL [ 1.50 ]...................[ 1.570 ] CPU Reference [ 0.760 ]...................[ 0.886 ] MCH Core [ 1.100 ]...................[ 1.460 ] MCH Reference [ 0.760 ]...................[ 0.901 ] MCH/DRAM Refernce [ 0.900 ]...................[ Auto ] ICH I/O [ 1.500 ]...................[ 1.500 ] ICH Core [ 1.100 ]...................[ 1.200 ] DRAM Voltage [ 1.800 ]...................[ 2.220 ] DRAM Termination [ 0.900 ]...................[ Auto ] Channel A Ref [ 0.900 ]...................[ Auto ] Channel B Ref [ 0.900 ]...................[ Auto ] ******Advanced BIOS Features****** Limit CPUID Max to 3............................[ Disabled ] No-Execute memory Protect.......................[ Disabled ] CPU Enhance Halt (CIE)..........................[ Disabled ] C2/C2E State Support............................[ Disabled ] C4/C4E State Support............................[ Disabled ] CPU Thermal Monitor.............................[ Disabled ] CPU EIST Function...............................[ Disabled ] Virtualization Technology.......................[ Disabled ]

cheers :up:
Sergio
03-18-2010, 05:54 AM
paul_

I'm gonna try the above when I get my PI... :)
03-18-2010, 08:15 AM
radaja

heres my 4.5GHz template

Code:

******Motherboard Intelligent Tweaker (M.I.T.)****** Robust Graphics Booster.........................[ Turbo ] CPU Clock Ratio.................................[ 9 ] Fine CPU Clock Ratio............................[ + 0.0 ] CPU Frequency 4.5GHz............................[ 500 x 9.0] ******Clock Chip Control****** CPU Host Clock Control..........................[ Enabled ] CPU Host Frequency (Mhz)........................[ 500 ] PCI Express Frequency (Mhz).....................[ 100 ] C.I.A 2.........................................[ Disabled ] ******Advanced Clock Control****** CPU Clock Drive.................................[ 1000mv ] PCI Express Clock Drive.........................[ 1000mv ] CPU Clock Skew..................................[ 0ps ] MCH Clock Skew..................................[ 50ps ] ******DRAM Performance Control****** Performance Enhance.............................[ Turbo ] Extreme Memory Profile (X.M.P)..................[ Disabled ] (G) MCH Frequency Latch.........................[ 333 ] System Memory Multipler.........................[ 2.40B ] Memory Frequency 1066...........................[ 1200 ] DRAM Timing Selectable..........................[ Manual ] CAS Latency Time................................[ 5 ] tRCD............................................[ 5 ] tRP.............................................[ 5 ] tRAS............................................[ 15 ] ******Advanced Timing Control****** tRRD[4].........................................[ Auto ] tWTR[4].........................................[ Auto ] tWR[13].........................................[ Auto ] tRFC[68] .......................................[ Auto ] tRTP[4].........................................[ Auto ] Command Rate (cmd)[0]...........................[ Auto ] ******Channel A Timing Settings****** Static tRead Value [ 9 ] ................[ 8 ] tRD Phase0 Adjustment [ 0 ] ................[ Auto ] tRD Phase1 Adjustment [ 0 ] ................[ Auto ] tRD Phase2 Adjustment [ 0 ] ................[ Auto ] tRD Phase3 Adjustment [ 0 ] ................[ Auto ] tRD 2rd (Differnt Rank) [ 8 ] ................[ auto ] tWR 2wr (Differnt Rank) [ 8 ] ................[ auto ] tWR 2rd (Differnt Rank) [ 7 ] ................[ auto ] tRD 2wr (Same/Difft Rank) [ 9 ] ................[ auto ] Dimm 1 Clock Skew Control.......................[ Auto ] Dimm 2 Clock Skew Control.......................[ Auto ] DDR Write Training..............................[ Auto ] ******Channel A Driving Settings****** Drive Strength Profile..........................[ Auto ] Data Driving Pull Up Level......................[ Auto ] cmd Driving Pull Up Level.......................[ Auto ] ctrl Driving Pull Up Level......................[ Auto ] clk Driving Pull Up Level.......................[ Auto ] Data Driving Pull Down Level....................[ Auto ] cmd Driving Pull Down Level.....................[ Auto ] ctrl Driving Pull Down Level....................[ Auto ] clk Driving Pull Down Level.....................[ Auto ] ******Channel B Timing Settings****** Static tRead Value [ 9 ] ................[ 8 ] tRD Phase0 Adjustment [ 0 ] ................[ Auto ] tRD Phase1 Adjustment [ 0 ] ................[ Auto ] tRD Phase2 Adjustment [ 0 ] ................[ Auto ] tRD Phase3 Adjustment [ 0 ] ................[ Auto ] tRD 2rd (Differnt Rank) [ 8 ] ................[ Auto ] tWR 2wr (Differnt Rank) [ 8 ] ................[ Auto ] tWR 2rd (Differnt Rank) [ 7 ] ................[ Auto ] tRD 2wr (Same/Difft Rank) [ 9 ] ................[ Auto ] Dimm 1 Clock Skew Control.......................[ Auto ] Dimm 2 Clock Skew Control.......................[ Auto ] DDR Write Training..............................[ Auto ] ******Channel B Driving Settings****** Drive Strength Profile..........................[ Auto ] Data Driving Pull Up Level......................[ Auto ] cmd Driving Pull Up Level.......................[ Auto ] ctrl Driving Pull Up Level......................[ Auto ] clk Driving Pull Up Level.......................[ Auto ] Data Driving Pull Down Level....................[ Auto ] cmd Driving Pull Down Level.....................[ Auto ] ctrl Driving Pull Down Level....................[ Auto ] clk Driving Pull Down Level.....................[ Auto ] ******Motherboard Voltage Control****** Load-Line Calibration...........................[ Enabled ] CPU Vcore [ 1.1875 ]...................[ 1.406v ] CPU Termination [ 1.20 ]...................[ 1.360 ] CPU PLL [ 1.50 ]...................[ 1.570 ] CPU Reference [ 0.760 ]...................[ 0.886 ] MCH Core [ 1.100 ]...................[ 1.40v ] MCH Reference [ 0.760 ]...................[ 0.901 ] MCH/DRAM Refernce [ 0.900 ]...................[ normal ] ICH I/O [ 1.500 ]...................[ normal ] ICH Core [ 1.100 ]...................[ normal ] DRAM Voltage [ 1.800 ]...................[ 2.20v ] DRAM Termination [ 0.900 ]...................[ normal ] Channel A Ref [ 0.900 ]...................[ normal ] Channel B Ref [ 0.900 ]...................[ normal ] ******Advanced BIOS Features****** Limit CPUID Max to 3............................[ Disabled ] No-Execute memory Protect.......................[ Disabled ] CPU Enhance Halt (CIE)..........................[ Disabled ] C2/C2E State Support............................[ Disabled ] C4/C4E State Support............................[ Disabled ] CPU Thermal Monitor.............................[ Disabled ] CPU EIST Function...............................[ Disabled ] Virtualization Technology.......................[ Disabled ]
03-18-2010, 08:53 AM
NoGuru

So far, me likey the Q9550 http://valid.canardpc.com/show_oc.php?id=1083318
03-18-2010, 09:03 AM
DTV DRAGON

are there any templates for a q9650 and a ep45t-ud3lr board for 4.0 and over o/c?
03-18-2010, 01:35 PM
The Viper

Thanks guys for the templates :)
03-18-2010, 07:17 PM
DTR

Hey.....the supply UD3P seems to drying up..my usual haunts don't have any (or UD3R's) that matter. Anyone knows why?? for such a great board!
03-18-2010, 09:55 PM
Lsdmeasap

Quote:

Originally Posted by DTV DRAGON

he guys Ive had a few of these blue screens over past month or so, usualy happens when computer is idle on desktop, here are a few shots of the error, do you think it has to do with my o/c? or something else

More Vtt is needed for 0x00000124 BSOD
03-19-2010, 02:49 AM
In-Fluence

Quote:

Originally Posted by DTR

Hey.....the supply UD3P seems to drying up..my usual haunts don't have any (or UD3R's) that matter. Anyone knows why?? for such a great board!

i7 etc are the main reason, plus the fact that this board is still very popular. This is old tech to GB now, they're not even shipping the EP45-USB3 to europe, I assume due to low supply. UD5 versions aren't even going to come out :(
03-19-2010, 05:32 AM
Raffaele2521

Hello, I apologize for my English, but use google traslator ...
Gentilemtne tell me that I should set voltages to be rock solid at 4.3 ghz ...

this is my current configuration with 450 x 9, I get to 478 x 9!

how do I set up everything?

******Motherboard Intelligent Tweaker (M.I.T.)******

Robust Graphics Booster.........................[ Turbo ]
CPU Clock Ratio.................................[ 9 ]
Fine CPU Clock Ratio............................[ + 0.0 ]
CPU Frequency 4.5GHz............................[ 450 x 9.0] 478 x 9 ???

******Clock Chip Control******

CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 450 ]
PCI Express Frequency (Mhz).....................[ 101 ]
C.I.A 2.........................................[ Disabled ]

******Advanced Clock Control******

CPU Clock Drive.................................[ 800mv ]
PCI Express Clock Drive.........................[ 900mv ]
CPU Clock Skew..................................[ 0ps ]
MCH Clock Skew..................................[ 50ps ]

******DRAM Performance Control******

Performance Enhance.............................[ Turbo ]
Extreme Memory Profile (X.M.P)..................[ Disabled ]
(G) MCH Frequency Latch.........................[ 333 ]
System Memory Multipler.........................[ 2.00B ]
Memory Frequency 1066...........................[ 900 ]
DRAM Timing Selectable..........................[ Manual ]

CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]

******Advanced Timing Control******

tRRD[4].........................................[ Auto ]
tWTR[4].........................................[ Auto ]
tWR[13].........................................[ Auto ]
tRFC[68] .......................................[ Auto ]
tRTP[4].........................................[ Auto ]
Command Rate (cmd)[0]...........................[ Auto ]

******Channel A Timing Settings******

Static tRead Value [ 9 ] ................[ Auto ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]

tRD 2rd (Differnt Rank) [ 8 ] ................[ auto ]
tWR 2wr (Differnt Rank) [ 8 ] ................[ auto ]
tWR 2rd (Differnt Rank) [ 7 ] ................[ auto ]
tRD 2wr (Same/Difft Rank) [ 9 ] ................[ auto ]

Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]

******Channel A Driving Settings******

Drive Strength Profile..........................[ Auto ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]

Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]

******Channel B Timing Settings******

Static tRead Value [ 9 ] ................[ Auto ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]

tRD 2rd (Differnt Rank) [ 8 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 8 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 7 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 9 ] ................[ Auto ]

Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]

******Channel B Driving Settings******

Drive Strength Profile..........................[ Auto ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]

Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]

******Motherboard Voltage Control******

Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.1875 ]...................[ 1.30v ]
CPU Termination [ 1.20 ]...................[ 1,22 ]
CPU PLL [ 1.50 ]...................[ normal ]
CPU Reference [ 0.760 ]...................[ normal ]

MCH Core [ 1.100 ]...................[ 1,28 ]
MCH Reference [ 0.760 ]...................[ normal ]
MCH/DRAM Refernce [ 0.900 ]...................[ normal ]
ICH I/O [ 1.500 ]...................[ normal ]
ICH Core [ 1.100 ]...................[ normal ]

DRAM Voltage [ 1.800 ]...................[ 2,08]
DRAM Termination [ 0.900 ]...................[ normal ]
Channel A Ref [ 0.900 ]...................[ normal ]
Channel B Ref [ 0.900 ]...................[ normal ]

******Advanced BIOS Features******

Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]
