This article is really helpful explaining strap and memory performanceQuote:
Originally Posted by [cTx]Warboy
This article is really helpful explaining strap and memory performanceQuote:
Originally Posted by [cTx]Warboy
I has been over a month since the latest BIOS 0907 came out. What are they thinking?
But take care that you re using bios 0907 before changing to E8x00.Quote:
Originally Posted by tiesum
My thoughts exactly.Quote:
Originally Posted by sonicsallen
They need to fix the broken memory dividers and implement better MCH settings like the rampage will get.
I think, they have enough to work with other boards. Next bios will come....
Does anyone know when the Rampage is due anyway? I'm fed up with my IP35 Pro's odd behavior these days, so I'm looking to change to something else.Quote:
Originally Posted by [cTx]Warboy
Yea man it definitely did......well it sucks but I'm going to look for the best performance setting. This seems to be the only way to get the dividers stable past 400 FSB (maybe 415......)Quote:
Originally Posted by FZ1
I'm going to test voltages and such tonight.....I'll post my final results.
So far I'm SuperPi 32M stable with relax 2.....failed at relax 1.
I may be able to make up for lost latency/bandwidth by tightening timings.....
It's really interesting how the same board performs differently for each person. I've managed to find a stable spot with Transaction Booster set to disabled and relaxed at 0. At least it's Prime and OCCT stable. I haven't tried SuperPi..
Mine will do Enabled (0) but any number higher will not boot :(Quote:
Originally Posted by tommithy
the dividers are stable for me past 400FSBQuote:
Originally Posted by binormalkilla
I run the 333 strap with a 478FSB and get great bandwidth, I've even had the 266 strap stable on a 450FSB
http://i237.photobucket.com/albums/f...00_1147ram.png
I'm wanting to flash to 0907, but the file is too big for a floppy disk and I have no USB flash disk, how else can I flash to 0907 without using the the utility in windows to do it since I've heard bad things about doing it that way?
Asus update, but not recommended. (Don't even sneeze while it's flashing :D)
Edit: A fat partition on the jmicron controller? An ipod? A blank CD?
I have used Asus Update 3 times and all were a success, I would recommend NOT running an overclock while you flash in Windows
Edit.
yeah I could burn it to a CD, will that work with ez flash?
:yepp:Quote:
Originally Posted by Wallboy
Hey Zucker2k
What are you running your 8400 for 24/7 use?
I'm getting split screen in 3DMark06 if I go higher than 500FSB
EDITQuote:
Originally Posted by Grnfinger
8.5 x 506 fsb @ 4.302Ghz
333 strap
transaction booster disabled, level 1. (= PL 8)
FSB:RAM = 1:1 @ 4-4-4-10-2-25-6-3-8-3-5-4-6-4-6, 2.40v (2.20v set in bios)
CPU= (gotta test) 1.3750v (set in bios), cpu-z reports 1.376v, load
CPUPLL = (I set 1.5), you can set to your liking
NB=1.45
SB=1.100
FSBT=1.48
LLC = Enabled
SB 1.5 = 1.60
CPU GTL=x61
NB GTL=x67
I am running the supreme card. Problem is I have a 4.1 altec lansing sound system . this was a $300 system alot of years ago. With my msi neo 2 system it was great useing the spdif out rca. Im using that now BUT I ONLY GET SOUND WITH TWO FRONT SPEAKERS. Our supreme card wants only one plug in for rear speakers. Well I have TWO that mormally plug into the woofer.
SPDIF is being handled diff here.
If I can get a signal out to both REAR speakers I have from the ONE port of the card. WHAT can i use to tie in the second input. It looks like I MIGHT NEED A SPLITER HERE????? WILL A SPLITER WORK ? If I can resolve Im going to have to go LIVE platinum setup. I would rather not add that expense.
Anyone got solid experience? Should I post this somewhere else?
BIOS 0601 out today for the P5E. Maybe we're next?
Has anyone figured out how to OC E8400 to 400 FSB yet?
That's easy for these chips. Why? Having problems?
:confused:Quote:
Originally Posted by Zucker2k
Do to the nature of this thread is why I asked. I haven't found any configs using E8400 (maybe I missed it). Would like to know any tweaks.

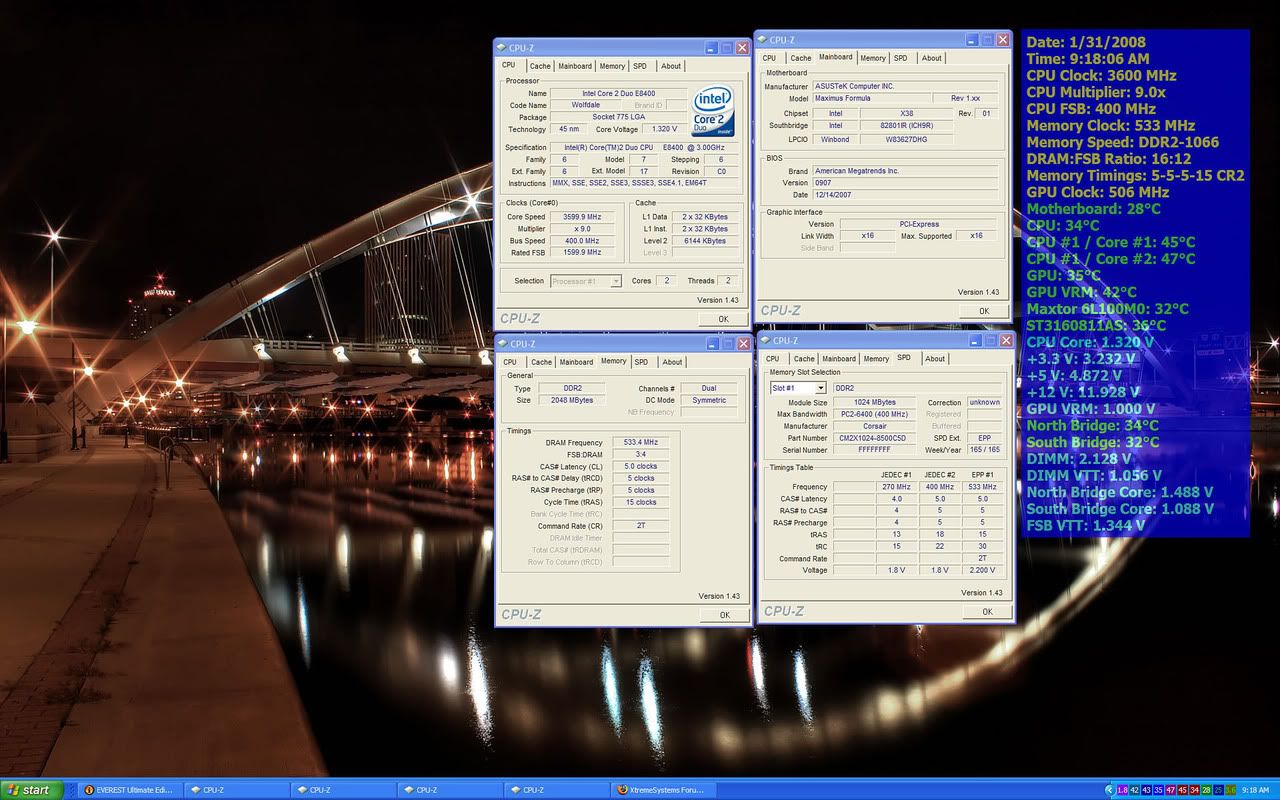

http://i11.photobucket.com/albums/a1...MaxFormula.jpg
http://i11.photobucket.com/albums/a1...a_SuperPI1.jpg
Not bad at 3.6GHz
Hello! Here are mine, with the help of some people on this forum. If you look, I think a couple others posted their settings. Zucker just did, and you can find Grnfinger's HERE. I had to stop at 4.23 because I'm using a lot more vCore than most people are reporting. You should be able to get this stable with a lower vCore. I don't know what's wrong with my setup, but I need all 1.4375.
Ratio CMOS Setting : 9
FSB Frequency : 470
FSB Strap to North Bridge : 333
PCI-E Frequency: 100
DRAM Frequency: DDR2-1182
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : 25
Write Recovery Time : AUTO
Read to Precharge Time : AUTO
Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Disabled
Ai Clock Twister : Strong
Transaction Booster : Disabled
Relax level: 0
CPU Voltage : 1.4375
CPU PLL Voltage : 1.5
North Bridge Voltage : 1.49
DRAM Voltage : 2.18
FSB Termination Voltage : 1.40
South Bridge Voltage : 1.050
Loadline Calibration : Enabled
CPU GTL Reference : 0.63X
North Bridge GTL Reference : 0.67X
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : DDR2-REFF
SB 1.5V Voltage : 1.5
MY e8400:
Ratio CMOS Setting : 8.5
FSB Frequency : 500
FSB Strap to North Bridge : 333
PCI-E Frequency: 120
DRAM Frequency: DDR2-1000
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 4
RAS# to CAS# Delay : 4
RAS# Precharge : 4
RAS# ActivateTime : 8
RAS# to RAS# Delay : 3
Row Refresh Cycle Time : 42
Write Recovery Time : 6
Read to Precharge Time : 3
Read to Write Delay (S/D) : 8
Write to Read Delay (S) : 3
Write to Read Delay (D) : 5
Read to Read Delay (S) : 4
Read to Read Delay (D) : 6
Write to Write Delay (S) : 4
Write to Write Delay (D) : 6
DRAM Static Read Control: Disabled
Ai Clock Twister : Strong
Transaction Booster : Disabled
Relax level: 1
CPU Voltage : 1.4625
CPU PLL Voltage : 1.5
North Bridge Voltage : 1.49
DRAM Voltage : 2.16
FSB Termination Voltage : 1.20
South Bridge Voltage : 1.050
Loadline Calibration : Enabled
CPU GTL Reference : Auto
North Bridge GTL Reference : Auto
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : AUTO
SB 1.5V Voltage : 1.6
19454 '06:
http://service.futuremark.com/compare?3dm06=4955818
28241 '05
http://service.futuremark.com/compare?3dm05=3956233
72125 '03:
http://service.futuremark.com/compare?2k3=5710376
78639 '01:
http://service.futuremark.com/compare?2k1=9326703
245219 AQ3:
http://www.xtremesystems.org/forums/...1&d=1201705524
Finally i managed to get some free time to test my sucky Q6600.After some answers from you guyz i increased the vcore one more step to test P95 blend test again since i had the 48 min issue.
Now running 3,41@1,4v in cpuz/everest i started P95 blend.This time after 48min i didnt have the same error.This time none of the cores failed.This time P95 program crashed.It stopped working as vista reported.Now i m confused.
Do i need to adjust something else?Do i need more vcore?Plz help me out...:shakes:
:shocked:Quote:
Originally Posted by cadaveca
I want an E8x00, too :D
I usually look at chipset/memory for randomly-closing apps. IE has this funny bug where it randomly crashes on "not-quite-stable-but-oh-so-close" cpu's as well.Quote:
Originally Posted by ChaosAD
^^FF will do that as well
Thanks for the bios updates on the E8400 guys! :up:
So what do u mean?Is it a memory or a cpu fault?Should i increase vcore and try again or something else?Quote:
Originally Posted by cadaveca
Try lowering memspeed, or increase chipset volts and see what happens. Alot of times increasing CPU volts creates a "placebo" effect as the chipset recieves that little bit extra from cpu in communication.
Cadaveca, you have no problems running VTT at 1.2v? Have you seen any benefit of higher on this board with quads or any other chip?
depends on each chip. Duals, quads, doesn't matter, it's the quality of the silcon that matters.
Here is mineQuote:
Originally Posted by Eastcoasthandle
15 hours prime stable
http://i237.photobucket.com/albums/f...4300prime1.jpg
http://i237.photobucket.com/albums/f...00_1147ram.png
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 478
FSB Strap to North Bridge : 333
PCI-E Frequency: 110
DRAM Frequency: DDR2-1147
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO
Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Disabled
Ai Clock Twister : Strong
Transaction Booster : Disabled
Relax level: 0
CPU Voltage : 1.3875 (Actual 1.368)
CPU PLL Voltage : AUTO
North Bridge Voltage : 1.49
DRAM Voltage : 2.10
FSB Termination Voltage : 1.40
South Bridge Voltage : 1.050
Loadline Calibration : Enabled
CPU GTL Reference : 0.63X
North Bridge GTL Reference : 0.67X
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : DDR2-REFF
SB 1.5V Voltage : 1.5
All right I'm stable in SuperPi 32M and for 2 hours in Prime blended (fail after 2 hours) with my quad at 470 FSB with my memory at DDR2-1129! This kicks soooo much ass.......
It isn't %100 rock solid 8 hour Prime stable or anything, but I"m not folding.......so I'll post some BIOS when I finish stability...
BTW I called ASUS tech support to see if they had any info on the chipset voltage limitations, and they said that the limit is 1.95V according to Intel, and that thermals will kill the NB rather than voltage.....which is great considering that I require a huge amount of voltage for stability at 470 FSB with my quad and memory configuration.....
http://aycu04.webshots.com/image/428...7177661_rs.jpg
Anyone else running a QX9650? I'm curious to see what settings you are using.
I'm holding out for the non-extreme 45nm quads....Quote:
Originally Posted by FZ1
:up:Quote:
Originally Posted by Grnfinger
Hi guys I'm just new. I've got this awesome board and an E6750 and I'm looking to get it to 4ghz. I've OC'd it to 3.5ghz stabely using 1 of the recommended OC's here, and I've had a go at Renegade's but my PC won't post.
I *think* it may be to do with the RAM settings but I'm not sure how to go about it. I'm using 2GB Adata 1200+ in dual channel mode with a corsair cooler. I will be starting my water cooling in the next few weeks but I'd like to get settings that I know will boot so I can give them thorough testing when I've better cooling.
I know I'm jumping the gun a little but would someone like to give this lady a helping hand in the right direction?
~Bex
Dimm Voltage
Bios 2.10V = 2.224V in Everest
Bios 2.08V = 2.XX V in Everest (haven't tried that yet)
Bios 2.06V = 2.176V in Everest
Bios 2.04V = 2.160V in Everest
Bios 2.02V = 2.128V in Everest
In order to get Corsiar's Dominator PC8500 working (as it would hang with Dram Det) I had to:
-use my old PC6400 ram (which worked fine)
-boot into Bios and set Dram Voltage to 2.10V
-Set Transaction Boost: Enable, Boost Level=0
-Reboot to make sure Bios settings took
-Install PC8500 Ram
-System boots now so, in the Bios I manually set Dram Frequency to 1066MHz and Dram Command 2T
-Dial back Dram Voltage to 2.02V (haven't tried 2.00V yet).
-I think N/S Bridge chipset voltage is set to Auto.
http://i11.photobucket.com/albums/a1...MaxFormula.jpg
Quote:
Originally Posted by Eastcoasthandle
What program is that you are using to monitor the temps , I like it has all the system info in one screen , thanks
It's Everest's OSD. Go to Preferences and setup your OSD (on screen display...I think)
I just got my HD3870s today and finally was able to boot up. First thing I did was update my BIOS to 0907 which went fine. Then I configured my HDs as RAID, rebooted and then hit Ctrl-I to get into the raid manager, I set my Raid 0 array up on 2 of my 500GB WD HDDs. Rebooted and then tried to install XP. First thing I got was a BSOD that says there was an error and to run chkdsk /f. Not knowing what to do I restarted and deleted the raid array and set the configuration back to IDE in the settings. Restarted and windows began to install fine. After it finished installing it rebooted and got to the load screen and I got the same BSOD again.
My specs:
Q6600 G0
4GB Ballistix Tracer PC-6400
(2) HIS HD3870 ICEQ
(3) WD 500GB SATA HDs
Corsair HX620
Maximus Formula
Any ideas what could be wrong?
Edit: Tried removing 2 sticks of RAM, got the same error. Tried 1 stick, same error. So I don't think it's the memory causing the problem. Should I try installing the ICH9R controller during XP setup. Thought I only had to do that when installing RAID, but I couldn't even get to installing XP before getting that BSOD when I had the raid array configured.
Ok here are my stable settings for my Q6600 at 3.8 470x8 with my memory at DDR2-1128 5-5-5-15
BTW, my memory is warrantied up to 2.5V so don't try dialing in the VDIMM right off the bat.....I just set mine to a little less than 2.5V to begin testing, then I'm going to back it down to find the minimum stable settings on the VDIMM.
Less NBV may be needed for others, but my chip seems to need it in order to run these memory settings at such a high FSB.
As long as your temps are ok (I load at 45C) then no harm done.......Intel specs the X38 NBV at 1.95V max :eek:
http://aycu12.webshots.com/image/429...2791322_rs.jpg
http://aycu07.webshots.com/image/418...0129530_rs.jpg
http://aycu17.webshots.com/image/408...8270755_rs.jpg
Why are you guys run PCI-E Freq so high? does it improve O/C results? thanks
I'm about to slam a hammer into this board guys , I have been playing with it for a week can not solve the problem of hanging at DET DRAM . This is my setting , some one give me input please
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 460
FSB Strap to North Bridge : 333
PCI-E Frequency: 110
DRAM Frequency: DDR2-1100
DRAM Command Rate : 2T
DRAM Timing Control: auto
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO
Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Auto
Ai Clock Twister : Strong
Transaction Booster : disabled
Relax level: 0
CPU Voltage : 1.43125
CPU PLL Voltage : AUTO
North Bridge Voltage : 1.49
DRAM Voltage : auto
FSB Termination Voltage : 1.50
South Bridge Voltage : 1.050
Loadline Calibration : Enabled
CPU GTL Reference : 0.63X
North Bridge GTL Reference : 0.67X
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : DDR2-REFF
SB 1.5V Voltage : 1.5
auto voltage on overclocked RAM is just one of the things that could be your problem. That and the 333 strap at that bus speed. Try the 400 strap and set you RAM voltage.
icecpu,
Strap = 400
DRam freq = 920
Twister = Auto
Dram Volt = 2.2V
Try setting your transbooster relax to 1......I had to do this in order to get stable with any dividers on an FSB over 415.Quote:
Originally Posted by icecpu
You are also going to have to dial in the voltage....I'm surprised that you're even POSTing at all with the memory settings you're running (without voltage adjustments)
It helps for stability when OCing your graphics cards really high. If I drop my PCI-E to 110 MHz I am not stable at my clocks......950/1075 in Crossfire.Quote:
Originally Posted by dragonhunter
I tried everything already , no go , only set auto for timing and voltage will sometime hang at DET DRAM , but sometime boot into windows
So have you tried increasing the voltage? I used to get that when I first bought the board with my Ballistix.....they required more voltage than the stock 1.8V to POST, so I had to buy a stick of value RAM and POST with it, then set the voltage, shutdown, then install the Ballistix.Quote:
Originally Posted by icecpu
Needless to say, I sold the Ballistix.
BTW guys, there is a new version of PC Probe out.
This is my setting for now , and it does boot , I'm testing the ram now , but maybe sometime it hang at DET DRAM again , just pray now
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 465
FSB Strap to North Bridge : 333
PCI-E Frequency: 105
DRAM Frequency: DDR2-1109
DRAM Command Rate : 2T
DRAM Timing Control: Auto
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 18
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO
Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Auto
Ai Clock Twister : Auto
Transaction Booster : disabled
Relax level: 0
CPU Voltage : 1.4312
CPU PLL Voltage : AUTO
North Bridge Voltage : 1.51
DRAM Voltage : 2.20
FSB Termination Voltage : 1.50
South Bridge Voltage : 1.050
Loadline Calibration : Enabled
CPU GTL Reference : 0.63X
North Bridge GTL Reference : 0.67X
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : DDR2-REFF
SB 1.5V Voltage : 1.5
Finally got my computer up and running, think I have my raid 0 setup on 2 500GB HDDs correctly, does this HDTach seem about right? As well it's showing the full 1TB size in My Computer, shouldn't it only be showing the size of one drive with a raid 0 setup? Thanks
http://img82.imageshack.us/img82/347...3819cf0.th.jpg
Open the Matrix Storage Manager application, right click on your RAID array and enable "Write Back Cache". It'll increase your performance.Quote:
Originally Posted by Wallboy
Your RAID 0 array is 1gb so why should it show half of it? It's being seen as just one volume.
I have a question of my own. I'm currently at 9x400 at 1.35v vcore with vdrop pencil mod on the board, as described on the OP. Works great :)
It's perfectly stable and when I get back from work I'm going to continue pushing it.
However since I attached my older drives it takes a much longer time to get past the hardware detection screen. The system stalls after finding my USB mouse, which is after the memory detection. I hear one of my drives do a little work and no matter what I change in the bios it always does this. The stall takes about 20 seconds. I also tried playing with the ATA(PI) detection time but that doesn't change anything, like I said.
With my E8400 i have problem running with 8.5x multi.
It is stable with 9x425 but not with 8.5x450.
Bios is latest 0907.
Yup that sure boosted it, thanks! :D
http://img82.imageshack.us/img82/772...5619km7.th.jpg
you need transaction booster disabled and set to "1" over 445FSB.:up:Quote:
Originally Posted by Spyrus
My e8400 prefers(less voltage for stability) 500x8.5/600mhz ram over 475x9/570mhz ram...
Try setting the trans booster relax level to 1 or increasing the NBV. You need to turn the DRAM voltage down to 2.16-2.18 because the board overvolts it. On mine I get 2.22V when I set it to 2.18V. I used to run Ballistix, and they're known to die from overvolting.....so you want to be careful. :)Quote:
Originally Posted by icecpu
You should be able to run 5-5-5-15 4 42 6 4 secondary 8 3 5 4 6 4 6 @ 2.18V (for now, might want to bump down to 2.16V 24/7)
Take the NBV up to 1.65V just for now, as you can test lower settings after you're stable. Just make sure that the temps stay around 45C and you're fine.
I see a few with what sounds liek the same but just to make sure. After flashing to v0903 again from v0802, I cannot load to XP with anything other then F2 to continue and load defaults. If I so much as F1 to enter CMOS and then exit, it hangs at DET rAM even if I select Load defaults. I can run XP if I press F2 and then flash back with Live Update v6.10.02 for XP x64) and now all the same. I can EZ-Flash to v0907 and same thing. So I use live Update to go back to v0802 again and still the same.
I can enter and resume S3 (sleap/stand by) I can enter S4 (deap sleap/hibernate) but have to go through CMOS reset like before to get the F2 menue to continue and XP will resume. I cant even restart without haveing to clear CMOS to get to F2 to continue.
Histery: ended up at BETA BIOS v0907 a month ago (always EZ-Flash) and rolled back to v0802 via ASUS Live Update v6.10.02, cause of issues with ACPI issues
I had nothing but good 4 months beforr
No man that is not the thing because 8x450 is ok with my settings on voltages/settings.Quote:
Originally Posted by cadaveca
Yes, but chipset is hammered harder @ 9x & 8.5x than 8x...bandwidth & cpu speed are directly related.
Are you using settings as I described? If not, then what?
Look, cpu multi and chip multi are different. there is a bit of delay in converting this as bus speeds are different. Different multi's require different delays, as each time you adjust speeds, ratio for the busses is different. One setting may work for one multi, does not mean it works for others!:fact:
I'm getting stable at 470 FSB now , trying to get cpu voltage down a little, do I really need to set relax level to 1 or 0 is fine , everytime I set timing manually I get hang at DET DRAM , so for now I can't do anything for timing just auto detect at 5-5-5-18 , which is not bad ,
For the DRAM voltage , is this board really overvolts it , what program can I use to see the DRAM voltage ,
Thanks for the inputs
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 470
FSB Strap to North Bridge : 333
PCI-E Frequency: 105
DRAM Frequency: DDR2-1128
DRAM Command Rate : 2T
DRAM Timing Control: Auto
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 18
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO
Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Auto
Ai Clock Twister : Auto
Transaction Booster : disabled
Relax level: 0
CPU Voltage : 1.425
CPU PLL Voltage : AUTO
North Bridge Voltage : 1.49
DRAM Voltage : 2.20
FSB Termination Voltage : 1.50
South Bridge Voltage : 1.050
Loadline Calibration : Enabled
CPU GTL Reference : 0.63X
North Bridge GTL Reference : 0.67X
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : DDR2-REFF
SB 1.5V Voltage : 1.5
Quote:
Originally Posted by icecpu
Set your dram static to disabled and I bet the "DET RAM" hang is gone;)
Thanks , I'll try that after the prime
Hey. Totally n00b question, so apologies in advance.
I'm trying to find Vista x64 chipset drivers for this board.
When I first got the board, I installed 8.3.0.1013, but Intel doesn't say anything about that being for X38.
***EDIT: I figured it out. I was just freaking out that Intel didn't explicitly say 8.3.0.1013 was for X38.
This board is so whacked..I can leave enabled, disabled, auto, whatever, boots just fine. Some people just have bum boards, it seems...people having issues I see @ 550FSB..but they are @ like 400FSB...:shrug: My first board ran really hot and then died after a month or so, but my second seems great...:(Quote:
Originally Posted by Grnfinger
With E8400 i need to raise fsb termination to 1.4+ in order to run at 530+ fsbQuote:
Originally Posted by Dostoyevsky77
Bios settings for those with Corsiar Ram
The ASUS P5K3 bios settings can help with some rudimentary problems.
Example:
DRAM Static Read Control: Disabled
DRAM Dynamic Write Control: Disabled
PCIE Frequency: 100
etc
But remember this is DDR3 MB. If I find anything that relates to X38 other then just DDR2 settings I'll post.
OK this is my best stable setting now , only sometime hang at DET DRAM when I restart computer , still cannot figure out what is the problem
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 467
FSB Strap to North Bridge : 333
PCI-E Frequency: 105
DRAM Frequency: DDR2-1120
DRAM Command Rate : 2T
DRAM Timing Control: Auto
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 18
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO
Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Auto
Ai Clock Twister : Auto
Transaction Booster : disabled
Relax level: 1
CPU Voltage : 1.406
CPU PLL Voltage : AUTO
North Bridge Voltage : 1.55
DRAM Voltage : 2.20
FSB Termination Voltage : 1.50
South Bridge Voltage : 1.050
Loadline Calibration : Enabled
CPU GTL Reference : 0.63X
North Bridge GTL Reference : 0.67X
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : DDR2-REFF
SB 1.5V Voltage : 1.5
hallo mates...can anybody help me?..i cant change on my maximus formula
CPU Ratio Control from auto to manual ...couse i wanna change
Ratio CMOS Setting.
i m in windows and i ve got on 6x333 and if i start to do something it s change to 9,5 x 333 why?..
i wanna have still 9,5x333
what i hate to change in bios?..corry for my lanquage..i m slovakian from europe
We need information:Quote:
Originally Posted by UnSeenSVK
-CPU
-Memory Sticks
If speedstep or C1E are enabled windows (cpu-z) will read it at lower multi when CPU is idling. When CPU is working, the multi will go up! This is normal operation for CPU! Check bios to see if either are enabled.
Quote:
Originally Posted by UnSeenSVK
key in the value in bios
CPU Ratio Setting [9.5]
or disable intel speedstep technology in CPU configuration
i dont understand this my temperature..where is problem?...
http://img218.imageshack.us/my.php?image=hhhhko1.jpg
my temperature is 11C i don t understand this...why...?..please help me..where is problem?..cant be 11 C
Try with Coretemp 0.96.1Quote:
Originally Posted by UnSeenSVK
is beter now..showing about 22c...in windows..i try 3dmark...
is it real 22C?....
i m using thermalright extreme witch noctua fan..artic silver 5 paste...
case is coolermaster stracker 832
i dont undestand...ps probe showing same as core temp 11C
Mb has 38C
NB has 50C
SB has 47C
and processor has still 11C...
please help me... :mad:
I had same problem with E6850 with another version of Core Temps last year. It would show 17C until they updated and fixed it a few revisions later. I believe there are problems with cpu temp monitoring programs reading E8000 series correctly.Quote:
Originally Posted by UnSeenSVK
I use Everest to monitor temps, its 100% for me
Bios 907
which version?..of everest?
CoreTemp 0.96.1 shows a 20-21 difference in temps at idle. Do you think its the probe, mobo, or the chip that is messed up?
so now i have core temp 096,1 and showing 22 C...is that right?..
Hard to say right now. Many are still having problems with current coretemps. Some complain temps are to high for them at 40C idle.Quote:
Originally Posted by UnSeenSVK
I will try OC and will see what s happend with temperature..
but i think is right..that temperature...with that newest core temp...
cause i saw some E8400 on 4ghz with tem 46c...
i used same everest..shows 11C...
core temp 0.96.1 showing core 0 12C core 2 16 ....
when i running 3dmark06 core 0 shows... 17C and core 2... 16C
look
http://img85.imageshack.us/my.php?image=ddddui7.jpg
Wussup guys any answers to the problem it keeps failing the 3dmark test i get a blue screen and crashes and fails occt test after 5 minutes i need some help cant seem to get it stable trying for a week
bios 907
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 400
FSB Strap to North Bridge : 400
PCI-E Frequency: 110
DRAM Frequency: DDR2-800mhz
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO
Read to Write Delay (S/D) : Auto
Write to Read Delay (S) : Auto
Write to Read Delay (D) : Auto
Read to Read Delay (S) : Auto
Read to Read Delay (D) : Auto
Write to Write Delay (S) :Auto
Write to Write Delay (D) : Auto
DRAM Static Read Control: Enabled
Ai Clock Twister : light
Transaction Booster : disabled
Relax level: 0
CPU Voltage : 1.4000
CPU PLL Voltage : 1.60
North Bridge Voltage : 1.35
DRAM Voltage : 1.90
FSB Termination Voltage : 1.40
South Bridge Voltage : 1.075
Loadline Calibration : Enabled
CPU GTL Reference : Auto
North Bridge GTL Reference : Auto
DDR2 Channel A REF Voltage auto
DDR2 Channel B REF Voltage : auto
DDR2 Controller REF Voltage : DDR2-Ref
SB 1.5V Voltage : 1.5
NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU Volt
Voltiminder LED : Enabled
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
I would up your NB volts to around 1.47 - 1.49 to start withQuote:
Originally Posted by vik_d
Your ram volts are kinda low imo, might want to adjust them alittle higher
if you can post some hardware info that would help alot
And depending on your cpu your vcore for 3.6 are a tad low
thnks for the reply i got asus maximus , crucial ballistix pc2 8500 , q6600 ,8800gt watercooling switech220,
ok i changed the vcore to 1.45, and nbv1.47 and ram 2.00 and its still failing the test? so u got any advice
thnks for the reply i got asus maximus , crucial ballistix pc2 8500 , q6600 ,8800gt watercooling switech220,
ok i changed the vcore to 1.45, and nbv1.47 and ram 2.00 and its still failing the test? so u got any advice
I changed the vcore to 1.46 now its stable and working thkns for the advice i was woundering what values you tihnk i should use if i want to get to 3.8?
Just up vcore and ram volts (if you overclock the ram), you may also need to up NB volts for 3.8GHz I would start at 1.49 on the NBQuote:
Originally Posted by vik_d
good luck
yeah we all would like keys but some of us around here actually pay for their software.Quote:
Originally Posted by icecpu
another stupid "yes i need a key" comment and i imagine you'll find your self in the "i was a retard and got banned" room.
I havent even started to push this cpu or the chipset & voltages.
http://img82.imageshack.us/img82/435...3100006yi9.jpg
the guy could be rich :shrug:Quote:
Originally Posted by Lestat
I just got the e8400 CPU, and now I can't seem to resume from Suspend any more.
I set the BIOS to S3 only, my old e6600 used to suspend just fine, but now it doesn't come up.
BIOS 907, WinXP SP3, Crucial PC2-8500
Asus Maximus Formula Mobo
i dont understand this my temperature..where is problem?...
http://img218.imageshack.us/my.php?image=hhhhko1.jpg
my temperature is 11C i don t understand this...why...?..please help me..where is problem?..cant be 11 C
Mb has 38C
NB has 50C
SB has 47C
and processor has still 11C
showing in bios...core temp..asus probe..everest...:mad:
i used same everest..shows 11C...
core temp 0.96.1 showing core 0 12C core 2 16 ....
when i running 3dmark06 core 0 shows... 17C and core 2... 16C
look
http://img85.imageshack.us/my.php?image=ddddui7.jpgccc
Just dropped a E8400 into my Formula SE (907). My DTS temps are pegged at 45C no matter what I do or what program I use. Looks like the 8XXX series is kinda odd...
With bios 0907 the difference is 10oC from probe to coretemp with E8400.
Just like what i had with 0903 and E6750 cpu.
So in my opinion 0903 reads E6xx temps well and 0907 E8xxx temps
Sounds like a Penrn core and this is normal for any TM capable CPU's since P4 ^xx. This saves power and reduces heat at idle or light load.Quote:
Originally Posted by UnSeenSVK
2 methods can do this and one is more responsive then the other. 1) is TM1/2 w/ C1E & 2nd) is EIST (Intel branded thermal control; Enhanced Intel SpeedStep Technology).
EIST is BIOS and chipset controlled so it uses more system resorce and is slower in responding since it has to go through chipset and back. TM2+C1E (C+P State) is much quicker as it is on die and reacts almost seamlessy. Now C+P State only gives the low and high multi at any time, nevedr inbetween. Whereas EIST will step multi from low to high and so you will feel this lag as it steps .5 (for Penryn) each time 1 hole number for Conroe & Prescott).
So in CMOS, disable EIST and enable TM and C1E mode. If overclocked, ASUS ACPI BIOS will automatically disable EIST for you as it is known to be unstable at FSB over 400 anyways. (Only Penryn 1600's will utilize this at 400FSB right now.
Now ASUS does not fully comply to C+P State as it is designed when you take vcore and multi out of AUTO. This is where the vcore would reduce to match the multi when idle or light load. But reducing at least the multi will reduce some heat and wear too.
I went more into this for all so others wll have a better understanding of C Stete and P State functions for ACPI (Advanced Configuration Power Interface).
If in the end, you want fixed multi, then just disable C1E wich reads the VID and Ratio from TM table off CPU. Now it can run full throttle but still have overheat protection of TM (Thermal Magament). In this mode, CPU ratio will only reduce n case of high heat to protect itself and or allow you to enter S4 or power down.
Sounds like a Penrn core and this is normal for any TM capable CPU's since P4 ^xx. This saves power and reduces heat at idle or light load.Quote:
Originally Posted by UnSeenSVK
2 methods can do this and one is more responsive then the other. 1) is TM1/2 w/ C1E & 2nd) is EIST (Intel branded thermal control; Enhanced Intel SpeedStep Technology).
EIST is BIOS and chipset controlled so it uses more system resorce and is slower in responding since it has to go through chipset and back. TM2+C1E (C+P State) is much quicker as it is on die and reacts almost seamlessy. Now C+P State only gives the low and high multi at any time, nevedr inbetween. Whereas EIST will step multi from low to high and so you will feel this lag as it steps .5 (for Penryn) each time 1 hole number for Conroe & Prescott).
So in CMOS, disable EIST and enable TM and C1E mode. If overclocked, ASUS ACPI BIOS will automatically disable EIST for you as it is known to be unstable at FSB over 400 anyways. (Only Penryn 1600's will utilize this at 400FSB right now.
Now ASUS does not fully comply to C+P State as it is designed when you take vcore and multi out of AUTO. This is where the vcore would reduce to match the multi when idle or light load. But reducing at least the multi will reduce some heat and wear too.
I went more into this for all so others wll have a better understanding of C Stete and P State functions for ACPI (Advanced Configuration Power Interface).
If in the end, you want fixed multi, then just disable C1E wich reads the VID and Ratio from TM table off CPU. Now it can run full throttle but still have overheat protection of TM (Thermal Management). In this mode, CPU ratio will only reduce n case of high heat to protect itself and or allow you to enter S4 or power down.
Hope this helps!
