ASUS Maximus Formula SE

Quote:

---

Originally Posted by Wiggy McShades

from the ram its about .13 over what you set in bios, i think this may of been a tactic so that the board appears to over clock ram better or maybe just a screw up calibrating the voltages. for teh cpu i get about a .04 vdroop with a quad.

---

did u measured with a DIMM or with Asus Probe readout. 0.04 seems a big droop man:X I thought the new BIOS fixed this and actually overvolts abit during load? My P5K deluxe got just .008vdroop during load (blend) .016 droop small ffts. But unfortunately it got a vdrop ( mean what u set @ bios and what u got @ windows idle), is like 0.03/0.028

Quote:

---

Originally Posted by mc2k

did u measured with a DIMM or with Asus Probe readout. 0.04 seems a big droop man:X I thought the new BIOS fixed this and actually overvolts abit during load? My P5K deluxe got just .008vdroop during load (blend) .016 droop small ffts. But unfortunately it got a vdrop ( mean what u set @ bios and what u got @ windows idle), is like 0.03/0.028

---

well this is the problem im finding, the asus pc probe software says im only setting 1.38 v for vcore when in the bios i set 1.45, but if we use 1.38 as our real set voltage then i measured with a multimeter i end up with 1.34-1.35.

Quote:

---

Originally Posted by Wiggy McShades

well this is the problem im finding, the asus pc probe software says im only setting 1.38 v for vcore when in the bios i set 1.45, but if we use 1.38 as our real set voltage then i measured with a multimeter i end up with 1.34-1.35.

---

hmz interesting , but did u enabled loadline callibration and with the last BIOS: 0505?

gar i upped vcore to 1.55 and prime is still loading 99% on task manager. fyi.

Quote:

---

Originally Posted by mc2k

hmz interesting , but did u enabled loadline callibration and with the last BIOS: 0505?

---

im using the shipped bios and load line calibration is on, but it does not do much of anything.

Quote:

---

Originally Posted by TheSamurai

gar i upped vcore to 1.55 and prime is still loading 99% on task manager. fyi.

---

You have a better cpu.

I have confirmed that this issues is current related...a decrease in temps made it go away. Also, an increase in temps @ lower voltage made it happen, but only over 1.425 for me.

I think, if we look at the VID of these cpu's, alot would be obvious...assuming that Intel is accurate in TDP rating, my cpu consumes 105w @ 1.2375v, 2.4ghz.

So, Amps x Volts= Watts, or Watts/Voltage = Amps. So at stock, my cpu consumes 84a @ 1.2375v.


What's your vid? If it is higher, your cpu will consume less Amps, ergo you would run into the issue @ higher voltage than I do. I bet GAR's VID is higher too...


Now, I tohught it was current form the start...and that has not changed, obviously, however remedying the situation is not something I can do...as these cpu's I have do not exhibit this behavior on other boards. It would seem like I would need an OVP mod for the board before I could overcome this...or to identify the driver/dll responsible for the system process acting this way. I'll be trying to figure this out today...

Hmmm, my vid is 1.2675...........i wonder if it does this with other boards.........wish i had another c2d board to test it......cadveca if you have another board give it a shot.

Quote:

---

Originally Posted by TheSamurai

you must be running bios 0401... flash 0505 in there and it should be better.

---

Nope, I flashed to 0505 immediately when I got it

Quote:

---

Originally Posted by cadaveca

You have a better cpu.

I have confirmed that this issues is current related...a decrease in temps made it go away. Also, an increase in temps @ lower voltage made it happen, but only over 1.425 for me.

I think, if we look at the VID of these cpu's, alot would be obvious...assuming that Intel is accurate in TDP rating, my cpu consumes 105w @ 1.2375v, 2.4ghz.

So, Amps x Volts= Watts, or Watts/Voltage = Amps. So at stock, my cpu consumes 84a @ 1.2375v.


What's your vid? If it is higher, your cpu will consume less Amps, ergo you would run into the issue @ higher voltage than I do. I bet GAR's VID is higher too...


Now, I tohught it was current form the start...and that has not changed, obviously, however remedying the situation is not something I can do...as these cpu's I have do not exhibit this behavior on other boards. It would seem like I would need an OVP mod for the board before I could overcome this...or to identify the driver/dll responsible for the system process acting this way. I'll be trying to figure this out today...

---

Unfortunately, I have a Quad 'G0' with the same VID as you here (1.2375v), and I don't get the problem at all. I can load 100% perfectly fine with Prime/Dual Orthos/OCCT/Folding...

Well the MB is so far the biggest mistake I've ever made, its crap there is no, nda, nil way to backup up the system and restore it. There are really only a few solutions for backing up and restoring a Windows System, the best is Acronis Trueimage or a poor second is Norton Ghost. I've always used Acronis Trueimage in the past, as Ghost well is out of date. It makes no difference how good the MB is if you can not back of Windows, as stability is not one of Windows strong points.
The problems are:
Acronis does not see any drives attached to the MB from the recovery disk (tested in IDE, AHCI and RAID modes), (even version 11 home, which is only a month old).
Linux works, but can not start Acronis without a floating point exception (this is really intresting as I use it on the same software without issue at work)
Acronis does not run under Windows Vista x64 without crashing (no messages, but a nice core dump)
Ghost 12 does not support Vista except by dos disk (from fourms).
Last ditch effort is to use partimage from a linux rescue disk (not likely but better than nothing, will advise)

So basically without a backup solution I can not use the system at all, and I'm stuck with a useless system.

One annoyed user,
ERIC GANDT

I have a G0 X3220 and 4x1GB OCZ Reaper PC9200 on this board and I can't seem to get higher than 3600. I would greatly appreciate some tips on how to get higher.

Right now I have these settings changed:
CPU Ratio: 9
FSB Strap: 400
DRAM Freq: 1066 (3:4 divider) (I think 1:1 would work too, just testing this)
Timings: 2T, 5-5-5-18
CPU volt: 1.55
All voltages at the highest "green" setting.
Both spread spectrums off.

I tried pushing every vsetting way up, but I cant get P95 stable at any higher FSB. Are any of you guys using a lower FSB strap to northbridge? If so, what are your mem settings?
I didnt touch the REF settings. Did anyone need to change those?
I cant get P95 stable with any lower vcore settings. Is there anything I should change that would let me lower this one (other than speed of course)?

thanks!

Having the same issues as the guy above ^

Problems with dividers still.... hopefully a new BIOS addresses these problems.

Quote:

---

Originally Posted by CrackaBoi

I have a G0 X3220 and 4x1GB OCZ Reaper PC9200 on this board and I can't seem to get higher than 3600. I would greatly appreciate some tips on how to get higher.

Right now I have these settings changed:
CPU Ratio: 9
FSB Strap: 400
DRAM Freq: 1066 (3:4 divider) (I think 1:1 would work too, just testing this)
Timings: 2T, 5-5-5-18
CPU volt: 1.55
All voltages at the highest "green" setting.
Both spread spectrums off.

I tried pushing every vsetting way up, but I cant get P95 stable at any higher FSB. Are any of you guys using a lower FSB strap to northbridge? If so, what are your mem settings?
I didnt touch the REF settings. Did anyone need to change those?
I cant get P95 stable with any lower vcore settings. Is there anything I should change that would let me lower this one (other than speed of course)?

thanks!

---

i have q6600 running right now @ 3.8 under water cooling @ 36c idle 45c under load
cpu volt 1.55
ram @ 853mhz @4-4-4-10
i have found your ability to overclock has direct connections with all the other weird settings you can change on there i just played around with them and im rock solid running @ 425 fsb oh and i also have 4 sticks of ddr2 1066 crucial balistix

Quote:

---

Originally Posted by GAR

Hmmm, my vid is 1.2675...........i wonder if it does this with other boards.........wish i had another c2d board to test it......cadveca if you have another board give it a shot.

---

I have many boards, and as I stated, this behavior is not there in other boards...however a few of them are subject to "multi-bounce" under same conditions.

Quote:

---

Originally Posted by kup

Unfortunately, I have a Quad 'G0' with the same VID as you here (1.2375v), and I don't get the problem at all. I can load 100% perfectly fine with Prime/Dual Orthos/OCCT/Folding...

---

Yes, I understand where you are coming form, however the "ideal" i listed assumes that each cpu draws that 105w(95w for G0). I can safely bet, however, that your cpu IS NOT drawing that 95W, while GAR's cpu is very close to doing so. Current draw by VID is only an approximation...it is not exact. just as the TDP of each cpu is not exact, although Intel has exact specs...


I hate to say this, but you must open your mind a bit. There's no emotion in any of my posts...I jsut state things as they are, from my perspective. I am fortunate, however, that because of my lack of emotion, and my perspectiv, I do not discount anything as a possibility until proven otherwise, and your observations of your own cpu does NOT prove otherwise...what volts are you using for your cpu? What cooling? load temps? idle temps? All of these affect current consumption of a cpu. Better cooling = less leakage = less current consumption.:fact:


Now, please take no offense from my comments; that is not my intent. But please do not be so quick to judge a situation without first obtaining ALL of the information. I have not got all the info myself yet(working on it), but i can guarantee that should I have your cpu I could get the same clocks as you, if not more, on my board, using the same cooling. I can also guarantee that my cpu or GAR's cpu would behave just the same on YOUR board, as you are not aware that I have more than one Maximus, which exhibits the exact same behavior at the exact same places.

The cuase of this problem is not in quesiton...controlling it is.:shakes:


Also note that while you have the same VID as I do, G0 draws less power than B3, which i have. So...1.2375 x AMPS=95W in your case. 1.2375 x AMPS=105W in my case, ergo my cpu will draw much more than your does.

Even better, we cannot directly compare power consumption of different revisions of the same chip. I run @ load @ 73c, under water...you'd probably not even hit that on air...

Quote:

---

Originally Posted by tylerw13

i have q6600 running right now @ 3.8 under water cooling @ 36c idle 45c under load
cpu volt 1.55
ram @ 853mhz @4-4-4-10
i have found your ability to overclock has direct connections with all the other weird settings you can change on there i just played around with them and im rock solid running @ 425 fsb oh and i also have 4 sticks of ddr2 1066 crucial balistix

---

Thanks. We seem to have a very similar setup, I would be very thankful if you shared the most important settings you changed in the tweaker menu. First off, what are you running as FSB strap, and mem speed (divider)?

Quote:

---

Originally Posted by tylerw13

i have q6600 running right now @ 3.8 under water cooling @ 36c idle 45c under load
cpu volt 1.55
ram @ 853mhz @4-4-4-10
i have found your ability to overclock has direct connections with all the other weird settings you can change on there i just played around with them and im rock solid running @ 425 fsb oh and i also have 4 sticks of ddr2 1066 crucial balistix

---

Could you post your bios settings as a reference?

Is Anybody Air Cooling the SE Model?

Looking at the board, I am not sure how good the fusion block will work for heat dissipation.

I read in other forums that some people actually remove the fusion block that covers the NB. Is this even possible just to remove the fusion block? What do we do with the pipe connecting to the SB?

If removing the fusion block is possible, should I get a MB cooler to cool the MB?

Quote:

---

Originally Posted by MIS3

Is Anybody Air Cooling the SE Model?

Looking at the board, I am not sure how good the fusion block will work for heat dissipation.

I read in other forums that some people actually remove the fusion block that covers the NB. Is this even possible just to remove the fusion block? What do we do with the pipe connecting to the SB?

If removing the fusion block is possible, should I get a MB cooler to cool the MB?

---

I can tell you it works perfectly fine! Why shouldn't it? My NB temp is at around 40C (38c-41C) with 1.61v. I don't find iy restrictive on the loop either.

Quote:

---

Originally Posted by MIS3

Is Anybody Air Cooling the SE Model?

Looking at the board, I am not sure how good the fusion block will work for heat dissipation.

I read in other forums that some people actually remove the fusion block that covers the NB. Is this even possible just to remove the fusion block? What do we do with the pipe connecting to the SB?

If removing the fusion block is possible, should I get a MB cooler to cool the MB?

---

I'm aircooling the SE with fusion block. My cooling is ThermalRight 120 Extreme. My cpu is q6600 @ 3618,2. Ram is Corsair XMS2 6400 @ 402.

It's been steady as a rock for 1 week now. I dont pay attention to NB temp, as long as its stable. CPU is never above 51c.

BTW my ram is labelled 1.9v. Any1 know if thats good or bad, and why it is either way?

I am curious about the NB temperature.

I am concerned because on the P5E, there is a heatsink on top on the NB with lots of heat fins to dissipate the heat.

When you air-cool the SE with the fusion block, did you remove the caps on the water connectors?

Quote:

---

Originally Posted by MIS3

I am curious about the NB temperature.

I am concerned because on the P5E, there is a heatsink on top on the NB with lots of heat fins to dissipate the heat.

When you air-cool the SE with the fusion block, did you remove the caps on the water connectors?

---

Did nothing to caps or board at all, im DL the probe, hang on for temps.

Quote:

---

Originally Posted by CrackaBoi

Thanks. We seem to have a very similar setup, I would be very thankful if you shared the most important settings you changed in the tweaker menu. First off, what are you running as FSB strap, and mem speed (divider)?

---

these are my settings under bios

fsb frequ: 425
fsb strap: auto
pcie frequ: 110
ddram frequ: 1021
dram command: auto
dram timing: manual
4-5-5-14
rest auto
dram static: auto
ai clock twister: auto
transaction boost: auto
cpu volts: 1.55
cpu pll: 1.76
nb: 1.75
dram: 2.2
fsb termination: 1.4
sb: 1.175
loadline: enabled
cpu gtl: .63x
nb gtl: .67
ddr2 channel a: auto
b: auto
ddr2 controller: auto
sb 1.5: auto
cpu spread: disabled
pcie spread: disabled

hope this helps you guys out...honestly this freakin board is rock solid @ these settings i honestly have never had such ease of overclocking a cpu than with this mobo and as bios updates come out it will only get better!!! i seriously love my desicion to buy this thing!!! with my 680 i i couldnt even get over 3.45 with this same cpu...honestly amazing!!

:up: :up: :up:

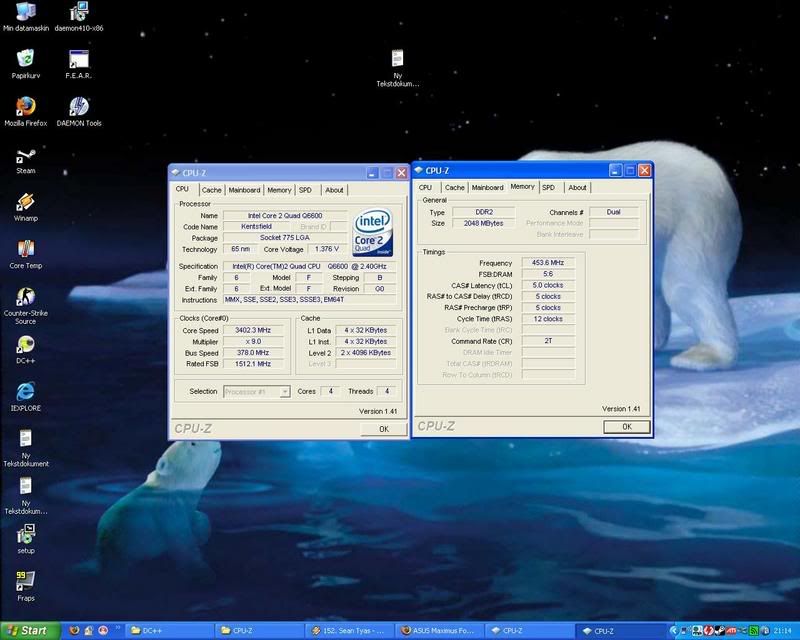

edit my memory divider is 5:6 according to cpuz

NB is 51 celcius.

who hoo, i am a newb, registered a few days ago and got activated today.. keep up the good work guys.. i been reading daily since page one and longer.. i decided to finally upgrade from my 2.5 xp2500 shuttle w/c rig after waiting and waiting for what seams like my whole life.. i have been looking at everything for years then seen the gigabyte x38 ddr3 board and was just a click away untill i ran accross this thread in the very early stages. i went ahead and got myself a asus maximus se about 1.5 weeks ago it has been on my shelf next to my e6850 for the last week.. i can't wait untill i can gather up the rest of the parts for this well needed upgrade..i have 4 stix of balistix 8500 and a 26 inch a full tower on the way now. the next will be my 1+k psu, 2, 74gb raptors and 1 2900xt then all the little things like water blocks, 2 water pumps,2 radiators for 2 seperate loops with a 3/8 loop covering the 3/8 barbed nb and gpu and a 1/2 inch loop covering the cpu alone..that should take me well into the next month just to get me started.. untill then i will keep reading and hopefully i can learn enough to jump right into this new stuff.. especially comming from socket A..

Quote:

---

Originally Posted by krifosjen

NB is 51 celcius.

---

The same temperature as CPU. Is this idle or under load?

I recall that the according to Intel specs, the upper limit for the NB is 92C.

quick question fellas, wich do you think will give me a better performance overall, 413x9 = 3.717ghz with mem @ 550 with a bandwidth of 9050, or 450x8 = 3.6ghz mem at 540 with a bandwidth of 9300..........wich would you keep??? thanks.

Quote:

---

Originally Posted by MIS3

The same temperature as CPU. Is this idle or under load?

I recall that the according to Intel specs, the upper limit for the NB is 92C.

---

thats 3 secs. after 3d-gaming-load. testet twice.

BTW, CPU is not up that high. usually 29c after gaming. Its 51 when running Orthos, prime95 and SuperPi same time - at max.

Quote:

---

Originally Posted by GAR

quick question fellas, wich do you think will give me a better performance overall, 413x9 = 3.717ghz with mem @ 550 with a bandwidth of 9050, or 450x8 = 3.6ghz mem at 540 with a bandwidth of 9300..........wich would you keep??? thanks.

---

hmz I think cpu speed would benefit more over ram performance? I could be wrong tho.

about the 1.9v at my ram. What does that mean?

Quote:

---

Originally Posted by krifosjen

thats 3 secs. after 3d-gaming-load. testet twice.

BTW, CPU is not up that high. usually 29c after gaming. Its 51 when running Orthos, prime95 and SuperPi same time - at max.

---

29C is great temperature for the CPU. Which CPU and CPU cooler are you using?

Quote:

---

Originally Posted by MIS3

29C is great temperature for the CPU. Which CPU and CPU cooler are you using?

---

my cpu is Q6600 g0. Held low by ThermalRight 120 Extreme.

myself i would keep the one that performs the best for the longest on a hot day after extreme load/gaming..

Quote:

---

Originally Posted by cadaveca

You have a better cpu.

I have confirmed that this issues is current related...a decrease in temps made it go away. Also, an increase in temps @ lower voltage made it happen, but only over 1.425 for me.

I think, if we look at the VID of these cpu's, alot would be obvious...assuming that Intel is accurate in TDP rating, my cpu consumes 105w @ 1.2375v, 2.4ghz.

So, Amps x Volts= Watts, or Watts/Voltage = Amps. So at stock, my cpu consumes 84a @ 1.2375v.


What's your vid? If it is higher, your cpu will consume less Amps, ergo you would run into the issue @ higher voltage than I do. I bet GAR's VID is higher too...


Now, I tohught it was current form the start...and that has not changed, obviously, however remedying the situation is not something I can do...as these cpu's I have do not exhibit this behavior on other boards. It would seem like I would need an OVP mod for the board before I could overcome this...or to identify the driver/dll responsible for the system process acting this way. I'll be trying to figure this out today...

---

i'm a noob, what's VID? is there anything you would like me to check with my setup (no system reformats though lol)? i'm more then glad to help out figuring out these issues.

Newest BIOS settings.

BIOS 0505
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 8
FSB Frequency :450
FSB Strap to North Bridge :AUTO
PCI-E Frequency: 120
DRAM Frequency: DDR2-900
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 4
RAS# to CAS# Delay : 4
RAS# Precharge : 4
RAS# ActivateTime : 10
RAS# to RAS# Delay : 3
Row Refresh Cycle Time : 25
Write Recovery Time : 3
Read to Precharge Time : 3

Read to Write Delay (S/D) : 7
Write to Read Delay (S) : 3
Write to Read Delay (D) : 5
Read to Read Delay (S) : 4
Read to Read Delay (D) : 6
Write to Write Delay (S) : 4
Write to Write Delay (D) : 6
DRAM Static Read Control: ENABLED
Ai Clock Twister : STRONG
Transaction Booster : ENABLED (1)

CPU Voltage : 1.4250v
CPU PLL Voltage : 1.5v
North Bridge Voltage : 1.49v
DRAM Voltage : 2.08v
FSB Termination Voltage : 1.4v
South Bridge Voltage : AUTO
Loadline Calibration : ENABLED
CPU GTL Reference : .63x
North Bridge GTL Reference : .67x
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : AUTO
SB 1.5V Voltage : AUTO

NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU VOlt
Voltiminder LED : ENABLED

CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled


PLL/DRAM overvolt by .1-.14v about so adjusted to compensate. This is stable thus far 24hr Blend priority9

Hope it helps someone.

Quote:

---

Originally Posted by tylerw13

these are my settings under bios

fsb frequ: 425
fsb strap: auto
pcie frequ: 110
ddram frequ: 1021
dram command: auto
dram timing: manual
4-5-5-14
rest auto
dram static: auto
ai clock twister: auto
transaction boost: auto
cpu volts: 1.55
cpu pll: 1.76
nb: 1.75
dram: 2.2
fsb termination: 1.4
sb: 1.175
loadline: enabled
cpu gtl: .63x
nb gtl: .67
ddr2 channel a: auto
b: auto
ddr2 controller: auto
sb 1.5: auto
cpu spread: disabled
pcie spread: disabled

hope this helps you guys out...honestly this freakin board is rock solid @ these settings i honestly have never had such ease of overclocking a cpu than with this mobo and as bios updates come out it will only get better!!! i seriously love my desicion to buy this thing!!! with my 680 i i couldnt even get over 3.45 with this same cpu...honestly amazing!!

:up: :up: :up:

edit my memory divider is 5:6 according to cpuz

---

Thanks, that is wonderful. I can't get mine stable at 425 with those settings though. I tried upping the voltages with no luck. Did you experience that raising any particular voltage limited your OC compared to a lower voltage?

I have Reaper PC9200 memory. Can anyone give me some suggestions on mem settings to try in order to get a higher OC? My men should handle speeds close to 600..

thanks

have this mb on order with a q6600 g0 and G.SKILL 4GB(2 x 2GB) DDR2 1000 what setting do i have to change for no oc
coming from a commando i had to set my corsair 8500c5's
to (5-5-5-15) 2.2v manually or it would eat them

or can set all to auto
thanks

Quote:

---

PLL/DRAM overvolt by .1-.14v about so adjusted to compensate

---

Hey alex is that Asus Probe readout or by a Dimm? Or is Asus probe pretty accurate?

Quote:

---

Originally Posted by bill_d

have this mb on order with a q6600 g0 and G.SKILL 4GB(2 x 2GB) DDR2 1000 what setting do i have to change for no oc
coming from a commando i had to set my corsair 8500c5's
to (5-5-5-15) 2.2v manually or it would eat them

or can set all to auto
thanks

---

I have the same ram mate, works pretty fine on all the baords I have tested so far , not much to change just ram frequency and voltage for ram, be carefull the baord overvolts the ram , works fine here at 2.0 setting, if it doesn't boot disable static read control... Board OC's fine to 450FSB ( keep ram at 900mhz ) Nb at 1.35,...

Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency :AUTO
FSB Strap to North Bridge :AUTO
PCI-E Frequency: 101
DRAM Frequency: DDR2-1000
DRAM Command Rate : AUTO
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO

Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: Disabled
Ai Clock Twister : AUTO
Transaction Booster : AUTO

CPU Voltage : AUTO
CPU PLL Voltage : AUTO
North Bridge Voltage : AUTO
DRAM Voltage : 2.0 (board overvolts so you will end up around 2.04)
FSB Termination Voltage : AUTO
South Bridge Voltage : AUTO
Loadline Calibration : ENABLED
CPU GTL Reference : AUTO
North Bridge GTL Reference : AUTO
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : AUTO
SB 1.5V Voltage : AUTO

I see you guys going all high on the NB voltages, pretty high to me, I can run 450FSB with only 1.35 on the NB,... though I have to disable static read control then in the bios otherwise it will reboot when loading windows, though the CPU is fine at 3.6 ( so 450 x 8 and ram at 900mhz then ), haven't primed it (yet) but folds on all 4 cores at 100% ( better use of power then useless Prime to me) and has shown no hickups when gaming or sortlike...

Anyone share to update me on the NB voltages ?

Is there much advantage to gain

Hi, I've just installed water cooling but is it normal for my motherboard and CPU temps to reported as extremely high by both probe and everest? At the moment I'm running Prime and my CPU core temps are between 48-52c but my CPU temps shows 218c and my motherboard temps is 199c, lol it's going to catch fire :eek:
Thanks...
ChrisC

I dont know if this will help someone but most of my settings are at AUTO, achieves 3.74ghz stable, have clocked BFG8800GTX cards from stock OC standard to 640Mhz Core 1000Mhz (effective 2000Mhz) with Riva Tuner.

achieves
3dMark20001 66595
3DMark06 14415

Have been running 24/7 last three days, Under load Temps reach 55 GPU and 50 max on everything else, probably because watercooling all in one loop.

Has anyone got any suggestions as to how i can improve on this. I have been looking at MemSet but have not used it as yet. I would be interested to know Loco what timings and what dividers you are now achieving with the Ballisitic Sticks you have?

I have a lot of probs in Vista with 8800 keeps coming up with Stuck in Thread Error, I just hope driver maturity will rectify this. Anyone else any problems with this board and 8800 and Vista?


BIOS 0504
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 8
FSB Frequency :466
FSB Strap to North Bridge :AUTO
PCI-E Frequency: 100
DRAM Frequency: DDR2-1120
DRAM Command Rate : AUTO
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : AUTO
Row Refresh Cycle Time : AUTO
Write Recovery Time : AUTO
Read to Precharge Time : AUTO

Read to Write Delay (S/D) : AUTO
Write to Read Delay (S) : AUTO
Write to Read Delay (D) : AUTO
Read to Read Delay (S) : AUTO
Read to Read Delay (D) : AUTO
Write to Write Delay (S) : AUTO
Write to Write Delay (D) : AUTO
DRAM Static Read Control: AUTO
Ai Clock Twister : AUTO
Transaction Booster : DISABLED (AUTO) cant rem but default

CPU Voltage :AUTO
CPU PLL Voltage : AUTO
North Bridge Voltage : AUTO
DRAM Voltage : 2.00v
FSB Termination Voltage : AUTO
South Bridge Voltage : AUTO
Loadline Calibration : AUTO
CPU GTL Reference : AUTO
North Bridge GTL Reference : AUTO
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : AUTO
SB 1.5V Voltage : AUTO

NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU VOlt
Voltiminder LED : ENABLED

CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled

Hi to all, subscribed.

Got mine two days ago, immediately upgraded to 505.
The board is Maximazing! I'm Loving it. (Asus Fanatic:D ).
With the right bios this thing will fly, who needs DFI or Gigabyte DQ/noIQ!.

Right now I'm just waiting for newer bios,, early next month maybe.

i just changed to the 505 bios from the shipped 401 and wow i have to say every voltage is over by .1 to .13 except cpu vcore and the sb voltages. be careful flashing to this bios if you had settings from the original bios they most likely wont work.

Anybody got an Auzentech Prelude running with this board & Vista X64?

As for the life of me i can't get it to work,the driver & software installs ok but when i double click the "Console Launcher" or "Audio Console" icons i get the following error.

"Unable to find audio device.Please make sure that your audio device is enabled & installed with it's driver"

Or

"This software is not compatable with the installed device"

In device manager the driver is installed & has no yellow question mark next to it?

@ChaosMinionX

Have you tried to run stable at lower chipset voltages?

Is this THE last ddr2 board to own? Just nuked my commando.:mad:

Quote:

---

Originally Posted by CyberDruid

@ChaosMinionX

Have you tried to run stable at lower chipset voltages?

---

That was the lowest I could get with my ram timings/speed and running 4GB of it.

I am having a problem recently after 1 of my sticks died, that when I restart in windows the overclock fails for some reason, and the comp double boots to let me change it so it works...never ever had this happen before, would it be possible my other RAM is damaged but not erroring in memtest? Just a shot in the dark I suppose.

Anyone know of a good way to set up a couple fans for the NB and SB without removing the heatsinks it came with? I'm not ready to do water cooling yet, but when I do I'm thinking about the ZALMAN RESERATOR 1.
http://www.newegg.com/Product/Produc...82E16835118111

What does everyone think about the ZALMAN RESERATOR 1?

Quote:

---

Originally Posted by ChaosMinionX

Newest BIOS settings.

BIOS 0505
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 8
FSB Frequency :450
FSB Strap to North Bridge :AUTO
PCI-E Frequency: 120
DRAM Frequency: DDR2-900
DRAM Command Rate : 2T
DRAM Timing Control: Manual
CAS# Latency : 4
RAS# to CAS# Delay : 4
RAS# Precharge : 4
RAS# ActivateTime : 10
RAS# to RAS# Delay : 3
Row Refresh Cycle Time : 25
Write Recovery Time : 3
Read to Precharge Time : 3

Read to Write Delay (S/D) : 7
Write to Read Delay (S) : 3
Write to Read Delay (D) : 5
Read to Read Delay (S) : 4
Read to Read Delay (D) : 6
Write to Write Delay (S) : 4
Write to Write Delay (D) : 6
DRAM Static Read Control: ENABLED
Ai Clock Twister : STRONG
Transaction Booster : ENABLED (1)

CPU Voltage : 1.4250v
CPU PLL Voltage : 1.5v
North Bridge Voltage : 1.49v
DRAM Voltage : 2.08v
FSB Termination Voltage : 1.4v
South Bridge Voltage : AUTO
Loadline Calibration : ENABLED
CPU GTL Reference : .63x
North Bridge GTL Reference : .67x
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
DDR2 Controller REF Voltage : AUTO
SB 1.5V Voltage : AUTO

NB LED Selection : NB Volt
SB LED Selection : SB Volt
CPU LED Selection : CPU VOlt
Voltiminder LED : ENABLED

CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled


PLL/DRAM overvolt by .1-.14v about so adjusted to compensate. This is stable thus far 24hr Blend priority9

Hope it helps someone.

---

what bandwidth are you pulling off with those timmings and speeds if you don't mind me asking.

****deleted***

Quote:

---

Originally Posted by Wiggy McShades

what bandwidth are you pulling off with those timmings and speeds if you don't mind me asking.

---

http://i11.photobucket.com/albums/a1...x9ddr29003.jpg

Thats most recent tweaking.

Quote:

---

Originally Posted by Simkin

Hello!

i have a problem with my Maximus Formula SE

i have this:

Q6600 (G0) with Noctua NH-U12F
2GB Crucial BallistiX PC8500


if i try to set the volt manually, i get a cold boot, and if the machine start, it wont let me in to windows..

i want to clock!! i have tried to set some other voltages, and thats no problem, but as soon as i touch the vcore it wont start/go to windows.

if the speed is stock (2400mhz) and i set the volt to 1.3, it starts, but if i try 356 or 378x9 and volt to 1.37/1.42 it wont start..

please help me out someone..

i want to get a stable 3.4mhz run.. i am now ruinning 3ghz with vcore on auto

have 0505 BIOS

---

I think 356 or 378x9 is not possible. Isn't the multi. maxed at like 8 without having a extreme c2d? Also make sure your not pushing you RAM to far. Might need to set it back to DDR 667 (1:1)

Here is what i have so far, mind you it is 82F degrees when i took this screen shot, its hot in LA today.........Primed for about 3 hours.......it could go more but i needed to play Crysis so i stopped it, all looks good for me, this is a setup i think i will keep...........


http://img218.imageshack.us/img218/25/81007365ec7.jpg
http://img91.imageshack.us/img91/733/17798185zd5.jpg

Quote:

---

I think 356 or 378x9 is not possible. Isn't the multi. maxed at like 8 without having a extreme c2d? Also make sure your not pushing you RAM to far. Might need to set it back to DDR 667 (1:1)

---

my mistake..

haha. i didnt see the first number, i set it to 1.13 and 1.14.. not 1.3 and 1.4

so now my computer started with 379x9 and voltage @ 1.4

maybe i need glasses


the RAM is working @ 453mhz 5-5-5-12 can i take them longer?

its 2GB BallistiX PC8500

Quote:

---

Originally Posted by Simkin

my mistake..

haha. i didnt see the first number, i set it to 1.13 and 1.14.. not 1.3 and 1.4

so now my computer started with 379x9 and voltage @ 1.4

maybe i need glasses


the RAM is working @ 453mhz 5-5-5-12 can i take them longer?

its 2GB BallistiX PC8500

---

have a screen shot of CPU-Z?

Quote:

---

have a screen shot of CPU-Z?

---

here you go.. little small maybe

http://i20.photobucket.com/albums/b2..._Utennavn5.jpg

Some 3D results with dry ice on Maximus. E6600 and 2900XT crossfire (stock air) 840/900 in CCC:

http://img.photobucket.com/albums/v292/Viss1/1-5.jpg

http://img.photobucket.com/albums/v2.../GCS_01106.jpg

http://img.photobucket.com/albums/v2...s1/GCS_004.jpg

http://img.photobucket.com/albums/v2...s1/GCS_009.jpg

http://img.photobucket.com/albums/v2...s1/GCS_007.jpg

Nice job.:up:

Very nice CPU speed. Just wondering why your 06 score is lower than mine with an LC Q6600 at 4050mhz on the DFI LP UT? And my cards are stock :shrug:

Anyone have a problem where sometimes on a reboot, the BIOS overclock will say it failed, even though its been Prime95 stable and everything?

Quote:

---

Originally Posted by ChaosMinionX

Anyone have a problem where sometimes on a reboot, the BIOS overclock will say it failed, even though its been Prime95 stable and everything?

---

ya that happens sometimes.

is it from windows corruptors?

quick question those temp sensonrs on the board it self, what temp do they get?? the book just says temp sensor #1,2,3 but it doesnt specify if it give you the cpu or vga temp...

Quote:

---

Originally Posted by ChaosMinionX

Anyone have a problem where sometimes on a reboot, the BIOS overclock will say it failed, even though its been Prime95 stable and everything?

---

yea that happens at times for me too, i've had the board about 2 weeks and its happened about 4 times..
but it only happens when I do a restart from vista, never from a cold boot
when does it happen for you?

Quote:

---

Originally Posted by ChaosMinionX

Anyone have a problem where sometimes on a reboot, the BIOS overclock will say it failed, even though its been Prime95 stable and everything?

---

Yes, it's happened to me several times and all the settings were lost. I had to set the BIOS all over again.

Yup same issue- Had it once only, raised my dram voltage and hasnt happened since..

I hvaea really NEWB question for you guys, Im use to deleting my Drivers and cleaning them with a sweeper in Safe Mode- but on this Motherboard it seems the F key for Safe mode is gone, how do You guys enter safe mode??

Btw, Im now running my E6850 and Crucial DDR2 1066 2GB Ram @ 3.84 and DDR2-1140 8 hours orthos stable.

No hiccups here. I then oc'd my 8800 ultra to 678/1152, I went up to 678/1161 and it worked fine on any benchmark and games, but I got some artifacts when I played Crysis- So i backed down and it went away, guess that was the limit for the card, any higher and im sure id see the polygon artifacting in any game, Which is good- I know its a safe OC now! the GPU temps on this board ARE MUCH MUCH lower than my Last P5K- At full load with the OC I get up to 75 max, whereas the P5K was at 82.

Quote:

---

Originally Posted by btdvox

the GPU temps on this board ARE MUCH MUCH lower than my Last P5K- At full load with the OC I get up to 75 max, whereas the P5K was at 82.

---

Prolly due to less heatoutput from the mobo itself, I really like the Formula, though I cannot run the settings some of you do... the board keeps rebooting itself then before entering windows... I iwll do more testing this week to find out as I know they are memory settings related again

Quote:

---

Originally Posted by Aldy402

yea that happens at times for me too, i've had the board about 2 weeks and its happened about 4 times..
but it only happens when I do a restart from vista, never from a cold boot
when does it happen for you?

---

Yep restart from Vista, results in a failed overclock type error.

BIOS problem? Or board itself...

Quote:

---

Originally Posted by tylerw13

these are my settings under bios

fsb frequ: 425
fsb strap: auto
pcie frequ: 110
ddram frequ: 1021
dram command: auto
dram timing: manual
4-5-5-14
rest auto
dram static: auto
ai clock twister: auto
transaction boost: auto
cpu volts: 1.55
cpu pll: 1.76
nb: 1.75
dram: 2.2
fsb termination: 1.4
sb: 1.175
loadline: enabled
cpu gtl: .63x
nb gtl: .67
ddr2 channel a: auto
b: auto
ddr2 controller: auto
sb 1.5: auto
cpu spread: disabled
pcie spread: disabled

hope this helps you guys out...honestly this freakin board is rock solid @ these settings i honestly have never had such ease of overclocking a cpu than with this mobo and as bios updates come out it will only get better!!! i seriously love my desicion to buy this thing!!! with my 680 i i couldnt even get over 3.45 with this same cpu...honestly amazing!!

:up: :up: :up:

edit my memory divider is 5:6 according to cpuz

---

OK Im running my X3220 (or Q6600 if u want) stable now at 3.8Ghz. I have 2GB OCZ Reaper PC9200 at the moment, two more sticks on the way.
BIOS settings (the ones I recall at least):
CPU multi - 9
FSB strap - auto
FSB - 423
DDR2 - 846 (1:1)
Command rate: auto
5-5-5-15
CPU volt: 1.6
cpu pll: 1.78
nb: 1.49
dram: 2.3
fsb termination: auto
sb: auto
loadline: enabled
cpu gtl: .63x
nb gtl: .67
ddr2 channel a: auto
b: auto
ddr2 controller: auto
sb 1.5: auto
cpu spread: disabled
pcie spread: disabled

I trie djust about everything, but 3.8Gz is the highest I can get stable in P95. I was able to boot at 4.1Ghz but it crashed once I started P95. I might be able to reach higher if I really crank the vcore voltage, but Id rather not. How high is it safe to go?

CPU core load temps are from 66-71C under load, 30s when idling. NB and SB temps under load are 42 and 44 respectively.
My cooling:
Dual 5.25" bay reservoir
Loop 1 (7.16"tubing): res -> MCP655 -> PA 120.2 -> STORM -> res
Loop 2 (3.8" tubing): res -> MCP350 -> MCR220 -> Fusion block -> DD 8800GTX block -> res

Can post pics/screens if anyonw wants.

And this board rocks!

Anyone having an issue trying to start in safe mode? When I press F8 I do not get any screens allowing me to select safe mode. Using Vista Ultimate by the way.

Quote:

---

Originally Posted by -=j0nnyr0773n=-

Anyone having an issue trying to start in safe mode? When I press F8 I do not get any screens allowing me to select safe mode. Using Vista Ultimate by the way.

---

Are you using a PS/2 or USB keyboard?

USB, and I realized that I had legacy support turned off and now it works with it turned back on.

I've noticed that all of a sudden my vcore won't change. No matter what I set it on, the bios shows 1.467 and so does sandra and cpuz, with no fluctuation whatsoever no matter if I set it to 1.40 or 1.55 or anything in between.

-edit-
I reset the bios and was able to fix the vcore problem.

Hey all,

I just installed my board on Friday and did some testing and I'm not sure if my temps are good or not. The alarms for ASUS Probe II keep going off and warning me.

Would appreciate it if someone can comment on them:

Under full Load:
MB 39 deg C
NB 52 deg C
SB 46 deg C

CPU temps:
ASUS Probe => 25 idle and 39? load
Core Temp => 35 idle and 50 load

Is this good? No overclocking yet and I get some alarms for mem voltage but I forgot to write those down.

The temps above are after running Prime 95 and SuperPI (32M -> one for each core).

My Specs are:
Mobo: ASUS Maximus Formula SE
BIOS: Version 0505. All default. No changes.
RAM: 4 x 1GB PC8500 Crucial Ballistix
CPU: Intel Quad Core Q6600
CPU cooling: ThermalRight Ultra 120 Extreme (Dual Fans).
Video: eVGA 8800 Ultra
Case: Antec P180. Top and Rear fans set to exhaust. Front set to intake.
OS: XP Professional 32bit

So far the system is stable unless I run a game or anything 3D (another question for later).
I've run Prime95 for about 10 hours and it's been stable.
Memtest ran for a couple hours stable as well.

So 2 questions for now:
1) what do you think about my temps?
2) unrelated: Which memtest does everyone use? I've found 2 versions
- http://www.memtest86.com/ Memtest86 3.3 Release
- http://www.memtest.org/ Memtest86+ 1.7

MB 39 deg C???

Turn down the heat in the house.

Hmm did I just double post?!

Anyway, I don't think it is the room temp.
Although I live in a rented basement and I don't have control over the heating.

I'm not sure why the MB temp is so high.
Personally I think it is the airflow in the case.

no need to post the same thing twice

Quote:

---

Originally Posted by Majoram

Hey all,

I just installed my board on Friday and did some testing and I'm not sure if my temps are good or not. The alarms for ASUS Probe II keep going off and warning me.

Would appreciate it if someone can comment on them:

Under full Load:
MB 39 deg C
NB 52 deg C
SB 46 deg C

CPU temps:
ASUS Probe => 25 idle and 39? load
Core Temp => 35 idle and 50 load

Is this good? No overclocking yet and I get some alarms for mem voltage but I forgot to write those down.

The temps above are after running Prime 95 and SuperPI (32M -> one for each core).

---

My Mobo temp is 38°C under full load at 3.6ghz ( 8 x 450 ), nb and SB temps around 40-45°c...

Is your case well ventilated ? becasue these temps at stock indicate something is lacking with your airflow, wich case do you own ?

Quote:

---

Originally Posted by ShawnTRD

no need to post the same thing twice

---

Yeah that was an accident at the end of a 12 hour night shift. :rolleyes:
Sorry about that :)

Don't know what I even clicked to do it?!

"Case: Antec P180. Top and Rear fans set to exhaust. Front set to intake."

Have you tried leaving the front door of the case open? I'm just looking at that case on Newegg and it doesn't look like you can get much intake with the door closed.

Quote:

---

Originally Posted by Leeghoofd

My Mobo temp is 38°C under full load at 3.6ghz ( 8 x 450 ), nb and SB temps around 40-45°c...

Is your case well ventilated ? becasue these temps at stock indicate something is lacking with your airflow, wich case do you own ?

---

I have the Antec P180. I think I will check things with my case open and see how it goes.

Full Specs:
Mobo: ASUS Maximus Formula SE
BIOS: Version 0505. All default. No changes.
RAM: 4 x 1GB PC8500 Crucial Ballistix
CPU: Intel Quad Core Q6600
CPU cooling: ThermalRight Ultra 120 Extreme (Dual Fans).
Video: eVGA 8800 Ultra
Case: Antec P180. Top and Rear fans set to exhaust. Front set to intake.
OS: XP Professional 32bit

Just checked my Memtest86+ v1.70:

25 passes, 7 errors:

In Red it says:
Test 6
Pass: 17
Failing Address: 0003c81e5cc - 968.8MB
Good: fff7ffff
Bad: fdf7ffff
Err-Bits: 02000000
Count: 7

Any idea what this means?

Quote:

---

Originally Posted by ShawnTRD

"Case: Antec P180. Top and Rear fans set to exhaust. Front set to intake."

Have you tried leaving the front door of the case open? I'm just looking at that case on Newegg and it doesn't look like you can get much intake with the door closed.

---

Yes the front door is open at all times. I'm gonna try it with the side of the case removed, just to see what happens.

PS: Would 4GB of RAM cause XP (32 bit) to be unstable? Just wondering. I have 4GB because I plan to dual boot to Vista. I know that XP only recognizes 3.5GB

Try increasing the RAM voltage a tad and run again.

I ran 4GB in XP plenty.

Quote:

---

Originally Posted by Majoram

I have the Antec P180. I think I will check things with my case open and see how it goes.

Full Specs:
Mobo: ASUS Maximus Formula SE
BIOS: Version 0505. All default. No changes.
RAM: 4 x 1GB PC8500 Crucial Ballistix
CPU: Intel Quad Core Q6600
CPU cooling: ThermalRight Ultra 120 Extreme (Dual Fans).
Video: eVGA 8800 Ultra
Case: Antec P180. Top and Rear fans set to exhaust. Front set to intake.
OS: XP Professional 32bit

Just checked my Memtest86+ v1.70:

25 passes, 7 errors:

In Red it says:
Test 6
Pass: 17
Failing Address: 0003c81e5cc - 968.8MB
Good: fff7ffff
Bad: fdf7ffff
Err-Bits: 02000000
Count: 7

Any idea what this means?

---

ASUS MAXIMUS FORMULA has several problems with RAM. I have Ballistix PC8500 and I can't boot at 1200MHz (and my sticks pass superpi 1M at 1400MHz). :shakes:

So I was typing up this long reply and a I got a BSOD. Shoot me please!
Let's see if i can remember this verbatim. Got to sleep soon or I'm gonna pass out

Quote:

---

Originally Posted by Fixxxer

ASUS MAXIMUS FORMULA has several problems with RAM. I have Ballistix PC8500 and I can't boot at 1200MHz (and my

sticks pass superpi 1M at 1400MHz). :shakes:

---

From your experience, any suggestions?

Quote:

---

Originally Posted by CyberDruid

Try increasing the RAM voltage a tad and run again.

I ran 4GB in XP plenty.

---

Will do but going to try testing 2GB alone first. And then test the other 2GB alone as well.

Now back to the story....again.

I removed the side panel on my case to see if the temps change and below is my story.

Here is the before removing the panel:

http://img135.imageshack.us/img135/2...foreyk3.th.jpg

After I removed the panel, I left the comp for a bit but the alarms started going off again.
Alarms for Vcore, SB2 and Opt Fan are just a few that I paid attention to.
The problem is that the alarms only happened for 1 or 2 seconds and then went back to normal.

Examples:
- Vcore dropped to 0.26v a one point
- SB2 jumpted to 1.82v from 1.54v
- Opt Fan went to 0 rpm but the fan was still running!

After a while though, i notice the MB temp was 163 deg C!!!!! Seriously what is going on here?

http://img181.imageshack.us/img181/3...ftergu4.th.jpg

So I reset the BIOS. I did not change anything at all. Not even turning off the pic at boot up.

So this is how it is now:

http://img135.imageshack.us/img135/9...ter2lf2.th.jpg

Oh and of course after this, I got a BSOD while typing the first version of this post (screen went by too quick to see the details).
Can anyone give me any idea how to figure this out or what the problem is???

the problem is your ram, 4x1gb and the x38 dont like each other very much.

Quote:

---

Originally Posted by GAR

the problem is your ram, 4x1gb and the x38 dont like each other very much.

---

I'm thinking of getting two sets of 4GB (2x2GB) G.Skill DDR2 1000. What wold you think? Have you tried running two of these sets on X38?

Majoram:

Maybe there's a problem with your board. I would suggest doing a complete reset of the BIOS.
Unplug all cables from the back of the computer(anything that can supply power to the MB), and pull the CMOS battery for like 10 minutes and reset the BIOS with the jumpers if there are any. If not use the back panel reset. Then boot into BIOS and LOAD Factory Defaults.

Yeah I had this issue when I first got my board...everything was whacked out, could not get it stable, then I pushed an overclock, and the board reset itself after "CMAS CHECKSUM BAD".

I think you'll have no luck, Majoram, until you see as I did. You may also want to try just two GB of ram...whether it's one stick or two doesn't matter, IMHO.

Quote:

---

Originally Posted by V I P E R

I'm thinking of getting two sets of 4GB (2x2GB) G.Skill DDR2 1000. What wold you think? Have you tried running two of these sets on X38?

---

I havnt tried 8GB's yet, but with 4gb's this set is awsome, got it at ddr 1111 with no issues, 2.1v only, this is my fav set of ram yet, very easy to overclock, dont expect ddr 1200 but if your looking at a stable 1100 with low voltage this is a good set, and cheap too! :up: :up:

Quote:

---

Originally Posted by GAR

the problem is your ram, 4x1gb and the x38 dont like each other very much.

---

i tried taking out 2gb of my ram and it didn't change a thing. still couldn't get any higher then my 3.825.

Quote:

---

Originally Posted by GAR

I havnt tried 8GB's yet, but with 4gb's this set is awsome, got it at ddr 1111 with no issues, 2.1v only, this is my fav set of ram yet, very easy to overclock, dont expect ddr 1200 but if your looking at a stable 1100 with low voltage this is a good set, and cheap too! :up: :up:

---

This will be for my 24/7 gaming system, so I'll be more than happy with anything more than 1000 @ 2.1 volts with 8Gb. For now I'll use it with my ASUS Maximus Formula and later when 7xx series Nvidia chipset for Intel arrives I'll transfer them there because I need SLi capable board for Crysis and some of the newest games that are about to come out.

Quote:

---

Originally Posted by V I P E R

This will be for my 24/7 gaming system, so I'll be more than happy with anything more than 1000 @ 2.1 volts with 8Gb. For now I'll use it with my ASUS Maximus Formula and later when 7xx series Nvidia chipset for Intel arrives I'll transfer them there because I need SLi capable board for Crysis and some of the newest games that are about to come out.

---

Yeah, i might be going to the 780i SLI as well, the new games tax my single GTX too much, i need dual 8800GT's , but before i make me decision, im going to wait for the 3870's to show up, if it shows to be as good as the 8800GT, i will go for crossfire this time around, some say crossfire is more efficient than SLi, but well have to wait till November 15th.

Quote:

---

Originally Posted by TheSamurai

i tried taking out 2gb of my ram and it didn't change a thing. still couldn't get any higher then my 3.825.

---

Hmmmm, try setting all voltages to auto, except for cpu and dram, that works good usually, the board itself will adjust the voltages to what they would need to be.........try that see if it helps.

also remember to turn off any performance enhancements in the bios, the booster etc........

^^ Leghoofd, those temps arent that bad? My temps are round 38 c MB, 45 SB and 50-52 NB after 8 hour prime. But My OC is a bit different im running 427X9 with my ram clocked at DDR211400 I have my DRAM set at 2.14 which gives me 2.24 and my NB at 1.62 which is a high NB volt but it seems this board wont be stable without a higher NB volt, to me its def the downfall for this Motherboard, but def something i can live with- as long as my temps are lower than 55 im good.

My E6850 gets to 55 degrees at the end of a orthos session.

I had a very negative experience with two Maximus Formula SE boards, none of six memory sticks would run at any setting :down: Took them both back to the store and now am temporarily using a P5K Deluxe...

Quote:

---

Originally Posted by cadaveca

Yeah I had this issue when I first got my board...everything was whacked out, could not get it stable, then I pushed an overclock, and the board reset itself after "CMAS CHECKSUM BAD".

I think you'll have no luck, Majoram, until you see as I did. You may also want to try just two GB of ram...whether it's one stick or two doesn't matter, IMHO.

---

What did you do in the end? RMA the board?

Quote:

---

Originally Posted by GAR

the problem is your ram, 4x1gb and the x38 dont like each other very much.

---

Yeah I thought so too and I remove 2GB and did a memtest again and got a bunch of errors.
So I removed that 2GB and did another memtest and got errors in the first test!

Quote:

---

Originally Posted by ShawnTRD

Majoram:

Maybe there's a problem with your board. I would suggest doing a complete reset of the BIOS.
Unplug all cables from the back of the computer(anything that can supply power to the MB), and pull the CMOS battery for like 10 minutes and reset the BIOS with the jumpers if there are any. If not use the back panel reset. Then boot into BIOS and LOAD Factory Defaults.

---

Well I did do a complete reset before I tried memtest the second time around.
But I didn't remove the battery or anything, I just used the button at the back.

Does anyone know which memtest program is better to use???

I'm gonna try the other memtest now (Memtest 86 v3.3) and later I have some OCZ RAM that I will try testing with.

Thanks for the help so far! Any other suggestions appreciated!!

Quote:

---

Originally Posted by Majoram

What did you do in the end? RMA the board?

---

Nah, I'm typing from it now. Like I said earlier, I forced an overclock that I knew was bad. The board failed to POST a few times, adn then when it DID POST, i got the message "CMOS CHECKSUM ERROR" after which the board has been playing very nice.

It really seems as though there is an issue with some of these boards actually writing settings in bios to the bios chip itself, or reading, as I had time on DDR3X38 before this board, so I was well aware of what this chipset was like.

Your symptoms sound exactly the same as mine...I could not get CAS4 to work right, but CAS5 with 2GB seemed ok, on some boots. ALso of note is that the chipset was topping 60c...and when it went over, nothing was stable @ all...stock..overclocked..nothing. At first I attributed this problem to an issue with the chipset and 4GB, but i really think that there is something else @ fault here...and the recent pics of a rev. 1.03 board(mine is rev. 1.02, yours probably too) really points to it being an issue with the board's PCB or some component mounted on the board. I'd really like to see full pics of the rev. 1.03 to see what's different..chances are I've got the parts to make the same changes myself...

Quote:

---

Originally Posted by CyberDruid

Try increasing the RAM voltage a tad and run again.

I ran 4GB in XP plenty.

---

RAM or NB voltage with 4GB...

Quote:

---

Originally Posted by ChaosMinionX

RAM or NB voltage with 4GB...

---

both ram and NB voltage should be increased with 4gb, puts more strain on the NB with more ram.

my NB is 50c Hot..


is that OK? what is the max temp i should have on the NB??
