Project: Raistlin

hi xs. i've been a silent admirer and pupil of the great builds from this forum. i registered for quite sometime but only got activated yesterday. :) so finally, i can post and share with you my first attempt at water cooling. most of the techniques i learned from the other worklogs here, so please pardon me if it seems that i have copied them off you, i will give credit to whom credit is due. :)

all comments/advice are welcome. looking forward to your expertise in my rookie attempt.

just a short intro...

i assembled my 'new generation' pc several months ago but it was such a rushed and sloppy job, that i never really got to document it and have a proper worklog. it was mainly to have my own pc and not abuse the laptop that i got from work. hehe. the rig evolved to what it is currently after being poisoned continuously (haha)... but kidding aside, i wanted a workhorse of a computer for internet, video, gaming, music and folding.

why name the rig, raistlin? naming the rig i guess is as important as the project itself. so i had to have some awesome name... when i was younger, i used to read dragonlance novels. raistlin, is a character in those series. he is a wizard that started out sickly and weak but eventually became powerful. not that i aim to have the most powerful rig, but rather because he used to belong to the red and black orders of magi, which are the basic colors that i want to use for rig. hopefully, the system would be fitting to the antihero that it derives its name.

what's up with those hardware? i have to admit, i'm not an overclocker nor a hardcore hardware nut. when i initially thought about assembling my own pc, i only wanted to use it for basic purposes as mentioned earlier. however, when i found out about folding@home, i became more interested in upgrading and making the pc better for that purpose. and since folding seemed more efficient using the gpu client, i thought it was better to have multiple gpus rather than multiple cpus (which was either having a skulltrail or multiple pcs running at the same time); that should explain the numerous gtxs in my system.

why go watercooling? having a minimally overclocked cpu and 3 gpus running can turn my case into a mini oven in a few minutes. haha. with fans blowing at my right, i think i am slowly losing my hearing. my main aim is to keep my hearing and the right side of my body from being cooked.

wtf folding!? i found out about folding@home when i was reading magazines regarding pcs when i was researching on building my pc and eventually caught on when i joined vrzone, since i am based in singapore this was the local forum with the best information about getting pc stuff locally. i guess folding eases the guilt on buying so much hardware and using up electricity (haha)... in exchange for contributing to the research on protein folding which i hope would help in finding cure for diseases. after my dad lost a brave battle against cancer last july 2008, i am more determined to do what i can to help fight this dreaded disease.

so what's up with all this blah blah? haha. nothing, just me mumbling. it's my first worklog! cut me some slack why don't ya... haha. let's get on with the project...

http://i253.photobucket.com/albums/h...esIMG_2802.jpg
what a mess! i want to speak to your cable manager, now!

system specifications:

• processor: intel core2quad extreme q9770
• motherboard: asus striker ii extreme
• memory: corsair xms3 ddr3-1333 4gb kit (2x 2gb sticks)
• graphics: xfx gtx280 tri-sli (2x vanilla version, 1x extreme version)
• os hdd: western digital velociraptor (1x 300gb)
• storage: seagate barracuda 7200.11 (1x 500gb, 1x 1000gb)
• optical: pioneer (1x bdc-502-bk, 1x dvr-213-ls)
• power: corsair hx1000
• sound: asus xonar d2x
• speakers: razer mako
• input devices: razer tarantula and razer lachesis
• display: samsung syncmaster 2253bw
• os: microsoft vista home premium sp1 (64bit)
• case: coolermaster cosmos-s

http://i253.photobucket.com/albums/h...esIMG_2786.jpg
served me well as the best aircooling available... sadly must retire

air cooling specifications:

• cpu heatsink: thermalright ultra 120 extreme black edition
• heatsink fans: zalman zm-f3-rl (2x)
• gpu cooling: stock fans
• case fans: noctua nf-p12 (4x), scythe minebea (1x), coolermaster (1x)
• temps (from everest):
• cpu@3.60ghz: 48degC (idle), 70degC (load)
• cpu@4.20ghz: 52degC (idle), 90degC (load)... could be hotter, prime would cause system to restart
• gpu1@stock: 58degC (extreme edition)
• gpu2@oc to match extreme ed: 60degC
• gpu3@oc to match extreme ed: 68degC

water cooling specifications:

• pump: swiftech 655 vario with ek d5 x-top
• radiator: feser x-changer
• cpu block: ek supreme
• gpu block: ek fc280
• reservoir: ek multioption res150 rev2
• tubings: tygon r3603 (1/2"ID, 3/4"OD)
• fittings: bitspower compression fittings (if possible... they're huge!)
• coolant: feser one cooling fluid
• fans: noctua nf-p12s

big appreciation goes to the online shops that provided most of the things for the watercooling. especially those that i have bugged forever about compatibility and measurements! haha.

• gary of sidewinder computers
• aaron of petra's tech shop
• john of viperjohn
• perfomance pcs

hopefully, this would be a successful project.
thanks for tuning in.
:)

just some blah blah...

• index
• introduction
• build pictures

hardware and watercooling parts

• hardware
• more hardware
• cpu cooling
• gpu cooling
• pumps with mod tops
• radiators
• motherboard cooling
• reservoir and other loop necessities
• tubings, fittings and other stuff

work log
chassis

• top cover: remove plastic mesh
• case work - part 1: cutting holes
• case work - part 2: mock up
• case work - part 3: blackened

gpus

• mounting the gtx 280 with ek fc280 waterblock
• completed gtx280s with ek fc280 and backplate

others

• sleeving
• replace the vipercheck cover
• redvolutionized corsair airflow
• hot swap hdd bay

parting shots of the current setup.
http://i253.photobucket.com/albums/h...esIMG_2803.jpg

http://i253.photobucket.com/albums/h...esIMG_2805.jpg

as for the next build... it's going to be the same hardware as now, except that it would be watercooled.
hopefully, my fear of putting water system inside the pc would not be realized!
haha

processor: intel core2 extreme qx9770
http://i253.photobucket.com/albums/h...esIMG_3362.jpg

motherboard: asus striker ii extreme
http://i253.photobucket.com/albums/h...esIMG_3333.jpg

graphics card: xfx gtx280 (1x extreme edition, 2x vanilla version)
http://i253.photobucket.com/albums/h...esIMG_2433.jpg

memory: corsair xms3 ddr3-1333 (2x 2gb)
http://i253.photobucket.com/albums/h...esIMG_3305.jpg

hard drives: western digital velociraptor (os) & seagate barracudas (storage)
http://i253.photobucket.com/albums/h...esIMG_3370.jpg

optical drives: pioneer bd rom and dvd writer
http://i253.photobucket.com/albums/h...esIMG_3366.jpg

power supply: corsair hx1000
http://i253.photobucket.com/albums/h...esIMG_3379.jpg

case: coolermaster cosmos-s
http://i253.photobucket.com/albums/h...esIMG_2773.jpg

now for some good pictures on the watercooling parts...
starting off with the ek supreme cpu water block
http://i253.photobucket.com/albums/h...esIMG_3040.jpg
the contents of the package

http://i253.photobucket.com/albums/h...esIMG_3047.jpg
checking out the bottom... (reminder: do razor blade test picture! haha)

http://i253.photobucket.com/albums/h...esIMG_3207.jpg
looks like a good contact with processor when mounted

http://i253.photobucket.com/albums/h...esIMG_3048.jpg
disassembled

http://i253.photobucket.com/albums/h...esIMG_3051.jpg
acetal vs acrylic top

http://i253.photobucket.com/albums/h...esIMG_3056.jpg
closeup of the ridges/fins

http://i253.photobucket.com/albums/h...esIMG_3058.jpg
performance plate up close... now that's a lot of scratches

http://i253.photobucket.com/albums/h...esIMG_3068.jpg
the supreme with acrylic top and universal mounting plate

http://i253.photobucket.com/albums/h...esIMG_3043.jpghttp://i253.photobucket.com/albums/h...esIMG_3079.jpg
the waterblock with compression fittings... which one is better??? hmmm...

i have big expectations on these guys to offload a lot of heat and noise from my current system.

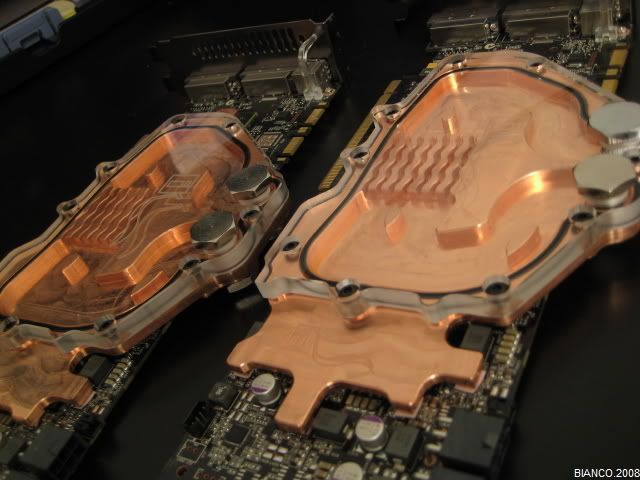

the ek fc280 gtx waterblocks

http://i253.photobucket.com/albums/h...esIMG_2737.jpg
box contents... minus the subaru... haha

http://i253.photobucket.com/albums/h...esIMG_2731.jpg
no that's not the third fc280 in the middle...

http://i253.photobucket.com/albums/h...esIMG_2732.jpg
the fc280 on the right reacting to a bad joke (poinngg)

http://i253.photobucket.com/albums/h...esIMG_2854.jpg
fins up close

http://i253.photobucket.com/albums/h...esIMG_2853.jpg
where's the acrylic top?

http://i253.photobucket.com/albums/h...esIMG_2858.jpg
whoop... there it is... :P

added (2008.08.28)
http://i253.photobucket.com/albums/h...esIMG_3257.jpg
third brother arrives.... black father?!? haha. ran out of acrylic version... oh well

http://i253.photobucket.com/albums/h...esIMG_3259.jpg
guess this would separate the GTX280 extreme version from the other 2 vanillas... haha

for cooling the rams at the back of the card
http://i253.photobucket.com/albums/h...esIMG_3261.jpg

http://i253.photobucket.com/albums/h...esIMG_3638.jpg

the 'heart' of the system
swiftech mcp655 vario with ek d5 x-top
http://i253.photobucket.com/albums/h...esIMG_3154.jpg
mirror image... sort of

http://i253.photobucket.com/albums/h...esIMG_3164.jpg
two hearts are better than one? :P

http://i253.photobucket.com/albums/h...esIMG_3082.jpg
the control knob

http://i253.photobucket.com/albums/h...esIMG_3016.jpg
box contents

http://i253.photobucket.com/albums/h...esIMG_3155.jpg
naked

http://i253.photobucket.com/albums/h...esIMG_3160.jpg
blinged... but unfortunately, the plug and compression fitting cannot fit on top side by side....

http://i253.photobucket.com/albums/h...esIMG_3022.jpg
would probably use this configuration instead

another important part of the loop.. rad!
feser x changer
http://i253.photobucket.com/albums/h...esIMG_3142.jpg
the big bro

http://i253.photobucket.com/albums/h...esIMG_3143.jpg
the little bro

http://i253.photobucket.com/albums/h...esIMG_3128.jpg
extreme close up of the fins with added lighting

http://i253.photobucket.com/albums/h...esIMG_3138.jpg
group pic... nasty crumple on the 360's box, but thankfully the rad looks ok (no surprises during leaktest please!)

http://i253.photobucket.com/albums/h...esIMG_3091.jpg
have to test with compression fittings

http://i253.photobucket.com/albums/h...esIMG_3144.jpg
box fetish

northbridge waterblock... ek nb s-max (acetal)
http://i253.photobucket.com/albums/h...esIMG_3189.jpg
box contents

http://i253.photobucket.com/albums/h...esIMG_3191.jpg
dissected

http://i253.photobucket.com/albums/h...esIMG_3192.jpg
check1... looks flat

http://i253.photobucket.com/albums/h...esIMG_3205.jpg
check2... looks flat still

http://i253.photobucket.com/albums/h...esIMG_3196.jpg
no go for compression fittings


southbridge waterblock... ek nb/sb asus-1 (acetal)
http://i253.photobucket.com/albums/h...esIMG_3198.jpg
box contents

http://i253.photobucket.com/albums/h...esIMG_3201.jpg
dissected

http://i253.photobucket.com/albums/h...esIMG_3199.jpg
check1 again

http://i253.photobucket.com/albums/h...esIMG_3204.jpg
check2 again

http://i253.photobucket.com/albums/h...esIMG_3209.jpg
no space for 2 compression fittings

ek mosfet asus 3a waterblocks
http://i253.photobucket.com/albums/h...esIMG_3521.jpg

http://i253.photobucket.com/albums/h...esIMG_3525.jpg

http://i253.photobucket.com/albums/h...esIMG_3527.jpg

http://i253.photobucket.com/albums/h...esIMG_3530.jpg

http://i253.photobucket.com/albums/h...esIMG_3531.jpg

ek sb waterblock cannot fit if 3sli (missed out that info)... have to go air on this one - the enzotech slf-1
http://i253.photobucket.com/albums/h...esIMG_3699.jpg

package contents
http://i253.photobucket.com/albums/h...esIMG_3701.jpg

flat bottom
http://i253.photobucket.com/albums/h...esIMG_3702.jpg

also got these for the chipset - microcool chip protector rubbers
http://i253.photobucket.com/albums/h...esIMG_3709.jpg

almost forgot about the reservoir...
ek multi-option res150 rev2

http://i253.photobucket.com/albums/h...esIMG_2987.jpg
box contents

http://i253.photobucket.com/albums/h...esIMG_2990.jpg
barbs attached

http://i253.photobucket.com/albums/h...esIMG_2993.jpg
finally removed the sticker protection on the anticylon

http://i253.photobucket.com/albums/h...esIMG_2996.jpg
the compression fittings don't really seat nicely on the horizontal holes, will most likely leak... have to use normal barbs

http://i253.photobucket.com/albums/h...esIMG_2999.jpg
the compression fitting fits well on the bottom hole though... hmmmm

first time i saw them... i knew i had to have them!

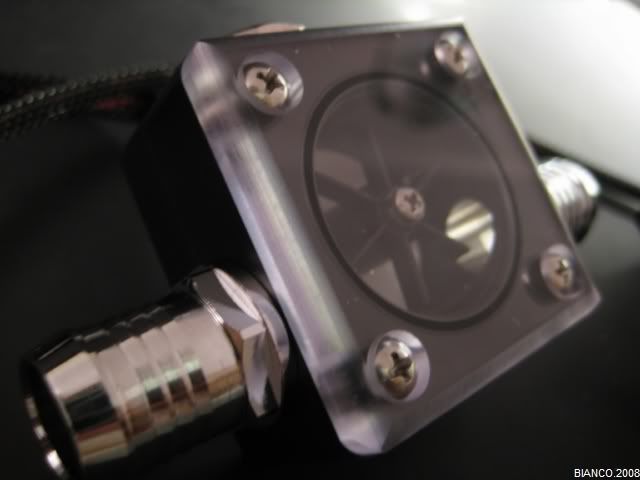

ViperJohn ViperCheck Flow Indicator (too bad the third hole cannot accomodate a bitspower temp sensor. the temp probe is too long, it would hit the fins and stop it from spinning.) yes, there are cracks on the faceplate, but ViperJohn is so generous he's sending a replacement foc (eventhough that unit was from pts).
http://i253.photobucket.com/albums/h...esIMG_3235.jpg
one for each loop

http://i253.photobucket.com/albums/h...esIMG_3238.jpg
closer look

http://i253.photobucket.com/albums/h...esIMG_3569.jpg
replaced the cracked cover

http://i253.photobucket.com/albums/h...esIMG_3252.jpg
bling on

tygon r3603 1/2"ID, 3/4"OD
http://i253.photobucket.com/albums/h...esIMG_3085.jpg
looks clear enough...

http://i253.photobucket.com/albums/h...esIMG_3083.jpg
here's looking at you...

http://i253.photobucket.com/albums/h...esIMG_3000.jpg
because i don't trust my cutting skills, i'll depend on this baby to save up on wasted tubes

http://i253.photobucket.com/albums/h...esIMG_3002.jpg
chop chop

http://i253.photobucket.com/albums/h...esIMG_3011.jpg
i will never be able to achieve this clean cut with a normal scissor or cutter

http://i253.photobucket.com/albums/h...esIMG_3152.jpg
sure do wish the temps of my system won't be as red hot as these guys

http://i253.photobucket.com/albums/h...esIMG_3150.jpg
nice spouts on these bottles, but not long enough...

http://i253.photobucket.com/albums/h...esIMG_3036.jpg
syringe to the rescue!

assorted barbs and clamps
http://i253.photobucket.com/albums/h...esIMG_3180.jpg

attack of the compression fittings
http://i253.photobucket.com/albums/h...esIMG_3538.jpg

give me a 'B'...
http://i253.photobucket.com/albums/h...esIMG_3549.jpg

dangerden fill/drain port
http://i253.photobucket.com/albums/h...esIMG_3537.jpg

assorted fittings
http://i253.photobucket.com/albums/h...esIMG_3578.jpg

nice seems to gonna be a great build!! ;)

Very nice stuff :) :)

Rich build niceee:D:D

Quote:

---

Originally Posted by dopestuff

nice seems to gonna be a great build!! ;)

---

Quote:

---

Originally Posted by BlaBla1973

Very nice stuff :) :)

---

Quote:

---

Originally Posted by RockfordFosgate

Rich build niceee:D:D

---

thank you guys!
actually, i've started the build, will be posting the pics for the work done.
:)

This thread should be deleted... no :banana::banana::banana::banana:ography allowed.. :p:

Awesome stuff!!

Sub's!! :up:

Quote:

---

Originally Posted by manyga

This thread should be deleted... no :banana::banana::banana::banana:ography allowed.. :p:

Awesome stuff!!

Sub's!! :up:

---

:shocked:
lol. my heart skipped a beat when i saw 'thread should be deleted"!

thanks manyga - i've been watching your build as well... good stuff! :clap:

i could only work on the project a little bit at a time...

the top of the cosmos s has a removable cover on top.
http://i253.photobucket.com/albums/h...esIMG_2753.jpg

but the bottom part of the cover, it has these plastic that were probably there for structural support, but it looks like they restrict some flow...
http://i253.photobucket.com/albums/h...esIMG_2752.jpg

...and they're off
http://i253.photobucket.com/albums/h...esIMG_2756.jpg

http://i253.photobucket.com/albums/h...esIMG_2761.jpg

i can feel the hot air more now coming off the top of the case
http://i253.photobucket.com/albums/h...esIMG_2961.jpg

another view
http://i253.photobucket.com/albums/h...esIMG_2965.jpg

my second time removing a reference cooler from a graphic card (first time was on a 3870).

the xfx gtx280 vanilla
http://i253.photobucket.com/albums/h...esIMG_2433.jpg

operating table
http://i253.photobucket.com/albums/h...esIMG_2822.jpg

almost naked
http://i253.photobucket.com/albums/h...esIMG_2825.jpg

stripped
http://i253.photobucket.com/albums/h...esIMG_2915.jpg

flat part removed
http://i253.photobucket.com/albums/h...esIMG_2826.jpg

fan part removed
http://i253.photobucket.com/albums/h...esIMG_2827.jpg

after cleaning - gpu side
http://i253.photobucket.com/albums/h...esIMG_2873.jpg

after cleaning - ram side
http://i253.photobucket.com/albums/h...esIMG_2877.jpg

waterblock mounted
http://i253.photobucket.com/albums/h...esIMG_2890.jpg

http://i253.photobucket.com/albums/h...esIMG_2900.jpg

another shot
http://i253.photobucket.com/albums/h...esIMG_2889.jpg

quality check being done... haha!
http://i253.photobucket.com/albums/h...esIMG_2895.jpg

Man that's a freakin overload on pictures :P Do you actually get something done or are you only shooting pictures the whole day ;)

BTW This looks like a freakin awesome build, I like the Supreme the best with the Delrin top just as the 280 blocks.

I'm also buying me a EK top for my MCP655 after seeing this sexy thing ;)

But man WHAT A GREAT THREAD :up:

Quote:

---

Originally Posted by Zw_Roodbaard

Man that's a freakin overload on pictures :P Do you actually get something done or are you only shooting pictures the whole day ;)

BTW This looks like a freakin awesome build, I like the Supreme the best with the Delrin top just as the 280 blocks.

I'm also buying me a EK top for my MCP655 after seeing this sexy thing ;)

But man WHAT A GREAT THREAD :up:

---

thanks zw.

haha. i'm sorry, i think i get a bit overzealous when looking at these silicon beauties... can't help but take pics. :P

btw, the ek d5 top doesn't fit on an un-modded undesign 3g universal pump bracket. i found out late when my orders for the mounts came in. the hazards of online shopping and laziness in research. haha.

You have put alot of effort to this?Any ideas if you copy the idea where the gtx waterblock was placed inside stockcooler around it?Cant remember what thread was it but it did look supercool when it look almost default gtx but two fittings popped out middle of nowhere.
That build must cost you alot,enough of that!MORE PICS!

Quote:

---

Originally Posted by bianco

thanks zw.

haha. i'm sorry, i think i get a bit overzealous when looking at these silicon beauties... can't help but take pics. :P

btw, the ek d5 top doesn't fit on an un-modded undesign 3g universal pump bracket. i found out late when my orders for the mounts came in. the hazards of online shopping and laziness in research. haha.

---

noo atleast i love the pics!! :up:
you know what they say... a ficture tells a thousand words :p:
pc :banana::banana::banana::banana: FTW!!

keep up the good word :clap:

Quote:

---

Originally Posted by N3it1

You have put alot of effort to this?Any ideas if you copy the idea where the gtx waterblock was placed inside stockcooler around it?Cant remember what thread was it but it did look supercool when it look almost default gtx but two fittings popped out middle of nowhere.
That build must cost you alot,enough of that!MORE PICS!

---

hi N3it1, i saw that implemented twice here in the forum, but i don't think i'll be going down that road. i think i've had enough of seeing the stock cover. haha. as for the cost, well... hopefully after this project, i wouldn't be upgrading for the next 3 years? if i don't get tempted with new tech. :p: i will definitely have more pics!... as long as no one objects to a thread flooded with pics. :D

Quote:

---

Originally Posted by dopestuff

noo atleast i love the pics!! :up:
you know what they say... a ficture tells a thousand words :p:
pc :banana::banana::banana::banana: FTW!!

keep up the good word :clap:

---

:yepp: ...although i like talking/typing in a thousand words as well. :ROTF:
will be posting more pics - continuation of the gpu-wb work
:)

thanks dopestuff.

nice start!

For a 'not a hardware enthusiast' you have some sick parts. . .

Bianco that is some serious gear you have. I love the abundance of pictures and the details you provide.

Good choice to go water cooled. It's the most fun I've had with computers yet. Keep the updates flowing. ;)

Quote:

---

Originally Posted by LogAn'sRun

nice start!

For a 'not a hardware enthusiast' you have some sick parts. . .

---

:D thanks LogAn'sRun.
i think i've caught the 'must-have-the-latest-fastest-best-part' for my pc that time but i have recovered... i hope no remission. :P

Quote:

---

Originally Posted by BlueAqua

Bianco that is some serious gear you have. I love the abundance of pictures and the details you provide.

Good choice to go water cooled. It's the most fun I've had with computers yet. Keep the updates flowing. ;)

---

wow BlueAqua! thanks, i try to keep up with the high standards that you guys have. :)
will do! :up:

2x gtx280 plain versions
http://i253.photobucket.com/albums/h...esIMG_2916.jpg

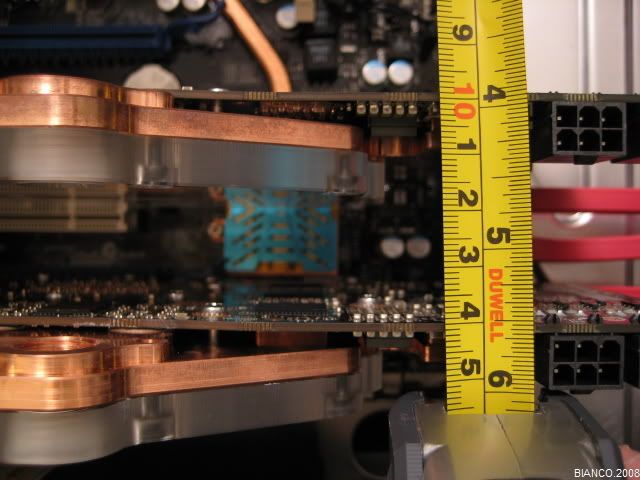

measurements being done before ordering fittings
http://i253.photobucket.com/albums/h...esIMG_2938.jpg

http://i253.photobucket.com/albums/h...esIMG_2954.jpg

some shots for fun
http://i253.photobucket.com/albums/h...esIMG_2958.jpg

http://i253.photobucket.com/albums/h...esIMG_2959.jpg

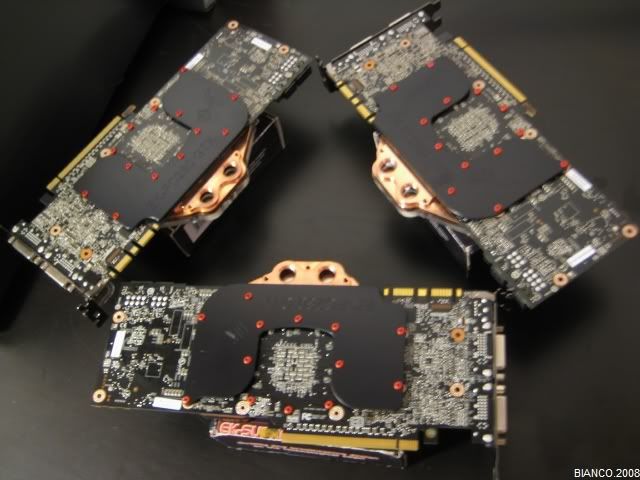

three gpus mounted on wb with ek backplates
http://i253.photobucket.com/albums/h...esIMG_3760.jpg

something to personalize the gpus
http://i253.photobucket.com/albums/h...esIMG_3764.jpg

all lined up
http://i253.photobucket.com/albums/h...esIMG_3766.jpg

close up on the redheads
http://i253.photobucket.com/albums/h...esIMG_3777.jpg

WOW - great start to this log!:yepp:

I cannot wait to see this unfold.... or should I say fold :up:

Quote:

---

Originally Posted by Dangals

WOW - great start to this log!:yepp:

I cannot wait to see this unfold.... or should I say fold :up:

---

thanks Dangals. :)
hope it turns out good like your cosmos build... :up:

yeah, i'm way behind in folding. i can't use this laptop to fold... it's slow enough as it is. haha.

Soooo do you deal drugs for a living?:P Nice nice nice stuff you got there man Real expensive. Looks great so far

Awsome hardware, yea definitely drug dealing :rofl: j/k. Can't wait it to see when its fully setup.

I'm starting to warm back up to the EK GTX280 blocks and RAM backplate. Are those Rev. 3 or Rev. 2? :shrug:

Quote:

---

Originally Posted by Detale

Soooo do you deal drugs for a living?:P Nice nice nice stuff you got there man Real expensive. Looks great so far

---

Quote:

---

Originally Posted by Pellepel

Awsome hardware, yea definitely drug dealing :rofl: j/k. Can't wait it to see when its fully setup.

---

thanks Detale and Pellepel!
haha. don't tell... we do what we have to do to fund these monsters... :D

Quote:

---

Originally Posted by skinnee

I'm starting to warm back up to the EK GTX280 blocks and RAM backplate. Are those Rev. 3 or Rev. 2? :shrug:

---

hi skinnee. honestly, i have no idea. :confused: i'm thinking the 2 acrylic ones are rev.2 while the acetal top is rev.3. just because i got the 2 sooner (2 months ago from pts) and the acetal later (late aug from swc). if you can let me know how to differentiate, i can check and let you know. /end of noob ramble...

Quote:

---

Originally Posted by bianco

thanks Detale and Pellepel!
haha. don't tell... we do what we have to do to fund these monsters... :D

---

Aint that the truth:yepp:

Congratulations, Bianco. Beautiful equipment.

Greetings to you in Singapore, where I was from, once upon a time lol :) I still get stuff (rare stuff not available here) shipped in from my brother over there.

Are you a regular on VR-Zone as well?

Quote:

---

Originally Posted by IanY

Congratulations, Bianco. Beautiful equipment.

Greetings to you in Singapore, where I was from, once upon a time lol :) I still get stuff (rare stuff not available here) shipped in from my brother over there.

Are you a regular on VR-Zone as well?

---

thanks IanY! my sentiments exactly, that's why i can't stop taking pics. haha.
greetings back. so you're from sg originally! cool.

yeah, i started off with vrz. needed to research about where to get the nice stuff since i moved here 2 years ago. :D

Great... I live in a suburb of New York City BTW.

If you have any questions about shopping in SG, give me a buzz lol My brother is such a geek that his office is actually next door to SLS hahaha


BTW, I'm so sorry about your dad. My mom in SG has late stage Alzheimer's. She started losing her memory by 39 years old, and by 42 years old, she didn't know anybody in the family. I fold as well.

Quote:

---

Originally Posted by Detale

Soooo do you deal drugs for a living?:P Nice nice nice stuff you got there man Real expensive. Looks great so far

---

Haha that's just what i was thinking. He wouldn't last long in SG though! :shocked:

bianco i'm loving the log mate. Good pics and great parts! :up:

Quote:

---

Originally Posted by IanY

Great... I live in a suburb of New York City BTW.

If you have any questions about shopping in SG, give me a buzz lol My brother is such a geek that his office is actually next door to SLS hahaha


BTW, I'm so sorry about your dad. My mom in SG has late stage Alzheimer's. She started losing her memory by 39 years old, and by 42 years old, she didn't know anybody in the family. I fold as well.

---

nice NY! what can you possibly want here that you can't get there bro?! haha. most of the wc stuff i ordered online. the price to pay... haha.

sls, the only place i go for shopping here! sure man, i'll take note of that.

thanks IanY. it's alright. my family has accepted it. he was a chain smoker since young. only quit after he got diagnosed with lung cancer 2 years ago. sorry about your mom. sad man. gotta hate these illnesses. i sure do hope folding would shed light to curing these things. at least we'd have a better fighting chance.

Quote:

---

Originally Posted by twwen2

Haha that's just what i was thinking. He wouldn't last long in SG though! :shocked:

bianco i'm loving the log mate. Good pics and great parts! :up:

---

haha. true that... sg is such a strict country. works out for those that follow law. nice feeling of security. so different from where i came from... haha.

thanks twwen2; closely watching your log as well.
:up:

Of course, Big Uncle ensured that I did my time in the infamous Hotel first!! What a drag!

{oh.. you're not originally from SG}

Now, don't make me break out my heavily stylised local lingo and infect XS with local dialect hahaha lol

Quote:

---

Originally Posted by IanY

Great... I live in a suburb of New York City BTW.

If you have any questions about shopping in SG, give me a buzz lol My brother is such a geek that his office is actually next door to SLS hahaha


BTW, I'm so sorry about your dad. My mom in SG has late stage Alzheimer's. She started losing her memory by 39 years old, and by 42 years old, she didn't know anybody in the family. I fold as well.

---

Sad sad story man my condolences, truly. On a lighter note Where in NY?? I'm in Brooklyn

i have been slaving on sleeving... :P

the atx 24pin power cable... before operation
http://i253.photobucket.com/albums/h...esIMG_3217.jpg

tools quit on me... time for staple wire power!
http://i253.photobucket.com/albums/h...esIMG_3218.jpg

effort... sweat... blood
http://i253.photobucket.com/albums/h...esIMG_3221.jpg

very worth it
http://i253.photobucket.com/albums/h...esIMG_3283.jpg

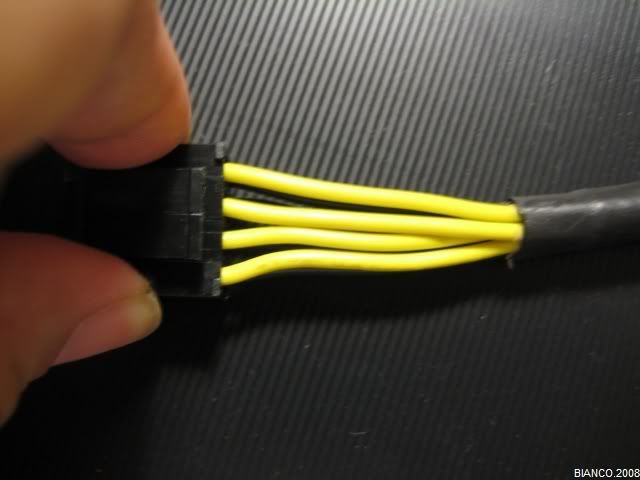

the atx 8pin power cable... before operation
http://i253.photobucket.com/albums/h...esIMG_3402.jpg

after...
http://i253.photobucket.com/albums/h...esIMG_3405.jpg

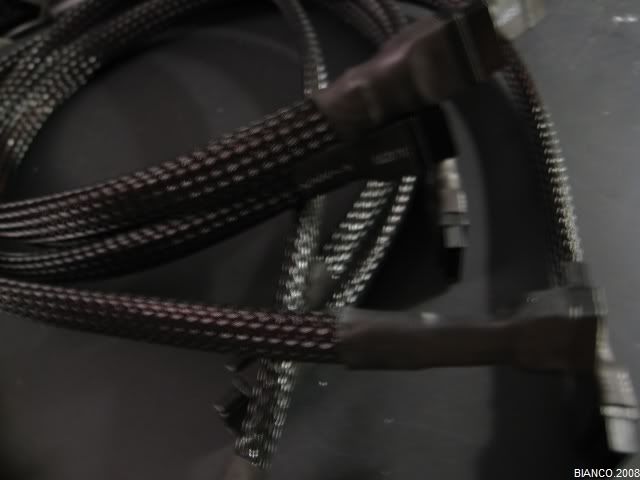

sata cables
http://i253.photobucket.com/albums/h...esIMG_3503.jpg

front panel cables
http://i253.photobucket.com/albums/h...esIMG_3500.jpg

one of my favorite sleeving job
http://i253.photobucket.com/albums/h...esIMG_3499.jpg

pci-e cables and sleeving paraphernalia
http://i253.photobucket.com/albums/h...esIMG_3745.jpg

almost done
http://i253.photobucket.com/albums/h...esIMG_3752.jpg

we want to sink our teeth into some fresh gtx280sss
http://i253.photobucket.com/albums/h...esIMG_3757.jpg

enzotech slf-1 sleeved
http://i253.photobucket.com/albums/h...esIMG_3728.jpg

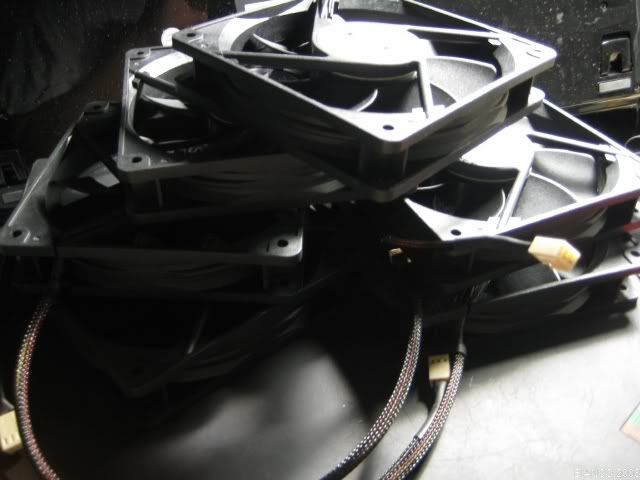

scythes sleeved
http://i253.photobucket.com/albums/h...esIMG_3847.jpg

'removed' the unsightly multicolor wires on the face of the fan
http://i253.photobucket.com/albums/h...esIMG_3844.jpg

finished product
http://i253.photobucket.com/albums/h...esIMG_3843.jpg

http://i253.photobucket.com/albums/h...esIMG_3838.jpg

all six done
http://i253.photobucket.com/albums/h...esIMG_3856.jpg

Quote:

---

Originally Posted by IanY

Of course, Big Uncle ensured that I did my time in the infamous Hotel first!! What a drag!

{oh.. you're not originally from SG}

Now, don't make me break out my heavily stylised local lingo and infect XS with local dialect hahaha lol

---

haha. rite of passage? :P
yeah, moved here cause my wife (from my) works here... and i'm from ph... we figured, sg was meeting halfway. haha.

haha. i'm getting infected with the singlish as well. and my wife just cracks hearing me being localized. :D but it's quite catchy. :up:

great job on the sleeving :up:

This is looking to be an awesome build!

You did some really great sleeving! How did you keep track of all the 24 pin mobo connector pins?

Also, those EK D5 tops are sweet! I really liked using it in my build as it took up less room and allowed for compression fitting...good stuff.

Lastly your "B" made out of compression fittings cracks me up! Talk about free advertising! I've been really pleased with compression fitting and elbows from them though...good stuff....

Can't wait to see more pics! :)

Quote:

---

Originally Posted by Dangals

great job on the sleeving :up:

---

thanks Dangals.
product of being exposed to all the sleeving work here in xs. :D

Quote:

---

Originally Posted by lmark84l

This is looking to be an awesome build!

You did some really great sleeving! How did you keep track of all the 24 pin mobo connector pins?

Also, those EK D5 tops are sweet! I really liked using it in my build as it took up less room and allowed for compression fitting...good stuff.

Lastly your "B" made out of compression fittings cracks me up! Talk about free advertising! I've been really pleased with compression fitting and elbows from them though...good stuff....

Can't wait to see more pics! :)

---

hi Mark! thanks man.

i usually take a picture of the pins before i take them out of the molex. then i'd just view them again to make sure i put it back correctly.

yeah, that's the main reason why i got the ek d5 top... to put compression fittings on them. but i can only use comp fitting on the intake.good enough though. :D

haha. bitspower power. :D good thing it's the same letter of my nickname. else i'd be a full-pledged fanboy. but hey, gotta love their stuff and that dragon logo is cool!

And it's getting better each time you post more pics :P

Glad that you sad that the EK top doesn't fit the UN Design bracket, i've got the bracket for my MCP655. It isn't a big deal because we are modders because we want to mod everything ;)

Great job on the sleeving :) With kinda sleeving are you using? The MDPC stuff of something else? I'm sleeving my SATA cables to but I don't have the right size for the shrinktube.

thanks Zw_Roodbaard!
haha. touche! unfortunately, noob jitters - i didn't want to ruin the un design bracket nor the ek d5 top. so i just went another way instead in mounting the pumps.
for the sleeves, i used the techflex from ppc. i only got to know about the mdpc stuff after i have the techflexes with me. for the sata cables, i used the 3/8" sleeves and the 18mm heatshrinks (only because i didn't get the plugs off... :P)

Damn nice sleeving job, looks amazing.

Awsome stuff and great build log.....:up:

Quote:

---

Originally Posted by BlueAqua

Damn nice sleeving job, looks amazing.

---

thanks BlueAqua. i think i'm addicted to sleeving! :yepp:

Quote:

---

Originally Posted by trfnj74

Awsome stuff and great build log.....:up:

---

thanks trfnj74.
:rofl: at your avatar, quite funny!...
which reminds me... i'm a blank. haha.

when i ordered the vipercheck online, one of them had cracks around the screws for the cover.
http://i253.photobucket.com/albums/h...esIMG_3556.jpg

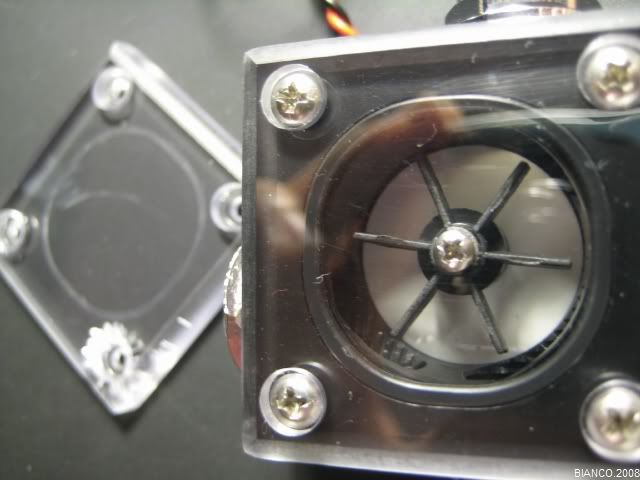

ViperJohn was nice enough to send a replacement cover
http://i253.photobucket.com/albums/h...esIMG_3552.jpg

after a few minutes, replaced and good as new
http://i253.photobucket.com/albums/h...esIMG_3563.jpg

sleeved and good lookin'
http://i253.photobucket.com/albums/h...esIMG_3571.jpg

paired up and ready to go
http://i253.photobucket.com/albums/h...esIMG_3569.jpg

thanks again to John!

Its gonna be a sweeet build!

Quote:

---

Originally Posted by Cralle!

Its gonna be a sweeet build!

---

thanks, i sure do hope so Cralle!
:D

Hmm when I see those ViperJohn ViperCheck Flow Indicators I'm thinking of buying me one :D These look really sharp with the red LED.

Thanks for the answer about the sleeving, I will have a look at PPC.

Quote:

---

Originally Posted by Zw_Roodbaard

Hmm when I see those ViperJohn ViperCheck Flow Indicators I'm thinking of buying me one :D These look really sharp with the red LED.

Thanks for the answer about the sleeving, I will have a look at PPC.

---

haha. exactly what i was thinking when i saw them on pts. :D
no problem man. btw, i was told that techflex can be cheaper at cableorganizer and they have other types of sleeving as well. :up:

One of the corners? They all looked pretty cracked to me.

Nice job on the sleeving. Man that must have taken so much patience.

bianco,

And you say that you're not an expert, and that computer building isn't really your hobby....

You have skills I wouldn't dream of having. Kudos.

Quote:

---

Originally Posted by PrometheusCon

One of the corners? They all looked pretty cracked to me.

Nice job on the sleeving. Man that must have taken so much patience.

---

just the holes on the cover around the screws. :)
thanks PrometheusCon. yeah, lots and lots of patience.

Quote:

---

Originally Posted by IanY

bianco,

And you say that you're not an expert, and that computer building isn't really your hobby....

You have skills I wouldn't dream of having. Kudos.

---

hi IanY! aw that's one of the best compliments i've received! thanks man. :up:

but really, i'm a supernoob and this is the first time i've done this sort of thing. i think my rookie skills will show as the build moves on. haha. i won't stop you from taking back the praises. :D haha.

something i picked up from the masters here in xs...

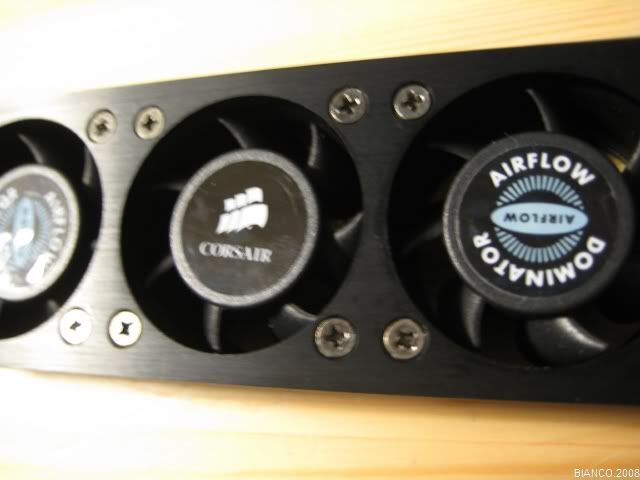

taking the normal corsair dominator airflow ram fans
http://i253.photobucket.com/albums/h...esIMG_3600.jpg

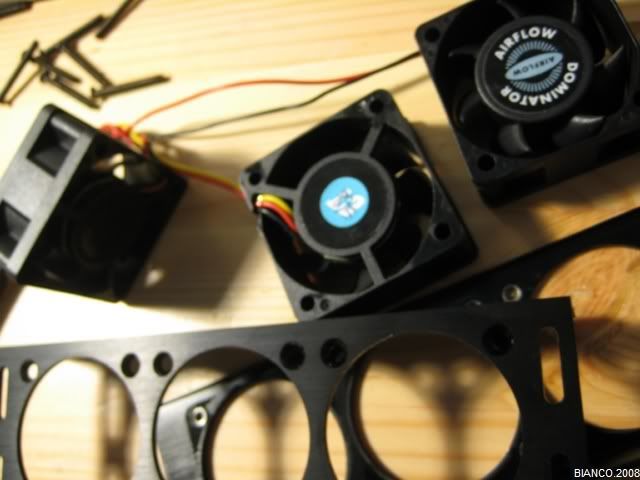

disassembled
http://i253.photobucket.com/albums/h...esIMG_3607.jpg

new fans
http://i253.photobucket.com/albums/h...esIMG_3585.jpg

fans installed

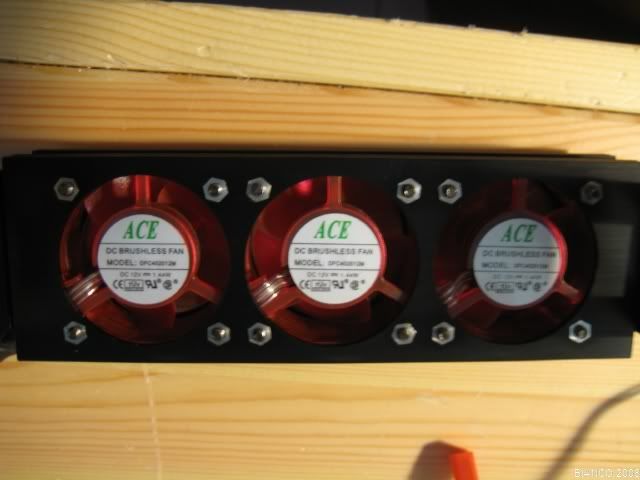

http://i253.photobucket.com/albums/h...esIMG_3616.jpg

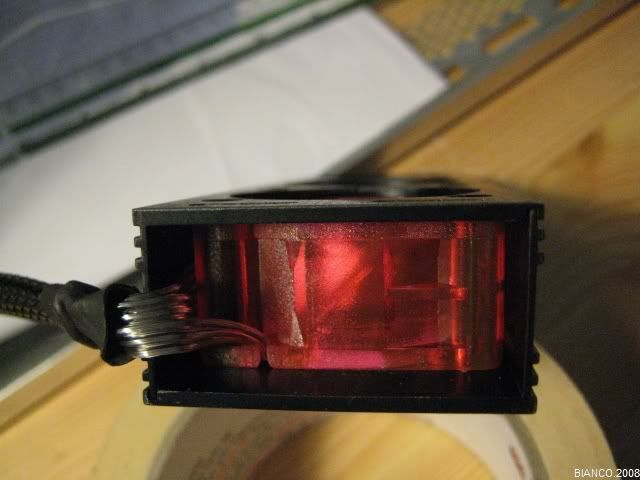

side with cables
http://i253.photobucket.com/albums/h...esIMG_3628.jpg

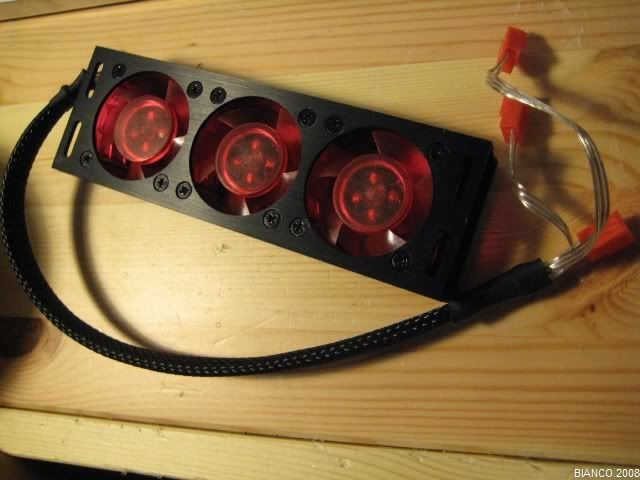

top with the unsoldered cables
http://i253.photobucket.com/albums/h...esIMG_3629.jpg

screws re-painted black
http://i253.photobucket.com/albums/h...esIMG_3614.jpg

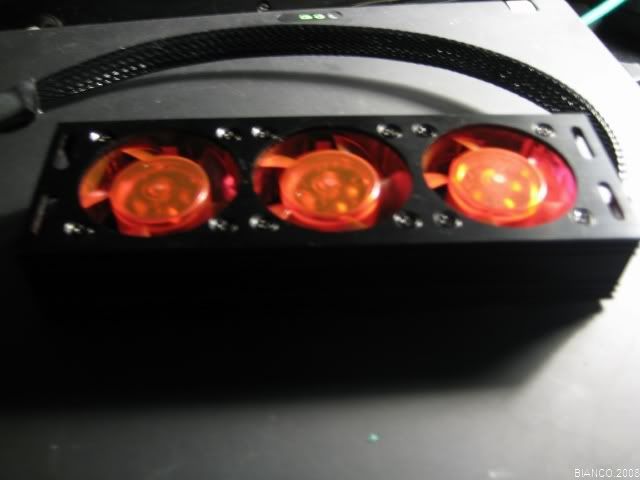

finished product(?)
http://i253.photobucket.com/albums/h...esIMG_3610.jpg

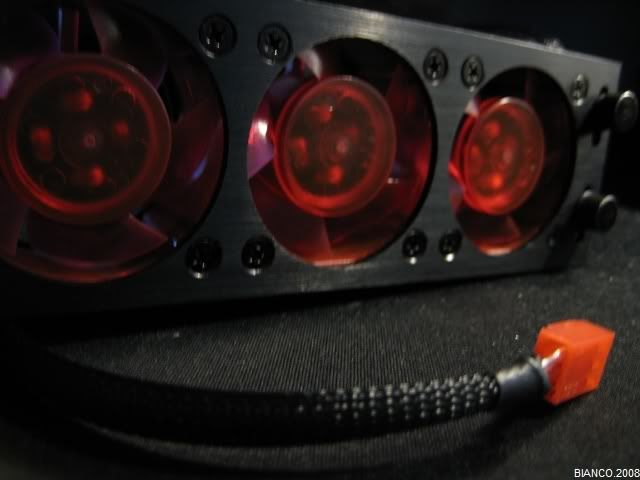

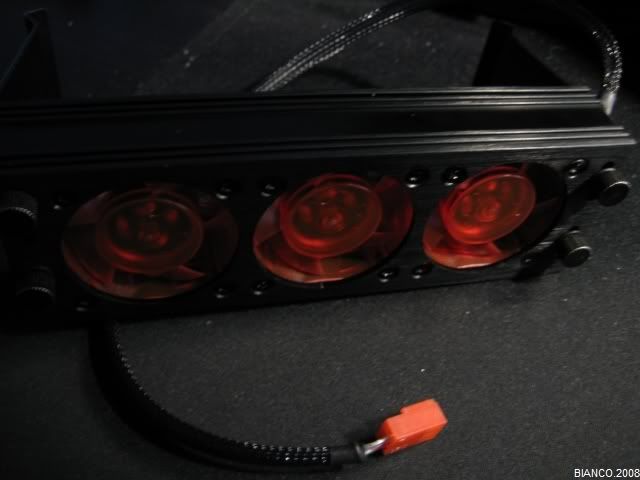

since i acquired a soldering iron lately... now single cable for all fans
http://i253.photobucket.com/albums/h...esIMG_4073.jpg

http://i253.photobucket.com/albums/h...esIMG_4071.jpg

Nice, i knew id seen that colour combo before!

I'm liking this to bits bianco, keep it up mate! :up:

Quote:

---

Originally Posted by twwen2

Nice, i knew id seen that colour combo before!

I'm liking this to bits bianco, keep it up mate! :up:

---

haha. yeah xs original. just borrowing ideas. :)
i wasn't really planning on having ram coolers. i only used the dominator airflow for about a week.. then ditched them because it was interfering with the true120black that i relied on before the project. but when i saw this mod on xs... mod ramcoolers - added to the to-do-list! haha.. :D

bianco,

So.. really... expecting a child next month... and simultaneously building a computer...

First of all, the drug market in SG must really be flourishing.. great demand eh? Gotta do what we gotta do to fund the computer abyss :)

Second, you're going to finish building the computer and then let it fold, correct? Because the next time you are going to see your computer is six months later lol I went through the baby thing four times, so I know you wouldn't be using the machine lol

Quote:

---

Originally Posted by IanY

bianco,

So.. really... expecting a child next month... and simultaneously building a computer...

First of all, the drug market in SG must really be flourishing.. great demand eh? Gotta do what we gotta do to fund the computer abyss :)

Second, you're going to finish building the computer and then let it fold, correct? Because the next time you are going to see your computer is six months later lol I went through the baby thing four times, so I know you wouldn't be using the machine lol

---

hi Ian!

yup, second child and first son. :D heir to the cartel. haha. continue the family business. :rofl:

i'm hoping i can finish the build before my bday next week. but i don't think it's possible (especially with the f1 coming!)... so now my aim is to have it finished before my wife gives birth! haha. sooner would be better so i can refresh on my newborn-diaper-changing skills! :P

that's right! let this machine fold! make up for the lost time. haha. wow 4 times! quite productive! :up: gratz man. hhaha. i think i'll stop at 2, already a complete set anyways. :D

Quote:

---

Originally Posted by Detale

Soooo do you deal drugs for a living?

---

:rofl::ROTF:

Bionco awesome choice in components...Have fun building this one :up:

So bianco,

For a self-professed non-geek with supposedly no computer skills.....

You appear a real geek.. because its past midnight over there on a weeknight :) So you must have the same addiction that we have :)

Half the battle is admitting the addiction lol :rofl:

Quote:

---

Originally Posted by mpower1001

:rofl::ROTF:

Bionco awesome choice in components...Have fun building this one :up:

---

thanks mpower1001.
lots of fun... and figuring out how to put all these components in the case nicely. haha. :D

Quote:

---

Originally Posted by IanY

So bianco,

For a self-professed non-geek with supposedly no computer skills.....

You appear a real geek.. because its past midnight over there on a weeknight :) So you must have the same addiction that we have :)

Half the battle is admitting the addiction lol :rofl:

---

haha.

hi i'm bianco. i am a computer geek (although only some expertise in excel/vba to show for)... haha. i admit i'm spend more time online. :D anyways, this is the perfect 'me' time. my wife and daughter sleeping comfortably... just me and my rig... i mean laptop. *sigh* gotta finish that rig soon. :P

Quote:

---

Originally Posted by bianco

something i picked up from the masters here in xs...

taking the normal corsair dominator airflow ram fans.....

---

Damn I missed that one. I have a dominator laying around myself. Damn now it's on my to do list too. Hey man what fans did you use there in the snappy red?

Quote:

---

Originally Posted by bianco

yup, second child and first son. :D heir to the cartel. haha. continue the family business. :rofl:

i'm hoping i can finish the build before my bday next week. but i don't think it's possible (especially with the f1 coming!)... so now my aim is to have it finished before my wife gives birth! haha. sooner would be better so i can refresh on my newborn-diaper-changing skills! :P

that's right! let this machine fold! make up for the lost time. haha. wow 4 times! quite productive! :up: gratz man. hhaha. i think i'll stop at 2, already a complete set anyways. :D

---

HEY man congrats indeed I had my 3rd little one 3 months ago. Don't worry you can always sleeve while she is in labor, just be sure to put the tools in the "go" bag along with her labor stuff :) Another thought when the doctor says " Sir would you like to cut the cord?" you can tell em you're ready http://i253.photobucket.com/albums/h...esIMG_3002.jpgShe may not find that very funny though.

Quote:

---

Originally Posted by IanY

So bianco,

For a self-professed non-geek with supposedly no computer skills.....

You appear a real geek.. because its past midnight over there on a weeknight :) So you must have the same addiction that we have :)

Half the battle is admitting the addiction lol :rofl:

---

:welcome:Welcome to the club :welcome:


Also man you should look into becoming EK's photographer. The pics look awesome and very pro. Keep em coming man.

"Hey.. where are you going?"

"Honey... I'll just sit outside in the waiting area.. all you need to do is breathe and push... you've done it before, so it can't be that big a deal... yuou understand.. I have "important" stuff to do" {like solder fan wires} :D



"Sir, would you like to hold your new son?"

"Hang on a second.. I have to shut off the heat gun.. just this last heat shrink to go.. otherwise the sleeving may fray.." :D

Quote:

---

Originally Posted by Detale

Damn I missed that one. I have a dominator laying around myself. Damn now it's on my to do list too. Hey man what fans did you use there in the snappy red?

HEY man congrats indeed I had my 3rd little one 3 months ago. Don't worry you can always sleeve while she is in labor, just be sure to put the tools in the "go" bag along with her labor stuff :) Another thought when the doctor says " Sir would you like to cut the cord?" you can tell em you're ready http://i253.photobucket.com/albums/h...esIMG_3002.jpgShe may not find that very funny though.

:welcome:Welcome to the club :welcome:

Also man you should look into becoming EK's photographer. The pics look awesome and very pro. Keep em coming man.

---

hi Detale! those are uv ace fans i got from ppc. i have to warn you though, at full rpm these guys are loud! but with undervolting/fan controller you can find the sweet spot for noise-perf ratio.

haha. i will never look at the tube cutter the same way again. :D

thanks man. i hope they do consider... haha... i don't mind receiving those wonderful blocks (especially if i get to keep them). :P

Quote:

---

Originally Posted by IanY

"Hey.. where are you going?"

"Honey... I'll just sit outside in the waiting area.. all you need to do is breathe and push... you've done it before, so it can't be that big a deal... yuou understand.. I have "important" stuff to do" {like solder fan wires} :D

"Sir, would you like to hold your new son?"

"Hang on a second.. I have to shut off the heat gun.. just this last heat shrink to go.. otherwise the sleeving may fray.." :D

---

haha! i think my wife will just jump out of bed and start strangling me with those sleeved cables... even if she's under anesthetics. :shock:

Quote:

---

Originally Posted by bianco

haha! i think my wife will just jump out of bed and start strangling me with those sleeved cables... even if she's under anesthetics. :shock:

---

sounds like a definite possibility :rofl:

finally got to work on this idea that i have been toying in my head... hope it works:

take a bitspower temperature sensor fitting
http://i253.photobucket.com/albums/h...esIMG_3873.jpg

and a temperature sensor with an lcd readout
http://i253.photobucket.com/albums/h...esIMG_3870.jpg

finally, an asus temperature sensor (for onboard mobo temp meters)
http://i253.photobucket.com/albums/h...esIMG_3871.jpg

a bit of soldering
http://i253.photobucket.com/albums/h...esIMG_3857.jpg

finished product
http://i253.photobucket.com/albums/h...esIMG_3869.jpg

http://i253.photobucket.com/albums/h...esIMG_3868.jpg


hopefully, when i put the bitspower temp sensor with the loop - i can see the temp reading in 3 display output:
(1) lcd readout - which i can see from the side panel,
(2) mobo/everest/asus software - from monitor
(3) *optional 5.25 bay device - from the front

yes, i would like to be constantly consoled that all the hardwork i put in wc'ing is so much worth the temp gains... or rather loss. :D

Quote:

---

Originally Posted by cobra_kai

sounds like a definite possibility :rofl:

---

haha. :yepp:
*hides own 'delivery bag' full of pc mod paraphernalia*

DUDE!! I was in the middle of doing the same thig the other night!! Have you tested it yet? I haven't finished mine. Kids=much less time with the toys :(

Quote:

---

Originally Posted by Detale

DUDE!! I was in the middle of doing the same thig the other night!! Have you tested it yet? I haven't finished mine. Kids=much less time with the toys :(

---

haha. but it's a great idea right? bombard yourself with temp readings!

not yet, would test first thing when i have assembled the loop. right now in the thick of case mods. :D...metalwork (my weakness!). i'll let you know how it goes, but you do let me know as well if you get it in your loop earlier.

haha. so true. that's why i stay up late up to early mornings just to do my stuff. end up sleepy during workhours.

had to rush finalizing the case, especially the painting

1, my wife will be starting to work from home and the paint fumes would be bad
2, it hasn't been raining lately here, must take advantage of the sun!
3, i have to finish the build before my bday next week! :ROTF:

i know i'd be breaking the standards of xs with a crappy case prep, but a rookie is entitled to mistakes, yes? anyways, i think there won't be anyone more disappointed than myself... *sigh*

anyways, here it goes...

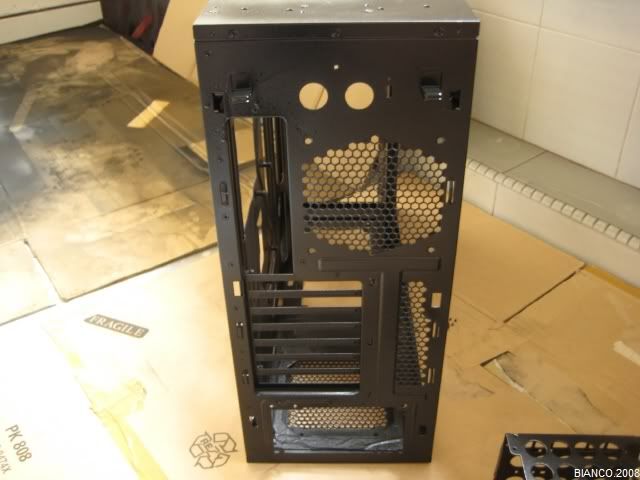

disassembled case, with markings for where the mobo was, masked and drew where i plan to cut holes for added ventilation/access on the back of the mobo
http://i253.photobucket.com/albums/h...esIMG_3491.jpg

cut... more like nibbled by the nibbling tool. whoa! lion was hiding behind all along!
http://i253.photobucket.com/albums/h...esIMG_3645.jpg

after some mock-ups, i realized that the wires from psu can't be hidden under the mobo, clearance provided by the raisers weren't enough. so i nibbled another hole for wire management
http://i253.photobucket.com/albums/h...esIMG_3813.jpg

the strip with drill holes beside it, are for the res
http://i253.photobucket.com/albums/h...esIMG_3831.jpg

removed the mesh on top for the 360 rad
http://i253.photobucket.com/albums/h...esIMG_3829.jpg

nibbled the bottom to have hole for the 240 rad
http://i253.photobucket.com/albums/h...esIMG_3644.jpg

before i started priming the case, i did a quick mock up on how the components would be mounted. to make sure i would have less cuttings to do after painting.
http://i253.photobucket.com/albums/h...esIMG_3927.jpg

the top rad with 3 scythes for pulling the air out
http://i253.photobucket.com/albums/h...esIMG_3935.jpg

saw that i to adjust/file the 2 screw holes for the fan near the back of the case
http://i253.photobucket.com/albums/h...esIMG_3884.jpg

checking the clearance, if ever i decide to go push-pull config for the top rad
http://i253.photobucket.com/albums/h...esIMG_3879.jpg

the bottom rad with no fans!?
http://i253.photobucket.com/albums/h...esIMG_3928.jpg

there they are... :D at the bottom of the case configured to push air into the case.
was actually thinking of pull config, but i think i'd be scolded and lectured on the physics of air...
http://i253.photobucket.com/albums/h...esIMG_3904.jpg

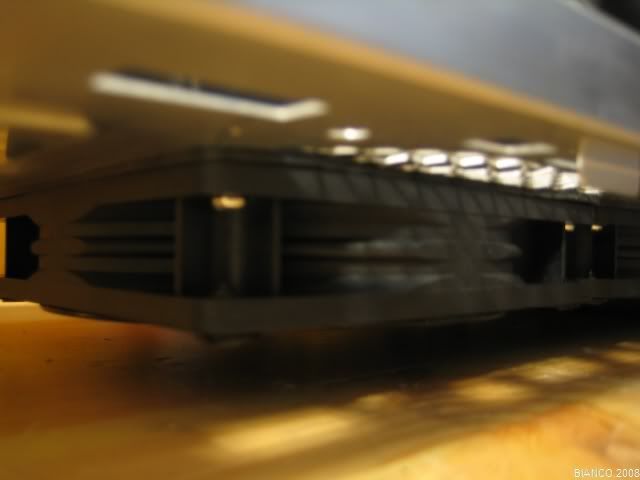

another view at the bottom with 2 scythes. initially thought of putting the zalman zmf3 rls there for the bling effect,
but i decided go with function rather than form especially if the pumps are close to the rad
http://i253.photobucket.com/albums/h...esIMG_3887.jpg

mobo tray view
http://i253.photobucket.com/albums/h...esIMG_4098.jpg

back view
http://i253.photobucket.com/albums/h...esIMG_4089.jpg

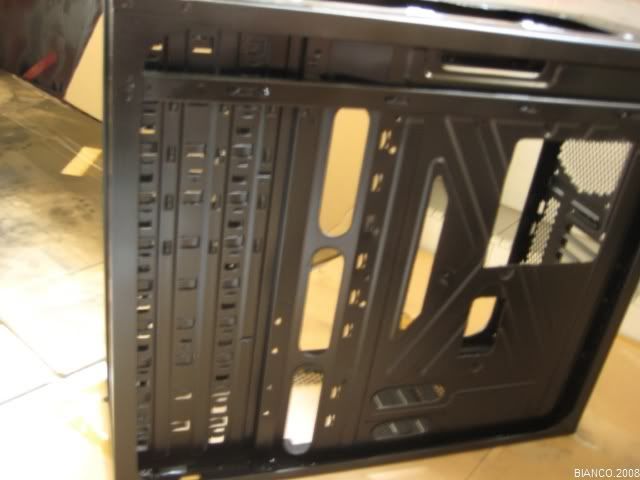

painted black
http://i253.photobucket.com/albums/h...esIMG_4127.jpg

http://i253.photobucket.com/albums/h...esIMG_4115.jpg

http://i253.photobucket.com/albums/h...esIMG_4145.jpg

http://i253.photobucket.com/albums/h...esIMG_4134.jpg

uneven on the top front part, thankfully it would be covered by the cosmos console :p:
http://i253.photobucket.com/albums/h...esIMG_4146.jpg

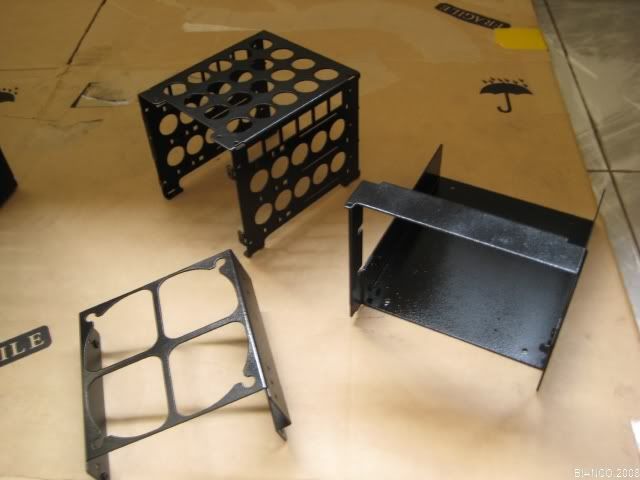

extras: hd drive bay parts
http://i253.photobucket.com/albums/h...esIMG_4125.jpg

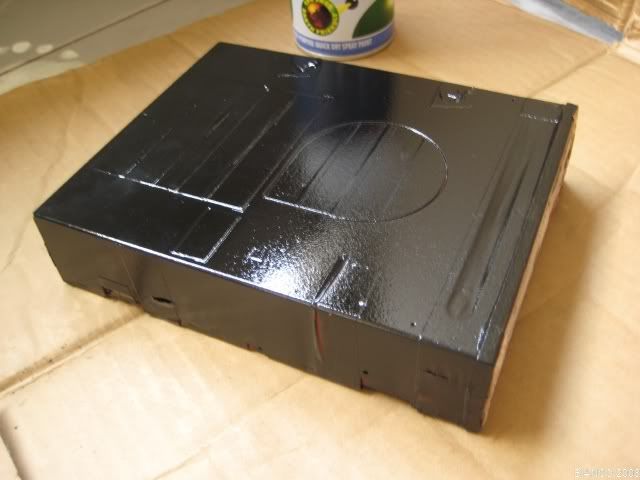

the bdrom drive... hope it still works after this.. :rofl:
http://i253.photobucket.com/albums/h...esIMG_4126.jpg

whoa... this is an amazing build bianco. Cant wait to see the final result. Great workmanship!

Quote:

---

Originally Posted by sniperbob

whoa... this is an amazing build bianco. Cant wait to see the final result. Great workmanship!

---

thanks sniperbob. that means a lot... for a noob like me. hahah.
your build is turning out well also.
i was just looking at your paint job, wanted that matte finish...

shoulda invested in some FLAT black... Haha

what brand primer and paint is that?

Quote:

---

Originally Posted by sniperbob

shoulda invested in some FLAT black... Haha

---

haha. yeah, been looking for flat/matte black all over... but there seems to be shortage of stock of black paint in my area! all i could find was plain black and this one... stone creations black granite...
http://www.unifireusa.com/dealers/pr.../35803030c.jpg
haha

Quote:

---

Originally Posted by Kibbler

what brand primer and paint is that?

---

hi Kibbler! they're both nippon pylox. i also sprayed a layer of clear coat just to "seal", which is also nippon pylox.

Hi, Bianco

excellent setup by the way where did got your materials for wire sleeving ,what type or brand and sizes , I hope you can help me cause I'm planning to mod my desktop next month so I'm planning everything

:up:

Quote:

---

Originally Posted by rdjromy

Hi, Bianco

excellent setup by the way where did got your materials for wire sleeving ,what type or brand and sizes , I hope you can help me cause I'm planning to mod my desktop next month so I'm planning everything

:up:

---

thanks rdjromy
all the sleeves i got from ppc. they're the techflex pet brand.
1/8" for the single wires (ie atx cables, pcie cables)
1/4" for the fan wires (or anything that's too fat to fit in the 1/8")
3/8" for the sata cables

good luck and have fun modding! :)... and of course, share your masterpiece here in xs. :D

was hoping to get your opinion guys...

if i do a push-pull config on both of the rads - that would mean 10 fans (scythe sflex g's)
what would be a good alternative to control these 10 fans? considering i already have 1 nzxt fan controller with 5 headers...

a, 1 fan controller channel per fan?
b, solder/daisy chain the fans into groups and put in 1 fan controller channel per group? how many fans per channel?

thanks for the help.

some new additions to the project.

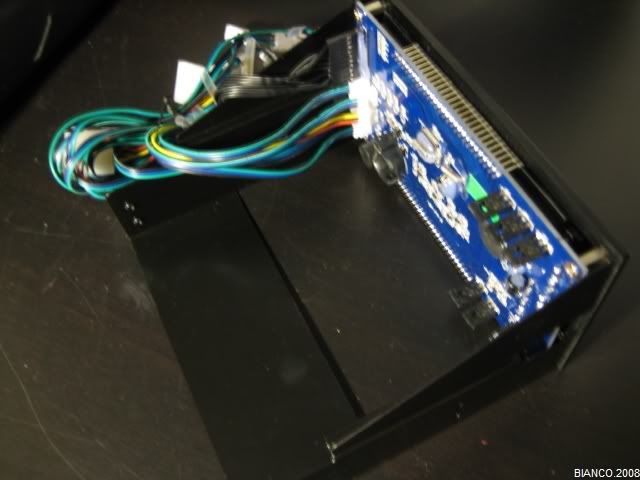

nzxt sentry lx fan controller
http://i253.photobucket.com/albums/h...esIMG_4199.jpg

http://i253.photobucket.com/albums/h...esIMG_4201.jpg

http://i253.photobucket.com/albums/h...IMG_4206-1.jpg


western digital velociraptor
http://i253.photobucket.com/albums/h...esIMG_4281.jpg

i like the first version better... but i had to have this - the normal sata port placement... so my old 300gb one, boxed and retired
http://i253.photobucket.com/albums/h...esIMG_4285.jpg


creative titanium x-fi
had to forgo with the asus d2x because it's too long, hits the nb wb
http://i253.photobucket.com/albums/h...esIMG_4291.jpg

http://i253.photobucket.com/albums/h...esIMG_4293.jpg

the lili expansion hdd kit
http://i253.photobucket.com/albums/h...esIMG_2979.jpg

with hotswap sata ports
http://i253.photobucket.com/albums/h...esIMG_2983.jpg

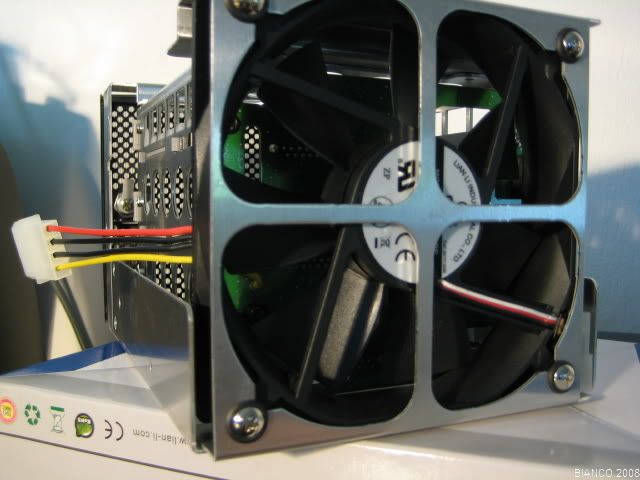

and nice 120mm cooling fan
http://i253.photobucket.com/albums/h...esIMG_2984.jpg

disassembled and primed
http://i253.photobucket.com/albums/h...esIMG_4102.jpg

painted
http://i253.photobucket.com/albums/h...esIMG_4125.jpg

re-assembled using quickly drawn blueprint... :p:
http://i253.photobucket.com/albums/h...esIMG_4154.jpg

pcb... must... sleeve...
http://i253.photobucket.com/albums/h...esIMG_4157.jpg

http://i253.photobucket.com/albums/h...esIMG_4173.jpg

fan changed to scythe sflex, added optional mounts for res
http://i253.photobucket.com/albums/h...esIMG_4171.jpg

done
http://i253.photobucket.com/albums/h...esIMG_4163.jpg

Nice work bianco :)

I see you've got the NZXT Sentry LX, I wonder if you can change the colours on the screen to red or another colour.

nice update! how do u like that fan controller? i was considering getting something of the sort...
