Thanks for the reply.... I figure there was some vdroop to a certain degree. I got a q9550 sent to me in canada im trying to push the extra mile.. my M2F will post only up to 485 then after that I have to mess with GTL's and Shew and still 500fsb is very unstable for a prime run. thinking about getting one of these to too up my overclock.Quote:
Originally Posted by In-Fluence
i have a theory, this problem that only happens while or soon after loading tf2 maps has only started recently, only change i can think of during that time is 50ps mch skew. for comparison 490fsb with 50ps mch skew is more stable than 468fsb 0ps mch skew. of course neither of those 2 settings are orthos stable. perhaps 50ps mch skew is a double edged sword, gets me an extra 25fsb but causes problems loading large maps? or should i be looking elsewhere for a fix to my tf2 problem? most common symptom is a crash to desktop with memory cannot be read error or sometimes hl2.exe needed to close.
But if its not orthos stable isnt it then, by definition, liable to cause errors at any time? i.e unstable and imho not reliably capable of performing daily functions such as loading tf2 maps? I would just stick with highest stable settings so i could enjoy my pc error free.Quote:
Originally Posted by RAMMAN
490fsb @ 50ps and 468fsb @0ps are just examples to show just how much mch skew affects stability, i never actually use those settings. as i mentioned before 480fsb passed 1 and a half hours orthos blend before i stopped it, it has also run crysis and all the other orange box games for hours non-stop no problem at 480fsb.
Hey guys - trying to gain that last little bit of stability on my setup....the settings i have now can intel burn test, and ran prime blend for almost 10hrs before i got an error. So i am close but not 100% yet. Any suggestions would be really helpful!!
http://i50.tinypic.com/oqfuhz.jpg
full bios settings:
MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster ...............: Auto
CPU Clock Ratio .......................: 8
Fine CPU Clock Ratio...................: 0.0
CPU Frequency .........................: 4.0GHz (500X8)
Clock Chip Control
Standard Clock Control
CPU Host Clock Control.................: [Enabled]
CPU Host Frequency (Mhz) ..............: 500
PCI Express Frequency (Mhz) ...........: 101
C.I.A.2 ...............................: [Disabled]
Advanced Clock Control [Press Enter]
CPU Clock Drive........................: 800mV
PCI Express Clock Drive................: 900mV
CPU Clock Skew (ps)....................: 0ps
MCH Clock Skew (ps)....................: 0ps
DRAM Performance Control
Performance Enhance....................: [Turbo]
Extreme Memory Profile (X.M.P.)........: [Disabled]
(G)MCH Frequency Latch.................: [AUTO]
System Memory Multiplier ..............: [2.00d]
Memory Frequency (Mhz) ................: 1066
DRAM Timing Selectable ................: [Manual]
Standard Timing Control
CAS Latency Time.......................: 5
tRCD ..................................: 5
tRP'...................................: 5
tRAS...................................: 12
Advanced Timing Control
tRRD...................................: Auto
tWTR...................................: Auto
tWR....................................: Auto
tRFC...................................: Auto
tRTP...................................: Auto
Command Rate (CMD) ....................: 2
Driving Strength Profiles
Driving Strength ......................: 1066
Channel A
Static tRead Value.....................: 9
tRD Phase0 Adjustment..................: [AUTO]
tRD Phase1 Adjustment..................: [AUTO]
tRD Phase2 Adjustment .................: [AUTO]
tRD Phase3 Adjustment..................: [AUTO]
Trd2rd(Different Rank).................: [AUTO]
Twr2wr(Different Rank).................: [AUTO]
Twr2rd(Different Rank).................: [AUTO]
Trd2wr(Same/Diff Rank).................: [AUTO]
Dimm1 Clock Skew Control...............: [AUTO]
Dimm2 Clock Skew Control...............: [AUTO]
DDR Write Training.....................: [AUTO]
Channel B
Static tRead Value.....................: 9
tRD Phase0 Adjustment..................: [AUTO]
tRD Phase1 Adjustment..................: [AUTO]
tRD Phase2 Adjustment .................: [AUTO]
tRD Phase3 Adjustment..................: [AUTO]
Trd2rd(Different Rank).................: [AUTO]
Twr2wr(Different Rank).................: [AUTO]
Twr2rd(Different Rank).................: [AUTO]
Trd2wr(Same/Diff Rank).................: [AUTO]
Dimm1 Clock Skew Control...............: [AUTO]
Dimm2 Clock Skew Control...............: [AUTO]
DDR Write Training.....................: [AUTO]
Motherboard Voltage Control
CPU
Load-Line Calibration..................: [Enabled]
CPU Vcore..............................: 1.28750v
CPU Termination........................: 1.24V
CPU PLL................................: 1.570V
CPU Reference..........................: [0.770]
MCH/ICH
MCH Core...............................: 1.28V
MCH Reference..........................: [0.745v]
MCH/DRAM Ref...........................: [AUTO]
ICH I/O................................: 1.570V
ICH Core...............................: 1.200V
DRAM
DRAM Voltage...........................: 2.1v
DRAM Termination ......................: [AUTO]
Channel A Reference....................: [AUTO]
Channel B Reference ...................: [AUTO]
Advanced Settings
Limit CPUID Max. to 3..................: [Disabled]
No-Execute Memory Protect..............: [Enabled]
CPU Enhanced Halt (C1E)................: [Disabled]
C2/C2E State Support...................: [Disabled]
x C4/C4E State Support.................: [Disabled]
CPU Thermal Monitor 2(TM2) ............: [Enabled]
CPU EIST Function......................: [Disabled]
Virtualization Technology..............: [Disabled]
Integrated Peripherals
Legacy USB Storage Detect .............:[Disabled]
Try more CPU term.
Thats what i dont understand - ive read the gtl ref stuff and I am still confused on how to set it up properly. If i up my cpu term then my cpu ref and mch ref should be changed as well...?
Quote:
Originally Posted by arctic-k20
You will probably have to re-dial in the MCH Ref yes.. Atleast when ever I touched my CPU Term and Ref I always had to kind of bounce around the MCH ref a little again to get it happy with the change... Here is a cheat sheet thanks to radaja, that helped me when I was first really messing with my setup.
Quote:
Originally Posted by radaja
Hello, I'm at 467 x 9 with a Q9650, 4x2gb g.skill trident PC2-9600, UD3P rev 1.1 ...
everything on normal except mch core to 1.32 V, 1.26 V FSB on ...
I sudden reboots ... no blue screen, I did the RAM test from bios and win (400% in the past 4 memtest from 800) with no problems everything is OK, stress with prime95 blend for 2 hours without a problem ... all'iprovviso no stress and nothing else then restarts ... !
but how can ... ?? you say? What can be ... Now I put everything to default and see if I have the same problems ... acnhe may be a software problem??
thanks
Sounds like you have not stressed long enough. Run small ftt's for 12 hours, if it fails, it's most likely vcore or Term. Run blend for 12 hours, if it fails, it's most likely MCH or ram.Quote:
Originally Posted by Raffaele2521
tell me what is the best bios for UD3P .... ?Quote:
Originally Posted by NoGuru
Can anny one tell me what the voltage must be now if i have 1.32 VTT :PQuote:
Originally Posted by radaja
i dont have a ud3p but this might come handy.. and what is the max vtt i can use for 24/7 use?
Quote:
Originally Posted by MrDucky
So your going to look at the row that says, 1.32 and hit the middle value for that row.
vtt 1.32 0.806 / 0.821 / 0.836 \ 0.861 \ 0.876
So you want to start in the middle at the .836 and see if it's stable or not. If it isn't then hit the value to the left or right of that one and see if it's stable and so on.. There is no given value that we can tell you that your, motherboard will be happy with you have to feel out those values and see which one your, motherboard likes..
I would say what ever your CPU is happy with , go with as long as it isn't above say 1.35.. you can go higher but people get scared after a certain amount so I would think 1.35 should be safe.. Mine is set to 1.40 or .42 and it's fine and has been for awhile....
Mine won't run the speeds I'm at now without that voltage on the vtt, every CPU and chipset and any chip made is different a little..
Depends on what revision you have. I have 1.1 and I liked the F9 alot, but I'm using F10e right now.Quote:
Originally Posted by Raffaele2521
as the new F10?? good ... ? otherwise try the F9 or F10e ... right?Quote:
Originally Posted by NoGuru
Don't use F10e it locks into your BIOS. In fact can someone tell me how to unlock it. I knew at one time but have forgot.Quote:
Originally Posted by Raffaele2521
Yeah F9 was great for me.
I tell you I am using the new F10 officer and seems fine ... it locks;Quote:
Originally Posted by NoGuru
qualhe do another test and let you know.
are at 471 x 9 ... I can not set the strap to 266 ... is my problem? capiita or to everyone? I raise quaclhe voltage?
thanks
F10 does not lock in, just F10e.Quote:
Originally Posted by Raffaele2521
I don't understand the question:confused:Quote:
Originally Posted by Raffaele2521
Hey all, had a quick question if I may. This board comes highly recommended for quads. I'm running a QX9650 and am in need of a new mb. I've currently got a dfi lt x48 board that is dieing and looking for something new. I was able to get the chip to 3.6 easy on that board with only bumping up the fsb to 400 and vcore slightly to 1.26. Getting much further on that board was about impossible and I ended up settling for 3.6 for stability. After reading the reviews for the ep45-ud3p, I am seriously considerring this board as a replacement. My goal, for now, would be to run the chip at 4.0 (400x10) on air for 24/7 use (eventually more when I get closer to upgrade time). Is this an easily accomplished goal for this mb and cpu combo? I also have 8gb of ddr2 at 1066 (5,5,5,15) running smooth on my current setup (long story short, ended up with an extra 4gb, so threw them in way after I was working on the OC for this setup). Is this board picky about memory type? Any help or thoughts appreciated. Thanks.
The QX9650 doesn't clock as well as the Q9650. and i cant imagine that the dfi doesn't do 400FSB (as you say you want to run 400x10). nearly every bord including the G31 and G33 will clock to 400FSB....Quote:
Originally Posted by deviant1
DFI boards are always hard to take in hands :D already clearly/highly been said every where ^^
...scratching my teeth on P45 DK T2RS+ lol (maybe you could help me MrDucky?) I think you missed something in the bios Deviant1 ;)
What I think about the UD3 : the best board to go both 24/7 or benching rig
...easiest clocker I had with great reactions ...always reboot after fail !! no need to reset bios or even cut off the PSU.
Deviders work fine on DDR2 ones to push ram frequencies :)
But a bit dissapointed about how the FSB scales : stuck @580 (stable) --> 610 max with lot of pain xD
Euh! mine is dead now 'cus of bad insulation under SS -_-
You have to change more than just vcore when raising FSB. That's why you only got 3.6.Quote:
Originally Posted by deviant1
The Gigabyte is a great board for OC'ing though.
sorry guys, i was probably trying to keep my post above a bit short while getting in the details. As for the DFI, I had it at 400 fsb. I was running 400x9 at 1.26 (stock setting was 1.24) for over a year. I definitely tried leaving it at 400 and change the multiplier to 10 while raising the vcore, nb and slight bump in sb. When the board was new, I was able to get it to boot into windows and run at 400x10, but couldnt keep it stable on prime (also tried many other combinations to get speed up, unsuccessfully). I definitely read up on and changed many of the settings on the board, I just didnt go into depth explaining that on the first post. The board has been constantly deteorating and I can only keep it, currently, at 333x9 (stock) to keep it running. I have tried a thousand variations in the last month trying to get this thing stable at other settings. I dropped the fsb and multiplier to a basic setting and worked my way up. anything over 333 and it becomes a wreck. So anyway, this board was one of three refurbs that DFI has supplied me with and I'm tired of it. I would really like a decent board that I can use my qx9650 to some of its potential since i have it. Nothing too wrong with 3.6, but would enjoy playing with it at 4.0 and then wreaking havoc on the chip before I upgrade in a few years. I was just checking to see if 4.0 is pretty easy to obtain and run 24/7 with this board (and then to have some fun with in a year or two). Although I'm not looking to bench, i use the crap out of it for gaming, a couple of the games more cpu intensive than gpu. Running a gtx 280 currently and plan on getting the 5970 in a few months (provided my cpu isn't the bottleneck, then might get 5870). Thanks again for any advice.
:confused: it might need more vcore but mine did 500FSB pretty easy on air... and 4Ghz at 1.21coreQuote:
Originally Posted by MrDucky
Well I got my new toy. This took about 3 tries. http://valid.canardpc.com/show_oc.php?id=1027129
congrats mate :up:Quote:
Originally Posted by NoGuru
Thanks, and good to see an old friend! I'll post results periodically.Quote:
Originally Posted by andressergio
yeah how are you mate i changed my system to the xeon on my sig and soon will be swapping for the nice EP45T USB3P with DDR3 :up:Quote:
Originally Posted by NoGuru
Cheers and keep clocking ;)
so your getting the new one andressergio.nice im sure i dont need to say it
but post some result and findings with your new board.
NoGuru,nice E8700 you got.keep pushin it
andresergio please post results with the new board! I am curious about it.
Yes mates i will post as soon as i get it but i have a kiddo on its way :D so i dont know what it will arrive first lol
Cheers all :up:
Sergio
congratulations with your new family addition andressergio :bounces::bounces::bounces:
thanks friend :D Valentino will have lots of toys to play :DQuote:
Originally Posted by radaja
I'm looking for a good cheap overclocker from this line. Preferably for pairing with a Q6600 and some Crucial Ballistix D9MGH DDR2 800, I don't need more than one PCI-E slot. The only real must haves are high FSB capabilities and preferably a non-stupid layout, the cheaper the better. So which one of these do you guys think would fit the bill?
GA-EP45T-UD3LR - $99.99
or
GA-EP45-UD3L - $89.99
Unless of course the GA-EP45-UD3R is worth the extra $30 - $40, anyone know what the difference in overclocking potentials are for these? Not sure what this Q6600 is capable of, but I want to have as much headroom as I can on a budget.
First andressergio Congratulations with your new kido :D
Second to Lurid for a Q6600 you won't need anny better then the UD3L i guess. (the EP45T are DDR3 so you cant take that one...)
Thanks mate :up:Quote:
Originally Posted by MrDucky
@ Andre...Congrats! and enjoy!! :D
FYI...I just switched my XP machine to SATA AHCI mode! XP was already installed using normal IDE mode. Did it without having to reinstall the OS :up:. Wanted to do this so I can dual boot XP and Win7 and use AHCI in both.
Congrats Sergio. :up:
We expect to see little Valentino have his first 4ghz+ OC no later than age 4.
I wish I had started this earlier in life, I was 42 when I got my first 4ghz lol.
Congrats on the family and board:) My daughter is 12, and thinks I am speaking another language when I mention overclocking.Quote:
Originally Posted by andressergio
Going to push it to it's limits. I posted your reference chart at OCN. Hope you don't mind. I let them know that it was yours.Quote:
Originally Posted by radaja
Good to see you to radaja, also been awhile.
NoGuru
i just posted in your E8700 thread to push it to 5GHz
also dont mind at about posting the chart,thats why
i made it,to help out.good luck on your quest:up:
Hello guys
I'm writing because I really need some help.
I was suggested by MrDucky on DFI topic to go with Gigabyte GA-EP45-UD3P motherboard instead of DFI LanParty DK P45-T2RS Plus, for best quad CPU overclocker, as a replacement for present Asus Rampage Formula, which I consider right now as waste of my money. Too much efforts, too much voltage put on every hardware to reach barely stable FSB480... so I'd like to ask you guys which Gigabyte's motherboard performs best with quad CPU and DDR2 RAM? I mean OC of course. I've already seen SystemVipers OC results here- well, my congrats with this one. FSB550 is something I really can't even imagine. Greetings.
Either the UD3P or the UD3R if you dont need CF/SLI. Both should be able to get to ~550fsb assuming the chip can do it and you have adequate cooling. So far the highest ive had mine is low 560s and able to bench in the 550s with cool water.

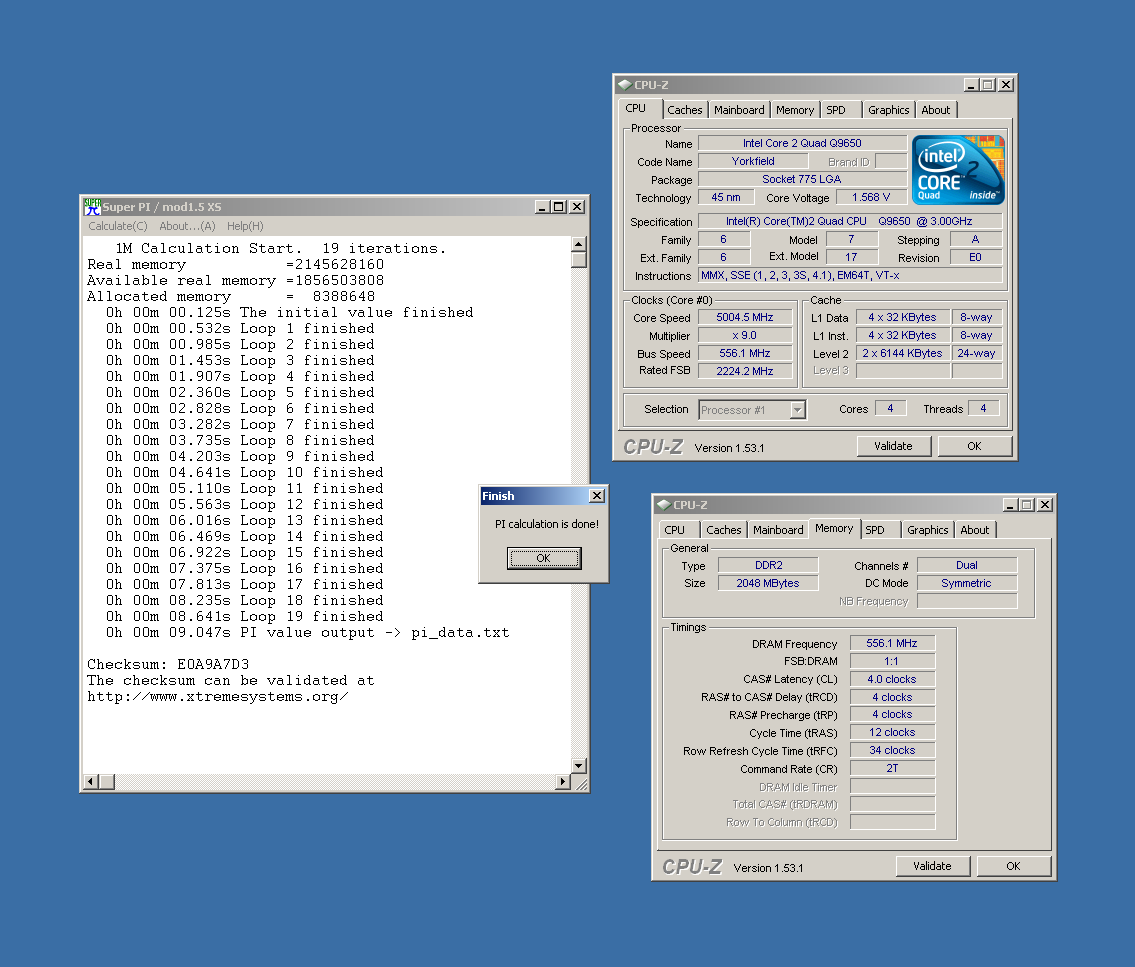

http://i131.photobucket.com/albums/p293/hoss281/500.png
Thanks Hoss331 for reply
This screen shot is quite impressive. What cooling solution do you use? And how are your temps?
Because I plan to buy ATI HD5870, Crossfire is a great option, so I consider the UD3P would be more of use to me. I see there are 3 revisions: 1.0, 1.1, 1.6. What are the differences between each other? Should I look for specific revision? I use liquid cooling, quite efficient. It passed its test while using Rampage Formula and those horrible voltages.
Cooling is in sig, its winter here so lately ive been keeping my rads mounted in my window seal, usually with most if not all the fans off and covered for normal use. During that run outside temps were about 3C with water temps being about the same, when rads are inside priming at 4.5 with 1.344v and 21C ambients core temps are a little below 60C. All revisions clock good with minor differences but if your buying the board new youll most likely be getting a rev 1.6. The 1.1 and 1.6 have the revised heatsinks for better cpu heatsink clearance, the 1.0 and 1.1 both share the same bios while the 1.6 has its own since it has Smart 6. Other than that the boards are basically the same, if it matters my board is a 1.0.
Oh, right now I see your signature, didn't notice it yesterday. Quite clever idea to utilize or mother nature possibilities (didn't know there might be so much cold in Florida during winter). Well, although it's a little thaw here, but you should come to my country one day and see some real temp advantages, like -20 Celsius:)
For FSB500 you need only 1.34 vcore? I don't think that will be available with my Q9450, even with UD3P; it has 1.23 VID. What is yours like? As far as I use quite efficient cooling, temps wont be any problem. Right now with 1.45 vcore and ambient temp around 23 Celsius, during Prime tests I get 58Celsius for hottest CPU core, for NB (which has 1.75V) around 34Celsius. As you see, these voltages are too high and it's only FSB480. That's why I decide to change motherboard.
Im in the northern part of FL so it gets kinda cold in the winter but rarely ever gets below freezing, when it does its only for a few hours at a time at night. My chip is a low vid(1.15) E0 so its not going to need as much voltage as your C1, but it does run on the hotter side because of its vid. Either way you should have no problem getting a better clock out of this board vs your RF. :up:
Cant believe I missed this, congrats on the new family member. :toast:Quote:
Originally Posted by andressergio
Thanks mate :toast:Quote:
Originally Posted by bluestang
:rofl::rofl::rofl: thats happen to me at work when i show my PC they stay :shocked: what the hell you did to that pc :ROTF:Quote:
Originally Posted by NoGuru
thanks buddy :up:
Thank you very much mate :up:Quote:
Originally Posted by Hoss331
:rofl::rofl::rofl: shure mate you will see him on the thread by that time even when mom told me "you will not have kiddo playing on the pc" lol, but she has a netbook, imagine will pc he will prefeer :DQuote:
Originally Posted by OC Nub
Thanks for your words friend :up:
I'd like to congratulate on the descendant too, Andressergio. It's nice to know there are happy people among us :)
Hoss331, could you precise which NB block do you use and how do you cool mosfets? I personally have Swiftech MCW30, curious if it would fit with motherboard holes? And is it really necessary to remove original heatsink? I read somewhere it doesn't get too hot even for very high FSB. I also read there is no temp measuring for NB, is that true?
congrats andressergio
i didnt know you played with anything other than computers :eek:
Thank you mate :up:Quote:
Originally Posted by MaynardX
Jaaaa zsamz zsamz....thanks for your words :up:Quote:
Originally Posted by zsamz_
Cheers guys :up:
Regards form South America
Sergio
Quote:
Originally Posted by MaynardX
I use an EK 5 NB block which fits perfectly, link, and stock mosfet heatsinks with the blue cover plate removed. The MCW30 can be made to fit but the holes in the board are wider than the holes in the block so the screws will have to be angled, MCW30. Its not required to change the stock NB heatsink but it does help depending on how much mch voltage you use, alot of guys just remove the cover plate and put a fan on it though. I changed mine because it seemed to run pretty hot with the stock heatsink and with it so close to the ram that first stick would also be noticeably hotter than the second. The only way to check the NB temps on this board is with a program called MCHTemp.
Well here is where I'm at now 5.06 GHz on air nice low volt's too.
Congrats on that chip NoGury hella nice speed :up:Quote:
Originally Posted by NoGuru
@t Hoss331
Thanks for information and for this picture. It helps a lot. But those angled screws doesn't look good/save to me. Situation with MCW30 looks the same as for Rampage Formula. To make it fit perfectly all one should do is to unscrew two screws holding the block arms and turn them aside a little (and of course those two screws we screw in to the block aback). And that's all. Although the arms are beeing attached now to the block with two screws only and they loose a little of their stiffness, force of pressure beeing applied is still adequate.
I would rather cool NB with liquid too, as this chip (as all silicons) always performs better while beeing cooler, and also OC means a lot of voltage to the NB as well as to the CPU.
To be honest I'm quite sold on UD3P. But unfortunately this motherboard isn't available in my country any more. That's a pity:/ Will need to search for it at our neighbours.
I love this chip and board
booted at 4840mhz using 2.0D multi then tuned to 5Ghz :D amazing
this is on W7x64 with my 2x2 Gskills PI will be easier on XP and just 2GB but i wanted to this with all
http://img171.imageshack.us/img171/7...01054pl111.jpg
http://img3.imageshack.us/img3/9074/5000valid1.png
Cheers in this weeks will be getting the EP45T USB3P and Gskill ECO 1600 CL7 wish me luck :up:
Sergio
:eek2: very nice Sergio a Quad above 5ghz is a Quad above 5ghz lot of respect!
I miss my Ep45 ;)
andressergio,very nice overclock.that X3380 is awesome:up:
cant wait to see how you do with your DDR3 board:D
Jor3lBR,i miss my EP45 too:( and my Q9650.lots of fun with that combo:D
Thanks Jor i love this setup :up:Quote:
Originally Posted by Jor3lBR
Thanks radaja kets see how it goes on that nice board :up:Quote:
Originally Posted by radaja
Cheers :up:
Sergio
Awesome chip Sergio. :up:
It is amazing those UD3P boards are so durable. You have pushed that board to its limits for over 1 year now and it keeps going strong.
thanks friend :up:Quote:
Originally Posted by OC Nub
Outstanding Sergio! Can't wait to see some results on your new board.
Thanks mate :up: will get some tests soon i also be changing rad block etc im runing on a thin rad now and DTEK FUZION V1Quote:
Originally Posted by NoGuru
Cheers :toast:
Just got my P45, my 2 year old Asus X48 Rampage died.
Going to read thru this thread some more and see how this mobo is.
I already miss water cooling the NB, It seems hot so far.
congrats sergio
5Ghz is fast,,elite..
Thanks my friend just a test, not stable my aim is 4680 on x9 or 4750 on 9,5 for 24/7Quote:
Originally Posted by mreld3r
Cheers :up:
Sergio
Sick dude! I just got a UD3P and LOVE it. Got 8GB RAM and now I really want a e8700! lol
Testing a new q9550 on this board right now but it's a buddy's chip though I might have to get one as only $179 at Microcenter (like $190 with tax). VID is 1.265 is that high? Will post results later...
thanks mateQuote:
Originally Posted by WrigleyVillain
with 8GB will need to pumpt volts on the vdimm and MCH...would go nicely on a 8700 for sure
yes the Q9550 its high but you never know... :up:
With an EP45-UD3P and a Q9550 using the stock cooler I was able to get 3.82GHz Intel Burn Test 20 runs stable on all stock voltages. The temperatures were about 70-75C under Intel Burn Test so I put it back to the stock speed. I shall try for 4+ once I get my new case and water cooling.
My friend just got the EP43-UD3L and his Q9550 only goes up to 3.4Ghz (400x8.5) Intel Burn Test stable, but that's probably because the P43 blows for increasing FSB past 400mhz.
wow
sergio... 5ghz... any stibility with that oc at all... put it on prime see what happens
So I purchased this board to install an alternate OS, and it was working fine. Install went great, and I was dual booting with Win7 perfectly. 3 days after I get it, the lan ports both die completely, won't show up in windows, nothing. I RMA'd the board with Newegg, and 2 weeks later, I get the same issue. I called Gigabyte tech support, and we discovered the bios was corrupted, and both lan ports had mac addresses of gibberish, FFFFFFFFFFFF and ABABABABABAB.
That being said, I reflashed the bios and was back up and running until today, where the same damn thing happened! Now, I reflashed again, everything is up and running (again), but I can now replicate the problem... Every time I unplug the power cord from the system, the lan ports gets shot. Anyone have any insight as to WTF is going on here? Every other setting stays the same, so I'm assuming it's not the CMOS battery, it's just the mac addresses that change.
One other issue that's annoying me but isn't a huge priority... Windows experience index refuses to run on this system, since I installed the board. On the old RMA'd board, it would produce an error at the end of the testing, but on this board, it won't run at all. I click the button to start the test and absolutely nothing happens.
Anyone have any insight?
Entropism:
You could try disabling quickboot - for some reason it hides the board info from the system on my 1.6 board (check with CPU-z). Worth a try, think that's what caused me problems with it in the past, but I think the only way to get the windows experience index working again was to reinstall, but doesn't cause me issues now, but that could also be to do with the onboard FB bios which hid the quickboot option :/
Nice work with that chip btw andressergio - Kinda wish I looked into that option when I splashed out before! I have an apogee XT block and a lapping kit on the way, should help me drop at least 5°C off load temps and maybe head for some 5GHz benching action.
I have a syringe of that coollabs liquid pro tim which has worked great on a well lapped surface in the past, will be interesting to see how it compares to mx3.
thanks mate will do when i have the time cheers :up:Quote:
Originally Posted by MarcusFoX
Thanks buddy :up:Quote:
Originally Posted by In-Fluence
Turning off quick boot fixed the window experience issue, so that got the lesser of the two problems out of the way. Thanks for your help, it's much appreciated. Anyone have any insight regarding my bios/lan port issue?
Quote:
Originally Posted by entropism
heres another quick chart/guide/cheatsheet for cpu/mch reference voltages.
http://i46.tinypic.com/2444b3c.jpg
even though i dont own this board anymore,i cant stop thinking about it.
i had some free time today and decided to make this.:D
should be helpful for some of the new owners of this awesome board.
EP45:up:****************************RULES***************************:up:EP45
:D
Wow that's an awesome chart, thanks!
I was wondering if the sleep issue is fixed in any of the latest BIOS's after F9 which is what I'm on right now.
If I put the PC to sleep now I can't resume working. It just keeps turning on and off in a cycle. Or just stays on with a black screen and won't come back.
:D+100 for that i think u should get the EP45T USB3P to play with :DQuote:
Originally Posted by radaja
Is it actually going to be released though? I've kept an eye out, not seen any development yet. I'd get one if it was :yepp:
yes a good friend of mine bought it for me from the egg its there ;)Quote:
Originally Posted by In-Fluence
Very nice Sergio. Awesome chip.
thanks mate :up:Quote:
Originally Posted by ValFox
Quick question: I just got the OCZ reapers HPC 1066 kit (from RMAing my LV kits), these mothers are friggin high, anyways I cant fit this RAM in my 1st and 3rd slots (yellow) because of my heatsink fan. What are the differences (if any) between the yellow and orange slots?
Andresergio: Congrats on those CRAZY results!
heres the link for it.Quote:
Originally Posted by In-Fluence
GIGABYTE GA-EP45T-USB3P
thanks buddy :up:Quote:
Originally Posted by The Viper
I need help with my OC plz if you have any pointers i would appreciate it, i am using a C2Q Q9550 and my ram is 2x Corsair CM3X2G1600C9DHX 2gb sticks my board is a EP45t-UD3LR, my PSU is a Corsair tx850, and my system is watercooled ( Liang D5 pump, Dtek Fuzion V2 cpu block, Black Ice 120x2 radiator). im am stable at 4.12 but my temps are really high and yes my water block is on right and yes the thermal paste is on right also. my problems is voltages but if i go any lower i get a BSOD with the error code 0x000...124
Bios Settings:
Robust Graphics Booster - Auto
CPU clock ratio - 8x
Fine CPU clock ratio - 0.5
CPU Host Clock Control..............Enabled
CPU host Freq............................485
PCI Express Freq........................100
C.I.A.2...................................Disabled
Advanced Clock Control
CPU clock drive.........................900mv
PCI express clock drive...............900mv
CPU clock skew............................0ps
MCH clock skew..........................50ps
Performance Enhance - Standard
(G) MCH Freq. Latch - Auto
System Memory Multiplier.............(SPD)......2.66D
Memory Freq (MHZ).....................1066.......1293
DRAM Timing Selectable...............(SPD)....[Manual]
CAS latency time...........................7............6
tRCD...........................................7.. ..........6
tRP.............................................7. ...........6
tRAS..........................................20.. .........18
Advanced Timing Control
tRRD............................................4. ..........4
tWTR...........................................4.. .........4
tWR.............................................8. ..........8
tRFC...........................................60. ........75
tRTP............................................4. ..........4
Command Rate(CMD).......................0...........2
Channel A&B timing settings
Static tRead Value.........................10..........8
Trd2rd..........................................8. ..........8
Twr2wr.........................................8.. .........8
Twr2rd.........................................7.. ..........7
Trd2wr.........................................9.. ..........9
Channel A&B Driving Settings - all auto
Load-Line Calibration - [Enabled]
CPU Vcore..................................1.300...... .1.475
CPU term....................................1.200..... ..1.360
CPU PLL.....................................1.550..... ..1.650
CPU ref......................................0.805.... ....Auto
MCH Core...................................1.100...... ..1.360
MCH ref......................................0.760.... ....Auto
ICH I/O......................................1.550...... ..1.610
ICH core.....................................1.100.... ....1.200
DRAM Volt...................................1.500...... ..1.900
DRAM term...................................0.750...... ..Auto
In my quest I collected up a few templates and posted them at http://forums.pureoverclock.com/show...&postcount=171 (because I cant do tables here) take a look see if any work for you
Mine is a x3350 on the 45t board so the multi and ram speed will need looking at differently More recent observations suggest that a 50ps to 100ps cpu skew alone (none on mch) works better
OldChap,do you have a blank template like the one you used?i really like that
for posting multiple templates for users to try.really would love to have a blank one
like that.thanks
radaja, I can't post tables here but I will pm you later.
Couldn't add an excel file but you can build one from the chart at Pureoverclock
Bios FEa is out for UD3P 1.6.
Changelog appears to show 'fix VRM10 CPU problems'
Testing now, but I've not noticed any improvement over FD yet.
this is my second EP45, and it's not working out for me :mad:
there is a fsb wall at exactly 449fsb. i was trying to hit 4.5ghz exactly with e8600, but it won't boot (i tried 6x450mhz, and does not boot). when booting at 10x449mhz (1mhz less than what i really want), it's stable for hours, even with the high multiplier. and anyone shed some light why my specific UD3P has such a low fsb wall? here's my settings in bios:
450mhz fsb
C.I.A.2 disabled
X.M.P disabled
MHC freq. latch 333mhz
memory multiplier 2.40B (1080mhz)
timing 5-5-5-18
LLC enabled
vcore 1.40v
CPU term. 1.32v
PLL 1.85v
MCH core 1.36v
DRAM 2.1v
(everything else on auto)
for a dual core some of your voltages are very high.pll at 1.85 way to high.
try these settings
Load-Line Calibration - [Enabled]
CPU Vcore..................................1.300...... .1.40
CPU term....................................1.200..... ..1.28
CPU PLL.....................................1.550..... ..1.57
CPU ref......................................0.805.... ....normal
MCH Core...................................1.100...... ..1.360
MCH ref......................................0.760.... ....0.750
ICH I/O......................................1.550...... ..normal
ICH core.....................................1.100.... ....normal
DRAM Volt...................................1.500...... ..whatever your ram needs
DRAM term...................................0.750...... ..normal
channel A ref............................................... .normal
channel B ref............................................... .normal
thanks robert! crap i mistaken the CPU PLL with some other voltages :eek:. this never went above 1.6v on my REX... brb before i get some CPU damage lol
EDIT: good news, i lowered PLL down to 1.57v and it now boots with 450mhz fsb. bad news, i think my CPU degraded from stressing it for hours (10x449fsb) with such accidental high vPLL :(
Thnks for the info on the USB3 model btw andressergio & radaja, missed that! Alas, newegg don't ship abroad, but I'll keep an eye out for anything going in europe ;)
Hello Guys
Do you know where can I get Gigabyte EP45-UD3P? It's unavailable wherever I ask for it, either inside my country or abroad...
Well, what is your country?Quote:
Originally Posted by MaynardX
Poland I guess (PL being the European numberplate (license plate) country code)
