**Official DFI LanParty UT P35-T2R Review/Overclock/Guide Thread**

Good Morning!

The DFI is still live and kicking out the Work Units...

Ran it in at stock speed all night...now it's time to mess it up some more :D

Quote:

---

Originally Posted by emoners

Is it safe to keep the NB core & VTT at 1.5v for 24/7 use?:confused:

---

1.5V is fine for VTT and the NB should be alright as long as active cooling is used to keep temps below 45C. For those concerned with 24/7 use long term, 450 FSB is probably the upper limit. Once that threshold is crossed a voltage somewhere is going to have to be pushed past the range that most would consider safe for 24/7 use.

@Solarfall & Praz: Thanks! :up:

Quote:

---

Originally Posted by Brother Esau

@solarfall .....Hey man whats the verdict on you're end with the Cell Shock?

---

im testing em again this evening/nite last time i had some problems with my other gear.. we will se what im able to conjure up.
btw im gonna do some outside benching.. the weather forecast said that it should hit -4c tonight .. cool :D

Quote:

---

Originally Posted by CyberDruid

Good Morning!

The DFI is still live and kicking out the Work Units...

Ran it in at stock speed all night...now it's time to mess it up some more :D

---

C'mon man Yorkfield and 10/05/07 Beta action PPPPPPPlease:D

Warren..... YOU are Americas Future and we are counting on you....GO ...DADDY:poke: ........GO!!!:cord: :bsod:

here are some clocking results on the Cellchock ram sticks that i promised.. must say that they need a lot of voltage to reach high clocks. but good ol torturing is always nice :D

first 3-4-4-4 i was able to reach 500mhz.. probably could have done a little bit better but the clock was 3am when is started to do the 3-4-4-4 tests :D

http://i163.photobucket.com/albums/t...-4-4500mhz.jpg

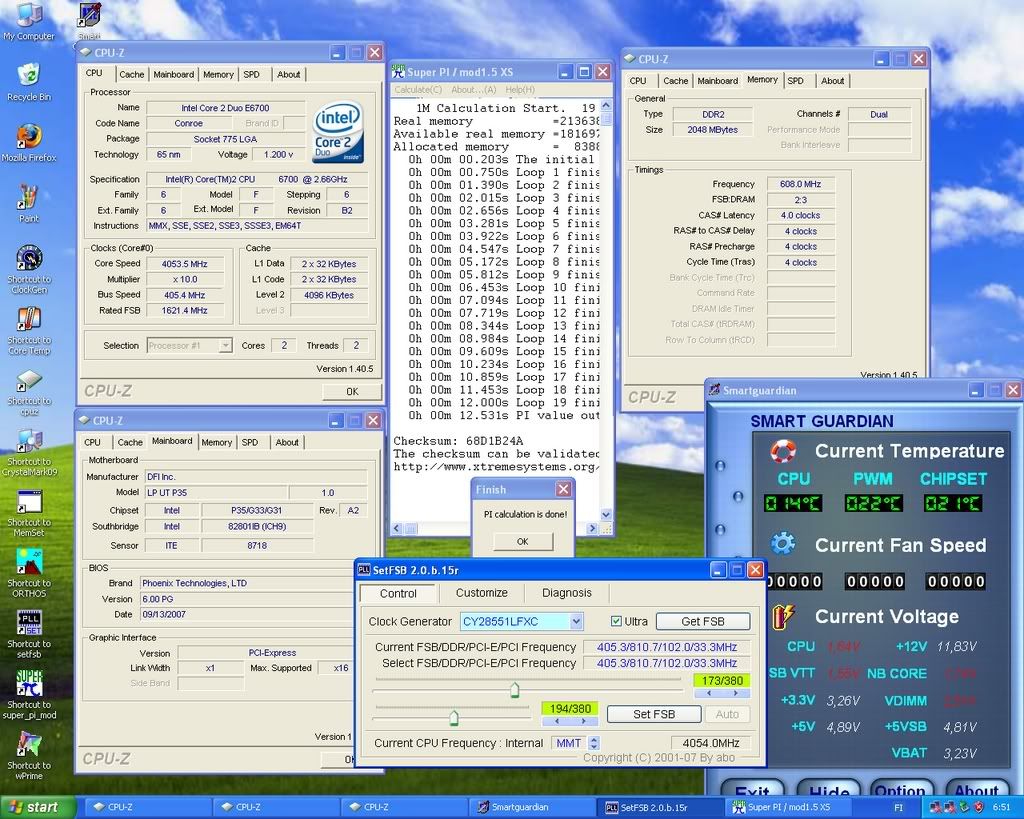

next i tested how far i could take the sticks with fairly tight timings 4-4-4-4 i was able to reach 608mhz

http://i163.photobucket.com/albums/t...-4-4608mhz.jpg

and finally tightest timings possible in 600mhz 4-4-3-3

http://i163.photobucket.com/albums/t...tos/12578s.jpg

Quote:

---

Originally Posted by Solarfall

here are some clocking results on the Cellchock ram sticks that i promised.. must say that they need a lot of voltage to reach high clocks. but good ol torturing is always nice [/IMG]

---

This illustrates what the problem is when using these chips with the P35 chipset. They will never last at 2.50 volts.

Quote:

---

Originally Posted by Praz

This illustrates what the problem is when using these chips with the P35 chipset. They will never last at 2.50 volts.

---

hmmm you might be right if you will not use some sort of active cooling one em.. that is really not a huge problem for me cos im more into extreme cooling anyways and don't run my stuff with high voltages 24/7.. haha and btw that 4.90v (voltage set in bios) was just incase..
they might clock well at lower voltages too, just have to try it first :D

I doubt at those clocks you will get any love with less voltage!

good luck, we have exerienced random failures and system crashes with D9GKX based modules, when clocked anywhere over 1050mhz cas4 or cas 5. The fault lies with Intel's DDR2 controller implementation, such a shame really, as those who paid high price for good kits deserved a little better.. Other than 1m runs, it's not really possible to do anything meaningful with them, gaming, folding even running encoding applications represent a fair load, expect some blue screens or failure messages mid run. USing over 2.4v with Micron ususally leads to deterioration within 6 months, even if cooled, electromigration is a big issue.

regards
Raja

:( Guys this is my current 24/7 setup...stable for more than 8-hours over Prime95, Orthos & OCCT:

http://img88.imageshack.us/img88/497...450meu3.th.jpg

http://img141.imageshack.us/img141/2...450mlm2.th.jpg

http://valid.x86-secret.com/show_oc.php?id=257188

I was hoping for some suggestions/comments/opinions if I could squeeze more with lower voltages good for 24/7 run.:confused:

DFI™ LanParty UT P35-T2R (0913 Bios)
Intel™ Core2Duo E6850 with Thermalright™ HR-01 Plus @3602.09Mhz (450.26x8)
Team Xtreem™ DDR2-9600 2x1GB with Thermalright™ HR-07 @562.8Mhz
XFX™ NVidia™ 8800GTX with Thermalright™ HR-03 Plus (Core 650Mhz/Shader 1660Mhz/Memory 1030Mhz)
Creative™ Sound Blaster X-Fi™ XtremeGamer Fatal1ty Pro
Western Digital™ Raptor 74GB & Seagate™ Barracuda 500GB+320GB SATA
Silverstone™ DA750

Code:

---

>CPU Feature:

Thermal Management Control.......... - Disabled
PPM(EIST) Mode...................... - Disabled
Limit CPUID MaxVal.................. - Disabled
CIE Function........................ - Disabled
Execute Disable Bit................. - Enabled
Virtualization Technology........... - Enabled
Core Multi-Processing............... - Enabled

>DRAM Timing:

Enhance Data transmitting........... - Fast
Enhance Addressing.................. - Fast
T2 Dispatch......................... - Enabled

>Clock Setting Fine Delay Press Enter:

[COLOR=blue]Ch1 Clock Crossing Setting......... - More Aggressive
[COLOR=blue]DIMM1 Clock Fine Delay............. - Current[1]
[COLOR=blue]DIMM2 Clock Fine Delay............. - Current[6]
[COLOR=blue]Ch1 ControlFine Delay.............. - Current[9]
[COLOR=blue]Ch1 ControlFine Delay.............. - Current[6]

[COLOR=blue]Ch2 Clock Crossing Setting......... - More Aggressive
[COLOR=blue]DIMM3 Clock Fine Delay............. - Current[1]
[COLOR=blue]DIMM4 Clock Fine Delay............. - Current[6]
[COLOR=blue]Ch2 ControlFine Delay.............. - Current[9]
[COLOR=blue]Ch2 ControlFine Delay.............. - Current[6]

[COLOR=blue]Ch1 Ch2 Common Clock Setting....... - More Aggressive

[COLOR=blue]Ch1 RDCAS GNT-Chip Delay........... - Auto
[COLOR=blue]Ch1 WRCAS GNT-Chip Delay........... - Auto
[COLOR=blue]Ch1 Command To CS Delay............ - Auto

[COLOR=blue]Ch2 RDCAS GNT-Chip Delay........... - Auto
[COLOR=blue]Ch2 WRCAS GNT-Chip Delay........... - Auto
[COLOR=blue]Ch2 Command To CS Delay............ - Auto

CAS Latency Time (tCL).............. - 5
RAS# to CAS# Delay (tRCD)........... - 5
RAS# Precharge (tRP)................ - 4
Precharge Delay (tRAS).............. - 12
All Precharge to Act................ - Auto
REF to ACT Delay (tRFC)............. - 42
Performance Level................... - 6

>Read delay phase adjust Press Enter:

[COLOR=blue]Channel 1 Phase 0 Pull-In.......... - Auto
[COLOR=blue]Channel 1 Phase 1 Pull-In.......... - Auto
[COLOR=blue]Channel 1 Phase 2 Pull-In.......... - Auto
[COLOR=blue]Channel 1 Phase 3 Pull-In.......... - Auto
[COLOR=blue]Channel 1 Phase 4 Pull-In.......... - Auto

[COLOR=blue]Channel 2 Phase 0 Pull-In.......... - Auto
[COLOR=blue]Channel 2 Phase 1 Pull-In.......... - Auto
[COLOR=blue]Channel 2 Phase 2 Pull-In.......... - Auto
[COLOR=blue]Channel 2 Phase 3 Pull-In.......... - Auto
[COLOR=blue]Channel 2 Phase 4 Pull-In.......... - Auto

MCH ODT Latency..................... - Auto
Write to PRE Delay (tWR)............ - 13
Rank Write to Read (tWTR)........... - 11
ACT to ACT Delay (tRRD)............. - 3
Read to Write Delay (tRDWR)......... - 8
Ranks Write to Write (tWRWR)........ - Auto
Ranks Read to Read (tRDRD).......... - Auto
Ranks Write to Read (tWRRD)......... - Auto
Read CAS# Precharge (tRTP).......... - Auto
ALL PRE to Refresh.................. - Auto

>Voltage Settings:

CPU VID Control..................... - 1.32v
CPU VID Special Add................. - Auto
DRAM Voltage Control................ - 2.11v
SB 1.05V Voltage.................... - 1.070v
SB Core/CPU PLL Voltage............. - 1.55v
NB Core Voltage..................... - 1.42v
CPU VTT Voltage..................... - 1.34v
Vcore Droop Control................. - Disabled
Clockgen Voltage Control............ - 3.45v
GTL+ Buffers Strength............... - Strong
Host Slew Rate...................... - Weak
GTL REF Voltage Control............. - Disabled
CPU GTL1/3 REF Volt................. - 110
CPU GTL 0/2 REF Volt................ - 110
North Bridge GTL REF Volt........... - 110

Genie BIOS Settings:

Exist Setup Shutdown................ - Mode 2
CLOCK VC0 divider................... - Auto
CPU Clock Ratio Unlock.............. - Enabled
CPU Clock Ratio..................... - 8
Target CPU Clock.................... - 3550MHz
CPU Clock........................... - 450
Boot Up Clock....................... - Auto
DRAM Speed.......................... - 266/667
Target DRAM Speed................... - 1124MHz
PCIE Clock.......................... - 110mhz
PCIE Slot Config.................... - 1x 1x
CPU Spread Spectrum................. - Disabled
PCIE Spread Spectrum................ - Disabled
SATA Spread Spectrum................ - Disabled

---

Thanks!

I think for the most part we are all expecting AMD Memory performance from this board but reality dictates that its not gonna happen!

Quote:

---

Originally Posted by Brother Esau

I doubt at those clocks you will get any love with less voltage!

---

who knows they might, but i do have my doubts too.. will tests it later ;)

Quote:

---

Originally Posted by MacKaquE

I use the transpiper already .. I asked if it would be better to put some thermal paster to make a better contact because it seems a bit loose to me ... about the PWM and Chipset heatsink you want me to remove them and look if contact is good ?

---

I just did as shown in link at eva2000 site which has tons of info on D.F.I P35 and overclocking in general. George (eva2000) is extremely thorough snd very detailed in all info that he posts up check it out....:D http://i4memory.com/showthread.php?t=4670...

Quote:

---

Originally Posted by pumbertot

ah i see. ok getting now. thanks again George.;)

edit: how do you run it? when i try to run setfsb.exe I get "sysinfor(x64).sys Error" lol what a n00b. :p:

---

Updated SetFSB : Version 2.0.b.17a - Fixed Windows Vista X64 bug.
http://www13.plala.or.jp/setfsb/

Thanks

Thanks abo333

anybody used the 10/05 bios yet? any thoughts?
Andrew

Need a little information.

My OC is done at 3.6 and everything seemed fine.

last nite I played some games with my bro and after 1-2 hours of play my PC rebooted ... I tough my temp was high or something so I started to play again and looked my temp at each 10 mins ... they were verry low, maybe 1-2 degrees more than when my PC is on idle mode.

And it rebooted again.

So, I downcloacked my OC at 3.2 and no more reboot, I played for 4-5 hours and it was fine.

If temp are ok, why my pc reboot ?

Is it voltage missing somewhere ?

any help would be appreciate.

Thanks !

Think I found comfortable settings. I'd torture it for a while with prime but this room is already hot enough as is :rolleyes: OCCT will have to do for now

http://webdesign2.georgianc.on.ca/~100038536/oc.jpg

I have a question about this board:

Does this board support the Intel Kentsfield Xeons such as this one: Intel Xeon X3210? Thanks.

Quote:

---

Originally Posted by Brother Esau

C'mon man Yorkfield and 10/05/07 Beta action PPPPPPPlease:D

Warren..... YOU are Americas Future and we are counting on you....GO ...DADDY:poke: ........GO!!!:cord: :bsod:

---

if you insist:shrug: :horse: :hump:

:D

Been re-reading this thread for the 7th time...:clap: What a resource.

I flashed to the 10/05/07 BIOS and shut down and changed hardware around and rebooted and got hung at code 02. I am thinking maybe the ES I am using is not supported.

You PM our boy and see what he says about chip and 10/05/07 Beta when he used it?

I will

I put in my G0 Q6600 just to make sure all was well.

I am going to do some benches with the G0 and the HD 2900XT for now.

Funny that the Yorkfield booted fine in the P5K3...

is it possible to get a 1:1 ratio on this board if you OC? :(
