(...)Quote:
Originally Posted by MaStA
I get two problem there: The first is the really stupid one: my 12v atx wasn't plugged with the extention... the second was an ram incompatibility with the mobo. So I get two 4Gb kits of G.Skill 1600 and it goes as a new!
An other question: I have desactivated all the energy savings but the core ratio is still moving between 16x on idle and 33x on load... Why?
Thanks
@koc..yep 1866 seems like the way to go,it made the system a lot more responsive.I was 7-8-7-24@1600 now 8-9-8-24@1866 (stable under P95) and love it
always Gigabyte fan but this P8P67 pro is not bad at all

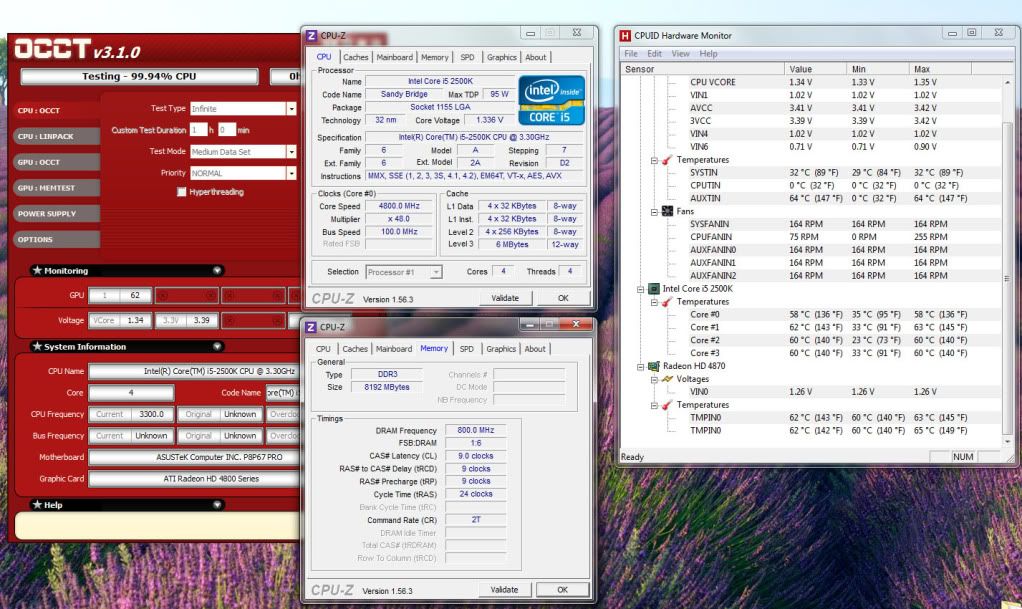

http://img534.imageshack.us/img534/9830/89824bench.jpg
http://img256.imageshack.us/img256/5534/898241t.th.jpghttp://img340.imageshack.us/img340/6236/last50.th.jpg
I'm also on 1204. Still the same problem though. When I see the post screen I always see the standard speed of 3.3 GHz. When stressed in windows cpu-z (1.56.3) also shows 3.3 GHz. The Asus turbo-v software shows the correct multiplier I just entered in the Bios though (45x).Quote:
Originally Posted by SimpleTECH
:confused:
I was also gigabyte fan , but i think asus win this round .Quote:
@koc..yep 1866 seems like the way to go,it made the system a lot more responsive.I was 7-8-7-24@1600 now 8-9-8-24@1866 (stable under P95) and love it
always Gigabyte fan but this P8P67 pro is not bad at all
BTW,nice result and timing man , have you try 8-8-8-24 ?
Still on 1053 bios but happy with my results so far... :yepp:
http://i274.photobucket.com/albums/j...enchstable.jpg
Flashed back to 1253. Same problem as on 1204. I'm starting to lose it... Already thinking about RMA but I don't know if the CPU or mobo is the problem..Quote:
Originally Posted by tiesum
:confused:
Try these mate :
http://users.telenet.be/OAP2/SBLIST/bios2.jpg
http://users.telenet.be/OAP2/SBLIST/bios4.jpg
http://users.telenet.be/OAP2/SBLIST/bios5.jpg
No need to change the offset value ( I was just testing some stuff ) and keep ya rams at 1600mhz. CPU will step down to 1600mhz when idle with the above..
I've had a load of problems with this board, at stock settings it kept freezing in windows 7, I simply couldn't use the computer.
I oc the cpu to 4.5 and it's working fine now, I tried 4.6 @ 1.335/1.345v but prime95 failed on core0, with 4.7 @ 1.375v prime95 failed on the same core0
I'm running it now and it's linx and prime stable @ 4.5ghz with 1.320v, I probably can lower the volt but haven't gotten around to testing that yet.
here it is @ 4.5ghz
prime95 1.325v
http://img27.imageshack.us/img27/6315/45s.png
linX 1.320v
http://img37.imageshack.us/img37/3912/linx14.png
Cpu c3 and cpu c6 are disabled, should they be disabled or enabled :shrug:
Seeing as I get freezing constantly having to reset/power off my pc at stock settings, is there anything I can do or should I just rma the board as it's can't be working within intels specs if thats happening?
Thanks, 8-8-8-24 is no go but I'm happy with 8-9-8-24 WEI jump to 7.9Quote:
Originally Posted by koc
@DesertFox..Cpu c3 and cpu c6 leave at default (enabled) ASUS didn't come with the fix for it as of now
Try this
Turn Off your PSU,Clear RTC RAM (2-2 motherboard overview 12- in manual )wait 10~15 sec
Do not overclock RAM yet, let it run at stock frequencies
set your Vcore @ 1.38 (don't worry 1.38 is no big dill)
Internal PLL Overvoltage -ENABLE
CPU PLL VOLTAGE -AUTO
MEMORY FREQUENCE-AUTO
http://img834.imageshack.us/img834/2141/cimg0443.jpg
http://img716.imageshack.us/img716/2149/cimg0444q.jpg
you can shoot strait for 4.7~4.8 with this settings
Um, you put vDram to auto? Even Asus said that you should put that to your ram's spec. Anyway, did you change any voltage to be at 8 9 8 24@ 1866?
yep this was before I achieve my OC after that you can start dialing RAM to your standards ,my set is rated for 1.5V but at that V MB was overheating at higher clock ..simple v bump fix the issue,@1866 1.6V is all you needQuote:
Originally Posted by deaffob
My rams are rated at 1.6v 7 8 7 24 @ 1600mhz. So I guess I'd need more than 1.65 to get 1866mhz :O
I'll get back to ya
My rams are rated at 1.6v 7 8 7 24 @ 1600mhz. So I guess I'd need more than 1.65 to get 1866mhz :O
I'll get back to ya
Anybody has tried pushing one core higher and other 3 at lower speed?
That could be useful for single treated applications, but I'm wondering how would it impact the stability. Anybody has played with it yet?
Yes you need 1.65 or 1.66 , for my ram i need 1.66Quote:
Originally Posted by deaffob
also you have to lose memory timing , try 8-9-8-24 or 9-9-9-24
@koc I see you have 8GB. Did you have to increase your IO voltage because you have 4 rams?
Ok I will enable c3 and c6, asus recommended that to stop it from freezing but I don't think it worked. Already cleared the rtc b4, made zero difference.Quote:
Originally Posted by coolhandluke41
Ram runs at stock and cpu is @ 4.5 with vcore of 1.320
I have pll over volt off at this setting but enabled it for 4.6+
I set my pll volt to 1.8, I don't know much about this and would like to know more especially what lowering it does and if it helps sustain a lower vcore.
My memory volt is set to 1.5v and frequency is set to 1600.
EPU is off and extreme power options on all with 350 on the vrm freq.
Now my settings are totally stable @ 4.5ghz, only problem I can't install my old x-fi pci drivers, makes the system hang, but I think that's just creatives crap drivers, I don't think it's possible to install that card on an 64 bit system.
But my concern is, if I use asus optimized defaults, my os freezes, even though I'm running 24/7 at 4.5ghz without problems, that leads me to believe I have a dud mb and I want to replace it as I think it will hamper me from acheiving higher stable oc's.
And when I install an os i want to use stock settings to ensure a reliable install, although I think it mainly freezes when it idles at stock settings.
Either way I think I'm going to rma it on Monday, I'm just not sure wheither to get a replacement or a different board, on the asus forums I read other people with freezes, there don't seem to be many experiencing it but there are also other bug's problems with this board,
I'm regretting not buying the gigabyte board that I initially wanted but the reviews were good for the asus pro.
Here is a thread about the problem on the Asus forums:
http://vip.asus.com/forum/view.aspx?...Language=en-us
I didn't read anyone here complain about it but would love to hear from anyone experiencing freezing at stock settings with the asus P8P67 pro.
I have the same freeze dude. I also have the 2500K overclocked to a 4.5Ghz, but at 1.32 my system wasn't stable though. Well, prime failed after 2 hours, so you might wanna try running more than an hour though. I managed to get fully stable with pretty much everything on default except for the vcore to offset > auto.Quote:
Originally Posted by DesertFox
As far as the freeze issue goes, try to disable the C3/C6. It helped for me, and haven't had a crash for like 3 days.
I've actually enabled both c3/c6 now, will see what happens,Quote:
Originally Posted by ghmz
I was mainly freezing when idling at stock but running oc now.
When I have time I'll try run longer prime sessions but atm I'll just install some
games and try and get some real world tests for stability.
With the vcore I've set it manually to 1.32, ok it sucks that it idles at 1.32 but
when I was oc first I had it set to offset or auto can't remember and it flew up over 1.4v so I just set it to manual and it holds pretty much at that voltage.
Later when I have time I'll play around with the offset to get it right but I seriously can't understand why asus don't let u set a manual idle voltage and
a turbo voltage, then let the mb auto in between, would make my life less complicated :)
I have one issue with bios 1204 and 1253. My PC will not go to sleep. My CPU is OC'ed to 4Ghz, all the BIOS settings are at their default setting.
Quote:
Originally Posted by DesertFox
Well there's your problem!
Sandy Bridge isn't made to run at stock speeds.
:ROTF:
No i have 2x4G ram , and i set all the volts to auto except Vcore and memory volt ,Quote:
Originally Posted by deaffob
Guy's, What is the Memory command rate for the memory on this board supposed to be? I had Mushkin 1600 1.65V 7-8-7-24 and it set to 1T auto, bought some Gskill 1.5v and it goes to 2T auto. Had to set it to 1T in Bios is this correct because I see other posts with 2T?
Did some SPi with the new stuff but tighter clocks doesn't seem to be much faster.
Also anyone know what the PCI simple communications controller is?
There doesn't seem to be much difference running 2T or 1T with these chips - the IMC is pretty darn good.Quote:
Originally Posted by crossg
Have you tried the Microsoft hotfix - supposed to clear up random freezes in Windows.Quote:
Originally Posted by DesertFox
If you are receiving random BSOD (Blue Screen of Death) under Windows 7 OS without any warning at stock or what appears to be stable OC settings, please download the following patch from Microsoft to have the problem fixed (98% fix rate): This hotfix will be in SP1.
http://support.microsoft.com/kb/979444
Click on the link that states View and Request Hotfix Downloads, accept the terms, and then provide the required information and MS will send the Hotfix to you directly.
You need the latest Intel Management Engine Driver.Quote:
Originally Posted by crossg
Ye that's true :rofl:Quote:
Originally Posted by tool_462
Up!Quote:
Originally Posted by Prestone
No Ideas?
:shrug:
hey ..i'm getting some sucky gflops score,what gives ???
http://img145.imageshack.us/img145/863/linx50epuoff.jpg
Bios 1253 is pretty good at keeping a constant speed, even with speedstep enabled.Quote:
Originally Posted by Prestone
Under Bios 1053 or 1204 you need to disable:
Speedstep
C1E
C3
C6
Thanks Orion23. I think I'm still on 1204, I'll check it at home. I hope a new bios will fix that.
Can anyone please tell me what the hell is going on with my boards (P8P67 Deluxe) bus speed ? I have flashed both 1204 and 1253 and it keeps happening. 70mhz each time. I have used several different versions of cpu-z and aida to confirm this. My video card keeps getting a driver stopped responding error so I know that its actually running at 70mhz. I have tried changing the bus speed to 101 and 99 and it still boots to 70.
Which CPU-Z versions have you tried? 1.56.2 and 1.56.3 should fix the issue.Quote:
Originally Posted by babalouj
AIDA64, even the latest version, still shows the wrong CPU speed for me.
*Edit*
What does Real Temp report?
Thank you! I reset cmos and downloaded 1.56.3 and all is well again.Quote:
Originally Posted by SimpleTECH
Ok I get it: when turbo mode is on, the cpu will auto decrease to 16x and when it is off, it will stay to the asked ratio.
Yé!
Some low-volt action with batch# L040B165 .
Just a little 30-min Prime-run to check the vCore scaling. Besides, it`s good to have a low-volt option for a compact build. ;) I know everybody is pushing the other way, LOL,
2600k @4GHz(40x100) 1.14v 30-min prime small FFT :)
http://img.techpowerup.org/110130/Capture023.jpg
Thanks.:up:Quote:
Originally Posted by SimpleTECH
I had to reload windows due to a faulty HDD and used the old mobo drivers I had downloaded to a usb stick.
@ Sam. A month ago 4 Ghz with 1.114v would be impressive with the older Cpu's (actually still is). I am actually trying to get 4.7 with under 1.33 v and having a tough time. 4.6 to 4.7 GHz requires a big jump in vcore on my cpu.
Yeah, you are right :)Quote:
Originally Posted by crossg
I've actually nailed a good sweet-spot @4,5GHz 1.27v for 24/7 while I'm following laboratory-rabbits, LOL.
I will probably push it more when we know more about these CPUs, and how resilient they are with high-vCore over time.
That bump/jump seams to be around 4.5-4.7GHz or most CPUs, but it may vary depending on the batch#.
Is the 100mhz stock frequency is changeable for the 2500k on a p8p67 deluxe? Can we put it for exemple at 125*40 instead of 100*50 to get more ram speed ?
No, SBs can't do that much bclk change. However, you can get all the ram speed in the world with bclk 100.
i know than we can get all the "officials" ram speed as 1600, 1800, 1866, 2000, 2133... but can we set a 1600mhz ram to 1678 or 1721mhz for exemple?
More low-volt action, and some interesting vCore-scaling observations
4.2GHz(42x100) 1.17v 30-min Prime small FFT :)
http://img.techpowerup.org/110130/Capture025.jpg
Some interesting observation on vCore-scaling:
4.0GHz = 1.144v
4.2GHz = 1.176v
This means it needs 0.032v (1.176v - 1.144v) to scale for these 200Mhz, or 0.016v for each 100MHz.
Then, 4.5Ghz should need 1.176 + 0.048 (3 x 0.016), also it should be:
4.5Ghz = 1.224v
For 3 days ago, I testes with 1-hour prime and got
4.5GHz = 1.272v
This means, it is not scaling propositionally from 4.2GHz to 4.5GHz
There is a big gap between calculated propositional scaling (1.224v) and the actual (1.272v) vCore for 4.5Ghz. We have to cont on some error-margins too, but this gap is too big for that.
Either my CPU is turned to a Persian carpet (LoL, they get better when you use them) in last 3 days, or there is a vCore bump/jump between 4.2GHz and 4.5GHz.
I will try to test 4.4GHz tomorrow hopefully, and then 4.5GHz again, and it should answer most of it.
You can run BCLK up to about 105 or so, but beyond that it stats to get dicey. So 1600 running at a BCLK of 105 would get you 1680 on the RAM, but I don't know that it is worth the hassle/risk.Quote:
Originally Posted by Prestone
Ok, thanks forceman, i think I will stay at stock bclk of 100... It should not worth all the trouble....
Nailed a sweet spot on your 2006K? :DQuote:
Originally Posted by Sam_oslo
I think you made a typo in your signature.
LOL, yeah, now i see that. :rofl: I'll fix thet now.Quote:
Originally Posted by MaStA
I have been repeating the same typos several time now. I don't why, but somehow 2006k falls much easier on my keyboard. :rolleyes:
Some update on this.Quote:
Originally Posted by Sam_oslo
I've tested more, and @4.3GHz 1.192v (1.176v + 0.016v) gives instant BSOD at the start of Prime. The next vCore-notch will BSOD too.
There is a little vCore bump/jump @4.3GHz.
That's not a big one, but there is one for those interested in low-volt setups.
I'm still testing @4.2GHz 1.17v and if proves to real stable, then it may be a better option than @4.5GHz 1.27v for my compact setup.
I'm a bit stuck in my overclock, if someone have any interesting thoughts I would be glad. So
5.0Ghz with mems @ 933 10-11-10-28 1.65v vmem it's stable ( Linx 25 passes all )
5.1Ghz with mems @ 800 9-9-9-24 1.5v vmem it's stable ( Linx 25 passes all )
5.1Ghz with mems @ 933 10-11-10-28 1.65v get Linx error after the 1st or 2nd round..
more vmem doens't imporve it, either does Vccsa ( 0.925v ~ 1 v ) and Vccio ( 1v ~ 1.2v )
5.1 it's stable with 1.424v, I gave him a bit more and the error still shows, so any advices ?
I really want 933 mem, it takes me from 63ish Gflops to 70ish Gflops...
If @ 933 10-11-10-28 1.65v is stable @5Ghz, then it should do the same at @5.1Ghz, unless your IMC or System Agent is bugging.Quote:
Originally Posted by st0ned
On SB the Uncore runs at the same speed as Core, so going up to @5.1GHz will have an impact on IMC and System Agent.
I'm almost there, I just need some dahm tweek for 1T el dorado, or a better bios :rolleyes:
http://img16.imageshack.us/img16/1561/510025lx933.jpg
I do not get the offset. It does not work correctly. If I offset +.08 from 1.27, that should be 1.35 but during linx it jumps to 1.39. The more you offset, the worse it gets. From 1.27 + .20 should be 1.47, but during linx it jumps up to almost 1.6 freaking volts.
I have the latest Beta and I still get the cold double boot.
Trying to find my best 24/7 now at around 1.375v. It will probably be 4.6-4.7. This is the best I have done so far. I tried 5.1 @ 1.5v but it BSOD @ 19 passes of Linx.....so close.
It really doesn't matter. As soon as my 570 blocks get here, the UD7 goes in and the 470's come out so I can have true dual 16x instead of dual 8x.
The SSD is sitting there because hot swap bay 3 had a bad SATA cable. I didn't feel like tearing it apart yet, so that's why you see the red cable. :) I'm going to move my four SSD's to the bottom two racks and my three normal SATA drives to the hot swap bays.
[IMG]http://img263.imageshack.us/img263/4129/79679722.jpg[/IMG]
[IMG]http://img703.imageshack.us/img703/6986/pic0326.jpg[/IMG]
It happens due to LLC set to extreme ;)
Replacement mobos inc?
http://rss.intel.com/click/~rss-2581...nting-solution
According to AnandTech, only the 3GB Intel SATA ports are affected. The 6GB Intel ports appear to be unaffected. I assume that means the Marvell ports and Jmicron e-Sata are also unaffected but who knows... In any case, if you have a hard drive on the 3GB Intel port with critical information, might be wise to move it to another port until they sort this all out.Quote:
Originally Posted by timchaos
Can we use sata II hdd with sata III ports?
Yes.Quote:
Originally Posted by EagleRock
Good thing my OS with the SSD is on the 6 GB Intel and the others are for my other just DATA drives that are slow anyways :)
This is what happens when you go for low-volt action :rofl:
http://img.techpowerup.org/110202/Capture028.jpg
What's going on? Anybody else have been getting similar off-readings?
My 2 cents about offset mode.
It works far better than setting manual voltage.
Manual is very buggy, I had 20x Intel Burn Test Max stable overclock with 46x100 1.270V, and got BSOD just listening to Winamp and browsing, upped voltage by 0.01, still BSOD while playing Dead Space 2, finally had to up it from 1.270 to 1.290 to get it 100% stable.
Offset mode on the other hand doesn't even require long stress testing, it is stable if it passes 3DMark 05/06/Vantage, if not I just up the voltage by 0.01V. On manual I had to use 1.350V (1.320-1.336 in CPU-Z) for 4.8GHz. With offset that would be +0.075V, but it is completely stable with just +0.045V (1.296-1.328 in CPU-Z).
Just headsup FYI :)
Asus proactively response to the Intel SB chipset error
Quote:
For all customers who already own any ASUS product affected by the design error identified by Intel®, simply visit http://event.asus.com/2011/SandyBridge/notice for detailed warranty and service hotline information. We’ll be happy to address any questions or concerns you may have regarding this issue, as well as provide information on future updates to Sandy Bridge technology.
ASUS notebook and desktop products are covered by a warranty service that addresses the design error, with both swap and sales return offered as options to customers.
What do they mean by "call"? I hope they will do it right, we all need to get refunds, just like GB has just announced.Quote:
Originally Posted by tentp0le
Anybody has called to hear what kind of "news" they have on that hot-line?
On my Deluxe I cannot use my USB or PS2 keyboard when I get the Windows ended abnormally or Windows failed to load messages. Neither one reacts although they both work in the BIOS fine. Thankfully I usually get the shutdown error and I just let it tick through the 30 seconds to load Windows normally. If it's the fail to start message I have to back off the overclock to get into repair mode and cancel that. Am I the only one that this is happening to? My UD7 board desn't do this. Also when I do a restart from Windows, the system shuts off, turns back on and is fine. I also get the double cold boot.
I've been having an issue with my USB mouse that I believe may be related to the computer going into sleep mode.
The computer comes out of sleep mode fine, except that the mouse sometimes will not respond unless I unplug it from the USB and then plug it back in. After that, sometimes there is unusual behavior with the mouse and clicking, for example, sometimes I can't seem to click the "back" button on my browser even though other things still click.
I believe it started when I plugged in a second monitor as an extended desktop. I tried switching from my Nvidia 480 to an ATI card, but it didn't help resolve the issue.
I'm going to try some more testing by going back to one monitor and or disabling sleep mode to see if the problems happen. I've tried various USB 2.0 and 3.0 ports front and back, but it doesn't seem to make a difference.
Any other ideas?
I've been getting +120C on MB. Restart always fixes. I wouldn't worry about it.Quote:
Originally Posted by Sam_oslo
Agree. Honestly, offset is the way to go on SB chips. I'm using a +0.020 with a Medium LLC and the system is stable with low volts and temps.Quote:
Originally Posted by Gr1mR34p3r
Uninstall that piece of garbage. I was getting warnings all the time that my motherboard was at -60c.Quote:
Originally Posted by ghmz
Hey I probably should have posted here first before starting this one: http://www.xtremesystems.org/forums/...d.php?t=266020
Are you guys experiencing jumping temps at all? and are we using Real/CoreTemp over the Asus software?
Yes mine bounce around a little at idle but the vcore is always moving as well. Under load they don't bounce. I don't use the ASUS software for monitoring.:)Quote:
Originally Posted by chestnut
Weeps...Need new Video Card for this build...*_*
CPU: i7 2600k L041B204 D2
MB: ASUS P8P67 Pro Bios 1204
RAM: GSKILL DDR 3-1866 PC3 14900 - 8GBXMD
HDD: Hitachi 1tb x 3. 2 Intel Raid 1. OS 3gbs on the 6gb section & my OPTIC on the light blue despite whatever risk...
Optic: Samsung SH-S223L
PSU: TX850W Corsair
Cooler: Corsair A70
Case: ANTEC Lanboy Air RED
VC:BFG 8800 GT OC Passed away
with 1253, I can boot say 4.6 100x46 and it runs single threaded apps at 4.6 but as soon as say prime95 gets started it drops to 100x35. All c states and speedsteps are off, only thing on is turbo. Any ideas? Its not temps, im at 5c on warmest core. Chill'd water
As far as booting up past x51, it seems to not be applying at all(or enough?) internal PLL overvoltage as it does the same blinking command prompt at 100x45 if not enabled.
Finally solved my problem. I was unable to increase the turbo to above 33, no matter which values I entered in the bios. The problem were some ssd register tweaks I did right after the Windows installation. Somehow some register values must influence the turbo mode. A fresh install fixed the problem. Just started overclocking. First results (prime95 stable)Quote:
Originally Posted by tiesum
http://i172.photobucket.com/albums/w24/tiesum/oc-1.jpg
I had some really strange stuff happen with 1253. After one failed O/C mine kept booting to 103.3 Blck ,only way I fixed that was to reset Cmos with the PC un plugged, then it returned to normal. The first time I got the blinking cursor was trying to boot at 100x52, Just sat there blinking so I held the off button for 4 secs to turn it off, let it sit a minute and restarted without changing anything and it booted right up and primed for 1/2 hr. Go figure.:confused: Using 1204 for about a week now and haven't had any bizzare things happen yet when playing around at 50+(fingers crossed). Was just looking at your 980X post. Impressive.:)Quote:
Originally Posted by Splave
What kind of tweaks did you use? i have done some too.Quote:
Originally Posted by tiesum
I used a few:Quote:
Originally Posted by EagleRock
-ssdtweaker.exe
-disable intelppm
-disable hibernation
-disable superfetch
-disable windows search
I appreciate the info bro :up: ill try 1204Quote:
Originally Posted by crossg
Hmm, what's the reason that many of you go up as high as "ultra high" as LLC? Why not go "extreme"?
Extreme is going beyond llc and raises the voltage during vdroop.Quote:
Originally Posted by deaffob
anybody knows 1155 socket mounting holes distance mm x mm ? i gonna do new holes my heatkiller 3.0
There's plenty of information on Intel's LGA1155 Socket Manual, with all kinds of drawings and specs: it'd be the safest source for that kind of answer.Quote:
Originally Posted by GiN
75 x 75 when I looked into it.Quote:
Originally Posted by GiN
wow went from 1253 to 1204 and now the same settings that would cut power at 50x100 on superpi1m are now stable for superpi32m :D
EDIT: anyone else able to boot 1.5v+ but as soon as you start a bench it cuts power?
Quote:
Originally Posted by ghmz
I must be doing something wrong. I'm on the 1053 bios with ultra high LLC. When I'm pushing my 2500k into the 4.8 to 5.0 ghz range, I can achieve stability using manual voltage only. I would like to use the offset for lower idle voltage. However, when I set the offset to match the vcore I observe under load with a manual vcore setting of a a given overclock speed, the system becomes terribly unstable (bluescreens galore). I could try adding more offset voltage, but then the vcore under load becomes higher than I would need for stability with a manual vcore setting.
hi splave, no probs here with the 1253 with voltages above 1.5Quote:
Originally Posted by Splave
I'm still on air, waiting for some ln2 to test better.
As far as I can see until now, I can boot in windows with 1.58v, but nothing changes from 1,51... so I do all the benches@1,51v :)
I am experiencing the same behavior with offset voltage compared to manual voltage.Quote:
Originally Posted by drnick
+1Quote:
Originally Posted by babalouj
Played with Offset for about 4 hours last night, in none of my situations was it better than manual. That went for 4.0, 4.2, 4.5, 4.8 and 5.0 profiles.
The offset voltage can get tricky. The issue is the amount of applied voltage throughout the range of idle to full load. Dial in the necessary offset to achieve full stability. Then try different levels of LLC to bring the full load voltage down. You may have to use a fairly large offset to drop down to the next lower LLC setting. Also when using offset voltages it is best to monitor VCORE with a DMM or scope instead of software.
i think the issue with offset is the vcore given on low cpu usage which is too low.
try linx on 1 thread you will see what i mean.
for example me i normaly need about 1.38v for 4.8 ghz but when i was trying offset with ultra high llc with 1.41 on max vcore i was still not stable.
then i tryed linx on 1 thread and i noticed that my vcore could go at like 1.280v for 4.8 ghz
what worked for me to have a higher mini vcore on load but not too high max vcore is medium llc with higher offset.
Now my min vcore on load is 1.320v and my max on 8 thread is 1.4v.
yes its still a bit higher than my manual vcore,but i dont use apps fully loading my cpu like linx so im rarely at 1.4 v.
hope it helps :)
I picked up the Deluxe board just a few days before the Intel defect was announced. Now I'm not sure whether to install the board and wait for the replacement to be released or just return it.
Is the immaturity of the Bios enough to swing toward just returning it and waiting for the new release in April?
just use sata6 ports or the marvell until april
Just use it. Asus has a replacement program which by that time you'll get a new board with a newer rev. and bios.
Quote:
Originally Posted by rpr
Thanks for all the information!Quote:
Originally Posted by Sevenz
The great thing about using OFFSET mode is that the CPU will not have a constant high voltage applied even when the PC is idling, instead, only when really in use, or maxed, the high voltage will be applied.
@ first, I wanted to disable speedstep because the PC would still use 1.35V +/- even when idling @ 1.6ghz, which seemed pointless to me.
Now, with Offset I use speedstep since I know the voltage will go up as down when needed!
Hard to beat offset voltage for 24/7 use when dialed in properly. A little less the 0.375V difference in the screenshots below between idle and load.
http://edgeofstability.com/images/m4...0_aida64_1.PNG
http://edgeofstability.com/images/m4...4900_pcvan.PNG
Yea but just like that, you are using way too much voltage to be stable with offset. With manual, you could probably bring that about .05 further down.Quote:
Originally Posted by Praz
I would think the voltage would vary on each individual chip. I was using manual voltage, but yesterday I messed with the offset voltage and was able to stay stable at the same load voltage I had set on manual. I haven't messed with it further to see about getting it lower yet though because I haven't had the time.Quote:
Originally Posted by deaffob
If I was running the board fully loaded 27/7 manual would be a viable option. But since the majority of the time it is somewhere less then 100% loaded offset is a better option for me. For anyone that wants the CPU to be at loaded voltage when at 1600MHz the setting is in the BIOS to make it so.Quote:
Originally Posted by deaffob
You right. Set to manual the needed loaded voltage is not much different then what I show in the screenshot. Where the voltage really gets kicked up is if the configuration requires additional offset to stabilize from idle to a near loaded state. But that can be fixed somewhat with LLC.Quote:
Originally Posted by MaStA
Very nice to hear that Praz... asked Super Peter and Jack for that setting... glad it will be there in the new upcoming biosses.
@offtopic : Still got issues with the Sabretooth : cold boot issue, not resuming from S3, USB overvoltage error (with 1204 bios and only USB mouse connected), not being able to lower PCH voltage (stuck at 1.05)...
Don't quote the pics, simply delete the img before you submit. :)Quote:
Originally Posted by deaffob
Which setting? Offset on the M4E? It should be there on the BIOS you are using.Quote:
Originally Posted by Leeghoofd
Got a strange problem here. When i put my Zotac GTX 480 in PCIe_x16_1 I get full x16 2.0 speed but as soon as I stress the gpu the system will freeze.
When i moved it to PCIe_x16_2 i got x8 2.0 speed, and the card works 100% fine when I put some stress on it...
Everything at stock, any suggestions?
Praz can you give as some bios offset settings for X48,X49 or higher ? ,i like to give that a try:up:Quote:
Originally Posted by Praz
thanks
