04-30-2009, 02:32 PM
Shadowjump

Meh, it was the CPUs after all!

Just changed to a D0 and with lower voltages i am doing 4.2 24/7
04-30-2009, 03:25 PM
eva2000

yeah cpu plays an important part ;)
04-30-2009, 09:58 PM
Marvin54

eva2000:

The chipset is well cool, keep it as cold?
05-02-2009, 07:33 AM
Praz

LP UT-X58-T3eH8 - 920 @ 200x20, 12GB Memory @ 1600MHz, Post 1 Of 2

DFI LP UT X58-T3eH8, 02/17 BIOS
i7 920
3x2GB OCZ PC3-15000 Reaper CL9 1866MHz 9-9-9-28
3x2GB OCZ PC3-14400 Reaper CL8 1800MHz 8-8-8-26
200x20, Memory 1600MHz 7-7-7-24
HT On, Turbo Off
OCZ 120GB Apex
SAPPHIRE 4870 Crossfire
Green Slots Used For Memory

click for larger image
http://www.edgeofstability.com/image...os/main1_s.jpg http://www.edgeofstability.com/image...os/main2_s.jpg

click for larger image
http://www.edgeofstability.com/image...os/volt1_s.jpg http://www.edgeofstability.com/image...os/volt2_s.jpg

click for larger image
http://www.edgeofstability.com/image...ios/dram_s.jpg http://www.edgeofstability.com/image.../feature_s.jpg

Code:

Genie BIOS Setting Main BIOS Page Exit Setup Shut down:............Mode 2 O.C. Fail Retry Counter:.........Enabled O.C. Fail CMOS Reload:...........Disabled PPM Function:....................Enabled Turbo Mode Function:.............Disabled x 1 core Max Turbo Ratio:.........22x x 2 core Max Turbo Ratio:.........21x x 3 core Max Turbo Ratio:.........21x x 4 core Max Turbo Ratio:.........21x CPU Non-Turbo Clock Ratio:.......20x * BCLK/UCLK/QPI Controller Settings * QPI Control Settings:............Enabled QPI Link Fast Mode:..............Enabled QPI Frequency:...................Auto CPU Base Clock(BCLK):............200 Mhz Boot Up CPU Base Clock:..........Auto PCIE Clock:......................100 Mhz DRAM Frequency:..................BCLK*08 Mhz UnCore Frequency:................BCLK*16 Mhz CPU Spread Spectrum:.............Disabled PCIE Spread Spectrum:............Disabled CPU Feature Set VR Current Limit Max:........Enabled Thermal Management Control:......Enabled EIST Function:...................Enabled CxE Function:....................Auto Execute Disable Bit:.............Enabled Virtualization Technology:.......Enabled ***** Logical Processor Setting ***** Intel HT Technology:.............Enabled Active Processor Cores:..........All DRAM Timing Channel Interleave Setting:......Auto Rank Interleave Setting:.........Auto Memory LowGap:...................1536M DRAM Command Rate:...............1N CAS Latency Time (tCL):..........7 RAS# to CAS# Delay (tRCD):.......7 Precharge Delay (tRP):...........7 RAS# Precharge (tRAS):...........24 REF to ACT Delay (tRFC):.........Auto Write to PRE Delay (tWR):........Auto Rank Write to Read (tWTR):.......Auto ACT to ACT Delay (tRRD):.........Auto Row Cycle Time (tRC):............Auto Read CAS# Precharge (tRTP):......Auto Four ACT WIN Time (tFAW):........Auto Voltage Setting O.C. Shut Down Free:.............Enable O.C.S.D.F CPU VID Control:.................1.32500V CPU VID Special Add Limit:.......Enabled CPU VID Special Add:.............Auto Vcore Droop Control:.............Enabled DRAM Bus Voltage:................1.680v DRAM PWM Switch Frequency:.......Nominal Frequency DRAM PWM Phase Control:..........2 Phase Operation CPU VTT Special Add:.............Auto CPU VTT Voltage:.................1.32v VTT PWM Switch Frequency:........Nominal Frequency VTT PWM Phase Control:...........2 Phase Operation CPU PLL Voltage:.................1.80v IOH/ICH 1.1V Voltage:............1.11v IOH Analog Voltage:..............1.10v ICH 1.5 Voltage:.................1.5v ICH 1.05V Voltage:...............1.05v DIMM 1/2 DQ/DQSTB Bus VREF:......+00.0% DIMM 3/4 DQ/DQSTB Bus VREF:......+00.0% DIMM 5/6 DQ/DQSTB Bus VREF:......+00.0% ADDR/CMD VREF Control:...........Disabled x DIMM 1/2 ADDR/CMD Bus VREF:.....110 x DIMM 3/4 ADDR/CMD Bus VREF:.....110 x DIMM 5/6 ADDR/CMD Bus VREF:.....110 CPU QPI Drive Strength:..........Normal IOH QPI Drive Strength:..........Normal

click for larger image
http://www.edgeofstability.com/image...00x2_mem_s.jpg
05-02-2009, 07:34 AM
Praz

LP UT-X58-T3eH8 - 920 @ 200x20, 12GB Memory @ 1600MHz, Post 2 Of 2

Windows 7 64Bit

click for larger image
http://www.edgeofstability.com/image...0x2_occt_s.jpg

click for larger image
http://www.edgeofstability.com/image...0x2_3d06_s.jpg

click for larger image
http://www.edgeofstability.com/image...x2_3dvan_s.jpg

click for larger image
http://www.edgeofstability.com/image...x2_pcvan_s.jpg

http://www.edgeofstability.com/image...x2_warhead.jpg http://www.edgeofstability.com/image...x2_farcry2.jpg

3dx Max 2009 w/V-ray
Time to render: 6min 09sec

click for larger image
http://www.edgeofstability.com/image...chmark_680.jpg

TMPGEnc XPress
1GB VOB file ripped from DVD movie

click for larger image
http://www.edgeofstability.com/image...2_encode_s.jpg

click for larger image
http://www.edgeofstability.com/image...00x2_cin_s.jpg
05-02-2009, 07:42 AM
eva2000
Quote:

Originally Posted by Marvin54

eva2000:

The chipset is well cool, keep it as cold?

you mean my system ? it's open bench setup with 120x25mm thermaltake 81cfm fan over NB :)

Praz very very nice IMC on that cpu for 12GB and cpu vtt 1.31v!!!

Max BCLK

http://valid.canardpc.com/cache/banner/557332.png

http://fileshosts.com/intel/DFI/DFI_.../cpuzvalid.png

Super Pi 1M to 32M
- 1M = 9.328s
- 2M = 21.000s
- 4M = 46.422s
- 8M = 1min 42.750s
- 16M = 3min 45.782s
- 32M = 8min 11.859s
http://fileshosts.com/intel/DFI/DFI_...8m11s859ms.png

System:
- i7 920 3836A756
- EK Supreme LT 1366 / FESER 480 / MCP655
- DFI UT X58-T3EH8 04/28 beta
- 512MB Inno3D 8800GT OC Edition
- 6GB Corsair Dominator GT DDR3-2000Mhz 7-8-7-20
- 750GB Samsung SATAII
- Silverstone OP1200 PSU
- Dual boot - WinXP Pro SP3 / Vista Ultimate 64Bit SP2
Bios settings used.

Code:

Genie BIOS Setting CPU Feature Set VR Current Limit Max: Disabled Thermal Management Control: Disabled EIST Function: Disabled CxE Function: Disabled Execute Disable Bit: Disabled Virtualization Technology: Disabled ***** Logical Processor Setting ***** Intel HT Technology: Enabled Active Processor Cores: All DRAM Timing Channel Interleave Setting: AUTO Rank Interleave Setting: AUTO Memory LowGap: 1792M DRAM Command Rate: AUTO CAS Latency Time (tCL): 6 RAS# to CAS# Delay (tRCD): 7 RAS# Precharge (tRP): 6 Precharge Delay (tRAS): 20 REF to ACT Delay (tRFC): AUTO Write to PRE Delay (tWR): AUTO Rank Write to Read (tWTR): AUTO ACT to ACT Delay (tRRD): AUTO Row Cycle Time (tRC): 31 Read CAS# Precharge (tRTP): AUTO Four ACT WIN Time (tFAW): 31 Ch1 Round trip latency: AUTO (-15 to +16) Ch2 Round trip latency: AUTO (-15 to +16) Ch3 Round trip latency: AUTO (-15 to +16) tREFI: AUTO Voltage Setting O.C. Shut Down Free: Enable O.C.S.D.F CPU VID Control: 1.4500v CPU VID Special Add Limit: Disabled CPU VID Special Add: 103.30% Vcore Droop Control: Disabled DRAM Bus Voltage: 1.71v DRAM PWM Switch Frequency: Nominal DRAM PWM Phase Control: 2 Phase Operation CPU VTT Special Add: 0.0875v CPU VTT Voltage: 1.53v VTT PWM Switch Frequency: Nominal VTT PWM Phase Control: 2 Phase Operation CPU PLL Voltage: 1.80v IOH/ICH 1.1V Voltage: 1.29v IOH Analog Voltage: 1.20v ICH 1.5 Voltage: 1.5v ICH 1.05V Voltage: 1.05v DIMM 1/2 DQ/DQSTB Bus VREF: -00.0% DIMM 3/4 DQ/DQSTB Bus VREF: -00.0% DIMM 5/6 DQ/DQSTB Bus VREF: -00.0% ADDR/CMD VREF Control: Disabled x DIMM 1/2 ADDR/CMD Bus VREF: 110 x DIMM 3/4 ADDR/CMD Bus VREF: 110 x DIMM 5/6 ADDR/CMD Bus VREF: 110 CPU QPI Drive Strength: Normal IOH QPI Drive Strength: Normal Exit Setup Shut down: Mode 2 O.C. Fail Retry Counter: Enabled O.C. Fail CMOS Reload: Disabled PPM Function: Enabled Turbo Mode Function: Disabled 1 core Max Turbo Ratio: 22x 2 core Max Turbo Ratio: 21x 3 core Max Turbo Ratio: 21x 4 core Max Turbo Ratio: 21x CPU Non-Turbo Clock Ratio: 19x * BCLK/UCLK/QPI Controller Settings * QPI Control Settings: Enabled QPI Link Fast Mode: Enabled QPI Frequency: AUTO CPU Base Clock (BCLK): 230 Mhz Boot Up CPU Base Clock: AUTO PCIE Clock: 110 Mhz DRAM Frequency: 8xx Memory multipliers UnCore Frequency: 16x Uncore multipliers CPU Spread Spectrum: Disabled PCIE Spread Spectrum: Disabled

Starting to hit probably thermal limits of my i7 920 3836A756 on H20 cooling as 32M Pi seems to be topping out around 4680mhz with HT disabled. Only managed to shave ~1 second off my best 32M pi time with i7 920.

http://fileshosts.com/intel/DFI/DFI_...7m46s875ms.png
05-05-2009, 07:41 AM
msgclb
Quote:
Originally Posted by eva2000

System:

i7 920 3836A756
EK Supreme LT 1366 / FESER 480 / MCP655
DFI UT X58-T3EH8 04/28 beta
512MB Inno3D 8800GT OC Edition
6GB Corsair Dominator GT DDR3-2000Mhz 7-8-7-20
750GB Samsung SATAII
Silverstone OP1200 PSU
Dual boot - WinXP Pro SP3 / Vista Ultimate 64Bit SP2
Does your experience using a Feser Quad with the DFI UT X58 tell you that it's needed or did you just get a good deal:D? Ever since I noticed that you went with a quad I've been looking but over here all I see is 'Out of Stock'.
05-05-2009, 03:09 PM
Praz

920 @ 225x18 6GB Memory 1800MHz, 8-8-8-24 - Post 1 Of 2

DFI LP UT X58-T3eH8, 04/28 BIOS
i7 920
3x2GB OCZ PC3-14400 Reaper 1800MHz 8-8-8-26
225x18, Memory 1800MHz 8-8-8-24
HT On, Turbo Off
OCZ 30GB Vertex
OCZ 120GB Apex
SAPPHIRE 4870 Crossfire
OCZ 1000WProXStream - 4 Rail Modified To Single Rail

click for larger image
http://www.edgeofstability.com/image...os/main1_s.jpg http://www.edgeofstability.com/image...os/main2_s.jpg

click for larger image
http://www.edgeofstability.com/image...os/volt1_s.jpg http://www.edgeofstability.com/image...os/volt2_s.jpg

click for larger image
http://www.edgeofstability.com/image...ios/dram_s.jpg http://www.edgeofstability.com/image.../feature_s.jpg

Code:

Genie BIOS Setting Main BIOS Page Exit Setup Shut down:............Mode 2 O.C. Fail Retry Counter:.........Enabled O.C. Fail CMOS Reload:...........Disabled PPM Function:....................Disabled Turbo Mode Function:.............Disabled x 1 core Max Turbo Ratio:.........22x x 2 core Max Turbo Ratio:.........21x x 3 core Max Turbo Ratio:.........21x x 4 core Max Turbo Ratio:.........21x CPU Non-Turbo Clock Ratio:.......18x * BCLK/UCLK/QPI Controller Settings * QPI Control Settings:............Enabled QPI Link Fast Mode:..............Enabled QPI Frequency:...................Auto CPU Base Clock(BCLK):............225 Mhz Boot Up CPU Base Clock:..........Auto PCIE Clock:......................100 Mhz DRAM Frequency:..................BCLK*08 Mhz UnCore Frequency:................BCLK*16 Mhz CPU Spread Spectrum:.............Disabled PCIE Spread Spectrum:............Disabled CPU Feature Set VR Current Limit Max:........Enabled Thermal Management Control:......Disabled EIST Function:...................Enabled CxE Function:....................Auto Execute Disable Bit:.............Enabled Virtualization Technology:.......Enabled ***** Logical Processor Setting ***** Intel HT Technology:.............Enabled Active Processor Cores:..........All DRAM Timing Channel Interleave Setting:......Auto Rank Interleave Setting:.........Auto Memory LowGap:...................1536M DRAM Command Rate:...............1N CAS Latency Time (tCL):..........8 RAS# to CAS# Delay (tRCD):.......8 Precharge Delay (tRP):...........8 RAS# Precharge (tRAS):...........24 REF to ACT Delay (tRFC):.........74 Write to PRE Delay (tWR):........Auto Rank Write to Read (tWTR):.......Auto ACT to ACT Delay (tRRD):.........5 Row Cycle Time (tRC):............Auto Read CAS# Precharge (tRTP):......Auto Four ACT WIN Time (tFAW):........20 Ch1 Round trip latency...........Auto Ch1 Round trip latency...........Auto Ch1 Round trip latency...........+1 tREFI............................Auto Voltage Setting O.C. Shut Down Free:.............Enable O.C.S.D.F CPU VID Control:.................1.36875 CPU VID Special Add Limit:.......Disabled CPU VID Special Add:.............103.77% Vcore Droop Control:.............Enabled DRAM Bus Voltage:................1.650v DRAM PWM Switch Frequency:.......Nominal Frequency DRAM PWM Phase Control:..........2 Phase Operation CPU VTT Special Add:.............Auto CPU VTT Voltage:.................1.34v VTT PWM Switch Frequency:........Nominal Frequency VTT PWM Phase Control:...........2 Phase Operation CPU PLL Voltage:.................1.80v IOH/ICH 1.1V Voltage:............1.15v IOH Analog Voltage:..............1.10v ICH 1.5 Voltage:.................1.5v ICH 1.05V Voltage:...............1.05v DIMM 1/2 DQ/DQSTB Bus VREF:......-00.0% DIMM 3/4 DQ/DQSTB Bus VREF:......-00.0% DIMM 5/6 DQ/DQSTB Bus VREF:......-00.0% ADDR/CMD VREF Control:...........Disabled x DIMM 1/2 ADDR/CMD Bus VREF:.....110 x DIMM 3/4 ADDR/CMD Bus VREF:.....110 x DIMM 5/6 ADDR/CMD Bus VREF:.....110 CPU QPI Drive Strength:..........Strong IOH QPI Drive Strength:..........Normal

click for larger image
http://www.edgeofstability.com/image..._linx_64_s.jpg

click for larger image
http://www.edgeofstability.com/image...prime_64_s.jpg

click for larger image
http://www.edgeofstability.com/image...8_mem_64_s.jpg

click for larger image
http://www.edgeofstability.com/image..._cpuz_64_s.jpg

CPU-Z Validation
05-05-2009, 03:10 PM
Praz

920 @ 225x18 6GB Memory 1800MHz, 8-8-8-24 - Post 2 Of 2

Windows 7 64Bit

click for larger image
http://www.edgeofstability.com/image..._occt_64_s.jpg

click for larger image
http://www.edgeofstability.com/image...hyper_64_s.jpg

click for larger image
http://www.edgeofstability.com/image..._3d06_64_s.jpg

click for larger image
http://www.edgeofstability.com/image...3dvan_64_s.jpg

click for larger image
http://www.edgeofstability.com/image...pcvan_64_s.jpg

http://www.edgeofstability.com/image...warhead_64.jpg http://www.edgeofstability.com/image...farcry2_64.jpg

3dx Max 2009 w/V-ray
Time to render: 5min 56sec

click for larger image
http://www.edgeofstability.com/image...chmark_680.jpg

TMPGEnc XPress
1GB VOB file ripped from DVD movie

click for larger image
http://www.edgeofstability.com/image...ncode_64_s.jpg

click for larger image
http://www.edgeofstability.com/image...8_cin_64_s.jpg
05-05-2009, 05:37 PM
eva2000

nice Praz, total SSD based system I see :)

Quote:

Originally Posted by msgclb

Does your experience using a Feser Quad with the DFI UT X58 tell you that it's needed or did you just get a good deal:D? Ever since I noticed that you went with a quad I've been looking but over here all I see is 'Out of Stock'.

Well feser 480 was selling at feser 360 prices here locally as retailer was doing a special to make up for the fact he didn't have feser 360 stock - so choice was obvious :D

4//28 looking sweet indeed 8x 32M Super Pi instance via HyperPi @DDR3-2080Mhz 7-8-7-20 1T at 1.725v bios set vdimm = 1.730v real DMM vdimm.

http://fileshosts.com/intel/DFI/DFI_..._32m_x8_tn.png

http://fileshosts.com/intel/DFI/DFI_...15/everest.png

New SG Skin used http://i4memory.com/f80/dfi-ut-x58-t...n-skins-17321/ :D

Both cstkl1 and my DFI contact suggested with 4/28 bios, I check out setting BOOT Up CPU Base Clock to around 180-185bclk for better perrformance and stability. Seems to work as first test has me reducing my required CPU VTT volts from 1.43v to 1.37v for 8x 32M Pi test!!!!

:cool: :)

http://fileshosts.com/intel/DFI/DFI_...rpi_32m_x8.png

Quote:

* BCLK/UCLK/QPI Controller Settings *
QPI Control Settings: Enabled
QPI Link Fast Mode: Enabled
QPI Frequency: AUTO
CPU Base Clock (BCLK): 200 Mhz
Boot Up CPU Base Clock: 185 Mhz
PCIE Clock: 104 Mhz
DRAM Frequency: 10x Memory multipliers
UnCore Frequency: 20x Uncore multipliers

Bumped CPU VTT from 1.37v bios to 1.39v bios and IOH/ICH v1.1 from 1.11 to 1.13v for Linx stability :)

http://fileshosts.com/intel/DFI/DFI_.../linx_load.png

http://fileshosts.com/intel/DFI/DFI_...tload_idle.png
05-05-2009, 11:02 PM
Peakr

Any word on DFI putting this awesomeness into a bios for the DK?
05-05-2009, 11:29 PM
eva2000

DFI DK X58 and JR X58 4/28 beta here http://i4memory.com/f80/dfi-dk-x58-t...-public-17312/ :)
05-05-2009, 11:43 PM
Peakr

Sweet.THX!
05-07-2009, 09:20 AM
Praz

Quote:

Originally Posted by eva2000

nice Praz, total SSD based system I see :)

Thanks Eva. With no conventional hard drives the system feels so much smoother. Had a bit of time last night and it looks lke 230 BCLK might have a chance at 24/7 stability. It's passing 20 runs of LinX. Haven't tried other benches yet.
05-08-2009, 02:42 AM
cstkl1

Will post pic and more results later on higher vdimm..

For DFI x58's

I find memtest hci and memtest86+ is fake on vdimm
hyperpi is somewhat fake cause all u need is to have stable vtt voltages
it will accept lower vdimm a lot by around 0..05v
prime95 set large fft then custom change run fft to 5.4gb is the best for vdimm
linx is best for vcore and ioh/ich voltages.

Test rig
I7 920
DFI UT X58 the8
Kingston Hyperx T1 3x2gb 2000mhz CL8
GTx285 sli.

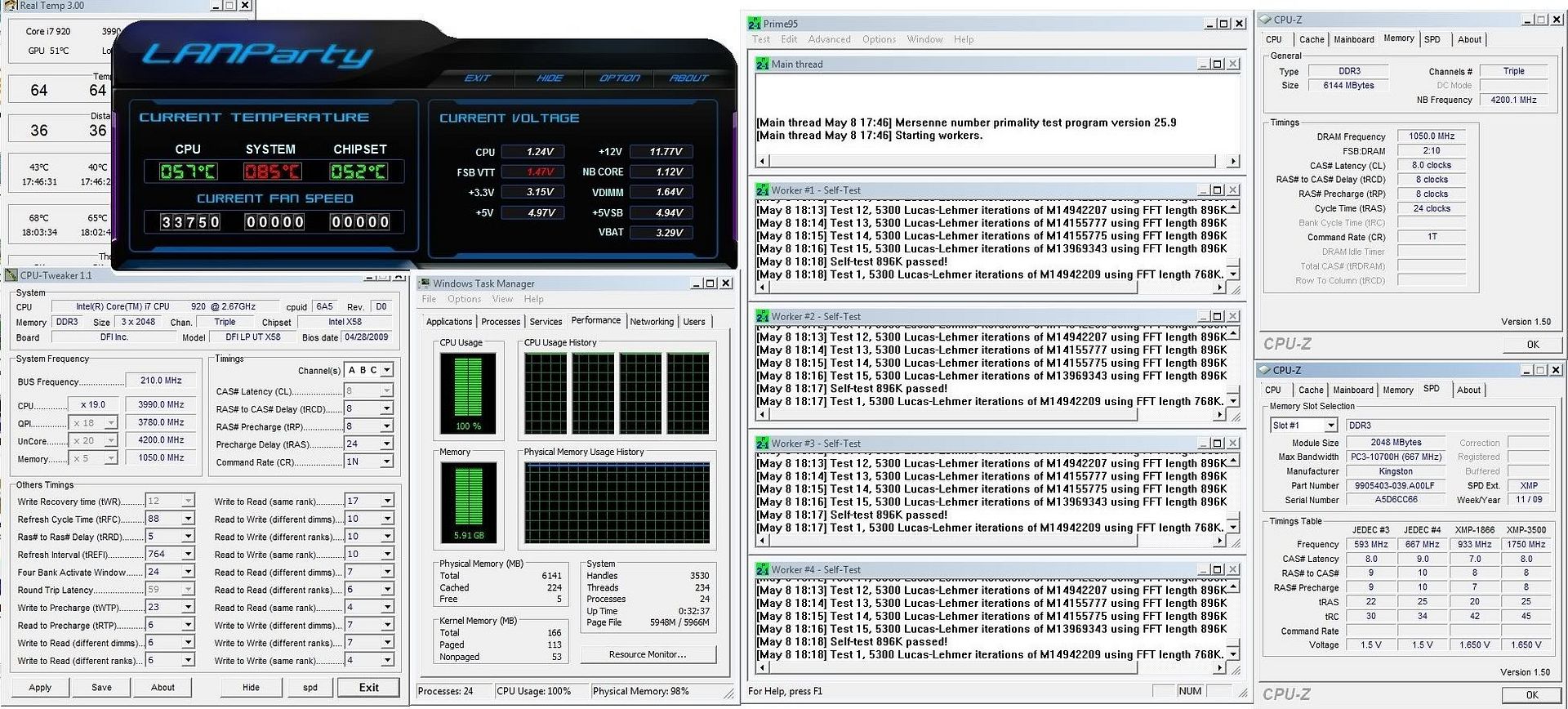

1.65v set DMM Read 1.648 load

2100mhz 8-8-8-24 1n
http://i287.photobucket.com/albums/l...ntitled2-8.jpg
http://i287.photobucket.com/albums/l...ntitled-43.jpg

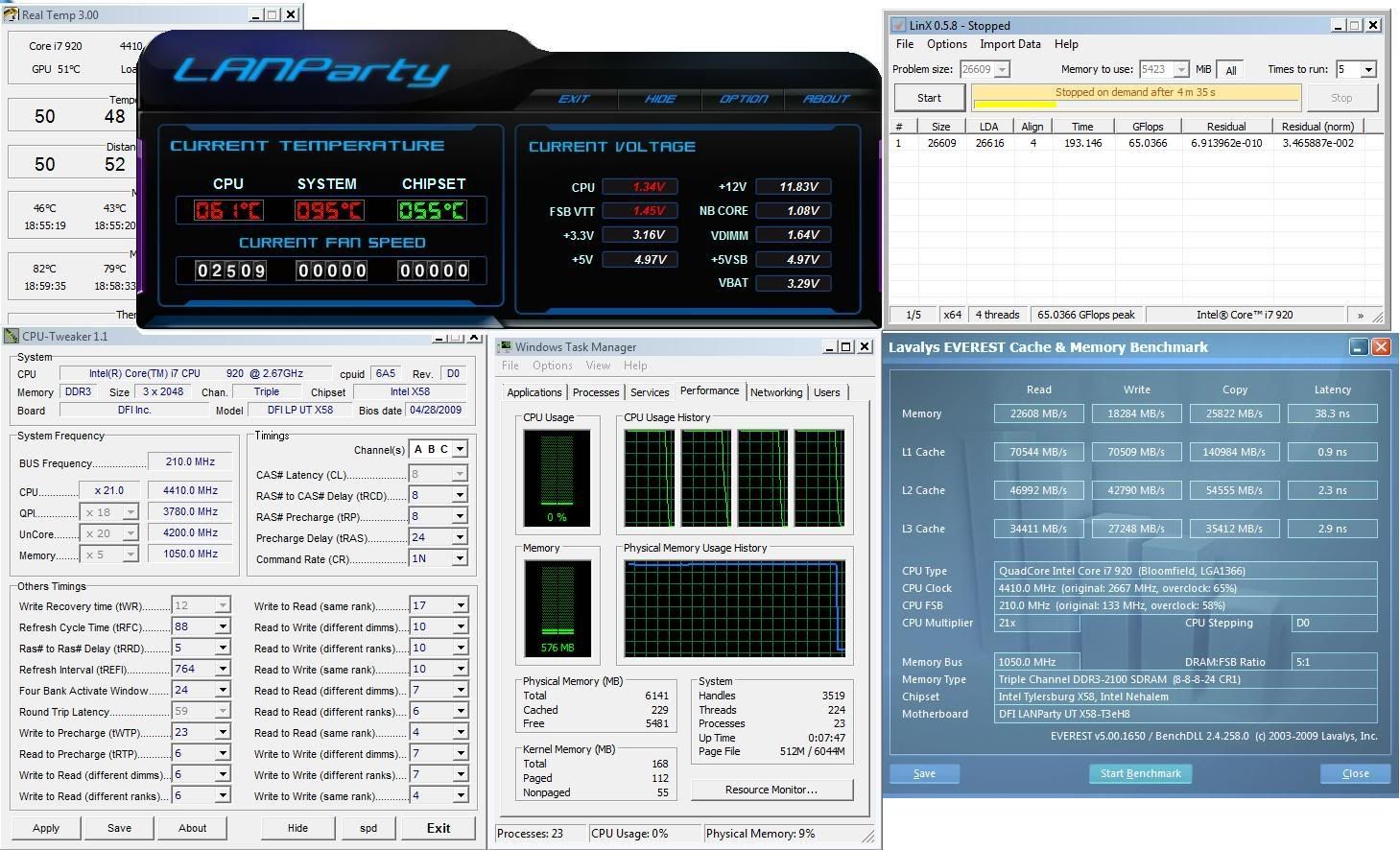

had to abort linx but i did find the exact vcore from another method.
will use hr05 later and some fans on the nb. havent placed them yet on this 2nd mobo
05-10-2009, 06:56 AM
eva2000
Quote:

Originally Posted by Praz

Thanks Eva. With no conventional hard drives the system feels so much smoother. Had a bit of time last night and it looks lke 230 BCLK might have a chance at 24/7 stability. It's passing 20 runs of LinX. Haven't tried other benches yet.

230bclk i7 920 C0 linx stable dam nice!

Quote:

Originally Posted by cstkl1

Will post pic and more results later on higher vdimm..

For DFI x58's

I find memtest hci and memtest86+ is fake on vdimm
hyperpi is somewhat fake cause all u need is to have stable vtt voltages
it will accept lower vdimm a lot by around 0..05v
prime95 set large fft then custom change run fft to 5.4gb is the best for vdimm
linx is best for vcore and ioh/ich voltages.

Test rig
I7 920
DFI UT X58 the8
Kingston Hyperx T1 3x2gb 2000mhz CL8
GTx285 sli.

1.65v set DMM Read 1.648 load

2100mhz 8-8-8-24 1n

had to abort linx but i did find the exact vcore from another method.
will use hr05 later and some fans on the nb. havent placed them yet on this 2nd mobo

nice.. seem to have gotten the trick to DFI UT X58-T3EH8 Elpida clocking :)

My latest HD4870x2 Crossfire results :)

System:
- i7 920 3836A756
- EK Supreme LT 1366 / FESER 480 / MCP655
- DFI UT X58-T3EH8 04/28 beta
- 2x HD4870x2 Crossfire (Powercolor + Gigabyte flashed to Asus Top bios) with ATI Win7 9.4 (8.612 WHQL)
- 6GB Corsair Dominator GT DDR3-2000Mhz 7-8-7-20
- 750GB Samsung SATAII
- Silverstone OP1200 PSU
- Triple boot - WinXP Pro SP3 / Vista Ultimate 64Bit SP2 / Win7 Ultimate 64bit RC
http://fileshosts.com/intel/DFI/DFI_...0_30450_tn.png

http://fileshosts.com/intel/DFI/DFI_...0_37735_tn.png

3dmark2003 get the following error when i start it ??

Quote:

Problem signature:
Problem Event Name: APPCRASH
Application Name: 3DMark03.exe
Application Version: 3.6.0.0
Application Timestamp: 41da8282
Fault Module Name: fmod.dll
Fault Module Version: 3.6.1.0
Fault Module Timestamp: 3e170d1b
Exception Code: c0000005
Exception Offset: 000109ca
OS Version: 6.1.7100.2.0.0.256.1
Locale ID: 1033
Additional Information 1: 0a9e
Additional Information 2: 0a9e372d3b4ad19135b953a78882e789
Additional Information 3: 0a9e
Additional Information 4: 0a9e372d3b4ad19135b953a78882e789

Read our privacy statement online:
http://go.microsoft.com/fwlink/?link...8&clcid=0x0409

If the online privacy statement is not available, please read our privacy statement offline:
C:\Windows\system32\en-US\erofflps.txt

http://fileshosts.com/intel/DFI/DFI_...0_27379_tn.png

Throw in some wprime

http://fileshosts.com/intel/DFI/DFI_...32m_585_tn.png

http://fileshosts.com/intel/DFI/DFI_...0s212ms_tn.png

http://fileshosts.com/intel/DFI/DFI_...prime2_32m.png
05-12-2009, 06:13 AM
hadji_a

I have a problem getting the 21 multi to work in win7 7100 x64. I have eist and turbo enabled in the bios (4/28) but only seem to get 12 multi (as shown in cpuz and confirmed by results from various benches) within windows. Power plan is set to high performance (min and max are set to 100%). I have no problem using 21 multi in both xp and 2k8.
Any suggestions would be much appreciated.
05-12-2009, 06:51 AM
eva2000

Quote:

Originally Posted by hadji_a

I have a problem getting the 21 multi to work in win7 7100 x64. I have eist and turbo enabled in the bios (4/28) but only seem to get 12 multi (as shown in cpuz and confirmed by results from various benches) within windows. Power plan is set to high performance (min and max are set to 100%). I have no problem using 21 multi in both xp and 2k8.
Any suggestions would be much appreciated.

A few of us are discussing same experience with win7 at http://i4memory.com/f80/windows-7-df...8-t3eh8-17336/, some findings are VID Special Add set to AUTO fixes it (although i didn't have problems with it set to disabled) and also that cpuz is incorrectly reporting lower multipliers when turbo 21x multi is enabled - as my benchmarks are all showing results reflective of 21x being in place even if cpuz fluctuates for me between 5x, 8x, 12x, 15x, 17x, 18x, 20x and 21x in windows 7

Proof that cpuz reported cpu multiplier fluctuations in Windows 7 is cpuz related as both realtemp 3.20RC4 and coretemp 0.99.5 reported right 21x multi all the time

Fluctuating

http://fileshosts.com/intel/DFI/DFI_...ifluctuate.png

http://fileshosts.com/intel/DFI/DFI_...5_24810_tn.png
05-12-2009, 06:55 AM
peebi

Quote:

Originally Posted by hadji_a

I have a problem getting the 21 multi to work in win7 7100 x64. I have eist and turbo enabled in the bios (4/28) but only seem to get 12 multi (as shown in cpuz and confirmed by results from various benches) within windows. Power plan is set to high performance (min and max are set to 100%). I have no problem using 21 multi in both xp and 2k8.
Any suggestions would be much appreciated.

Same me
Then I change to xp
05-12-2009, 06:58 AM
eva2000

Quote:

Originally Posted by peebi

Same me
Then I change to xp

I suspect it's just cpuz misreporting - try with VID Special Add left at AUTO instead of disabled... no problems for me in terms of end result performance

http://fileshosts.com/intel/DFI/DFI_...nx_load_tn.png

http://fileshosts.com/intel/DFI/DFI_...linx_5pass.png
05-12-2009, 07:23 AM
ci2kla

Hey guys got back to DFI since UT-X48-T3RS.

Beta BIOS of 0805 is out anybody tried?

BTW my PWM area temp is getting ultra high...72C @ idle...maybe RMA time?...
05-12-2009, 07:40 AM
unclewebb

The i7 Turbo tool might help you guys understand any problems you're having with your reported multiplier.

http://www.fileden.com/files/2008/3/3/1794507/Turbo.zip

With Core i7 there are two ways to read the multiplier. You can read it directly from a model specific register (MSR) within the processor or the Intel Turbo White Paper recommends that you compare two high performance timers within the CPU every second and calculate the average multiplier.

The i7 Turbo tool uses both of these methods so you can compare. Calculating the multiplier at full load is the most accurate way to read the multiplier but most software doesn't do this because it is a lot easier to just read one value from an MSR. Using Intel's method to calculate the multiplier when the CPU is idle is not 100% accurate but it's pretty close. It may result in the odd random value but 99.9% of the time it seems to be accurate at idle as well. Constant fluctuation at idle in the calculated multiplier is usually a sign that your Minimum processor power state in your Power Options is not in agreement with your EIST/C1E bios settings.

When running high stress programs like LinX, this tool is the best way to check that Turbo mode is staying fully engaged. As soon as the multi starts to drop at full load, that is a sign that Turbo mode is starting to cycle rapidly on and off.
05-12-2009, 07:43 AM
peebi

[QUOTE=eva2000;3784216]I suspect it's just cpuz misreporting - try with VID Special Add left at AUTO instead of disabled... no problems for me in terms of end result performance

Please tell me about vid special add and vtt special add
Why it red mark
Is it save for 24/7
05-12-2009, 07:50 AM
Praz

Quote:

Originally Posted by eva2000

no problems for me in terms of end result performance

Same here with Win7 RC. Performance, temps and current draw indicate the multiplier is indeed 21x.

http://www.edgeofstability.com/image...isc/4200_A.jpg
05-12-2009, 11:44 AM
cstkl1

Pic kindda big.. but 4.4ghz ht off 2100mhz CL8
currently my fastest linx run 191.7

http://i287.photobucket.com/albums/l...th_2100CL8.jpg

Show 100 post(s) from this thread on one page
