That depends.. my RIIE is a POS, I have a board wall at 212 (213 3D starts getting funky), 214 and up no boot. I tried 5 CPUs already, 3 of which are Gulftowns that ran >230 on other RIIE's, just not this one :(
That's why I bought Karmakazi's E760, just waiting for Shamino to release the new bios with Q3QR support ;)
Gulftown is running hotter at the nb , look at the temp of yours and be sure the cooler has good contact , running 200-220 with a Q3QR and its 54 degrees at 1,20v bios set with waterblock instead of the aircoolblock heatpipe cooler still attached.
normal i7 is pretty cool but the water will give more stabillity at high bclock.(225+)
I confirm and not because my chip could 220 on re2 :D that's the pointQuote:
Originally Posted by Rol-Co
I tried 1504 but 1406 works better for me because of the lower vcore and qpi needed;)
anyway i'll try 920 for the next 1-2 weeks and probably change to i7 960
Dude, my NB temps are at 38C or so (Mips Fusion Block on it, and I swapped the stock TIM for MX-3) so that is not the issue. heck, I've tried 5 different CPUs, 4 ramkits, 3 VGAs, and a few bios versions - this (my) RIIE is just what it is, a POS clocker :shakes:Quote:
Originally Posted by Rol-Co
Because max BCLK VERY MUCH depends on the board ;)
max bclk depends on
1.CPU
2.Dram chipset
3.Mobo..
all three. but like jcool said mobo really plays the part.. suspect is the accuracy on the voltage being fed.
^
Max bclk on classified depends on
1.CPU temperature
2.CPU
Having a little problems with the stability of oc aswell..
running a 920 d0 with dominator gt 2ghz cl8 using s224 bios..
computer is fully stable for gaming and normal stuff and passed 10x of linx on the s222 bios but now it will bsod within 5passes.. usually "IRQL_NOT_LESS_THAN_OR_EQUAL"
any ideas what to do??
temps in linx have never passed 56degrees celsius and pwms never passed 58c so its not temperature related..
I need pretty high vtt as well anything under +300mv will give BSOD 124 "general hardware failure" which indicates vtt voltage .. been trying alot of settings for both vtt and cpu, and on the s222 bios I used 1.3125v for cpu and it was stable.
template is as follows:
Frequency Control
CPU Clock Ratio ( 20X )
CPU Host Frequency (Mhz) ( 201 )
MCH Strap ( Auto )
CPU Uncore Frequency ( 20x )
CPU Clock Skew ( 0 ps )
Spread Spectrum ( Disabled )
PCIE Frequency (Mhz) ( 101 )
Memory Feature
Memory Speed ( )
Memory Control Setting ( Enabled )
Memory Frequency ( 2001Mhz / 2:10 )
Channel Interleave Setting ( 6 Way )
Rank Interleave Setting ( 4 Way )
Memory Low Gap ( Auto )
tCL Setting ( 8 )
tRCD Setting ( 8 )
tRP Setting ( 8 )
tRAS Setting ( 24 )
tRFC Setting ( 59 )
Command Rate ( 1t )
Voltage Control
EVGA VDroop Control ( Without VDroop )
CPU VCore ( 1.3125 )
CPU VTT Voltage ( +275 )
CPU PLL VCore ( 1.8 )
IOH PLL VCore ( 1.8 )
DIMM Voltage ( 1.65 )
DIMM DQ Vref ( +0mV )
QPI PLL VCore ( 1.35 )
IOH VCore ( 1.1 )
IOH/ICH I/O Voltage ( 1.500 )
VTT PWM Frequency ( 610KHz )
CPU PWM Frequency ( 1210 )
CPU Impedance ( Less )
QPI Signal Compensation ( Auto )
ICH VCore ( Auto )
CPU Feature
Intel SpeedStep ( Disabled )
Turbo Mode Function ( Disabled )
CxE Function ( Disabled )
Execute Disable Bit ( Disabled )
Virtualization Technology ( Disabled )
Intel HT Technology ( Enabled )
Active Processor Cores ( All )
QPI Control Settings ( Enabled )
QPI Link Fast Mode ( Enabled )
QPI Frequency Selection ( 4.8GT/s )
OC Recorvery ( Disabled )
hmm...I have very low temps on my cpu but i can't push over bclk 215 why??Quote:
Originally Posted by Bobbylite
cpu easily run bclk 220 on re2?i will check under SS this weekend,we'll see ;)
jcool, i wouldnt call a 212 max bclock a pos board... but yes, its not what you expect from such an expensive board...
sounds like no pciE mod and/or bad memory timings? more relaxed trfc and rtl should enable higher bclocks in combination with higher pciE clocks...
RIIE doesn't need PCIe mods, it's the top-end OC board from Assus ;)Quote:
Originally Posted by saaya
I know a few people that can do 240+ on theirs, just mine can't. Tried playing with TRFC up to 110 or so, no change. I can run 211 with 10x dram so high dram speed/high uncore is not even a problem. I didn't really tweak the rtl settings since I don't know how to really, I do know is that other people who can run >230 on the RIIE didn't bother tweaking rtls either :p:
I don't have to tweak them on my DFI to get to 230 either. :shrug:
Quote:
Originally Posted by cstkl1
That order is right, and if these 3 are the only factor, then ..
If using the same RAM too, then it means only MB (Or maybe the BIOS?) is left as the limiting factor for BCLK?Quote:
Originally Posted by 71proste
How stable current the CPU is getting is vary dependent on MB, and will affect the high OC too, But on most i7-batches the IMC (and RAM) seams to be the biggest problem the stability of high BCLK >215.
Stability av RAM and IMC plays a big role in high BCLK, but some BIOS seams to have better default values (or/and better options to adjust stuff ..) to get the RAM and IMC stable at high BCLk.
like -40c low ? ;) I bet any cpu can go over 220 on classified with enough cold. Thats the point I was makingQuote:
Originally Posted by 71proste
I know exactly what u mean and confirm ;)Quote:
Originally Posted by jcool
I had same issue
well...215x21 run linx/prime95 no problemsQuote:
Originally Posted by Sam_oslo
216x21 I can't even open the cpu-z :D and ratio drops to x20 is it not weird?I don't need full stability if u know what I mean ;)
what bios in your opinion is the best for max bclk?Quote:
Originally Posted by Sam_oslo
bet?how much? :DQuote:
Originally Posted by Bobbylite
we'll see after this weekend ;)
Can you post youre settings? pci-e, qpi voltage,ioh voltage, cpu settings, and if you disabled all onboard hw or not?Quote:
Originally Posted by jcool
just to see if you ave something different, had 3 board here now and 2 ws revolutions but all did the 240.
Oh, I see what you mean. If you are 24/7 stable at 215x21, then your Core will have no problem with running CPU-z at 216x21. This is a typical Uncore or IMC problem. You can diagnose the Uncore by trying it x12, or x14 (just to see if it helps)Quote:
Originally Posted by 71proste
I don't use this MB, and you have to ask Classy nerds about the BIOS, but I can make wild guess that the latest official would be your best bet.
Tried PCIe 101-120, VTT (it's not QPI voltage FFS ;) ) from 1,3-1,55, IOH from 1,2-1,45, disabled all the unneeded CPU crap like Vanderppol, C-States, TM etc and also disabled the legacy crap (floppy, serial/parallel ports etc).Quote:
Originally Posted by Rol-Co
Short of playing with rtl's I have done everything, and it's always the same behaviour no matter what CPU or VGA or Dram I use.
211 - perfectly fine (at really low voltages too), 212 fine for 2D, slight FPS drops in 3D already, 213 ultra-slow-motion mode, usually won't even boot in under 5 minutes, no 3D performance to speak of left ^^
214 and above no post. Tried everything between 214 and 230, nothing. Raising the BCLK in WIndows doesn't workeither, it usually freezes at 214.
It just is a bad board I got (even though a brand new one with Rev. 13 NB), I've made my peace with that - and bought a pretested E760 :hrhr:
you had an option at least ;)Quote:
Originally Posted by jcool

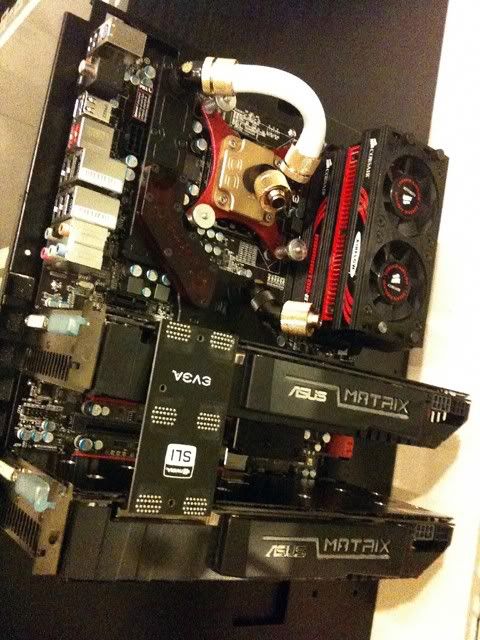

finally new board up and running
damn took me 6 hours just to install that 6 fans on that stupid feser rad and
nearly an hour to make sure all the standoffs were aligned for the ek block
http://i287.photobucket.com/albums/l...g/ec4e78a8.jpg
Hey guys i have this MB with an i7940 and sometimes for some reason when i start up the comp, its botting up, goes thru the intial start up etc etc and then it gets held up on the Pool Devices to be loaded up? So it will read out all the slots and info on the board and after that 2 pool devices should load up followed by dots after them and then bam VIsta64 should come on but it doesnt always do that. I have everything loaded up on defualt settings in the bios, i have the lates updated Bios flash. What could be the cause of the issue you guys think? I am running normal air cooled, no over clocked anything just yet i have a WC setup coming in. ANy help would be great !! or some type of settings in the bios? memory? PSU?
A little exercise that kept me out of the pub last night :D
http://i37.tinypic.com/sxmbdx.jpg
Awesome chip dude :D
My 975 ES couldn't do that, and I was running on SS too ;)
I just got my rma installed. I still get these electrical noises comming from the board. Its really annoying. Best way to describe it is open a chat window and hit backspace. Each time you hit the key its one click of the wheel on the mouse. Hold backspace down and thats how it is when I start a game. Why? I am ready to get my money back and try something a little less aggressive.
wowQuote:
Originally Posted by kitfit1
what was the max temp?
It varied between 23c and 28c.Quote:
Originally Posted by 71proste
Pushed it a bit further this morning :banana::banana::banana::banana:
Oh i love this chip :D
http://i33.tinypic.com/30u661t.jpg
