thanx radaja will try to shoot some 4800 at x9 multi then i will try 9,5 :up:Quote:
Originally Posted by radaja
thanks mate :up: and the best of lucks on the contestQuote:
Originally Posted by kagula323
Thanks mate any help im around i love this board :up:Quote:
Originally Posted by In-Fluence
:rofl:
did you saw my posts?
Whats the trick with the auto on the vtt, cpu reg and mch ref and mch volt?
:| it works at 460fsb *8
but it will not work at 460fsb * 8,5 :(
using 1,435v on cpu
Rebound how are you ?Quote:
Originally Posted by Rebound
most quads love
900/900/0/50
CPU REF .785
MCH REF .80 / .84
also remember you are on a 8,5 multi you will need MCH volts and vdimm
Cheers :toast:
Sergio
Hi Sergio
Gracias amigo. Listo.
Ahorita mesmo voy tentar cambiar para 2.35 en DRAM v
Hey,
can i add you on msn or gmail? :) Could you pop me up a pm ;)
Currently i am stable with:
467x8
333 strap
2,4b
mem speed = 1121
5-6-6-18
tr=9
CR=2
BIOS:
cpu v = 1,431
cpu term = auto (ET6 = 1,5)
cpu ref = auto (ET6 = 0,805)
mch core = auto (ET6 =1,3)
mch ref = auto (ET6 =0,76)
ich = 1,57
ich core = 1,2
RAM= 2,16
This is rock stable!
But why do i put the same ET6 values on BIOS and i wont post? :|
Also,
Do you use 333 strap or 400 for this fsb?
ET6 values for CPU Ref and MCH Ref are based upon VTT (CPU Term) being 1.20v.Quote:
Originally Posted by Rebound
Also set strap to Auto and choose 2.4B Multiplier.
bluestang
thanks for the help!
Hum.. so if the vtt is auto and ET6 is showing 1,5.. why is the ref's still in default?
and why do i put them manually and it wont work?! :| argg!
i am felling a newbie and i OC since my MMX/Durons :)
Do you use mem prof to turbo or standart?
i see on your tag you have 1,38v only for 500fsb :(
If you go in BIOS and set vtt to 1.20, your ref will say (if not on auto) what ET6 has. But as you increase vtt the refs scale up in ratio. That's why ET6 still shows them at stock values. Set your vtt to 1.2 and then change your refs to what sergio says. Then bump up vtt to desired value (you shouldn't need 1.5 either!) and refs will scale with it. ET6 will then show the ref values you set at vtt 1.20.
I didn't even touched it yet ... this gooc2010 romanian final will be:Quote:
Originally Posted by In-Fluence
1.my first LN2 experience
2.my first time with a qulfie
all this on my first participation in this competition :D
I feel it will be a damn interesting one and an experience I won't forget! :up:
thanks man ... I need it a lot ... I'll try and do the best I can :)Quote:
Originally Posted by l0ud_sil3nc3
in the end ... I have nothing to loose ... so I'll try and have as much fun as possible :D
thanks andressergio ... hope I'll be able to score a nice result and make the users on xs proud of me :up:Quote:
Originally Posted by andressergio
you will do great kagula323
Quote:
Originally Posted by bluestang
I tried 1.3vtt with 0,84 cpu ref and 0,88 mch ref.
Bot not working :(
Should i increase vtt more?
What mch are you using 1.44?
I am using 1,65 pll ..and cpu with 1,43 (1,4 on cpu-z)
shoud i change this?
Thanks :)
Like you said:
Refs will scale with the vtt
If i increase vtt to 1,26
Cpu ref minimal value is 0,784
So, if go above 1,3vtt i will only have values higher than 0,8 to cpu ref
i am wondering....
are you setting these values on bios or on ET6?
Because using ET6 i can set 1,4 vtt and 0,784 on cpu ref ;) but not on bios
UPDATE:

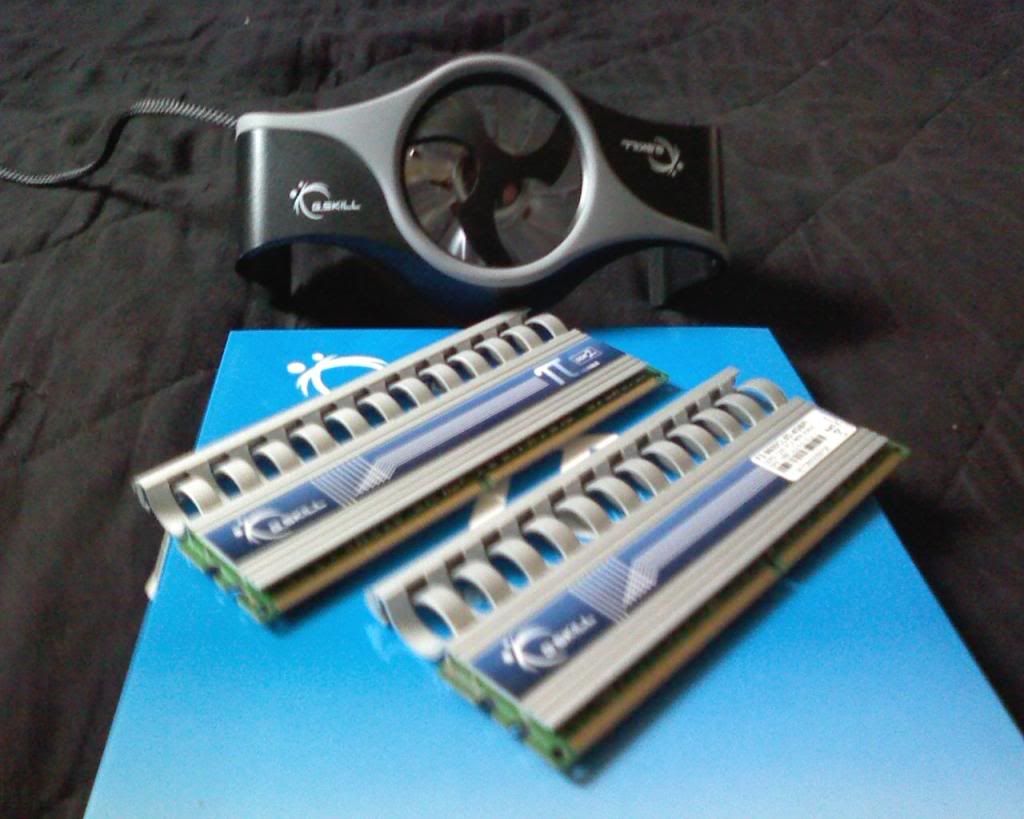

I am now with 4x1GB instead of 2x1GB
After i insert the additional 2x1GB system dont boot!
I had to put mch core = 1,54
:confused:
My experience with previous MB's is 4x1Gb don't 'work' well. Lots of tweaking to get it stable and generally never as good as 2x1Gb or 2x2Gb.Quote:
Originally Posted by Rebound
Having switched to 2x2Gb, I'd have to say that's much 'easier' way to go.
Rebound, in bios set your CPU ref to 0.785, and MCH ref to 0.80 (whilst VTT is on 1.2). Then set your VTT to 1.34 or 1.36. It's a lot easier to do it this way, as you'll only have to remember one set of numbers in relation to default vtt.
Also check your performance level setting under the advanced memory timings section and set it to 10 for now, when you find a sweet spot, you can reduce this to 8 (or less if you're running a lower fsb). Set PLL to 1.5, this is all most Quads need, ignore the motherboard auto settings that appear in ET6, they become far too high when you overclock.
Another problem could be your TRFC which responds to being loosened a LOT with 2 more sticks, try something like 80-100 just to rule it out. If it does help, tune in on the value that allows you to boot ok, then loosen it a 2-4 more.
If you still have problems, fill out a bios template - there's plenty several pages back, just cut, paste and fill in your own values.
Hope this helps mate ;)
I'm struggling with stability at 530 fsb, so I'll either have to head back to 500x9 or try a little harder tonight - 8k passes, but hangs the moment it hits 10k. Even if I can't completely stabilise, I'll have a good point to start benching at higher fsb. Kinda miss the MCH temp from the extreme so gonna give the software a whirl to see how it's faring at 1.62v.
Quote:
Originally Posted by In-Fluence
Changes on the way! :) I will try it know
I will also fill the bios template ;)
Stable PRIME and gamming 460x8
The auto Values under ET6 are:Code:******Motherboard Intelligent Tweaker (M.I.T.)******
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 8 ]
Fine CPU Clock Ratio............................[ + 0.0 ]
CPU Frequency 4.0GHz............................[ 460 x 8 ]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 460 ]
PCI Express Frequency (Mhz).....................[ 100 ]
C.I.A 2 [Disabled]
******Advanced Clock Control******
CPU Clock Drive.................................[ 800mv ]
PCI Express Clock Drive.........................[ 900mv ]
CPU Clock Skew..................................[ 0ps ]
MCH Clock Skew..................................[ 0ps ]
******DRAM Performance Control******
Performance Enhance.............................[ Standart ]
(G) MCH Frequency Latch.........................[ AUTO ]
System Memory Multipler.........................[ 2.40B ]
Memory Frequency 1066............................[ 1120 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Advanced Timing Control******
tRRD............................................[ Auto ]
tWTR............................................[ Auto ]
tWR.............................................[ Auto ]
tRFC............................................[ 60 ]
tRTP............................................[ Auto ]
Command Rate (cmd)..............................[ 2T ]
******Channel A Timing Settings******
Static tRead Value [ 10 ] ............... [ 9 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel A Driving Settings******
Drive Strength Profile..........................[ OC-1333 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Channel B Timing Settings******
Static tRead Value [ 10 ] ............... [ 9 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel B Driving Settings******
Drive Strength Profile..........................[ OC-1333 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Motherboard Voltage Control******
Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.2500 ]...................[ 1.4312 ]
CPU Termination [ 1.20 ]...................[ AUTO ]
CPU PLL [ 1.50 ]................... [ 1.65 ]
CPU Reference [ 0.760 ]...................[ AUTO ]
MCH Core [ 1.100 ]...................[ 1,54 ]
MCH Reference [ 0.760 ]...................[ AUTO ]
ICH I/O [ 1.500 ]...................[ 1.57 ]
ICH Core [ 1.100 ]...................[ 1.2 ]
DRAM Voltage [ 1.800 ]...................[ 2.180 ]
VTT: 1,5
cpu ref : 0,805
mch ref: 0,76
This 8x460 is rock !
But 8,5 dont work :(
And 8x470 starts failing!
Any improves are welcome:
cpu voltage, etc etc
I have Swiftech Water block, with MORA2 full copper (big big radiator) :)
In-fluence,
I will try your vtt and refs instead of AUTO
here you go these will helpQuote:
Originally Posted by Rebound
http://i46.tinypic.com/2444b3c.jpg
Code:ET6 0.730 / 0.745 / 0.760 \ 0.785 \ 0.800
vtt 1.20 0.730 / 0.745 / 0.760 \ 0.785 \ 0.800
vtt 1.22 0.742 / 0.757 / 0.772 \ 0.797 \ 0.812
vtt 1.24 0.755 / 0.770 / 0.785 \ 0.810 \ 0.825 CPU reference value in bios
vtt 1.26 0.768 / 0.783 / 0.798 \ 0.823 \ 0.838
vtt 1.28 0.780 / 0.795 / 0.810 \ 0.838 \ 0.850
vtt 1.30 0.793 / 0.808 / 0.823 \ 0.848 \ 0.863
vtt 1.32 0.806 / 0.821 / 0.836 \ 0.861 \ 0.876
vtt 1.34 0.818 / 0.833 / 0.848 \ 0.873 \ 0.888
vtt 1.36 0.831 / 0.846 / 0.861 \ 0.886 \ 0.901
vtt 1.38 0.844 / 0.859 / 0.874 \ 0.899 \ 0.914
vtt 1.40 0.856 / 0.871 / 0.886 \ 0.911 \ 0.926
vtt 1.42 0.869 / 0.884 / 0.899 \ 0.924 \ 0.939
vtt 1.44 0.882 / 0.897 / 0.912 \ 0.937 \ 0.952
vtt 1.20 0.720 / 0.740 / 0.760 \ 0.800 \ 0.840
vtt 1.22 0.732 / 0.752 / 0.772 \ 0.812 \ 0.852
vtt 1.24 0.745 / 0.765 / 0.785 \ 0.825 \ 0.865 MCH reference value in bios
vtt 1.26 0.758 / 0.778 / 0.798 \ 0.838 \ 0.878
vtt 1.28 0.770 / 0.790 / 0.810 \ 0.850 \ 0.890
vtt 1.30 0.783 / 0.803 / 0.823 \ 0.863 \ 0.903
vtt 1.32 0.796 / 0.816 / 0.836 \ 0.876 \ 0.916
vtt 1.34 0.808 / 0.828 / 0.848 \ 0.888 \ 0.928
vtt 1.36 0.821 / 0.841 / 0.861 \ 0.901 \ 0.941
vtt 1.38 0.834 / 0.854 / 0.874 \ 0.914 \ 0.954
vtt 1.40 0.846 / 0.866 / 0.886 \ 0.926 \ 0.966
vtt 1.42 0.859 / 0.879 / 0.899 \ 0.939 \ 0.979
vtt 1.44 0.872 / 0.892 / 0.912 \ 0.952 \ 0.992
btw,
with this 460*8 rock and stable
If i start playing with mch refs i get bluescreen or prime errors.
For example, if i change the current 0,76 on et6 (auto in bios) to 0,80 system will be unstable :|:ROTF:
IN-fluence, Sergio and Radaja
Here is my new bios configuration after your indications:
:shakes:
Code:******Motherboard Intelligent Tweaker (M.I.T.)******
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 8 ]
Fine CPU Clock Ratio............................[ + 0.5 ]
CPU Frequency 4.0GHz............................[ 460 x 8.5 ]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 460 ]
PCI Express Frequency (Mhz).....................[ 100 ]
C.I.A 2 [Disabled]
******Advanced Clock Control******
CPU Clock Drive.................................[ 800mv ]
PCI Express Clock Drive.........................[ 900mv ]
CPU Clock Skew..................................[ 0ps ]
MCH Clock Skew..................................[ 0ps ]
******DRAM Performance Control******
Performance Enhance.............................[ Standart ]
(G) MCH Frequency Latch.........................[ AUTO ]
System Memory Multipler.........................[ 2.40B ]
Memory Frequency 1066............................[ 1120 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 6 ]
tRP.............................................[ 6 ]
tRAS............................................[ 18 ]
******Advanced Timing Control******
tRRD............................................[ Auto ]
tWTR............................................[ Auto ]
tWR.............................................[ Auto ]
tRFC............................................[ 80 ]
tRTP............................................[ Auto ]
Command Rate (cmd)..............................[ 2T ]
******Channel A Timing Settings******
Static tRead Value [ 10 ] ............... [ 10 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel A Driving Settings******
Drive Strength Profile..........................[ OC-1333 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Channel B Timing Settings******
Static tRead Value [ 10 ] ............... [ 10 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel B Driving Settings******
Drive Strength Profile..........................[ OC-1333 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Motherboard Voltage Control******
Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.2500 ]...................[ 1.4312 ]
CPU Termination [ 1.20 ]...................[ 1,36 ]
CPU PLL [ 1.50 ]................... [ 1.65 ]
CPU Reference [ 0.760 ]...................[ 0,886 ]
MCH Core [ 1.100 ]...................[ 1,54 ]
MCH Reference [ 0.760 ]...................[ 0,901 ]
ICH I/O [ 1.500 ]...................[ 1.57 ]
ICH Core [ 1.100 ]...................[ 1.2 ]
DRAM Voltage [ 1.800 ]...................[ 2.180 ]
Still not stable at 460x8,5
:(
Hey guys look like im back in the EP45-UD3P game after all :p: after being stuck with this G.SKILL PC 7200 and locked at 4050 , Sergio was able to help me purchase some of the classic G.SKILL PC 9600 P.I.s from his friend Matt , I know alot of you have moved to the DDR 3 version .. but this is my last DDR 2 jump so let the tweaking begin
http://i84.photobucket.com/albums/k7...c/IMG01044.jpg
Thanks again for the help Sergio :up:
Enjoy the best DDR2 on earth T !!! the fan looks awesome for them :up:Quote:
Originally Posted by the_real_7
yes as sergio said enjoy the best 2x2GB ddr2 kit ever made:up:Quote:
Originally Posted by the_real_7
radaja i like your avatar lolQuote:
Originally Posted by radaja
