err the CSX are out of stock....have to wait for bout 1 week :O
but I thought bout the S2E since it seems to work fine now...maybe I should get the duality rear panel for my MM Ascension, think they should be fine together as long as the Ati and the Nvidia cards do not kill each other
Yep 1,40V is the max for me to....Quote:
Originally Posted by slim142
I was priming with that settings for half an hour without errors but then i manually stopped.
Will try again later..
I tried to get my system to boot at 10x450 but.... No go. I had my Vcore all the way up to 1.54375 and it still wouldn't post. I'm kinda sad.
What NB, VTT and PLL voltages have you set in that attempt?Quote:
Originally Posted by Fusion2002
1.65 NB, VTT was 1.3 and PLL was 1.6. It bugs me too, I'm on water and I've read threads about people getting 4500 mhz on air. Either I have a dud processor or there is still some instability from the motherboard
Well first let me tell you that i´m no expert, but i really have spent thousands of hours tweaking this board.
Fisrt is seems to me that your NB voltage is a bit high...
I´m ROCK STABLE with my QX 450x8.5 linked ans sinked with 4GB and only 1,48 on the NB! :rolleyes:
Please try this settings:
NB - 1,54v
PLL - 1,56v
VTT - 1,32v
Vcore - ..... Put this setting at you own description... (but no lower than 1.5v) :cool:
EDIT: What are your GTL refs?
Still blue screen before I even load vista. 1.5 Vcore. I have the GTL ref's set at zero right now.
Are you able to post with 10x multiplier with your rig the way it is otherwise?
I havent tried with 10x multiplier.... I´m on air and don´t want togo very high on voltage but i´m pretty shure i´m able to boot with a 9.5x with 1,38V set on BIOS.Quote:
Originally Posted by Fusion2002
Put the same setting i gave but with GTL´s -29 -32 -32 -29
Hi i happend to notice your problem. I´ve got the SIIE but i use the QX9770. Perhaps the settings can be of some help.Quote:
Originally Posted by Fusion2002
BIOS 1002
CPU 4,5GHz
CPU multi x10
FSB @1800
Mem timings 7-6-6-16 CR1 Corsair XMS3 CM3X1024-1800C7DHX
Voltages in BIOS:
vCore 1,54375
PLL Auto
VTT 1,3
NB 1,68
SB 1,55
GTL ref 0 -36mV
GTL ref 1 -32mV
GTL ref 2 -32mV
GTL ref 3 -36mV
Voltages according to Everest Ultimate (not so accurate i know) se attachment.
Hope this can be of some help.
Cheers friends :wave:
Hi Guys!
Is the disc corruption issue solved yet on these boards? Thinking about getting one so it would be nice to know that all my drives wont die when I use it ; )
You will have no problems if using later BIOS like 901.
You guys have to keep in mind, like Bench said one day, the NB loves to be as cold as possible.
Also, I dont know how much this helps, but I would try SB at 1.6v. I remember reading one day that the last trick to get those last Mhz on a 680i was to increase the SB voltage.
Im just trying to help :D
I tried all of the above settings and it blue screens every time before going into vista. I should also mention I am using the fusion block to cool the motherboard, temps are very cool. NB is 42C CPU 27C
Ok, thanks! Looks like Im getting one ; ) Might finally get my Q6600 up to 3.6! My crappy 680i board cant clock if its life depended on it....Quote:
Originally Posted by M@G!C
Hey Anemic, do you use all those drives on a single computer? :D
Fusion,Quote:
Originally Posted by Fusion2002
Do you have LLC enabled?
Its just very odd that you cant boot on multi x10. Perhaps if you tried to lower the FSB speed? Or rather what is your current FSB speed?
Hmm.. i´m starting to run out of ideas.....And you where on BIOS 0901?
My QX9770/SIIE is both Prime95, OCCT and game stabile @4,5GHz multi x10, FSB@1800.
I have LLC enabled, It wont boot at 9.5 without LLC. I tried lowering my fsb and moving it up slowly and I couldnt get past 1760 at 10x. Highest I could boot just to get into windows was 4300. I am on 0901 bios. I also tried 1600 fsb and bumped the multiplier up to try to hit 4.5ghz but that was a no go as well. Its so wierd that im prime stable at 9x with 1.475 but that extra 450 mhz wont happen. even at 1.5375 Vcore. I'm afraid to go any higher.
I tore down my system to do some maintenance on my water loop, and I'm adding two DTEC GPU blocks to my video cards, so I wont have it all back together until tomorow night for some more attempts. Maybe a new CPU is in the cards for this fall. Too bad I cant swap my CPU out for another QX9650. I had hoped I had a decent overclocker but it looks like I'm stuck.
Need help once again.Quote:
Originally Posted by Francko1979
Any help would be much, much appreciated guys. Basically after all this time I'm still having the same issue.
Right now, I'm on BIOS 1002. For sometime I had it pretty stable, orthos, for more than 3 hours, no problems with these settings
Vcore= 1.58750
LLC=Enabled
PLL=1.5
VTT=1.4
Mem=1.8
NB=1.5
SB=1.6
Suddenly, that wasn't good anymore. Won't get over 20 minutes of torture without stopping the test or BSOD "machine check exception"
Now, I somehow get it running with these settings, for an hour tops.
Vcore= 1.58750
LLC=Enabled
PLL=1.56
VTT=1.36
Mem=1.8
NB=1.54
SB=1.6
GTLref0 -32
GTLref1 -29
NBgtl -20
I think the trick is on the GTL volt settings, but i don't have a clue what would be correct for my X6800 C2D to get it stable at 3.77Ghz.
So guys, once again, any tip, advice, would be awesome.
Thanks in advanced.
Franco from Argentina
Sorry, these are my componentsQuote:
Originally Posted by Francko1979
I need your help to get my system 100%rock solid.
I'm going crazy trying to pull 3.77Ghz or more out of my Conroe Core 2 Duo X6800 Extreme Edition.
I finally got my S2E last thursday and i can't get it running stable at those speeds.
The default multiplier is 11 for the X6800. So I currently have it at 1371Mhz FSB, I gotta a pair of Corsairs TWIN3X2048-1600C7DHX running at 1600Mhz (7-7-7-20 1T)
Current Vcore is 1.5825 which to me is pretty darn hi, I've been around forums and I see guys pulling out 4Ghz with much less voltage
Forgot to mention that i got it all running on water.
Again, any help, will be great.
Thermaltake SilenX 850 Watt
Thermaltake Shark
2 x EVGA 8800GTX's ACS3 KO (653Mhz, 1550Mhz, 1020Mhz)
2 GB RAM DDR3 TWIN3X2048-1600C7DHX@1600 Mhz
X6800 Extreme @3.77 Ghz (1.5825 Vcore) 1371 FSB
SoundBlaster pro X FI Extreme Gamer
Swiftech Apex Ultra watercooled
Fisrt i woldn´t put negative GTL on NB. Where you have -20 change to +20.
Also i dont think you need all that NB voltage sei it to 1,50V.
One more thing... run scandisk and see if it find any errors on your hard drive...
Hi Magic! thx a lot for your reply. I'll try that right now.Quote:
Originally Posted by M@G!C
Regarding the scandisk, yeah I run it already. I do it offen after random BSOD's when testing.
Thx again
A month ago I was doing death ocs with my CPU 2.v lol, but I shut down and ran stock for about 3 hours. The next day it gave me the CPU INIT error code on the mohterboard LCD. I pulled the battery and notting would help getting it off that error. I let it set for 2 weeks and it came back alive and went past that error code.
Then I setup water on my video cards only to have a bad leak on the motherboard while it was on. It would not start at all after that happend. I cleaned it up with achole, and it still had the same problem about not turning on. I let it set for a week and it started doing the CPU INIT problem again. So I gave it another week(last night was the end)and now I'm on the problems listed below.
OK here is what it is doing
Last night when it came back on, it would turn off the monitor after 15 secs. It also would not boot(I'm 90% sure) after that happend.
This would happen in the preboot screen or in bios.
It will not boot past -10c. It will give me the CPU INIT error code.
When it's warming back up right before it will start it hangs on DRAM, or Vram(I think) test I'm gussing the CPU is frozen still. Tried to start the phase at least 10 times with it.
If I go into bios and hit f10 save and exit the machine will hang on PCI-INIT
BUt after I got off the phone with wile(gave me 30 mins of down time with messing with it) it did boot into windows, but I had to shut it down because my phase was not on.
Does anyone think that this is a CPU problem?
I have tried a different video card, and different DDR3 with using 1 slot as well.
Wile is sending out a E6700 to test with, but I'm wondering if I need to start saving for a new board.
Hi Magic! well, tryed NB at 1.5, NBGTL +20 and won't get over 20 mins.Quote:
Originally Posted by Francko1979
Should I increase de GTL volts on NB and CPU?
As usual any help, would be awesome.
Franco
I really advise you to get and test another CPU.
Your memory is rated to work at what voltage?Quote:
Originally Posted by Francko1979
Have you tried to run Memtest for 2 or 3 pass and see if your memory is error free?
Yes sir, already ran memtest and memory is adiviced by corsair at 1.8v@1600Mhz.Quote:
Originally Posted by M@G!C
Can you change the multiplier on your x6800?
yes you can.Quote:
Originally Posted by M@G!C
Yes Magic, in fact since it's the xtreme edition it's unlocked, but to reach 3.77 on 8x I gotta set the FSB to 1885, and that won't do with my mem, they don't reach 1600 at that speed, so I gotta push it to 1891 I think, that gives me 3.78, and it just won't boot sometimes with p1 & p2 enabled. Same at x9.Quote:
Originally Posted by xo4ox
Hi all,
I'm a newcomer to this thread having just become the owner of an S2E yesterday. I;ve just started wading through this useul but massive this thread, but for now I do have one simple question. Is it worth plumbing the NB Fusion Block into my loop or can I achieve a decent overclock, (say 3.6) with it on air? I know my quad is good for 3.6, I'm more concerned about board stability.
My S2E came OEM so I dont have any of the adaptors to integrate it into my loop which uses 1/2" barbs and 7/16" tubing. Its gonna take me some time to source these damn adaptors so I only want to do it if its neccessary.
Your experience and advice is appreciated guys.
maybe I'm an unlucky guy but all the fuzion blocks were leaking. I mounted em like I was told by the manual, s2e and rampage block were leaking. but nothing happened since I use Feser One fluid.
I would give it a try and test it on air. If necessary, get a decent block for the nb like the EK one.
So any bios newer then 1002? or whatever it's called.
just got the striker with a q9550 and can get to 4.12ghz but not stable just wondering if someone can give me some bios setup please
Any reason to try the Beta BIOS 1002. What has improved over 901?
Hey mate, i've got same CPU stable at 3.82 but it wont post any further. I think i need to see your bios setup. I plan to go to water shortly and want to pass 4ghz.Quote:
Originally Posted by otisthecat
What is the best overclock that you were stable with?
hello,
i m getting random lock up, with my computer and i m gettin mad with this lol
no lock under windows doing things like internet/downloading, neither under P95 ( stable 9h+ ),
no errors under memtest+, it can runs for hours, also, i did see it lock 1 out of 10 ... it s really strange.
but during games, everything's freezing and sound looping ( no blue screen just freeze ) and this at random times, some day i can play hours without a freeze, some others i get 1 every 10minutes and then it run fine again ...
i might say that temps are nice since i got a lot of Fans..
anyone could help me out with this ?
here is my config :
AS2E BIOS 1002 ( same problem with 0901 )
Sound Supreme FX II that came with the board
E8500
1 stick ( didn t try with 2 yet ) DDR3 2GB CORSAIR 9-9-9-24 DHX 1600Mhz
2x MSI 9800 GTX
2x HDD WD Raptors ( not in raid )
using those settings
QFSB 1333 ( been using 3,8Ghz OC but there was this freeze problem, i thought first this was related to OC but the problem is still there at Stock speed )
Multi 9.5 Link Sync
LDT X5
RAM 1.8v 9 9 9 24 2T
CPU 1.25v
LLC Disabled ( did try Enable too )
PLL 1.5v VTT 1.28v
NB 1.46v ( did try up to 1.55 )
SB 1.55v ( did try up to 1.6 )
Rest is on AUTO as i'm not familar with GTL
any idea to improve stabilty ?
thank you
i heard about Raptor and Sata Controler problem what do you think ?
Thank you for reading
do u use the nforce driver from the original cd or a newer one?
i dont think that the raptors are a problem since i use 2 velociraptors @ raid0
thank you for the reply,
I am using Nforce 9.64 from nvidia,
i think i did read 15.17 had problems,
also they re only avaible on nvidia Europe, don t know why...
do you think i should use something else ?
i m not sure that Raptors are the problem in fact, that's the last thing i did think about,
also all the other device / settings look pretty common so i can t figure what s the problem -_-
9.64 is ok, used the 15.17 too, no difference for me at all.
would say maybe it's the nb voltage, but seems u tested quite much.
since this only happens at gaming: have u tried another geforce driver?
i went trough 174.74 175.16 various modded ( GTX 280 based ),
and today i m using 179.79 from nvidia website,
also using or not SLI, it is exactly the same for me
at the moment i m running only 1 video card at a time but it did freezetoo -_-
strange. well i had the same problem like u with my 9800gx2 cards (random freezes with sli/quadsli) , but it was solved after installing the 9.64 since the one on the cd was older.
doesnt look like that ur gpus are overheating. psu?
i ll try to re install the 9.64 cleaning everything i can before... you might be right, i did try a lot of drivers lately so it could be not working properly.
and about overheating,
i did follow gpu and cpu temp with PC probe and such tools,
if i can be sure about one thing ( i hope lol ), this is not overheating, ( stacker 832 / 6 Intake / 3 out take + NH-C12P)
at the momement can get 4.03ghz stable will post bios setting when get cameria 4you . the trick seems to be setting your gtl to negatives and your nb gtl to +20Quote:
Originally Posted by RasCas
after month long nightmare with SIIEX i have many weeks an EVGA board and i am happy ...
I tryed first day 1800MHz FSB, 3,8GHz CPU, 4GB (4x1) RAM at 24-8-8-8 1800MHz in sync mode, and till today no problems. No freezing, no stucking, great SLI performance ... EVGA is best mobo with nF790 so far ...
http://i35.tinypic.com/vfefx0.png
neither does the striker II board anymore! there is nothing wrong with striker boards and just like evga all it needed was the right bios. even corruption has been completely rid of since bios 0901 onwards... and i would say that nf790 is probably the best chip available i mean 2000QDR (500FSB) / 2000RAM on a Q9450 is impressive in my bookQuote:
Originally Posted by OBR
Over a 2 week period I had one incident of corruption with 0901. Flashed 1002 as soon as it was posted and no corruption so far.Quote:
Originally Posted by andymg350
OBR, I run 1800 x 10 (4.5ghz) with my E8600 24/7 8-7-6-15 2T with absolutely no issues at..
I think you may have jumped ship a little too soon..
Yeah, but you have a Dual Core ... Quad is more problematicQuote:
Originally Posted by nuclearjock
Nope, I have both. Look at my sig.Quote:
Originally Posted by OBR
My QX9650 loves this board as well..
hey Tyke did you ever pick up that E8600 to play? Wondering what results you had with it. I'm thinking about picking up an E8600, since I cant break 4.5 GHZ with the quad.
Here's a quickie @ 4.7 ghz:Quote:
Originally Posted by Fusion2002
http://i156.photobucket.com/albums/t...10_small-1.jpg
Still playing with new wc setup. Should be able to do 5.0 suicide by this weekend. VID = 1.1375V

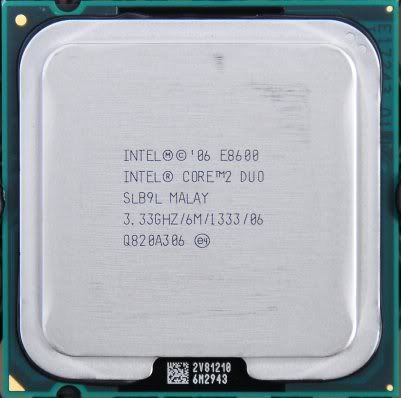

http://i156.photobucket.com/albums/t...harp_small.jpg
Nice result...I see 2GB...was it not possible with 4GB of RAM in you sig?Quote:
Originally Posted by nuclearjock
I had 4 gigs running at the same timings/voltage, but I had to RMA two sticks as a result of errors. They're on their way back so I will be back on 4 momentarily.
Before I plumb this mobo into my loop I need to test it with an air cooler. Ive heard that many are not compatible due to the heatpipe system so can anyone tell me a decent cooler that will fit this board please.
Huh!!! I have no problems using my TRUE with 2 P12's in push/pull.Quote:
Originally Posted by thomas hobbes
heres one i built few months ago for a friend, no probs with the ifx-14
http://sargatanas.gwebspace.de/DSC00153.jpg
Ok thanks, I'll take a look at the X-14 then althought its a tad expensive. This build is turning into a nightmare. I just tried to remove the heatsink on my GTX280 in order to fit my new EK block and two of the ten screws on the back of the gpu heatsink havent been screwed in straight, there is no way that they can be unscrewed as basically the thread has been locked. Gutted!
Its not like I can RMA a working card to BFG because I cant get the heatsink off, they'll send it straight back to me probably. Any suggestions?
Wow, old post but I didnt see it until now.Quote:
Originally Posted by slim142
Yeha I do use all the disks in the same machine. Why do you ask?
Can you upload it at imageshack? It wont load here lolQuote:
Originally Posted by sargatanas
Wow you finally answered! lol!Quote:
Originally Posted by Anemic
8 drives with 6 SATA ports, how do you have the two left connected? RAID card? if so, which one and hows the performance? PCI or PCI-Ex? What about optical storage drives? :shrug:
I didn't even get past 48 hours ownership & soak testing when the supplied Asus 1/2" to 3/8th "reducers failed, you know the rest, so all be warned. I got nowhere after 7 months negotiation with Asus (for manufacturer replacement mobo or even my own cost repair) & the retailer so I'm a Asus-free-zone from now on. China-based shambolic customer care for UK and Europe anyway. Only Manu's with Lifetime & Part-ex /trade in warranties products get my money, like EVGA & BFG.Quote:
Originally Posted by Trigger5521
Trigger5521, I noticed you to have thw Gateway 30" Quad HD Monitor, what do you think? I love mine but I get green fluorescent artefacts (almost like a negative picture) on my desktop and in games occasionally. I don't get any problems on my picture in picture image though at the same time. I spoke to Gateway and they said it had something to do with the refresh rate, have you noticed such a problem with your setup? Cheers, any help appreciated.
First...my water cooling corrosion issue ended up being a faulty Apogee aluminum top...it had chips and cracks in it. The protective coating was not protecting. This started the reaction...ASUS fusion block was not responsible but ended up in the trash because you can't take it apart to clean it.See picQuote:
Originally Posted by optical10
(swifttech sent me a new top but I'm not using it can't trust ALU in the loop..d-tek fusion now)
I'm liking the monitor, no issues at all with my Gateway, no bannding, pretty even backlight no dead pixels. Take a screen shot of your issue so i can see what you mean. My only wish would be if these massive 30's could be made to run alot cooler, heats up your room in summer. OLED maybe the future solution to that.
I ended up busting the Fusion block off and using thermal epoxy to glue a swiftech MC-30 chipset block in place, temps are better than they were with the fusion block. I just couldnt convince myself to get rid of the heatipipe set up, I love the way it looks. And on top of that now I have 1/2 inch barbs!
Yeah, I also like the heatpipe, but it does nothing for the SB so thats why Im replacing it. Hate to get rid of it though...
can anyone confirm if the fuzion is copper or alu? I don't want to mix metals :(
hmm, brilliant board, and brilliant overclocks, but we need to know about the fusion block before we buy it for its watercooling goodness.
Fusion Block is copper. Though it is not mandatory to put on water, if you insist on doing so it might be a good idea to remove and reapply the original thermal paste put on by the manufacturer. Mine is under water here on a separate loop since I had some extra parts and a res lying around so I figured why not, no leak issues to date.
As far as the adapters that came with the mobo, here's what you do with them...throw them as far as you can over your fence or balcony, they are nothing but trouble.
Well there was a big discussion on the liquid cooling section and everybody seemed to agree the block was ALU and not copper.
Im not taking the risk, Im just gonna buy a nb block, Bitspower Black Freezer and water cools the SB too :D
Well I'm just going on what an ASUS rep reported so I had to go with their word per se. The fusion block itself is copper and the heatsink that it rests on is alu. They are separate components in a way, the fluid only goes into the block itself, no contact with the aluminum heat sinks. In the end I would say if you want the best results anyway, definitely the best bet is to dump the heatpipe assembly like you are and just slap new blocks on there.
How's your board been behaving btw Slim, hopefully all issues have been cured? :)
Well, no problems over here since Im in stock. Cant overclock since CPU heatsink has no fan and I wont overclock RAM cause I dont want to kill them lol.
Waiting for water cooling parts to go for 3.6Ghz again :D
Good to hear, or see for that matter.:D
Not even a stock crappy intel cooler on there? Wonder what the temps are like, sounds brave regardless. :up::D
its solid copper, I cut through mine with a saw.
I was going to say that the Fusion block itself is way to heavy to be just aluminum. Since I'm not going to move to liquid anytime soon, I yanked mine off and replaced it with a EnzoTech CNB-S1, sorta figured it had to be better than that hunk of metal for cooling. Drilled two extra holes in the CNB-S1, lopped off the extra from the mounting ears, applied a bit of MX-2 and used the factory screws to attach it.
The next step may be an EnzoTech SLF-1 on the southbridge, a Swiftech MCX159-CU on the northbridge and ENZOTECH MST-81 on the mosfets. Gointg to see how the temps are with the modified heat pipe monstrosity first.
Yeah it has a lot of weight to it. I am seeing temps in the 35-45C range full load on my NB, so Its at least working better than air. It seems that ambient has a larger factor on my NB than my CPU under water. Maybe one of these days I'll put independant blocks on the NB/SB but im satisfied for now. I have both video cards the motherboard, and CPU in one loop and temps are good so far. CPU showing 55C in core temp full load, so im feelin pretty good. Debating on going with a water chiller or maybe somthing more exotic like a SS, but I'm having trouble finding an affordable one avaliable in the USA that would hold up to my QX9650. I would love 5ghz 24-7 but maybe its just out of reach.Quote:
Originally Posted by vladimir
well I just got my board today and it seems like copper. As for the guy that had gunk with his swiftech gtx, it seems that there was a crack in the alu which caused the problems. I am going to say it is copper because the rep said it is and so do some other people who have different boards with stock asus waterblocks. As for the fittings, they look like a joke lol
i was just wondering does anyone know if there are any pencil mods available for this board yet? ive just been looking at my vcore and ive set 1.45000 in bios and cpuz is reporting 1.360-1.375 under load at 3.7ghz 1850x8...
Can't complain about my 3rd SIIE neither :DQuote:
Originally Posted by OBR
Running flawless for months now.
It all depends on the chips, has nothing to do with board manufactures.
As far as i know all of them are build by Foxcon.
Yeeeha, kinda forgot that last post :confused:Quote:
Originally Posted by slim142
Anyways, yeha I have an extra controller. Crappy PCI-Express 1x card. Performs about as well as the built in controllers in the MoBo. Its allright since Im not after the speed, just space. My DVD is PATA so no problem there.
So, a quick question about this board. Anyone who uses the built in waterblock? I mean, most XS persons who watercool their computers goes all the way and cool everything with the best blocks avalible, but I dont want to do that. I just want to use the built in one, but how is the performace? I only have my CPU in the loop and a Thermochill 120.3. Should work fine, right? I got a Q6600 that I want to get up to 3.6 - 3.7 (and yes, higher works too ; ) )
Is it 1/4 sized treads on the Fusion block?
i have extreme striker 2 with q9300 @ 2.5 ghz that has got a multiplier 7.5.after my last format when i open the ai souite i can see 333mhz * 6=2000 mhz, therefore in the setup menu the multiplier is at 7.5.is there any serious problem or a mistake of the programm?and how can i solve it?
i don't know what the heck happened but after a reboot it returned to normal.thanks anyway
goal, that's quite normal that the cpu is set to 6 during idle. think it's due to the c1e function @ bios.
clocks down to the lowest multiplier @ idle, during load it clocks to the normal multi.
so: q9300 @ idle= 6x333 @load= 7,5x333
see, nothing to worry about ;)
I have the Thermalright Ultra-120 Xtreme, but temps are at their max for some reason. I dont want to even bother reapplying everything, is fine at stock anyways, will do that once I have to put my water cooling parts :)Quote:
Originally Posted by TheRoyalty
I also have it horizontal instead of vertical, it only improved temps for the NB, but I think it made CPU temps worse lol, and my case door fan is off too.
Dont worry, I will be back with high FSBs speeds as soon as I apply water to this monster :up:
Still on IDE? :confused:Quote:
Originally Posted by Anemic
I hope you are not using 15.17
Well, I would also like a RAID card for extra storage, Im currently using all my ports lol
The NB is 3/8, thats why the included adaptor and crappy plastic tube (which should not be used)
I got mine for about $35 so its not a good card what so ever. But it works for my two 500 Gb so I dont care ; ) I will need it when I go to Dreamhack the next time (only the BIGGEST friggin LAN in the world ; )) There might be a couple of....Freeware programs I need :yepp:Quote:
Originally Posted by slim142
Yeha, still on IDE. I luuuv IDE! A BIG friggin cable that is totaly impossible to hide...How is it possible not to love it? ; ) Using 15.17? Sorry, I dont even know what that means.
Damn, then I guess it might be a good idea to get some new. Thanks for the info! So do you think I should upgrade from my 680i to this board?
Available from the Austrailan site
ftp://dlsvr02.asus.com/pub/ASUS/mb/s...er_II_Extreme/
The fusion block needs 3/8 tubing, I water cool with a corsair nautilus 500 and it works fine for me.Quote:
Originally Posted by Anemic
I have a Q6600, and I can't OC it over 3.0 Ghz. It could be a ram issue, I am running Corsair 1333 RAM but will upgrade to TW3X4G1600C9DHXNV soon, that might help me OC more.
isn't 1002 outdated?
The latest I was aware of was 901. If 1002 is outdated what are you running. This 1002 I assume is not beta.
I hate IDE, big cable impossible to hide messes up my cable management lol.Quote:
Originally Posted by Anemic
15.17 I meant nForce drivers version 15.17, they have a known bug that affects the IDE port only, thats why people using the IDE port should be using 9.64 and not 15.17.
Quote:
Originally Posted by Deathspine
Quote:
Originally Posted by Warboy
Yeah I dont know why release it now, like I said on the ASUS forums, this is to me more like a 901.5 or 902 lol, nothing important to worry about.Quote:
Originally Posted by Deathspine
0901 clocks better for me.
I had seen the 1002 from Warboy but thought it to be a beta. Given I am doing well with 901 with a mild overclock and you recommend 901 is better then 1002 I guess I will continue to increase my overclock with 901 this weekend. Thanks gentlemen.
I had one instance of corruption with 0901 in a two week period.
So far (almost two weeks) no corruption with 1002.
I did find that loading previous settings generated in 0901 resulted in C1e behaving as though it were enabled (after flashing to 1002 and clearing cmos) when bios said it was disabled.
I cleared cmos again and loaded all settings from scratch and everything is now fine.
Oc'd my 8600 to 4.7 no probs.
24/7 4.2ghz @1.24v. Very sweet little chip.
Last night, after some pressure from a friend I finally started to OC since getting my board back from RMA (was a bit nervous, yes).
BIOS: 0901
CPU: Q9450
RAM: G.Skill DDR3-1600 2x2GB
Hit 1600 Linked and Sync'd (7-7-7-20, 2T, 1.9V) with ease (had corruption and memory errors prior to RMA)
Hit 1700 Linked and Sync'd (7-7-7-20, 2T, 1.9V), again very easy
Hit 1800 Linked and Sync'd (7-7-7-20, 2T, 1.9V)
Memory Timings and Memory Voltage were the only things modified, everything else was on Auto. :D Started the easy way...:D
1800+ is where problems started to happen and I was too tired to keep going. I'll post up BIOS settings tonight for some help from you all, but what worries me is the result after going above 1800. Going back to stock timings I could not boot into Windows, got the blinking cursor after POST and no amount of tweaking would boot into Windows.
Like I said, will post BIOS settings and some SS's of my results tonight, but just wanted to see if anyone had this happen.
I take no responsibility - I never do!:rofl::ROTF:Quote:
Originally Posted by skinnee
pmp
is time for a new BIOS ^^
It is time, it's been time for a while lol.
Right now, what I want to see in a new BIOS release is something like
"Fixed overvolting-and-undervolting problems with RAM"
"Fixed Ultra-wrong value when LLC is set to enabled"
"Fixed continuous change of voltage for PLL and NB"
"Fixed overvolting problem with VTT"
yea, i agree.Quote:
Originally Posted by slim142
Also, I gotta get a RMA on mine, My Ethernet port 1 is dead, Each time I try to use it, it gives me a instant BSOD on both XP and Vista, FRESH installs. Also, I do think my nb is failing. I tried to contact support and all techs were busy and the lady told me i should get a call back within the hour, but a day later, nothing. Really upset about ASUS and thinking about selling my board once it gets back from RMA, and get a eVGA 790i FTW.
Wow that sucks warboy, but ASUS support lack of knowledge is well-known already.
I really wonder why we havent see new BIOS releases...
You and DOM both, DOM has been messaging me everyday for 3 weeks with a simple "You OC your chip yet?" :rofl:Quote:
Originally Posted by TheGoat Eater
Hahaha, well actually skinnee, it IS taking you long to report us with your OC, why are you taking so much time?Quote:
Originally Posted by skinnee
At least you have your Wc parts ready :p:
Well, I ran into corruption after the first couple runs. Just couldn't get into Windows. So I reinstalled and wanted to take an image this time, rather than just spinning the wheel.
So, several hours dorking with network bootdisk and rdeploy. Rdeploy just doesn't want to work on this machine...screw it I'm oc'ing.
Triend 1600 Linked and Sync'd (7-7-7-18 2T @1.9V), looks like corruption. Could boot into safe mode just fine, but could not get into Windows. System log just had tons of NTFS errors, which means corruption.
So, I'm back to a base Vista x64 install and went out this morning and picked up Acronis.
I'm using nForce driver version 9.64, Forceware 177.83. I thought this corruption non-sense ended with 0802! What I don't understand is how wacked out this board is. Two nights, reached 1800 Linked and Sync'd, now I can't OC a thing without getting corruption. I do have two partitions on my boot drive, but I cannot believe that would be causing any extra hassle.
Thoughts?
Finally I had some time to mount up my E8600 on the S2E. First boot 500x8.5=4.25GHZ.
http://img244.imageshack.us/img244/5006/e8600py6.th.jpg
Its also SPI 32M stable. Also, as you see in the Intel burn test, the residue is the same across 10 iterations.
