Insulating with eraser

Printable View

Show 100 post(s) from this thread on one page

10-21-2008, 03:13 AM
Pcuser

Quote:

Originally Posted by bob(nz)

Try HERE dude

Yep , thats the place to get it :)
10-21-2008, 06:30 AM
Jor3lBR

It works...

My first attempt:

http://i33.tinypic.com/jl5cwi.jpg

http://i34.tinypic.com/a1ogw4.jpg

I loved this so easy even a PhaseNewB can do it.

Thanks for the heads up OP!
10-21-2008, 07:53 AM
Viss

Very nice :up: If you dont have grease in socket dont let evap on for too long (as in weeks).
10-21-2008, 08:04 AM
Jor3lBR

Quote:

Originally Posted by loc.o

Very nice :up: If you dont have grease in socket dont let evap on for too long (as in weeks).

:( It's for a 24/7 OCZ Cryo-Z!

I used grease inside the socket and under th chip do you think I should use more around the socket itself?

I have a good dry weather here in Northern Arizona.
10-21-2008, 04:12 PM
BNDMOD

I guess you only need to use into socket and under cpu...

Around socket you have eraser way :) and neoprene insulation too :)

So you don`t need the grease around....

By the way... i`m planing to use phase only for benchs no more than 5 hours per session, and ìm thinking to use eraser way and a layer of armaflex above eraser.... Of course i`ll use grease into socket and contact face of cpu..... I have a very hot benching room... what do you think. must i take other cautions?
10-21-2008, 11:48 PM
Viss

Quote:

Originally Posted by Jor3lBR

:( It's for a 24/7 OCZ Cryo-Z!

I used grease inside the socket and under th chip do you think I should use more around the socket itself?

I have a good dry weather here in Northern Arizona.

No mate as long as its under chip and in socket its fine :up: BND if its for only few hours id not put anything in socket only if you let evap/tube on for long time.
10-22-2008, 12:58 AM
s e r e n i t y

When I insulate the socket for dry ice benching. Should I a) cut out some neoprene and put it in the open space of the socket or b) not worry about it - simply mask over the metal socket and lay on the eraser onto it

Thanks,
s e r e n i t y
10-22-2008, 01:19 AM
Viss

Both should do. Sometimes i use some neoprene in socket to fill "open" spaces so there's less air but its not necessary at all.
10-22-2008, 02:28 AM
s e r e n i t y

Ok sweet. Thanks for you help loc.o :)
10-22-2008, 01:57 PM
Fr3akyPete

@serenity
I even filled the little gaps of the socket and "cpu-holddown" with eraser. (I hope you understand what I mean.)
It came off really easy. But you also can stuff some neopren/armaflex in those gaps.
10-25-2008, 11:14 AM
Jor3lBR

Hey Guys,

After my first couple of runs with a Phase Change and the rubber insulation I have some questions:

- I left the Phase Change Unit on for 16hrs and this morning I decided to check the mounts I noticed that the lapped surface was touching not only the cpu but the eraser surrounding it as well - is this ok?

- I also noticed a drop of water coming down the neoprene material surrounding the cpu socket - is this a sign of a bad insulation?

Thanks!

EDIT:

A pic may help, this re mark represents where the water was after I shut the unit down and disassembled the unit after a 16hrs run:
http://i33.tinypic.com/2emiq6c.jpg

Is there a regular waiting period before you can really unscrew the phase change from the socket?
10-25-2008, 12:13 PM
teyber

what chip is that on!?!? how big is the evap for the ocz!?!?
10-25-2008, 12:19 PM
Jor3lBR

Quote:

Originally Posted by teyber

what chip is that on!?!? how big is the evap for the ocz!?!?

Hey Teyber what's the fuss about? It's a regular Q9650 :shrug:

The Evap is regular size 1,5 and the ring above 2,5 I guess...

Give me some pointers here please :D
10-25-2008, 05:52 PM
Ozzfest05

Jor3lNR I like the mosfet block on that board good choice in fittings mosfet blocks are the shiz in my opinion
10-25-2008, 06:25 PM
Jor3lBR

Quote:

Originally Posted by Ozzfest05

Jor3lNR I like the mosfet block on that board good choice in fittings mosfet blocks are the shiz in my opinion

Tx mate I love watercool.de stuff and made my pwm temps drop from 60•C to 25•C loaded for Quads.

Visit my project log!
10-26-2008, 01:53 PM
s0lid

Just tested this weekend, blutack works perfectly!
No condension water and comes off easily :)
10-27-2008, 04:46 AM
yokomo

Quote:

Originally Posted by s0lid

Just tested this weekend, blutack works perfectly!
No condension water and comes off easily :)

i was thinking of trying that too , good find as its easyer to get and posibly cheaper too. Any pics ?
10-27-2008, 04:51 AM
s0lid

I'll post pics later, little harder to apply on mobo.

But it's worth it, cheap and comes off easily :)
10-27-2008, 08:28 AM
Solarfall

Quote:

Originally Posted by yokomo

i was thinking of trying that too , good find as its easyer to get and posibly cheaper too. Any pics ?

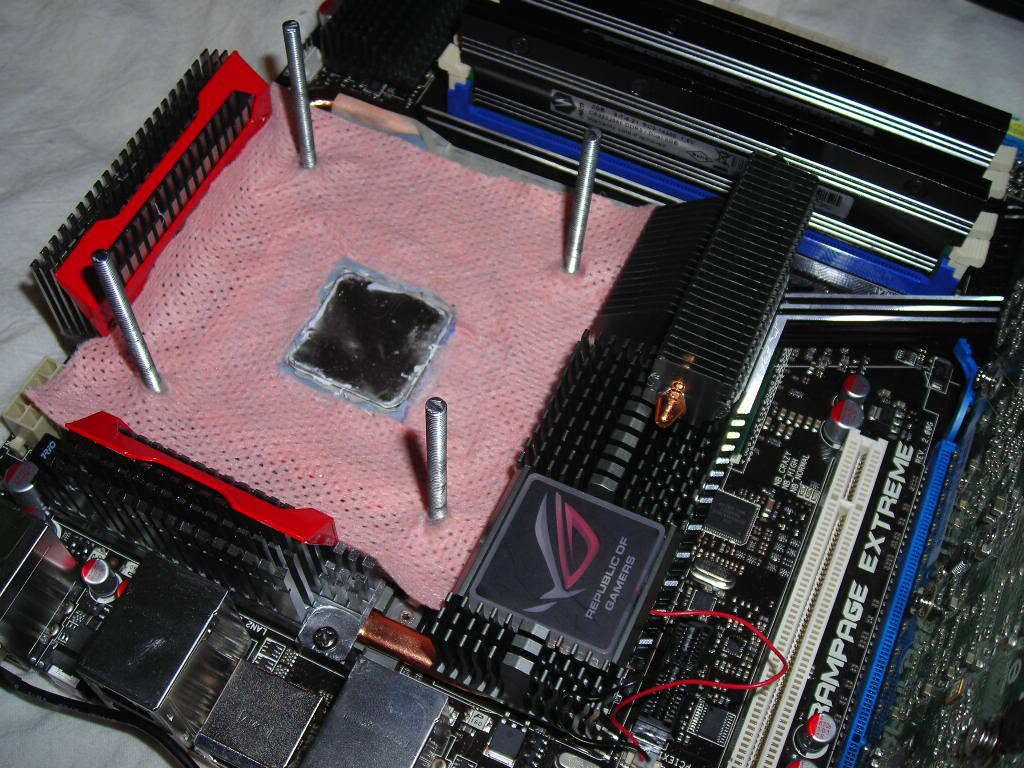

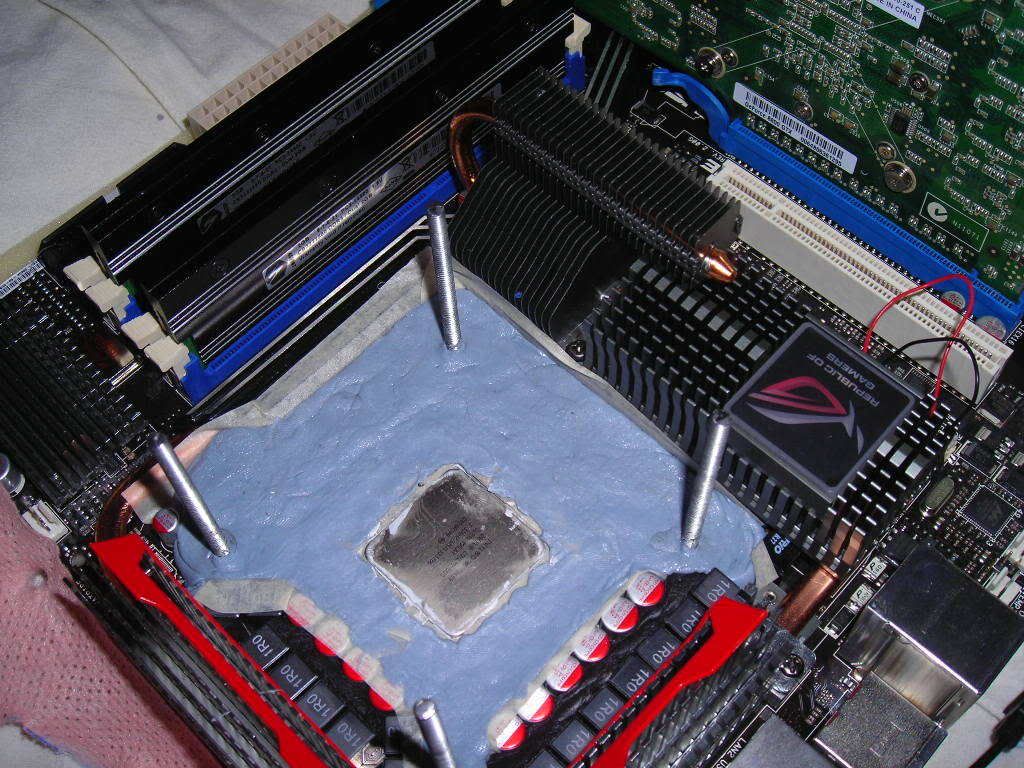

heres mine before solid shows you his ( lol that sounded dirty ) :D

Asus rampage extreme

http://i163.photobucket.com/albums/t...s/DSCN1338.jpg

http://i163.photobucket.com/albums/t...s/DSCN1340.jpg
10-27-2008, 02:48 PM
Viss

Nice Solar mate :up: did your run go ok ?
10-27-2008, 03:15 PM
dinos22

Quote:

Originally Posted by s0lid

Just tested this weekend, blutack works perfectly!
No condension water and comes off easily :)

do not use bluetac for full insulation
it doesnt work well and will sweat and probably kill a board quicker than you can say cheese. i almost took out the 790iFTW Digital with full insulation

i do use bluetac around the stocket only though....that works for me
10-28-2008, 01:38 AM
Solarfall

Quote:

Originally Posted by dinos22

do not use bluetac for full insulation
it doesnt work well and will sweat and probably kill a board quicker than you can say cheese. i almost took out the 790iFTW Digital with full insulation

i do use bluetac around the stocket only though....that works for me

it worked great for me dinos. you will just have to put something to on top of the bluetac insulation layer to absorb the condensation, for me it sweated alot the first time i tested that method.

Quote:

Originally Posted by loc.o

Nice Solar mate :up: did your run go ok ?

yep perfectly :D that stuff is little bit tougher to get off than the kneeted rubber but still very officiant in keeping the nasty condensation away from your precious board with some help of dishcloth or something similar to keep the bluetac from sweating witch it does to some extend (at least with me ) :up:
10-28-2008, 01:48 AM
dinos22

Quote:

Originally Posted by Solarfall

it worked great for me dinos. you will just have to put something to on top of the bluetac insulation layer to absorb the condensation, for me it sweated alot the first time i tested that method.

can anyone confirm or deny whether eraser sweats without a layer of paper or cloth guys?????
10-28-2008, 01:57 AM
Solarfall

Quote:

Originally Posted by dinos22

can anyone confirm or deny whether eraser sweats without a layer of paper or cloth guys?????

i tested this. it really does sweat, the dishcloth takes care of it...lol damn i knew i should have taken pics of it :rolleyes:
10-28-2008, 02:34 AM
dinos22

Quote:

Originally Posted by Solarfall

i tested this. it really does sweat, the dishcloth takes care of it...lol damn i knew i should have taken pics of it :rolleyes:

so you tested both
kneaded eraser and bluetac????
10-28-2008, 02:46 AM
Viss

Quote:

Originally Posted by dinos22

can anyone confirm or deny whether eraser sweats without a layer of paper or cloth guys?????

Nothing here. Wil take fan off for a while next run to see if it does sweat without one.
10-28-2008, 03:00 AM
Solarfall

Quote:

Originally Posted by dinos22

so you tested both
kneaded eraser and bluetac????

yep that eraser stuff is better imo. when using bluetac it takes alot more time to get that stuff off cos its sooo damn stringy. but it works just fine.
10-28-2008, 04:22 AM
dinos22

i am specifically asking about "sweating" issues and whether kneaded eraser is any different to bluetac in that respect
10-28-2008, 06:12 AM
Solarfall

Quote:

Originally Posted by dinos22

i am specifically asking about "sweating" issues and whether kneaded eraser is any different to bluetac in that respect

yeah it does not sweat, but not as much as bluetac. ;)
10-28-2008, 09:43 AM
ceemic

Quote:

Originally Posted by splmann

Hey loc.o

Many thanks for this fantastic Solution !!!!!

http://www.abload.de/thumb/img_0014ysz.jpg

http://www.abload.de/thumb/img_0016qmm.jpg

http://www.abload.de/thumb/img_0023x1s.jpg

Regards from Switzerland !!

Doei !!!!!!;)

Nice pictures! I got today the same yellow Faber-Castell eraser.
I wanted to know, how much it did to insulate Your board? I got only 3 packs of it but it seems I need some more...
10-30-2008, 11:17 PM
<<HANNIBAL>>

I have one question
At what place can I get neoprene?
10-31-2008, 05:06 AM
Slovnaft

Quote:

Originally Posted by <<HANNIBAL>>

I have one question
At what place can I get neoprene?

idk what kind of shops you have where you live, but the most reliable place would be a plumbing supply shop. most hardware stores won't carry it.
10-31-2008, 09:29 AM
HDCHOPPER

Quote:

Originally Posted by ceemic

Nice pictures! I got today the same yellow Faber-Castell eraser.
I wanted to know, how much it did to insulate Your board? I got only 3 packs of it but it seems I need some more...

yes this is a good question ! eye got 6 packs is that enough thier the
Staedtler type gray like 1/2" thick by 1 1/2" X 2" square (thats in inches)

going to do nb also
10-31-2008, 10:12 AM
Slovnaft

Quote:

Originally Posted by HDCHOPPER

yes this is a good question ! eye got 6 packs is that enough thier the
Staedtler type gray like 1/2" thick by 1 1/2" X 2" square (thats in inches)

going to do nb also

what's the best way to insulate the NB area and mount a pot to prevent harm to the die?
10-31-2008, 03:25 PM
HDCHOPPER

myself gonna do it just like the cpu area and hope for the best:D
just hope got enough eraser stuff
11-01-2008, 01:50 AM
<<HANNIBAL>>

Quote:

Originally Posted by Slovnaft

idk what kind of shops you have where you live, but the most reliable place would be a plumbing supply shop. most hardware stores won't carry it.

What if I use sponge instead of neoprene, it's really hard to find it here
or should I use eraser on the pack of the mobo and just put it on sponge
11-01-2008, 02:23 AM
Solarfall

Quote:

Originally Posted by <<HANNIBAL>>

What if I use sponge instead of neoprene, it's really hard to find it here
or should I use eraser on the pack of the mobo and just put it on sponge

you can also insulate with tent mattress you will just have to find 1 thats the right thickness ;) its pretty similar with neoprene and can be found almost every where.. :yepp:
11-01-2008, 07:04 AM
Viss

Some more pics :D

http://img.photobucket.com/albums/v2...P/IMG_5173.jpg
http://img.photobucket.com/albums/v2...P/IMG_5178.jpg
http://img.photobucket.com/albums/v2...P/IMG_5195.jpg
http://img.photobucket.com/albums/v2...P/IMG_5200.jpg
http://img.photobucket.com/albums/v2...P/IMG_5211.jpg
http://img.photobucket.com/albums/v2...P/IMG_5218.jpg
http://img.photobucket.com/albums/v2...P/IMG_5223.jpg
11-01-2008, 07:15 AM
dinos22

good luck with your bench
i plan to do the same soon
11-01-2008, 07:22 AM
Viss

Thanks mate im looking forward to your results already. Now all i need is time to do the actual benching :D
11-01-2008, 07:32 AM
dinos22

do you have anything between kneaded eraser and that black insulation???
like a layer of paper or anything?
11-01-2008, 07:47 AM
Viss

Between the insulation for F1 and the eraser i always put thin layer of neoprene so the eraser doenst stick to the tube's insulation.

http://img.photobucket.com/albums/v2...P/IMG_5238.jpg
11-01-2008, 07:49 AM
dinos22

i am asking if you put anything between neoprene and eraser
11-01-2008, 07:51 AM
Viss

Me bad. Nothing between it.
11-01-2008, 10:34 AM
Jor3lBR

Quote:

Originally Posted by dinos22

i am asking if you put anything between neoprene and eraser

Quote:

Originally Posted by loc.o

Me bad. Nothing between it.

Why Dinos?! Do you have to put something between them? I have nothing also :shrug:
11-01-2008, 02:36 PM
dinos22

bluetac sweats like a pig and solarfall was saying he uses a layer of something

i just asked to see what you guys do

i will do the same and see what happens

thing is i use fans all over the place here too
11-02-2008, 06:42 AM
dinos22

eraser is MUCH better than bluetac
just used it tonight :up:
11-02-2008, 11:19 AM
Solarfall

Quote:

Originally Posted by dinos22

eraser is MUCH better than bluetac
just used it tonight :up:

did the eraser sweat when you used it dinos ?? and yep i agree its much better that bluetac :yepp:
11-02-2008, 12:06 PM
Slovnaft

@loc.o
If you had a NB pot handy you might want to slap that on there. at least with my quad on air nb volts really helped and that bugger got hot-- the reason why i bought a pot for her.
11-02-2008, 03:49 PM
dinos22

Quote:

Originally Posted by Solarfall

did the eraser sweat when you used it dinos ?? and yep i agree its much better that bluetac :yepp:

well i was only on single stage
no sweating at all
i dont know about LN2 but i like the stuff better for sure and will use it from now on
11-02-2008, 04:04 PM
philbrown23

I use eraser and thats it, no insulation anywhere else except around the pots, I dont even tape up the socket and caps, I just lather that eraser right in that :banana::banana::banana::banana:, I love it.
11-03-2008, 06:09 AM
TheGanG

I do like that stuff, so easy to pull it off and yeah no sweating but i use a fan after a day-long test...

http://img412.imageshack.us/img412/236/11111sy2.jpg
http://img219.imageshack.us/img219/8297/22222sq8.jpg
http://img260.imageshack.us/img260/4158/33333ba2.jpg
http://img255.imageshack.us/img255/9484/44444du5.jpg
http://img260.imageshack.us/img260/4726/55555tu8.jpg
11-26-2008, 03:17 PM
0Ro!

2 Attachment(s)

here´s my P5Q-E inslulated board with eraser, ready for "friday night" action with DICE with Josifek :up:
hope the deliverer shall have no problems with delivering the DICE at right time to us :rolleyes:
11-28-2008, 04:31 AM
<<HANNIBAL>>

Grate insulation method
tried it on my first DI session and everything vent just grate
simple and effective
11-28-2008, 03:46 PM
Bullet92

Here's my insulated P5Q-E. Using Tekastrip rubber. You can find it in every (house)painter shop and it's cheap and very good. I was using one layer of neoprene on rubber while benching ;)

http://pce.hostili.com/images/P142348cl37.jpg http://pce.hostili.com/images/P142347j7hm.jpg
12-05-2008, 07:24 AM
BNDMOD

How to cut.. neoprene to put benhind solid capacitors and voltage regulator...?
12-06-2008, 08:41 PM
specops

How well will this stuff work on a Phase change unit running 24/7?
12-06-2008, 09:31 PM
BNDMOD

By the way.... plastiline could be electric conductive? mmm i don't think so.... here it's hard to find eraser... soft, easy to modelate :p.... elastic.... so.. i'm thinkin in plastiline....
12-07-2008, 02:16 AM
TheGanG

Quote:

Originally Posted by BNDMOD

By the way.... plastiline could be electric conductive? mmm i don't think so.... here it's hard to find eraser... soft, easy to modelate :p.... elastic.... so.. i'm thinkin in plastiline....

Plasticine? modelling element; waxy clay... I don't prefer it...

Quote:

Originally Posted by Bullet92

Here's my insulated P5Q-E. Using Tekastrip rubber. You can find it in every (house)painter shop and it's cheap and very good. I was using one layer of neoprene on rubber while benching ;)

Any feedback? Reuseable? Cracks?
12-07-2008, 05:19 AM
Bullet92

Quote:

Originally Posted by TheGanG

Any feedback? Reuseable? Cracks?

The same thing as Faber Castell rubber. It's reusable of course and easy to remove. If you have a lot of condensation it'll keep it on the top without problems and it'll not become wet.
I think that SXT use same insulation, Slovenians too (because Tekastrip is Slovenian firm).
I payed 3m (20x2mm) only 3$ and have material for insulate whole board two times (2x duble layer insulation).

Soon, I'll make some DICE session and post new pics of insulation (this time, one DFI board :D)
12-08-2008, 06:14 AM
BNDMOD

I've been trying the plastiline.... but i don't know really if it will possible.

http://img411.imageshack.us/img411/4...n005hz5.th.jpg http://img505.imageshack.us/img505/3...n009us0.th.jpg http://img383.imageshack.us/img383/9...n011il0.th.jpg http://img411.imageshack.us/img411/6...n016un3.th.jpg

This is the plastiline
http://img411.imageshack.us/img411/4...n013ui5.th.jpg

I need to add armaflex both side of socket... into retencion system of cpu... yet...
Then complete...

What do you think? could be possible? of course i don't want to kill the mother board.. thinking i will use it for benchs...
12-08-2008, 01:40 PM
Bitemarks666

just found this for the UK DICE/LN2 benchers on ebay. 10 of those will be enough and wil set you back £13.50
12-08-2008, 07:32 PM
Slovnaft

used this for benching R2E + 965. Just eraser, neoprene, and shop rags baby. Back to air in like, 5 minutes it was great. I'll post pr0n next time; it was so fast i didn't stop to take pics.
12-08-2008, 11:45 PM
<<HANNIBAL>>

Insulation on Rampage Formula
http://i040.radikal.ru/0812/c6/47b03fdf1ce6.jpg
http://s60.radikal.ru/i169/0812/2d/a9c29265aec1.jpg
http://s54.radikal.ru/i145/0812/94/38506751eaba.jpg
12-31-2008, 05:53 PM
GFDuke

Can i use the Eraser 24/7 on my AC chiller setup tht im buiding? Also i want to leave my mobo in the case not on a bench. How do you think that will work out?
12-31-2008, 06:34 PM
Buckeye

Quote:

Originally Posted by GFDuke

Can i use the Eraser 24/7 on my AC chiller setup tht im buiding? Also i want to leave my mobo in the case not on a bench. How do you think that will work out?

It should be np at all. I use it for 24/7 stuff now.

Put a layer of shop towel over the eraser, then foam. Works great :)

Motherboard is prepped front side.

http://img116.imageshack.us/img116/2416/img08332jq6.jpg

Back side has a metal plate there, so it was packed to keep any air out.

http://img520.imageshack.us/img520/4746/img08262io5.jpg

Front side finished up.

http://img247.imageshack.us/img247/7571/img08342kb1.jpg
01-01-2009, 01:57 AM
ceemic

I also love this stuff :)
Faber Castell red+yellow+blue :D
http://ceemic.pri.ee/hardware/ln2_7/ln2_02.jpg
http://ceemic.pri.ee/hardware/ln2_7/ln2_03.jpg
http://ceemic.pri.ee/hardware/ln2_7/ln2_04.jpg

Happy New Year!
01-01-2009, 12:15 PM
GFDuke

Buckeye your last pic isnt showing up can you re-post that?
01-01-2009, 02:05 PM
Buckeye

Seems to be showing fine for me ?
01-01-2009, 02:08 PM
Bullet92

It's fine ;)

@ceemic
Nice insulation :rofl: Give us some action now :)
01-01-2009, 02:51 PM
ceemic

Bullet92, crap P4 631: http://ceemic.pri.ee/c2d/631@6460.JPG :D
01-01-2009, 03:22 PM
Bullet92

Blah... want to see 7GHz club. That's really crappy chip :D
01-02-2009, 01:18 AM
ceemic

Bullet92, yes I know. Next week I'll get a "golden" 631, which should do 7,2+GHz ;)
01-02-2009, 01:55 AM
OverDozeD

Very good method for insulation
We tested it first time in Georgia on my mobo and rubber did well, but hand-made DI pot suX, only 5753Mhz on Celeron D347.
http://valid.canardpc.com/show_oc.php?id=458510

Here's the pics
http://s54.radikal.ru/i145/0812/94/38506751eaba.jpg
http://image.crack.ge/out.php/i12261_small.jpg
http://s55.radikal.ru/i150/0812/76/339865013770.jpg
http://i015.radikal.ru/0812/ec/451c19a4cd89.jpg
01-02-2009, 04:35 AM
Bullet92

Quote:

Originally Posted by ceemic

Bullet92, yes I know. Next week I'll get a "golden" 631, which should do 7,2+GHz ;)

Good luck ;)
Waiting for new crazy insulation in color :D
01-02-2009, 05:28 AM
Solarfall

wow OverDozeD thats a huge pot your using there :D
btw are you using ac5 ?? if you are i would recommend that you use ceramique its wayy better when playing with subzero temps ;)
01-02-2009, 06:02 AM
OverDozeD

Yes we're using AC5 there. I know about ceramique but that was what we had got there at the moment
Actually it was just training for future events, coz we have very poor experience of subzero OC-ing
01-05-2009, 07:33 AM
<<HANNIBAL>>

Quote:

Originally Posted by OverDozeD

Very good method for insulation
We tested it first time in Georgia on my mobo and rubber did well, but hand-made DI pot suX, only 5753Mhz on Celeron D347.
http://valid.canardpc.com/show_oc.php?id=458510

Here's the pics

hmm
hand-made? and which pot is not hand made?
I haven't heard of any pots produced by some kind of company :D
I agree now it sux but pot will get better after hold-down bracket and bottom replacement ;)
01-05-2009, 08:14 AM
CL3P20

I use the eraser for all my insulating needs.. GPU's..and mobo. Never used anything that works as good, and has such fast clean-up.

8800GS's prepped for DICE runs
http://i265.photobucket.com/albums/i...x/P1050466.jpg

780i prepped for DICE on CPU and SPP
http://i265.photobucket.com/albums/i...x/P1050445.jpg

GA-X48 DQ6 prepped for DICE runs
http://i265.photobucket.com/albums/i...x/P1050454.jpg

-52c temps with DICE chilled loop
http://i265.photobucket.com/albums/i...x/P1050477.jpg
01-06-2009, 06:43 AM
giorgos th.

1 Attachment(s)

well here is my UD5 covered with rubber...
anyone experiencing constant condensation next to the first blue dimm slot?
01-11-2009, 06:59 AM
Bullet92

Oh I forgot to make some pics from last session but here is two of them after ln2 action :/

http://pce.hostili.com/images/D13858wlt.jpg

http://pce.hostili.com/images/D1401fdx9.jpg

That's Tekastrip ;)
02-06-2009, 12:11 AM
<<HANNIBAL>>

some more CPU+NB Insulation:
http://www.pic-upload.de/06.02.09/1437zo.JPG
02-06-2009, 12:41 AM
Evil_AnAnAs

Really nice guide. :)

I made my own guide about this type of insulation on a Swedish OC forum. Even though the text is Swedish there are som nice pictures there, http://sweclockers.com/forum/showthr...readid=833961/.
Just look away when you see the crappy hole in the armaflex. ;)
03-07-2009, 12:21 AM
bartx

What do you use to cleaning eraser, when remains are still between legs of IC's or smd parts? I tried acetone, but it doesn't work :down:
03-07-2009, 12:35 AM
ceemic

bartx, what kind of eraser do You use? I suggest Faber-Castell - it comes off very easy from everywhere.
03-07-2009, 12:58 AM
bartx

Quote:

Originally Posted by ceemic

bartx, what kind of eraser do You use? I suggest Faber-Castell - it comes off very easy from everywhere.

KOH-I NOOR
HARDMUTH 6421

If's fine, when you take off insulation after one day, but I my board was insulated for about two weeks and I guess that this is the problem :)
03-07-2009, 03:59 PM
Viss

Just like with the old sealstring i use a bit of eraser to get the small parts of. It might depend on the brand, the one i use stays stickie forever it seems.
03-07-2009, 04:42 PM
anubis_is_evil

anyone knows where to get those faber castell one and willing to ship international ?

already search in my town, too bad its not available in my country....
06-11-2009, 06:58 AM
The Water Dog

Loc.o helped me with this so im using it:)
06-12-2009, 04:41 AM
DFI pit bull

Quote:

Originally Posted by bartx

What do you use to cleaning eraser, when remains are still between legs of IC's or smd parts? I tried acetone, but it doesn't work :down:

I use a toothpick and tweezers for the awkward places. You could also use a ball of eraser to lift of other bits. Don't use acetone.
06-13-2009, 11:03 AM
The Water Dog

Tryed for det first time today:D
And Loc.o , it wasnt the same as the stuff you guys used but was easy to work with and worked like he..:D
So thanks for all help;)
Checked for kondens and looks clean like a babybut;)

http://bildr.no/thumb/431350.jpeg

http://bildr.no/thumb/431353.jpeg
06-14-2009, 05:02 AM
Blue Storm

2bartx:Koh-I-Noor...czech quality:up:

here is my insulation and next photo is from action:cool:

http://img189.imageshack.us/img189/6553/clanek16.th.jpg http://img41.imageshack.us/img41/1934/dsc0229log.th.jpg
06-30-2009, 01:39 AM
Smartidiot89

Quote:

Originally Posted by loc.o

First me Dimas table with 25mm neoprene sheet for the back of board. I dont use tape/polish on back just the sheet:
http://img.photobucket.com/albums/v2..._00-border.jpg

Maybe abit Off-Topic but where did you find that "Board" for mounting your motherboard?

Also you did use Armaflex around the pot right? I found an old Yoga-Carpet here at home could that be used instead of Armaflex you think?
06-30-2009, 04:33 AM
ceemic

Smartidiot89, You can find Dima's tables here: http://www.dimastech.it/scripts/sp.php?Id=135&lang=EN
By that carpet You mean something like that: http://www.upload.ee/image/118346/4415388.jpg ? It should work, but I don't know how the material is built. It has to be air-tight (closed-cell strucure) to use it on isolation.
11-14-2009, 05:57 AM
nigelke

Thanks :)

i am insultating my motherboard for the first time :D and this helpt alot :D
01-31-2010, 06:47 PM
Sil3ntSnip3a

I'm gunna begin my first benching session under DICE this weekend. On Thursday I'm going to go pick up my materials for the motherboard insulation. I know where to get everything but the neoprene you guys used for the socket and ontop of the kneaded eraser.

Pictures I am referring to are
here

&

here
01-31-2010, 09:04 PM
Dahaka

Our insulated DFI P45 T3RS

http://i.eggie.cl/60DSC00930.jpg

Not the best score that nigh, but is fine....i think :).

http://i.eggie.cl/99DSC00959.jpg
01-31-2010, 09:17 PM
CL3P20

shot of my MIIF prepped for pot.. just a little bit of vaseline on the bottom of the pot insulation, makes it air tight to the shop towel. This setup has been working great for me..still revising my NB insulation though :o

http://i265.photobucket.com/albums/i...s/P1060508.jpg

and mounted..

http://i265.photobucket.com/albums/i...s/P1060500.jpg
02-02-2010, 04:50 PM
Sil3ntSnip3a

Quote:

Originally Posted by Sil3ntSnip3a

I'm gunna begin my first benching session under DICE this weekend. On Thursday I'm going to go pick up my materials for the motherboard insulation. I know where to get everything but the neoprene you guys used for the socket and ontop of the kneaded eraser.

Pictures I am referring to are
here

&

here

bump
02-04-2010, 02:24 PM
Viss

www.kingpincooling.com or http://www.under-the-ice.com.

Show 100 post(s) from this thread on one page

All times are GMT -8. The time now is 03:58 AM.

XtremeSystems
