Here are some photos of my new PC, including the DFI LANParty DK P35.
Board with Tuniq Tower 120 on it
Another view
Had to modify the Tuniq Tower 120 by sawing off the edge of the mounting bracket so that it would fit
Another view, with Video card this time
All done, with lights off!
And with lights on...
Stock temps, no-OC
Mild OC Temps, stock volts (400 Bus)
This DFI Dar P35 is better with the Quad Core ?
I Test the Lan party & Blood Iron with my X3210 B3 , max fsb 500 :( , same problem with Asus P5K3 , Blitz Extreme ...
But with Asus P5K simple , same setting and cooling : max 527mhz :)
I would like the news DK for test my X3210 :)
dammit i wish my boards was here! oh well hopefully tommorow, how is the bios for those who have been playing with it, no issues, bugs?
I updated to the new BIOS.. so far so good.
I'm only experiencing one strange problem:
When I boot, it will hang on the BIOS artscreen... and resetting the PC makes it skip the hang.
Wierd.
I think it was because I had a USB drive running while booting.
It seems like the performance is the same with the P965. Pretty much the same settings in the BIOS with my e6600, 400 x 9 Ram running at 804mhz. evga 8800GTS 320 oc
Pii = both 14.047 32M
3Dmark06 = 10492 (p35) to 10476 (p965)
3dmark05 = 18305 (p35) to 18280 (p965)
3dmark03 = 35504 (p35) to 35524 (p965)
I can actually run the memory higher on this board then my p965 and will probably be able to get more "juice" out of the CPU. I haven't had much time to mess with it.
I got mine from NCIX and its also the all Solid Cap Version! we should set up an official thread for Bios updates and settings, like the other boards have.
what are the major difference between this board and the more expensive LT and UT P35 boards. Ive had quite enough of Asus and am looking for something that is rock solid for 400X9 w/ 4GB of DDR2 1000. Im not on a quad right now but in the future im sure i will be.
I do not have QX9650 in hand, unable to test the motherboard...Quote:
Originally Posted by M3kk
but I suggest if you have issue or problems with motherboard,
you should send it to their RMA service for repairing.
I dont have the board yet, i`m curious how clocks with the new chips.
If its OK then i`ill buy one :).
Qx9770 or wolfdale?
can anyone for sure tell me the differences between this and the blood iron? i still can not get a straight answer anywhere i look.. everyone always says its something different? i am just trying to see if the extra 60$ is justified in the dark vs the blood iron.. thanks in advance
the layout of the board is diff then the blood iron, higher quality components on the Dark...better cooling, it seems everyone who is ordering right now is getting the all soild cap version, id go for this over the blood iron but 60 bucks is also another 2 gig of ram or an upgrade from 8800gt to GTS, my vote still goes for the Dark
...and the Blood Iron is Fugly! :down:
I ordered mine from motherboardpro.com and its a All Solid Cap version.
the DK is the best !!
Hey guys, just started tweaking my system last night and im getting a 10 degree difference between smart guardian and coretemp? dont know which one to trust? bios update needed?
Of this board, and the LT P35, which do you think would be better for 24/7 O/Cing? I plan to get either the e8500 or the Q9450. With the q9450 I would need a higher fsb to hit 4g. What other differences would make this worthwhile over the LT, or vice-versa.
NEW PRICING i spoke with motherboardpro today and showed them a competitive link from ncix for 142.xx$ and they right away changed their web site pricing so now its 141.99!!!!!!!! i got me a dark instead!! motherboardpro rocks.
Does this board have a warranty sticker on the Northbridge, stating that the board's warranty is void if removed, like the Blood Iron?
I believe it does, yes :)Quote:
Originally Posted by Sailindawg
Hmmmph.....I guess if I got this board, my warranty would be voided within the the first hour of ownership! :DQuote:
Originally Posted by Mekrel
I have the same problem! Not sure which one to trust. On my P965 board smart guardian and coretemp were the same. Now core temp is 10c lower the smart guardian. I think coretemp is more accurate but what do it know:shrug:Quote:
Originally Posted by psyclist
Hey Rfisher what are your temps sitting at for your 6600? my little 4500 is hitting 62 @ 3200 1.4v..im thinking i need to reseat the TRUE120?
On this board my coretemp and smart guardian are the same.
my cpu is lapped. +250.0mv or 1.52 running at 29c idle and 58c load using core temp. I also have a very good air cooling case with 11 or 12 120mm fans in it :)Quote:
Originally Posted by psyclist
Interested in this mobo too but can't find much user info on Q6600 overclocks anywhere, is the 4 phase supply sufficient for >3.6GHz clocks?
have someone a droop mod for this board? :)
Thanks
Chris
don't need it. only gets around .02.Quote:
Originally Posted by Chri$ch
VCore Droop with dualcore is ~0.02 - 0.03v and that is to much ;)
if someone had a mod -> send me a pn plz :)
Regards
Chris
Do you have problems running with 2:3, 4:5 memory dividers? Can you give me same hints?
@Chri$ch CPU VID special add cannot help you?
this should become an official DK discussion tread. :D
some questions others have asked but have yet to seem to recieved a reply to..
aside from the "extras" with the lt version lanparty how is this mobo compared to the lt..
how well does this dark really do with quads 24/7 i have seen 3 blood irons now have to go back.. 1 of them actually melted the board by the psu fets..this is def a concern for me.
a few have mentioned problems running all 6 sata ports at the same time. praz said to enable achi rom mode. has anyone verified all 6 will work at the same time. i know they had a issue with the lt version that needed a update..
how well do the sinks do on this the nb and psu fets ones.. do they run as hot as other p35's and do they need either a different sink or simply a fan on them to allow a stable 24/7 high fsb oc...
i know there were a few others but cant remember them all now. i know 4 or 5 people interested in this board that do not frequent forums they have asked me these questions and i said i would ask and give them the replies. i am also deciding between these 2 models now.. and would love the same info. thanks
zfactor I haven't tried all 6 SATA ports, 'cose I don't have some many drives.
Though I do not have a Quad, just an E6300 the temperature is quite good. I've had an Asus P5B-E (I965 cipset) and the NB was very hot compared to DFI, even at stock frequencies.
In the pic you'll see the temps I have with E6300@3200MHz - open case with only one fan. These days I'll arrange the case properly and give you an input.
Just one thing: I've had to cut a bit from the frame that came with my Ninja Plus B, 'cose of those capacitors near CPU
My result with E6550 and DFI LP DK P35 :up:
Mobo is 100% passive cooled (CPU / VGA -> watercooled, no fans in case)
http://www.abload.de/img/02sexu.png
i test it next days with a few 45nm CPUs :)
What kind of Smart guardian ar you using?
copy this files into the Smart Guardian folder :)
http://www.muenster.de/~e30pics/Dateien/SG-01.rar
Danke :D
One thing: This board it seems it overvolts!
If I put my E6300@3,2GHz @ 1,23VTT (in BIOS) ITE smart guardian will read 1,28V at full load. CPUz 1.43 has the same readings.
If I set in BIOS 1,28V then the board do not overvolts.
Is it possible to be a feature, not a bug? It is scalling the Vcore with the CPU frequency?
Chri$ch, how the heck did you get 540 FSB with the LP DK? :shocked: I can't get past 450 with this thing. :shrug:
I'm running at 3200MHz, so the FSB is 457, only with Vdimm and CPU VTT voltages modified.
I can reach around 534 FSB then I think my CPU has his FSB wall.
I advise you to set all your memory settings an AUTO, and some 2,2V on Vdimm. But is advisable to run 540 FSB with RAID?
BTW, Is there a software to read the BIOS settings through win?
Nice FSB chri$ch. So with Vivio's results and I think Wind's we have just a few people that have reached over 500fsb. I really wanna buy this board but seeing a few more reach over 500 would be nice. This thread should definitely be official I had to do some fishing for it, cause I've heard rumors this board is a good buy. I was considering BloodIron but it's so damn fugly.
Edit: Also Newegg is selling this for $134.99 http://www.newegg.com/product/produc...82E16813136043
I wonder how much of a difference the 4-phase digital PWM makes vs. what the blood iron has (not digital?) - especially for quads and the whole melted 'fets issue.
That's great news! I'm still unsure if i'm going with the Dk or the LT but the Dk's price is pretty nice. I'd like to see more results with this mobo too.Quote:
Originally Posted by phi|os
holy crap they marked the blood iron up to 129.99 now wow
Smokin_Joe Go for LT if the money isn't the issue. DK has little features available, but the raw performance is almost the same. I have not having firewire and especially some control of the fan controllers through WIn or BIOS.
i have a freind now running the dark and he also has the lt version and he loves this mobo. after talkig with him yesterday he said his 8400 wll actually clock higher in the dark with less playing around than in the lt version.. at least that is his experience. he been oc'ing for a long time now..
the board did have a bit of v droop with his quad though not bad from what he said but more than the lt
:D
Any FSB test with 8X00 cpu's on this motherboard ?
Regards
Pt1t
ill see if i can get him to get on the forum and post his up of his 8400.. he normally doesnt "frequent" as he says forums lol. but he told me he LOVES the dark .. said it oc'es very easy for him
How mutch Vrop with Q6600 ?
Mine should be here tomorow ;)
its not digital. that is a misprint. it is a 4 phase pwm supply with 4 fets per phaseQuote:
Originally Posted by Mav451
also just did live chat again with motherboardpro and they have lowered their price to 133.99...
is it really true windwithme did 522 fsb STABLE with a quad?? main word being stable... i am still a bit skeptical this mobo can sustain that 24/7 stable on a quad.. any more input??
maybe windwithme can chime in here please..
Yeah, I realized that after looking at the pictures. That changed my mind about it actually heh.Quote:
Originally Posted by zfactor
I am looking at this board too - been pleasantly surprised with low cost boards in the past - you get what you pay for... maybe :shrug:Quote:
Originally Posted by zfactor
Edit: E8400 looking for a good home...
I've looked through a lot of post here and other forums, and it seems that this board is a prettier, beefier version of the bloodiron. Thank you DFI because the BI is sooo very ugly and not that functional other than being a fairly decent OC'er.
Hi. Just got this board, and i have some massive Vdrop with Q6600@3600Mhz 1.376v Idle » 1.328v Load
http://img171.imageshack.us/img171/6237/idle3600px9.jpg
http://img138.imageshack.us/img138/5...rimedfiks8.jpg
^^^ have you looked on dfi web site they said they have a bios for quad cores.. could help?
Well, looks like 470Mhz FSB is too easy with Q6600. :rofl:
http://img136.imageshack.us/img136/1...0470fsboi6.jpg
FYI guys, I bought this mobo and I verify that e8400 works works out of the box with the DK P35 :D
Well that's good news! I plan on buying an E8400 soon but i'm still not sure if i'm going with the DK or the LT. I wonder if the LT will run an E8400 out of the box? @Vivio, i don't need those features anyway but thanks for the heads up.Quote:
Originally Posted by Retrolock
Retrolock What FP0 has the CPU. At 4GHz stable what Vcore you must set in BIOS?
Smokin_Joe No problem. LP or DK I think they'll recognise E8400, but it's advisable a BIOS update as soon as possible. Problems could come with E8500, 'cose of its half multiplier 9,5.
@Vivio, I haven't tested it because I've been to busy copying some dvd home made movies lol. (not pron :P ) Maybe in a few hours when it gets colder (its afternoon here and it is hot! )
i tell ya i got this board last week and for $139 i am crapping myself.
what a freakin sweet board!!
525mhz FSB w/ E8400 voltage increase on chipset and VTT is about in the middle.
solid as a rock.
great cpu overclocking
great ram overclocking
i have been a buyer and lover of the midrange baords for a long time and i gotta say that this board is the best yet.
i just need a quad to try on it.
Lestat For daily use how much Vcore are we talking about?
depends on what mhz i run
my 8400 isnt nearly as good as what i have seen others run, plus i am still unsure of how the cpu VTT CPU PLL and clockgen voltages need to be address in relation to the vcore.
right now its 1.45v @ 4.2ghz
my vdroop is only 0.02v
so i set the bio to 1.47 (or as close as i can) so vcore is 1.45v under load.
i am using a Gemini II cooler so not the greatest but a decent cooler.
Q6600 480Mhz FSB
http://img185.imageshack.us/img185/7...35q6600mq7.jpg
More great results i see. :up: I just bought myself a TRUE and i read someone's post in here about having to mount it horizontally on this board. Does that mean with the fan pointing up or down? I was really wanting to mount this thing sideways so the fan can blow towards my rear exhaust fans.
@smokin joe, I think you can mount the TRUE120 vertically. My Ultima 90 which is much smaller than the TRUE, mounts sideways to blow towards the exhaust fans.
475*8, 1.376 - 1.392V with my Quad :D
http://www.abload.de/img/475x8yos.jpg
Freakin nice man!!! Will that run for 8 hours?Quote:
Originally Posted by Jupiler
how's the vdroop ?Quote:
Originally Posted by Jupiler
my board will be there tomorow
going to try E8400 and Q9550
This mobo runs 3870x2 card pretty well.

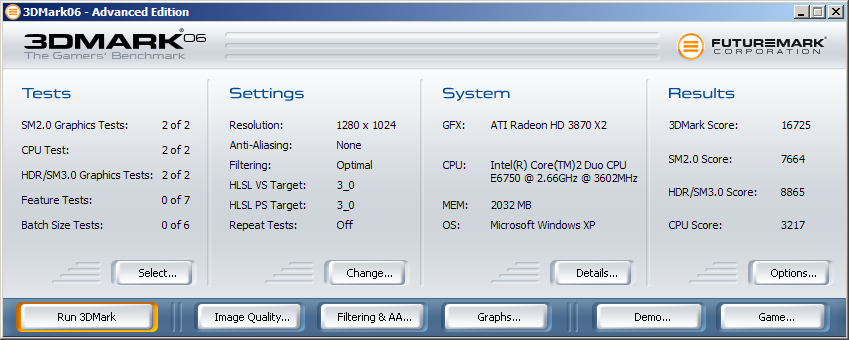

Clocked at 904/1000, the card is able to hit a score of 16.7K on the E6750@3.6 on DK P35, pretty decent for a obsoleted dualcore.
http://service.futuremark.com/compare?3dm06=5061236
http://i173.photobucket.com/albums/w...rk06_16725.png

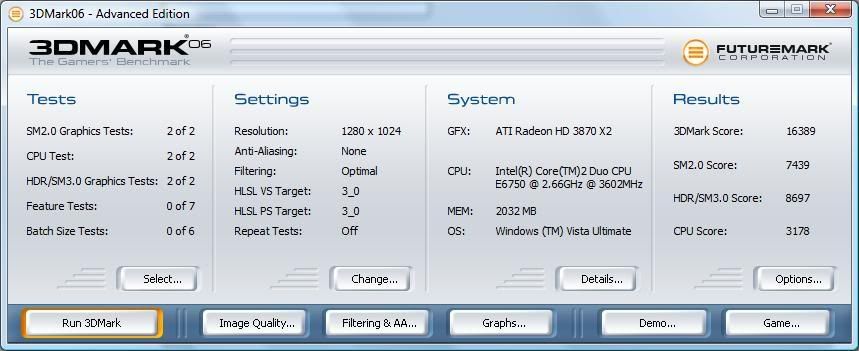

Vista x64 scores a few hundred points lower for the same rig,
http://service.futuremark.com/compare?3dm06=5084303
http://i173.photobucket.com/albums/w...arks_16389.jpg
Quote:
Originally Posted by Supertim0r
CPU Vid special Add : +237,5mV
Bios reads 1.40V
CPU-Z reads 1.360V at idle, fluctuates between 1.376-1.392V under load.
NB and Mosfets get really hot, measured 75°C with a tempsensor on the heatsinks.
My bios settings :
http://www.abload.de/img/bios5d0s.jpg
What does CPU VTT do?
1.75 vpll ? :confused: that's high
edit : the vdroop average on this board
Standard is 1.55V up to 1.95V (if I remember correctly).
It helped me a little bit in getting my quad running stable at that speed.
Had to play and adjust several settings, which makes it nice.
Good board for it's price.
This is for you then.Quote:
Originally Posted by phi|os

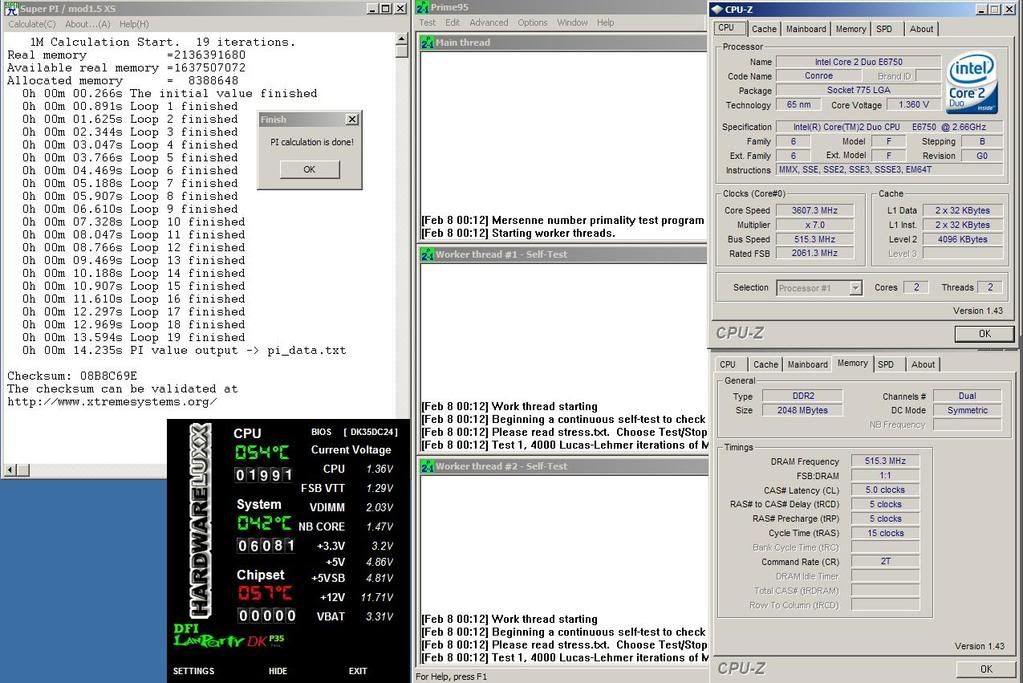

Decided to push FSB next, this DK P35 mobo really rocks when it comes to that cos
1. appears to have no strap change even up to 515FSB (needs NB/SB 1.45/1.75v) with very good memtest86 RAM bandwidth reported
2. EIST still works when o'cing with manual multiplier control, this wasn't possible with the last P35 mobo I tested viz. Neo2-FR.
NB: Just started loading with Prime95 to bring the load multiplier, let's see how this pans out later. :)
http://i173.photobucket.com/albums/w...esstesting.jpg
I just purchased a DK P35-T2RS and an E8400 plus Transcend 1200+ 2GB ram. I'm getting the cpu from Mwave later today and I'm gonna overclock it. I think the board can do 1200+ stably with the ram. Hopefully everything goes as intended, I don't want to RMA anything (DOA!). My first Intel CPU since the Pentium 166Mhz. :)
Did that prime95 run go for a full 8 hours??? I am poised to use this board on another build i am doing for a friend. I was concerned with the 4 phase PWM not being able to handle the quad but your post intrigued me.Quote:
Originally Posted by Jupiler
i installed the E8400 tonight and 1.376v idle = 1.344v load :(
almost the same vdroop as Q9550
Sorry, but I haven't tested it for 8 hours long.Quote:
Originally Posted by GripS
I'll see what I can do.
there is no any v-drop mod for this mobo ?
X2 :up:Quote:
Originally Posted by ztop
Someone coold help here :shakes:
Can anyone tell me what this mosfet (circled red) feeds? Cos it (and the undersurface of the mobo below it) are running really hot.
http://i173.photobucket.com/albums/w...dkp3502zy2.jpg
Would it be worth buying the DFI LANPARTY DK P35-T2RS when I already have an Abit IP35 Pro being RMA'd? Would it be a better board for OC'ing? I know somebody that will import it from america (newegg) for me but I will have to pay for customs.
That Abit board is a sweet one. I don't think the Lanparty DK would be a significant improvement over that board.Quote:
Originally Posted by steve30x
Thanks man. It's no big deal 4 hours is pretty good as well. I may just go ahead with this board. Just curious if you got an 8 hour run stable out of it is all.Quote:
Originally Posted by Jupiler
Passed >4h of Prime95 Small FFTs with my old L722A Q6600 at 1.44v 9 x 400FSB (shows chip OK) but just couldn't go over a mere 40mins of Blend without system rebooting. Dropped one multiplier to 8x with same settings (shows mobo/RAM settings OK) and it clears, obviously the onboard 4 phase supply can't supply stable enough to keep both chip and mobo happy at the same time or can there any other possible reason/s?
Using a newish Corsair 620HX.
NB cooling ?
edit : only a 120mm @ 800rpm over the NB/RAM gave me 22-24c less on the NB (AND the stock cooler on the Q9550 is temporary...the tuniq doesn't fit)
Overall cooling is a must, I got a 120mm for the PWM/RAM/NB and another 120mm at the base for the SB area and I'm just OCing mildly for now... :D :up:
Why Tuniq doesn't fit?:confused:Quote:
Originally Posted by Supertim0r
with a mounting mod, yes but it doesn't fit in my case :(Quote:
Originally Posted by garson
Got a reboot after 3.5 hours of Prime. bummer.Quote:
Originally Posted by GripS
I used the same settings as with the 475*8 run, only this time I changed back to 423*9.
Sometimes, I got reboots after 30 minutes of Prime.
Maybe it might be a heat issue with the NB and PWM's, as they got over 70°.
Placed a 80mm right before the NB, and temps went down to low 40's, but still got that reboot after 3.5hours.
I just received my DFI UT35, gonna give that one a try.(unless you want me to have another go).
I think the DK will go in another rig, along with a E6750.
Bummer. I was kind of expecting this with only 4 phase PWM though. Thanks a lot for testing that out for me. You saved me and my friend from big disappointment. Looks like it's gonna be the Abit IP35-pro instead.Quote:
Originally Posted by Jupiler
No problem.
I don't know why I get these reboots, not even a BSOD or so. Just hard reboots.
I was suspecting my memory (2Gb Ballistix PC8500) with even at 333/667 mem divider, I got these reboots.
Also keep in mind that I'm running my quad at 3.8Ghz, which might be a little to much for this board.
Same thing I got with my Q6600@3.6 doing Prime95 Blends, sudden system reboots when Small FFTs clears over 4hrs without problems, see post #184 above.
The stock NB sticker/wty issue is a PITA since NB temps are uncomfortably high with overvolted quads.
Indeed, those spots (NB and PWM's) need some good active cooling.
So Tuniq is OK with DFI LP DK P35? I have Tuniq and I want to buy DFI LP DK P35.Quote:
Originally Posted by Supertim0r
Abit IP35 Pro also has 4 phase PWM AFAIK.Quote:
Originally Posted by GripS
Is it? For some reason i thought it was 6 or 8. Regardless... there is a thread on it here where there are tons of people running quads @ 3.6ghz+ no problem. Ace-A-Rue is a perfect example.Quote:
Originally Posted by garson
Yes, it's 4 phase.Quote:
Originally Posted by GripS
You can run Q6600@ 3.6Ghz+ on DFI Blood Iron P35 (and LP DK) also. ;)
I'm sure you can. Prime95 blend for 8 hours though? I can't seem to find a screenshot of this anywhere. I know i had a heck of a time with my P965-S. Same deal. No BSOD just a reboot after about 30-40 minutes.Quote:
Originally Posted by garson
Regarding the Tuniq Tower and the p35 dark. I had to mount it exhausting up instead to back of the case.
I used a dremel to cut those parts circled in redQuote:
Originally Posted by Peter949
edit : be carefull...the way you mounted it, the base will hit the caps
ya, I was going to do the same thing this weekend.Quote:
Originally Posted by Supertim0r
