i set it @ 12800Quote:
Originally Posted by nfm
i will try again till i break that 12k
i set it @ 12800Quote:
Originally Posted by nfm
i will try again till i break that 12k
I'm running an e8600 on this board, atm.Quote:
Originally Posted by zsamz_
How did you get to 1.38?
Mine shuts down above 1.275 vcore. I try 1.2850 and it will not start up.
What bios version are you running?
you gotta leave cpu @ default n use special add%Quote:
Originally Posted by OnDborder
for more that 114% volts you gotta dissable max limit
i'm runnin 521 bios
i'm stable till 4.1@1.17v
chek your volts after second boot i thought i was @ 1.38 n i was @ 1.44
bios special add is buggy
they need to release a bios for the new rev hopefully we wont have to use special add% one day
Thanks for the quick reply :)
Hi,
I have just bought the E8600 CPU and after installing it on my UT P35 it doesn´t boot, only the fans are running. I have the the 05/21 Bios and the board works well with my old E8500 and E8400.:confused:
take the battery out you shoulda cleared cmos before you put it inQuote:
Originally Posted by Sepander
it needs default voltage to boot n you can only use special add
That didn't work. I put it on Abit IP35... It works! Bios(Abit's) says that CPU temperature is 95C and RealTemp says 31C. So is it possible that DFI won't let me boot because the CPU temperature is too high? Bios readings are just incorrect.Quote:
Originally Posted by zsamz_
I really want to use this chip on DFI.

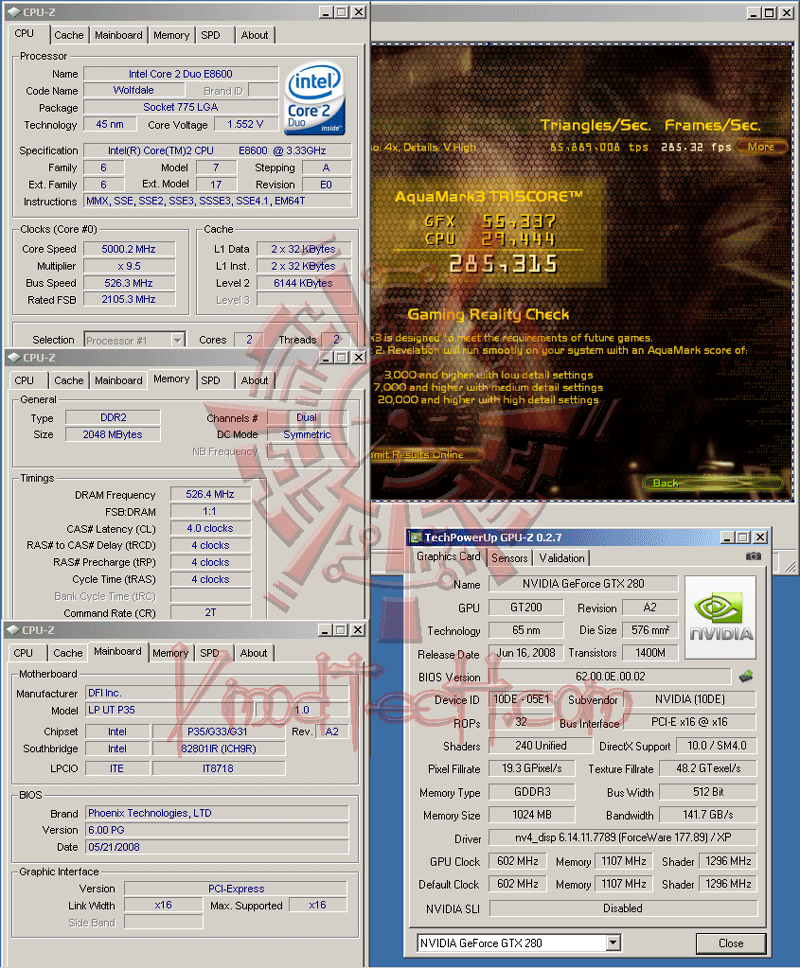

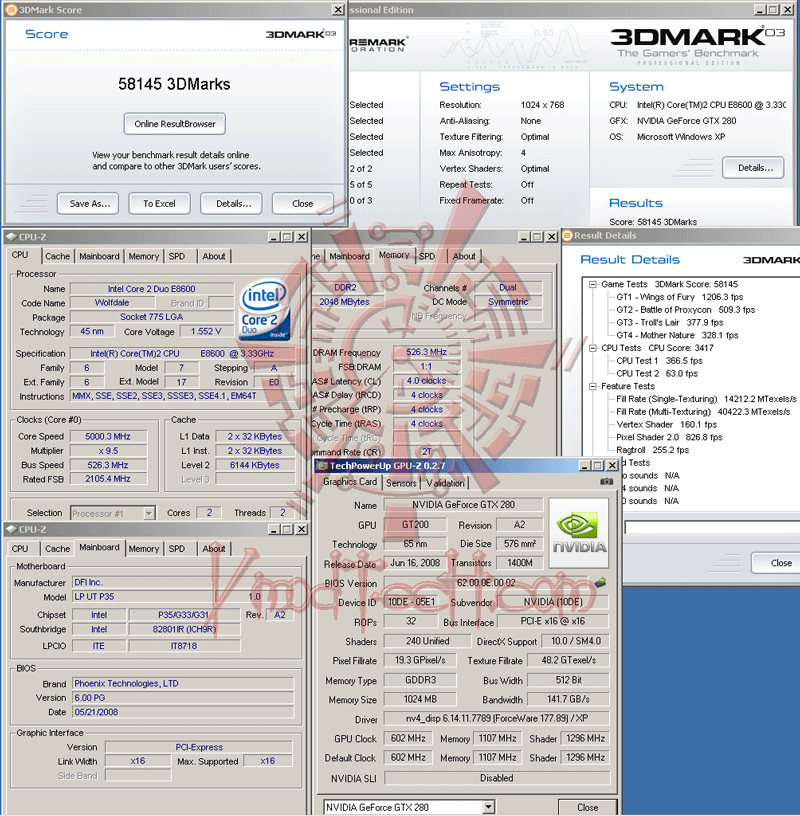

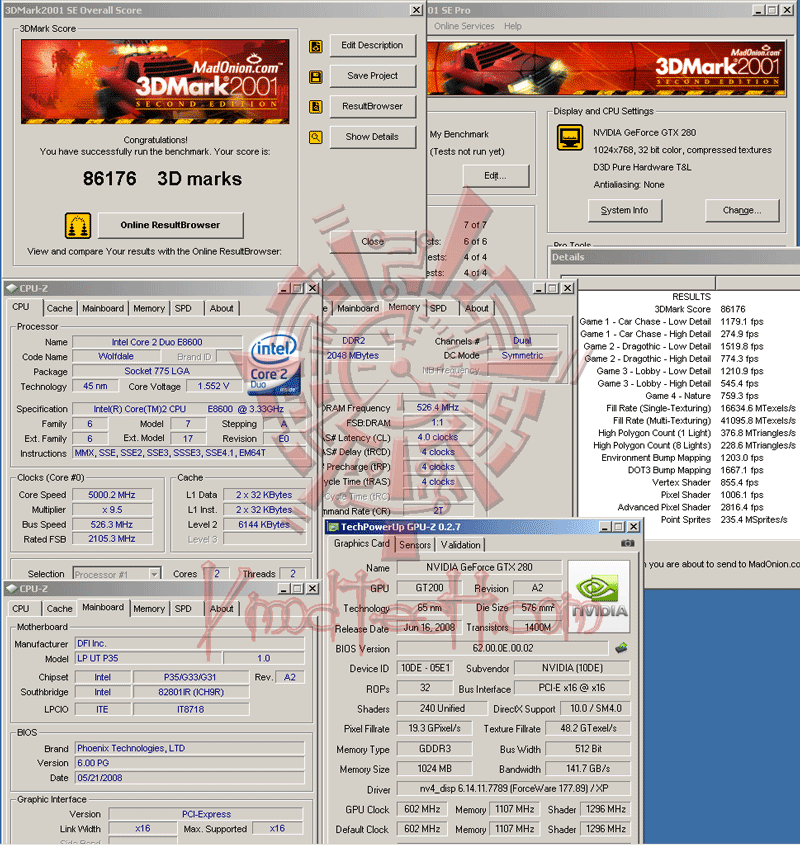

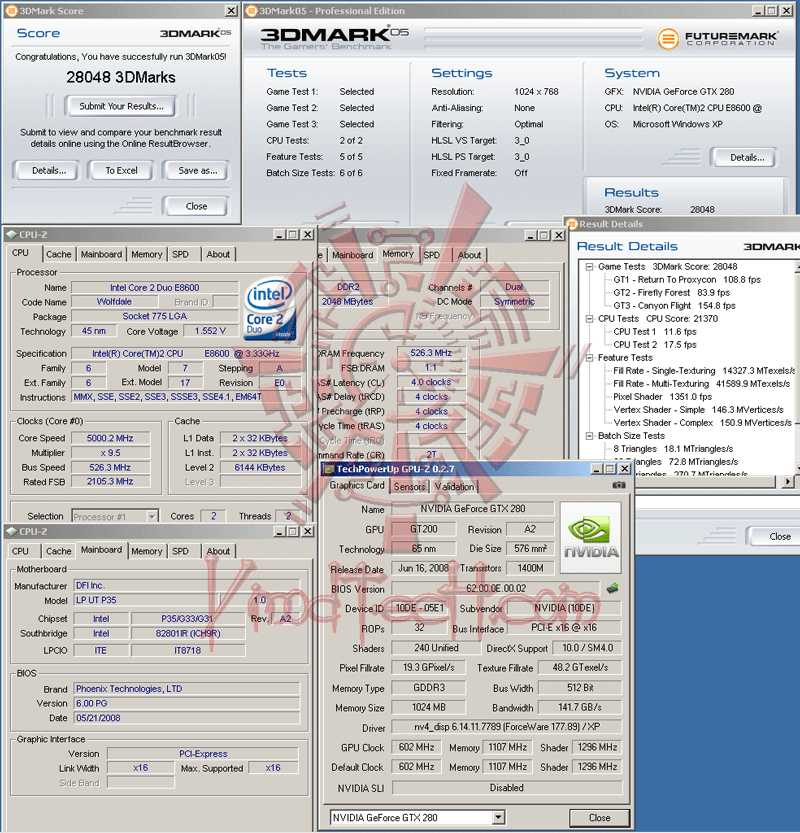

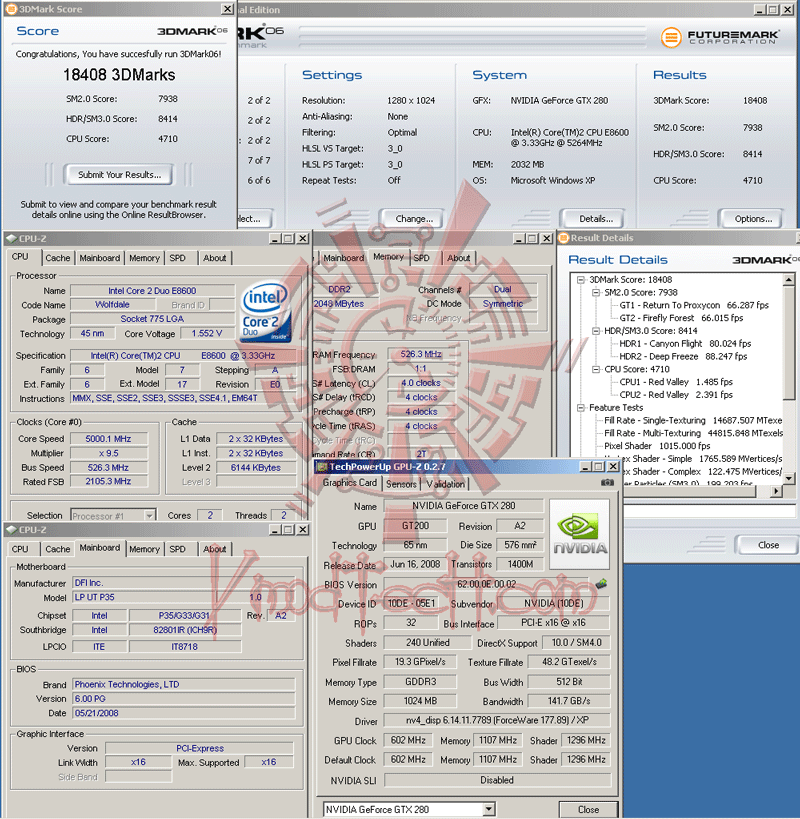

my result with e8600 & Stock GTX280 on regular water cooling;)
http://www.vmodtech.com/spaw/images/...000-280gig.png
http://www.vmodtech.com/spaw/images/...000-280gig.png
http://www.vmodtech.com/spaw/images/...000-280gig.png
http://www.vmodtech.com/spaw/images/...000-280gig.png
http://www.vmodtech.com/spaw/images/...000-280gig.png
GECUBE HD4870 X2 Works like a champ on the P35 all be it fooookin hot (65~70 idle)
1st run on my new card at stock speed.
3DMARK06
http://i106.photobucket.com/albums/m...2/3DMARK06.jpg
3DMARK VANTAGE
http://i106.photobucket.com/albums/m...2/Vantage1.jpg
CN :D
What's the max FSB range on this board? Can it do 650+?
Yes but you need subzero on the NB :hrhr:. Coolaler reached 668FSB not long ago.Quote:
Originally Posted by shimmishim
What is the typical range on air/water then?Quote:
Originally Posted by nfm
ive done 586fsb with my e6850 i havent really tried with my e8600Quote:
Originally Posted by shimmishim
does this board have a ,refresh period (Tref), setting in the bios? if not is there another way to control this through the bios?
No, and no. The only way to change it is with Memset, in windows.Quote:
Originally Posted by the9093
Yes, this is true. Only via memset can you change this.Quote:
Originally Posted by kitfit1
thanks for the responses guys. its seems that this board at 200/800 lowers:down: the performance level and ups:up: the refresh period thus making the board more stable. and at 266/667 it ups:up: the performance level but lowers:down: the refresh period making it instable. :shrug:
Yes, it is also mentioned on that famous review of the board at Anandtech that 266/667 and 333/800 straps offer best ram performance.:up:
Hi guys,
I have a problem which is unrelated to overclocking and tweaking but if you can help me I will greatly appreciate it.
Well my problem is that I can't start any OS on a virtual machine if I use Hardware Virtualization enabled , and I have to turn it off (in the virtualization program settings) so it could work. My CPU is an E8400, i have the last version of bios installed(21/05/2008), CPU virtualization option set to enabled in bios, and no overclock.
I tried with 3 different programs(Vmware, Paralles Workstation, Microsoft VirtualPC) and both on Windows XP and Vista x64, and I got the same thing.
At these point only the motherbord bios or the CPU is at fault. I know that its almost impossible that the CPU to be at fault, but you never know...
If anyone tried using virtual machines with the Hardware virtualization enabled on DFI LP UT/LT P35 and it worked, please confirm.
Or if someone has 10-15 minutes to spare and try. You could download and install MS Virtual PC 2007 because its free (from here), set hardware virtualization in bios and in program options to enabled and try to install windows xp/2003/vista. My virtual machine stops in Windows Setup at "Setup is starting Windows" and get an error box(pic below).
Hope someone can help me. Thanks:)
Where i can buy this board in the US but new not used. i need a shop who ships to germany. thank you!
http://www.motherboardpro.com/DFI-La...ATX-p-338.html
I looked in their FAQ section and they said to email them with the address. I would just email them and see.
This can't be true. VTT voltage can't be that high. I have set it to 1.10V (BIOS).
I tried all these bioses: 03/17 , 05/02 and 05/21. All have the same problem.
Edit: Ok, DMM says it's 1.09V. No panic.:)
Attachment 84176
i just love my board
not the greatest 3d scoreing board right now but dam it will overclock anything,i will try to tune down volts better i'm using my gtl settings from my e8500(63,65,67)
http://img524.imageshack.us/img524/526/dfi051xi4.png
very stable here
room temp 62c
mb;dfi ut p35
cpu cooling;scythe orochi with rexus fan
http://www.newegg.com/Product/Produc...82E16835705004
(other one like that for ram nb sb)
vga:4870x2 a third rexus used for more air flow but kept low clocks anyways
i'm just looking for 3d stable cpu clocks
What is a good 45nm Quad Bois? My Q6600 is dying a slow death... Right now I am running 12-24 bios. Thanks
I haven't been religiously keeping up with this thread like I used to, so please forgive me if this question has already been asked/answered.
I finally got around to flashing my board with 5/21. I was previously running 3/17 with zero issues so figured I would stick with that. Curiosity got the better of me this morning so I decided to try 5/21 which has been official for a couple months now. Everything looks fairly similar to 3/17 except for two new options.
What exactly is this and how should it be set for best performance/stability?
TFINE ITEM VALUE DEGREE
Mine defaulted to 160 and I left it at that. No clue if lowering it does anything, and if so what exactly does it affect. Anyone have any info on exactly what this new listing is in the bios and what it should be set at?
Thanks!
