02-07-2008, 04:27 AM
viktor92

Quote:

Originally Posted by Arne

:clap: :up:

Your prob sounds strange. You might should try the 1.8. Maybe then your eyes will be opened lol

Man, why don't you tell me where do you have C1E option and what bios version are you using ??
02-07-2008, 05:33 AM
vandiesel

The ide channel on this board, is it run specifically off the marvell controller
02-07-2008, 07:35 AM
@rne

Quote:

Originally Posted by [LCN]Knowledge

C1E is located in the "Advanced Options" in Bios.

Well, look at that quote. I have actually beta 1.63b, so i can't say you for sure where its located. Often its under CPU features etc but it should be under AO.:rolleyes:
02-07-2008, 02:25 PM
tty

Relax guys, there is no C1E option in any bios release (for this board).
You can only disable/enable EIST.
02-07-2008, 05:33 PM
viktor92

Quote:

Originally Posted by Arne

Well, look at that quote. I have actually beta 1.63b, so i can't say you for sure where its located. Often its under CPU features etc but it should be under AO.:rolleyes:

Mr. wise guy, better look at the bios more carefully, because there is no "Advanced options", and in nowhere there is a C1E option.
02-07-2008, 05:42 PM
op1e

Is it hidden in CPU Fetures? Hit F4 and see. Thats the way MSi does things, the way they have it on my P6N.
02-07-2008, 06:14 PM
[LCN]Knowledge

OMG,.. ok I will take a picture with my mobile. I've used Bios 1.1, 1.6, 1.83beta and i always see the option ok, i will reboot now. O_o

*Edit: i dont see it anymore, maybe it is not supported on this board, or it is not in all BIOS's version.
02-07-2008, 07:29 PM
WSX

I've used the MSI P35 NEO2-FIR with 4 different BIOS and never seen a C1E option in any of them, if you want to enable/disable speedstep just use the EIST option in "Cell Menu".
02-07-2008, 07:41 PM
Zaxis01

Compaibility

Does anyone know how compatible this mobo is with a-data sdram? :confused2
02-07-2008, 08:16 PM
AndrewZorn

My computer will not come on anymore. If I have the power supply plugged into the 8pin, it will not even jumpstart. If I take out the 8pin, the board will power up but not get past 4 red LEDs. Is it dead?
02-08-2008, 12:46 AM
viktor92

Quote:

Originally Posted by WSX

I've used the MSI P35 NEO2-FIR with 4 different BIOS and never seen a C1E option in any of them, if you want to enable/disable speedstep just use the EIST option in "Cell Menu".

It's what I'm doing and it seems to work fine (and enabled the "minimal power management" energy profile in windows also), but I don't understand why C1E is missing in a P35 bios.
02-08-2008, 11:10 AM
vandiesel

Could a xp user with this board check in

device manager/Universal Serial Bus Controllers

I have 8 Intel ICH9 USB xxxxx entries

and

8 USB Root Hub

is this what you are showing also

thanks
02-08-2008, 12:47 PM
Hybrid

Mine shows the same thing.
02-08-2008, 05:19 PM
viktor92

Quote:

Originally Posted by vandiesel

Could a xp user with this board check in

device manager/Universal Serial Bus Controllers

I have 8 Intel ICH9 USB xxxxx entries

and

8 USB Root Hub

is this what you are showing also

thanks

Same here
02-08-2008, 07:26 PM
tty

Quote:

Originally Posted by Zaxis01

Does anyone know how compatible this mobo is with a-data sdram? :confused2

Check the previous page for my posts regarding A-Data memory.
02-09-2008, 12:10 AM
dropglock

What's a good voltage for memory for this board, enough to not kill the memory? Is 2.2 high enough? I currently don't have air blowing on the memory also. I am using Crucial Ballistixwith a E8400.

Quote:

Originally Posted by clon22

I'm using an E8400.
1st one was Q748, pretty yucky.
Max fsb was 530 but need 1.475v for 4ghz and 1.6v for 4.2ghz.

The 2nd one is better. :D
1.27v for 4ghz, 1.5375v for 4.5ghz.
Have yet to test max fsb on this one.

:)

Hey what memory are you using and what are the timings? Did you do anything to the VTT FSB Voltage, NB Voltage, SB I/O Power and the SB Core Power?
02-09-2008, 03:25 AM
viktor92

Quote:

Originally Posted by dropglock

What's a good voltage for memory for this board, enough to not kill the memory? Is 2.2 high enough? I currently don't have air blowing on the memory also. I am using Crucial Ballistixwith a E8400.

Hey what memory are you using and what are the timings? Did you do anything to the VTT FSB Voltage, NB Voltage, SB I/O Power and the SB Core Power?

I'm using 4 x 1GB GSKill DDR2 800 GBPK at 4-4-4-12 and 667 Mhz (333 x 2 x 1). This setup was the best with my 975x PowerUp, I still should try at 835 Mhz (333 x 2 x 1.25). The voltages are ALL stock, my memory at 1.9v (when I try at 835, I will put voltage at 1.95). My Q6600 G0 is running at 333 x 9 (FSB jumpers at 333mhz) with stock voltage and has a VID of 1.2125. With four sticks installed, the memory is hotter, but I have a side 80mm fan flowing over them.
For the memory, 2.2v is fairly high for me, but look at the specs to see the range accepted, mine has 1.9 to 2.0v, but all depends at what frecuencies do you want to overclock your memory, but I advise to you that the temperature rise very quickly with high voltages.
02-09-2008, 04:17 AM
vandiesel

Hybrid

viktor92

Thanks for that, the reason.............when I install the intel chipset drivers they take out the usb root hub with the yellow! need to uninstall/reboot to fix
02-09-2008, 01:40 PM
clon22

Share some results with you guys here. :)
-E8400 wk43 w/Ultima90i
All on air...

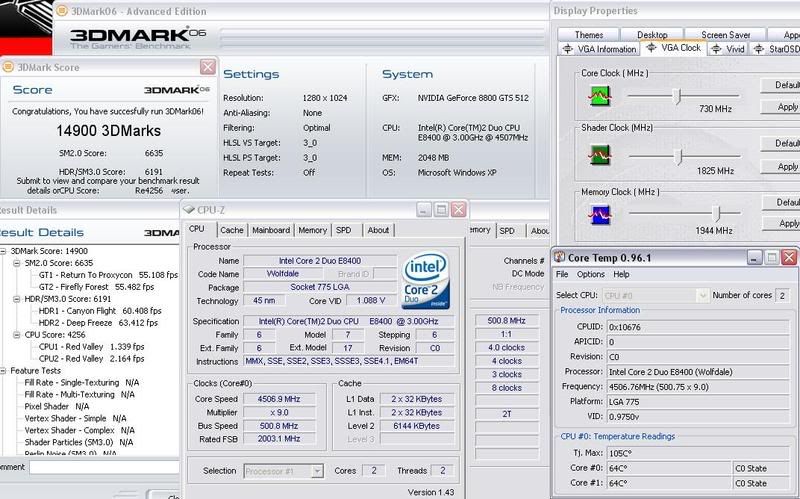

3D06 @ 501x9, gpu@stock :
http://i76.photobucket.com/albums/j3...3d06_stock.jpg

Nuclearus Multicore managed 16K :
http://i76.photobucket.com/albums/j3..._nuclearus.jpg

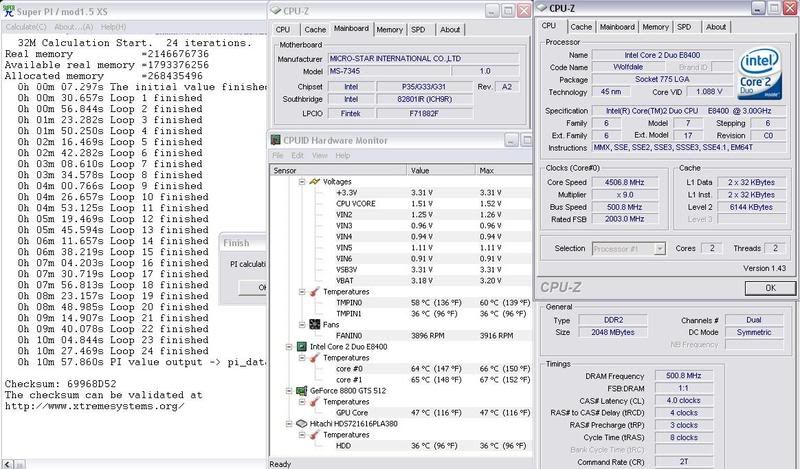

Spi32m @ 1:1 :
http://i76.photobucket.com/albums/j3..._hwmonitor.jpg

Btw, system is inside my little iCute QH-01 casing...
Bump up gpu clocks abit...
then tried to clear 16k with higher cpu speed...
Have not login to ORB for a very long time...
took more than 10 tries to remember my email n password...
then managed to logged in... faintz...
Heres the compare link :

http://service.futuremark.com/compare?3dm06=5154609
http://i76.photobucket.com/albums/j3...0420252164.jpg

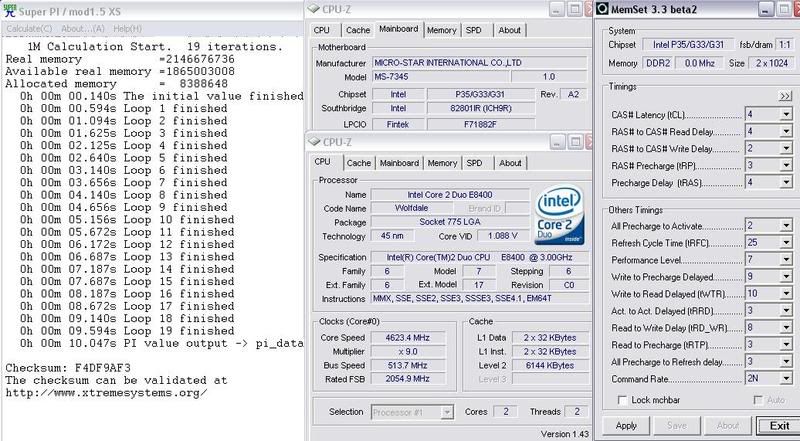

Kept vcore @ 1.55v...
514x9.... 515x9 no go....
i guess need cooler temps... too hot...

http://valid.x86-secret.com/show_oc.php?id=310620
http://i76.photobucket.com/albums/j3...spi1m_cpuz.jpg

Oh yah,
btw Cpuz 1.44 is in... :)
http://www.cpuid.com/cpuz.php
Will try better cooling another time...
02-09-2008, 01:49 PM
clon22

Quote:

Originally Posted by dropglock

What's a good voltage for memory for this board, enough to not kill the memory? Is 2.2 high enough? I currently don't have air blowing on the memory also. I am using Crucial Ballistixwith a E8400.

Hey what memory are you using and what are the timings? Did you do anything to the VTT FSB Voltage, NB Voltage, SB I/O Power and the SB Core Power?

I'm using D9GMH,
I guess your ballistix are using similar chips too...
For regular 24/7 usage,
I do not go above 1.95vdimm. :)
My daily settings are 445x9(bios 1.3v), mems@890mhz 5-5-4-10@1.9v.
Its good enough for me. :)
1.45/1.5/1.6/1.15 respectively for the rest.
02-10-2008, 07:51 PM
clon22

Quote:

Originally Posted by vandiesel

Could a xp user with this board check in

device manager/Universal Serial Bus Controllers

I have 8 Intel ICH9 USB xxxxx entries

and

8 USB Root Hub

is this what you are showing also

thanks

Same here. :)
02-10-2008, 08:02 PM
dropglock

Here's my 24/7 settings. I got some questions though. Do you guys think I need to reinstall my heatsink because 76 degrees is high! And are these bio's settings safe enough to last me 2 years? And what's up with the system information under OCCT? Its all wrong. Thanks.

http://www.uploadgeek.com/uploads456...ockSTABLE2.jpg

and the bios settings.
http://i145.photobucket.com/albums/r...k/DSC00146.jpg
02-10-2008, 08:24 PM
WSX

More info on high Wolfdale temp readings
http://www.xtremesystems.org/forums/...postcount=1259

-
02-10-2008, 08:42 PM
JacKz5o

Nice
02-10-2008, 09:05 PM
sbrehm72255

If you guys are still looking for the C1E option in the MSI P35 Bios here's a few pics to show you exactly where it should be.............:D At least this is where its at on my MSI P35 board..............:eek:

Main screen, go to the advanced bios features (second option)

http://img238.imageshack.us/img238/8164/dsc00262lk4.jpg

Advanced bios features, go to CPU features (third from bottom).

http://img238.imageshack.us/img238/3554/dsc00263mi1.jpg

CPU features when you first go into them.

http://img248.imageshack.us/img248/2008/dsc00264wm2.jpg

Press F4 when you're in the CPU features menu and you should see the C1E option come up.

http://img248.imageshack.us/img248/9281/dsc00265fd1.jpg

This is he way it works on my current MSI P35 board as well as my old MSI P6N board, it's a standard MSI option as far as I know................:shocked:
