** Official ** Gigabyte UD3 P45 Series -- EP45-UD3 / EP45-UD3R / EP45-UD3P

Quote:

---

Originally Posted by coop

enough with IB and P95. if I saw 90 (70) I'd freak. I have a suggest for 9x500. Bump cpu ref up a notch then another if that don't work. Keep all else the same. Maybe mch a couple notches too. (1.44?) Quite a load of ram there.

*********I was going over the above and was thinking of what I was using. Don't do that. For 1.34vtt try cpu ref of .903 or up a notch. Then your mch ref seems high already. Try .808 You may need more mch core like I mentioned due to ram. Which brings me to here. You won't be able to boot with 333, 2.0 with 5/5/5/15. You will need 4/4/4/12. Also 400 will be best start.

---

Im booting with the setting I listed.

I will try your reccomendations for ref now, then try mem at 4/4/4/12, but dont think it will run that fast. Will also try 400 (d), but only have 1066 so will have to run it at 800- it wont go much over 1130 so 1200 is out with these muskins...

thanks

realize im too hot, will do water when i can afford- other than stress testing it doesnt run that hot. gaming it only runs 62-65nb and 60-61 cpu, but 4870 luv the air and runs at 60 maxed out so im good there

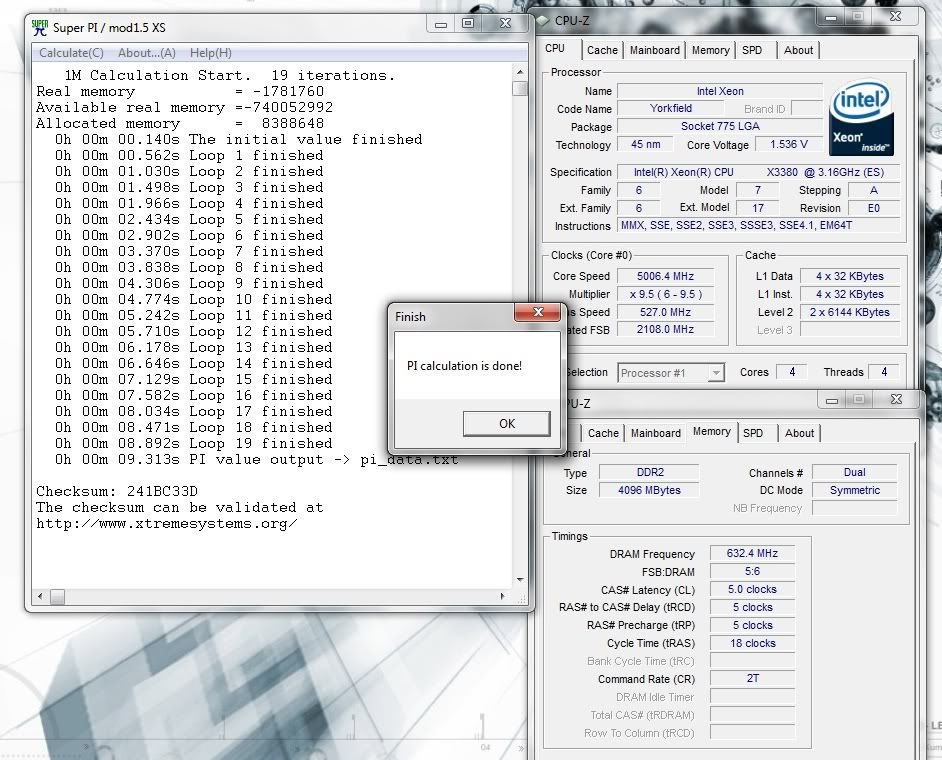

I figured I would play with the xeon some tonight. I had a 9.298 but got greedy and lost it :mad:, im still playing with it so maybe ill get it again or just try for higher.

http://i131.photobucket.com/albums/p...tmapImage6.jpg

Quote:

---

Originally Posted by Hoss331

I figured I would play with the xeon some tonight. I had a 9.298 but got greedy and lost it :mad:, im still playing with it so maybe ill get it again or just try for higher.

---

Nice X3380 Hoss :slobber: , when you get tired of it please borrow it to me so I can give it a go too :up:

How does it compare to the Q9650 at 5Ghz?

You should get below 9.2s on the X3380 I got that with my Q9650 with slower speeds (4900Mhz):

http://i44.tinypic.com/t7o4g3.jpg

Got it back. Yea it should be able to go lower but im currently using my everyday untweaked win7. Do you have any OS tweaks you want to share? :up:

http://i131.photobucket.com/albums/p...tmapImage7.jpg

Nice to see Jor3lBR posting a 1M run on XP. I was working on beating his Vista time but even my best was .010 seconds slower.

Only two Pi 1M tweaks I can think of that make major differences are use Windows XP and F4-4 BIOS if you are using the EP45-UD3P.

How big of a difference with F4-4?

The only thing I can think of was the XP (better then my W7 run) I didn't do anything different. Same config but with fresh XP install and defraged.

Quote:

---

Originally Posted by Hoss331

How big of a difference with F4-4?

---

I didn't do a very good comparision but it seemed to be a little better than .1 seconds. Vista to XP is a very nice gain.

hmmm.. I think I have an old 32bit xp disk around here some where.

Quote:

---

Originally Posted by kahuna321

Finally got 4.3 stable- 50 loops of intel burn, all day prime 95 but want more

Can boot and run at 4.5, just cant pass any stress tests

Heres where I'm at now:

cpu 9x500

vcore 1.375
term 1.34
ppl 1.5
ref .848

mch

core 1.4
ref .888

Mem 333, 2.0b standard

5/5/5/15

2.12
1.06

all others auto

heres my system:

ep45 ud3r f9
q9650, lapped
true lapped w/ ultra kaze 2ks in push-pull, as5
nb, mosfets all have upgraded hs/fan
muskin 1066- 4x2g=8g ( 3g in ramdisk) w/ hsf
corsair 750w
4870x2 @800/1000
case has 6 ultrakaze 2ks, very well vented
2 wd 640g black in raid 0
windows 7 64 bit

tired of waiting on the ocz 1200 blades to come in, dunno why i cant get a good clock now at 2.0b

i know i need to do something about cooling, not in the budget atm- intel burn is tickling 90 now with ambient 28-29 here, nb 93 loaded

ive gone up, down and sideways in bios, im at a loss where to go

all the big kids can get 4.5- i wanna run it too- help!!

thx

---

Tried another 30+ combinations, now at the following:

cpu
vcore 1.375
term 1.32
pll 1.5
ref .891

mch
core 1.38
ref .836

higher cpu ref seems to help to a point, and lower mch ref does too. tried 1.28-1.36 term, 1.32 seems most stable of all


not the fastest super p'is, but at least passes one round of intel burn.

suggestions?

Can someone post a 1m pi close to 9.2xx @ 4900?

Quote:

---

Originally Posted by coop

Can someone post a 1m pi close to 9.2xx @ 4900?

---

With a DUO or Quad? If you want a Quad I just posted one on the other page 9.21s...

If you have your quad in can you run another? Are they that much faster than duo's? I can get 9.234 but it is not very close to 4900.

for superpi there is no speed difference between quads and duos

Jor3lBR's 4.9Ghz just uses incrediblely tight timings from the looks of it.

Maybe this willl help, it isn't exactly 4900 but pretty close.
http://i306.photobucket.com/albums/n..._untitled1.jpg
Using the F4-4 BIOS I had the time down to 9.329 at 1Mhz FSB lower.

You guys have some really nice chips :slobber: and those Super Pi runs are awesome :clap:, I get somewhat envious cause my chip do only ~4,7GHz :( and 1M @ 9,750.

Keep up the good work guys :up:

[QUOTE=thebluemeanie1;3886315]Jor3lBR's 4.9Ghz just uses incrediblely tight timings from the looks of it.

5/6/6/18? 1m's are rather straight forward. A couple tenths is huge.

The best I could get at 4905:
[IMG]http://img158.imageshack.us/img158/4206/914221m4905.jpg[/IMG]

Even at 5015 I could only get 9.234
[IMG]http://img9.imageshack.us/img9/2439/912341m5015.jpg[/IMG]

so Ghostleader I pmed pangingIII and he blew me off. Didnt reply. I think he rigged his memory OC. I shot him a PM again we will see if he blows me off again.

Quote:

---

Originally Posted by stasio

New BIOS:

GA-EP45T-UD3R - F7a
GA-EP45-UD3P - F10b
GA-EP45-UD3R - F10c

No info.
Seems to have new AHCI ROM.....

---

Thats nice nothing for the EP45t-ud3p

What do you think would happen if I flashed the ep45t-ud3r f7a bios to a ep45t-ud3p?

you would ruin your board

Quote:

---

Originally Posted by kahuna321

higher cpu ref seems to help to a point, and lower mch ref does too. tried 1.28-1.36 term, 1.32 seems most stable of all


suggestions?

---

If that board is like the P 1.32 vtt will not set, its either 1.30 or 1.34. If you select 1.32 in bios then in windows pull up ET6 it comes up 1.30. If you try to set 1.32 in ET6 it will still drop down to 1.30.

Quote:

---

Originally Posted by hank123

so Ghostleader I pmed pangingIII and he blew me off. Didnt reply. I think he rigged his memory OC. I shot him a PM again we will see if he blows me off again.

---

Chill hank123, just because he didn´t answer your PM don´t make him a bad guy, maybe he´s occupied by a lot of work or are on a holiday or maybe he has a policy to never answer on PM, just answer questions in threads, maybe we never gonna know but either way, in my opinion we have to respect what ever.

BTW, how is your progress with the EP45T? I´m back with me RE and are determent to make my 2x2 Transcend to work @ 1800C8

Quote:

---

Originally Posted by coop

5/6/6/18? 1m's are rather straight forward. A couple tenths is huge.

The best I could get at 4905:

Even at 5015 I could only get 9.234]

---

:D Nobody said it would be easy. Sometimes is just a combination of MHZ and Timings that the hardware will shine, that's when less is more on those benches. But there is no manual in how to achieve that, only sweating.

Well I ca't run the Q9650 right now, my UD3P is on RMA so it has to wait. Summer ruined my Cryo-Z runs :-( Too much humidity.

I run other SuperPi's back then an always close to 9.2. Now I want to get 9.1! :up: Maybe with the Extreme, this board is better the UD3P especially on 32m runs my best on UD3P was 9m.50s and Extreme did it in 9m.35s...

Quote:

---

Originally Posted by coop

5/6/6/18? 1m's are rather straight forward. A couple tenths is huge.

The best I could get at 4905:
http://img158.imageshack.us/i/914221m4905.jpg[/IMG]

Even at 5015 I could only get 9.234
http://img9.imageshack.us/i/912341m5015.jpg/

---

Try experimenting with the different Luna themes. The silver was the best one for me.

I've ran thousands of Pi runs. please. Probably seen close to the same. Show me something.
[IMG]http://img199.imageshack.us/img199/4207/32m9148.jpg[/IMG]
