The "MODDED" one?!?! Care to explain ...Quote:
Originally Posted by hema
Printable View
The "MODDED" one?!?! Care to explain ...Quote:
Originally Posted by hema
for modded one information
http://www.xtremesystems.org/forums/...200109&page=20
I really like the CPU GTL's options here. Looks like a good, worthwhile BIOS. I'm in the middle of some other issues right now - once I have them resolved - I'll give the modded BIOS a shot.Quote:
Originally Posted by hema
Thanks. Also to KET, Original Developer.
CPU GTL Voltage Reference (0/2): 0.67xQuote:
Originally Posted by PiolhoSM
CPU GTL Voltage Reference (1/3): 0.67x
CPU PLL Voltage: 1.5v
FSB Termination Voltage: 1.2v
NB Voltage: not cpu dependent start with 1.20v, may need up to 1.34v
NB GTL Reference: not cpu dependent leave on auto
SBridge Voltage: not cpu dependent leave on auto
PCIE SATA Voltage: not cpu dependent leave on auto
thank you CryptiK.
I will buy a new PSU this week to play with my Q6600 g0, P5Q Deluxe, Gskil 2x2GB 8000 Pi and PC4870 PCs+!
soon, i will post here some fresh results.:D
CPU GTL Voltage Reference (0/2): 0.67x
CPU GTL Voltage Reference (1/3): 0.67x
CPU PLL Voltage: 1.5v
FSB Termination Voltage: 1.2v
NB Voltage: starts at 1.10v. not cpu dependent start with 1.20v, may need up to 1.34v
NB GTL Reference: 0.63x in the specs, 0.65x in my MB with my configuration
SBridge Voltage: not cpu dependent leave on auto
PCIE SATA Voltage: not cpu dependent leave on auto
Once you have and stable configuration, try to find yourself your optimal GTL values. It's easy, move it slowly up and down until you get an error in a fixed time (aprox. 5min), and then set your GTL with the mean between errors...
Regards.
Im just overclocking this board now. Bios 1403. Likeing it alot so far. I just have a few questions. Im trying for atleast a 450-500fsb. What should I set the NBv at on this board? My other question is. I have 4 disks in raid0, what should I set the SBv at? Thanks in advance.
Edit: Also, what is the memory remap feature?
I read, on my P5Q Deluxe bios, 0.63x for first CPU GTL Voltage Reference, and 0.67 for second CPU GTL Voltage Reference.Quote:
Originally Posted by CryptiK
What's wrong?
:eek:Quote:
Originally Posted by Huexxx
Very tough... I thought this value got just up (like others voltage) :shrug:
Same here for the cpu settings :up: . If you use Kets Modded BIOS version of the 1403 I leaked, out for everyone you will see your latencies drop with the pull ins enabled "I noticed this with the Modded 0803 he put out for me so, maybe this is right still?". The pull ins drop your PL a little like .5 so if youre are on 8 like I am, it will be like being at 7.5 instead. Also no problem :up: .Quote:
Originally Posted by LUCI5R
It's hardware power saver (molt 6x on idle, 9x on load)Quote:
C1E Suppport DISABLED
Only for old os, default disabledQuote:
Max CPUID Value Limit DISABLED
If you want use VMware or other virtual software.Quote:
Intel® Virtualization Tech DISABLED
I think is the same hardware energy saver, controlled by OSQuote:
Vanderpool Technology DISABLED
Thermal throttling protection: why disable it!?Quote:
CPU TM Function DISABLED
Error protection?Quote:
Execute Disable Bit DISABLED
Should I set the Nb gtl refrence to 0.67? What is the cpu pll voltage?
Ok, this is embarrassing but hopefully it will save someone else. When you clear CMOS don't do what I did: Dropped the jumper and couldn't find it, went to get a new one, didn't pay attention and put it on the bottom right fan header. If only I had noticed it before i turned the power on... POOF! :D
Fortunately everything seems fine and no apparent damage except for a burnt fan header MOSFET and possibly no working fan headers. Good thing I use a Sunbeam fan controller :up: Should I be worried that something else might have taken a hit?
Anyway... :rolleyes: the reason I cleared CMOS was because my system won't post on reboot after installing 4x2GB G.Skill PC8800. It gives the "Overclocking failed" message even at stock settings but boots fine after entering BIOS. Any ideas on why this is?
So looked at this mobos manual can't see it. Is there a CMOS Reset button or do you have to clear your BIOS with the jumpers?
See if one stick will boot, and change the bios.Quote:
Originally Posted by Skauneboy
I really want to figure out the limits of my particular boards' FSB and My memory modules, I've never done this before, I've usually just been content with a mild OC not having been very lucky with my processors. I think I have a winner this time around and I'd like to find my limits. I could really use some real world tips such as which multiplier and memory timings you use and some base voltages. If I understand the theory is to isolate the particular component/system that your pushing while keeping the other component/systems intentionally low. If you any tips for me I'd sure appreciate it.
Also is the FSB strap the only way I have on this motherboard of changing the FSB/Dram Ratio? If I remember I have 200,266,333 and 400 as options. If for example I wish to run @ 4Ghz 400FSB x10 and keep a 1:1 ratio @ 800MHZ I would use a 400 strap? and is I wisg to run my ram @ the rated 1000mhz which strap could I use for a 1:1. Ty
I'm not sure if I'm losing it or not but didn't Asus PC Probe II used to show NB voltage? And I thought hardware monitor in the bios showed it too??
I need to see what Auto sets my NB voltage to but the bios and PC Probe II don't show NB??
Not on the P5Q-Deluxe, there is only System & CPU temp in bios and asus probe.
Ahhh :(
I've read 3 reviews of this board today with the E8600 chip saying how they instantly got it stable with all settings at "Auto" @ 500fsb - 1:1. I don't think I'm going to get anything of the sort here. I've tried most settings here within this thread and pushed NB and other voltages far past what I'd be happy with. The longest I can blend in prime at 500 is with all settings at "Auto" for 2 mins 44 secs :(.
Leave the strap at Auto and set 400FSB and 1002mhz ram speed... nothing nothing less to it... 1:1 is less performant than a divider unless you are going high 500+FSBQuote:
Originally Posted by Vektor67
this should be quite okay as a starting point... however fine tuning is up to youPHP Code:ASUS P5Q DLX Template :
JumperFree Configuration Settings
AI Overclock tuner: MANUAL
CPU Ratio Setting: 10
FSB Strap to North Bridge: AUTO
FSB Frequency: 400
PCI-E Frequency: 101
DRAM Frequency: 1002
DRAM CLK Skew on Channel A1: AUTO
DRAM CLK Skew on Channel A2: AUTO
DRAM CLK Skew on Channel B1: AUTO
DRAM CLK Skew on Channel B2: AUTO
DRAM Timing Control: AUTO
DRAM Static Read Control: Disabled
DRAM Read Training: AUTO
MEM. OC Charger: AUTO
AI Clock Twister: AUTO
AI Transaction Booster: AUTO
CPU Voltage: 1.35
CPU GTL Voltage Reference (0/2): AUTO
CPU GTL Voltage Reference (1/3): AUTO
CPU PLL Voltage: 1.54
FSB Termination Voltage: 1.22
DRAM Voltage: 2.0
NB Voltage: 1.22
NB GTL Reference: AUTO
SBridge Voltage: AUTO
PCIE SATA Voltage: AUTO
Load Line Calibration: Enabled
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled
CPU Clock Skew : AUTO
NB Clock Skew : AUTO
Advance CPU Settings
CPU Ratio Setting: Manual
CPU VID: Default
C1E Suppport: Disabled
Max CPUID Value Limit: Disabled
Intel® Virtualization Tech: Disabled
Vanderpool Technology: Disabled
CPU TM Function: Disabled
Execute Disable Bit: Disabled
Bios nor probe ever shown it ... think you got some boards mixed upQuote:
Originally Posted by mjh74
Some chips are better than others. Like me you may have gotten a bad batch. I have an e8400. The VID is 1.2250! On a 45nm chip. It also needs a high vtt for stability. I find it relly hard to get this chip stable at anything much higher than a 425fsbx9. Im sure that I can go to atleast 450 on the fsb but getting it stable isnt easy. I am having much better results than my last board at least. Does anyone have any tips on how I could run my ram at 1066, 4,4,4,12? Icant even get it to post at 4,4,4,12. It seems stable at 5,5,5,15 with 2.1v on the dimms and the NBv at auto, it passes 10 runs of Linpack.I still need to play around with the NBv. Im not very familliar with memory overclocking. At what voltage should I start to get nervous feeding my ram?Quote:
Originally Posted by mjh74
I was really lucky with my last board (Asus Commando + E6600), got some really good overclocks that were rock solid with Crucial Ballistix PC6400 @ 525 fsb 1:1! Ho hum, time to work on getting the best I can out of this then! :)Quote:
Originally Posted by BababooeyHTJ
Forget about running 2gb stick at 1066Mhz at Cas4...
And NB at auto is a sign you didn't do ya homework before clocking this board... 1.26NB voltage is more than sufficient for 500FSB/1000mhz ops...secondly most of these board overvolts the ram with 0.08, so you are feeding ya reapers with 2.2volts which is not required at all, put in Trfc 55 and try to run static read control enabled... then try to mess with the PL's...
Not a problem, but....I've noticed when I reboot this board, I hear a very distinct power drop (doesn't cut off completely, I don't think), but the fans rpm drops off or a split second...is this normal for this board?
I get that too. Power on, everything spins up for a second, powers down, and then spins back up. All within 2.5-3 seconds.Quote:
Originally Posted by platojones

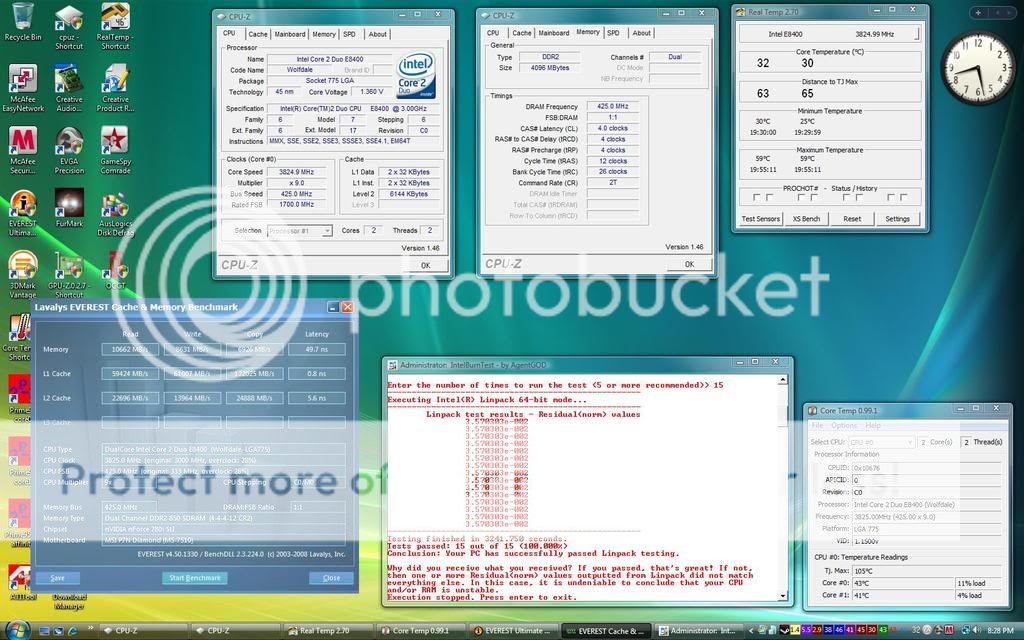

You are the man! Thanks for the advice. Static read control enabled causes my my board to fail to post and when I reboot I get a failed overclock message, so thats a no go. I haven't tried it yet on this board but I got better performance with the memory on my 780i at 850mhz 4-4-4-12 than I am getting now with 1066mhz at 5-5-5-15. I could aslo pull off a 1t command rate. Playing with the pls can help me out a little. http://i308.photobucket.com/albums/k.../Overclock.jpg http://i308.photobucket.com/albums/k...5-5-15auto.pngQuote:
Originally Posted by Leeghoofd
