Yup, Thanks for all the help Dude! :up:
I appreciate it!
Yup, Thanks for all the help Dude! :up:
I appreciate it!
Not bad dude , your almost running the same exact setting I am except for the mch core which ya have is a lil higher and the mch ref with ya have a lil lower , those temps your running is that with the prime running , if it is man your cooling is doing great ! ! ! , Im pushing 58 - 60 celcius and im running a double 120 and a single 120 , but im running 3 year old black ice extreme radiators with like helicopter fans , there not very efficient anymore and maybe next month ill flip out for XSPC RX360 with meduim fans that should do the trick bring me down another maybe 4 c ...Quote:
Originally Posted by xzulu
overall dude nice man ,
I dont know if these gskills pi ddr2 900 will hold much higher , with out loosing the timing ive heard on like one forum , that these are really the gskills pi 800 just pushed harder , but for sure tommorow ill try see if theyll hold .. what kind of cooling are you using hoss331 ?Quote:
Originally Posted by Hoss331
well this morning i tried lowing the vcore down one notch
for my 9x500@4500 ddr1200 and it worked:D
it was at 1.356 in bios for 1.32v in windows
now it 1.350 bios still 1.32v in windows,but damn thats just great:up:
it helped with temps by a few degrees:D
they were on average 47c to 50c load before
and now they are 40c to 46c load
before
http://i43.tinypic.com/4vmnoh.jpg
after
http://i41.tinypic.com/27x3pu.jpg

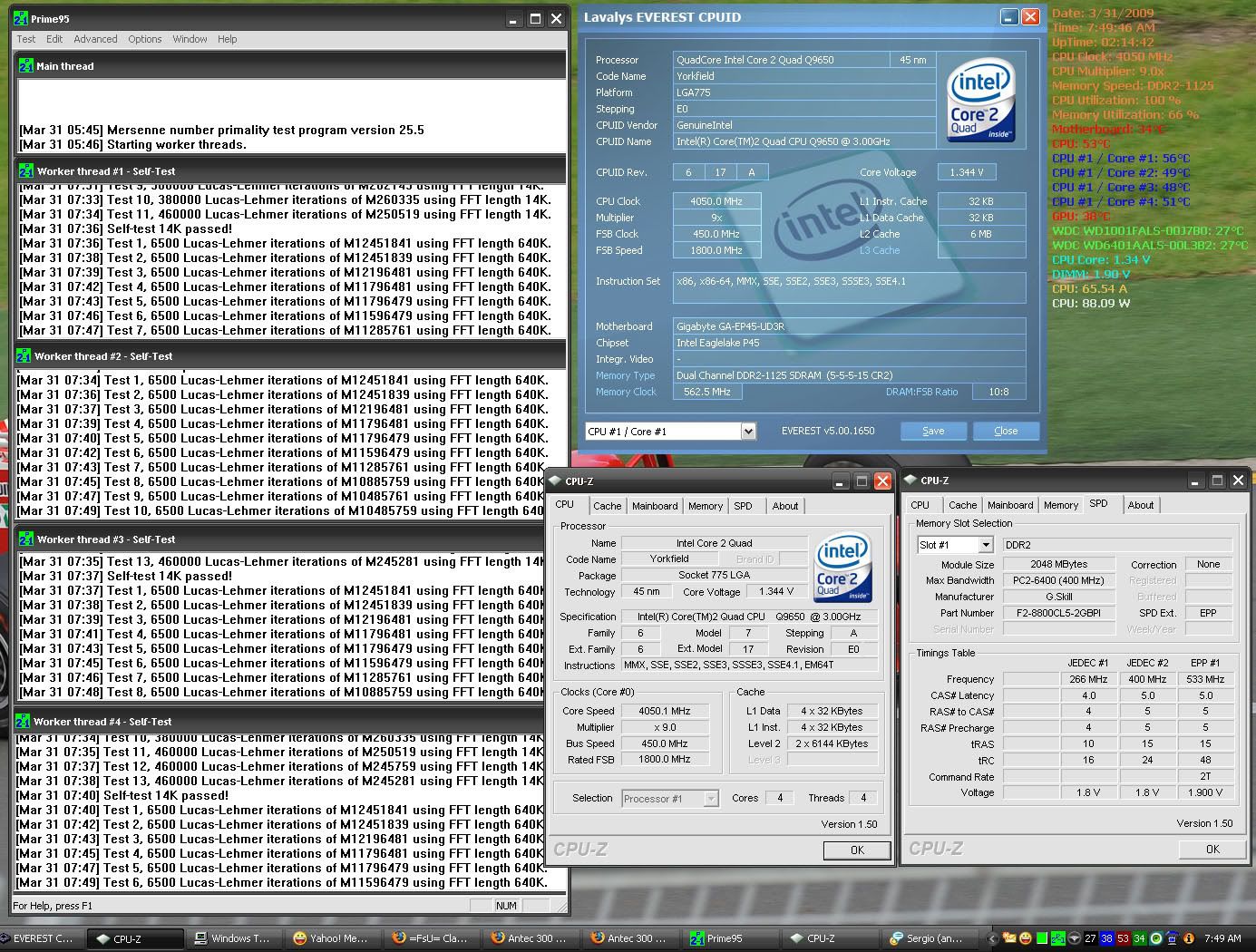

Thanks Dude! Yup those were my temps while prime was still running. My CPU Utilization is at 100% on the Everest side bar. I just have a Silverstone FM123 pushing air at 1,600rpm on the TR HR-01+.Quote:
Originally Posted by the_real_7
I was thinking of getting the Megahelems, but the HR-01+ is doing its job. I got mine with a flat base, hand picked, LOL!
@radaja
Nice man! 1.32v vcore in windows is great for that OC you got!:up::up:
Nice but does Orthos really stress all four core, I think it only stress two or all four up to 50%. Let me know if i´m wrong.Quote:
Originally Posted by radaja
Run the same with Prime95 small FFT or if blend, try custom with four instances with max memory use, it gonna make a different.
mate but radaja is running a dual core now not a quad anymore...Quote:
Originally Posted by Ghostleader
cheers
Sergio
nice mate :up::up::up: im running the same setup but on the Q9650 of course different volts but i love 4500 + 1200 mems :DQuote:
Originally Posted by radaja
Cheers :up:
Sergio
Thanks , my bad :(, I missed that, sorry radaja, great work. :up:Quote:
Originally Posted by andressergio
Some guys surely had a good laugh, this one is on me. :rofl: :ROTF:
thanks guys,its nice running 4500 ddr1200.
working on this now 4500@1.31v:D
http://i44.tinypic.com/2h3sc4n.jpg
Nice run radaja, nice temps too. tjmax for 45nm dualcore should be 95c though.Quote:
Originally Posted by radaja
Thanks, 1.15 :up:Quote:
Originally Posted by xzulu
The ram should have some leeway, 461 would only be 922 and if there rated to 900 there probably the higher binned 800s. In case they wont do 922 just do a large fft run first instead of blend. Coolings in the sig. :up:Quote:
Originally Posted by the_real_7
Intel says TJ Target=100C for the 45nm Dual Core.Quote:
Originally Posted by Zucker2k
http://img4.imageshack.us/img4/3558/inteltj.png
Intel calls this number Target TJ. They shoot for 100C but what they end up with is anybody's guess. Intel did not admit to how much error is in this number so it is somewhat useless information.
I thought TJMax was closest to 95C originally but Intel says it is closer to 100C in their presentations last year so I changed it in RealTemp.
The truth is that there is probably 10C or more of error in actual TJMax on 45nm Core 2 CPUs. Two CPUs of the same model number might have an actual TJMax that is completely different. 100C is Intel's best guess but I have no idea if that is an average value or a minimum or a maximum. Nobody knows. :shrug:
That's why comparing the reported core temperature of two different uncalibrated CPUs is pointless.
thanks zucker2k,after a little tweaking i finally got it stable at 1.31v@4500:D:D i raised the vtt to 1.28 and the vdimm to 2.14
cause when i first tried 1.31v i also tried vdimm at 2.12v but it failed after 27minutes:mad:
so i did some adjustment and all i have to say is this cpu awesome:shocked:
http://i39.tinypic.com/2u431uv.jpg
http://i44.tinypic.com/11ca3kn.jpg
Dam thats a awesome CPU radaja :up: - also awesome work overclocking it :up: I wish I had a E8x00 that good.
Thanks for clarification Unclewebb. :up:Quote:
Originally Posted by unclewebb
I could do with some help trying to stabilise my system folks and see you are doing some great work here!
I am working my way up the FSB Scale, trying to be as thorough as possible with the tests to ensure stability but currently Prime95 is proving to be my Nemesis!
It passes 20x IBT Trials ok as well as OCCT 1hr Linpack and 9hrs Standard but more often than not fails Prime95 (Small & Large tested so far) or sometimes even locks the system up forcing a reboot.
My current 480FSB template (I am however testing it with CPU Vcore five steps up from default @ 1.30625V BIOS / 1.248V Windows)...
I would really appreciate some advice...D-an-WCode:*************************************
*************************************
Gigabyte GA-EP45-UD3P (Rev. 1.0) - F9
*************************************
*************************************
******************************
MB Intelligent Tweaker(M.I.T.)
******************************
Robust Graphics Booster ..............: [Auto]
CPU Clock Ratio ......................: [8X]
x Fine CPU Clock Ratio................: +0.5
CPU Frequency ........................: 4.08GHz( 480x8.5)
********** Clock Chip Control ********
>>>>> Standard Clock Control
CPU Host Clock Control................: [Enabled]
x CPU Host Frequency(Mhz).............: [ 480]
PCI Express Frequency(Mhz)............: [100]
C.I.A.2...............................: [Disabled]
>>>>> Advanced Clock Control..........: [Press Enter]
CPU Clock Drive.......................: [800mV]
PCI Express Clock Drive...............: [900mV]
CPU Clock Skew........................: [ 0ps]
MCH Clock Skew........................: [ 0ps]
******** DRAM Performance Control ********
Performance Enhance...................: [Standard]
Extreme Memory Profile(X.M.P.)........: [Disabled]
(G)MCH Frequency Latch................: [Auto]
System Memory Multiplier (SPD)........: [2.00D]
Memory Frequency(Mhz).....800.........: 960
DRAM Timing Selectable (SPD)..........: [Manual]
>>>>> Standard Timing Control
x CAS Latency Time................5...: [5]
x tRCD ...........................5...: [ 5]
x tRP.............................5...: [ 5]
x tRAS...........................18...: [ 15]
>>>>> Advanced Timing Control.........: [Press Enter]
x tRRD............................3...: Auto
x tWTR............................3...: Auto
x tWR.............................6...: Auto
x tRFC...........................52...: Auto
x tRTP............................3...: Auto
x Command Rate (CMD) .............0...: Auto
>>>>> Channel A Timing Settings.......: [Press Enter]
x Static tRead Value..............7...: [ 9]
x tRD Phase0 Adjustment...........0...: Auto
x tRD Phase1 Adjustment...........0...: Auto
x tRD Phase2 Adjustment ..........0...: Auto
x tRD Phase3 Adjustment...........0...: Auto
x Trd2rd(Different Rank)..........6...: Auto
x Twr2wr(Different Rank)..........6...: Auto
x Twr2rd(Different Rank)..........5...: Auto
x Trd2wr(Same/Diff Rank)..........8...: Auto
x DIMM1 Clock Skew Control (ps).......: Auto
x DIMM2 Clock Skew Control (ps).......: Auto
x DDR Write Training..................: Auto
>>>>> Channel A Driving Settings......: [Press Enter]
x Driving Strength Profile............: [1066MHz]
x Data Driving Pull-Up Level..........: Auto
x Cmd Driving Pull-Up level...........: Auto
x Ctrl Driving Pull-Up Level..........: Auto
x Clk Driving Pull-Up Level...........: Auto
x Data Driving Pull-Down Level........: Auto
x Cmd Driving Pull-Down level.........: Auto
x Ctrl Driving Pull-Down Level........: Auto
x Clk Driving Pull-Down Level.........: Auto
>>>>> Channel B Timing Settings.......: [Press Enter]
x Static tRead Value..............7...: [ 9]
x tRD Phase0 Adjustment...........0...: Auto
x tRD Phase1 Adjustment...........0...: Auto
x tRD Phase2 Adjustment ..........0...: Auto
x tRD Phase3 Adjustment...........0...: Auto
x Trd2rd(Different Rank)..........6...: Auto
x Twr2wr(Different Rank)..........6...: Auto
x Twr2rd(Different Rank)..........5...: Auto
x Trd2wr(Same/Diff Rank)..........8...: Auto
x DIMM1 Clock Skew Control (ps).......: Auto
x DIMM2 Clock Skew Control (ps).......: Auto
x DDR Write Training..................: Auto
>>>>> Channel B Driving Settings......: [Press Enter]
x Driving Strength Profile............: [1066MHz]
x Data Driving Pull-Up Level..........: Auto
x Cmd Driving Pull-Up level...........: Auto
x Ctrl Driving Pull-Up Level..........: Auto
x Clk Driving Pull-Up Level...........: Auto
x Data Driving Pull-Down Level........: Auto
x Cmd Driving Pull-Down level.........: Auto
x Ctrl Driving Pull-Down Level........: Auto
x Clk Driving Pull-Down Level.........: Auto
****** Motherboard Voltage Control ******
Voltage Types..........Normal...........Current
-----------------------------------------------
>>> CPU
Load-Line Calibration.................: [Disabled]
CPU Vcore..............1.27500V.......: [1.30000V] (Four up from default)
CPU Termination........1.200V.........: [1.200V]
CPU PLL................1.500V.........: [1.570V] (One up from default)
CPU Reference..........0.760V.........: [Auto]
>>> MCH/ICH
MCH Core...............1.100V.........: [1.200V] (Three up from default)
MCH Reference..........0.760V.........: [0.740V] (One down from default)
MCH/DRAM Reference.....0.900V.........: [Auto]
ICH I/O................1.500V.........: [1.500V]
ICH Core...............1.100V.........: [1.200V] (One up from default)
>>> DRAM
DRAM Voltage...........1.800V.........: [2.020V] (One up from default - DDR18V = 2.016V in PC Health Status)
DRAM Termination.......0.900V.........: [Auto]
Channel A Reference....0.900V.........: [Auto]
Channel B Reference....0.900V.........: [Auto]
******** Advanced BIOS Features ********
Hard Disk Boot Priority...............: [Press Enter]
First Boot Device.....................: [USB-HDD]
Second Boot Device....................: [Hard Disk]
Third Boot Device.....................: [CDROM]
Password Check........................: [Setup]
HDD S.M.A.R.T. Capability.............: [Enabled]
Limit CPUID Max. to 3.................: [Disabled]
No-Execute Memory Protect.............: [Enabled]
CPU Enhanced Halt (C1E)...............: [Disabled]
C2/C2E State Support..................: [Disabled]
x C4/C4E State Support................: Disabled
CPU Thermal Monitor 2(TM2) ...........: [Enabled]
CPU EIST Function.....................: [Disabled]
Virtualization Technology.............: [Disabled]
Delay For HDD (Secs)..................: [ 0]
Full Screen LOGO Show.................: [Disabled]
Init Display First....................: [PEG]
******** Integrated Peripherals ********
USB Keyboard Function.................: [Enabled]
USB Mouse Function....................: [Enabled]
USB Storage Function..................: [Disabled]
radaja and others, I have an E8500 with a VID of 1.25 (although box says 1.26 max). So, should I assume that my chip will at 9x500 like yours, but take more vcore to do it? Also, mine should run cooler than your also right? I need 1.375 in bios for 8x500fsb, so I wonder what I would need fo 9x500fsb!!!??? Does the vid value also affect the VTT need too? Thanks!
thank you for your kind words,but alas me thinks the cpu did all the work:rolleyes:Quote:
Originally Posted by fatguy1992
when the cpu is golden,things just seem to work:up:
thanks again
I wish I had a golden CPU, my X3370, albeit a quad, struggles to stay stable at 4 GHz :down:
Hopefully I can get this sorted after my build is done and get to at least 4.2.
Some n00b questions:
What is VID?
What is VTT and what does it directly translate to in BIOS?
I'm sure it will take a lot more Q and A before I have a properly OCed processor.
vid is the stock vcore when your cpu is at default(its what the board will set on auto vcore)you can see it in coretempQuote:
Originally Posted by paul_
vtt is fsb voltage termination.:)
Oh, jeez... I'm pretty sure my VID is 1.30 :down:
my E8500 had a vid of 1.25 and yes they will run cooler.i never got mine to 4500 but did get 4400 and i think it neede 1.39v for that.Quote:
Originally Posted by bluestang
not sure about vid affecting vtt.i ran my e8500 at 1.24vtt t0 1.8vtt for most of my OC's
And VTT is the CPU Termination voltage on the Gigabyte boardsQuote:
Originally Posted by paul_
thats right,i knew something didnt sound right when i wrote that.
thanks xzulu.:)
