03-10-2009, 03:36 PM
529th

Quote:

Originally Posted by Grnfinger

I'm no engineer so here is my best attempt to explain it.

Ai Clock Twister will tighten your sub timings increasing performance/bandwidth when set to strong or stronger
Moderate will run sub timing at or around stock
Light will relax them a tad allowing for improved overclocking.

Not sure what Gigabyte calls it or if they have it as an option in the bios.

Interesting! thanks alot Grnfinger
03-11-2009, 12:15 PM
GeorgeVasil

Quote:

Originally Posted by CryptiK

You will need more vNB to get 470 FSB PL8 stable with strong/stronger.

I run 470 x 9 PL8 moderate 24/7 and it takes ~1.34vNB for total stability - HCI memtest really loads up the NB and at 1.30 - 1.32v I get errors before 1000% coverage.

Oh Yeah..:p:

More Vnb means More VTT..(>1.20)..

@!#$!@#$!@# ASUS.
03-12-2009, 04:25 AM
Kayso

To everybody with watercooled MIIF.

Can you please post some pictures of your system? I need info, how do you connect CPU block with NBMax block. How long is the tubing, what is the bending radius and etc.

Thanks in advance !!
03-12-2009, 06:57 AM
seba84_2005

Quote:

Originally Posted by Kayso

To everybody with watercooled MIIF.

Can you please post some pictures of your system? I need info, how do you connect CPU block with NBMax block. How long is the tubing, what is the bending radius and etc.

Thanks in advance !!

;)

http://www.xtremesystems.org/forums/showpost.php?p=3670539&postcount=3190
03-12-2009, 02:11 PM
Grnfinger

Quote:

Originally Posted by Kayso

To everybody with watercooled MIIF.

Can you please post some pictures of your system? I need info, how do you connect CPU block with NBMax block. How long is the tubing, what is the bending radius and etc.

Thanks in advance !!

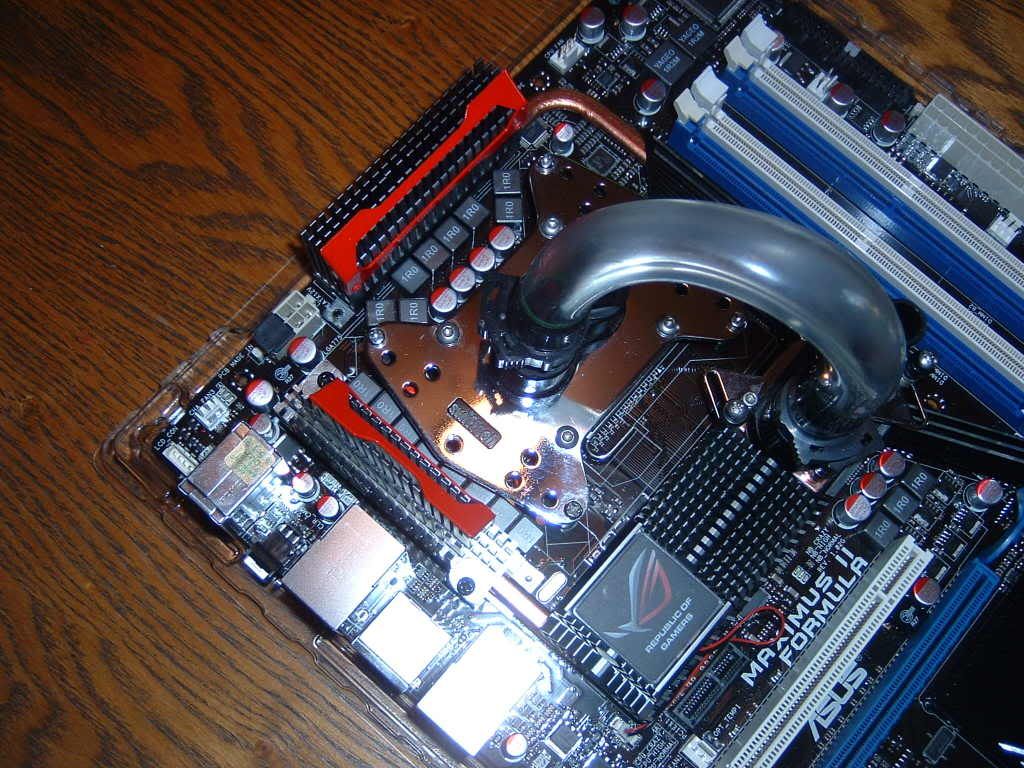

I dont use the NBMax I use the MCW30 but the concept is the same.

http://i237.photobucket.com/albums/f...DSCF0035-1.jpg

http://i237.photobucket.com/albums/f...DSCF0037-1.jpg
03-12-2009, 03:47 PM
JoeBar

Quote:

Originally Posted by Kayso

To everybody with watercooled MIIF.

Can you please post some pictures of your system? I need info, how do you connect CPU block with NBMax block. How long is the tubing, what is the bending radius and etc.

Thanks in advance !!

Use the farthest away bards. If your tubing still kinks (which i highly doubt), use smartcoils...
03-12-2009, 07:08 PM
529th

Anyone know what advancing the clock skew on the DRAM does? Does increase performance?

I"ve advanced mine to 350ps and am testing Large FFT's on prime with 480fsb & 8.5multi..

why won't this board do over 500fsb :shakes:
03-13-2009, 01:53 AM
Grnfinger

Quote:

Originally Posted by 529th

Anyone know what advancing the clock skew on the DRAM does? Does increase performance?

I"ve advanced mine to 350ps and am testing Large FFT's on prime with 480fsb & 8.5multi..

why won't this board do over 500fsb :shakes:

It helps in stability, it will do nothing for performance increase.
03-13-2009, 01:58 AM
WhiteFireDragon

Grnfinger, what brand tubing is that? i can't get the tubes to not kink when connecting the CPU to the NB block.
03-13-2009, 04:46 AM
Kayso

Quote:

Originally Posted by WhiteFireDragon

Grnfinger, what brand tubing is that? i can't get the tubes to not kink when connecting the CPU to the NB block.

Mine are Tygon tubing 1/2" ID, and believe me, they don't kink :)
03-13-2009, 07:20 AM
Simonix

This is world record Maximus II Formula 610 FSB of air, and this is just the beginning:

http://valid.canardpc.com/show_oc.php?id=526302
03-13-2009, 07:24 AM
CryptiK

Congrats Simone, nice work. What vNB did you use?
03-13-2009, 07:34 AM
Simonix

Quote:

Originally Posted by CryptiK

Congrats Simone, nice work. What vNB did you use?

1.48V
03-13-2009, 10:15 AM
Nevin

Yes but with multiplier 6 , why don't you try 8x585 i want to see 20 loops IBT I just can't do it.
03-13-2009, 11:09 AM
radaja

very nice Simonix,looking forward to more high fsb runs from you.keep pushing
03-13-2009, 11:36 AM
WaterFlex

Simonix
Very nice :up:
03-13-2009, 11:43 AM
529th

Quote:

Originally Posted by Simonix

This is world record Maximus II Formula 610 FSB of air, and this is just the beginning:

http://valid.canardpc.com/show_oc.php?id=526302

try that with a quad then i'd be impressed
03-13-2009, 11:46 AM
529th

Quote:

Originally Posted by Grnfinger

It helps in stability, it will do nothing for performance increase.

I've tried doing 4.4.4.12 @ 450fsb with my DDR2 1000 and it will not run stable. All I got is 480 with 5.5.5.15, CPL 10 and Ai Clock Twister on Stronger. Are there any other memory performance increases I can do? I won't post at 450 & PL 8 even with 5.5.5.15...
03-13-2009, 11:54 AM
WaterFlex

529th
MIIF can rock quads as good as duals.
03-13-2009, 12:21 PM
Simonix

630 DI FSB

http://valid.canardpc.com/show_oc.php?id=526483 :shocked:
03-13-2009, 12:22 PM
screwtech02

Quote:

Originally Posted by WaterFlex

529th
MIIF can rock quads as good as duals.

Please to show links and proof???? Never seen a quad on this board over 500 before....:rolleyes:
03-13-2009, 12:23 PM
529th

Quote:

Originally Posted by WaterFlex

529th
MIIF can rock quads as good as duals.

Have you tried that? This machine I am typing on is a Asus P5Q Premium with my 8400 C0 doing 500x8. I currently can't get my Q9650 above 480 on my MIIF. My cpu will do 4Ghz but will not do 8x500 stable & I am not seeing people rock 500fsb with a quad & MIIF
03-13-2009, 01:00 PM
Grnfinger

Quote:

Originally Posted by WhiteFireDragon

Grnfinger, what brand tubing is that? i can't get the tubes to not kink when connecting the CPU to the NB block.

I use Primoflex and the stuff Swiftech sells, I do believe that photo is of the 7/16th Swiftech tubing.

Tygon will not kink nor will the chepo stuff from home depot, my only gripe with home depot tubing is that it gets cloudy after a while, no problems if you use dyes but if your running clear water than its not so nice.

Quote:

Originally Posted by 529th

I've tried doing 4.4.4.12 @ 450fsb with my DDR2 1000 and it will not run stable. All I got is 480 with 5.5.5.15, CPL 10 and Ai Clock Twister on Stronger. Are there any other memory performance increases I can do? I won't post at 450 & PL 8 even with 5.5.5.15...

450FSB on the 333 strap should post with ram set to 1081MHz.
See if you can post with that setup, if so I have a few memory tweaks to get you some decent bandwidth,

Quote:

Originally Posted by Simonix

630 DI FSB

http://valid.canardpc.com/show_oc.php?id=526483 :shocked:

VERY VERY NCE!!! :up:
I'm beginning to think that the board runs very well when cold
03-13-2009, 01:35 PM
529th

Quote:

Originally Posted by Grnfinger

450FSB on the 333 strap should post with ram set to 1081MHz.
See if you can post with that setup, if so I have a few memory tweaks to get you some decent bandwidth,

Was that with 4.4.4.12 or 5.5.5.15?

nm, it's having a hard time at 5.5.5 ... i'm going to see if i can get it stable, but in the meantime, what are your recommendations?
03-13-2009, 01:39 PM
Grnfinger

Quote:

Originally Posted by 529th

Was that with 4.4.4.12 or 5.5.5.15?

5-5-5-15
