hi
Any1 Use This WaterBlock On M2F:
http://www.overclock3d.net/reviews.p..._water_block/1
http://www.techpowerup.com/reviews/E...cks/EK_Supreme
EK WaterBlock Supreme
Idon't Wanna Rip Heat Sink On Mosfet Maybe If I Get This WB I Must Get Out Heat Sinck
Please Help Me
(sorry 4 my english)
I am so getting this mobo !

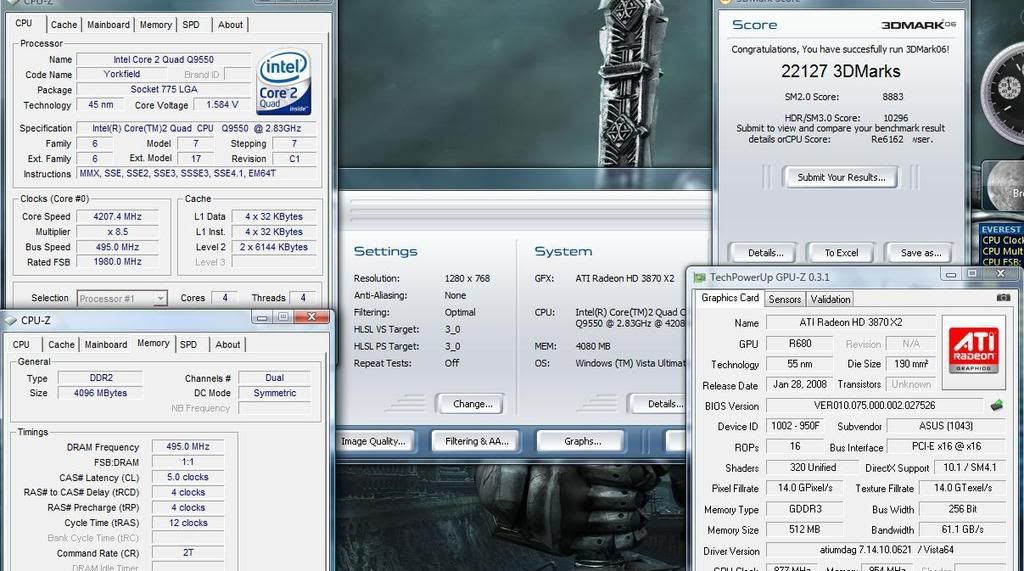

Last run for my 3870X2.....well maybe
http://i237.photobucket.com/albums/f...5FSB_22127.jpg
Well finally i get my system stable after so many trials and errors for a month, i want to thank my mates Cryptik and Simps for all the help :up::up:
I discovered that tough i could pass IBT i couldn't pass BLEND for more than 20mins, so i focused on that, and finally passed Blend 1h+ then i was able to pass IBT various runs...wich i never could...
I'm using same settings that i passed memtest for this 1200 PL7 Stronger
this is what i get many runs of IBT and BLEND
http://img297.imageshack.us/img297/8...213pl7sah2.jpg
http://img297.imageshack.us/img297/4...pg/1/w1280.png
http://img404.imageshack.us/img404/9...200pl7mbr2.jpg
http://img404.imageshack.us/img404/4...pg/1/w1280.png
http://img297.imageshack.us/img297/2574/capturaja9.jpg
Congrats mate :up:Quote:
Originally Posted by Grnfinger
Grnfinger,
Very nice scores. I also see you got to bench 500FSB on your quad. That 4870X2 is a killer hum? Does it get hot?
Congrats!
andressergio,
You finnaly made it! I knew you were going to get it stable sooner or later.
Congrats...
Well, I would like to share to everybody 494FSB for 24/7 on a quad with DDR2-1186 5-5-5-18 PL8 STRONGER and the low board voltage it takes to do so.
This board is good stuff. Lets keep this thread alive!
http://img297.imageshack.us/img297/5383/4945ju6.jpg
[]'s
Simps
That was without the 4870X2, I will do a few air runs in teh morning with it.
Wife needs a hand with some bios settings, this is going to be a long night I think.....
Post up some of her results in the morning as well, running her E8400 first
Does anybody know which settings is correct for getting OCZ reaper PC8500 RAM stable? 4x 1gb. There is no chance to get these stable on this board while overclocking, and on the old commando I had no problem. Please, I don't wanna go back to commando :(
OMG, that was with 3870X2! I thought it was done with your new 4870X2. I guess good results like that can make people confuse :)Quote:
Originally Posted by Grnfinger
Even more impressive on the 3870X2 =/
Looks good. Just wondering why you dont use 7.5x or 8x multi for 3.6GHz or even higher? You'd get better performance from an extra 100 - 200MHz cpu speed with lower FSB than at 7 x 500 FSB. I would have thought if your cpu can do 500 FSB it should be able to hit 3.6GHz like a lot of Q6600's.Quote:
Originally Posted by Simps
@Grnfinger - very nice results, that cpu and card are screaming :up:
PLZ Help Can I Get This WB For My Mobo M2F Without Any Problem:confused::confused::confused:Quote:
Originally Posted by ViViD
Just a quick question - do you guys install the M2F chipset drivers? I haven't done so yet, I thought all it really added was the power saving features (EPU-6) which is of no benefit for me. If you have installed them, did you notice any gains vs not running them?
@Vivid - sorry I have no idea about water blocks I air cool.
You get a slight increase in Vantage and 3DMark running the chipset drivers.Quote:
Originally Posted by CryptiK
B4 you install them remove Asus Six Engine if your running it,
I would recommend using them, I have had no ill effects and have run them since day 1 on both boards, I would get the latest P45 drivers from Intel not Asus
Cheers. I don't run EPU-6. Just installed the drivers off the CD, will look for updated ones from intel later on.
@Vivid
Yes you can use the ek block on this board i have one on mine with the lga775 Mounting Bracket
http://img206.imageshack.us/img206/2...0101ov5.th.jpg
I have gotten to the point where I am testing for DDr CHA/CHB NB DDR2 Ref.
With my current settings, Prime got to 18 mins before I shut it down myself.
Note: This was after achieveing best NB GTL.;
NB GLT:
+10- 30 sec
+20- No post
-10- 17 mins
-20- No post
-15- 18mins + shut down when it beat -10.
I've run a couple of tests for the CHa/CHb NBDDR2 and haven't gotten prime to stop. Tho I have stopped it myself after 20-25 mins. I know I should let it run til it stops on its own, to get a base.
My question here is: should I be taking temps into consideration here, or just keep letting it run til Prime fails?
Hotest temps Ive seen so far (with Prime running)
CPU: 49
Core 1: 50
Core 2: 49
NB: 52
SB: 48
Thats gonna be alot of testing +12.5 +12.5 +50 thru -12.5 -12.5 -50,
or am I missing out on something here?
Heres my sttings so far: (not looking to get but 3.6GHz) as this is my very
1st overclock. Once I get 3.6 running stable, I will try more.
Ai Overclock Tuner Manual
OC From CPU Level Up Auto
Ratio CMOS Setting 8.5
FSB Frequency 422
CPU Clock Skew Auto
NB Clock Skew Auto
FSB Strap to North Bridge 333
DRAM Frequency DDR2-1014MHz
DRAM CLK Skew on Channel A1 Auto
DRAM CLK Skew on Channel A2 Auto
DRAM CLK Skew on Channel B1 Auto
DRAM CLK Skew on Channel B2 Auto
DRAM Timing Control Auto
CAS# Latency 5
DRAM RAS# to CAS# Delay 5
DRAM RAS# Precharge 5
DRAM RAS# Active to Precha 15
RAS# to RAS# Delay 3
Row Refresh Cycle Time 55
Write Recovery Time 6
Read to Precharge Time 3
READ to WRITE Delay(S/D) 8
Write to Read Delay(S) 3
WRITE to READ Delay(D) 5
READ to READ Delay(S) 4
READ to READ Delay(D) 6
WRITE to WRITE Delay(S) 4
WRITE to WRITE Delay(D) 6
WRITE to PRE Delay 14
READ to PRE Delay 5
PRE to PRE Delay 1
ALL PRE to ACT Delay 5
ALL PRE to REF Delay 5
DRAM Static Read Control Auto
DRAM Read Training Auto
MEM. OC Charger Auto
Ai Clock Twister Stronger
Ai Transaction Booster Manual
Pull-in of CHA 1 Disabled
Pull-in of CHA 2 Disabled
Pull-in of CHA 3 Disabled
Pull-in of CHA 4 Disabled
Pull-in of CHB 1 Disabled
Pull-in of CHB 2 Disabled
Pull-in of CHB 3 Disabled
Pull-in of CHB 4 Disabled
Common Performance 8
PCIE Frequency 101
CPU Voltage 1.275
CPU PLL Voltage 1.553
FSB Termination Voltage 1.312
DRAM Voltage 2.10475
North Bridge Voltage 1.45775
South Bridge 1.5 Voltage 1.5
South Bridge 1.1 Voltage 1.1
CPU GTL Reference(0) Auto
CPU GTL Reference(1) -40mv
CPU GTL Reference(2) Auto
CPU GTL Reference(3) -40mv
NB GTL Reference -15
DDR2 ChA Reference Voltage Auto
DDR2 ChB Reference Voltage Auto
North Bridge DDR Reference Auto
Load-Line Calibration Auto
CPU Spread Spectrum Auto
PCIE Spread Spectrum Auto
Your guide is working out great for me so far:clap:,
Thanks
I don't know what's the deal with this piece of junk, everytime I get it to boot up and I try to do any kind of overclocking, it goes into it's non-posting DET_DRAM mode.
Sounds like either a bios issue, or a faulty MCH. Can you get it to boot dual channel yet? If you do get it to boot up (single or dual channel) can you get into windows and run any stability tests on it? Also in bios voltage monitor, are there any out of spec voltages or are they all normal?
It still won't post with two sticks in dual channel. I don't have a hard disk attached to the board at the moment as I was just trying to do some high DDR2 clock memtest stressing. The voltages and temperatures look fine in the BIOS. The weird thing is when it does its DET_DRAM thing, the voltiminder LEDs simply do not light up. I'm getting a lot of hangs in the BIOS too.
Quote:
Originally Posted by ndGreg
Nice to hear the guide is helping you out. No, you don't need to take temperatures in consideration at this point.
"NB GLT:
+10- 30 sec
+20- No post
-10- 17 mins
-20- No post
-15- 18mins + shut down when it beat -10."
That is exactly the right kinda test to do, to find your best settings. See how different they are from each other, and how bad some of them are? You are on the right path. But you should test more NB GTL's. Like from -80 to +80. Maybe there are some even better value for you.
And yes, to find the best CHa/CHb NBDDR2, you should be testing all that range. This test is much less sensitive, so it might give you some trouble and take some time to find the right ones. You might raise your fsb and mem clock a bit, so tests fail after only 3 - 5 minutes, so you won't need to wait a lot between tests...
I see you are at the begining of the guide. When you get to the skews part, your system will become a lot more stable, and you will push it much higher.
Nice going there!
[]'s
Simps
Look real close around the dimm slot area for swollen/fat capacitors if you see any its RMA.Quote:
Originally Posted by Shiranui Gen-An
It's not sounding good. Have you tried running the ram in both blue and white slots? Have you tried each slot one by one with only one stick at a time?Quote:
Originally Posted by Shiranui Gen-An
Can you enter bios set vNB to 1.45v, set mem OC charger to enabled (if its isnt already) and exit and see if that has any effect?
I'm fairly certain something is wrong with the DIMM slots now, I'm getting freezes/failures in memtest at stuff like DDR2-800 CAS5 with 2.10V.
well i just went to fire up my rma board using 4 sticks of cellshock pc-8000 cl4 and guess what happend? nothing ,absolutley nothing.board lights up but never boots. so i try two sticks in the blue slots,boots up just fine.so i try the same two sticks in the white slots,nothing.so i try one stick in the fist blue slot ,boots fine,same stick in the second blue slot,boots up fine. then the first white slot,boots fine,second white slot,NO BOOT! this is utterly insane. this the third bad board.i am so disgusted with asus right now.
