So since the CT-479 partially blocks mobo mounting holes, what are some clever tricks for mounting phse change to the CT-479??
thx!
C
Printable View
So since the CT-479 partially blocks mobo mounting holes, what are some clever tricks for mounting phse change to the CT-479??
thx!
C
I'd be interested in hearing this too, as I am looking into getting one.
BTW, do we know if these work on the P4P800-DX? :confused:
http://www.airodyssey.net/graph/hijack-twa847.jpg
Sorry for the hijack.
If you take a look to Mach2 evaporator housing and those stock mounting metal clips supplied with CT-479, you will soon figure out how you can attach the evaporator without any problems ;)
Nice find TheStilt. :DQuote:
Originally Posted by The Stilt
Just mounted waterblock + 156W TEC + coldplate on her useing Zalman mounting stuffs I had laying around :D
will post some pics and results later this evening. It looks nice :D
So all of you guys a going for som Dothan power?
Looking foward to it! :)
I can't even seem to find this 479 adapter on ASUS's Web site. :confused: :confused: :confused:
I was one of the early adopters of Dothan, I had a 1.7 and a 2.0... and the DFI 855gMe board, it ran ok, but was obviously not "ready" for prime time yet. So I'm gonna' grab another combo and play awhile.Quote:
Originally Posted by stryg
I ordered my CT-479 from atacom.com
C
You can get the CT-479 from ewiz.com for a little cheaper ($43 + ~$7 shipping Fedex ground). They have way better scoring on resellerratings too.Quote:
Originally Posted by charlie
They also have J model Celeron M's :)
Can't wait to see your TEC results!
i too am interested in the results of a cheap 1.3 dothan celeron. just bump the fsb to 200, and see how it goes :D 200% overclocks are possible here
I have the 1.3G Dothan celeron but it wont even post at 13x200 (even w/ 1.6V) :(
wish the bios had multiplier adjustment for these CPUs, 10x200 would be nice already for the celeron :)
Is it true the Dothan Celerons are unlocked? I tried using some of those tweaker programs that allow you to mess with EIST or something and it's always locked on my 350. (or not supported?)Quote:
Originally Posted by macci
Maybe you can use this to build some custom stuff :D
http://www.xtremesystems.org/forums/...id=30315&stc=1
http://www.xtremesystems.org/forums/...id=30314&stc=1
Taken from this thread.
Thanks, I just bought one. I've gotta find a way to strap the cascade on this puppy. :confused: :confused: :confused:Quote:
Originally Posted by stryg
What board are you looking at?Quote:
Originally Posted by uclajd
Probably the P4P800SE right? Seems optimal for a non-modded 24/7 rig given the stable vcore from bios.
Should be able to use the same mount as you would before the adapter.. and I can cut a plastic adapter for my head if I had the dimentions.
Send me the measurments and where it is blocked.
Thanks Chilly, you rock ("bump" for urban types). One concern I have is the weight of a block and hose on this adapter, basically ripping the sob right off. :eek: I get the adapter and my 760 tomorrow, so we'll see.Quote:
Originally Posted by chilly1
I am sure that the use of a hard rubber shim will be nessassary. or possiably teh adapter will need to include support for the adapter board.
Quote:
Originally Posted by macci
what about these photos????? :)
It´s impossible to use phase on Dothans without a shim.Quote:
Originally Posted by chilly1
Those die´s are so fragile...
Already 'popped' a 760 chip corners :(
It still works perfectly thou :D
Something you could do is buy a cheap celeron that has a heatspreader and put the heatspreader on the Dothan. You shouldn't get any cracked/chipped cores then (and temps won't be much different).Quote:
Originally Posted by The Stilt
Now he tells me. :lol:Quote:
Originally Posted by The Stilt
Just got 760 and ct-479 today, working on fabbing a shim... :idea:
Here are the dimensions of the Dothan:
http://209.35.180.29/misc/sonoma.gif
Note that the length and width of the die are not exact, as the epoxy on it adds a "slope" down to the silicon. So a shim needs to take that into account...
can we "adapt" an old ship for AXP???
sadly enof i looked at a couple AMD shims and there only .6mm thinck :( can you use a heat spreader off a p4?
Post #11 in this thread has an idea...Quote:
Originally Posted by Fzero
great job :toast:
I am dröfl/conspectumortis from the other Forums.
You help us (german forums) much with your Information :banana:
It ist incredible that so many people are interessted in the Asus CT479, go on :D
Sorry for my very bad english :rolleyes:
Gruß
dröfl/conspectumortis
P.S: our two german ASUS CT 479 Threads
click me
click me
:eek: where did you get those round mounting poles? i tried 2 fit my zalmon on 2day and i ave the block type mounting version.
also wat mobo is that?
Motherboard is Abit BH7, only used for mechnical testing. The round mounting pole belongs to a VapoChill PE. Works great on Asus P4GD1.
Good to know that my Vapochill PE should work on it then too. :DQuote:
Originally Posted by TigersClaw
Gotta wait till my uni exams are done, but i should have it all up and running by end of June (Vapochill PE, P4C800-E, CT-479 and Pentium M 750). :)
Might be useful?
Just some mushy sticky stuff...
MY mobo P4P800 how OC with BANIAS 1g4 code SL6F8
Vcore Vid MULTI no change
perhap i have must mode Vcore
Very interesting, although I would rather have seen a solution on how to mount my Vapochill evaporator head on it :p:Quote:
Originally Posted by TigersClaw
I have the same metal studs, obviously, but I definitely need a shim before putting the evaporator head on.
simply use 1mm neoprene and you are ok ;)
I'm not sure if it has been mentioned in the other Dothan threads but I tested using a creditcard as a shim and I must say it has the perfect height (assuming the height of the dothan is the same as for the celeron mobiles). Try this! I will most likely use this method this on my upcoming dothan.
(Note: Ofcource, don't use cards that are not 100% flat, some can have leveled digits.)
Two ideas I've got; caulking and rubber bands. Not sure which I'll go with.
I will look into this later today, who knows - it might work :DQuote:
Originally Posted by nCrusader
Good luck, and don't forget to report back since the height of the dothan core perhaps is a tad higher than the celeron's.Quote:
Originally Posted by Pressure
Why not just remove the foam from the base of the ct-479 cooler and put it on the dothan chip it's working ok for me with a xp-90 mounted on it.
Thought of that, but I find it hard to get off without ripping it.Quote:
Originally Posted by leejsmith
Any tips?
A blow dryer or heat gun would work to loosen the adhesive on the other side. :)
Well, it worked but I couldn't get good enough contact with the core. So I removed the evaporator head and I am now running with the supplied Asus cooler. Guess I will have to try another way but think I will save that for my next Dothan. This one is going into a backup system heh.Quote:
Originally Posted by nCrusader
FYI, the Dothan core is .82 mm above the silicon.
I used a sharp knife to life a corner and slowly pulled using the knife with any tricky bits.
guess i got lucky :)
Quote:
Originally Posted by stryg
So 1mm neoprene should be just right. The type that is used for wetsuit.Quote:
Originally Posted by uclajd
Is it the p4 skt478 head kit thats needed for the mach 2.
Still need to wait for a decent board for pci-e as the p4gd1 doesnt seem to good.
Theres an aopen one coming out but can see it being pretty poor on options
I have my CT-479, but I'm still waiting on the P4C and 730. Since I have some time to kill I thought I'd replace the floppy pins and solder on a molex as well as get rid of the jumper pins.
I have been reading a lot of posts regarding this, but there is so much to sift through at this time that I don't know exactly how to do this. Am I do heat up a soldering iron and just slip them off? Or is it necessary to just break them off?
Thanks in advance!
Looks dirty allright! Thats a Thermaltake Typhoon right?Quote:
Originally Posted by walaka7
Hows that one helping out your overclocking? Significantly higher clocks than on stock?
Im currently @ 2805 mhz 1.5 vcore on a 1.7 (735)
38-40 * C 100% load
Folding stable PI stable
With the stock HS I was getting 2350 folding stable and 2550 pi stable. I had a hard time keeping temps under 50* so i never volted it
Anybody seen a phase change mount on these? Kinda hard with those holes blocked.
Here... ;)Quote:
Originally Posted by uclajd
Nice. How about some close-up pics? :confused: :confused:Quote:
Originally Posted by Kamerat

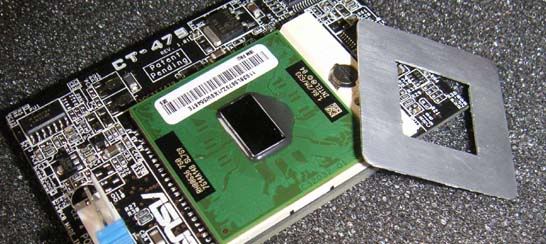

Here is some mounting I did for a water block. This seems like the place to post it. The shim can be made from aluminum bought at Lowes. Lowes sells .8mm stock for a few bucks. I think the die is .82mm.
http://i7.photobucket.com/albums/y26...miniumshim.jpg

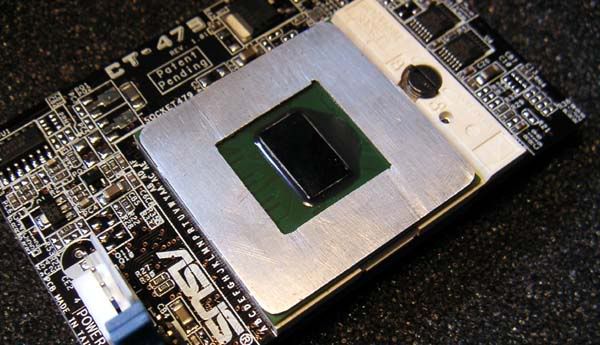

http://i7.photobucket.com/albums/y26...inumshimon.jpg
This is just a standard p4 retension mechanism with the holes moved up about 7mm. It's made out of .8mm aluminum and 1/8 in aluminum stock screwed into a retention mechanism.
http://i7.photobucket.com/albums/y26...nmechanism.jpg
Here it is holding down an innovatek cool rev3
http://i7.photobucket.com/albums/y26...mwithblock.jpg
Nice work, I like it! :toast:
yeah really nice!
I've got an idea on mounting a phase block. Gonna use some j-bolts to hook the evap mount (Vapo for now) to the P4 mounting bracket. Off to hardware store. Will post pics.
BTW, the jumper/power pins on the CT-479 can be trimmed with nail clippers. ;)
K, here is what I am working on. I've found that the Vapo 478 evap housing fits the stock Intel mounting bracket comfortably with some j-boltage:
http://209.35.180.29/misc/dothan1.jpg
(Notice pins clipped off so evap housing can fit. See also, ghetto shim pads)
http://209.35.180.29/misc/dothan2.jpg
(Proof of concept, as assembled in hardware store)
http://209.35.180.29/misc/dothan3.jpg
(On P4P800-SE - effective if not elegant)
http://209.35.180.29/misc/dothan4.jpg
(On P4P800-SE, underside view)
Still have to do some soldering, obviously, and hook this bad boy up. Prolly get it running tomorrow.
but how are you gonna' insulate the bottom, since the ct-479 won't cover the whole bottom of the evap ass'y??? The underside of the ct-479 will frost up[ like crazy if the whole ct-479 isn't air-tight!
C
Haven't really decided yet, but it will certainly involve lots of this:Quote:
Originally Posted by charlie
http://209.35.180.29/misc/449.jpg
And this:
http://209.35.180.29/misc/447.jpg
Works great, but hard to remove, so good to lay some sheet packing foam foundation first, like when athletes get their ankles wrapped. Which reminds me, hmm... :idea:
Were did you buy those two things?
Home Depot has the Armaflex tape (gotta look hard though, since they usually hide it - it isn't listed on their Web site but that's where I got it), and the seal string can be obtained from various Internet places:Quote:
Originally Posted by n00b 0f l337
crazypc.com
xoxide.com
hardwaregods.net
I bought mine from crazypc, but I just realized you get two rolls for the $30 with the other vendors, so that's the better deal.
And here is a thread where I use these materials extensively for a phase change project.
As far as I've understood, some people are running Thermalright XP-90 with their systems. Does anyone have pictures?
I second that question.Quote:
Originally Posted by 459
Im looking at a XP-90C with a nice 'n quiet 120mm fan mediated by a 92-120mm adapter. Seem like a perfect lownoise solution since the Dothan dont really benifit that much from massive cooling and stock seem a little too small for it...
easiest high end air cooling is Zalman 7000. Easier than xp-90!
C
I was looking at the Swiftech's MCW6000 and MCW6002 waterblocks for P4 478's and noticed that they use the standard P4 retention clips. Would the height difference cause to must pressure on the P-M core. Of course a shim of some kind would be used!
playing with water
http://i7.photobucket.com/albums/y29...othanblock.jpg
I found that zalman cooler for $30 US. How well does it do? thought about picking that up or the cnps-7000.Quote:
Originally Posted by PcCI2iminal
Quote:
Originally Posted by Evilsizer
my little cpu is running very cool with 1.4v and stays under 38c/load
2.0 @ 2.62
Charlie was talking about Zalman 7000 w/flipped clip. How tight is the fit actually? Cu or AlCu? Is shimm a must because I might have some problems getting something appropiate for the purprose?
#59 thats really cool way of doing it .
uclajd,
What size thread/length J-Bolts did you buy to make that fit? This dusty Vapo PE w. new headshell is looking mighty fine right now. Just hoping the 750 I should have next week is not a dud on the p4p800-deluxe. Also, have you measured the gap between the mobo and ct-479? I'm hoping a standard thickness neoprene sheet cut just right w/ some conformal coating will do a sufficient condensation proofing.
It's way too hot in nyc this early in the season to be doing too much fabrication.. This is all of course after I get the new apt a/c and hope I still have enough juice in the house to power a vapo pe.
Dunno about PC, but I mounted an xp-120 on mine. Bend fins to get a screwdriver down there, saw the edges off the brackets where the clips rest. Put two washers under the brackets then put the brackets back in place under the washers and screw up to attach. Also have to solder the jumpers and power to fit it.
The bolts are 1/4" by about 2 1/2. 2" would be just about the right length.
Haven't measured the gap between the mobo and the evap head on top of the CT-479 and P-M core, but your neoprene gasket might work. I just used seal string and Armaflex as mentioned earlier. Less than zero condensation.
Pics coming.
Quote:
Originally Posted by illmatik
Awesome!! Cant wait for pics, this is much quicker solution in meantime for me. Just gotta get the armaflex now..
OK, some pics. I won't post them all to spare the 56K crowd.
I trimmed the "J" part of the bolts with a Dremel so they didn't protrude so much.
Ha ha, almost trimmed too much, like a bad haircut. Oh well, I had extra bolts:
http://209.35.180.29/misc/dothan/mount.jpg
Adding seal string:
http://209.35.180.29/misc/dothan/tape.jpg
More string and some Armaflex:
http://209.35.180.29/misc/dothan/tapewire.jpg
Here's the final, ready to go version with no condensation:
http://209.35.180.29/misc/dothan/snake.jpg
More pics:
Insulated
Wired
Plastic (did this to protect socket from another soldering accident). :hitself:
BTW, next to the bolts at the hardware store was this plate, complete with product liability legalese (what, no "do not eat"?):
http://209.35.180.29/misc/dothan/bolt.jpg
So I bought a couple just in case.
Just a proof of concept that I put togther in one minute (Swiftech MCW50 GPU Block):
http://209.35.180.29/misc/dothan/waterplate.jpg
The bolts and plate were too big to use 2 plates and 4 screws along the nvidia mounting plate, but with smaller J bolts and U bolt plates, it might be a more secure solution.
damn you uclajd yuor starting to make me want to freeze a dothan. ;)
thanks for the picks though id been wondering how id get a vapo head to mount on it with the adapter.
Bump.
Sweeeeeeeet!!!!!!!!!!!Quote:
Originally Posted by uclajd
Donnie27
<Bump>
i was wondering whats the most convenient top end aircooling setup, as in what heatsink is the easiet to mount for a total complete n00b with modding, and computer hardware in general, i have only changed a heatsink 1nce in my life, so tht wud giv u an idea of how big a n00b i am
See this link for some help.Quote:
Originally Posted by desolator
Good Job! Are you using it like that 24/7?
goob job
who have latest bios for p4p800?
please give me
thx
I posted this in the how to thread but thought it should go in here too.
Using 2 ct-479 coolers i cut off 2cm from the end of the cooler without the gap for the power lead. Then make the base into an L shape so it fits the base of the akasa evo 120. You can then use the ct-479 clips to mount it.
http://www.ljsnet.co.uk/evo1201.jpg
http://www.ljsnet.co.uk/evo1202.jpg
with a system temp of 22C it never went over 43C unbder load with a 730 @ 10x260 1.55V
