GSkill 64GB @ 2600MHz...

Printable View

11-14-2011, 02:42 AM
LardArse

GSkill 64GB @ 2600MHz...

Some DRAM OC Results, thanks to GSkill sponsor:

2734 @ single chanel
http://img249.imageshack.us/img249/7848/2734t.jpg

Uploaded with ImageShack.us

2700 @ 4x4GB
http://img39.imageshack.us/img39/5372/270016gb.jpg

Uploaded with ImageShack.us

http://img840.imageshack.us/img840/6411/26666piii.jpg

Uploaded with ImageShack.us

2600 @ 8x8GB
http://img810.imageshack.us/img810/8333/260064gb.jpg

Uploaded with ImageShack.us

2400 @ 8x8GB Hyperpi:
http://img835.imageshack.us/img835/7531/240016gbpi.jpg

Uploaded with ImageShack.us

2250 Hyper clocking with 1.90v and Load Elpida Hyper Profile:
http://img641.imageshack.us/img641/2405/hyd3.jpg

Uploaded with ImageShack.us
11-14-2011, 02:58 AM
Hondacity

ultra fast ssd looool
11-14-2011, 02:58 AM
PatRaceTin

Wow that NEW dram ratio & bclk multiplier work amazing with (Maybe) Hynix BFR module
11-14-2011, 03:05 AM
Kentaro

:shocked: 2600MHz 64GB! What the hell is that? Never heard any 8GB dimms can clock like it
11-14-2011, 03:07 AM
hiwa

Quote:

Originally Posted by PatRaceTin

Wow that NEW dram ratio & bclk multiplier work amazing with (Maybe) Hynix BFR module

not on all Borads since now we got confirmation just for Rampage IV extreme board.

$Great 64GB run Shambolo :up:
11-14-2011, 03:15 AM
Stelios

This mainboard seems nice ! :D
11-14-2011, 05:18 AM
Leeghoofd

How many volts for 2133CL7-7-21 hypers Shamino ? Seems to be as fast as 2400CL10 in some benches... we ran into issues with cold and lost the 2400 rams on the sabretooth :(
11-14-2011, 06:56 AM
Pt1t

Quote:

Originally Posted by Leeghoofd

How many volts for 2133CL7-7-21 hypers Shamino ? Seems to be as fast as 2400CL10 in some benches... we ran into issues with cold and lost the 2400 rams on the sabretooth :(

Quote:

2250 Hyper clocking with 1.90v and Load Elpida Hyper Profile:

You need .. NEW EYES :rolleyes:
11-14-2011, 07:17 AM
owikh84

Quote:

Originally Posted by Pt1t

You need .. NEW EYES :rolleyes:

ermmm lee is asking about 2133, not 2250
11-14-2011, 09:38 AM
RCG_Bex

Is that 2x 32Gb kits?

Thsi kit - http://www.overclockers.co.uk/showpr...=8&subcat=1387
11-14-2011, 09:51 AM
Eldonko

x79 is no joke for memory clocking. I have a 2000 8GB (4 stick) kit that basically did stock on SB and on x79 RIVE it does over 2500. :)

You have been itching to post these huh Sham :D
11-14-2011, 10:00 AM
hiwa

Quote:

Originally Posted by RCG_Bex

Is that 2x 32Gb kits?

Thsi kit - http://www.overclockers.co.uk/showpr...=8&subcat=1387

2 X G.Skill RipJawsZ 32GB (8x4GB) = 16 STICKS :D

sham used one of these kits

The world’s fastest 64GB kit: DDR3 2,133MHz 64GB(8GBx8) 1.5V XMP 1.3
The world’s fastest 32GB kit: DDR3 2,400MHz 32GB(8GBx4) 1.65V XMP 1.3 X 2

http://www.xtremesystems.org/forums/...s-new-RipjawsZ!
11-14-2011, 10:57 AM
l0ud_sil3nc3

64GB at that speed is ridiculous:up:
11-14-2011, 01:54 PM
RCG_Bex

Quote:

Originally Posted by hiwa

2 X G.Skill RipJawsZ 32GB (8x4GB) = 16 STICKS :D http://www.xtremesystems.org/forums/...s-new-RipjawsZ!

Well the link goes to a 8x4Gb kit hence I asked, was it 2x of those kits :p

Trying to find the 16Gb 2500Mhz but can't find a retailer anywhere! 16Gb 2400Mhz is easy to find in the UK... Tempted to grab the 32Gb kit
11-14-2011, 02:13 PM
hiwa

Quote:

Originally Posted by RCG_Bex

Well the link goes to a 8x4Gb kit hence I asked, was it 2x of those kits :p

Trying to find the 16Gb 2500Mhz but can't find a retailer anywhere! 16Gb 2400Mhz is easy to find in the UK... Tempted to grab the 32Gb kit

go with 16gb 2400 is u can buy them u will need mobos with 8 DIMM slots if u want 32GB of memory or wait for 8gb sticks in stores (not easy to bin them)
11-14-2011, 02:15 PM
hiwa

BTW 2400 and 2500 use same IC i think 90% of 2400 Cl9 can do 2500 CL10
11-14-2011, 02:39 PM
RCG_Bex

I really want to get back into overclocking... ever since I sold the 920D0 and went AMD my life has been a bit dull...
11-14-2011, 03:51 PM
youngpro

wow dude nice frequencies there, density doesnt seem to make much difference on the IMC, with the right chip this CPU is a ram clocking power house
11-14-2011, 04:26 PM
youngpro

oh yeah and RIP hypers
11-14-2011, 04:42 PM
Hazzan

Amazing Speed Amazing capacity.....Perfect :up::up:
11-14-2011, 05:26 PM
LardArse

Quote:

Originally Posted by Leeghoofd

How many volts for 2133CL7-7-21 hypers Shamino ? Seems to be as fast as 2400CL10 in some benches... we ran into issues with cold and lost the 2400 rams on the sabretooth :(

actually the higher the vdimm the beter for cold.
i dont know, 7-7-7 largely depends on modules, i dont even know what these sets do on x58. but i have compared 32m at hypers best speeds/latencies, hynix best speeds/latencies, and psc cl7 type best speeds/latencies , at about same freq of cpu the psc at ~2400 2500 cl7/6 is the fastest - definitely my choice for benching - as compared to hypers at 2250 for example you can match it too with 6-9-6 anyways so... i guess most versatile and can adapt to various imc speeds
11-14-2011, 05:43 PM
sin0822

excellent job! nice memory and nice board, you are the man! 64GB at such sick speeds.
11-14-2011, 05:55 PM
badatgames18

how is max clock super pi 32m on these mr shamino?

cpc any faster than sb? with very good imc (unlike sb), seems like a good 2d option no?
11-15-2011, 08:43 AM
coolice

thanks shamino for new bios

cant seem to get gskill 16gb kit except with premium price, so stick back to psc, not strong one but good enough!
http://img.photobucket.com/albums/v514/coolice/4500.png
11-15-2011, 08:56 AM
LardArse

coolice! dont mess around, set 1.8v vdimm load tight psc timings and go, those are the good ones i bet
11-15-2011, 09:07 AM
coolice

they are on 1.85v, LOL
pretty much max out already, OS corrupted when i was trying 2500 today
11-15-2011, 09:07 AM
ghost_recon88

For PSC 2400 CL7, are you running in dual or quad channel? 2GB sticks?
11-15-2011, 09:34 PM
LardArse

quad 4 sticks
11-16-2011, 05:21 AM
FlanK3r

very nice for QCH
11-16-2011, 05:36 AM
l0ud_sil3nc3

how do BBSE clock on this platform Shamino?
11-16-2011, 06:29 AM
RCG_Bex

Do we know the max mem voltage safety limit?
11-16-2011, 06:37 AM
LardArse

i think you are asking the wrong person about safety limits, but

when pushing max freq on psc i use 1.85v
when pushing max freq on hynix i use 1.73v
when pushing max freq on hypers i use 1.90v
when pushing max freq on others i typciallu use 1.70v
11-16-2011, 06:51 AM
RCG_Bex

Good enough for me. God I so want some!!! :'(
11-16-2011, 07:07 AM
hiwa

Quote:

Originally Posted by LardArse

i think you are asking the wrong person about safety limits, but

when pushing max freq on psc i use 1.85v
when pushing max freq on hynix i use 1.73v
when pushing max freq on hypers i use 1.90v
when pushing max freq on others i typciallu use 1.70v

lol signed
11-16-2011, 07:11 AM
hiwa

Quote:

Originally Posted by l0ud_sil3nc3

how do BBSE clock on this platform Shamino?

i am testing all ICs on X79 with R4E
PSC 2 different memories 4 X 2GB Flares and 2200 7-10-7
BBSE 4 X 2GB 2133 8-9-8
Hypers 4 X2GB 2000 7-8-7
Hynix 4 X 4GB 1866 9-10-9
Hynix 4 X 4GB 2400 9-11-9

stay tuned
11-16-2011, 07:27 AM
LardArse

Quote:

Originally Posted by l0ud_sil3nc3

how do BBSE clock on this platform Shamino?

better than hypers actually

was at 2400, load elpida hyper profile, change tccd to 10 meaning CL7-10-7-21-1T, set 1.76v dram.
havent tried to push more than 2400 yet, but now you got me interested too.
11-16-2011, 07:31 AM
_mat_

Just wow! Awesome modules and sure as hell an awesome IMC. :toast:

Already tried to hurt my 3960X with some memory frequencies, but I can't get it beyond 2400 CL10. Are some IMCs really that bad? Tried 1,35+ Volt VTT but no chance yet ...
11-16-2011, 07:39 AM
LardArse

you get a '00' after 'b1'?
11-16-2011, 07:44 AM
_mat_

I get a 00 after a 25. Is that also a sign for a weak imc? But I couldn't update to your BIOS version ("Selected file is not an efi bios"), so I am still on 070b. But I will try 075b from here.

Edit: Same thing with BIOS 075b - "Selected file is not an efi bios". 070b file is in the same directory and works without any problems. :(
11-16-2011, 07:47 AM
LardArse

Not logical to be after the 25, must be after the b1, then yes, the imc is maxed out
11-16-2011, 07:51 AM
Raja@ASUS

Quote:

Originally Posted by _mat_

I get a 00 after a 25. Is that also a sign for a weak imc? But I couldn't update to your BIOS version ("Selected file is not an efi bios"), so I am still on 070b. But I will try 075b from here.

Edit: Same thing with BIOS 075b - "Selected file is not an efi bios". 070b file is in the same directory and works without any problems. :(

Format your flash drive to FAT32 and then try flashing UEFI again, should fix it :)
11-16-2011, 07:51 AM
Raja@ASUS

Quote:

Originally Posted by _mat_

Just wow! Awesome modules and sure as hell an awesome IMC. :toast:

Already tried to hurt my 3960X with some memory frequencies, but I can't get it beyond 2400 CL10. Are some IMCs really that bad? Tried 1,35+ Volt VTT but no chance yet ...

What have you got VCCSA set at?
11-16-2011, 08:08 AM
_mat_

Quote:

Originally Posted by LardArse

Not logical to be after the 25, must be after the b1, then yes, the imc is maxed out

I tried again from scratch and now I get the b1 => 00. Temperature is at -20 to -30 °C, VTT at 1,35 V, VCSA at 1,25 V. 2133 no problem, 2400 (by bclock and strap) no chance at all. Even at CL11. Any ideas or no chance at all?

Raja, thanks, that solved it. As the older BIOS worked, I thought this could not be the solution. :D
11-16-2011, 08:11 AM
LardArse

no chance, try going warmer at '25'. i think prolly you can do higher ram speeds at 10c or so
you sound like you;re on phase so switch off your phase unit try passing the 'b1' period at different temps by resetting and warming up.
11-16-2011, 08:16 AM
Hondacity

wow coldbug is bad....i hope haswell is ok.
11-16-2011, 09:00 AM
_mat_

Quote:

Originally Posted by LardArse

no chance, try going warmer at '25'. i think prolly you can do higher ram speeds at 10c or so
you sound like you;re on phase so switch off your phase unit try passing the 'b1' period at different temps by resetting and warming up.

0 °C => b3
5 °C => b5
10 °C => b7
> 15 °C boots with 2400 MHz. But IMC has to be kept warm otherwise the system crashes immediately. :(

Thanks for your help!
11-19-2011, 04:28 AM
coolice

move to better pcs sticks, gskill flare, 1.8v :D
http://www.ocdrift.com/coolice/OC/r4...11.8.28.1t.png

http://www.ocdrift.com/coolice/OC/r4...11.7.28.1t.png
11-19-2011, 10:17 AM
mortisboy

wow man...nice ram you got there :D
11-19-2011, 10:41 PM
Mungri

Corsair / Crucial / Geil ...... who?????

You are all conquered.
11-21-2011, 05:20 PM
LardArse

1 Attachment(s)

Definitely takes the binned set to do 2400 CL9 1T

http://s12.postimage.org/mqrphcehl/bin.jpg

The 2133 may be able to do it at CL10 but defintiely not 9
11-23-2011, 10:53 PM
Raja@ASUS

GSkill 16GB DDR3-2133 9-11-9 kit @ DDR3-2400 10-12-10-28 1T

3Hours Prime 95, with 14GB assigned:

http://img830.imageshack.us/img830/9359/p952400.jpg

Uploaded with ImageShack.us

VCCSA 1.05V VDIMM 1.68V. Voltages are CPU and memory module dependant.

tWR 16
tRTP 6
tFAW 24
tWTR 6
DRAM WL 9

tRRDR 6
tRRDD 6

All others can be left at default.
11-24-2011, 12:32 AM
JasonDTM

Good MC on that 3930 brother Raja. :D
11-24-2011, 01:56 AM
Vivi

siiiick!

but no 2600?
11-24-2011, 01:58 AM
Raja@ASUS

Quote:

Originally Posted by Vivi

siiiick!

but no 2600?

2600 will need the right CPU. There are quite a few that don't like 2400 much. Where the R4E comes into play is that this board runs 1T where other boards struggle with 2T. We are still tuning so more to come I am sure.
11-24-2011, 05:20 AM
fredyama

Quote:

Originally Posted by LardArse

better than hypers actually

was at 2400, load elpida hyper profile, change tccd to 10 meaning CL7-10-7-21-1T, set 1.76v dram.
havent tried to push more than 2400 yet, but now you got me interested too.

Yes, Peter-san:up:
With a new 079B bios & G.Skill F3-17000CL8D-4GBXMD BBSE chips.
With my kits, CL8 is far stable than CL7-10-7-21 for modPI, but couldn't reach to 2400-- max out around 2380.
Anyway, SB-E is not for modPI, so just for your inf:D

http://img259.imageshack.us/img259/7...d4gbxmdcl8.jpg
11-25-2011, 02:28 AM
LardArse

I think I have found the Benchers' 16GB kit :D

16GB @ CL8-11-10-15-1T-88

http://s12.postimage.org/mu3726q2x/ben162b.jpg

They feel like the love child of PSC / Hynix. Look at that tRAS
They love VDIMM and can take even 2.10v, good for strengthening IMC when CPU is cold.
11-25-2011, 08:49 AM
Calathea

Tras 15 at ddr3 2400? Whaaat...
11-25-2011, 11:06 AM
hiwa

really nice memories are aircooling? if i set 1.95 they don't boot :D
11-25-2011, 02:53 PM
matose

Quote:

Originally Posted by fredyama

Anyway, SB-E is not for modPI, so just for your inf:D

Try tri-channel instead of quad-channel, you'll be surprised :D
11-25-2011, 06:13 PM
Hazzan

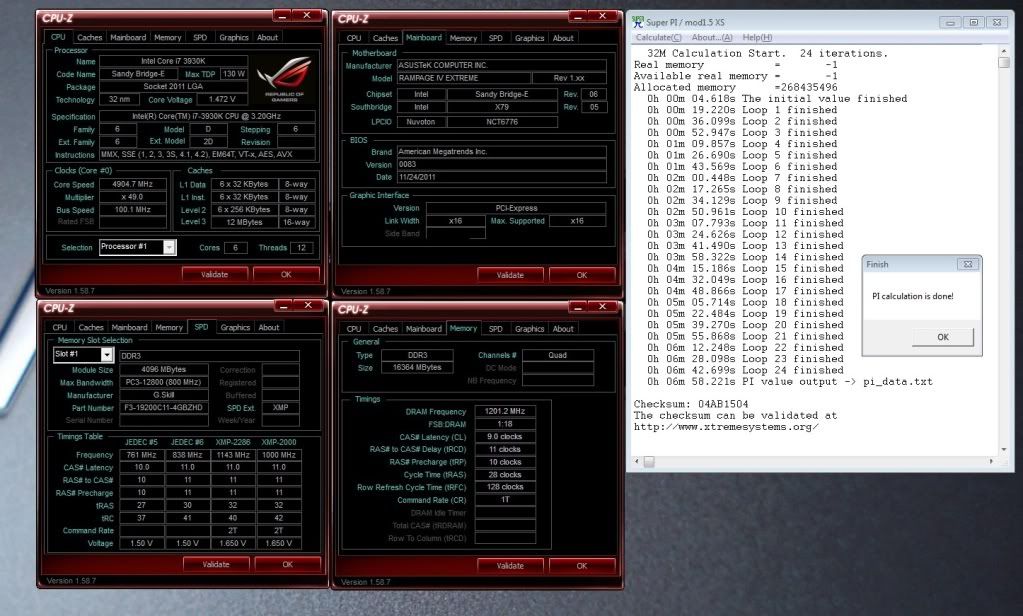

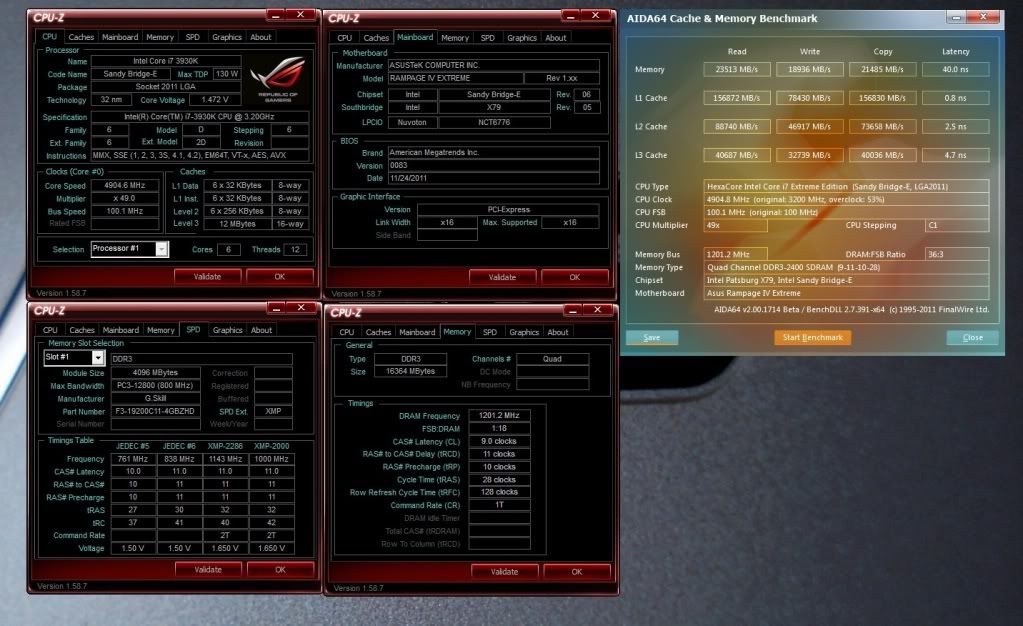

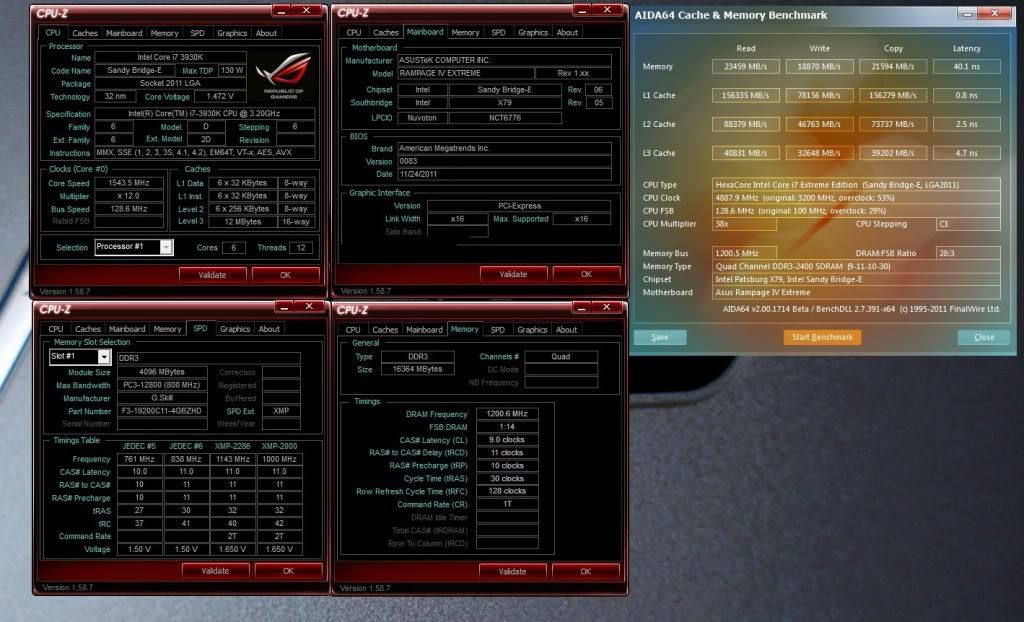

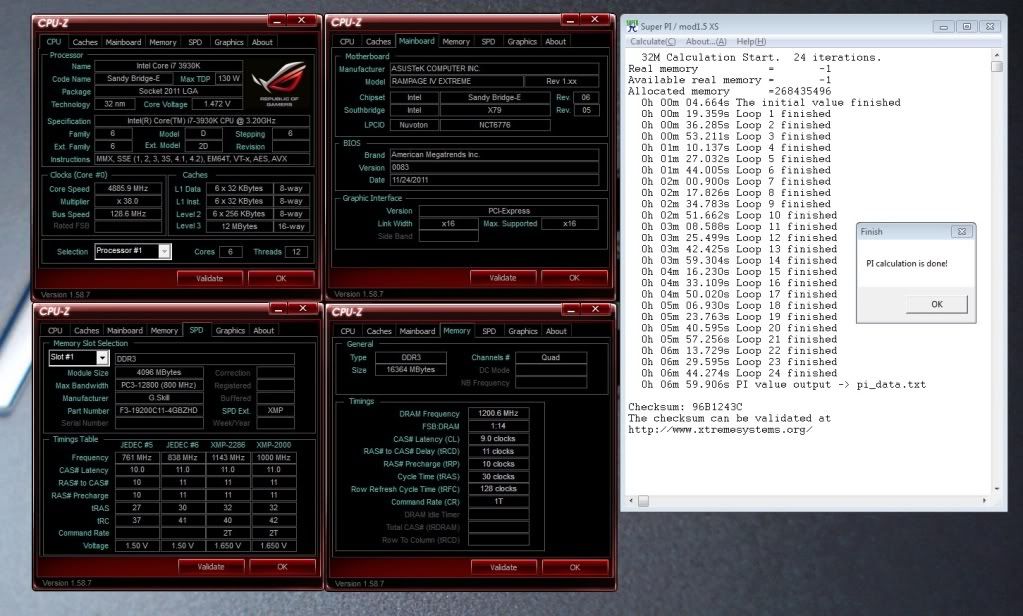

GSkill 19200C11 4g x 4 running 9 11 10 28 1T 1.72 Volt with latest bios 0083 R4E

http://i1191.photobucket.com/albums/z472/Hazzan3/11.jpg

http://i1191.photobucket.com/albums/z472/Hazzan3/12.jpg

http://i1191.photobucket.com/albums/...ew%20R4E/1.jpg

http://i1191.photobucket.com/albums/...ew%20R4E/2.jpg
11-25-2011, 07:46 PM
fredyama

Quote:

Originally Posted by matose

Try tri-channel instead of quad-channel, you'll be surprised :D

Hi matose-san,

Thanks a lot for your inf.
Yes, 32M time improved with tri-channel.
I wish I were able to get SB-E like one of awesome high clocker SB 2600K:D

http://img840.imageshack.us/img840/1...d4gbxmdtri.jpg
11-25-2011, 10:30 PM
stasio

Quote:

Originally Posted by fredyama

Hi matose-san,

Thanks a lot for your inf.
Yes, 32M time improved with tri-channel.
I wish I were able to get SB-E like one of awesome high clocker SB 2600K:D

How about 3 channel and AIDA64?
11-26-2011, 06:02 AM
Morphling

Quote:

Originally Posted by Hondacity

ultra fast ssd looool

:rofl: That was a good point of view! :rofl:

Super powerfull results there Shammy!
11-26-2011, 05:51 PM
fredyama

Hi stasio-san,

Sorry, have never tried AIDA64.
Please someone help me:D
11-26-2011, 07:04 PM
stasio

Quote:

Originally Posted by fredyama

Hi stasio-san,

Sorry, have never tried AIDA64.
Please someone help me:D

Hi fredyama-san,
look at Hazzan pic above.
AIDA64...Read/Write/Copy/Latency.
11-27-2011, 12:03 AM
fredyama

Hi stasio-san,

Please see the results of triple & quad channel AIDA64.

http://img94.imageshack.us/img94/404...da64triple.jpg

http://img839.imageshack.us/img839/8...aida64quad.jpg

Cheers,

Fred

Quote:

Originally Posted by stasio

Hi fredyama-san,
look at Hazzan pic above.
AIDA64...Read/Write/Copy/Latency.
11-27-2011, 12:26 AM
stasio

Thanks,
For 8-10-7-20-1,Vdimm 1.89....!!
Did you try 9-11-9 or 9-10-9 for 2400MHz?
11-27-2011, 01:06 AM
fredyama

Quote:

Originally Posted by stasio

Thanks,
For 8-10-7-20-1,Vdimm 1.89....!!
Did you try 9-11-9 or 9-10-9 for 2400MHz?

You are welcome:)

Here is modPI 32M @2400MHz result at the same CL8 setting.
Just needed cold weather, window opened and added an extra 8cm DELTA TFB0912GHE.
I tested this retail G.Skill kits up to 1.95V @CL6-9-6-19-70-1T on 2600K, but seems 1.89 - 1.9V suites better:D

http://img638.imageshack.us/img638/3...00cl8d4gbx.jpg

All times are GMT -8. The time now is 10:59 AM.

XtremeSystems
