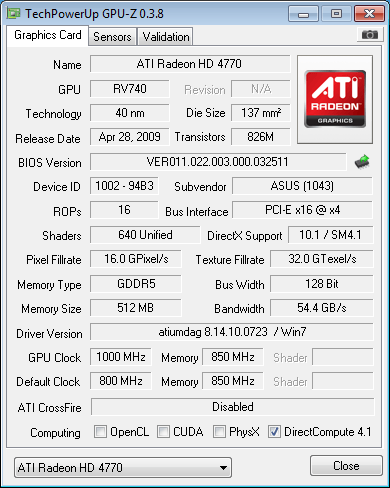

ATI HD 4770 reference @ 1000MHz-stock cooling with 4770 Top bios and Asus stuff

http://img11.imageshack.us/img11/1989/032cuw.jpg


Decided to flash one of my new ATI HD4770 to the Asus TOP bios so now I can use CCC to 1000Mhz GPU , 1200MHz GDDR5 and Asus Smart doctor's voltage adjustment works fine ^^ and now 1000MHz @ 1.21v and GGDR5 @ 4580MHz is possible just with fan @ 100% with is just crazy for that cheap card

http://img521.imageshack.us/img521/7...e1000mhzok.jpg

well its not safe to use cz at these speed have started to show random green lines and artifacts on the display while using Vantage.

Would be fun to LN2 one of these :D

wow, that's really good!

its 40nm what do you expect?

i wonder if this could beat the 4890 or better at those clocks

i wonder why the asus voltage tweak software wouldnt run on flashed 4890's.... any tips m8...

with hardware volt-mod I think it can go 1,2GHz and over:wiggle:I will have some HD4770's for testing, so I wonder what they get:comp10:

OK! Second GPU which can do 1GHz on stock AIR (first being RV790) :clap:!

Really impressive to see such clocks from a low/mid end card :up:

Will it go any further? :D

Thanks for showing your results!

These results make me think about switching over to ATI after a long time of using NVidia cards...

Will you test the card on a C2D system or i7?

Great news, thanks! I always thought it's gonna be a monster chip.

Could you please give us an estimate for everyday use max clocks (not 100% cooler and with no artifacts)?
And what is the temp like under Vantage load?

Thanks in advance! :)

Nice these cores scale like the 4890's ones!!!Good work

Please could you link the bios? Mine reach around 900/1075 at stock volts with AA S1s

Quote:

---

Originally Posted by Meaker

Please could you link the bios? Mine reach around 900/1075 at stock volts with AA S1s

---

here

That is not a big feat, i can do 960/1100 with my 4890 all day long and that is with the older process at stock vcore. I was expecting something in the 1200mhz for the core :(. Hope the new process gets more refined for the high end cards in the 58x0 generation.

Nice scores PcCI2iminal !!!

But are these retail cards ? Or handpicked ones ? I realy like those clocks. I'm thinking of buying one. But i dont know wich one yet. Should this bios trick also work for the sapphire cards ?

Quote:

---

Originally Posted by Fafeifa

That is not a big feat, i can do 960/1100 with my 4890 all day long and that is with the older process at stock vcore. I was expecting something in the 1200mhz for the core :(. Hope the new process gets more refined for the high end cards in the 58x0 generation.

---

What do you expect ? the 55nm tech is as good as it will get. And 40 still brandnew and not optimised. + the HD4770 is made for low power consumption. And it should not get faster becuase then it will hurt HD4850 and HD4870 sales. But it can be clocked at 900 with no problem.

Also dont forget that the HD4890 stock is running higher voltages then a HD4870. (1.31v vs 1.25V). I think we will see 1100+ air with those HD4770 cards. And more in the future when the 40nm process gets more mature.

Quote:

---

Originally Posted by Astennu

Nice scores PcCI2iminal !!!

But are these retail cards ? Or handpicked ones ? I realy like those clocks. I'm thinking of buying one. But i dont know wich one yet. Should this bios trick also work for the sapphire cards ?




What do you expect ? the 55nm tech is as good as it will get. And 40 still brandnew and not optimised. + the HD4770 is made for low power consumption. And it should not get faster becuase then it will hurt HD4850 and HD4870 sales. But it can be clocked at 900 with no problem.

Also dont forget that the HD4890 stock is running higher voltages then a HD4870. (1.31v vs 1.25V). I think we will see 1100+ air with those HD4770 cards. And more in the future when the 40nm process gets more mature.

---

It works for the Sapphire cards. I bought two of them and flashing was no problems at all. But the clocks were crap, I got 870MHz on the core and only 860MHz on memory for the best of the two on stock volts. When added volts up to 1.2 volts I got 930MHz on the core and memory the same :banana::banana::banana::banana:ty clock. Max temp were 78c in my fairly warm room. Not happy with these cards, especially mems...they should do at least 1000MHz.

Drivers are crap ofcourse, based on Catalyst 9.2. But it's just to far from acceptable for me to give faith in correction with better drivers.:shrug:

Strange that you mem OC is so low :| i realy hope my card will do well. Else i will keep the HD4850 :) and put this one in a other PC.

In that case i guess PcCI2iminal has some handpicked samples.

I will also try a other cooler on it. And i will try to install a 4p fan connector so i can fan control it trough the bios. But i will first check if the ASUS TOP bios has support for fan control.

Owh well i will know whats what soon enough :) Getting the card today. First run will be tonight. I will also try to use the 9.4 driver. Forcing it to be a HD4850 or something. Sometimes that works aswell.

Yes, considering it's AMD branded cards with the skimpy cooler and lite PWM I believe they can be handpicked. Gonna be interesting to see what your card can do.:D

UHmm 850-1100 so far. Cant use the Asus tool because my max clocks in that tool are 850-900 :S And if i use it to set the clocks and then use CCC its setting my clocks back to stock.

How did you guy's go over those clocks with smartdoctor ? if i close it i think it sets the voltage back to normal again. I will try to measure it.

Edit: Never mind. Its holding its voltages when closed. You need to set your voltage with smart doctor. Then close it. Open CCC and set your clocks. I noticed that if i set max 1.3. I get 1.324 idle and a whooping 1.4 at load. And then it crashed. With 1.1 (1.17v load) its running just fine. So ill be testing that. i also got a Zalman VF1000 over here that not being used. I will first max out at stock cooler and then Try the VF1000 to see if it helps.

whats 1GHz core look like 06'?

:)

I tested my sapphire and it maxes out at 860-1115 fur mark stable error free. I could get 900 core with 1.15v. Everything over 1.15 would make it worse. RBE is not supporting the HD4770 voltage tweaks yet so i'm sticking to 860-1115 for now. If the suppor comes i could upp it to 900-1125/1150.

100% fan speed did not do much over stock. It boosted it only 10-15 MHz max.

Furmark 1680x1050 750-850:
Score: 3236
FPS Min: 45
FPS Max: 80
FPS Avg: 54
Time: 60000 ms

To: Furmark 1680x1050 860-1115:
Score: 4185
FPS Min: 60
FPS Max: 100
FPS Avg: 70
Time: 60000 ms

at almost stock mem was 50 MHz higher then stock. Cant go lower anymore with this top BIOS :P But a not to bad score for a 89 euro card :)

Astennu, intersting clocks. Especially the mems. It really bugs me that both my cards not even managed 900MHz on the memory. Did you use the drivers that came with the card, or did you force the Catalyst 9.4 like you said?

EDIT: Looks like the XFX card with a decent cooler is coming shortly here in Sweden:
http://www.dustinhome.se/pd_5010313738.aspx

5 euros more than the Sapphire, so they are going back.
If that shop has it up then the XFX is not too far away.:up:

Thats not surprising, what is surprising is you have the "cheaper" version.

If you had the more expensive one, it may go much higher.

Quote:

---

Originally Posted by ahmad

Thats not surprising, what is surprising is you have the "cheaper" version.

If you had the more expensive one, it may go much higher.

---

Huh, what do you mean? All those with the skimpy cooler and lite PWM are supposed to be the same. And the other cards aint out yet.

Please explain.

Quote:

---

Originally Posted by Clint

Astennu, intersting clocks. Especially the mems. It really bugs me that both my cards not even managed 900MHz on the memory. Did you use the drivers that came with the card, or did you force the Catalyst 9.4 like you said?

EDIT: Looks like the XFX card with a decent cooler is coming shortly here in Sweden:
http://www.dustinhome.se/pd_5010313738.aspx

5 euros more than the Sapphire, so they are going back.
If that shop has it up then the XFX is not too far away.:up:

---

Yep i forced 9.4 :) I installed it as a HD4800 series. Works like a charm :) Did you also flash the TOP bios ?

Quote:

---

Originally Posted by ahmad

Thats not surprising, what is surprising is you have the "cheaper" version.

If you had the more expensive one, it may go much higher.

---

Not totaly true see the stopic starter. He is getting 1000 MHz out of a light version with the cut down power regulators. (but i guess they are handpicked). But still you dont need the extra power regulators you need a good chip. But i think the OC editions will have those better binned chips and will clock higher. And Maybe allow a higher v-mod voltage.

Wow, great clocks
Looks like this really is a card to look out for.

This card is very interesting...

Quote:

---

Originally Posted by Clint

Huh, what do you mean? All those with the skimpy cooler and lite PWM are supposed to be the same. And the other cards aint out yet.

Please explain.

---

They are out, just not available in retail.

I think we are all thinking the same, I am just surprised to see stock voltage achieve this kind of clock (when compared to other cards).

Sorry about the confusing post.

Quote:

---

Originally Posted by Astennu

Yep i forced 9.4 :) I installed it as a HD4800 series. Works like a charm :) Did you also flash the TOP bios ?

---

Yes, and I tried with XFX's 9.5 drivers for HD4770 yesterday. Still can't clock the mems over 860MHz. Must be a POS batch.:shrug:

Oh well, they are going back and the XFX dual slot version is taking over the job anyway.:up:

Quote:

---

Originally Posted by Clint

Yes, and I tried with XFX's 9.5 drivers for HD4770 yesterday. Still can't clock the mems over 860MHz. Must be a POS batch.:shrug:

Oh well, they are going back and the XFX dual slot version is taking over the job anyway.:up:

---

You should check the voltage on that memory. The chips are rated at 1Ghz and I get 1.2Ghz out of mine.

Quote:

---

Originally Posted by Quailane

You should check the voltage on that memory. The chips are rated at 1Ghz and I get 1.2Ghz out of mine.

---

Yes, that was one of the first things that came to mind. Couldn't be bothered though, if that's the case then they are defective anyway.:shrug:

Quote:

---

Originally Posted by Astennu

Yep i forced 9.4 :) I installed it as a HD4800 series. Works like a charm :) Did you also flash the TOP bios ?

---

How did you force it as a HD 4800? I suppose you must have some kind of hardware-ID for the HD 4770 card?

As for the Sapphire's, they have been sent back. I now have a XFX HD 4770 with the reference cooler WITHOUT the heat pipes...!!!

They have actually shipped the card without the heatpipes, now there are two holes there instead. :shakes:

Anyway, the card will not do more than 920MHz on the core...no matter what volts I give. That's with the ASUS TOP bios. Temps are very quickly climbing up towards 90C when above 1 volt. The memory is maxing out at 880MHz, same :banana::banana::banana::banana: as the two Sapphires I got. The modules are Qimondas idgv51-05a1f1c-40x, that is rated to 1000MHz.

I will try the new Catalyst 9.5 that is supposed to be released today, and also try forcing it as a HD 4800...if no improvment is made on the memory I will ditch the whole idea with a HD 4770 and not look back.

very nice hoping to see other 40nm soon @ action

it seems the drivers for xp dont work with overclocking the ram, they overclock well for me in vista/7 but cant go above stock on xp.

HD 4770s are cheap, got high overclocking potential and perform really well - considering their price. :up: ATI HD 4xxx was definitely one of the best hardware in 2008. I'm glad that ATi created some nice cards to carry on the legacy :cool:

Quote:

---

Originally Posted by revogamer

it seems the drivers for xp dont work with overclocking the ram, they overclock well for me in vista/7 but cant go above stock on xp.

---

Lets hope this is the reason. my powercolor 4770 is at 800 and cannot go up or even down. not even by 1MHz !!!!
i will try on win7 but i am waiting for 9.5 drivers.

Quote:

---

Originally Posted by George_o/c

HD 4770s are cheap, got high overclocking potential and perform really well - considering their price. :up: ATI HD 4xxx was definitely one of the best hardware in 2008. I'm glad that ATi created some nice cards to carry on the legacy :cool:

---

geia sou patrida!

Quote:

---

Originally Posted by acos

Lets hope this is the reason. my powercolor 4770 is at 800 and cannot go up or even down. not even by 1MHz !!!!
i will try on win7 but i am waiting for 9.5 drivers.

---

so it is confirmed! In win7 64b and latest 9.4 drivers the card can be easily OC 850/830
yes the memory cannot go far, but it's ok. Thus it was a matter of drivers i guess. Better drivers better OC ;)

Quote:

---

Originally Posted by acos

so it is confirmed! In win7 64b and latest 9.4 drivers the card can be easily OC 850/830
yes the memory cannot go far, but it's ok. Thus it was a matter of drivers i guess. Better drivers better OC ;)

---

How can 830MHz on the memory be ok when the reviews all did 1100+??

I just got my XFX 4770 w/ ref cooler. I got it at 830c/850m with no problems under vista 64 w 9.5 drivers.
I might try the asus bios and see if i can go higher, but I'm hesitant.

Do you guys think the memory needs heatsinks on them.

But so far so good, I went from the 4850 to 4770. overclocked it is def. smoother. Not to mention i maybe able to get more out of her.

Quote:

---

Originally Posted by Clint

How can 830MHz on the memory be ok when the reviews all did 1100+??

---

i meant that it is good that i managed to have any OC on memory.
I can only use the tool from ATI catalyst since rivatuner never worked for me :(
As for the memory chips, i saw from the chip maker that those particular
chips can reach the limit of 1000MHz with the reference voltage of 1.5V.
The max safe voltage can be 2 volts. but i didn't saw any reference to any heatsinks.
I believe that the PCB design is efficient enough for the memory chips to be cooled by the airflow of the fan. so little room for heatsinks !

Got my 4th HD 4770 yesterday and finally I hit a flawless card. It does 1200MHz Furmark stable on the RAM, with the Asus TOP bios. I can even get it up to
1215MHz before it starts to show a couple of minor dots in stresstesting. This is with a XFX card and the crippled reference cooler, meaning it doesn't get any cooling or airflow at all over the memorychips.

Core does 880MHz at 1volt, which is default for the XFX cards. It is quite obvious that these 40nm chips are very sensitive to heat, anything over 65c and it freezes. This crippled cooler is really crappy, card gets hot like hell. It picks up a lot of heat from the scorching RAMs as well.

I will do some modding to the card later on this week, looks like it has some potential.:up:

Considering the cheap components of the board, can this card handle high volts? This cards seems specialized for low energy consumption and considering the cooling on this board, what long term effect will this have?

Quote:

---

Originally Posted by Clint

Got my 4th HD 4770 yesterday and finally I hit a flawless card. It does 1200MHz Furmark stable on the RAM, with the Asus TOP bios. I can even get it up to
1215MHz before it starts to show a couple of minor dots in stresstesting. This is with a XFX card and the crippled reference cooler, meaning it doesn't get any cooling or airflow at all over the memorychips.

Core does 880MHz at 1volt, which is default for the XFX cards. It is quite obvious that these 40nm chips are very sensitive to heat, anything over 65c and it freezes. This crippled cooler is really crappy, card gets hot like hell. It picks up a lot of heat from the scorching RAMs as well.

I will do some modding to the card later on this week, looks like it has some potential.:up:

---

great results. but what voltage do you apply to RAM? Can you change the volts of
core and RAM indepentently?
Unfortunately i cannot flash my Powercolor to ASUS top firmware, it says that it is not
compatible, or something like that. Maybe i have to try a special firmware update tool.

Quote:

---

Originally Posted by acos

great results. but what voltage do you apply to RAM? Can you change the volts of
core and RAM indepentently?
Unfortunately i cannot flash my Powercolor to ASUS top firmware, it says that it is not
compatible, or something like that. Maybe i have to try a special firmware update tool.

---

RAM voltage is stock, I assume 1.5 volt.

I'm pretty sure you can flash your card, use atiflash with switches -f -p to force it.

"atiflash -f -p 0 biosname.bin" (without "")

Quote:

---

Originally Posted by Clint

RAM voltage is stock, I assume 1.5 volt.

I'm pretty sure you can flash your card, use atiflash with switches -f -p to force it.

"atiflash -f -p 0 biosname.bin" (without "")

---

Thanks Clint, i will try it.
about the RAM voltage mine it is reported as ~1.25V. so it isn't 1.5V or i get a wrong report.

Pretty moce cards man.New ATi cards seem to overclock great.....
Can't wait to see more of these two little babys...

Clint, how did You bybass the 1200MHz limit? Is there any possible way to go over 1000MHz on GPU also? If I changed the limits on Asus TOP BIOS, then the drivers can't "read" the card (known problem with most HD4xxx series).

Quote:

---

Originally Posted by ceemic

Clint, how did You bybass the 1200MHz limit? Is there any possible way to go over 1000MHz on GPU also? If I changed the limits on Asus TOP BIOS, then the drivers can't "read" the card (known problem with most HD4xxx series).

---

After maxing out the CCC I went with Rivatuner, no problem passing 1200MHz there. As for core I haven't even tried so high, need better cooler first. I doubt it will do 1GHz though.

Clint, tnx for the info! So in theory, with RT we can go higher than 1000MHz on GPU also :rolleyes:

sapphire HD4770 crossflashed w/ asus TOP bios, vgpu@1.261v
Thermalright gpu + memory heatsinks:
@1000/1150:
http://img191.imageshack.us/img191/2936/10100.th.jpg

connect3D crossflashed w/ asus TOP bios & stock cooling
@1000/1150 vgpu@1.239v
http://img200.imageshack.us/img200/5774/16232c3d.th.jpg

Did find a burnt Sapphire X1950XTX card with that arctic cooling all copper heatsink on it, and a few drills and threads later it's mounted on the XFX HD4770:

http://img199.imageshack.us/img199/4780/00014h.th.jpg
I must say that cooler is a piece of art, weighs in at a whopping 500g or so...all copper. They simply don't make them heatsinks that good anymore.;)
When feeded with 1.25v I get 40C idle and 50C load.:D ...and not even close to the noise as the stock coolers generates...

Did a 3D06 run with CPU@ 3.5GHz, GPU@ 1GHz and GDDR5@ 1.2GHz:
http://img197.imageshack.us/img197/6...0616361.th.jpg

sapphire hd4770@1010/1150:
http://img132.imageshack.us/img132/42/16401.th.jpg

asus EAH4770@1000/1100 vgpu@1.239v:
http://img41.imageshack.us/img41/2412/16266.th.jpg
cross HD4770 @1000/1100 vgpu@1.239v:
http://img359.imageshack.us/img359/562/21369.th.jpg

My XfX 4770 does 1150/1255mhz on asus top bios and a copper heatsink from a 4870x2 cooler and i am getting 3 more tommorow and they are getting watter cooled and hard modded with more mosfets and capacitors and vmod for gpu and mem

Quote:

---

Originally Posted by Riska

My XfX 4770 does 1150/1255mhz on asus top bios and a copper heatsink from a 4870x2 cooler and i am getting 3 more tommorow and they are getting watter cooled and hard modded with more mosfets and capacitors and vmod for gpu and mem

---

Nice!:up:

1150 is amazing! At what voltage and temps did you get that?

it gets 1.34v on load and temps are not over 50c

Quote:

---

Originally Posted by Riska

it gets 1.34v on load and temps are not over 50c

---

Hmm, 1150MHz on 1.34v on air sounds a bit hard to digest.

I really need a screenie to be convinced.

It does nearly 900mhz on stock cooler and volt.
I will upload some screens later this week

This sounds like TSMC is slowly getting their 40nm process together :)

Imagine these chips at the end of this year :D

Quote:

---

Originally Posted by Riska

It does nearly 900mhz on stock cooler and volt.
I will upload some screens later this week

---

Well, if you have said 1050MHz on 1.34v, and not 1150MHz on 1.34v I could have believed you. But this just doesn't add up, sorry.:shrug:

1150MHz is impossible, at least if we are talking about anything remotely usable/stable.

I you mean running vantage remotely usable/stable you are right but just wait i am not at hom to bench the card for you i have testet 15 of the XfX HD4770 cards and they all do 1075mhz+ on a copper heatsink from a hd4870x2 and 1.34v wit asus top bios and asus smart doctor

all the cards do easely 1000/1200mhz on stock cooler with asus top bios and 1.34v

Quote:

---

Originally Posted by Riska

all the cards do easely 1000/1200mhz on stock cooler with asus top bios and 1.34v

---

That sounds a bit more realistic.:up:

Next step is to test the OC with Furmark.;)

What video 4770 may cause the above frequencies with lower voltage but with this bios?

Why should i use furmark i use the cards for bench and they kan bench 2001-2003-2005-2006-vantage no problem

Quote:

---

Originally Posted by Riska

Why should i use furmark i use the cards for bench and they kan bench 2001-2003-2005-2006-vantage no problem

---

If that's your intended use for it, you are absolutely right.

Let's see some results on those benches instead.:up:

Quote:

---

Originally Posted by Clint

Did find a burnt Sapphire X1950XTX card with that arctic cooling all copper heatsink on it, and a few drills and threads later it's mounted on the XFX HD4770:

http://img199.imageshack.us/img199/4780/00014h.th.jpg
I must say that cooler is a piece of art, weighs in at a whopping 500g or so...all copper. They simply don't make them heatsinks that good anymore.;)
When feeded with 1.25v I get 40C idle and 50C load.:D ...and not even close to the noise as the stock coolers generates...

Did a 3D06 run with CPU@ 3.5GHz, GPU@ 1GHz and GDDR5@ 1.2GHz:
http://img197.imageshack.us/img197/6...0616361.th.jpg

---

Hi Clint

could you tell me how to change settings in CCC
so that the core and memory can oc over 850 (in your case is 1000 core)

thank you very much!

Quote:

---

Originally Posted by erickwok

Hi Clint

could you tell me how to change settings in CCC
so that the core and memory can oc over 850 (in your case is 1000 core)

thank you very much!

---

He is using ASUS TOP BIOS on his card. You will need to flash yours to get 1GHz core in CCC ;)

Quote:

---

Originally Posted by Lightman

He is using ASUS TOP BIOS on his card. You will need to flash yours to get 1GHz core in CCC ;)

---

Hi Lightman
Thank you for your answer:clap:

General Stefan a.k.a Fixt00l is requesting permission to koin the XS 4770 OC Team:welcome: My only two options are the Albatron, or the Sapphire card, which one shall I go for, in order to fit the TOP bios? Also, I think that I will need the AC TWIN TURBO for the best results, can it compare to the Thermalright? Please support me, and I will bust my ass of squeezing the very last piece of MHz out of it...

Quote:

---

Originally Posted by pvhk

asus EAH4770@1000/1100 vgpu@1.239v:
http://img41.imageshack.us/img41/2412/16266.th.jpg
cross HD4770 @1000/1100 vgpu@1.239v:
http://img359.imageshack.us/img359/562/21369.th.jpg

---

First a greeting.
I have two ATI SAPPHIRE HD4770 in crossfire, with asusbios to flash, windows xp Servipack 3, net framework 3.5. Install the latest asus drivers (catalyst 9.87) as well as the latest version of SmartDoctor.
My problem is that the first card up correctly the tension and lets me get to 970/1050 on core and ram. The problem is the second card. I noticed that the SmartDoctor not able to raise the tension of the second card, and I can only get the second card to 825/1000.
My motherboard is: DFI JR 790GX-M3H5.
I beg you to tell me how you could get the second card in crossfire with the SmartDoctor. That is, driver versions are installed on your computer.
A greeting.

I dont think smartdoctor can control the voltage of multiple cards on XP.

If you look at the second photo, the one with the headline "cross HD4770 @1000/1100 vgpu@1.239v:" in gpuz it is clear that is xp and are two cards in crossfire. So he asked as pvhk had.

http://i438.photobucket.com/albums/q...oft/wr3d06.jpg

I would like to get smartdoctor working on all cards så i can gå this high on all 4 cards...

1.6+v to core an never goes over 50c

awesome clocks and 06 score riska!! i wish i could do that on my 4770s

only catalyst 9.5 & smartdoc combination work to raise vgpu on both card in my case...no way with cata 9.7 or 9.8....

Quote:

---

Originally Posted by pvhk

only catalyst 9.5 & smartdoc combination work to raise vgpu on both card in my case...no way with cata 9.7 or 9.8....

---

are you sure about this? i will try this tonight

in my case, yes! no way to "clock" both card (vgpu) with cat 9.7/9.8!
But there is another condition: i have to use an asus mb (maximus 2gene) because it does not work with my DFI JR P45...

on max 2 gene + cat 9.5 : i only have to apply the vgpu w/smartdoctor once for all to raise both vgpu!!!

Quote:

---

Originally Posted by pvhk

in my case, yes! no way to "clock" both card (vgpu) with cat 9.7/9.8!
But there is another condition: i have to use an asus mb (maximus 2gene) because it does not work with my DFI JR P45...

on max 2 gene + cat 9.5 : i only have to apply the vgpu w/smartdoctor once for all to raise both vgpu!!!

---

i can clock both of my 4770s to 935/1150 in crossfire at 1.225v using cat 9.7/9.8, with single cards (crossfire disabled) both can reach 1000/1200 no problem

so ocing both cards work up to 935 @1.225 using smartdoc but not @1000 for both card!
Weird issue...:confused:
i suppose you have a good PSU

Quote:

---

Originally Posted by pvhk

so ocing both cards work up to 935 @1.225 using smartdoc but not @1000 for both card!
Weird issue...:confused:
i suppose you have a good PSU

---

okay tested cat 9.5 and clocked both of my 4770s to 1000/1200 in crossfire. thanks

nice it solves your issue...

What model hd4770 video card can change the memory and GPU frequencies with low voltage and change bios (asus top bios) but with native HDMI ? I want to buy a video card hd4770

Hi,

Does anyone know what would be safe voltages (vGPU) to use for a 24/7 full load overclock ?

I'm running 1000/850@1.1v using an after market cooler.

GPU temp is 50C mem 54C Shader 56C

Many thanks in advance

Quote:

---

Originally Posted by /dev/max

Hi,

Does anyone know what would be safe voltages (vGPU) to use for a 24/7 full load overclock ?

I'm running 1000/850@1.1v using an after market cooler.

GPU temp is 50C mem 54C Shader 56C

Many thanks in advance

---

Is that not just 10% over standard VGPU? My guess is that'll be fine :up: What bios are you using out of curiosity?

Quote:

---

Originally Posted by Rhythmeister

Is that not just 10% over standard VGPU? My guess is that'll be fine :up: What bios are you using out of curiosity?

---

OK Thanks, I just wasn't sure if the standard baseline was 0.9 or 1.0v, it's a lot different to CPU overclocking ;) I was just very surprised that whatever clock I hit it stuck - no errors :eek: Which got me thinking that maybe I'm pushing to many volts through it. I guess not then ;)

Yes the BIOS looks like being the Asus TOP as downloaded through these forums. If you have any other recommendations let me know.

Card is a bog standard reference 4770 branded VTX.

http://gpuz.techpowerup.com/10/01/29/7aw.png

Quote:

---

Originally Posted by Riska

all the cards do easely 1000/1200mhz on stock cooler with asus top bios and 1.34v

---

Sapphire HD 4770 with HDMI not working with 1000/1200mhz on stock cooler with asus top bios and 1.34v
