Cosmo Mod: FLYINGA2 Style

FLYINGA2 sent me a lotta stuff to build his rig...6 boxes and a Cosmos 1000...take a look

http://img512.imageshack.us/img512/2...nale012ym2.jpg
The case...weighs a ton.


http://img72.imageshack.us/img72/711...nale013wx4.jpg
850 Watt TT Toughpower

http://img329.imageshack.us/img329/3...nale014zm8.jpg
E6850

http://img297.imageshack.us/img297/2...nale015ww4.jpg
Two Raptor X and a 400GB WD

http://img152.imageshack.us/img152/5...nale016wi8.jpg
4GB of G Skill

http://img329.imageshack.us/img329/1...nale017jz4.jpg
DVD Burner

http://img297.imageshack.us/img297/3...nale018lx5.jpg
Nice

http://img297.imageshack.us/img297/7...nale019ld6.jpg
Yep

http://img329.imageshack.us/img329/6...nale020pc0.jpg
Some radiators...two 320s and a 220

http://img297.imageshack.us/img297/9...nale021wt7.jpg
Pumps

http://img512.imageshack.us/img512/6...nale023is8.jpg
Viper John Chipset cooling

http://img155.imageshack.us/img155/2...nale024wg2.jpg
The usual jumble of parts

http://img329.imageshack.us/img329/9...nale025yx7.jpg
Micro Res zzzz zzzs

http://img297.imageshack.us/img297/2...nale026lc4.jpg
VGA Block

http://img72.imageshack.us/img72/720...nale027hq7.jpg
VGA Sinks

http://img512.imageshack.us/img512/5...nale028kk1.jpg
CPU Block

http://img297.imageshack.us/img297/3...nale029fn5.jpg
Fans and more sinks

http://img297.imageshack.us/img297/9...nale030xy6.jpg
RAM cooler

http://img297.imageshack.us/img297/9...nale031pq7.jpg
Rheobus

http://img72.imageshack.us/img72/604...nale032xq8.jpg
Lights

Now at this point I have yet to even talk with FLYINGA2 about what we are doing...so I'm looking at all this stuff and looking at the case and well

You'll see;)

Here's what happens when you leave me alone in a rooom with a perfectly good case...

http://img72.imageshack.us/img72/871...nale034dv4.jpg
C'mere babay....let's see what you're hidin under that wrappah

http://img512.imageshack.us/img512/5...nale035le6.jpg
SHaaaZaam. It's even got a winder!

http://img155.imageshack.us/img155/8...nale039na8.jpg
Hmmmmm

http://img142.imageshack.us/img142/8...nale040yh6.jpg
Stuff...gotta take off the stuff...make room for different stuff...

http://img72.imageshack.us/img72/242...nale041rz7.jpg
That might work.

http://img155.imageshack.us/img155/4...nale042rx7.jpg
Might have to do some slicing to drop the rad below the swept profile...

http://img187.imageshack.us/img187/5...nale044fq5.jpg
A PA 160 fits in the floor of the case like it was meant to be...

http://img512.imageshack.us/img512/5...nale045od7.jpg
Not without hatchetting the drive bay...

http://img529.imageshack.us/img529/3...nale046qf0.jpg
Possible...but where does the air come fom?

http://img297.imageshack.us/img297/6...nale049ul2.jpg
http://img152.imageshack.us/img152/3...nale050ta9.jpg
The steel chassis is rivetted together...but before I start drilling I need to do some more strategizing and probably throw some sparks...while it's still intact...

http://img155.imageshack.us/img155/2...nale052ih2.jpg
That's a lotta parts mang.

More soon:up:

For final assembly pictures: updating soonish

3 big rads, I would like to see this... although I think the Cosmos S is more water cooling friendly interesting what this will be :)

I can't see it either :p:

You could undermount one of the 320s...but the support rails would have to be modified...but it could happen...then the 220 would have to be mounted vertically against HDD cage..if all it does is chipset cooling with a 355 recirculated case air would still work.

It would be nice to have three loops...I'm still cogitating.

You plan on fitting all three of those rads inside the case? Either way looking forward to updates....

Where did you order that model from? Newegg doesn't have the windowed ones... Also, is the front door removable? Would be pretty annoying if you had fan controllers.

Quote:

---

Originally Posted by Loser777

Where did you order that model from? Newegg doesn't have the windowed ones... Also, is the front door removable? Would be pretty annoying if you had fan controllers.

---

The windowed version is a FROZEN CPU mod option...

The front door is hinged w/ option to open from either side: the front door can also be completely removed, so front mounted fan controllers are not a problem.

Nice case :up: Going to start a thread of my latest custom build.. fell in love with the case i used :D :D

Nice table. I wish i had that awsome workspace. Mine is a tiny 80x80 cm table

It's a nice case. I'll get some updates going after I figure out what I'm doing :p:

Nice parts,
i'm waiting for updates!
are you a professional casemodder or this case is you are doing for yourself?
have a nice work!

These case companies never make it easy for us. Why can't they design cases where the radiators are just a drop in perfect fit? I guess that's the reason why MM is in business.

Quote:

---

Originally Posted by IanY

These case companies never make it easy for us. Why can't they design cases where the radiators are just a drop in perfect fit? I guess that's the reason why MM is in business.

---

Cosmos S has good compatibility for 360mm rads in the top of the case with no modding.

its pretty awesome that a pa160 fits perfectly
thanks for the pics

Well I spent a few hours doing layouts and thinking about options and ended up fitting the 320 to the bottom, the 220 to the top and a PA 160 internally.

I was wanting to maintain the stock appearance...and not get some funky looking top that stuck up past the case profile. So I went with the 220 up top as it would fit under the plastic shroud with a little trimming of some webs in the shroud.

The 320 fits without much modification on the bottom and is 90% hidden from view anyway.

The PA fit perfectly in a vertical position against the HDD bay.

I was able to leave a lot of the chassis intact which was the plan.

The RaptorX HDDs are going on display so I am not concerned with the funky HDD trays that slide into the bays. Cooling for the Raptors will be via an inexpensive HDD cooler that screws to the underside of the drive.

This will free up the HDD bays for the pumps...

Have a look.

http://img291.imageshack.us/img291/1...smo2007ek6.jpg
The Cosmos top grills will fit 140mm fans...as you can see that is a huge increase. I happen to have some in stock.

http://img329.imageshack.us/img329/4...smo2031jo5.jpg
I checked the thickness of the rad against the trim and rails (chassis upside down in shot) and found there was sufficient room to mount the rad.

http://img291.imageshack.us/img291/7...smo2036dn2.jpg
I test fit the TT 850PSU and a pair of 120mm fans in the floor of the case. Sure enough CM has allowed enough room for these. It would have been even better if the floor of the chassis did not already have a grill in it..as the grill does not line up to a dual fan location.

http://img401.imageshack.us/img401/6...smo2038jz7.jpg
A little cutting and snipping later and some hammer and dolly work and I had the chassis ready to accept the 320.

http://img248.imageshack.us/img248/5...smo2039uw2.jpg
You can see the rad showing through the vent for the PSU... This is intentional and will use the PSU as one of the three fans.

http://img522.imageshack.us/img522/1...smo2041ow0.jpg
The chassis is sandwiched between the rad and fans...it's a done deal.

http://img187.imageshack.us/img187/9...smo2042ob8.jpg
This old Maxtor indicates how I plan to showcase the Raptors.

http://img248.imageshack.us/img248/9...smo2043yr1.jpg
http://img401.imageshack.us/img401/5...smo2044pg5.jpg
My trusty rusty Fein saw makes short work of opening the bottom trim panel.

http://img291.imageshack.us/img291/4...smo2045ci2.jpg
And trims the bottom rail to accomodate the rad location.

http://img522.imageshack.us/img522/1...smo2046za2.jpg
Everything fits.

http://img401.imageshack.us/img401/8...smo2047jx3.jpg
The trim piece in place...

http://img522.imageshack.us/img522/3...smo2049hv7.jpg
http://img401.imageshack.us/img401/3...smo2050pv7.jpg
I played around with putting a 320 up top but the 220 fits without chopping up the plastic shroud trim... much.

http://img187.imageshack.us/img187/9...smo2055np3.jpg
The rad is attached to the chassis directly. The 140mm fans will provide ample air flow...

http://img388.imageshack.us/img388/1...smo2056dv6.jpg
Another one down

http://img187.imageshack.us/img187/7...smo2058ue4.jpg
Here I am fitting the modified plastic shroud. It's tight...but does fit.

http://img291.imageshack.us/img291/3...smo2059ep6.jpg
I used a red filter...but it could be any color...I might even paint the mesh black.

http://img84.imageshack.us/img84/751/cosmo2060rn7.jpg
There is plenty of exhaust for the rad now that the shroud has a 120mm hole in it..

http://img248.imageshack.us/img248/4...smo2061ud1.jpg
WIth the chassis on it's face I checked the fit of the PA 160 in a vertical location.

http://img291.imageshack.us/img291/7...smo2062eb0.jpg
http://img84.imageshack.us/img84/59/cosmo2063zt9.jpg
Even with the shroud and fan there will be clearance for the largest of GFX cards. There's 10.5" from the backplane to the fan on the shroud.

http://img329.imageshack.us/img329/4...smo2064qs7.jpg
I cut an additional vent into the HDD bay support...but left plenty of meat so as to maintain some structural rigidity.

http://img401.imageshack.us/img401/7...smo2065ft0.jpg
Here I have the rad attached to the bay.

http://img291.imageshack.us/img291/3...smo2067pp5.jpg
As you can see there is plenty of breathing room for the bottom mounted fans and plenty of clearance for the plumbing and HW.

It's going to be tight...but triple loop it is :D

Aproximately ready for paint prep work now...

Goodness, I want to see this one when it's finished....

Quote:

---

Originally Posted by dreamer.redeeme

Goodness, I want to see this one when it's finished....

---

I hear that :D


Here's a short of list of stuff to do:

Takedown (drill rivets) and prep chassis parts for paint
Paint chassis matte black
Reassemble chassis
Lay out and assemble three LC loops
Custom reservoir?
Install HW
Cable management
Test run

Hoping to have this completed mid April.

Looking good so far CyberDruid, like always. This should be a very nice build. What kind of custom res are you going to come up with this time?:)

WOW! A three-looped Cosmos! I can't wait to see how this turns out. CyberDruid, as always, your work is amazing. :yepp:

This looks good. I hate rads mounted outside of the case. They just look horrible and unstable. I think you maximized the space available very well and have come up with the optimum solution. Good job for now. Can't wait to see how it looks when finished...

RE Custom res...I was thinking of making one to occupy two optical bays divided vertically into three chambers...Then put a matte balck face plate over that with three "sight glass" slots...

Might go with Black Red and Clear fluids...

Another option is to use three EK reservoirs and have them mounted in some tasteful manner...I prefer external reservoirs..much easier to deal with.

Amazing. Is this getting 3 GTX? 1? 2? Why not just drop the shroud and put a 140mm on that 160 rad?

That's going to be bad ass!

I love your threads, but it saddens me at the same time b/c I don't have an opportunity (cash flow wise) to even begin to embark on something like this.

Kick ass as usual.

I always have have problems finding a suitable solution to pump placement. I'm interested to see where you manage to put them so that the case still looks nice.

Thanks for posting all the pics. I know that can be a pita, but it really helps out the thread. I can't wait to see the result.

Just came back from AFK...RAD positions are clever and Spot On CD...can't wait to see tubing routes...waddaya think about paint colors guys...internal will be matte black...leaning towards the black/red family; shows off lighting best IMO...
Thank You so much for taking this build CD...guys, this man is the best in the BIZ!:toast:

Go Cd Go:up:

I'll be back into this mod on the 3rd...hang tough.

Very Nice!!

I woundn´t have the courage to cut a cosmos :D

The only problem is we've got to wait till april to see it finished! lol

or May....


JK

great thinkings,

Lots of good idea's. Hope to see more of this soon...
Anyway I think you have done a good job planning the radiator placement so far.

all I can think is "oh boy:shocked: ", can't wait to see this one turn out.

fantastic job!

subscribed

April 3rd, at 15.50 hours. Wheres the update?? :D :D

It looks great so far. Subscribed. Update!! xP

Quote:

---

Originally Posted by smee

April 3rd, at 15.50 hours. Wheres the update?? :D :D

---

Cool update: the special rivets and high strength Rivet gun arrived while I was out of town so I am going to be ready to take apart the chassis tomorrow. Unfortunately it's not painting weather right now: rain and cold.

But I can prep the parts and have them ready to squirt.

a triple loop cosmos you say?

can't wait :)

I've subscribed. I can't wait to see how this turns out. It'll probably be mighty cramped with three internal loops.

Well i didn't want to post on XS until I was able to start posting my build log (why not enter with a bang?)

So anyways Cyber, why not use a 140mm fan on the PA160?
It would allow the shroud to be much smaller, and not jet into the case awkwardly.
Just a suggestion mind you, don't want to step on the mighty CD's shoes. ;)

Well the 140mm fans are pretty good that I got from Petras (Yate Loon) so that's a good idea. I just have so many PA 160 shrouds it was an easy solution...but further down the line I might make up a shroud for a 140.

A quick preface: the chassis is complex...meaning lots of areas to paint/coat and before I took it to pieces I needed to get some special rivets that mount flush. And of course I needed to document the process.

http://img267.imageshack.us/img267/9937/pict9097nm4.jpg
Countersunk rivets...

http://img398.imageshack.us/img398/6215/pict9098gu5.jpg
Looks about the same

http://img80.imageshack.us/img80/7016/pict9099pu8.jpg
http://img367.imageshack.us/img367/9402/pict9100jp9.jpg
http://img147.imageshack.us/img147/1159/pict9101mo3.jpg
Yippers

http://img398.imageshack.us/img398/7788/pict9102tl3.jpg
1/8" drill...lot's of rivets...

http://img267.imageshack.us/img267/944/pict9103kq6.jpg
Before I took the chassis to pieces I wanted to see how much removing the HDD mounts would effect the structure. This area could be better used for pumps and to showcase the Raptor X HDDs...no need for the HDD mounts at all...

http://img301.imageshack.us/img301/2449/pict9104sg5.jpg
Lot's of rivets later...

http://img396.imageshack.us/img396/3244/pict9110ho4.jpg
Part of what I enjoy about taking things apart is seeing the thought some designers put into it. The Cosmos is etremely well made. Every part keys together with a specific combination of rivet hole and detent. It's virtually impossible to put it together wrong...if you are paying attention.

http://img267.imageshack.us/img267/2594/pict9113eo1.jpg
Here's another HDD mount that I can remove...it reveals a 90mm grill! Perfect. I need to vent the PA160 upward...and this will do it.

http://img398.imageshack.us/img398/5513/pict9134kn1.jpg

http://img147.imageshack.us/img147/9289/pict9135wx0.jpg
Something like this will allow me to keep the structure intact and still p;romote an exhaust "breeze" for the PA160. The WD 400GB HDD will mount on Scythe AntiVibration Mounts directly above and catch the cooling..win win.

http://img396.imageshack.us/img396/8941/pict9124mh7.jpg
The retainer mechanism is a sliding rail that has a number of parts..

http://img367.imageshack.us/img367/1592/pict9125tn6.jpg
A small spring...9 times out of ten these are the things that go flying across the room right?

http://img120.imageshack.us/img120/5065/pict9126jz3.jpg
I used the knife to gently pry the rail over it's detent to slide it free...

http://img367.imageshack.us/img367/8656/pict9127ko3.jpg
The only part that gets pain is the outer part of the rail assembly.

http://img383.imageshack.us/img383/2448/pict9128dq9.jpg
Tagged and bagged...

http://img267.imageshack.us/img267/1425/pict9129ll6.jpg
http://img120.imageshack.us/img120/9086/pict9130vm3.jpg
http://img398.imageshack.us/img398/3060/pict9131ym0.jpg
http://img120.imageshack.us/img120/7590/pict9132qt4.jpg
Anyway you look at it that's a lot of surface area.

Headed over to the Powdercoater for a quote.

:up:

woah you ripped it apart, hehe. Looking forward to see some more pics. :)

wow poweder coated ... i wonder what that will cost ???

It's not the powdercoating service that is expensive: it's me taking the case apart, putting it back together and the time involved.;)

For something simple like this which is just satin black I got lucky: the place is doing a bunch of parts so doing mine with them is expedient.

There are literally thousands of colors to choose from...and textures. Everything you can imagine really.

Some of the nicer finishes are three coats: base, color, clear...so they are triple the cost in material.

Add to that the interesting colors that need to be ordered in are an extra expense....then triple that extra expense for the process.

Sooo this particular job is not too expensive...and beat painting them.

But for a really custom coat it might be cheaper to paint...

Great job so far CyberDruid.
Way to go man ;)

Can't wait to see this baby finished.

Got the parts back this AM and they are perfect. I am loving it...super fast turnaround, excellent workmanship...I'll be sending them all of my powdercoating work from now on.

Putting the case together this PM and will be posting some shots of the glorious satin black (color code: Cascade) chassis.

I'm getting a 'Ferrari Red' Cosmos tomorrow (for £50!) and because the Tubby Custard Machine (named after the pink coolant mix I use) needs a bigger home (can't fit my Meanwell clone TEC PSU), the red goes nicely with the sofas in our living room, the wife approves and gave me the retro idea and a Cosmos 1000 for £50 is a bargain.

I'm planning to do a Retro-Futurist make over incorporating analogue dials, shiny polished copper cooling pipes with glass view ports, blood red fluid.

One major mod I plan to do to the case is to cut access holes in the motherboard tray behind ti CPU, VRMs, Northbridge & Southbridge. Will this have a negative impact on EMI (received or transmitted) or structural integritty?

Who are you getting that form for 50 pounds?

That is definitely a steal.

Tubby Custard lol....send the Noo Noo over to my shop...

Well guys I was really hoping to report better news but the Damned Powdercoat shop LOST one of the key parts: that part pictured above that has the PA160 attached to it.

The part also supports the optical bay sides, motherboard tray, attaches to the front and bottom panels and basically makes the chassis rigid.

I discovered this after I started assembling the chassis and called and they looked but did not find the part.

So I bought another Cosmos case just to get the part.

Not a happy monkey about this turn of events but my #1 prioroity is to get the job done regardless of obstacles.


This makes another delay and I appreciate flyingA2 for hanging tough while I await the new case.

TBH I never want to see those powdercoat people again...but they are going to have to coat the new case for me...and I will replicate a part from acrylic for flyingA2's case once I have the new piece to work from.

Lucky for me I already have the new case sold and will just need to take it apart long enough to get the dimensions of the piece.

Seems like every build has some challenge to hurdle...

Hey Cyber, which part is it they lost as i have pretty much the entire internal bits from the mini cosmos i just did (all be it a little bent ish as care wasn't a high priority when disassembling) but your welcome to anything that might help you out.

Definitely waiting for the post-powder coat pics. This is gonna look hot.
I wonder what a teflon coating would look like? Aside from the expense, which I assume would be high, I wonder if teflon would promote "slick" airflow.

Quote:

---

Originally Posted by coolmiester

Hey Cyber, which part is it they lost as i have pretty much the entire internal bits from the mini cosmos i just did (all be it a little bent ish as care wasn't a high priority when disassembling) but your welcome to anything that might help you out.

---

Very kind of you to offer. I am going to make a part from acrylic using one from the new case (which just arrived) as a pattern.

Quote:

---

Originally Posted by zodiac

Definitely waiting for the post-powder coat pics. This is gonna look hot.
I wonder what a teflon coating would look like? Aside from the expense, which I assume would be high, I wonder if teflon would promote "slick" airflow.

---

Non stick coating..WTH it might alleviate dust build up too:shrug:

Once again I gotta hand it to Provantage.com for having a great price and super fast shipping. Two days by UPS Ground is pretty nice.

I'll tear down the new case and geet the part out and use it to design and fab up one from acrylic that will also be a shroud for the PA160 and a 140mm fan. This part will also hold, cool, and display the two Raptor X drives so it's a complex item...an it's structural because it supports the HDDs, ODDs, attaches to the mobo tray the bottom and front panels...

I have the chassis rivetted together except for the top panel. This way I have all the parts almost in proper alignment and I can easily test and mount the acrylic part.

I'll take some shots of the chassis today. It looks good.

http://i302.photobucket.com/albums/n...odump08224.jpg

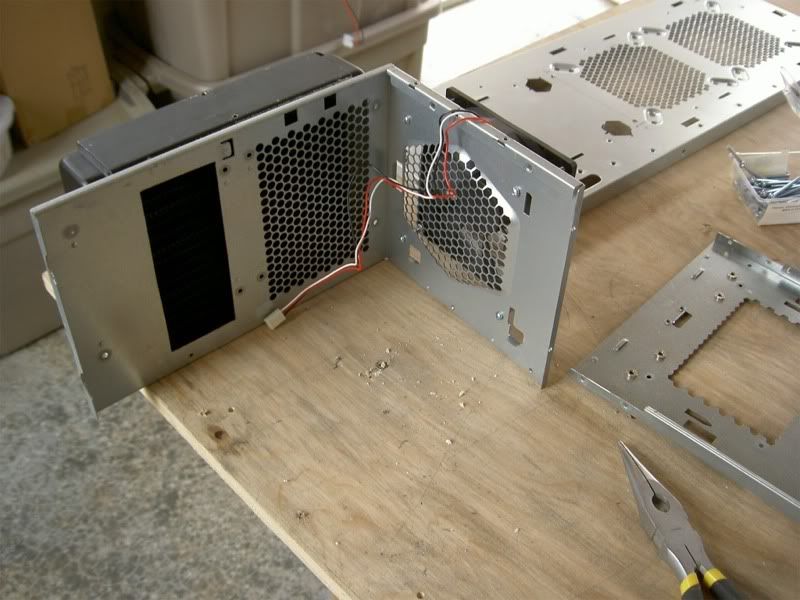

The lost part...damnation that still irks me.

http://i302.photobucket.com/albums/n...odump08231.jpg
The new case I bought just to get that part for dimensional purposes.

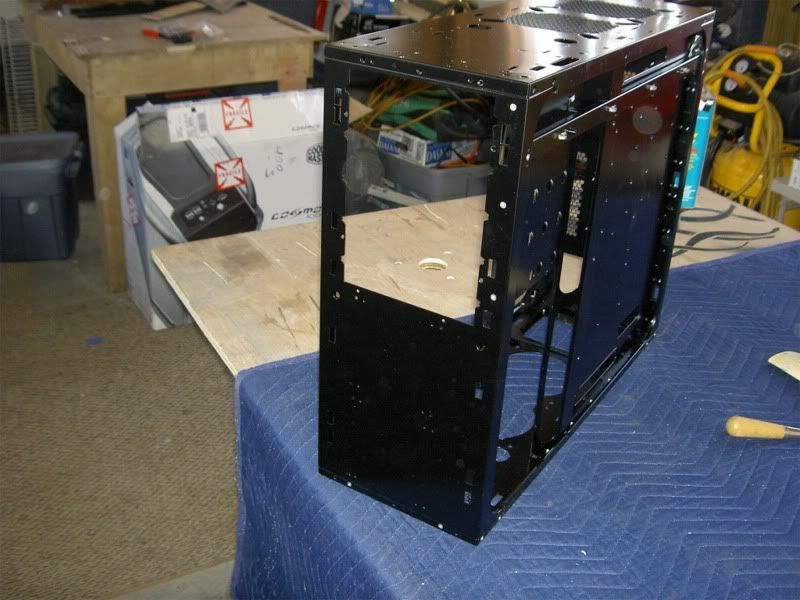

http://i302.photobucket.com/albums/n...odump08232.jpg

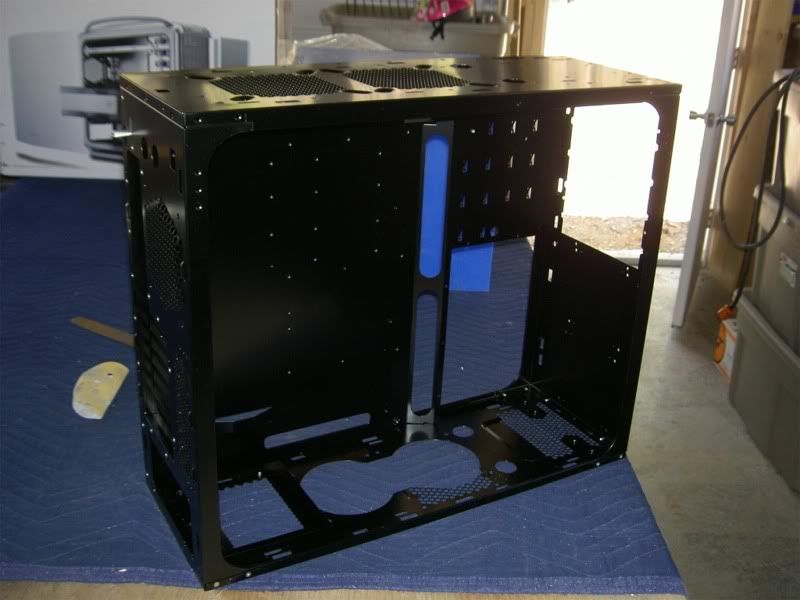

.http://i302.photobucket.com/albums/n...odump08233.jpg

http://i302.photobucket.com/albums/n...odump08234.jpg

http://i302.photobucket.com/albums/n...odump08235.jpg

http://i302.photobucket.com/albums/n...odump08236.jpg

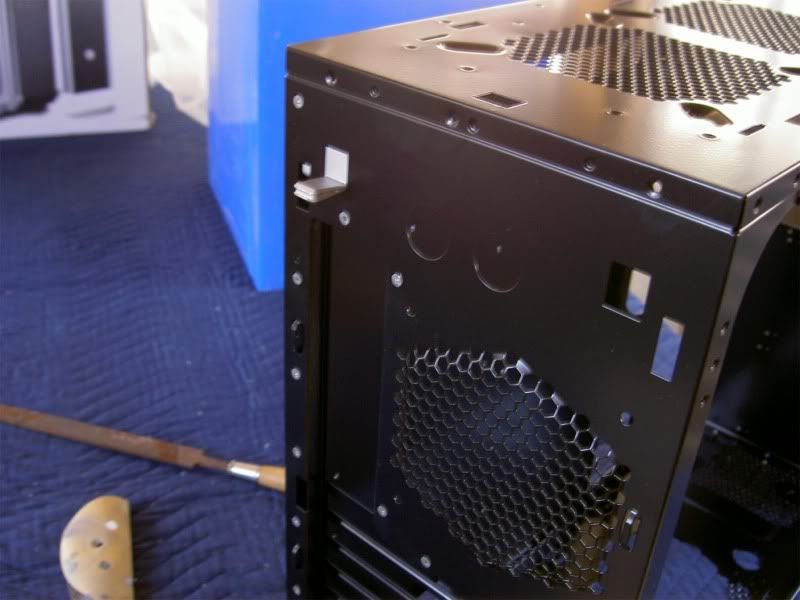

http://i302.photobucket.com/albums/n...odump08237.jpg

So the next step is to take apoart the new case...which I will do in a few minutes...

teh hotness...

(if you did teflon, or another kind of non-stick, you'd have to call your PC the "teflon Don"....sh1t doesn't stick to it LOL).

Maybe even duracote...like you'd do to a .45 cal 1911.

TBH the stock finish on the Comsos chassis is really nice for a PC chassis... but this color suits the theme of the build best.

LMAO
http://www.darkroastedblend.com/2007...case-mods.html

Holy crap^^

Quote:

---

Originally Posted by zodiac

LMAO
http://www.darkroastedblend.com/2007...case-mods.html

---

brain overload...

awestruck and depressed, simultaneously. :)

I better get ready to do a Patent on this idea... ROF

Dig this -> http://www.frypanman.com/how.html

Their prices are reasonable!
I seriously feel that this would be a feasible coating to do some test on.



My inquiry via email...



This is a serious inquiry...

I was wanting to know if it is possible for you to teflon coat
the interior (dismateld into pieces before shipping of course) pieces
of an aluminum PC case? My cohorts and I are looking into this as a
highly slick, and dust resistant coating to promote "slick" airflow and
fewer cleanings. I can provide dimensions and number of pieces if this is possible.


Thank you sincerely,

(name with held for obvious reasons)

Holy smokes @ Dark Roasted Blend site...

i quit...

response from "fryingpanman":

Hi,

I don't see any reason why not. You can send descriptions and sizes if you like.

Thanks
Mitch Behrens
----- Original Message -----
From: "Lisa Castleman" <cii@teleport.com>
To: "Behrens" <MitchBehrens@onemain.com>
Sent: Thursday, April 17, 2008 2:09 PM
Subject: FW: Teflon coating a PC case?

Suhweet.
That would be great if it worked!

What a thought...and if you want you could connect heatpipes from the processor and GPU to the case and use it to cook eggs.

just make sure you use wood or one of thems new fancy spatulas form OxO

http://img175.imageshack.us/img175/451/yarlyld6.jpg

Nyuck Nyuck

But Siriusly

I got the new case taken apart and have pretty much figured out how to make up the acrylic part...it's going to be a royal PITA...especially with the HDDs mounted in there in some removable manner...

I should just hot glue them in place :p:

Once the electrician clears out I will start running some plastic through the saw..

Oh to have a metalworker nearby....

Quote:

---

Originally Posted by CyberDruid

Oh to have a metalworker nearby....

---

Or better yet a CNC mill... or 3d printer.

bah... to have Home Depot as your workshop... one can dream, right?

This thread is one of the main reasons I joined up the other day. Been lurking for awhile. Great info, as I'm planning a major cosmos mod myself (out of all proportion to my skill level). Loved the disassembly. Sucked about the lost part. Anyway....

Q:

Just by touch, tap, knock etc. I can't figure out if those 2 bottom rails are metal or just some kind of dense plastic? Am curious which one it is?

Thanks.

:up:

Metal.

Found the part...

Sending the second case for the same treatment.

I own a Cosmos 1000 and have a question. I'd like to spray the inside of my Cosmos to black (using paint) but does it affect the thermal aspect of it since aluminium reduces heat a lot better?

Initial observation shows that my CM690 gives better temps/air flow compared to my stock Cosmos :(

Cosmos 1000 chassis is steel, not aluminum.

Cyber - wondering if the CPU is as good as the 6850 that I sent you?... Have you tested it yet?

Quote:

---

Originally Posted by TedShred

Cosmos 1000 chassis is steel, not aluminum.

---

Ok, it's made from SECC so would it affect thermal capability of the casing if I spray it black with paint?

Quote:

---

Originally Posted by aoch88

Ok, it's made from SECC so would it affect thermal capability of the casing if I spray it black with paint?

---

I guess that was the point of your query, sorry. My gut feel is that any effect would be negligible? I'm planning the same thing, though, so it would be excellent if someone could confirm my guess.

No worries Ted :) I know that the paint would form a layer over the SECC/aluminium and if it traps the heat then there's no point to do it. Not to forget that black absorbs heat the most, lol.

I'm guessing it won't cause too much of a problem, but I suppose that's really only because I've seen so many (skilled) people do it.

I was thinking the same thing about the absorption, but it occurred to me - isn't it the case that black just absorbs light the most? So here it'd be okay? Note: i failed science class.

LOL, I'm just as confused when it comes to the laws of heat, etc. My physics and maths sucks. I guess we'll just have wait for someone to respond. Btw, most of the paint produces glossy finishing and I'd like the inner part to have matt finishing instead.

You'd think I'd be better at this stuff, considering all the classes I took 2 or 3 times.:D

gl on your case project. Oh, if you haven't poked around inside the cosmos much yet, be careful - i've never seen a finished product with so many sharp edges. (Got a wicked gash groping blind around a corner.)

Cheers

(I'm wrestling with the gloss/matte decision myself)

Black does not reflect light, meaning it absorbs the UV, Which causes heat.

Honestly, you would be very hard pressed to notice any difference between a normal coloured case (or even one that has a reflective inside) and a case with black insides. The amount of heat dissipated from the actual case itself is so small that it simply won't make any difference. You'd see bigger changes in temperatures just by tweaking airflow inside the case.

Eller

That sounds reasonable. You know, I'm also thinkin' that, if there were any noticeable difference, we'd probably be seing ads for all kinds of "extreme gaming paint." ;)

Quote:

---

Originally Posted by TheGoat Eater

Cyber - wondering if the CPU is as good as the 6850 that I sent you?... Have you tested it yet?

---

I seriously doubt it. That was a very nice CPU you sent me. THat booger was Folding stabe 24/7 at 4ghz...a first for me. I ended up selling it and the killer Voltmodded P5K3dlx with total Chipset LC as a package on a techstation I had built last year. Reports back say it's still running strong.

Quote:

---

Originally Posted by Hor$eman

Black does not reflect light, meaning it absorbs the UV, Which causes heat.

---

Sorry Guy UV does not cause heat, your thinking of infrared wavelengths. Black absorbs all wave lengths of radiation, it also will release heat faster than any other color, matte black especially.

Ok, what's the conclusion? :D I believe it doesn't make a lot of difference spraying the inner part of the case to matt black?

You know, there's so much mention of black interior paint, without mention of any thermal issues, in the painting 101 sticky that I'm positive there's little or zero diff.

Cheers

The only real difference is the case will warm up to its maximum temp slighly faster. On a pc running 24/7 it's not going to make much difference unless the outside is also painted matt black. Then the material the case is made of is also has thermal resistance so an aluminum case painted matt black inside and out will transfer the heat to the outside of the case slightly faster but not enough to make any real difference.

Quote:

---

Originally Posted by CyberDruid

I seriously doubt it. That was a very nice CPU you sent me. THat booger was Folding stabe 24/7 at 4ghz...a first for me. I ended up selling it and the killer Voltmodded P5K3dlx with total Chipset LC as a package on a techstation I had built last year. Reports back say it's still running strong.

---

Good to hear - now that I am getting into extreme cooling I was wondering what became of that chip thinking that it would end up being premo for DICE or LN2:up:


The case is looking friggin awesome BTW and your skulltrail system leaves me speachless;)

Quote:

---

Originally Posted by aspire.comptech

Who are you getting that form for 50 pounds?

That is definitely a steal.

---

Perk of the job:p: !

Quote:

---

Originally Posted by TedShred

You know, there's so much mention of black interior paint, without mention of any thermal issues, in the painting 101 sticky that I'm positive there's little or zero diff.

Cheers

---

In theory it could aid cooling, in practice it probably only helps in underventilated systems.

Teflon is a nice idea though!

http://img168.imageshack.us/img168/5...mos2012hd3.jpg

http://img242.imageshack.us/img242/1...mos2013xm5.jpg

http://img291.imageshack.us/img291/6...mos2014ek9.jpg

http://img337.imageshack.us/img337/3...mos2016xj4.jpg

http://img168.imageshack.us/img168/8...mos2017nd7.jpg

More soon

ooooh nice

Very nice. Out of curiosity, I know the inside was black powdercoated, however is the exterior blue powder as well?

Great build so far :)

man i wish i had mad skills like that

Naw it's just reflecting my Blankie

Thanks guys. Here's some entertainments (not really)

http://www.youtube.com/watch?v=l92o5JEDCqU

http://www.youtube.com/watch?v=vTIyOCXzIj8

add >> &fmt=18 << to the end of the youtube URL and match it in higher quality ;)

Very nice CD.

I have a question: how come you didn't use black rivets? I would also like to suggest that next time, and for the sake of upping viewership, you consider riveting to the beat of the music. :)

ha ha ha CD the crazy dancin modder...

CD are these just for yourself or do people pay you for these?
