Maximus Extreme - Results/Info/Bios

Hey, Im going to get my hands on one of these on tuesday, and thought a thread about this mb could help, have noticed that some people allready got one, and more will i think :)

so please post some results and findings etc etc :)
will update with results on my own soon...

Heres some pics and info.

Latest Bios Available: 702 - http://dlsvr01.asus.com/pub/ASUS/mb/...eme/ME0702.zip

http://www.bit-tech.net/hardware/200..._and_extreme/4

* Support for Intel LGA775 processors, including the latest 45nm with 800MHz, 1,066MHz or 1,333MHz front side bus
* Intel X38 Northbridge
* Intel ICH9R Southbridge
* Support for up to 8GB DDR3 1,333MHz, 1,066MHz and 1,800/1,600MHz OC memory modes
* Three PCI-Express x16 slots with support for ATI CrossFire technology - either dual graphics PCI-Express x16 at Gen-2.0 or three-way CrossFireX at x16, x8, x8 with the x8s at Gen-1.0
* Two PCI-Express x1 slots
* Two PCI 2.2 slots
* Six SATA 3Gbps ports with Intel Matrix RAID 0, 1, 0+1 and 5
* JMicron JMB363 chipset providing one PATA port and two eSATA 3Gbps ports
* Two Marvell PCI-Express x1 Gigabit Ethernet with teaming function
* Asus SupremeFX II Audio Card with ADI SoundMAX 1988B HD audio codec
* Two Firewire and 12 USB 2.0 ports
* Fusion Watercooling Northbridge Block
* Asus EPU, LCD Poster, AI Gear 3, AI Overclocking, AI Booster, OC Profile, Voltimeter LED, Asus C.P.R, Asus Q-Connector, Asus Q-Fan 2, Asus EZ Flash 2, Asus CrashFree BIOS 3 and Asus MyLogo3

Bios 702 was removed from Download by ASUS. 802 and 901 are the latest with 901 being BETA. I know you can still down load the Bios 702 from the link you provided but from the Main web site it was removed because of problems!

aha ok, noticed... will change ...but it was still on the site when i put the link there :)
its still in bios as usual on download?

cant find any of that bios you are talking about .. look for yourself :)

now i see, you have mixed FORMULA up with the EXTREME edition.. :)

:hitself: MAXIMUS That's all my eyes looked at and my brain had a :fart:

woaw this mobo better than "big" regular size.... two chip one passive cooling....

still no Esata on the back.

below is link to asus ftp for the maximus extreme software and bios

ftp://ftp.asus.com/pub/ASUS/mb/socke...ximus_Extreme/


latest bios as of 26/11/07 is 802 which i have installed no really obvious benefit but is penryn ready as it allows for .5 multipliers,
500+fsb no problem on this board as with most p35 and x38, really fast board for crossfire paired with ddr3, i can run the pc15000 at 2000mhz plus on this board and pass memtest in windows on stock volts which is 1.9v on these patriots at 9 9 9 28 , still exploring the bios really , lot in here ,

if anyone knows of a new 901 beta bios

anybody whos thinking of replacing the thermal paste on the northbridge do it before you use the board as the paste used set like rock once used a bit

whipped this off the asus formula thread gives some good explanations of bios options
http://www.anandtech.com/cpuchipsets...spx?i=3156&p=4

any other helpful info i'll post on here ,

personally can't take my e6850 any higher than it was on my p5w dh just over 4 gig so maybe cpu limit or some other bios setting i haven't figured out although i can run this board at the 8 multiplier over 500fsb stably

Aahhh! :D that was what ive been looking for the 8x500 and ddr2000 STABLE
my p5e3 cant handle 500fsb, tough my cpu CAN handle 4ghz 16h stable..but not on this board! looking forward to play with this, its goin to be my wolfdale board when it gets out :)

is it needed to change the paste on the nb?

if you check on pc probe the ram seems to get overvolted so 1.9volt set in bios shows 1.97volt in pc probe , i would change the paste as on my motherboard it was like this, half on half off and on the s/bridge and crosslinks itr had those crappy thermal pads if you were going to put replacement paste on the mofsets use artic ceramic instead of artic silver 5 as its a non conductor, i am using the watercooled fusion block as well , seems a good motherboard to me always resumed from over ambitios overclocks, mines still a bit flakey yet still playing about with settings, theres so many

http://gbwatches.com/pics/Dscn0645.jpg

I've had mine for a few days. Early observations:

According to PC Probe, FSB Termination voltage seems to overvolt -- watch out for that one.

403 has been the best overclocking bios for me so far.

450 fsb with 1:2 ratio runs great off the 266 strap, nice low latencies.

My first time taking a quad core (q6600) to 500 fsb. :D

Quote:

---

Originally Posted by safan80

still no Esata on the back.

---

there are two eSATA ports on the I/O panel

Pics: http://www.bit-tech.net/hardware/200..._and_extreme/7

I see 2 MB Temps? what's that about?

looks like MB and NB to me

have you got your maximus setup now infa , whats your max cpu clock compared to your other boards,same , not as high, higher thanks

Quote:

---

Originally Posted by GLENBOY

have you got your maximus setup now infa , whats your max cpu clock compared to your other boards,same , not as high, higher thanks

---

Also interested in this, currently have an E6850 maxed at 3.915 on a P5B Deluxe. Expecting my Maximus Extreme any day now, not sure weather to fork out for a Q6600, or maybe stick with E6850 and wait for 45nm? Also looking at that Cellshock Memory, seems to be getting good reviews!!

Quote:

---

Originally Posted by peterpiper

Also interested in this, currently have an E6850 maxed at 3.915 on a P5B Deluxe. Expecting my Maximus Extreme any day now, not sure weather to fork out for a Q6600, or maybe stick with E6850 and wait for 45nm? Also looking at that Cellshock Memory, seems to be getting good reviews!!

---

i'd stick with the 6850 for now the new cheaper 45nm quads are out in roughly a month

Just after reading on another thread that the new yorkies (non qx) are multi locked!

http://www.xtremesystems.org/forums/...d.php?t=163625

Quote:

---

Originally Posted by GLENBOY

have you got your maximus setup now infa , whats your max cpu clock compared to your other boards,same , not as high, higher thanks

---

Im picking it up today at the postal office..
hope that i will mount it today and get it ready :)

I know i can do 4ghz stable atleast on any board..
and 4.2 in 3dmark benches etc..
will post some results later.. :)

And yeah, the cellshocks are great!! its board limited so far... but 2000+ is no problem for the mem itself!
couse i have crash in windows at 2000+ its probably the NB that cant handle it.. couse it is error free in memtest :)

EDIT: you above said, that the temp showed, MB and NB, i thought that MB temp was the NB temp? so what are the MB temp then if not NB..?

new 803 bios just posted on asus go to the ftp link in my post higher up to get it

Thanks Glenboy, will give it a try. :up:

803 bios is the best bios so far , load line calibration works perfectly , seems perfectly stable at 4090 and booted in at that thats at 1.5875 set in bios shows 1.58 in pc probe and 1.576 in cpuz i watched it while doing 1meg super pi and it stayed at that no vdroop
http://gbwatches.com/pics/maximus.jpg

Now im on my Board :) Feels nice so far..
Bought a Silvertone DA750 at the same time..
my 12v were about 11.59 before hehe...now 12.15 stable :P

anyway, What is the MB temp , where does it measure that?

now in with new bios and OC!

glad to see your in the maximus club the 803 bios is a lot better than previous , just superpi'd at over4.2ghz at 1.6volt , with the other bioses i needed around 1.65 volt just to be stable over 4ghz so whatever asus has done has done the job, if you get an error with pc probe after a crash just reinstalling it solves it, loadline calibrator works rock solid shows slightly lower values than reported in bios but rock solid and never moves, not a lot more time tonight to play about with it but seems a winner to me

Quote:

---

Originally Posted by Infa

Now im on my Board :) Feels nice so far..
Bought a Silvertone DA750 at the same time..
my 12v were about 11.59 before hehe...now 12.15 stable :P

anyway, What is the MB temp , where does it measure that?

now in with new bios and OC!

---

i think the motherboard temp is the pwm measurement

Quote:

---

Originally Posted by GLENBOY

glad to see your in the maximus club the 803 bios is a lot better than previous , just superpi'd at under4.2ghz at 1.6volt , with the other bioses i needed around 1.65 volt just to be stable over 4ghz so whatever asus has done has done the job, if you get an error with pc probe after a crash just reinstalling it solves it, loadline calibrator works rock solid shows slightly lower values than reported in bios but rock solid and never moves, not a lot more time tonight to play about with it but seems a winner to me

---

http://gbwatches.com/pics/supmax.jpg

New bios plays well with yorkfield. 4.4 Ghz on water and I haven't even started pushing it yet:

http://i90.photobucket.com/albums/k2...0x10QX9650.jpg

FSB Term overvolting issue I had before seemed to be a function of early bios; with latest bios FSB Term drops around .04v for me from bios to actual, according to PC Probe.

nice one, only 1.504 volt as well is the load line calibrator working ok on the yorkfield

Quote:

---

Originally Posted by GLENBOY

nice one, only 1.54 volt as well is the load line calibrator working ok on the yorkfield

---

Yes the loadline calibration is working very well now ... vdrop is maybe .01v at this setting, with another .01 vdroop under full load. So far very pleased with the board. :up:

hi,
i have a probleme with this board and corair dominator 1800 cl7
i have test every thing but i can´t run the ram on 1800.
450x6 ram1200 works perfekt
450x6 ram1800 don´t work
the problem is that memtest says 0 errors but 3dmark and prime hangs on at 5-10sec.
i have test bios versions 701,702,802,803 and nothing works.
i have test default settings and i have the same problems.
is the board bad or the ram? or are you thinking that the cpu are bad?

sorry for my english.

greetings kowa

hiya kowa
what speed are you running 3dmark at and what processor , i have the patriot pc15000 and can bench 3dmark01 at 2012mhz , the board tends to overvolt the ram according to pc probe i get errors on memtest when i run the ram at 2.0v but at 1.94 volt no errors,what volts are you giving the ram 2.0volt ? so if you think its the ram at fault slightly lower the volts on ram and try it

@glenboy
ich have a e6600
i have set 1,94v(real 2v) because when i set it to 2v it becomes 2.06.

i become next week a q6600 pretested @ 4,05ghz (450x9) stabil.

bios settings:
all settings are the maximum that i have tested.


cpu 1,6(real 1,56)
cpuvtt 1,65
fsbt 1,46
nbk 1,45
sbk 1,07 (real 1,075)
sb pll 1,52
dimm 1,94 (real 2), i have test 2v(real 2,06) but the same problem.
dimm vtt auto.
pci 110

cpu features all disabled.
temps from cpu mb gfx ... are ok!
cpu,mb,gfx,hdd are @ watercooling.
here a link to my system
http://www.sysprofile.de/id46864

edit:
i have test 1t and 2t. the same problem.


memtest works with 0 errors! everthing perfekt. but 3dmark games or prime hangs on.

kowa, honestly I believe this is an issue with the Asus X38 boards. I had a P5E3 Deluxe with the same 1800 C7 Corsair ram. It would boot at 1333 but no higher, no matter what timings or voltages I used. I knew the ram was good because I had used it on a P5K3, so I traded the P5E3 board for a Maximus Extreme. The Corsair runs fine for me on this one, but I have seen at least 3-4 other reports around the web (besides mine and yours) of folks having boot issues with Corsair 1800 C7 + Asus X38.

How is hot PCIe chip? I am building rig with this mobo, but i want to use my watercool setup and i have only TWO chipset blocks ... ONE for NB, ONE for SB ... is it necessary to active cool that IDC chip?

Dont know how warm it is, couse there are no sensor for the crosslinx, that im guessing that you mean, but putting my hand on the BLue cover, it feels pretty warm.. NB keeps around 40ish MB, that may be the PWM, keeps lower than 40.. SB around 40 too.. and this with a fan blowing over the Sinks.

it gets pretty warm, even if it works the fuzion are the way :)

i need to know how hot is only PCIe chip, not with SB under blue heatsink ... but only way to test it is disassembling of cooling system and touch the IDT chip ... :mad:

Quote:

---

Originally Posted by Aivas47a

kowa, honestly I believe this is an issue with the Asus X38 boards. I had a P5E3 Deluxe with the same 1800 C7 Corsair ram. It would boot at 1333 but no higher, no matter what timings or voltages I used. I knew the ram was good because I had used it on a P5K3, so I traded the P5E3 board for a Maximus Extreme. The Corsair runs fine for me on this one, but I have seen at least 3-4 other reports around the web (besides mine and yours) of folks having boot issues with Corsair 1800 C7 + Asus X38.

---

big thanks. now i have my q6600.now i can run it @ 9x425 and the ram 1700mhz 7-7-7-20 1t prime stable. i test next weekend more. i report the results.
but with 1800 the board starts and windows too but not stable.
the bios version 803 is very very good.

I cant Downgrade the bios, Ezflash says its older than existing (ofcourse) but it should work anyway? been working all the time until this MB :)

Quote:

---

Originally Posted by Infa

I cant Downgrade the bios, Ezflash says its older than existing (ofcourse) but it should work anyway? been working all the time until this MB :)

---

You must have went to 0803 and want to go back to 0702.Just reflash with 0803 and interrupt the writing of the flash with the reset button.This board has crash free bios so put your disk in the dvd and a usb flash drive I a usb port with the bios you want it to write.Just rename it extreme.rom and you can go back.I have done it several times.

I have had this board for 3 weeks with a QX9650 and corsair 1800 C7DF on phase stable at 440x10 with the vcore on auto for some resone I cant raise it but I know it just a bios setting.

regards lowbid

:confused: How much volts You guys give to the NB? I set it to"AUTO"and at 9x467 (RAM 934MHz at 7-6-5-15 / 2.144 volts) the board set 1.52. This was even not 1M stable......:mad: - so I tried 1.55 now and 1M & 2M is stable, but 4M did not complete. Seems the board needs hi voltage on the NB - maybe I should try 1.6?:shrug:

At 9x445 with the same RAM settings (RAM 2.000 volts) the board is 32M stable with only 1.44 volts on the NB. Makes me wonder......:confused:

Any ideas?

:welcome:

yeah these X38 seems weird actually.. in some things..

seems rather tricky to find out what will work..

http://www.anandtech.com/cpuchipsets...spx?i=3156&p=4 I know this link is for a P5E3, but the I linked into it googling the Maximus Extreme. Bios looks the same. Good Detail and suggested settings for a leg up!

Quote:

---

Originally Posted by camouflage

:confused: How much volts You guys give to the NB? I set it to"AUTO"and at 9x467 (RAM 934MHz at 7-6-5-15 / 2.144 volts) the board set 1.52. This was even not 1M stable......:mad: - so I tried 1.55 now and 1M & 2M is stable, but 4M did not complete. Seems the board needs hi voltage on the NB - maybe I should try 1.6?:shrug:

At 9x445 with the same RAM settings (RAM 2.000 volts) the board is 32M stable with only 1.44 volts on the NB. Makes me wonder......:confused:

Any ideas?

:welcome:

---

Camo, my board definitely needs to have the NB voltage cranked up when the fsb gets up to 450+. At 10x400 fsb (yorkfield processor) I'm good with NB at 1.4; at 450, NB needs to be 1.61.

Yes all this info will help I hope as I should have mine in the next 4 days:shocked:
Intel Core 2 Quad Q6600
ASUS MAXIMUS EXTREME
G.SKILL 4GB DDR3
Radeon HD 3870 ... X2
Creative X-Fi
PC Power & Cooling Silencer 750 Quad (Crossfire Edition)

Quote:

---

Originally Posted by kowa1981

hi,
i have a probleme with this board and corair dominator 1800 cl7
i have test every thing but i can´t run the ram on 1800.
450x6 ram1200 works perfekt
450x6 ram1800 don´t work
the problem is that memtest says 0 errors but 3dmark and prime hangs on at 5-10sec.
i have test bios versions 701,702,802,803 and nothing works.
i have test default settings and i have the same problems.
is the board bad or the ram? or are you thinking that the cpu are bad?

sorry for my english.

greetings kowa

---

Have you tryed the hotfix for 3dmark ???http://www.futuremark.com/download/hotfix_oct07/

thanks mitolo but i have this hotfix installed before.
the problem is that prime95 have the problem too.

i wait for a new bios. i hope that the new bios run faster...

Quote:

---

Originally Posted by Aivas47a

Camo, my board definitely needs to have the NB voltage cranked up when the fsb gets up to 450+. At 10x400 fsb (yorkfield processor) I'm good with NB at 1.4; at 450, NB needs to be 1.61.

---

:D Yep - have exactly the same, 1.61 to the NB for 9x467 SP32M stable.

DDR2 X38 on P5E only needed 1.43 to run this stable..............:confused:

:up:

9x467 stable is a great result for these chips so far. :up:

GF is making me stick mine under the christmas tree!! I'll have to wait another 2 weeks..sniffle, sniffle..

Im having a HELL of a time with this board and the OCZ DDR3 PC3-12800 Platinum Dual Channel.

Running it with SS on CPU, Water on Nbrige and a E6850.
ALL the time when I change somthing in bios, it has boot problems.
I will have to start from scrats once more, if I cant make it run I will take some bios pictures just to make sure im not messing somthing up.

Quote:

---

Originally Posted by OBR

i need to know how hot is only PCIe chip, not with SB under blue heatsink ... but only way to test it is disassembling of cooling system and touch the IDT chip ... :mad:

---

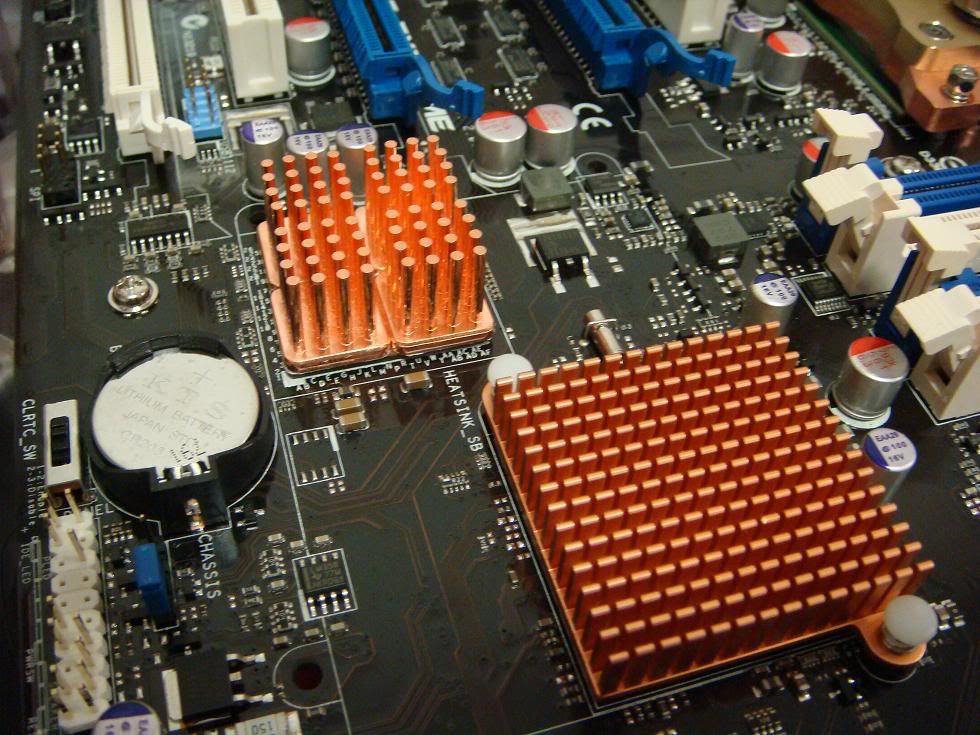

The IDT chip is not very warm to be honest, at least when it is not working to split the second PCIe 16x lane. I placed 4 Swiftech Memory coolers on it just to make sure: (that SB heatsink was taken from an old Asus P5B :D)
http://i225.photobucket.com/albums/d...ntasy_86/1.jpg

Using an infrared thermometer, it is at around 33 degrees, which is just 2 degrees higher then the motherboard PCB next to it.

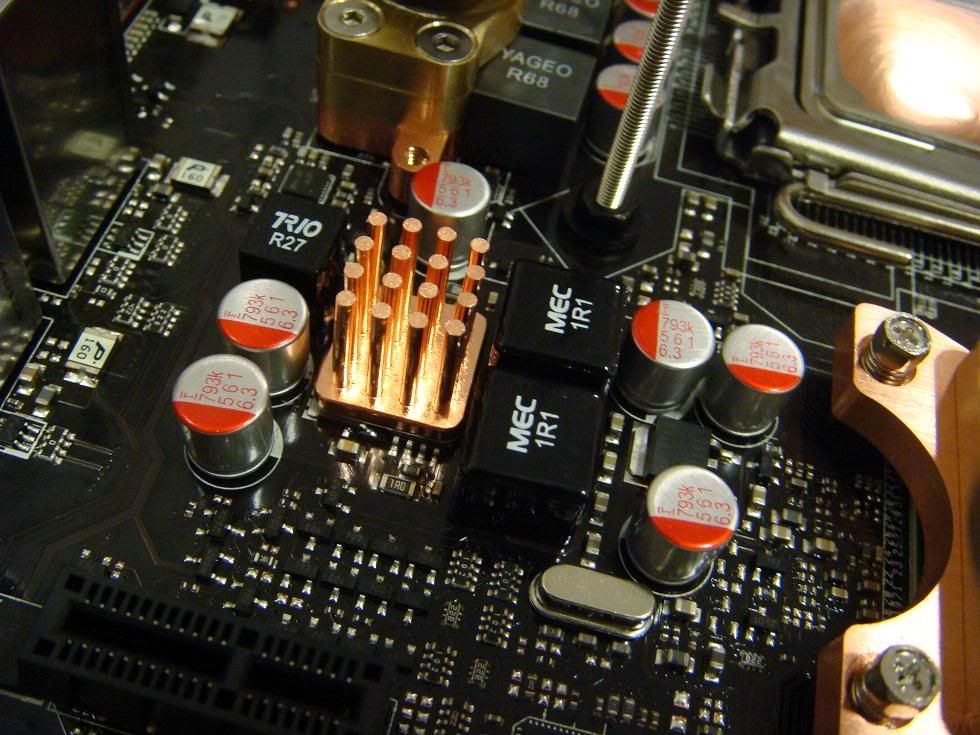

While I was at it I discovered that the FETs for the Northbridge was really hot, so another memory ram sink was placed on the 4 FETs, which fits perfectly:
http://i225.photobucket.com/albums/d...ntasy_86/2.jpg

These sinks, when under load goes up to as high as 48 degrees, also measured using the infrared thermometer.

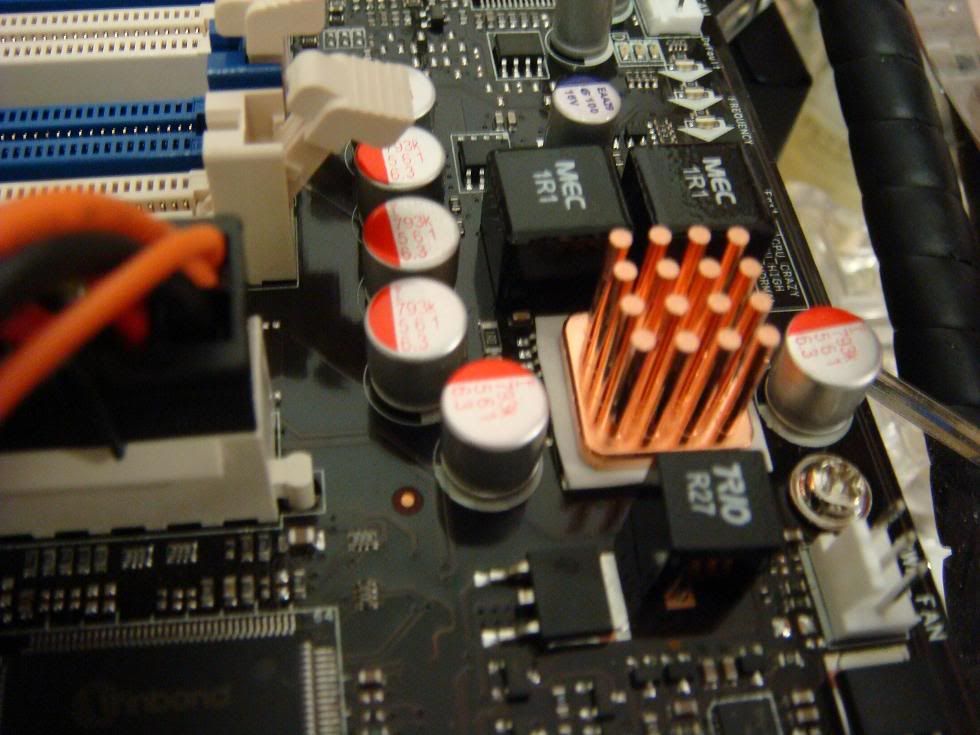

Another was placed on the Memory FETs, although they were not that hot anyway powering DDR3, with temp reading at 37 degrees under load.
http://i225.photobucket.com/albums/d...ntasy_86/3.jpg

These little heat sinks can be found on DFI boards that are factory fitted, but not from other manufactures.

I have tried 1gb OCZ plat 1333 and 1gb Corsair 1333, if i put in 2 sticks everything works fine, if i put in 4 sticks the board locks on vista boot, if i do a vista memory test everything is fine, but as soon as it tries to boot vista it locks up. I am thinking of going to 2x2gb and try that... FYI this is all at auto everything, no OC.

Quote:

---

Originally Posted by eternal_fantasy

These little heat sinks can be found on DFI boards that are factory fitted, but not from other manufactures.

---

Those are Swiftech MC14 sinks. Pricey.

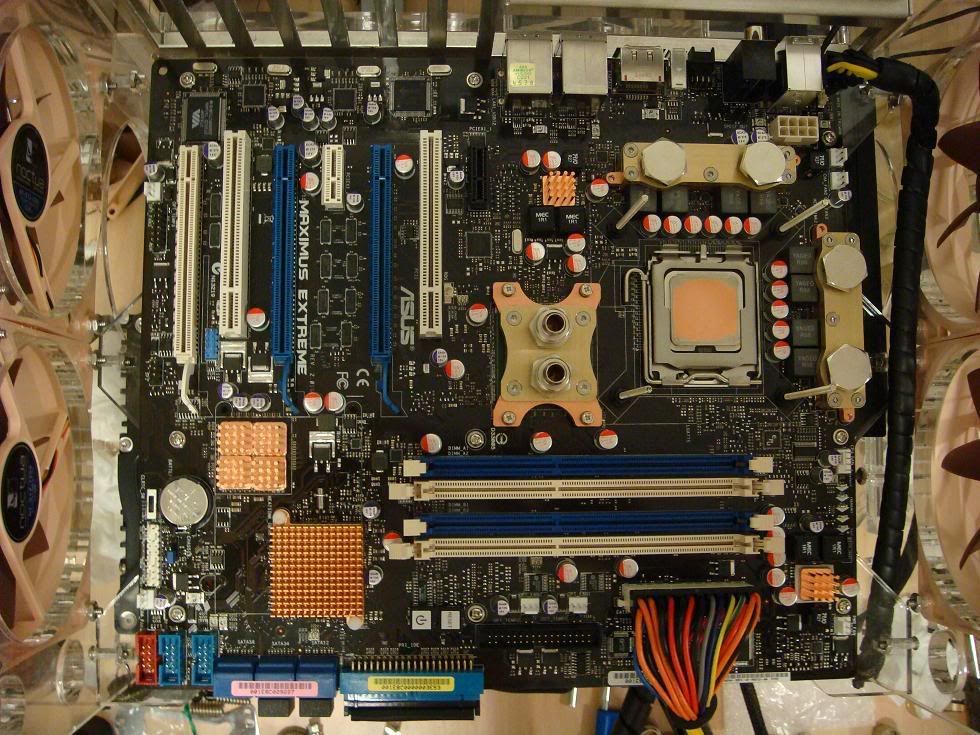

Eternal, Do you have a pic of the board from a bit further away. I'd like to see all the components. What cooling do you have on NB and on Mosfets now?

:D :D :D

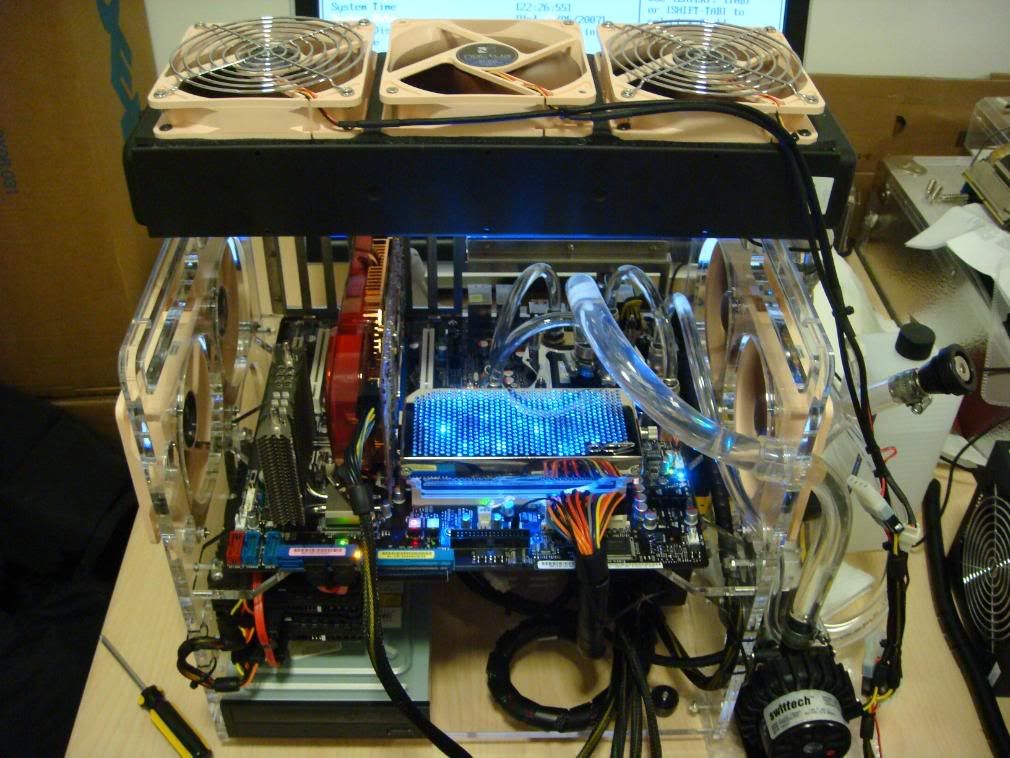

http://img210.imageshack.us/img210/7681/42ghz32mte7.jpg

http://img106.imageshack.us/img106/4...pics005fl7.jpg

:up:

which ram slots everyone using i am on the white ones from installing and seems ok any ram slots preffered, don;t know where but i read somewhere the white slots are supposed to better but not sure

Quote:

---

Originally Posted by Grendel66

"These little heat sinks can be found on DFI boards that are factory fitted, but not from other manufactures."
Those are Swiftech MC14 sinks. Pricey.

---

Sorry, let me rephrase:
"Small heatsinks placed on the same hotspots can only be found factory fitted on the DFI motherboards."

Quote:

---

Originally Posted by peterpiper

Eternal, Do you have a pic of the board from a bit further away. I'd like to see all the components. What cooling do you have on NB and on Mosfets now?

---

The earlier version before I redone the tubing:
http://i225.photobucket.com/albums/d...6/DSC00478.jpg
http://i225.photobucket.com/albums/d...6/DSC00466.jpg

The slightly updated setup:
http://i225.photobucket.com/albums/d...asy_86/494.jpg
Those are Mips NB and MOSFET blocks.

Quote:

---

Originally Posted by Nosfer@tu

Im having a HELL of a time with this board and the OCZ DDR3 PC3-12800 Platinum Dual Channel.

Running it with SS on CPU, Water on Nbrige and a E6850.
ALL the time when I change somthing in bios, it has boot problems.
I will have to start from scrats once more, if I cant make it run I will take some bios pictures just to make sure im not messing somthing up.

---

2x around here couldnt even install windows last night loading setup defaults on BIOS, had to set stock clocks for the cpu manually.

Now im having all kind of issues with it, bios 803.

CPU at 400x9 = windows boot but SP2M stable only if dram is under 1333MHz tryed 2 kits of DDR3 same issue.

8x400 also completely unstable if ram at 1600mhz

Can anyone put bios screenshots of a working set up please.

Also AiSuite doesnt even load give a error :(

Quote:

---

Originally Posted by metro.cl

2x around here couldnt even install windows last night loading setup defaults on BIOS, had to set stock clocks for the cpu manually.

Now im having all kind of issues with it, bios 803.

CPU at 400x9 = windows boot but SP2M stable only if dram is under 1333MHz tryed 2 kits of DDR3 same issue.

8x400 also completely unstable if ram at 1600mhz

Can anyone put bios screenshots of a working set up please.

Also AiSuite doesnt even load give a error :(

---

:D You just found my thread - forget AI Suite yet..........

Here are some BIOS shots for stable 4GHz, with E6850 & Cellshock 1800:

http://img513.imageshack.us/img513/9974/bios001yg0.jpg

http://img513.imageshack.us/img513/4917/bios002ui5.jpg

http://img519.imageshack.us/img519/2860/bios003th8.jpg

http://img519.imageshack.us/img519/7271/bios004mr5.jpg

http://img519.imageshack.us/img519/3383/bios005pl2.jpg

There are two important things in BIOS - do not set PLL voltage to AUTO, the BIOS will give 1.85 volts which is pretty much........, and the NB voltage - set it only to AUTO up to 450 FSB, BIOS will give 1.44 volt. But above 450 FSB the board needs 1.61 and BIOS will set only 1.55 which is pretty less...

All mentioned voltages are real shown in hardware monitor in BIOS, setting in BIOS may vary.

Hope this will help You metro, and a lot of other ppl...........;)

:up:

Thanks camouflage, i got it working after all but i will take notice of your settings to optimize voltages.

Here are my runs :)

1960MHz 7-7-7-21-1T boot from BIOS 2.1v

http://i191.photobucket.com/albums/z...7-21SP32Mb.jpg


2000MHz 7-7-7-21-1T boot from BIOS 2.16v (might be able to use less)

http://i191.photobucket.com/albums/z...1SP32M216v.jpg

Board seems to respond a lot better than P5K3 Deluxe at over 2.1v on DDR3, will keep testing.

P.D. not sure why CPU-Z and Memset report 2T when i set 1T in bios

Common Maximus Extreme, Startin my build in 2 weeks, all these pics and talk is getting me twitchy

I have the heatpipes off and am about to take off the fusion block to reseat but thaT IS AN INTERESTING watercooling setup, man everything is watercooled, tht must cost a fortune>?

Quote:

---

Originally Posted by metro.cl

Thanks camouflage, i got it working after all but i will take notice of your settings to optimize voltages.

Here are my runs :)

1960MHz 7-7-7-21-1T boot from BIOS 2.1v




2000MHz 7-7-7-21-1T boot from BIOS 2.16v (might be able to use less)


Board seems to respond a lot better than P5K3 Deluxe at over 2.1v on DDR3, will keep testing.

P.D. not sure why CPU-Z and Memset report 2T when i set 1T in bios

---

:D Both are buggy - use CPU-Z 1.41, it shows 1T if set so.;)

:up:

Quote:

---

Originally Posted by Aivas47a

New bios plays well with yorkfield. 4.4 Ghz on water and I haven't even started pushing it yet:

http://i90.photobucket.com/albums/k2...0x10QX9650.jpg

FSB Term overvolting issue I had before seemed to be a function of early bios; with latest bios FSB Term drops around .04v for me from bios to actual, according to PC Probe.

---

Can you help me to overclock my system
QX9650 + Maximus Extreme + 4 X 1GB Dominator DDR3 1800 + toughpower 1200 + wc system swiftech + D tek fuzion ...the system don t reach more than 4000 Mhz i don t know why...
P5E3 i reach 4500 Mhz to bench...and prime more than 4 Ghz
Thanks

The Extreme are More NB voltage hungry even at a Dualcore..

And a Quad plus 4x1GB i think you will need some NB voltage, maybe you have tried that? Got to check atleast :) one tip if not..

Tried all slots? usally memory plays better if changed to secondary slots, the black ones.

EDIT, tired after work, didnt read good enough, you do have 4x1 hehe..

regards.

Maximus Extreme ...
http://i11.tinypic.com/72fqrte.png

My Penryn at 4GHz, and DDR3 ... 1600MHz with good timing ...

Striker Extreme ...
http://i4.tinypic.com/6x6tnnl.png

my second system with nForce + DDR2 ...

I like DDR3 ...

Got some testing time, got this after a while of trixing and fixing..

Http://hem.bredband.net/infan/oc/4.2 32.JPG
Http://hem.bredband.net/infan/oc/4.2.JPG
Http://hem.bredband.net/infan/oc/everest.jpg

its a nice board i think :)

hiya infa what volts are you giving the ram, are you on watercolling whats the temps like with that vcore on the e6850

at that time i had 2.06 vDimm, vMCH 1.67, and 1.73** at cpu resulting in 1.72, and loadline is working great.

Temps now in vista with orthos, same vcore, couse i forgot to change it, and were doin orthos now at 4ghz, the temp got to 70c.

I got so much dust between the fans and radiator hehe, its Full of it, thinks its doin 5c atleast, the fans are barely pushing trough hehe..
but its a PITA to release all the screws, and then release moore screws to get the fan of the radiator, and i DONT WANT to tear the system apart so all the hozes are still there when im doin it, and its a pita :) but i think i really need to do it now tough..

regards.

:D Yep - great board:

http://img340.imageshack.us/img340/3...3ghz32mzs2.jpg

:up:

Hehe, thanks for the timings of memset, they did work perfekt on my Cellshocks.. i almost had a 32m at 4250, but it BSOD me at nr 22 :angry:
werer at 10.33 on nr 22 looked good, well well ..to late to try again ..new day tomorrow :)

regards.

What is the BEST stability checking program for mem and CPU? I have been using everest, but does it truly test the memory and cpu? After runing a 1 hour stability test, the next day i had a total lock while installing Direct X.

Orthos, Prime, loop3dmark, Games ar a good measurement sometimes..

what is best bios for Maximus Extreme?
now i have 0803 and i think work fine
i have look voltage on bios and vNB, Vsb and vram is overvoltage
ram 1,84 on bios is 1,90 -1,91 real
vpll if i put 1,50 is 1,59 real

Yepp, Extreme tends to overvolt all settings, just have that in mind then its no worry... and 803 beta i think everyone can agree on are the best bios so far, wonder when the final will come, and what it will bring :)

regards.

Great results guys, thanks for the info. :up:

Infa/camo I especially like the high bus speeds you're getting. At 9x450 it feels like I'm almost there with vcore 1.55, PLL 1.5, FSB Term 1.54 (big drop on that one according to PC Probe anyway), and NB 1.61 but Orthos errors at 6 minutes remaining. Interesting that my Yorkie seems to require so much more vcore to run at higher FSB (400 fsb is stable at stock vcore, 450 fsb requires 1.55 for same clock speed).

Also for me it is important for ram stability at higher clocks to keep dram static read and dynamic write on auto.

:D MAXIMUS EXTREME rules:

http://img255.imageshack.us/img255/3...5ghz32mhy6.jpg

:up:

Hmm 10c? :)

What Cooling are you using?

Quote:

---

Originally Posted by Infa

Hmm 10c? :)

What Cooling are you using?

---

:D "Ghetto" - cooling, chip is on water & open window in mid-Europe winter...:p:

:up:

make sure you wear a warm jumper for benching sessions camo :)

Quote:

---

Originally Posted by GLENBOY

make sure you wear a warm jumper for benching sessions camo :)

---

:D Haha, have always some Vodka close to me for warming up......;)

:D Update:

http://img265.imageshack.us/img265/5858/43ghz32mka8.jpg

:welcome:

New Bios-file available now :
0904
there´s no change-log yet.

So I´ll give it a try.

btw :
Can it be that the CPU-temp seems to appear higher than real ???
What I mean is :
I just changed the board ( this weekend ) - had a ASUS P5N32-E SLI ( nForce 680i ) before... now I realise that the CPU appears much higher than the core-temps ... I am used to it that it was in fact vice versa.

thanks smooth

i'll give it a whirl

ok, now after the flash is done *g*
my problem with the difference between CPU- and core -temp is gone :)
the temps are like they should be.

just forgot to report :
oc like before ... just with little lower cpu-temps.

installed bios 904 all seems ok i will post back if i find any difference to 803 but seems ok

Hmm please more people report! :) been waiting to see if it did bring any good? Fsb, changed in unstable OC etc..

regards!

have anyone test the new 1002 bios?

are there a 1002 too now?

i've just checked it out and the 1002 is for blitz extreme not maximus so don't use it, its obviously been uploaded to wrong folder on asus ftp

Yeah, BE are Blitz , ME Maximus..
soo anymore tried 904?

Im not home, cannot try it ! :)

ah ok sorry i have seen be1002 in the maximus folder and i was thinking that be stands for beta... ok sorry

no worries kowa

Eternal, what clocks you gettin with all that coolin? What about temps?

:D Usually I always try new BIOS - but 0803 is running extremely nice so I will keep it untill someone post some improvement here with 0904...:p:

:welcome:

well seems that the temps are lower now...but a bit too low.
gonna test the fsb with a qx9650/e6850 later that day.

can anyone post results maximus extreme with Quad Cores???

@z3ro-cool :0803

how do you get his post as he would want the Bios? :)

When I logged on a few hours ago... there was another post concerning the question if sombody could load him 0803 cause ASUS took it off the server.

But now this post is gone ... or maybe I´ll get insane ...

yeah i deleted the post.. @smooth thanks
..

i found the BIOS on the asus FTP on another server so i downloaded it from there and deleted my post before i saw smooth's post. Thanks for the help though smooth :) danke

Just looking for Maximus extreme users with quad cores.
