Cell-SHOCKS ag. DDR3-2000 7-6-5-18 1T Prime_Pi Stable

Cellshocks released their DDR3 product.
PC3-14400 8-7-6-21 1G*2 Dualchannel kit.
rated 1.7v~1.9v.
sexy black box and blue heatspreader.

memory pictures:
http://vic.expreview.com/attachment/1188107508_0.jpg

more photos:
http://vic.expreview.com/attachment/1188107508_1.jpg
http://vic.expreview.com/attachment/1188107508_2.jpg
http://vic.expreview.com/attachment/1188107508_3.jpg
http://vic.expreview.com/attachment/1188107508_4.jpg
http://vic.expreview.com/attachment/1188107561_0.jpg
http://vic.expreview.com/attachment/1188107561_1.jpg
http://vic.expreview.com/attachment/1188107561_2.jpg
http://vic.expreview.com/attachment/1188107561_3.jpg


testing rig:
Intel E6850es E0 @ Ultra120
Asus Blitz Extreme, bios=0801
Cellshocks PC3-14400 8-7-6-21 1G*2 @ 8015 2000rpm ram-cooling fan
HIS HD2900XT 512m @ Koolance Watercooling
Topower 2000w Power Supply
Ambient=23c

testing software:
pi_1m
sisoft mem bandwidth
everest mem read test.
[prime95 blend test + Spi_32m] Sync = 1.85G+ mem usage.

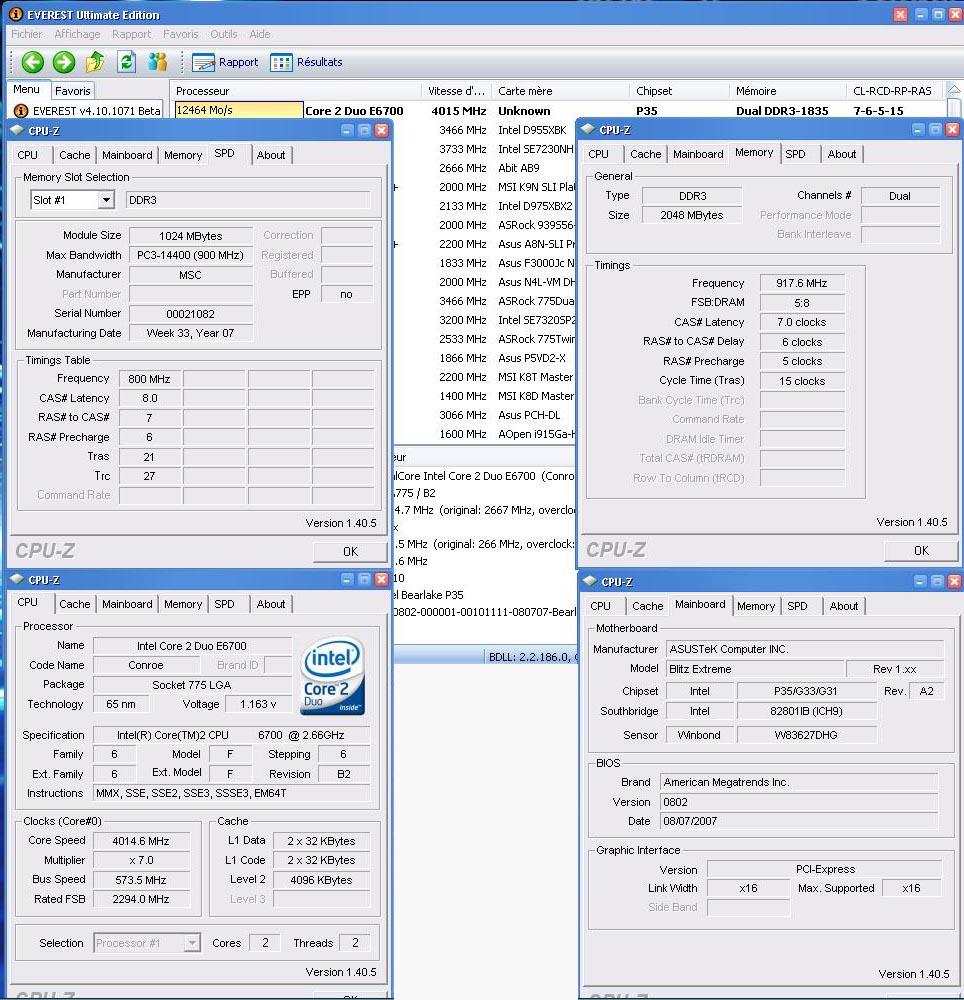

testing results:

1) 1.64v 1800 8-7-6-21 stable
http://vic.expreview.com/attachment/1188107704_0.jpg

2) 1.84v 1800 7-6-5-18 stable
http://vic.expreview.com/attachment/1188107704_1.jpg

3) 2v 1900 7-6-5-18 stable
http://vic.expreview.com/attachment/1188107704_2.jpg

4) 2v 2000 8-7-6-21 1T stable
http://vic.expreview.com/attachment/1188107704_3.jpg

5) 2.14v 2000 7-6-5-18 1T stable
so we can see that, it's not about the MCH, but the ram itself can or cannot stable at high-mem-clk :D
http://vic.expreview.com/attachment/1188107704_4.jpg

6) more volt. 2.28v 2080 7-6-5-18 1T.
awesome bandwidth at only 3.64Ghz. :up:
http://vic.expreview.com/attachment/1188107755_1.jpg
http://vic.expreview.com/attachment/1188107755_0.jpg



it's late today, gonna have some sleep, will go on tomorrow for CL6, CL9 test :D

Looks really good champ ;).

Keep pushing it :D.

These modules seem to be better at lower cas than the corsair modules. Can't wait to see the higher cas testing.

Very nice Victor :)

1.7v~1.9v...omg imagine paying $600+ for a memory kit and kill it with 2.0v with no warranty support :D

and would be perfect black sp with this sexy blue hs

wow the speed binning has begun it seems :)

2nd day, show some CL5, CL6 test :D
---------------------------------------------------------------
2.24v 1800 6-6-5-18 1T stable, that's quite amazing !
http://vic.expreview.com/attachment/1188149932_0.jpg

same vdimm, 1800 6-5-5-18 1T pi_32m also benchable.
http://vic.expreview.com/attachment/1188149932_1.jpg

max CL6 memclk arround ddr3-1850

------------------------------------------------------------------
2.26v, 1545 5-5-5-15 1T test, awesome speed and bandwidth !!!
5-5-4-15 also benchable, but a little bit slower than 5-5-5, dont know why.
http://vic.expreview.com/attachment/1188149932_2.jpg
http://vic.expreview.com/attachment/1188149932_3.jpg

max CL=5 memclk arround ddr3-1580

-------------------------------------------------------------------
cpuz validation:
1) 1545 5-5-4-15
http://vic.expreview.com/attachment/1188149932_4.jpg

2) 2120 7-6-5-18
http://vic.expreview.com/attachment/1188149959_0.jpg

3) 2145 8-8-8-27
http://vic.expreview.com/attachment/1188149959_1.jpg

--------------------------------------------------------------------
CL=9/10 dont scale,
and i've tried flash Cellshocks spd to Supertalent(origin Micron's SPD), but no performance gain.
so DDR3 is still hard to have a conclusion which is good or not.
some is good for CL7, but some is good for higher clk, really really strange.

have to say that Cellshocks join the ddr3 battle with a great shock !
dont know if this is the world's first ddr3-2000 7-6-5 STABLE running :D

Looks really good, these sticks are really impressive :D.

Great job champ ;).

Awesome.

AMAZING :D thx to share Victor :toast: you could sleep now :D

:shocked: fast and furious! amazing scores! omfg! i need that!

Mega Shock :eek2:

Very nice results...!

:D

Wow, really really super DDR3 clockin Vic. Totally blows everything else outta the water. :up:

how much price Mr.Vic?

Quote:

---

Originally Posted by Gautam

Wow, really really super DDR3 clockin Vic. Totally blows everything else outta the water. :up:

---

:D i'm really excited with this pair, CL5/6/7 are soooooooooo cool :D


to nut311:
seems the kit will not > 500$ :)

good cell rock shock

They are allready in stock at MemoryC for $ 510.30

Cheapest High-end DDR3 so far...for compare..
the OCZ 1600mhz costs over 700...so its a fair deal!

Just bought some from MemoryC for my winter build. So it'll lie in a drawer and "mature" for 3 months. :D

Thanks for the heads-up Victor. :up:

OMG :) how can you do that hehe...
*put it in a drawer* gee's :D

i practically allready put in my things in my comp before i even get home hehe... why buy it now anyway? if you wait the price will drop and so on, and the other brands will release perhaps better DDR3?

allthough its leaning for these babys for me too with X38 ;)

Quote:

---

Originally Posted by Infa

OMG :) how can you do that hehe...
*put it in a drawer* gee's :D

---

The trouble is, the early sticks in a classy series are often the real stars. 3 months down the line either you can't get 'em or they've changed the IC to a lesser version. I paid a lot for G. Skill PC2-8000 4-4-4-5 early on and they've been champion. Then you couldn't get 'em.... then they changed the chips....

Awesome results, awesome kit.

Nice cpu :)

Cheers!

Really good! Excellent Victor!

wow :slobber:
wow.....

And they clock well with cas7 and 8 too... :eek:

First of all, for those who dont know yet, i work for cellshock and do something similar to bachus who works for corsair.
*waves at bachus* hey michal :D

Despite the 1800 Label this is a 666 ES kit though, like i said via email.
THats why its dressed in sexy blue :D
I guess the seal and sticker caused some confusion, our packaging lady put 1800 stickers and labels on the blue kits and not the 666 ENGINEERING SAMPLE ones.

Blue = 666 ES
Black = 876/766

We decided to go for 1600s and 1800s but I wanted to make some cas6 mem as well since cas6 at high speeds runs really fast.

Cas6 needs high volts and we want to be careful and wait how micron ddr3 chips cope with high volts before we release memory that has a higher default voltage. Who is better at finding out if a mem can take high volts under stressfull conditions than victor and some other enthusiasts, thats why I convinced my colleague to make a few 666 ES pairs :D

The interesting thing now is that this kit clocks well with Cas7 and 8 too.
I honestly didnt test them for 766 and 876 hmmmm
Actually they seem to clock better than the 1800s awardfabrik and Kamel got.
This is really surprising, maybe kamel and awardfabrik still havent maxed out the mem and are still tweaking?

Our 1800s should do better than this kit with cas8 and cas7, but those results are crazy...

now im curious if all 666 ES kits we sent out run well with cas7 and 8 too, heh those 666 kits are truly evil :devil: :rocker:, we should put our red heatsreaders on them i guess haha :D

need to look at my notes and test the blue kits we still have here :D

..."All Animals are equal, but some animals are more equal than the other..."

George Orwell ( Animal Farm )




Same happens for memory sticks...:rofl: :rofl:

yeah and in this case in the end the pig (ddr3) turns out to be "more equal" and not the race hors or fox like youd expect. Didnt have time to look at the other blue kits yet, too much to do, damn :D

I wonder how much vdimm they will take before they die :rolleyes: , to bad the ddr3 sticks are not so cheap.

Lastviking! Hey man! how are you doing? :D

Well using more volts than the sticks like doesnt make sense, you only get worse results. The more tight the timings the higher the sweet spot, but even for 665 the highest sweet spots are 2.25v. Well im using a p5k3 so i cant use more than 2.25v... :D
So i guess with cas665 the max that makes sense for some sticks is probably 2.35v, for cas5 maybe up to 2.45v but i dont think cas5 is worth it and cas6 and 7 make most sense. so the max voltage that makes sense to use is 2.3v and i doubt it will die at that voltage, unless it runs hot of course...

You have a lot of experience with mem, have you ever experienced something like this before? I never had any mem that had a sweet spot for voltage and didnt like more. if it ran too hot it oced worse or gave errors, sure, but thats not the case here.

I am glad that you have said these were 1800C6 ES sticks. I and I am sure others would have been disappointed to find out the retails did not have the great results of Victors (consistently that is).

Thanks for clearing things up. Also >2.15v seems to lose a lot of gains. I think there might be on-die regulation finally on Micron chips. Just something to look at.

Also 2.45v through a 78nm circuit is going to annihilate it very quickly. The max voltage you want to use is around 2.3v. I predict >4 Hours @ 2.45v is going to kill your sticks.

First one to hook a pot up on the board will be able to tell though.

Thanks Yoxxy :)

I hope i wasnt too late, Shaminos flight was on Tuesday so me and Fr3ak showed him around in Nuernberg and Frankfurt, was real fun :D
I arrived in the office on wednesday and was burried in work and emails and then posted on thursday as soon as i realized victor thought this was 1800 mem.

Im really sorry if anybody bought the 1800s thinking itll clock like this.
I did some quick testing and some of the 1800 kits actually get very close to this on a p5k3, so they might clock the same on a blitz.
but the average 1800s clock worse, especially with cas6 and 5.
Kam and booblemagnifique received random 1800s, so their results are more representing.
The blue kits are just a preview of our (hopefully soon, looks at colleague :D) upcoming 665 mem.

excellent clocks

surprised a bit with seemingly slow Pi times but i assume you didn't really give it a hard bench :)

cellshocks did well with DDR2, hopefully retail chips are like this...looks promising for sure :up:

the retail 665 should clock like this :D

Quote:

---

Originally Posted by saaya

the retail 665 should clock like this :D

---

nice :)
you work for cellshock??

Yupp :)
Very nice people, if you ever come to germany lmk and ill show you around :D
The fabs are really cool.

Quote:

---

Originally Posted by saaya

Yupp :)

---

good to hear ... always been a CellSHOCK fan :up:
and these 666 are nasty - CSH must have some godlike ICs on them
wow ... the CAS5 performance is outrageous!

I really am curious about the higher VDIMM survival of the DDR3 Microns

Quote:

---

Originally Posted by saaya

Yupp :)
Very nice people, if you ever come to germany lmk and ill show you around :D
The fabs are really cool.

---

nice man gotta hook us up with some of that lovely ram :p j/k

hey what city is the fab in??


you really should have called those ram sticks 666:devil: :D

The ones I just received are the 876 then. Still, I see elsewhere that they do:

"CellShock DDR3 @ 1928 with 7-6-5-16 (Micron D9GTR) and 2,2 V"

Which is worth playing with. :)

@Saaya : If i buy from memoryC, can i find chip like this..??

Thanks

Quote:

---

Originally Posted by saaya

Lastviking! Hey man! how are you doing? :D

Well using more volts than the sticks like doesnt make sense, you only get worse results. The more tight the timings the higher the sweet spot, but even for 665 the highest sweet spots are 2.25v. Well im using a p5k3 so i cant use more than 2.25v... :D
So i guess with cas665 the max that makes sense for some sticks is probably 2.35v, for cas5 maybe up to 2.45v but i dont think cas5 is worth it and cas6 and 7 make most sense. so the max voltage that makes sense to use is 2.3v and i doubt it will die at that voltage, unless it runs hot of course...

You have a lot of experience with mem, have you ever experienced something like this before? I never had any mem that had a sweet spot for voltage and didnt like more. if it ran too hot it oced worse or gave errors, sure, but thats not the case here.

---

Quite likely voltage/current regulation of the board (vtt circuit in particular, the regulator chips are often running horribly hot to begin with).

Yoxxy - On-chip voltage/current regulation isnt really feasible, dont think we'll be seeing it in the dumbed down form that gets kicked around forums.

Quote:

---

Originally Posted by saaya

Lastviking! Hey man! how are you doing? :D

Well using more volts than the sticks like doesnt make sense, you only get worse results. The more tight the timings the higher the sweet spot, but even for 665 the highest sweet spots are 2.25v. Well im using a p5k3 so i cant use more than 2.25v... :D
So i guess with cas665 the max that makes sense for some sticks is probably 2.35v, for cas5 maybe up to 2.45v but i dont think cas5 is worth it and cas6 and 7 make most sense. so the max voltage that makes sense to use is 2.3v and i doubt it will die at that voltage, unless it runs hot of course...

You have a lot of experience with mem, have you ever experienced something like this before? I never had any mem that had a sweet spot for voltage and didnt like more. if it ran too hot it oced worse or gave errors, sure, but thats not the case here.

---

yeah some ram don't like too much vdimm... some of my kingston and mushkin BH-5 babies liked specific max vdimm voltages.. could be board/memory controller related too.

Quote:

---

Originally Posted by dinos22

nice man gotta hook us up with some of that lovely ram :p j/k

hey what city is the fab in??


you really should have called those ram sticks 666:devil: :D

---

That was the plan, 666 and red heatspreaders, but victor kept asking for blue hehehe then i asked around and everybody liked blue...
Maybe we will use red ones for the final 666 :D

The fab is close to Karlsruhe, south to Frankfurt :)

Quote:

---

Originally Posted by stone_cold_Jimi

The ones I just received are the 876 then. Still, I see elsewhere that they do:

"CellShock DDR3 @ 1928 with 7-6-5-16 (Micron D9GTR) and 2,2 V"

Which is worth playing with. :)

---

I checked around 10kits and found 2 1800 kits that do 2ghz 765 with 2.05v :)
orthos stable for 10mins, so it might not be 100% stable but pretty stable.

Quote:

---

Originally Posted by indiecom

@Saaya : If i buy from memoryC, can i find chip like this..??
Thanks

---

You mean chips as in D9GTR? Our Sticks come with D9GTR and Z9HWQ.
Dont know why micron still labels some chips as Z9...
I checked and D9GTR and Z9HWQ clock about the same, so it seems to be the same chips just with different marking.

If you mean if you will get sticks like victors when buying the 1800 from memoryc... most likely not. there is a small chance... but if you really want 665 sticks like victors then wait a few weeks ;)

Quote:

---

Originally Posted by STEvil

Quite likely voltage/current regulation of the board (vtt circuit in particular, the regulator chips are often running horribly hot to begin with).

---

hmmmm thats what i would have thought if there wasnt such a big variety between the chips. i think its the chips, not the board, i think... :D

Quote:

---

Originally Posted by STEvil

Yoxxy - On-chip voltage/current regulation isnt really feasible, dont think we'll be seeing it in the dumbed down form that gets kicked around forums.

---

i was also thinking that micron might have added a hard fuse that as soon as the current reaches a certain value starts to leak current to ground before it reaches the logic to prevent the chip from dieing.
But then again, why would micron even care... they dont get any RMAs with dead chips on them, do they?
Unless crucial and large partners ask for an overcurrent protection i dont see why micron would even care... and microns biggest partners are oems, and their customers surely wont overvolt their mem to the point that it fries...

Quote:

---

Originally Posted by eva2000

yeah some ram don't like too much vdimm... some of my kingston and mushkin BH-5 babies liked specific max vdimm voltages.. could be board/memory controller related too.

---

hmmmm well but think about this, if you have a few sticks that can do 1900 with a certain voltage in sc, some of them will do 1900 dc with the same voltage as well. i dont know what you think of this but to me this looks like the memory controller isnt limiting. otherwise the difference between sc and dc would be around 50mhz. then again, there are sticks that reach amazing speeds in sc, but in dc theres a wall no matter what timings, no matter what voltage.
one of the p5k3 boards i have here, one from the very first batch that was shipped, only does ~1825 dc max...

like victor said, its hard to come to conclusions about why ddr3 works like it does :D
well its still very early and jedec still hasnt really finalized ddr3 specs.
But the fun ddr3 brings will surely be enough motivation for us to figure out why it works like it does :D

Quote:

---

Originally Posted by saaya

That was the plan, 666 and red heatspreaders, but victor kept asking for blue hehehe then i asked around and everybody liked blue...
Maybe we will use red ones for the final 666 :D

The fab is close to Karlsruhe, south to Frankfurt :)

---

666 red FTW :D :clap:

ship with heatspreaders that change color depending on temps.

Quote:

---

Originally Posted by STEvil

ship with heatspreaders that change color depending on temps.

---

ROFL nah i think Crucial should get into that blingy stuff ROFL

seriously who really cares what colour they are

i mean WTF do you guys actually look inside your PC and thing wow that looks nice :ROTF: :D

well if id mod my case with lights n all then yeah, id want the colors to match... but besides that... i personally dont care about the color.
Still i wouldnt buy pink memory for example, even if its locked in my case and i never see it :lol:

Quote:

---

Originally Posted by saaya

Still i wouldnt buy pink memory for example, even if its locked in my case and i never see it :lol:

---

Can I have the pink 666 sticks you don't want?

Quote:

---

Originally Posted by STEvil

Quite likely voltage/current regulation of the board (vtt circuit in particular, the regulator chips are often running horribly hot to begin with).

Yoxxy - On-chip voltage/current regulation isnt really feasible, dont think we'll be seeing it in the dumbed down form that gets kicked around forums.

---

On die voltage regulation is already on Elpida, Infeon/Anfeon, and Hynix DDR2. It is also on Elpida DDR3. It is pretty easy to add.

Maybe someone from Micron Texas will enlighten us.

in daily use, do you see something change in using 2 ghz ddr ?

Quote:

---

Originally Posted by stone_cold_Jimi

Can I have the pink 666 sticks you don't want?

---

hehehe, nice try :D

Quote:

---

Originally Posted by Yoxxy

On die voltage regulation is already on Elpida, Infeon/Anfeon, and Hynix DDR2. It is also on Elpida DDR3. It is pretty easy to add.

Maybe someone from Micron Texas will enlighten us.

---

Are you sure?
Well the Micron D9HNL chips sure look like they have an overvolt protection built in... but it seems to be broken as they stop scaling above 1.8v already.

But I dont think DDR3 has overvolt protections... Elpida DDR2 and DDR3 stop scaling with higher volts, but they dont produce errors. Micron DDR3 errors and even refuses to boot if the voltage is too high... so if they have an overvolt protection then its not working properly id say.
Plus Micron can take 2.3v+ and Elpida 2.1v+...

So IF elpida and Micron DDR3 ics feature an overvolt protection then its not working properly. If it would work dont you think Micron and Elpida would want to have it kicking in way before 2.1v for chips that have a default voltage of 1.5?

If Elpida has an overvolt protection for DDR2, then it kicks in at 2.1v.
So for DDR3 they would definately want to lower it to less than 2.1v...

Also dont forget, when lowering the latencies on Micron and Elpida DDR3 the sticks suddenly like higher volts than they do at higher latencies.
How would you want to build an overvolt protection that works like this?
Possible? sure! but not easy to implement, and if you screw it up your chips only run half the speed they would if that screwed up overvolt protection wouldnt be there.

Quote:

---

Originally Posted by noobzed

in daily use, do you see something change in using 2 ghz ddr ?

---

Yeah, the reflection of a big grin on the monitor :D

hey saaya..

whats a safe voltage for DDR3 for 24/7 use?? in overclock mode of course.. :D

My kit is nearly as good as victor's kit

first tests:

1.9v 890 76518 24/24 stable

http://img256.imageshack.us/img256/4...ddr3ad7.th.jpg

2.15v 940 796518 fsb limited by my QX6800

http://img440.imageshack.us/img440/5...0940yl8.th.jpg


2.2v 890 66518

http://img212.imageshack.us/img212/1...5181rn2.th.jpg

Really happy with this kit, P5K3 is a very good board too!

Quote:

---

Originally Posted by erwinz

hey saaya..

whats a safe voltage for DDR3 for 24/7 use?? in overclock mode of course.. :D

---

1.9v :P

but if you keep it cool i think 2.25v is fine as well.
I think! im not sure... im still testing :D
Ive run mem at 2.25v with a fan on it for a few weeks now and didnt notice any degradation whatsoever.

Every mem is different, some probabaly get damaged before others, so id recommend you to bump the voltage bit by bit and see if you notice errors or degradation. once you do reduce the voltage and check if the mem is fine at that voltage.

Quote:

---

Originally Posted by pinto

My kit is nearly as good as victor's kit

first tests:

1.9v 890 76518 24/24 stable

http://img256.imageshack.us/img256/4...ddr3ad7.th.jpg

2.15v 940 796518 fsb limited by my QX6800

http://img440.imageshack.us/img440/5...0940yl8.th.jpg


2.2v 890 66518

http://img212.imageshack.us/img212/1...5181rn2.th.jpg

Really happy with this kit, P5K3 is a very good board too!

---

Nice! yeah i really like the p5k3 too :D
no bugs at all, and it was rockstable and everything worked from the first bios release.

I am also testing the 1800 8-7-6-21-kit with black heatspreaders right now and my first impression is: Ram is good, but it's hard to reveal it's full potential, cos of crappy strap settings and limiting mb or CPU.

I still cannot run 900MHz stable, cos I need a very high VMCH to even boot into windows on the Blitz Extreme. 850 MHz runs fine and stable. Will have to find out tomorrow what is holding me back. I tested the board and CPU with up to 525MHz stable, so FSB-wise there shouldn't be a problem. Seems like the MCH is stressed a lot the higher the memory runs, so that might be a limiting factor. Maybe more voltage will help. I will find out :)

I think that your Blitz is limiting you. Did you try all available bios?

Quote:

---

Originally Posted by saaya

1.9v :P

but if you keep it cool i think 2.25v is fine as well.
I think! im not sure... im still testing :D
Ive run mem at 2.25v with a fan on it for a few weeks now and didnt notice any degradation whatsoever.

Every mem is different, some probabaly get damaged before others, so id recommend you to bump the voltage bit by bit and see if you notice errors or degradation. once you do reduce the voltage and check if the mem is fine at that voltage.

---

thanks.. :)

hehehe I always use fan over my memories.. :) Cellshocks have very good memories.. :D

Quote:

---

Originally Posted by Fr3ak

I am also testing the 1800 8-7-6-21-kit with black heatspreaders right now and my first impression is: Ram is good, but it's hard to reveal it's full potential, cos of crappy strap settings and limiting mb or CPU.

I still cannot run 900MHz stable, cos I need a very high VMCH to even boot into windows on the Blitz Extreme. 850 MHz runs fine and stable. Will have to find out tomorrow what is holding me back. I tested the board and CPU with up to 525MHz stable, so FSB-wise there shouldn't be a problem. Seems like the MCH is stressed a lot the higher the memory runs, so that might be a limiting factor. Maybe more voltage will help. I will find out :)

---

Hey Olli,
well it depends on what you consider a very high mch voltage :D
Im running the highest option, 1.7v on the p5k3 boards we have here for weeks without any problems. I always have a fan lying half on the mem half on the nb, so all is cooled well.

The relation between chipset voltage and the max ddr3 clockspeed is a bit odd. you might think that once the chipset hit the max speed it can do with a certain chipset voltage thats it, but if you increase vdimm you actually get higher results with the same chipset voltage. Weird eh? :D
So first i thought damn this mem needs a lot of vdimm to clock high, but actually it needs a lot less vdimm when you bump up the chipset voltage :D

Here is a graph i made that might be helpfull :)
EDIT: keep in mind that this graph not only shows what this boards mch can do, but a combination of what the board AND mem can do.
With another set it might have been stable at 1900 with lower vdimm for example.

http://img502.imageshack.us/img502/6288/fr3akcq4.png

Quote:

---

Originally Posted by pinto

I think that your Blitz is limiting you. Did you try all available bios?

---

yupp, but i think its a matter of the settings and not the board being limited to less than 1800 memspeed.
I hope! :D

In the end thats why asus is asking intel to create x48.
asus cant speed bin the chipsets in trays, and since their blitz boards use a different pcb they can bin the boards once the chipset is soldered on.
so the way the ddr3 mem controllers vary in their max speed asus and others probably have issues with high end ddr3 boards catching a bad nb and only reaching 1800 memspeed.

Quote:

---

Originally Posted by erwinz

thanks.. :)

---

Your welcome :D
I just hope you wont kill your mem and then blame me hehehe

Quote:

---

Originally Posted by erwinz

hehehe I always use fan over my memories.. :) Cellshocks have very good memories.. :D

---

Thank you :toast:

here are all settings im using fr3ak (and whoever else has problems with his ddr3) :toast:

advanced:
fsb 450(+)
dram frequency 1800(+)

cas 8
ras to cas 7
ras precharge 6
ras active 21

cpu voltage 1.55
dram voltage 1.9v
fsb termination voltage 1.5v
northbridge voltage 1.7v

everything else left at auto

please keep in mind that to reach 1800mhz memory speed you need an fsb of 450+ which some quadcores might have problems with, and which overclocks the cpu, so you might have to lower the cpu multiplier.

now i got my new toys :) test coming soon.... ;)

first screenshot :) http://img514.imageshack.us/img514/5...0070904io4.jpg

Quote:

---

Originally Posted by Fr3ak

I am also testing the 1800 8-7-6-21-kit with black heatspreaders right now and my first impression is: Ram is good, but it's hard to reveal it's full potential, cos of crappy strap settings and limiting mb or CPU.

I still cannot run 900MHz stable, cos I need a very high VMCH to even boot into windows on the Blitz Extreme. 850 MHz runs fine and stable. Will have to find out tomorrow what is holding me back. I tested the board and CPU with up to 525MHz stable, so FSB-wise there shouldn't be a problem. Seems like the MCH is stressed a lot the higher the memory runs, so that might be a limiting factor. Maybe more voltage will help. I will find out :)

---

when you loosen ram timings can you get it more stable at lower NB/vmch volts ?

oh, good to see Retail Cellshocks almost same performance.
u did good job saaya :D

my first experince is a cooler over the kit is strongly recommended. if i test 1.9 vdimm W/o fan, memtest86+ 1.7 the kit make errors.

now i am testing the kit @ 1800 7-8-6-21 1.7 vdimm and seems to be ok after 1 memtest pass. i hope my kit is not defect.

Quote:

---

Originally Posted by VictorWang

oh, good to see Retail Cellshocks almost same performance.
u did good job saaya :D

---

thanks :toast:

Quote:

---

Originally Posted by jugeen

my first experince is a cooler over the kit is strongly recommended. if i test 1.9 vdimm W/o fan, memtest86+ 1.7 the kit make errors.

now i am testing the kit @ 1800 7-8-6-21 1.7 vdimm and seems to be ok after 1 memtest pass. i hope my kit is not defect.

---

Yes! please use cooling on the mem!
You mean 7-6-5-18 timings right?
If it errors at 1.9v then it could be that those sticks dont like high vdimm.
Start with low vdimm and see how far you can go, only then bump up vdimm.

sry, the correct timigs are 8-7-6-20.

Quote:

---

Originally Posted by saaya

thanks :toast:



Yes! please use cooling on the mem!
You mean 7-6-5-18 timings right?
If it errors at 1.9v then it could be that those sticks dont like high vdimm.
Start with low vdimm and see how far you can go, only then bump up vdimm.

---

Quote:

---

Originally Posted by VictorWang

oh, good to see Retail Cellshocks almost same performance.
u did good job saaya :D

---

Do u try Cellshock with black heatspreader like this :

http://www.memoryc.com/products/desc...kit/index.html


Thanks

Quote:

---

Originally Posted by indiecom

Do u try Cellshock with black heatspreader like this :

http://www.memoryc.com/products/desc...kit/index.html


Thanks

---

he has blue. we have black.

Quote:

---

Originally Posted by jugeen

he has blue. we have black.

---

Ss, please.....thanks

I still have trouble to get 32m stable at above 900MHz, but I blame the board for that. It seems like the NB is stressed a lot with the memory running that high. I can run 32m stable with memory at 750MHz and a FSB of 525MHz with 1.4VMCH. To boot at 450MHz with RAM running DDR3 1800 I already need about 1.6V on the MCH to even boot into windows.

I didn't have much time so far, so I tried a couple of different settings with 1M to get a slight idea what is possible and what is not.
I will do more testing with 32m over the weekend, here is what I have so far:

Edit: All tests were done with 2,24 V Vdimm. I know I am a jerk :) Will try with less voltage tonight. I have a strong feeling it is the board limiting me and not the RAM, so the settings below will most likely run with less Vdimm too.

Ha, ha, ha.....I like the LAST one with the Cas 5 - 4 - 4 you Freak.....:D :up:

Quote:

---

Originally Posted by Fr3ak

I still have trouble to get 32m stable at above 900MHz, but I blame the board for that. It seems like the NB is stressed a lot with the memory running that high. I can run 32m stable with memory at 750MHz and a FSB of 525MHz with 1.4VMCH. To boot at 450MHz with RAM running DDR3 1800 I already need about 1.6V on the MCH to even boot into windows.

I didn't have much time so far, so I tried a couple of different settings with 1M to get a slight idea what is possible and what is not.
I will do more testing with 32m over the weekend, here is what I have so far:

Edit: All tests were done with 2,24 V Vdimm. I know I am a jerk :) Will try with less voltage tonight. I have a strong feeling it is the board limiting me and not the RAM, so the settings below will most likely run with less Vdimm too.

---

Fr3ak,
which motherboard are you using?
If you want to go above 900 you have to give volts to nortbridge, with these DDR3 RAM the memory controller integrated into northbridge is very stressed.

Quote:

---

Originally Posted by hipro5

Ha, ha, ha.....I like the LAST one with the Cas 5 - 4 - 4 you Freak.....:D :up:

---

hehe :) 5-4-3 didn't work. 5-4-4 was as low as I could go with 750 MHz.

Maybe better timings work with less clockspeed.

Quote:

---

Originally Posted by v_parrello

Fr3ak,
which motherboard are you using?
If you want to go above 900 you have to give volts to nortbridge, with these DDR3 RAM the memory controller integrated into northbridge is very stressed.

---

I am using a Asus Blitz Extreme. I already figured out that more VMCH helps a lot. Unfortunately I am really busy right now and only have a few hours in the evening to bench. But by that time I am quite exhausted and not really in the mood to use a computer any longer, which is why my progress is rather slow. I am planning to bench a lot more at the weekend :) The memory surely is nice, but the mainboard is giving me a hard time :) I don't think Asus engineers didn't think of running 900MHz on the memory when they designed the board. Same for Intel and the chipset :)

u workaholic!! :P u need to fix your bed first!
But you're doing justice to the good stuff from saaya da man :)

Quote:

---

Originally Posted by Fr3ak

hehe :) 5-4-3 didn't work. 5-4-4 was as low as I could go with 750 MHz.

Maybe better timings work with less clockspeed.



I am using a Asus Blitz Extreme. I already figured out that more VMCH helps a lot. Unfortunately I am really busy right now and only have a few hours in the evening to bench. But by that time I am quite exhausted and not really in the mood to use a computer any longer, which is why my progress is rather slow. I am planning to bench a lot more at the weekend :) The memory surely is nice, but the mainboard is giving me a hard time :) I don't think Asus engineers didn't think of running 900MHz on the memory when they designed the board. Same for Intel and the chipset :)

---

Officially (as stated in all offcial DDR3 motherboard specs) all DDR3 P35 motherboards support RAM with DDR3-1333 as maximum frequency (because default FSB speed is 333 MHz and with maximum multiplier FSB:RAM=1:2 there is DDR3-1333 frequency for memory).

But, with overclock, if you want to go above DDR3-1800-1900 with DDR3 RAM you need a CPU with very high FSB wall (500-520 MHz) and you have to try to raise the North Bridge Voltage, PLL voltage, and FSB Termination Voltage (obviously also vcore and vmem).

I am not so sure about the facts that Asus and Intel engineers didn't think of running 900MHz on the memory when they designed the boards, infact there are motherboards that are able to run memory above DDR3-2000 MHz (like P5K3 and Blitz Extreme). Obviously we are talking about benching sessions and not for daily use (but for daily use you could run for sure at DDR3-1600 or with some overvoltage at DDR3-1800).

I agree about the fact that with these memories it could be better to have a chipset with default FSB of 400 MHz and similar processors able to run at 400 MHz as default.

Quote:

---

Originally Posted by Fr3ak

I still have trouble to get 32m stable at above 900MHz, but I blame the board for that. It seems like the NB is stressed a lot with the memory running that high. I can run 32m stable with memory at 750MHz and a FSB of 525MHz with 1.4VMCH. To boot at 450MHz with RAM running DDR3 1800 I already need about 1.6V on the MCH to even boot into windows.

I didn't have much time so far, so I tried a couple of different settings with 1M to get a slight idea what is possible and what is not.
I will do more testing with 32m over the weekend, here is what I have so far:

Edit: All tests were done with 2,24 V Vdimm. I know I am a jerk :) Will try with less voltage tonight. I have a strong feeling it is the board limiting me and not the RAM, so the settings below will most likely run with less Vdimm too.

---

the 544 is great :D
looks like nobody ran 544 with ddr3 before, so this is the WR, highest 544 ;)
congratulations!!! :toast: :D

its quite high too, i didnt even think 555 could get that high we need to bump up trcd to 6 as well to get decent speeds with cas6. well at least that was my experience. victors 555 really caught me by surprise and this is even better :D

Quote:

---

Originally Posted by Fr3ak

I don't think Asus engineers didn't think of running 900MHz on the memory when they designed the board. Same for Intel and the chipset :)

---

thats probabaly true :lol:
if it helps, i checked on one of the p5k3s and 1800+ boots with 1.4v chipset voltage, havent tested for stability but i could bench in windows.

so it looks like your board is a dud...
is it an ES board? maybe an early sample with an early p35 nb?
Several early ddr3 boards couldnt get above 1500 memspeed and im pretty sure its the chipset. P35 first launched for ddr2 boards, so maybe gigabyte and others used those early chips for their ddr3 boards as well and then noticed that those early nbs integrated ddr3 mem controller sucks.
asus seems to have used the latest p35 nbs even for their early ddr3 boards, maybe they noticed this or they always keep their warehouses tidy and empty and hence didnt have older stock.

anyways, i hope intel is going to bin p35 as well and not just x38.
x38 is just too expensive and from what ive seen and heard so far not worth it compared to p35.

Quote:

---

Originally Posted by LardArse

u workaholic!! :P u need to fix your bed first!

---

Hell yeah, no wonder you are tired all the time when you sleep in that bed :lol:
For those who dont know, i kinda broke fr3aks bed ^^
Now gorillakos, before you even start to b!tch at fr3ak, i tried to seduce him but he wouldnt give in, he loves you too much... :D

Quote:

---

Originally Posted by LardArse

But you're doing justice to the good stuff from saaya da man :)

---

:bows:
Just too bad the board sucks... hope you get a better board soon olli!

Quote:

---

Originally Posted by v_parrello

if you want to go above DDR3-1800-1900 with DDR3 RAM you need a CPU with very high FSB wall (500-520 MHz) and you have to try to raise the North Bridge Voltage, PLL voltage, and FSB Termination Voltage (obviously also vcore and vmem).

---

im not so sure about the pll voltage, does it really help you?
fsb wise or memory wise or cpu wise?
I bumped it up everytime i maxed out something but it never helped, so i left it at auto and i can reach 530fsb and 2ghz+ memspeed.
I guess it has to do with maxing out the cpu speed?
Thats the only thing i havent done yet :D

Quote:

---

Originally Posted by v_parrello

I am not so sure about the facts that Asus and Intel engineers didn't think of running 900MHz on the memory when they designed the boards, infact there are motherboards that are able to run memory above DDR3-2000 MHz (like P5K3 and Blitz Extreme). Obviously we are talking about benching sessions and not for daily use (but for daily use you could run for sure at DDR3-1600 or with some overvoltage at DDR3-1800).

---

well the blitz is gen2 of p35 ddr3, so already gen3 of p35. and i think the secret of the asus p5k3 boards clocking better than other ddr3 boards when they just came out was that they used the latest nbs and others used older stock.

Wasnt the first people who hit 2ghz with ddr3 asus engineers?
So yeah, they did know about it, but i think that was only weeks before the launch... i dont know but i think micron ddr3 arrived pretty late so asus probabaly didnt use it to test their boards. afaik there is no other ddr3 that can reach 2ghz, not even close, so i dont think asus knew about this and planned those high speeds when designing the p5k... but in the end only asus and micron will know :D

Quote:

---

Originally Posted by v_parrello

I agree about the fact that with these memories it could be better to have a chipset with default FSB of 400 MHz and similar processors able to run at 400 MHz as default.

---

yeah! not only this, but we need way more dividers or an un link mode like on 680! I really hope intel is working on this or nvidia will get a ddr3 chipset out soon... wait, i take that back, i hope nvidia releases a ddr3 chipset AS SOON AS THEY MANAGED TO GET RID OF ALL THE BUGS IN IT :P

And wouldnt it be cool if intel would release an Xtreme Edition cpu with a default fsb of 666?
Now THAT would rock! no more looking for high fsb capable cpus.
im sure there are cpus that can handle 666fsb and im sure intel could bin them...

sorry for the long post ^^

Thanks god Fr3ak is loyal...:D

At first i thought that the distance is big...and that's gonna destroy everything...

But i think it is more serious than i first thought...

xaaxxa

you think its serious??
so you dont know about the baby yet? :eek:
Fr3ak you have to tell him!
He has a right to see his son!

Quote:

---

Originally Posted by saaya

you think its serious??
so you dont know about the baby yet? :eek:
Fr3ak you have to tell him!
He has a right to see his son!

---

HA, HA, HA.........You flaken Freak.......!.......:ROTF: :rofl:

Quote:

---

Originally Posted by saaya

....
im not so sure about the pll voltage, does it really help you?
fsb wise or memory wise or cpu wise?
I bumped it up everytime i maxed out something but it never helped, so i left it at auto and i can reach 530fsb and 2ghz+ memspeed.
I guess it has to do with maxing out the cpu speed?
Thats the only thing i havent done yet :D
.....

---

PLL voltage is referred to VCCPLL or PLL VCC with nominal value 1.50v+/-5%, and it is input voltage applied to CPU across pin 23 (as intel datasheets stated for Conroe). VCCPLL provides isolated power for internal processor FSB PLLs.

A phase-lock, or phase-locked, loop (PLL) is an electronic control system that generates a signal that is locked to the phase of an input or "reference" signal.

This means internal processor FSB PLLs are circuit responsibles to lock the phase of external FSB (the FSB of the external bus between northbridge and cpu) with internal processor bus.
In very simple words these circuits are responsible to sincronyze the external FSB with internal processor bus where flow all signals outuput from FSB to internal processor bus (command and data) and viceversa.

Now some processors have better internal FSB PLLs than another one, and this mean that that first rpocessor has higher FSB wall. If you want to help to raise CPU FSB wall you have to raise pll voltage because in this way internal processor FSB PLLs become more stable.

Quote:

---

Originally Posted by LardArse

u workaholic!! :P u need to fix your bed first!
But you're doing justice to the good stuff from saaya da man :)

---

Hehe, I know about that bed, it's getting worse every day :P
Thank you, but without you I wouldn't have been able to do the memory justice. Thanks a lot for giving that board to me. IF you ever need it again, just tell me and I will send it back to you.

Quote:

---

Originally Posted by saaya

the 544 is great :D
looks like nobody ran 544 with ddr3 before, so this is the WR, highest 544 ;)
congratulations!!! :toast: :D

its quite high too, i didnt even think 555 could get that high we need to bump up trcd to 6 as well to get decent speeds with cas6. well at least that was my experience. victors 555 really caught me by surprise and this is even better :D

---

hehe thanks, it was a really quick attempt to see if the sticks run at those timings at all. I am pretty sure that there is still room for improvement.

Quote:

---

Originally Posted by Saaya

so it looks like your board is a dud...
is it an ES board? maybe an early sample with an early p35 nb?
Several early ddr3 boards couldnt get above 1500 memspeed and im pretty sure its the chipset. P35 first launched for ddr2 boards, so maybe gigabyte and others used those early chips for their ddr3 boards as well and then noticed that those early nbs integrated ddr3 mem controller sucks.
asus seems to have used the latest p35 nbs even for their early ddr3 boards, maybe they noticed this or they always keep their warehouses tidy and empty and hence didnt have older stock.

---

I have no idea if the board is a ES or not, but it looks retail to me. Maybe Shamino can bring some light into this discussion about the origin of this board.

Quote:

---

Originally Posted by Saaya

Hell yeah, no wonder you are tired all the time when you sleep in that bed :lol:
For those who dont know, i kinda broke fr3aks bed ^^
Now gorillakos, before you even start to b!tch at fr3ak, i tried to seduce him but he wouldnt give in, he loves you too much... :D

:bows:
Just too bad the board sucks... hope you get a better board soon olli!

---

hehe I know the bad is a mess. I will try to fix it soon, that is for sure. But I can still sleep surprisingly well :)

Quote:

---

Originally Posted by Saaya

im not so sure about the pll voltage, does it really help you?
fsb wise or memory wise or cpu wise?
I bumped it up everytime i maxed out something but it never helped, so i left it at auto and i can reach 530fsb and 2ghz+ memspeed.
I guess it has to do with maxing out the cpu speed?
Thats the only thing i havent done yet :D

well the blitz is gen2 of p35 ddr3, so already gen3 of p35. and i think the secret of the asus p5k3 boards clocking better than other ddr3 boards when they just came out was that they used the latest nbs and others used older stock.

Wasnt the first people who hit 2ghz with ddr3 asus engineers?
So yeah, they did know about it, but i think that was only weeks before the launch... i dont know but i think micron ddr3 arrived pretty late so asus probabaly didnt use it to test their boards. afaik there is no other ddr3 that can reach 2ghz, not even close, so i dont think asus knew about this and planned those high speeds when designing the p5k... but in the end only asus and micron will know :D


yeah! not only this, but we need way more dividers or an un link mode like on 680! I really hope intel is working on this or nvidia will get a ddr3 chipset out soon... wait, i take that back, i hope nvidia releases a ddr3 chipset AS SOON AS THEY MANAGED TO GET RID OF ALL THE BUGS IN IT :P

And wouldnt it be cool if intel would release an Xtreme Edition cpu with a default fsb of 666?
Now THAT would rock! no more looking for high fsb capable cpus.
im sure there are cpus that can handle 666fsb and im sure intel could bin them...

sorry for the long post ^^

---

PLL voltage usually helps you to clock the CPU's FSB better when the CPU hits a wall. With most CPUs I have tested I need about +0.1V above 450 MHz FSB. FSB-Termination voltage usually helps to clock the board higher, FSB-wise. I didnt have to use more than +0.15V to hit 500 MHz FSB so far.

The 666FSB CPU sound good, but I dont think its gonna come true any time soon. 400MHz will first hit the server market, then desktop CPUs. 666 is still a very long way to go. And even Oskar had a hard time hitting 600 MHz FSB on a retail board, so to think 666 MHz FSB on a retail board will come true son, is basically impossible if you ask me :)

But 666MHz FSB and 6-6-6 timings looks "damn" good :devil:

Quote:

---

Originally Posted by GoriLLakoS

Thanks god Fr3ak is loyal...:D

At first i thought that the distance is big...and that's gonna destroy everything...

But i think it is more serious than i first thought...

xaaxxa

---

How could I ever betray you? ^_^

Quote:

---

Originally Posted by hipro5

HA, HA, HA.........You flaken Freak.......!.......:ROTF: :rofl:

---

hehe, just make fun on my expense lol :)

Quote:

---

Originally Posted by v_parrello

PLL voltage is referred to VCCPLL or PLL VCC with nominal value 1.50v+/-5%, and it is input voltage applied to CPU across pin 23 (as intel datasheets stated for Conroe). VCCPLL provides isolated power for internal processor FSB PLLs.

A phase-lock, or phase-locked, loop (PLL) is an electronic control system that generates a signal that is locked to the phase of an input or "reference" signal.

This means internal processor FSB PLLs are circuit responsibles to lock the phase of external FSB (the FSB of the external bus between northbridge and cpu) with internal processor bus.
In very simple words these circuits are responsible to sincronyze the external FSB with internal processor bus where flow all signals outuput from FSB to internal processor bus (command and data) and viceversa.

Now some processors have better internal FSB PLLs than another one, and this mean that that first rpocessor has higher FSB wall. If you want to help to raise CPU FSB wall you have to raise pll voltage because in this way internal processor FSB PLLs become more stable.

---

Very nice explanation! :up: =)

Edit: I had half an hour to play with the sticks :) 1 GHz is a no go even with 10-10-10-30. I managed to improve the low latency clock a bit, but not by much. And it seems like I really need 2.24V to boot with cl5 and 750MHz.
I managed to get this 1m stable, but the screenshot is corrupt :/
http://valid.x86-secret.com/show_oc.php?id=239364

Some real stability tests are planned for the weekend :)

vincenzo, so does increasing the cpu pll voltage help to get a high fsb stable or does it help to boot and bench at a higher fsb?
It didnt help me to boot and bench at a higher fsb at all, so i left it at auto.
FSB voltage bumped to 1.5v did help though and is needed to reach 530+ with the 6600 in this system.

what cpu are you using?

Quote:

---

Originally Posted by Fr3ak

hehe I know the bad is a mess. I will try to fix it soon, that is for sure. But I can still sleep surprisingly well :)

---

dreaming of gorillakos strong arms holding you?
what does he have that i dont have? :,(

:lol:

Quote:

---

Originally Posted by Fr3ak

PLL voltage usually helps you to clock the CPU's FSB better when the CPU hits a wall. With most CPUs I have tested I need about +0.1V above 450 MHz FSB. FSB-Termination voltage usually helps to clock the board higher, FSB-wise. I didnt have to use more than +0.15V to hit 500 MHz FSB so far.

---

so fsb vtt or vfsb as its sometimes called is more of a help to get the chipset stable at higher fsbs and to be able to boot at higher fsbs, correct?

well first i could only get around 450fsb with this 6600 but bumping the vcore to 1.5v solved that and i got to 480 iirc, bumping vfsb gave me a headroom to reach 530, above that things got unstable. i tried raising cpu pll voltage but this didnt help me to get 535 stable either and i didnt want to try more vcore with the crfappy hs i was using back then.

Quote:

---

Originally Posted by Fr3ak

The 666FSB CPU sound good, but I dont think its gonna come true any time soon. 400MHz will first hit the server market, then desktop CPUs. 666 is still a very long way to go. And even Oskar had a hard time hitting 600 MHz FSB on a retail board, so to think 666 MHz FSB on a retail board will come true son, is basically impossible if you ask me :)

---

but it is possible, and yes you would basically need a custom motherboard but hey, what else is quadfx and intels v8?
they could pick boards that can hit 600+fsb and cpus that can hit 600+fsb.
IF k10 beats 45nm (very unlikely unfortunately) then intel might actually do this... but yeah, its more of a nice thing to dream about :D

Quote:

---

Originally Posted by Fr3ak

But 666MHz FSB and 6-6-6 timings looks "damn" good :devil:

---

:slobber:

Quote:

---

Originally Posted by Fr3ak

Very nice explanation! :up: =)

---

jupp, thanks vincenzo! :toast:

Quote:

---

Originally Posted by Fr3ak

Edit: I had half an hour to play with the sticks :) 1 GHz is a no go even with 10-10-10-30. I managed to improve the low latency clock a bit, but not by much. And it seems like I really need 2.24V to boot with cl5 and 750MHz.
I managed to get this 1m stable, but the screenshot is corrupt :/
http://valid.x86-secret.com/show_oc.php?id=239364

Some real stability tests are planned for the weekend :)

---

have fun then :D

Few Test Superpi (Comparative in preparation) :)

I test soon with my P5K3 deluxe too :)

32mo = OS 2003 32bits optimised by learn :clap:

http://boblemagnifique36.free.fr/Ove...es/40gp1mo.jpg

http://boblemagnifique36.free.fr/Ove...s/40gp32mo.jpg

Quote:

---

Originally Posted by saaya

vincenzo, so does increasing the cpu pll voltage help to get a high fsb stable or does it help to boot and bench at a higher fsb?
It didnt help me to boot and bench at a higher fsb at all, so i left it at auto.
FSB voltage bumped to 1.5v did help though and is needed to reach 530+ with the 6600 in this system.

what cpu are you using?

.....

---

Sascha,
you can not make a miracle but increasing cpu pll voltage could help you to to get a high fsb.

I used a E6420 that is able to do 555 FB with air cooling (it is very lucky CPU). High cpu pll voltage help me to raise of 30-50 MHz the FSB.

Saaya...e6600 seems not to be the perfect cpu for p35, a 6600 i've tested, 560 and over on 965... stops @530 on p35!

don't ask me why..maybe new bioses are not perfect for the older cpu steps..

Kam

Quote:

---

Originally Posted by Kamel

Saaya...e6600 seems not to be the perfect cpu for p35, a 6600 i've tested, 560 and over on 965... stops @530 on p35!

don't ask me why..maybe new bioses are not perfect for the older cpu steps..

Kam

---

There is a problem with P35 and the DDR3, I have cpus which block has 570/575mhz on my extreme Blitz or the P5K3 deluxe (then which makes 590mhz on my P5K or the DFI P35 in DDR2)

It's stange problem :cool:

yeah it's strange

my E6600 L709A958 on Blitz Extreme 485FSB max on Blitz Formula 530FSB max both on water heh.. nearly every cpu i put in my Blitz Extreme maxes 485FSB even ones that do 500FSB on Blitz Formula/P5K Deluxe heh

6420 over 540 easily.... 6850 540 easily... and i'm waiting for an E6700 with 580/590 liquid cooled and 610 under LN2...

Kam

i think could be a problem with bios cpu microcode programming... or compatibility..

Since I flash the bios P5K3 and Blitz I am with the max 575/580mhz whereas I arrived has 590mhz in watercooling with my E6600 before :(

A small Everest towards 4ghz :

http://boblemagnifique36.free.fr/Ove...res/bpddr3.JPG

Quote:

---

Originally Posted by v_parrello

Sascha,
you can not make a miracle but increasing cpu pll voltage could help you to to get a high fsb.

I used a E6420 that is able to do 555 FB with air cooling (it is very lucky CPU). High cpu pll voltage help me to raise of 30-50 MHz the FSB.

---

hmmm ill try again to bump pll voltage and see if it helps, thanks man :)

Quote:

---

Originally Posted by Kamel

Saaya...e6600 seems not to be the perfect cpu for p35, a 6600 i've tested, 560 and over on 965... stops @530 on p35!

don't ask me why..maybe new bioses are not perfect for the older cpu steps..

Kam

---

Quote:

---

Originally Posted by boblemagnifique

There is a problem with P35 and the DDR3, I have cpus which block has 570/575mhz on my extreme Blitz or the P5K3 deluxe (then which makes 590mhz on my P5K or the DFI P35 in DDR2)

It's stange problem :cool:

---

Quote:

---

Originally Posted by eva2000

yeah it's strange

my E6600 L709A958 on Blitz Extreme 485FSB max on Blitz Formula 530FSB max both on water heh.. nearly every cpu i put in my Blitz Extreme maxes 485FSB even ones that do 500FSB on Blitz Formula/P5K Deluxe heh

---

yeah i noticed the same, but i didnt think it was p35 or p35 ddr3 related... every board i put a cpu in has a different max fsb. even good boards that get a higher fsb out of cpus than other boards sometimes dont like a cpu and i cant reach the same fsb as on other "worse" fsb clocking boards.

we are 4 people now experiencing this...
interesting to see that there seems to be some corelation between this and p35 and maybe even p35 ddr3 compared to p35 ddr2.
thx for sharing your findings :toast:

Quote:

---

Originally Posted by Kamel

6420 over 540 easily.... 6850 540 easily... and i'm waiting for an E6700 with 580/590 liquid cooled and 610 under LN2...

Kam

i think could be a problem with bios cpu microcode programming... or compatibility..

---

well lets hope its a bios thing and has nothing to do with board design or the ddr3 mem controller limiting the fsb somehow.

What a nice try~~~~~~:up:

Quote:

---

Originally Posted by Walkerak

What a nice try~~~~~~:up:

---

what do you mean? :confused:

Quote:

---

Originally Posted by saaya

yeah i noticed the same, but i didnt think it was p35 or p35 ddr3 related... every board i put a cpu in has a different max fsb. even good boards that get a higher fsb out of cpus than other boards sometimes dont like a cpu and i cant reach the same fsb as on other "worse" fsb clocking boards.

we are 4 people now experiencing this...
interesting to see that there seems to be some corelation between this and p35 and maybe even p35 ddr3 compared to p35 ddr2.
thx for sharing your findings :toast:

---

yeah i asked for a 2nd Blitz Extreme to be shipped so i could compare to see if it's my board that is FSB limited.. fedex docs all done but i think they might be waiting to send me X38 too :D

Crosses fingers that X38 can give cpu's a nice max FSB boost over P35.. i hope :D

Your last sentence wasn't true for the testing I have done today :( No FSB boost...

someone get hipro two set of these and some LN2 stat!!

Nice clocking m8, Im getting some ddr3 myself and I was wondering what's the best price/performance ddr3 mobo?

Regards

Quote:

---

Originally Posted by Revv23

someone get hipro two set of these and some LN2 stat!!

---

he already has a set and im sure we dont need to worry about his ln2 supply :D

hmmm does x38 at least give a perf boost at the same fsb and mem clock then?

Quote:

---

Originally Posted by Fr3ak

Your last sentence wasn't true for the testing I have done today :( No FSB boost...

---

doh :(

Quote:

---

Originally Posted by saaya

he already has a set and im sure we dont need to worry about his ln2 supply :D

---

.....where - where?.... I don't have a set of them yet.... :(

Quote:

---

Originally Posted by hipro5

.....where - where?.... I don't have a set of them yet.... :(

---

'coz u have toooooooo much toys , haha :ROTF:

Quote:

---

Originally Posted by hipro5

.....where - where?.... I don't have a set of them yet.... :(

---

you still didnt get it???
ill check

EDIT: We sent it out Monday last week, so... 9 days/ 7 work days ago.
I know the mail in greece is very slow, but could it be this slow?
I hope it didnt get lost...
