Got this board today. Any links to the vcore mod, if available?
Thank you
Printable View
Got this board today. Any links to the vcore mod, if available?
Thank you
I am still waiting mod this board with version HIPRO 5 !!
Everyone PM hipro :D :toast:
hehehe i did that a while ago.Quote:
Originally Posted by G H Z
he said they'd be released soon enough!
Hicookie, what resistor value should be used?
NO SHI(f)T...........NOT AGAIN for God's shake!.......DON'T UPLOAD something that you HAVEN'T EVEN tested......You have burned some people's AOpen mobos like this in the past PLUS mine that I've spent $450 and now it is sitting here burned......SO PLEASE NOT AGAIN......:( :slapass: :slapass:Quote:
Originally Posted by hicookie
OK.......I'll upload the VCore mod in a few minutes (to picture it first).....I don't want to see any burned down mobos...... :)
OK...........Here you go......
Locate this IC......
http://www.thelab.gr/images/Hipro5/A..._mod_1_jpg.jpg
......AND this spot.....one side of the capacitor......
http://www.thelab.gr/images/Hipro5/A..._mod_2_jpg.jpg
Solder on this side of the capacitor to GROUND an 100KOhms 25 turns trimmer and trimm it to it's MAX resistance (100KOhms)....:)
http://www.thelab.gr/images/Hipro5/A..._mod_3_jpg.jpg
woot woot!
any more mods that you've published hipro?
Thanks hipro, I will try this shortly :toast:
lol, sorry , masterQuote:
Originally Posted by hipro5
yup , i have not tested yet, sorry for this, i won't ever do that again, and 2th sorry for last time on aopen.
btw,i think everyone expect ur ultimated mods,things like u did last time on ic7max3, and ct479.lol
Thanks Master !! How about Vmch and Vdim mod ?? :toast: :toast: :toast:
Give him time, he needs to get some WR's first!! :p:
vdimm and vmch / chipset mods for AW9:
vdimm:
http://www.nordiccrew.com/crotale/vmod/aw9_vdimm.jpg
vmch: (to the right of the upper PCI-E 16x port)
http://www.nordiccrew.com/crotale/vmod/aw9_vmch.jpg
Both mods will give approx. +0.1V when soldered in.
I have tried them both myself
Nice pics, thanks for the mods crotale :)
I love XS !! thanks Crotale :toast: :toast: :toast: :toast: :toast: :toast:
I can verify that the vcore mod is working.

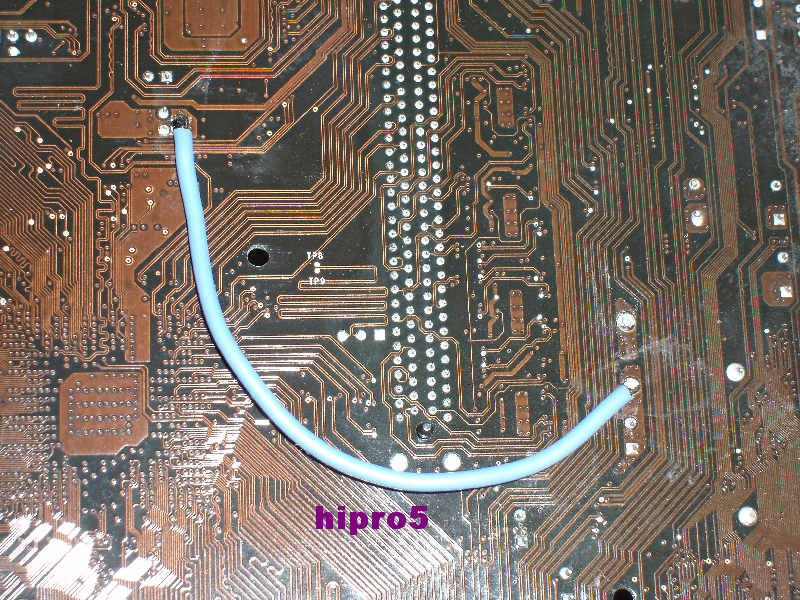

Here is also a read out for the vmch, along with a vmch booster mod. (either ends of the thick wire)
The booster mod is engineered by Hipro, all credit goes to him!
http://www.nordiccrew.com/crotale/vm...ch_booster.jpg
Wohoo! Thanks for the great MODs! How much does the MCH Booster mod increase the voltage? Is the booster Mod just the thick wire and no other modification?
Seems very simple to do for me!
Offtopic: Does the mainboard undervolt the mch? Now I'm at 425 MHz FSB with 1,9V MCH. 430 MHz --> blackscreen --> increased voltage to 2V --> still blackscreen. Does the MCH mod helps here or should I wait for another BIOS?
I assume the smaller wire is going to something you have setup so you can read the vmch voltage w/o having to flip over the board. Am I correct?Quote:
Originally Posted by crotale
First of all, make sure you have good cooling on the NB! Completely stock, I didn't really gain anything over 1.85vmch from BIOS (too much heat), which is around 1.75v at the northbridge. The booster mod removes that voltage drop. With the stock heatsink + AS5 + screws to get more pressure + good fan, it responded up to 1.90v real = ~470FSBQuote:
Originally Posted by Ultrazauberer
Yes, it's just for read out.Quote:
Originally Posted by shimmishim
Vfsb mod
It's tested and safe, helps the max FSB.
True, I can verify that oneQuote:
Originally Posted by Micutzu
http://www.nordiccrew.com/crotale/vmod/aw9_vfsb.jpg
i'm unfamiliar with the vfsb voltage.Quote:
Originally Posted by crotale
what is it usually and what is a safe range?
also, does adding the 50k VR increase the voltage like it does for the other mods you posted?
Ok, thank you for the tips. I have just the stock cooling on the mobo with one 120mm fan. But If you mean that my cooling isn't good enough I can put a watercooler on it today. Do I need watercooler on the SB and mosfets too or is a watercooler just on the NB enough?Quote:
Originally Posted by crotale
I would leave the stock cooling on SB and mosfets, if I can destruct the heatpipe cooling. (sorry for my bad English).
Hope I can reach 445 MHz FSB on the mainboard without mods.
What does the Vfsb mod do? Which voltage would increased?
Quote:
Originally Posted by shimmishim
In asus motherboards it goes up to 1.45 and works best around 1.4, i dont know how it is for abit.
can anybody locate the vcore measuring point ?
Measure it at any of the four coils around the CPU socket.
Did you guys remove the thermal pad of the coolers to apply AS5 on the north/southbridge? Or just aplpy on both those two "chips" and put the coolers with thermal pad that they came with ?
Making the mod's right now. :)
Remove the thermal pad.
Definetely remove the pad, it kills the thermal transfer.
Can we se the bost Vmch mod?
Isn't this mobo TOO "strong" ?......
Take a look at the PCB.....:D
http://www.thelab.gr/images/Hipro5/A...ng_pcb_jpg.jpg
hipro do you think its making contact? Maybe you need more mounting pressure!
Yes I have thought of that too.....Maybe I'll "press" it a bit more......:DQuote:
Originally Posted by Revv23
yeah, press it more... you'll be definately be the first to find the single core hard mod for c2d
(actually after squeezing way too much the board to extreme ancles one core was disappearing ... untill he loose the screws) :p
Way to go Hipro! :D
Can anyone verify if mods are the same for AW9D non-MAX???
How do you come up with this stuff Hipro? Are you an electrical engineer?
Electronics engineering....:)Quote:
Originally Posted by Noob-ftw
Would penciling this IC increase the vCore too?Quote:
Originally Posted by hipro5
It might yes or no......I haven't tested with pensil mod.....As a matter of fact, I never had to do a pensil mod.....:DQuote:
Originally Posted by SLi_dog
What do you guys mean by "vfsb mod red spot 50k vr to ground?" Also can someone show a pic of their completed mod for the vfsb and vmch? I'm a complete noob, but heck gotta learn sometimes right?
Ditto, if anyone would be kind enough to show pictures of their completed mods it would be appreciated.Quote:
Originally Posted by situman
Here are some pics of mine. I used grabbers for the ic's. They are reshaped somewhat to be a little smaller and more secure. Soldering on the ic's I found was not so easy. This seemed to be a safe alternative. vfsb_vmch vfsb read grab vfsb_vmch pots vcore_vdimm Those are really the only pics I have atm. Camera not so great on close ups.
also, where the heck is the vcore measuring spot? someone says any of the coils around the cpu but which coils were they referring to? :)
The coils are the four black cubes with a thick copper cable in them. They are placed around the socket.
I measure it at the back of the board, at the CPU side of one of the coils.
http://www.nordiccrew.com/crotale/vmod/vcore_coil.jpg
It's also possible to measure at one side of the small capacitors inside of the coils here. (Just try... one side is ground, the other is vcore)
i've tried all 4 coils and i can't get the vcore to be measured.Quote:
Originally Posted by crotale
coop told me to use the small resistors(?) between the top two coils as a measuring spot and it works for me! the side closes to the cpu socket works.
One simply question : what max vcore mobo can do ? More than 1.95V or not ?
Regards
Martin
To answer your question, no.
At over 2.03Vcore, it shuts down from OVP......:)Quote:
Originally Posted by DEVIL K-ce
Thank's for info :toast:Quote:
Originally Posted by hipro5
Hmmm EVGA shut's down on 1.95V, ABIT over 2.03V. Not good board for haard clocking :D
OVP mod ?
Regards
Martin
You need to measure from the leg of the coil, the copper part is insulated and wont give you a reading. so measure the parts with solder on them.Quote:
Originally Posted by shimmishim
well thanks for clarifying! :)Quote:
Originally Posted by Revv23
but as i stated, i used the resistors and they seem to work as well.
im just about to order a waterblock for the northbridge to gain more then 435 fsb like i did on with cooling. i wouldnt extra cool the mosfets if its not beneficial. what do you guys think, is it worth to order a waterblock for mosfets as well for high fsb ?
Need your help guys:
Any alternative vmod points for vdim and vmch where grabbers can be used?
Any alternative soldering points for vcore mod?
Thanks a lot
:toast:
I'm new to the modding scene. I'm just wondering what kind of wire that is, I've decided to finally put my soldering iron to good work but I'm still in awe of all the info out there.Quote:
Originally Posted by crotale
That specific one is just a wire from an MOLEX -> SATA power cable, but any one will do... The thicker the better.Quote:
Originally Posted by Digerati
Success! Booster mod and Vfsb mod. This was my first time modding a board. Booster was very simple. Its been a while since I soldered but I think they came out OK. There is a little too much bare wire showing but it should be ok. Vfsb mod was a little scary but after reading Thrilla's awesome guide I was a little more confident. Now I just need to find the sweet spot and finally let this e6700 run wild :banana:
If anyone was wondering, not only can you use the read point for voltage, but GURU also has Vfsb labeled as "CPU VTT 1.2 Voltage"
And a few pics :)
http://www.auction-junkie.com/pcstuff/mod1.jpg
http://www.auction-junkie.com/pcstuff/mod2.jpg
http://www.auction-junkie.com/pcstuff/mod3.jpg
Anyone know the safe range for voltage? GURU starts buzzing at 1.45v which is like 1.39-1.4 actual. Thanks for the guides great work!
Quote:
Originally Posted by crotale
guys,
I would have need to arrive to 3V max on the vdimm, it's possible with this mod or could be of the problems?....which is the max sure voltage that i can set with this mod?
thanks and sorry for English :p:
i have done this mod but when i lower resistence from 50kohm the readout voltage indicated drops from 1.22 instead of rising :confused:Quote:
Originally Posted by crotale
i looked at the datasheet and see the pin below may have the opposite effect.
would using a 50kohm resistor on this other pin perhaps raise vfsb for me?
datesheet here: http://www.datasheetcatalog.com/data.../5/LM358.shtml
i'm aiming for more fsb for a coming cpu/gpu dry-ice bench.
i have good copper cooling for the NB and i would appreciate any help with more fsb :D...
thanks
I know the board is kinda old already, but if someone is still interested, I could post the GTLREF and some other mods. ;)
I still use this board daily and very interested in GTLREF and other mods, post it please :yepp:Quote:
Originally Posted by celemine1Gig
OK then. As soon as I get back home, I'll post the needed information, if I don't forget it. If I haven't posted it one week from now, please send me a PM, because then I sure forgot about it. :D
Edit:
I'm back at home now. Will collect the pics and post them when I'm ready. ;)
DISCLAIMER:
ALL MODS ARE DONE AT YOUR OWN RISK! YOU'LL DEFINATELY VOID YOUR WARRANTY WHEN PERFORMING THE MODS DESCRIBED HERE.
Here's the pic describing the VDroop-, QRSEL- and GTLREF[3:0]-mods:
http://www.fh-augsburg.de/~madocer/AW9D-Mods.jpg
Update: I also did the Southbridge Voltmod yesterday. If anyone's still interested, I could post the instructions for this one, too. It's on the same LM358 as the VFSB-Mod. ;)
Edit:
My account where the pic was hosted was changed. I will update as soon as I have the time to and have finished all the mods. Will be ~ mid February 08.
OK, on request here's the updated link to the pics for VCCPLL-, VDROOP-, QRSEL-, and GTLREF-Mods:
http://www.hs-augsburg.de/~ingmar_k/Mods/AW9D/
The pics should be pretty much self-explanatory.
As always: ALL MODIFICATIONS ON YOUR HARDWARE ARE DONE AT YOUR OWN RISK!
