I forgot to add: Praz, the CPU-z ini edit seems to have worked. I changed the Sensor setting from "on" to "off" and CPU-z seems to be stable.
Now if I could only figure out something to get my CPU stable @ 3.6GHz...
I forgot to add: Praz, the CPU-z ini edit seems to have worked. I changed the Sensor setting from "on" to "off" and CPU-z seems to be stable.
Now if I could only figure out something to get my CPU stable @ 3.6GHz...
hey thx zsamz_. ill try those settings when i can.Quote:
Originally Posted by zsamz_
on praz's site with a vtt set to 1.4 i would need values of 97/94/95 for the required 67% of vtt. so for 68% as you say, should i use the values for the 1.43 vtt of 98/96/97 to get 68%?
about the cellshocks, should i take off the heatspreader and check?
i believe they have a thermal paste instead of a pad so i could just reapply paste with mx-2 if needed i think.

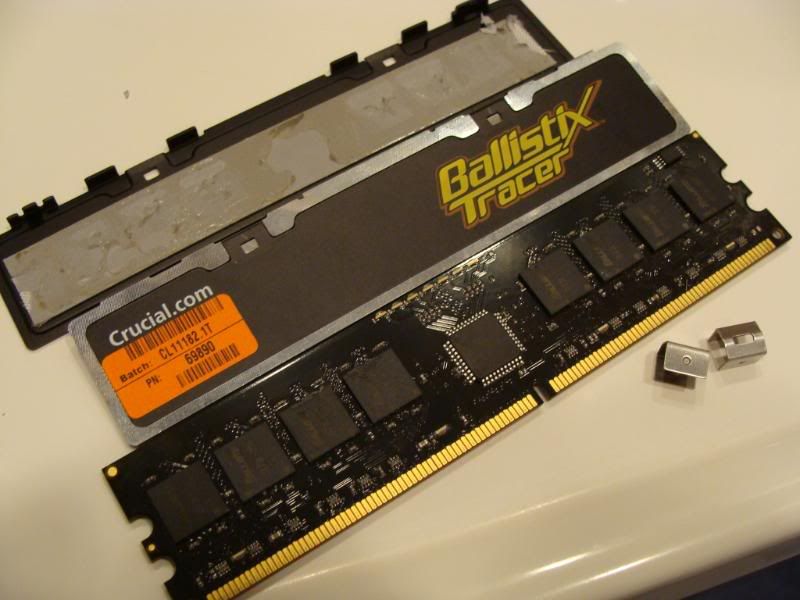

also kinda off topic i took the heatspreaders off of my ballistix tracers, but dont know what chips they are.
http://img.photobucket.com/albums/v7...mputer2001.jpg
http://img.photobucket.com/albums/v7...mputer2010.jpg

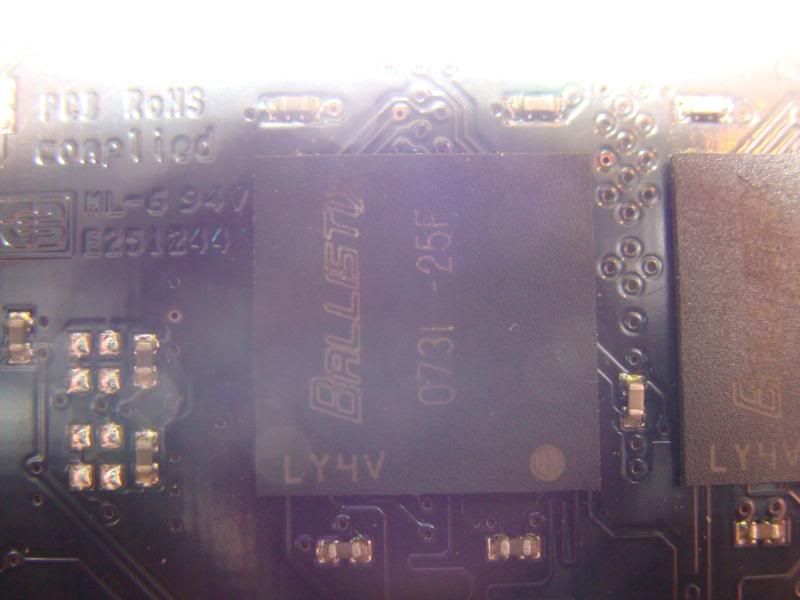

chips say 0731-25f
you gonna void warranty lol just test them
good thing you didnt rip the chips off the pcb on the ballistix:rofl:
if you can do 1100mhz 4-4-4-12 with 2.3v i think they are d9gkx
on this board all my d9ghm likin cas 5 "3 pairs"
my mushkins not stable cas 5 even with 2.3v i wont run 24/7 2.3v+
i'm runin my mushkin set now i'm stable with 2.22v 1060mhz 4-4-4-12 if i set them 5-5-5-15 i get errors even windows crashes
to top it off i can set performance to 7 now :) instead of 8
as for gtl each setting is for different voltages
1 cpu
2 cpuvtt
3 nb
ZsamzQuote:
Originally Posted by zsamz_
Can you elaborate on the above for us as I'm kind of confused. GTL reference voltages are derived from VTT. CPU GTL 1/2 and 0/3 move the setpoints for the two CPU GTL reference voltages. NB GTL moves the setpoint for the NB GTL reference voltage. In the above what is GTL doing for what is listed as "2 cpuvtt"
i set my gtl setting as follows
first one for cpu
second one for cpu vtt
third for nb
i follow anantec's chart +1-2
am i doin somethin wrong?
New member here. Set up a system with the DFI X38, and just wanted to add some input about 3rd party coolers. I'm using the Thermalright Mosfet 9S Type 2 cooler, it fits, for anyone thinking about using it, but if you don't use the thermal pad provided it will actually short out the components above the mosfets that it rests on. (It bridges them all.) Luckily, I don't think my board was damaged.
Quick question. Seeing 42C idling for an hour with the Noctua NC-U6 northbridge cooler...is this higher than normal? I'm not overclocked yet. Ambient is about 22C.
Yes, I would say that is higher than what I am getting on the stock cooler. So far my highest under load was 38C, but that is with the CPU fan blowing across the NB heatsink.
Hummm I wonder if those prices are right and if they will work well in the X-38.Quote:
Originally Posted by Russian
As far as all I'm reading they all should be a % of the VTT value and the first 2 are for the CPU (core0 to core-4) that's why so effective for Quad's stability and the last one is as Praz said for NB.Quote:
Originally Posted by zsamz_
So I really wonder how people get crazy variations in the numbers like 84-84-96, or 95-97-102?!?!
If all is a % to the VTT and the VTT is fixed (1.4v example) why aren't they the same 96-96-96 or 99-99-99?
the VTT charts available are based on actual measurements of VTT voltage on board, it seems that 2/3 is always a bit lower than 0/1. Thats why you see values like
96 (0/3)
95 (1/2)
AS FAR AS I UNDERSTAND now and with the help what praz said:
I look at my VTT voltage in bios (what bios says, not what i SET it...) , then i set 0/3 and 1/2 69% of VTT and NB Ref GTL at 68% of VTT. I think this is how its done.
---> But i STILL didnt get an answer what would be a reasonable, max CPU VTT voltage! <--------- !!
Btw. my 6600 CPU totally sucks, i dont understand it. How can it be prime stable at 3537 - but if i add only 15mhz i immediately BSOD !!
I need to know what causes the BSODS...and why OCCT not only gives me a "crash" (calculation error) but always those BSODs, sometimes 2 seconds after i start OCCT. 15mhz less and i can run prime stable!!
Also, in regards to straps in bios: 266/... 333/... and 400/...
I did some testing and noticed that the 400/... strap gives me higher latencies, also if i run ram FASTER than with 266 strap. Same timings and ram even slower under 266/... everest shows me better benchmarks and lower latencies! Like 57 compared to 65ns udner 400 strap.
I chose 400 strap and set ram fast and SAME timings and get very bad latencies.
Well a good q6600 depends on the batch, whats your batch and VID?Quote:
Originally Posted by flexy
LOL...you are right in the same boat as he...think you know it ALL and who think they have their sh*it together...last time i checked your sh*it stinks just like mine.:)Quote:
Originally Posted by GripS
i think the last time you and i went at it, you acted just like crazyea....why don't you stay out of it...no one asked you to butt in....i think guys like you have this hankering to weigh in so you can perpetuate the stirred up emotions...talk about maturity...i like to make posts that help users...how is your above post HELPING anyone.:rolleyes:
where is all the anger and hostility coming from bro? I apologized to end this. let it go.
That is how they are laid out in the BIOS.Quote:
Originally Posted by Jor3lBR
The difference is in actual board to board variation of set voltages, line impedance and circuit noise. Also the variation in the characteristics of the individual CPU and Northbridge plays a part.Quote:
Originally Posted by Jor3lBR
L741, Vid right now (as set in bios) 1.40something - 1.41. Dont want to go higherQuote:
Originally Posted by Jor3lBR
my problem is not instability, but rather BSODS if i go higher. playing with GTL ref right now and VTT.
I give up. Can't do 4ghz+ stable but... I can boot into windows @ 4.5ghz, go figure..
Latest settings I tried on this E8400 that got me stable for 29minutes.
450FSB
333/667 Divider
Vcore 1.4
Dram 2.2 Volts 5-5-5-15 everything else on Auto
These are Micron D9's btw PC6400 2gig kit of Ballistix
NorthBridge 1.4v
Southbridge Untouched.
CPU VTT 1.4v (Lower = Prime fails in under 6mins)
CPU 0/2 GTL: 97
CPU 1/3 GTL: 94
NB GTL: 96
Seems as I screwed with the GTL's I got it more stable.
Anything I'm doing wrong :/ ? I've been trying stuff for hours, took naps while running prime. Thank god I'm home for 2 weeks lol.
Too funny.... I didn't expect you to let it go. Why don't you tell me how THAT post is helping anyone? You know it all man. We are all peons compared to you. Normally i would stay out of it but you were displaying the same attitude to him that you did with me. Someone disagrees with you and you start slinging insults. Both immature and annoying. :rolleyes:Quote:
Originally Posted by Ace-a-Rue
Heh..... He's one of those types that has to have the last word on everything. ;)Quote:
Originally Posted by crazyea
That speed should run with VTT close to default and Gtls det to "Disabled".
E8400 01/09 BIOS
333/800 Strap/Divider
2x1GB OCZ PC2 9200 Reaper
XFX8800 GTX
C1E and VDROOP enabled. VCORE was set using VID Special Add leaving VID Control on Auto. Adjusting VCORE this way allows the voltage to
decrease along with frequency while idle. Measured voltage at idle - 1.254. Measured under load - 1.332. Frequency at idle - 2670MHz.
Frequency under load - 4005MHz.
http://www.edgeofstability.com/image...800_main_s.jpg..http://www.edgeofstability.com/image...800_volt_s.jpg
http://www.edgeofstability.com/image...00_dram1_s.jpg..http://www.edgeofstability.com/image...00_dram2_s.jpg
http://www.edgeofstability.com/image...0_clock1_s.jpg..http://www.edgeofstability.com/image...0_clock2_s.jpg
http://www.edgeofstability.com/image...00_phase_s.jpg..http://www.edgeofstability.com/image..._feature_s.jpg
Code:CPU Feature Page
Thermal Management Control................Enabled
PPM (EIST) Mode...........................Enabled
Limit CPUID MaxVal........................Disabled
CIE Function..............................Auto
Execute Disable Bit.......................Enabled
Virtualization Technology.................Enabled
Core Multi-Processing.....................Enabled
Main BIOS Page
Exist Setup Shutdown......................Mode 2
Shutdown After AC Loss....................Disabled
O. C. Fail Retry Counter..................0
CLOCK VC0 Divider.........................Auto
CPU Clock Ratio...........................9x
CPU N/2 Ratio.............................Disabled
CPU Clock.................................445 MHz
Boot Up Clock.............................Auto
DRAM Speed................................333/800
PCIE Clock................................100MHz
PCIE Slot Config..........................1X 1X
CPU Spread Spectrum.......................Disabled
PCIE Spread Spectrum......................Disabled
SATA Spread Spectrum......................Disabled
Voltage Setting Page
CPU VID Control...........................Auto
CPU VID Special Add.......................108.50%
DRAM Voltage Control......................2.150V
SB Core/CPU PLL Voltage...................1.510V
NB Core Voltage...........................1.405V
CPU VTT Voltage...........................1.100V
VCore Droop Control.......................Enabled
Clockgen Voltage Control..................3.45V
GTL+ Buffers Strength.....................Strong
Host Slew Rate............................Weak
GTL REF Voltage Control...................Disabled
CPU GTL1/3 REF Volt.......................N/A
CPU GTL 0/2 REF Volt......................N/A
North Bridge GTL REF Volt ................N/A
DRAM Timing Page
Enhance Data Transmitting.................Fast
Enhance Addressing........................Fast
T2 Dispatch...............................Auto
Clock Setting Fine Delay..................Listed Below
CAS Latency Time (tCL)....................5
RAS# to CAS# Delay (tRCD).................5
RAS# Precharge (tRP)......................5
Precharge Delay (tRAS)....................15
All Precharge to Act......................5
REF to ACT Delay (tRFC)...................28
Performance Level.........................7
Read Delay Phase Adjust...................Listed Below
MCH ODT Latency...........................2
Write to PRE Delay (tWR)..................14
Rank Write to Read (tWTR).................11
ACT to ACT Delay (tRRD)...................3
Read to Write Delay (tRDWR)...............8
Ranks Write to Write (tWRWR)..............4
Ranks Read to Read (tRDRD)................5
Ranks Write to Read (tWRRD)...............4
Read CAS# Precharge (tRTP)................3
ALL PRE to Refresh........................5
Read Delay Phase Adjust Page
Channel 1 Phase 0 Pull-In.................Auto
Channel 1 Phase 1 Pull-In.................Auto
Channel 1 Phase 2 Pull-In.................Auto
Channel 1 Phase 3 Pull-In.................Auto
Channel 1 Phase 4 Pull-In.................Auto
Channel 2 Phase 0 Pull-In.................Auto
Channel 2 Phase 1 Pull-In.................Auto
Channel 2 Phase 2 Pull-In.................Auto
Channel 2 Phase 3 Pull-In.................Auto
Channel 2 Phase 4 Pull-In.................Auto
Clock Setting Fine Delay Page
Ch1 Clock Crossing Setting................More Aggressive
DIMM 1 Clock fine delay...................Current 222s
DIMM 2 Clock fine delay...................Current 601ps
DIMM 1 Control fine delay.................Current 667ps
DIMM 2 Control fine delay.................Current 434ps
Ch 1 Command fine delay...................Current 934ps
Ch2 Clock Crossing Setting................More Aggressive
DIMM 3 Clock fine delay...................Current 222ps
DIMM 4 Clock fine delay...................Current 534ps
DIMM 3 Control fine delay.................Current 512ps
DIMM 4 Control fine delay.................Current 501ps
Ch 2 Command fine delay...................Current 934ps
Ch1Ch2 CommonClock Setting................More Aggressive
Ch1 RDCAS GNT-Chip Delay..................Auto
Ch1 WRCAS GNT-Chip Delay..................Auto
Ch1 Command to CS Delay...................Auto
Ch2 RDCAS GNT-Chip Delay..................Auto
Ch2 WRCAS GNT-Chip Delay..................Auto
Ch2 Command to CS Delay...................Auto
http://www.edgeofstability.com/image...0_orthos_s.jpg
http://www.edgeofstability.com/image...800_3d06_s.jpg
http://www.edgeofstability.com/image..._everest_a.jpg
Cool I'm going to try that Praz. "I think that was directed to me those settings, I hope"
If this doesn't work out I wonder if I should buy better ram than my D9's or new razer blades to slit my wrists with? lmfao
With the 667 divder your ram shouldn't be an issue.Quote:
Originally Posted by ReTiCuLeX
Alrighty =).
Btw Praz,
Thanks for your fast response / help.
Seeing all these mixed GTL's in threads. Which would you recommend I use for 445fsbx9 ? Should I follow the ones I already tried, use AUTO ?
Each system is different but I've been as high as 480 FSB using auto settings.Quote:
Originally Posted by ReTiCuLeX
On a side note it's to bad this thread can't stay on-topic.
Just thought I would mention that my DFI LanParty P35-T2R MB shorted out when I switched to Thermalright Mosfet 9U cooler, even though I used thermal tape and had insulating washers between nut and bolt (had to modify mount/cut off ears for push pins).Quote:
Originally Posted by GrandMasterJ
Am now waiting for new DFI X38-T2R, but won't use the Thermalright cooler in future. However, I will add an extra fan to cool PWM area.
Just wanted to say thanks Praz for all that you do in here ... I read all the posts in this thread, though I don't have a lot to contribute ... I just keep playing around with my Q6600 on this board and seeing what it can do ... and I'd be completely lost without your dedicated input and advice ... so please keep up the good work ... :up: (somebody pay this man!!:D )
Your welcome AKHandyman. Most of what I post I found out the hard way. There's no sense in all of us having to do things that way.
Good news on the CPU-Z issue. Just got done testing and it works fine with both 32Bit and 64Bit versions of Vista. The next release from Frank will hopefully put this problem behind us.
