ASUS Maximus II Formula - new P45 king?

71 470 marks 2003
29 258 marks 2005
19 640 marks 2006

Really nice results mate :up:

Quote:

---

Originally Posted by Eeky NoX

Waoh! That's a great chip mate ;)

So Cryptik if ya wana see some 3D Benchs, you should look at what I've done last night :

http://soj.mesdiscussions.net/soj/Ca...ujet_121_1.htm

I clam 3 walls yesterday, all on air : such a satisfaction my friends ya know ?


Sorry all cus' my thread is only in french, but any comment ??

---

Thanks M8..:D

Great Results with CF.

Can you post your M2F setings used for 3d benching?

:up:

Need some help trying to get 4.1 I keep falling prime small fft's on worker thread 3

Hers my settings........... any help would be Aprecheated

P.S pulled out 2 stick running only 4 gigs

Ai Overclock Tuner: Manual
OC From CPU Level Up: Auto
Ratio CMOS Setting: 9
FSB Frequency: 456
CPU Clock Skew: auto
NB Clock Skew: auto
FSB Strap to North Bridge: 333
DRAM Frequency: DDR2-1095MHz

DRAM CLK Skew on Channel A1: Advance 250ps
DRAM CLK Skew on Channel A2: Advance 250ps
DRAM CLK Skew on Channel B1: Advance 250ps
DRAM CLK Skew on Channel B2: Advance 250ps
DRAM Timing Control: Manual

1st Information:

CAS# Latency: 5 DRAM Clocks
DRAM RAS# to CAS# Delay: 5 DRAM Clocks
DRAM RAS# Precharge: 5 DRAM Clocks
DRAM RAS# Activate to Precharge: 15 DRAM Clocks
RAS# to RAS# Delay: Auto
Row Refresh Recycle Time: 55 DRAM Clocks
Write Recovery Time: Auto
Read to Precharge Time: Auto

2nd Information:

Read to Write Delay (S/D): Auto
Write to Read Delay (S): Auto
Write to Read Delay (D): Auto
Read to Read Delay (S): Auto
Read to Read Delay (D): Auto
Write to Write Delay (S): Auto
Write to Write Delay (D): Auto


3rd Information:

Write to PRE Delay: Auto
Read to PRE Delay: Auto
PRE to PRE Delay: Auto
All PRE to ACT Delay: Auto
All PRE to REF Delay: Auto
DRAM Static Read Control: Enabled
DRAM Read Training: disabled
MEM. OC Charger: enabled
Ai Clock Twister: stronger
Ai Transaction Booster: Manual

Common Performance Level: 8
Pull-in of CHA PH1: Disabled
Pull-in of CHA PH2: Disabled
Pull-in of CHA PH3: Disabled
Pull-in of CHB PH1: Disabled
Pull-in of CHB PH2: Disabled
Pull-in of CHB PH3: Disabled

PCIE Frequency: 101

CPU Voltage: 1.3875
CPU PLL Voltage: 1.55
FSB Termination Voltage: 1.35175
DRAM Voltage: 2.15775
North Bridge Voltage: 1.35150
South Bridge 1.5 Voltage: 1.50
South Bridge 1.1 Voltage: 1.10

CPU GTL Reference (0): +20
CPU GTL Reference (1):-+20
CPU GTL Reference (2): +20
CPU GTL Reference (3):-+20mv
NB GTL Reference: Auto
DDR2 ChA Reference Voltage: Auto
DDR2 ChB Reference Voltage: Auto
North Bridge DDR Reference: Auto


CPU Configuration:

Ratio CMOS Setting: 9
C1E Support: Disabled
Max CPUID Value Limit: Disabled
Intel Virtualization Tech: Disabled
CPU TM Function: Disabled
Execute Disable Bit: Disabled

Load-Line Calibration: Enabled
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled

@Nunzi

1st) Leave DRAM CLK Skew @ Auto

2nd)

CPU GTL Reference (0):+45mv
CPU GTL Reference (1):-45mv
CPU GTL Reference (2): +45mv
CPU GTL Reference (3):-45mv

3rd)Ai Clock Twister: Auto

Try Georges settings, also try a range of GTL Ref settings. Here's 3 sets you could try:

CPU GTL Reference (0): +30mv
CPU GTL Reference (1): -10mv
CPU GTL Reference (2): +30mv
CPU GTL Reference (3): -10mv

CPU GTL Reference (0): +40mv
CPU GTL Reference (1): Auto
CPU GTL Reference (2): +40mv
CPU GTL Reference (3): Auto

CPU GTL Reference (0): +50mv
CPU GTL Reference (1): +10mv
CPU GTL Reference (2): +50mv
CPU GTL Reference (3): +10mv

http://i36.tinypic.com/10qksxx.jpghttp://i38.tinypic.com/nm0yn5.jpg

Thanks for the info guys.......going to try settings now

Quote:

---

Originally Posted by humeyboy

Fix is to unplug it and press the power button a few times then boot up as normal, but at times it loads up defaults or setting I have never touched or set in Bios like Skew etc.

---

OK this fix the infinite fake boot bug, and finally i can enter in the BIOS, but now i've a huge trouble, i can't enter in windows ... also i can't install a new fresh copy of the OS ... cause every time that it loads (and finish) the files from the CD i get a reboot so the installing process isn't finished ... any tip?

having trouble getting my system stable under Prime 95 it usually failed around the 1 hour mark however it is stable under linpack 10 pass.
any advice welcome

PHP Code:

---


Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : Auto
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 445
CPU Clock Skew : Auto
North Bridge Clock Skew : Auto
FSB Strap to North Bridge : Auto
DRAM Frequency: DDR2-1116MHz
Dram Clock Skew CH1 A1 : Auto
DRAM Clock Skew CH1 A2 : Auto
Dram Clock Skew CH1 B1 : Auto
Dram Clock Skew CH1 B2 : Auto


DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : 5
Row Refresh Cycle Time : 55
Write Recovery Time : 8
Read to Precharge Time : 5

Read to Write Delay (S/D) : Auto
Write to Read Delay (S) : Auto
Write to Read Delay (D) : Auto
Read to Read Delay (S) : Auto
Read to Read Delay (D) : Auto
Write to Write Delay (S) : Auto
Write to Write Delay (D) : Auto

Write to PRE Delay : Auto
Read to PRE Delay : Auto
PRE to PRE Delay : Auto
ALL PRE to ACT Delay : Auto
ALL PRE to REF Delay : Auto

DRAM Static Read Control: Disabled
Dram Read Training : Disabled
MEM OC Charger : Enabled
Ai Clock Twister : MODERATE
Transaction Booster : Manual

Common Performance Level [10]

Pull-In of CHA PH1 Enabled
Pull-In of CHA PH2 Enabled
Pull-In of CHA PH3 Enabled
Pull-In of CHA PH4 Enabled
Pull-In of CHA PH5 Enabled
Pull-In of CHB PH1 Enabled
Pull-In of CHB PH2 Enabled
Pull-In of CHB PH3 Enabled
Pull-In of CHB PH4 Enabled
Pull-In of CHB PH5 Enabled

PCIE Frequency : 101

CPU Voltage : 1.29875
CPU PLL Voltage : 1.50
FSBT : 1.27225
DRAM Voltage : 2.00
North Bridge Voltage : 1.23250
South Bridge Voltage 1.5 : 1.5
South Bridge Voltage 1.1 : 1.10

CPU GTL Reference 0 : Auto
CPU GTL Reference 1 : -40mv
CPU GTL Reference 2 : Auto
CPU GTL Reference 3 : -40mv
North Bridge GTL Reference : +30mv
DDR2 Channel A REF Voltage : Auto
DDR2 Channel B REF Voltage : Auto
North Bridge DDR Reference : Auto

Load Line Calibration : Enabled
CPU Spread Spectrum : Disabled
PCIE Spread Spectrum : Disabled


---

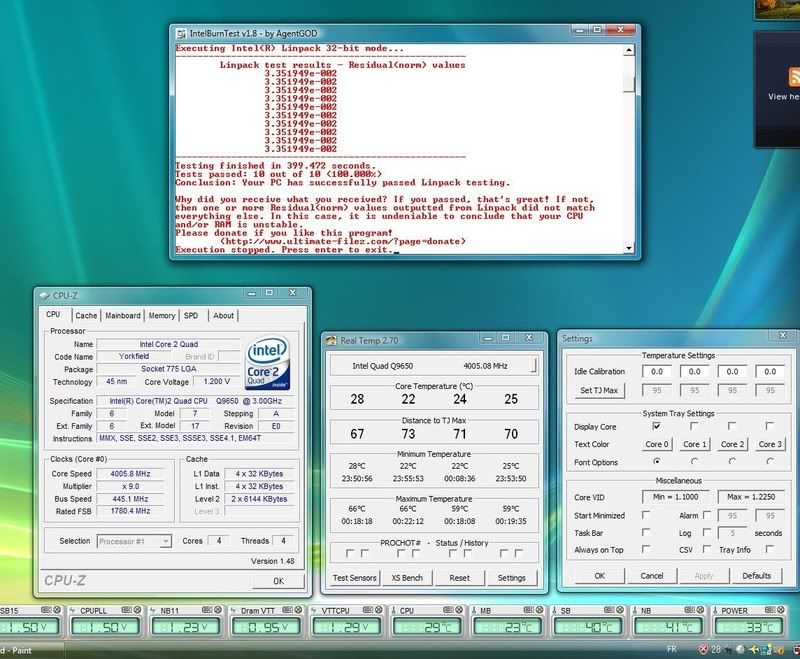

http://i18.photobucket.com/albums/b1...2262/q9650.jpg

Quote:

---

Originally Posted by Nunzi

Need some help trying to get 4.1 I keep falling prime small fft's on worker thread 3

Hers my settings........... any help would be Aprecheated

P.S pulled out 2 stick running only 4 gigs

Ai Overclock Tuner: Manual
OC From CPU Level Up: Auto
Ratio CMOS Setting: 9
FSB Frequency: 456
CPU Clock Skew: auto
NB Clock Skew: auto
FSB Strap to North Bridge: 333
DRAM Frequency: DDR2-1095MHz

DRAM CLK Skew on Channel A1: Advance 250ps
DRAM CLK Skew on Channel A2: Advance 250ps
DRAM CLK Skew on Channel B1: Advance 250ps
DRAM CLK Skew on Channel B2: Advance 250ps
DRAM Timing Control: Manual

1st Information:

CAS# Latency: 5 DRAM Clocks
DRAM RAS# to CAS# Delay: 5 DRAM Clocks
DRAM RAS# Precharge: 5 DRAM Clocks
DRAM RAS# Activate to Precharge: 15 DRAM Clocks
RAS# to RAS# Delay: Auto
Row Refresh Recycle Time: 55 DRAM Clocks
Write Recovery Time: Auto
Read to Precharge Time: Auto

2nd Information:

Read to Write Delay (S/D): Auto
Write to Read Delay (S): Auto
Write to Read Delay (D): Auto
Read to Read Delay (S): Auto
Read to Read Delay (D): Auto
Write to Write Delay (S): Auto
Write to Write Delay (D): Auto


3rd Information:

Write to PRE Delay: Auto
Read to PRE Delay: Auto
PRE to PRE Delay: Auto
All PRE to ACT Delay: Auto
All PRE to REF Delay: Auto
DRAM Static Read Control: Enabled
DRAM Read Training: disabled
MEM. OC Charger: enabled
Ai Clock Twister: stronger
Ai Transaction Booster: Manual

Common Performance Level: 8
Pull-in of CHA PH1: Disabled
Pull-in of CHA PH2: Disabled
Pull-in of CHA PH3: Disabled
Pull-in of CHB PH1: Disabled
Pull-in of CHB PH2: Disabled
Pull-in of CHB PH3: Disabled

PCIE Frequency: 101

CPU Voltage: 1.3875
CPU PLL Voltage: 1.55
FSB Termination Voltage: 1.35175
DRAM Voltage: 2.15775
North Bridge Voltage: 1.35150
South Bridge 1.5 Voltage: 1.50
South Bridge 1.1 Voltage: 1.10

CPU GTL Reference (0): +20
CPU GTL Reference (1):-+20
CPU GTL Reference (2): +20
CPU GTL Reference (3):-+20mv
NB GTL Reference: Auto
DDR2 ChA Reference Voltage: Auto
DDR2 ChB Reference Voltage: Auto
North Bridge DDR Reference: Auto


CPU Configuration:

Ratio CMOS Setting: 9
C1E Support: Disabled
Max CPUID Value Limit: Disabled
Intel Virtualization Tech: Disabled
CPU TM Function: Disabled
Execute Disable Bit: Disabled

Load-Line Calibration: Enabled
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled

---

still droping the 3rd worker thread eny other settings I can try?

Thanks

Quote:

---

Originally Posted by GeorgeVasil

Thanks M8..:D

Great Results with CF.

Can you post your M2F setings used for 3d benching?

:up:

---

Nothing special, but crasy voltages for aircooling :p:

I just remebered that those settings were for 4,8 :rofl: Now I trying to go down cus' the heat grows over 85° (sorry for °)

Still startin' up the OS @4,5 with all voltage on auto and 1,32v for the core...but I've got to dig for now (this mobo's teachin me ya know ? :up: )

This is the best i can do with the voltages...

CryptiK i tryied both CPU&Clock Skews,they really affect stabillity.

http://www.outofspecs.gr/forum/attac...1&d=1228164375

1,336 VCore
1,16 VTT
0.64x GTL (-30mv)

Quote:

---

Originally Posted by GeorgeVasil

My chipset temps are 47 idle (with water and new swifteck block) load under small ffts goes 52 and under blend goes at 58-60 with 1.33 vnb.I ensured the good contact twice.(crappy temps).

I think that my M2F get unstable because of high temps at chipset.

---

These are some pretty high numbers. Mine tops @ 47'C with 1.51vNB, cooled by NBMAX.

Did u took apart the whole heatsink assembly when installing your wb or just the heatsink on the NB?

Quote:

---

Originally Posted by JoeBar

These are some pretty high numbers. Mine tops @ 47'C with 1.51vNB, cooled by NBMAX.

Did u took apart the whole heatsink assembly when installing your wb or just the heatsink on the NB?

---

Only the heatsink on the NB..:shrug:

Quote:

---

Originally Posted by GeorgeVasil

Only the heatsink on the NB..:shrug:

---

I reseated the whole assembly, my NB at idle is a cool 37c with ambiant air at 20c under load 44-45c max with 1.39vNB
I use a MCW30 for the NB

Quote:

---

Originally Posted by GeorgeVasil

Only the heatsink on the NB..:shrug:

---

I would suggest removing the whole assembly and reapplying some proper thermalpaste but i know it's a pain in the @ss to do this.

However something is definitely wrong there with your temps mate...

Quote:

---

Originally Posted by Grnfinger

I reseated the whole assembly, my NB at idle is a cool 37c with ambiant air at 20c under load 44-45c max with 1.39vNB
I use a MCW30 for the NB

---

Quote:

---

Originally Posted by JoeBar

I would suggest removing the whole assembly and reapplying some proper thermalpaste but i know it's a pain in the @ss to do this.

However something is definitely wrong there with your temps mate...

---

Thanks for the answers guys!

I think that my MCW-NBMAX only mounts proper on the whole assembly.

If i remove the whole assembly i'll need after market coolers for PWR and SB..:(:(

I will try for some whasers and a new custom plate for the block first.

PS.MR JoeBar γιατί δεν τα γράφεις ελληνικά ρε συ φίλε??:ROTF::ROTF:

Quote:

---

Originally Posted by GeorgeVasil

Thanks for the answers guys!

I think that my MCW-NBMAX only mounts proper on the whole assembly.

If i remove the whole assembly i'll need after market coolers for PWR and SB..:(:(

I will try for some whasers and a new custom plate for the block first.

PS.MR JoeBar γιατί δεν τα γράφεις ελληνικά ρε συ φίλε??:ROTF::ROTF:

---

No they mean for you to keep the heatpipe assembly just pull it off, clean off the crap Asus TIM, reapply some good TIM, and remount the heatpipe assembly along with your waterblock.

Quote:

---

Originally Posted by SiGfever

No they mean for you to keep the heatpipe assembly just pull it off, clean off the crap Asus TIM, reapply some good TIM, and remount the heatpipe assembly along with your waterblock.

---

Ahh ok My bad..:D

I have done this Twice Guys..I have Applied Ceramique..but same Sh@t..:p:

Guys my first tests with this great mobo, the Q9650 and the EVGA 8800 ULTRA vmoded

My Special Thanks to my mates Cryptik and Leeghoofd for all the help !!!

http://img511.imageshack.us/img511/1...1836252qv3.jpg

Good job. Try 500x8. P45 allows and can handle such clock stable with quads.

Quote:

---

Originally Posted by WaterFlex

Good job. Try 500x8. P45 allows and can handle such clock stable with quads.

---

Thanks mate :up: will try, just figuring out what VTT / VCORE / NB for that...

Cheers
Sergio

Quote:

---

Originally Posted by andressergio

Guys my first tests with this great mobo, the Q9650 and the EVGA 8800 ULTRA vmoded

My Special Thanks to my mates Cryptik and Leeghoofd for all the help !!!

---

Hola amigo, thanks for sharing, nice score. The ultra is punching well above it's weight. Good to see you in here finally :D

Just did 3 SPI32M runs with my M2F and Cellshock PC-8000 GKX sticks. This board has strange behaviour, it is most stable on the 5:6 divider. The times are bad as I had to run under 4GHz, PL8 (PL9 on first bench), Ai Clock Twister on moderate, and have static read and dram read training disabled. The GKX did ok, max SPI32M stable on 2.20v was 630 MHz.

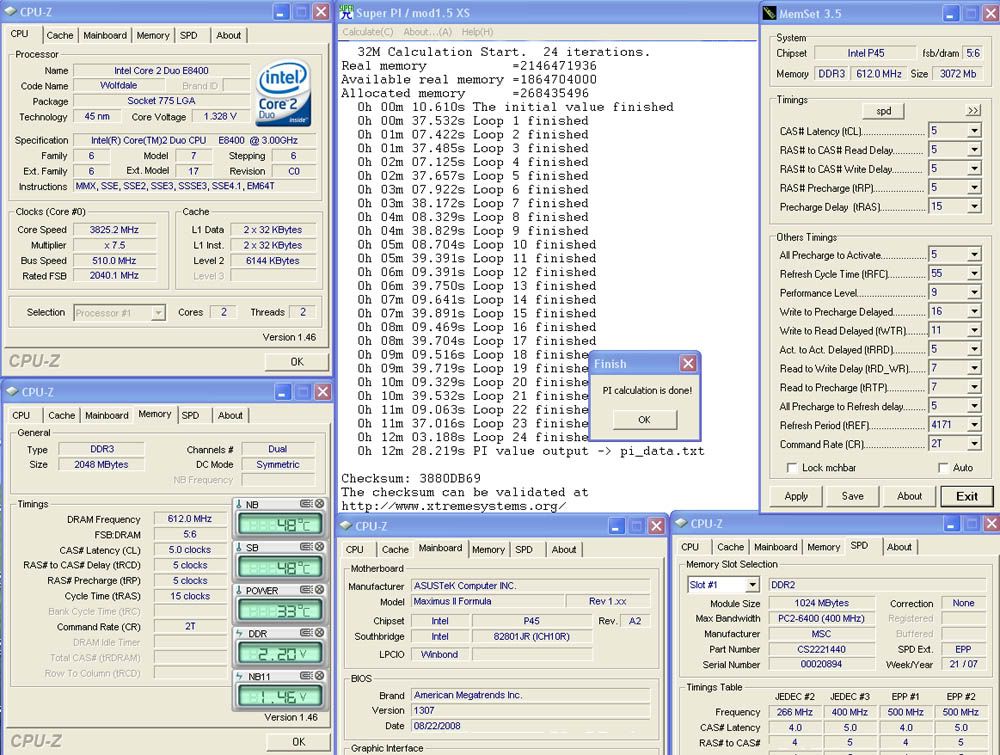

510 FSB, 612 MHz, PL 9
http://i266.photobucket.com/albums/i...PL922vdimm.jpg

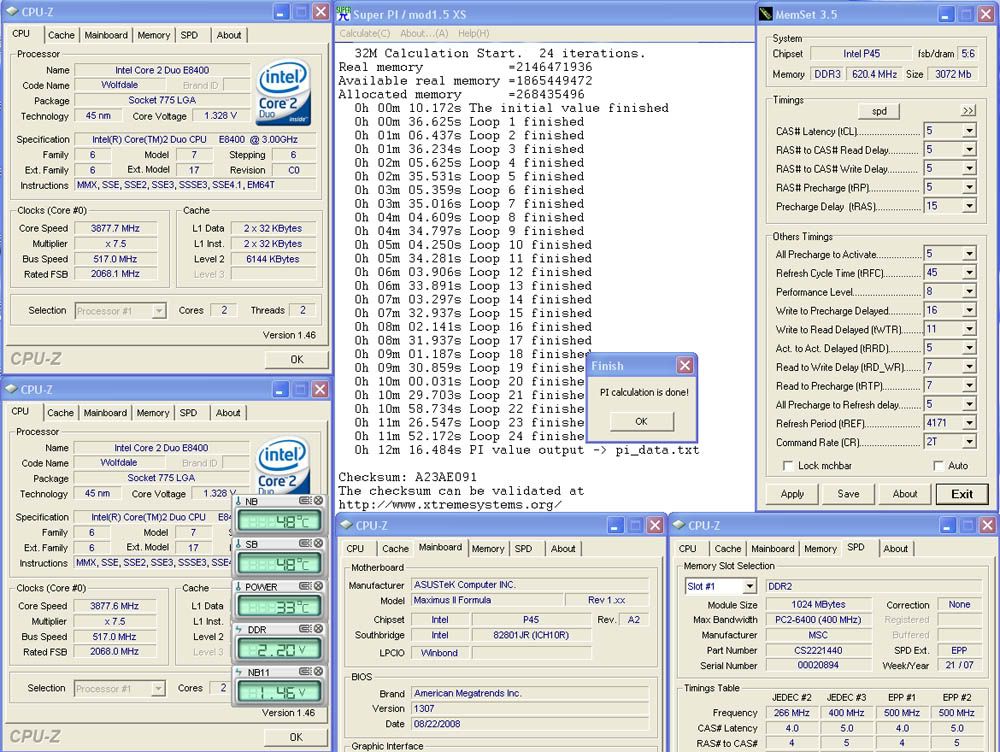

517 FSB, 620 MHz, PL 8
http://i266.photobucket.com/albums/i...PL822vdimm.jpg

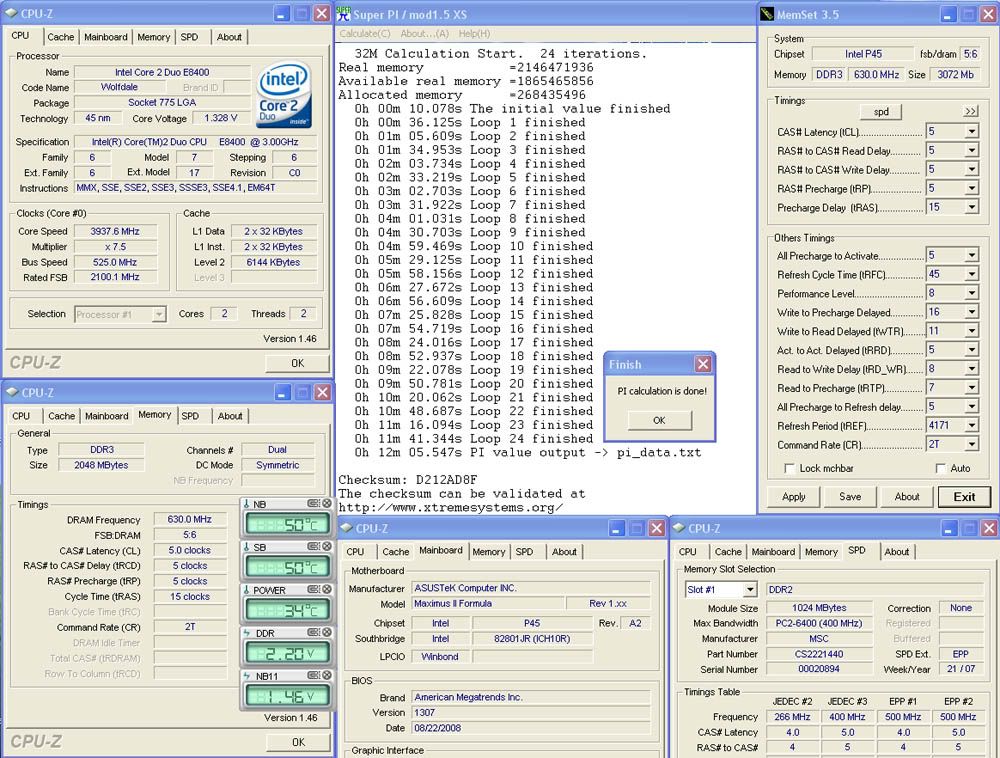

525 FSB, 630 MHz, PL 8
http://i266.photobucket.com/albums/i...PL822vdimm.jpg

Quote:

---

Originally Posted by CryptiK

Hola amigo, thanks for sharing, nice score. The ultra is punching well above it's weight. Good to see you in here finally :D

---

LOL yeah after i almost get crazy and you :rofl: and poor leeghoofd also
Thanks mates !! :up:

Sergio

BTW Nice Scores on your mem Cryp, guess i will buy 2x1 to test, impossible on 2x2...i only i had the Gskills PC29600 :rolleyes:
