11-19-2006, 04:01 PM
kwalker

Quote:

Originally Posted by Millyons

i just loaded setup defaluts, flashed with afudos to 0614, cleared the bios with the pus off, loaded setup defaults and flashed back to 0804, i didnt go into windows or anything like that with 0614

The only thing I did different was run 0614 for 24 hours to see if the problem occured with the older bios.

Can anyone else verify if reverting to the 0614 bios fixes the 1X Problem :confused:
11-19-2006, 05:10 PM
hot_fifty

I have tried 0614, no go for non-PCi problem here:(
11-19-2006, 05:12 PM
Millyons

no i dont remember having that problem with 1x and 0614 bios
11-19-2006, 05:12 PM
hot_fifty

will have to try a nvidia card someday:D
11-19-2006, 05:24 PM
kwalker

If I can get enough feedback data I will submit the findings to Asus engineering dept.
11-19-2006, 06:52 PM
gundam789

Quote:

Originally Posted by Cappie

- Legacy Floppy A drive(don't need that anymore after you installed windows)
- USB wifi/USB 9,10(akward placing and noone connects these)
- GBE lan port 2(or 1 depending on where you plug in your internet)
- Firewire 1394(disable if you haven't got any such devices)
- HD audio(disable this for certain if you are running PCI soundcard)
- Remove boot devices you don't boot from in that startup list(stuff like ATAPI cdrom, Floppy A drive, ... only put your windows disk here, if you ever need to boot from cdrom or whatever just reenable it)

I am sure there's some more you can disable, these are just the ones I did.

Hi thx for reply.
Im gona disable lan 1 cause lan 1 doesnt work when i plug my internet on it , not sure if its suppost to do that.
Should i disable this before installing windows or after? cause if i remeber correct the first time i disabled before installing windows i was not able to install the drivers for it.
11-19-2006, 07:26 PM
Jodiuh

Any idea what would cause this?

http://img.photobucket.com/albums/v2...h_IMG_1448.jpg http://img.photobucket.com/albums/v2...h_IMG_1446.jpg
11-19-2006, 07:44 PM
shimmishim

thanks for all the tips!

so far i've gotten my chip stable at 9x423=~3800 no mods.

i've been trying for 8 x 475 but keep getting BSOD.

i'm gonna give it another try tonight. then might go for vmods! :)
11-19-2006, 11:03 PM
Malk

Quote:

Originally Posted by vladman

Thanks Kakulukia, you also replied quickly to some of my other threads. :)

But JMicron causes my optical drives to be recognised as SCSI devices? Some people say this in turn causes them to be slow and not work optimally? Also, I don't use RAID and certainly not on JMicron, so do I need those drivers at all? Is it a question of simply living with that "unknown device" in Device Manager?

Thanks again!

As i wrote 3 times now:

To get your drives to show up as IDE, NOT SCSI, then use the standard windows driver instead of the Jmicron driver.
11-19-2006, 11:04 PM
pillar

Has anyone got two pci-e graphic cards working in non-crossfire mode? I need to have three monitor setup, but I'm having troubles with the secondary pci-e x16 slot. My primary card is Asus x1950pro and I have tried Geforce 6200 and Ati x300 as my secondary. Geforce was found, but every time I installed it's drivers, x1950pro stopped working. I assumed the problem is a driver conflict, because they were using different drivers. So, I got x300. But x300 isn't even showing up on windows. I know the card works, because if I put it in the primary slot, it works perfectly. I'm thinking the problem is probably the fact that the secondary pci-e x16 slot is working in x4 mode. The manual says that not all the graphic cards will work in that mode. But which ones do?

Can I get that x300 somehow working in that secondary slot or what kind of secondary card do I need?
11-19-2006, 11:32 PM
Malk

Quote:

Originally Posted by gybp

i just dont see that option... i only see the jmicron driver

I device manager choose update driver, choose "no, not now" on ext option, next option choose to install driver manually, next option: "dont search, i will decide", and then choose standard windows driver.

Hope this helps, im using the danish version of XP so i dont know what the options are called in english, but i hope i translated them ok :)

GL with it.
11-19-2006, 11:33 PM
MacClipper

@pillar,

perhaps try testing the 2nd x16 slot on its own, I just had my Aug batch mobo replaced cos of a bad 2nd x16 slot - wouldn't even POST on its own and the system freezes if I tried to install any drivers when using 2 cards.

The replacement Nov. batch mobo worked fine with 2 cards and would POST with a single card in the 2nd x16 slot too.
11-20-2006, 01:38 AM
ninjaskija

Hi to everybody!
I just finish reading allmost every post on this forum and i can tell that the 1x PCI-e problem can be also a video card incompatibility problem( i say this becouse are users who don't have this problem nomatter settings they are using) and in allmost every case this can be solved by setting MCH volt to1,45 or PCI-E Freq to something >100Mhz(is up to u wich freq u chose becouse not in all cases the problem dissapears at certain freq) but remember
keep it below 120 because not every card can hold this freq...
11-20-2006, 03:02 AM
Kallenator

Quote:

Originally Posted by Jodiuh

Any idea what would cause this?

http://img.photobucket.com/albums/v2...h_IMG_1448.jpg http://img.photobucket.com/albums/v2...h_IMG_1446.jpg

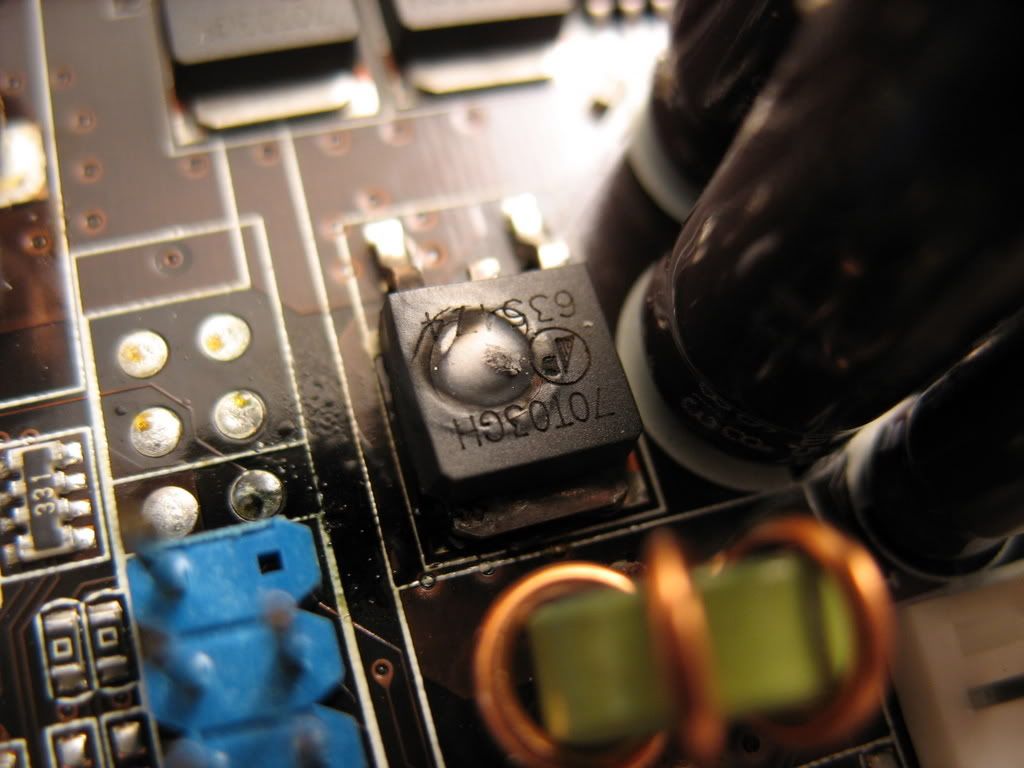

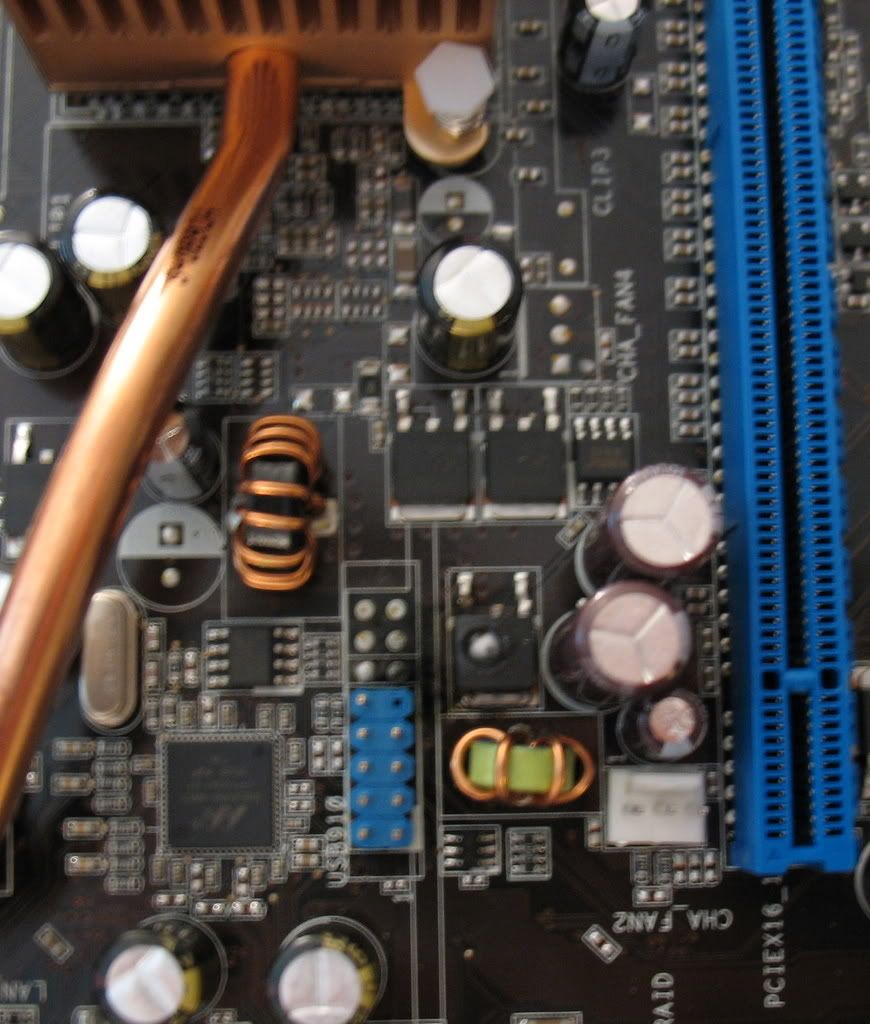

The same happened to me, except one of the other mosfet close to that one burned up. Just RMA it.

http://www.xtremesystems.org/forums/...d.php?t=112219
11-20-2006, 05:25 AM
shimmishim

Quote:

Originally Posted by pillar

Has anyone got two pci-e graphic cards working in non-crossfire mode? I need to have three monitor setup, but I'm having troubles with the secondary pci-e x16 slot. My primary card is Asus x1950pro and I have tried Geforce 6200 and Ati x300 as my secondary. Geforce was found, but every time I installed it's drivers, x1950pro stopped working. I assumed the problem is a driver conflict, because they were using different drivers. So, I got x300. But x300 isn't even showing up on windows. I know the card works, because if I put it in the primary slot, it works perfectly. I'm thinking the problem is probably the fact that the secondary pci-e x16 slot is working in x4 mode. The manual says that not all the graphic cards will work in that mode. But which ones do?

Can I get that x300 somehow working in that secondary slot or what kind of secondary card do I need?

you have to have identical cards for CF or SLI.

brand doesn't matter but two identical cards.

x1950pro + x1950pro or geforce6200 + geforce 6200

i think you get the drift
11-20-2006, 05:49 AM
Cappie

Quote:

Originally Posted by gundam789

Hi thx for reply.
Im gona disable lan 1 cause lan 1 doesnt work when i plug my internet on it , not sure if its suppost to do that.
Should i disable this before installing windows or after? cause if i remeber correct the first time i disabled before installing windows i was not able to install the drivers for it.

It really doesn't matter when you disable it, its best to disable before you install windows since then windows doesn't install devices in "Device Manager" for stuff you aren't using(less clutter this way, not that it matters much). That one port is just the marvell yukon and driver install worked perfect, get the newest ones from Asus, the ones from cd are ancient!
11-20-2006, 05:52 AM
dinos22

Quote:

Originally Posted by Jodiuh

Any idea what would cause this?

http://img.photobucket.com/albums/v2...h_IMG_1448.jpg http://img.photobucket.com/albums/v2...h_IMG_1446.jpg

that looks nasty

how did it happen
11-20-2006, 06:07 AM
china

Quote:

Originally Posted by shimmishim

i think you get the drift

You probably didn't, since he's not trying to get it to work in CF. ;) He's just trying to use more than two monitors and for that you need two graphics cards. It should be possible with the P5B DLX.
11-20-2006, 07:56 AM
Kakulukia

Quote:

Originally Posted by ninjaskija

Hi to everybody!
I just finish reading allmost every post on this forum and i can tell that the 1x PCI-e problem can be also a video card incompatibility problem( i say this becouse are users who don't have this problem nomatter settings they are using) and in allmost every case this can be solved by setting MCH volt to1,45 or PCI-E Freq to something >100Mhz(is up to u wich freq u chose becouse not in all cases the problem dissapears at certain freq) but remember
keep it below 120 because not every card can hold this freq...

Can people with no x1 issue post their bios settings:

I have a 7900GT @ working X16 ,:)

pci e= 100MHz

voltages:
Vcore= 1.5000
Vnb (is that mch?)= 1.45
Vdimm= 2.15
VSB=1.6
Vich= 1.057
vFSB=1.3V

I suggest you guys try these settings/voltages to fix x1 .
11-20-2006, 08:31 AM
Millyons

mabey we should start another thread just for the x1 issue and post all our settings there
11-20-2006, 09:14 AM
shimmishim

Quote:

Originally Posted by china

You probably didn't, since he's not trying to get it to work in CF. ;) He's just trying to use more than two monitors and for that you need two graphics cards. It should be possible with the P5B DLX.

hehehe.

thanks for correcting me. :slap:
11-20-2006, 09:23 AM
rastaseb

Quote:

Originally Posted by Kakulukia

Can people with no x1 issue post their bios settings:

I have a 7900GT @ working X16 ,:)

pci e= 100MHz

voltages:
Vcore= 1.5000
Vnb (is that mch?)= 1.45
Vdimm= 2.15
VSB=1.6
Vich= 1.057
vFSB=1.3V

I suggest you guys try these settings/voltages to fix x1 .

Can you try to put the vmch (vnb) at 1.55 and verify if your 7900 is still at X16!

For me at 1.45, all is ok but if i drop to 1.55->crash
11-20-2006, 10:04 AM
metalazzo

Quote:

Originally Posted by rastaseb

the problem appears when vmch is too high!
For me at 1.45 no matter, the mobo always boot with the linkwidth at x16
at 1.55, the problem appears (x1)

not sure this probleme would be solved with a new bios!
i think it's more an hardware aspect and Asus will perhaps release new revision of p5b

it's not related to vmch in my case
all voltages stock and the problem is still here
I tried every frequencies between 95 and 120MHz for the pcie and it's a no go :/
11-20-2006, 10:04 AM
mascaras

Quote:

Originally Posted by heikis

people, please tell me your voltage settings to run 400FSB stable. mine cant do it at 1,45V MCH (no post), but seems to run fine at 1,55V- that MCH voltage should be ok? other voltages are set to minimum (except CPU @ 1,4V)

anybody running 400FSB (400 only, i dont care about 401+) @ 1,45V MCH?
:cool:

im runing 400 FSb all voltages AUTO (beside vcore and vdim )

x1 issue with my previous x1900xt hapens every time i restart computer , with x1950xt only hapens if CPU crash (not stable)

regards
11-20-2006, 10:14 AM
heikis

Quote:

Originally Posted by mascaras

im runing 400 FSb all voltages AUTO (beside vcore and vdim )

x1 issue with my previous x1900xt hapens every time i restart computer , with x1950xt only hapens if CPU crash (not stable)

regards

AUTO is not good because you dont know what voltages the board gets. please try and see if your board posts 400FSB @ 1,45V MCH (NB).

I have 400FSB:
1,55V MCH(NB)
2,45V VDIMM
minimum VSB
minimum vich
minimum vFSB

i cant post at 400FSB and 1,45V MCH, but it does look stable at 1,55V.
I have X1900XT 256MB and I haven't seen a single pcie 1X state for now. With the older P5b Deluxe (that died) I got 1X constantly, but the new one looks a lot different- no pcie 1X AT ALL!
