G.SKILL PIS F3-17600CL7D-4GBPIS 2200 7-10-10-28 1.65V P55 Series

The F3-17066CL9, are BBSE not the Hyper.

thanks

hi all.,just wanna ask.,is this ram compatible with asus maximus iii formula..?

I test it on P7P55D WS SUPERCOMPUTER, works great.
Seems with all Asus mobos there are no problem.

tq dedal..

Tested by me on :

Gigabyte P55 UD5,Ud6,UD7
eVGA E657,E658,E659
Asus p7p55d Deluxe


SF3D used asus P7P55D Pro
Dedal used Super computer
Gskill tech confirmed MSI GD55 and GD65, ASUS Max III Formula



Will update :up:

ASUS Max III Formula is surely compatible. We work very closely with ASUS, so almost all of their motherboards should have no issues as long as it is supported. For basic users, enabling the XMP will be able to set everything just fine.

Thank you
GSKILL TECH

Work on EVGA P55 FTW as well.
However using 2:10 multi with this kit will have no boot issue.
To overcome this, SET the MCH Strap to 1333 or 1600 Mhz. For 2:12, Set to 1867Mhz. If you use 2:10 and 1867Mhz strap combination the MB will go to an infinite boot loop so don't try this. I'm at A51 BIOS.

For Asus P7P55D-Deluxe, with 1202 or 1207 BIOS it should be working fine with any DRAM Multipliers, older versions will only work @2:12 divider when using Core i7-800 Series processor.

Hope this help :up:

Having some problems with the latest GD-65 paired with clarkdale and this ram
Bios seems to lock QPI ratio and XMP mode
Though i doubt the xmp mode will work for clarkdale

Quote:

---

Originally Posted by ci2kla

Work on EVGA P55 FTW as well.
However using 2:10 multi with this kit will have no boot issue.
To overcome this, SET the MCH Strap to 1333 or 1600 Mhz. For 2:12, Set to 1867Mhz. If you use 2:10 and 1867Mhz strap combination the MB will go to an infinite boot loop so don't try this. I'm at A51 BIOS.

Hope this help :up:

---

Thanks for the suggestion.

Was trying to figure out why I couldn't get it to boot on my EVGA P55 SLI board.

Edit: Crap, cannot get CL 7 to work ... only 8. :(

Nice results! :)

Anybody using:
F3-19200CL9D-4GBPIS
DDR3-2400 PC3 19200 4GB(2GB x 2)
CL 9-11-9-28-2N
1.65 Volts
http://www.gskill.com/products.php?index=258
or
F3-18400CL8D-4GBPIS
DDR3-2300 PC3 18400 4GB(2GB x 2)
CL 8-11-8-28-2N
1.65 Volts
http://www.gskill.com/products.php?index=257

in Gigabyte Hicookie tested both
i'll search for the links ;)

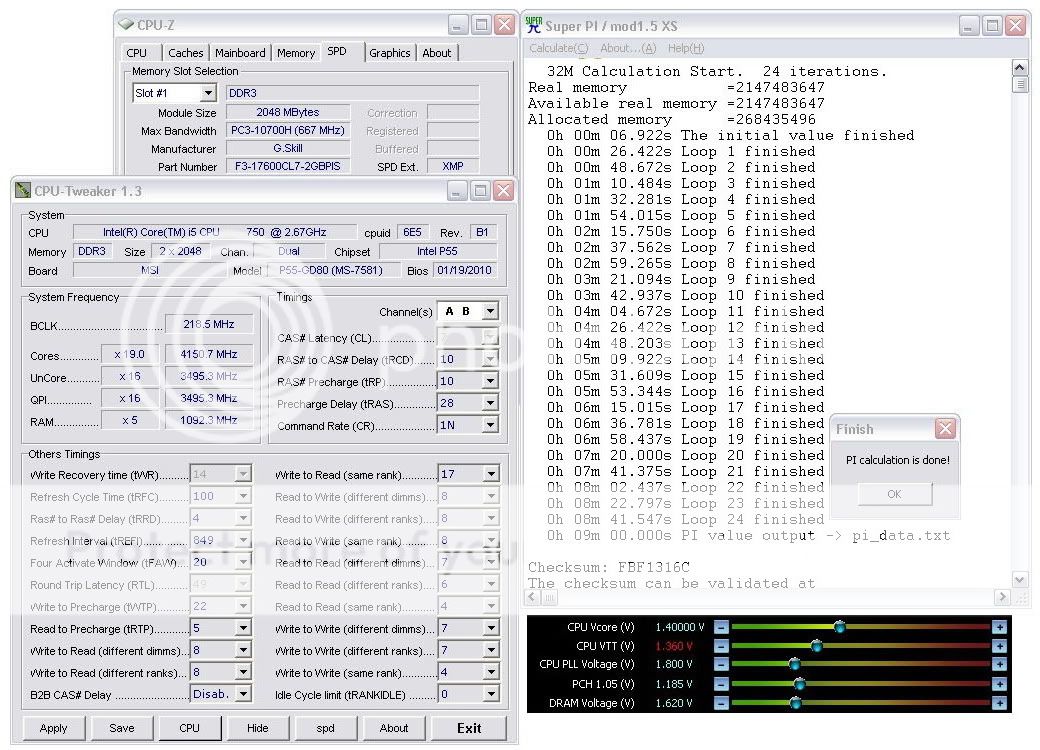

First test with this KIT :D

http://i489.photobucket.com/albums/r...S/CL7-1092.jpg

IMG: PIS | F3-17600CL7D-4GBPIS | 2 x 2GB DDR3 2200MHz
http://www.xtremesystems.org/forums/...es/biggrin.gif This image has been resized. Click on image to view the fullsize http://www.xtremesystems.org/forums/...es/biggrin.gif


http://i489.photobucket.com/albums/r...IS-1024-01.jpg



http://i489.photobucket.com/albums/r...IS-1024-02.jpg



http://i489.photobucket.com/albums/r...IS-1024-03.jpg



http://i489.photobucket.com/albums/r...IS-1024-04.jpg



http://i489.photobucket.com/albums/r...IS-1024-05.jpg



http://i489.photobucket.com/albums/r...IS-1024-06.jpg



http://i489.photobucket.com/albums/r...IS-1024-07.jpg

Hello guys!

I have some memory overclocking OC-session.

First of all I reacherd max-freq on G.Skill F3-17600CL7D-4GBPIS

Setup:

- Core i7 860 (crappy one)
- GIGABYTE P55-UD6 (F7c Bios)
- G.Skill F3-17600CL7D-4GBPIS
- GeForce 7900GS
- WD VelosiRaptor 1600HLFS
- Enermax Revolution 1050W
- LN2 Pot "Forsage" New !


I test it with dual channel mode, soon I want to test it single channel.
I mount small LN2 pot on memory, sorry but i forget to make foto.
Tempereture on memory was ~(-80c) and optimal vDDR was 1,7v.

2816Mhz ( 11-13-11-31-2T) :woot:
http://valid.canardpc.com/show_oc.php?id=958121
http://img695.imageshack.us/img695/9941/memory2111.png

http://img693.imageshack.us/img693/2466/27311924.jpg

http://img96.imageshack.us/img96/8359/99066817.jpg

very good freq dedal :clap: , find a good cpu with strong IMC is not easy :(

Thanks hiwa

Yes, yes I test about 10 retail CPUs and all are piece of ... )))

are i7 860/870 imc that bad ? never tried one yet still on my first i5 750 and imc is very nice so far :)

Quote:

---

Originally Posted by eva2000

are i7 860/870 imc that bad ? never tried one yet still on my first i5 750 and imc is very nice so far :)

---

yes george some 750 beat 8XX series

as dedal i tested a lot of 860's and 3 870 but damn IMC weren't good
right now i have a good 860 maybe strong as well

Don't make a bad move like what I did........got myself an i3 530
I didn't spend much time playing with the rams yet........
but so far I only managed to go up to 1820cl8 on MSI GD65 :lol:

***need to find myself a better cpu.......any recommendations ;)***

another run under cold with PIS memories

2845 9-10-9-28 1.80 b2b disable

http://forum.nexthardware.com/galler...0_19-47-20.jpg

http://valid.canardpc.com/show_oc.php?id=1001711

http://forum.nexthardware.com/galler...emory-2133.jpg



http://forum.nexthardware.com/galler...1_IMG_0694.jpg
http://forum.nexthardware.com/galler...1_IMG_0696.jpg

holly .... :shocked:
hiwa, perfect result :up:
this kit have enought for DDR 3000 :D

Quote:

---

Originally Posted by hiwa

in Gigabyte Hicookie tested both
i'll search for the links ;)

---

gimme gimme pls!:D

Gigabyte mainboard was used for the test where you can visit:

Translate link:

Google Şu mesajı

Link:

http://www.pckoloji.com/f114/-grup-t...i-14897-gars2/

G.SKILL PI series 2200 MHz @ 2400 MHz - 7-10-10-28 - Air Cooling

http://www.pckoloji.com/f114/-grup-t...#content_start

http://www.pckoloji.com/f114/-grup-t...#content_start

hiwa, very nice result my friend !!!

Did you try it in single channel mode ?
