03-05-2009, 06:56 AM
Zeus

Quote:

Originally Posted by Deneteus

Heya what cooler do you plan on using in the North Bridge of the M4A79? I just picked up one bit I don't want to put it together until I know I can cool the NB/SB . i was thinking of buying a spare heat sink for a M4A79 and modding it with an MCW30.

I think i'll leave the chipset with the stockcooling like it is. All the hard work happens in the CPU since the memcontroller is in the CPU itself-- good enough for me. ;)

Quote:

Originally Posted by charles_h

Fantastic work Zeus!

I love the midplate mesh mod - very nicely executed. You've really done an outstanding job with this build and photography; bravo Sir! :)

Thanks Charles, it means a lot coming from you. Your builds inspired me the most of all excellent M|M builds around here. Sorry for stealing your idea's. ;)

Sick and tired of waiting i got me a new PSU (gonna sell the RMA'd one once it comes in -if ever :D).
Once again i tried to jumpsart it to test it before building it into my case and was faced with the same cr@p as before! WTF? :shrug:

I made a new thread here : http://www.xtremesystems.org/forums/...d.php?t=220045

Long story short, it seems impossible to jumpstart this PSU by just connecting the green to a black wire. :shrug:

On a brighter note, i finally got a PSU and can start sleeving now. :)
03-05-2009, 07:07 AM
SNiiPE_DoGG

in order to bleed zeus you dont need to jump it. just take the 24 pin power and plug it into the mobo, but leave all PCI-E and CPU 8-pin power off of the board. then you can use the switch on the case and the SPU hardswitch in tandem until the loop is filled.

I promise it is perfectly safe, I have done it 15 times at least
03-05-2009, 01:55 PM
Zeus

Thanks Snipe but it was not my intention to bleed actually. I just wanted to check if the PSU was ok before starting the dreaded sleeving job. It would be really painfull to find out the PSU was doa after the sleeving job, i'd rather find out prior to that painfull job. :D

Talking about sleeving, i got this one finished already :) :

http://img.photobucket.com/albums/v6...d/IMG_5783.jpg

I hope to start with the sata power cables tomorrow so that i can put my build together this weekend. :)
03-05-2009, 02:57 PM
NysoO

Nice one Zeus! You did a great job with the length and position of the heat shrink. Good job!
03-05-2009, 03:13 PM
BlueAqua

Great job Zeus. Does it bring you satisfaction knowing you did a terrific job?
03-05-2009, 03:21 PM
theseeker

Welcome to the sleevers club! Great job:up:
03-05-2009, 04:25 PM
Dangals

:clap: well done - nice sleeve job :up:

but one pic is never enough ;)
03-06-2009, 12:06 AM
Zeus

Quote:

Originally Posted by NysoO

Nice one Zeus! You did a great job with the length and position of the heat shrink. Good job!

Thanks. :) I have to say i'm not 100% satisfied with the way the heatshrink came out, i've cut all pieces exactly the same length and slid them all onto the first part of the pin but in the end there was still difference in length though. :shrug:

Quote:

Originally Posted by BlueAqua

Great job Zeus. Does it bring you satisfaction knowing you did a terrific job?

Thanks BA my fingers still hurt, using 1/8 shrinktube makes it a lot harder.

Quote:

Originally Posted by theseeker

Welcome to the sleevers club! Great job:up:

Thanks man! Like i'd already seen in your pic, the wires do not go 1:1 from one connector to the other, the wires are crossed here and there, did you notice that too?

Quote:

Originally Posted by Dangals

:clap: well done - nice sleeve job :up:

but one pic is never enough ;)

Thanks Dangals, your guide helped me, the smaller shrinktube you advised makes it look smoother than the 6mm shrinktube i used before, this 1/8 shrinktube fits into the plastic housing of the connector and makes it look neat and clean. :)

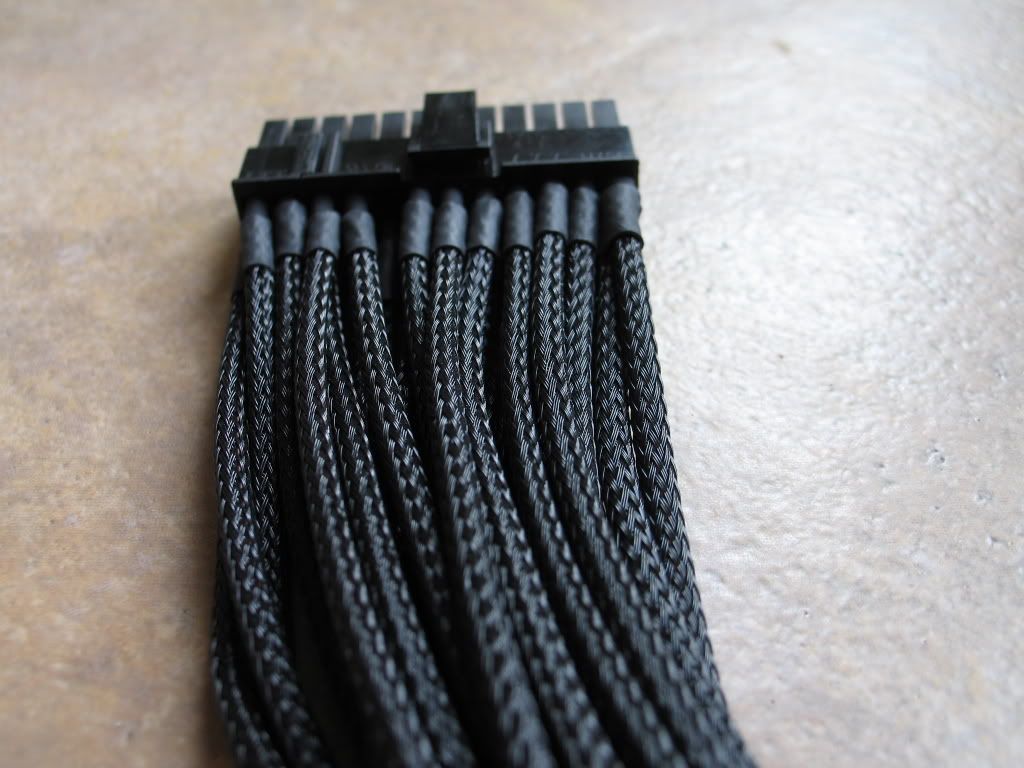

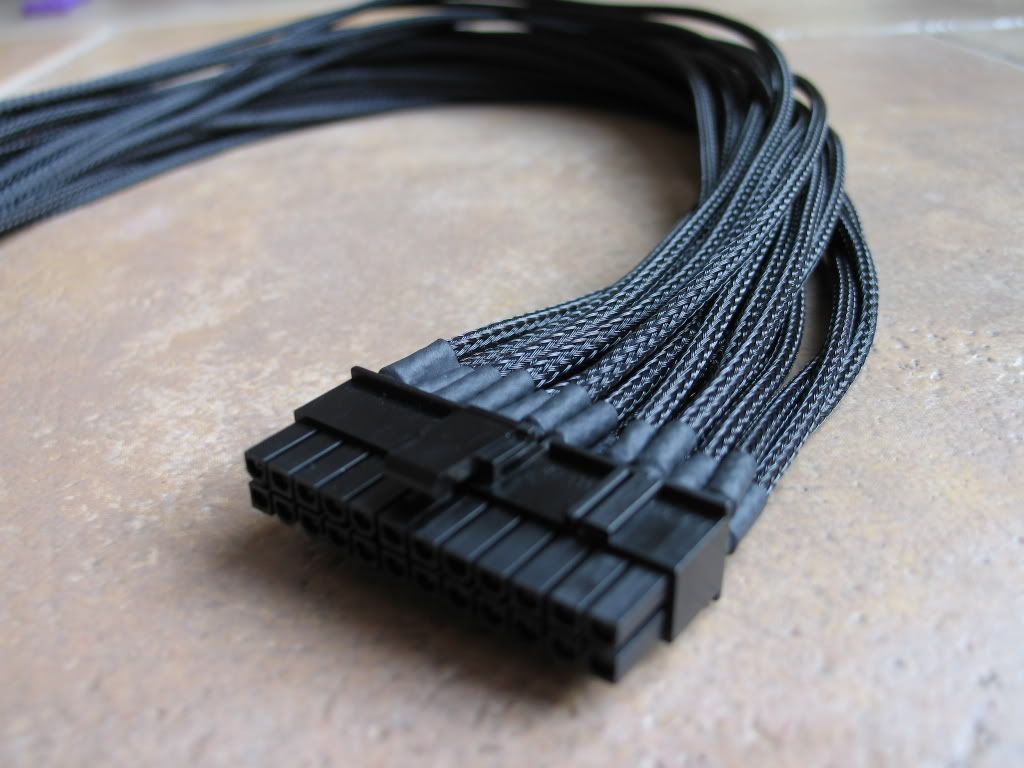

Two more pics for you my friend:

http://img.photobucket.com/albums/v6...d/IMG_5785.jpg

http://img.photobucket.com/albums/v6...d/IMG_5784.jpg
03-06-2009, 12:38 AM
Jhors2

The more I read these sleeving posts the more I want to join the club! AHHH!!! I can't keep pulling out my wallet like this. Oh and question, I heard a hot knife helps your sleeve jobs be more snug, how does that work exactly??
03-06-2009, 01:11 AM
jpm804

Zeus, the sleeving job looks great .... You've inspired me bite the bullet an order some MDPC sleeving to try it out on my current build.

Hopefully I can get it to look as good as yours... Keep up the work on this great build.
03-06-2009, 08:32 AM
Zeus

Quote:

Originally Posted by Jhors2

The more I read these sleeving posts the more I want to join the club! AHHH!!! I can't keep pulling out my wallet like this. Oh and question, I heard a hot knife helps your sleeve jobs be more snug, how does that work exactly??

Breaking out the wallet is never easy but it shouldn't be a problem for a good cause like this, right? :D
I don't know about hot knifes, i'm just using a plain pair of scissors and a lighter--nothing hi-tec here. ;)

Quote:

Originally Posted by jpm804

Zeus, the sleeving job looks great .... You've inspired me bite the bullet an order some MDPC sleeving to try it out on my current build.

Hopefully I can get it to look as good as yours... Keep up the work on this great build.

Glad i could inspire you, sleeving is not a lot of fun to do but the result is very rewarding. Good luck with your build. Buildlog?

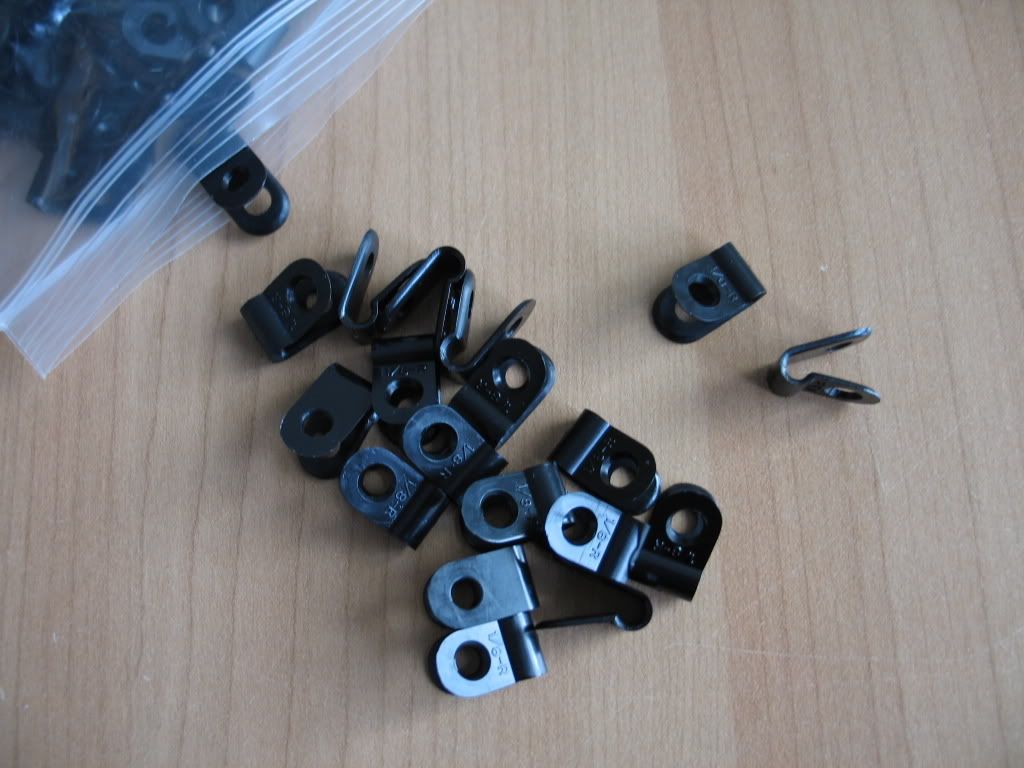

A very big thank you goes out to XS member Jokester_wild for sending me these awesome cable clamps:

http://img.photobucket.com/albums/v6...d/IMG_5788.jpg

That will make cablemanagement easier. :yepp:
03-06-2009, 09:16 AM
dreamaxx

Wow I love how you glued together the LED strip. How did you do that exactly? Where did you get the metal casing for it?
03-06-2009, 12:11 PM
Zeus

1 Attachment(s)

Quote:

Originally Posted by dreamaxx

Wow I love how you glued together the LED strip. How did you do that exactly? Where did you get the metal casing for it?

Thanks.

Actually it ain't metal, it's plastic 25x25mm L-profile, trimmed down to the dimensions in the drawing and then glued together.

The gap in between the two profiles is tight enough that the led strip is stuck in between. (somewhat jammed)

As the ledstip has a silicone coating it's impossible to use glue or doublesided tape to mount it, hence my creation.
03-06-2009, 08:42 PM
jpm804

Quote:

Originally Posted by Zeus

Glad i could inspire you, sleeving is not a lot of fun to do but the result is very rewarding. Good luck with your build. Buildlog?

Thanks for the heads up... here is my build if you ever bored want to check it out - LINK

Also pretty clever design on the LED strip, turned out very clean.
03-08-2009, 01:01 AM
Yil

Nice build Zeus.
Keep up the good work.

Any news on the psu yet?

Gr Yil
03-08-2009, 01:09 AM
Zeus

Thanks Yil.

Not a word on the darn PSU, thursday i got a reply from them: We will send you an info tomorrow. That was all. :mad:

I've got more sleeving to do now. ;)
03-08-2009, 01:13 AM
Yil

Quote:

Originally Posted by Zeus

Thanks Yil.

Not a word on the darn PSU, thursday i got a reply from them: We will send you an info tomorrow. That was all. :mad:

I've got more sleeving to do now. ;)

My sleeving is done!
Is a #### of a yob but is worth it :ROTF:

But modding more now!

WC parts are comming in now!

Gr Yil
03-08-2009, 05:18 AM
Zeus

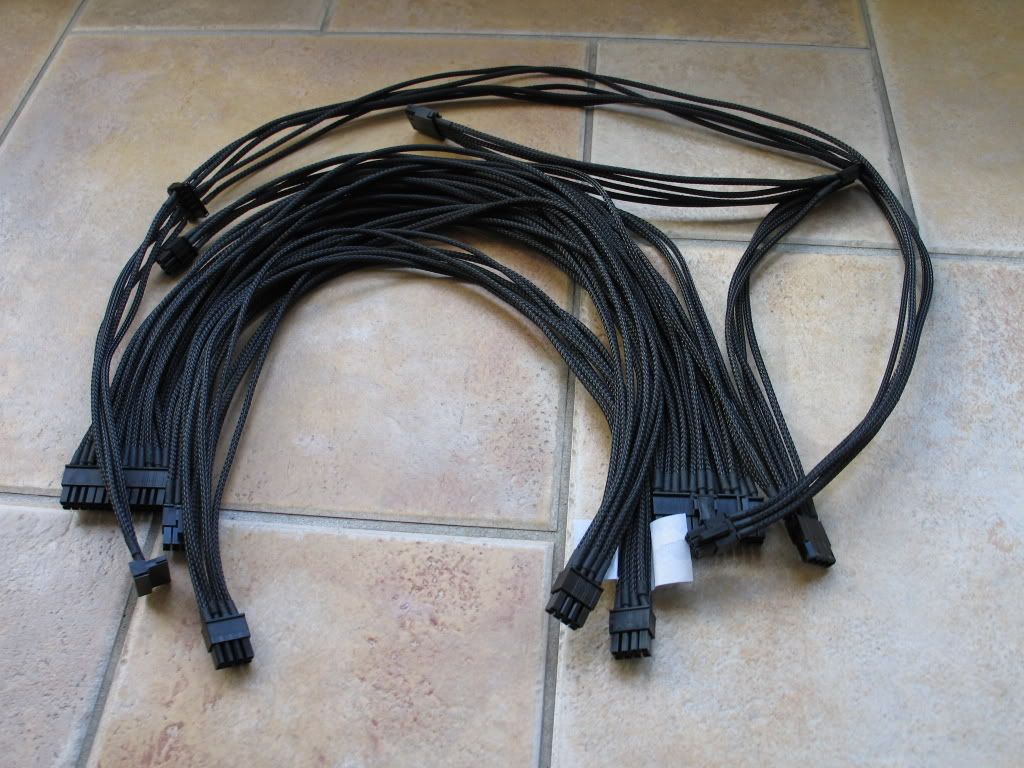

Aaaah! My poor little fingers. :D

http://img.photobucket.com/albums/v6...d/IMG_5791.jpg

I'm done!! :):up:
03-08-2009, 06:00 AM
theseeker

Congratulations on finishing the sleeving! It is very satisfying.:up:
03-08-2009, 06:08 AM
NysoO

NICE! That looks REALLY good! You certainly have got the feel for this. Uniformity, stretching etc. Excellent execution!
03-08-2009, 08:20 AM
Yil

Great Job!!!!

those finger will heal very fast ;)
03-08-2009, 08:48 AM
shazza

Your sleeving is excellent - you really did a nice job - as with everything in your build so far!
03-08-2009, 10:14 AM
Zeus

Quote:

Originally Posted by theseeker

Congratulations on finishing the sleeving! It is very satisfying.:up:

I can't tell you how glad i was when i was done. :D The result is rewarding indeed.

Quote:

Originally Posted by NysoO

NICE! That looks REALLY good! You certainly have got the feel for this. Uniformity, stretching etc. Excellent execution!

Too much credit man. I'm only a novice trying to make most out of it. But thanks for the bunch of flowers, your work is at least as awesome. :up:

Quote:

Originally Posted by Yil

Great Job!!!!

those finger will heal very fast ;)

Thanks bud, i know. I use to say: Pain is temporary, pride is forever. :)

Quote:

Originally Posted by shazza

Your sleeving is excellent - you really did a nice job - as with everything in your build so far!

Thanks shazza, the build is coming along nicely now. I've just been putting in the PSU and am working on cable management.

Because i've been thinking 10 steps ahead it was simply putting the cables the way i had though out when i could not sleep and most cables are already in position now.

The molex cable is gonna be a bit hard to route cause it has to run in between the rads at the bottom part.

I'm sure i'll get it done before i hit the bed tonite. :)

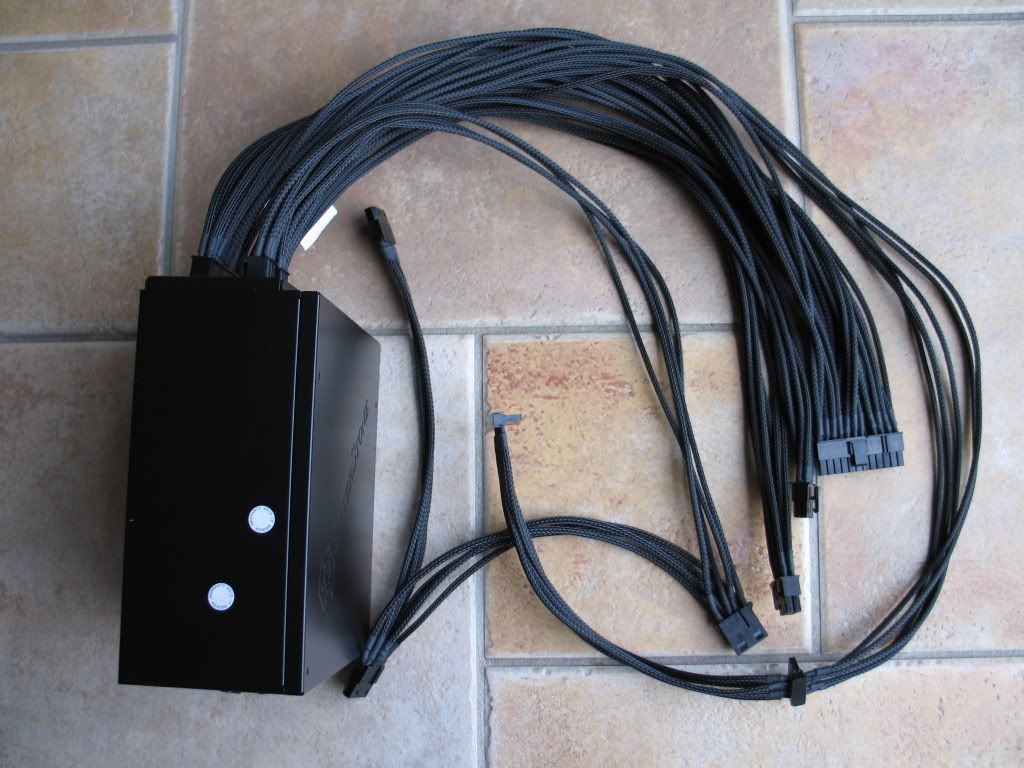

Here are the cables connected to the Silverstone powerhouse:

http://img.photobucket.com/albums/v6...d/IMG_5792.jpg

More pics to come (probably tomorrow).
03-08-2009, 10:22 AM
Yil

There is no SEXIER pic in the world !!!

:hump::hump::hump::hump::hump::hump: hahahah
03-08-2009, 07:04 PM
Angmaar

There is so much sleeving! Nice job!
