well at least now I'm not he only one with it here lolQuote:
Originally Posted by jazzwitherspoon
My chip can barely do 3.0ghz in it @ 1.55 volts and 8% acc (2.8 vdda)
I'd lower you ram volts and set timing to 6-6-6-24 start 800mhz then try 1066mhz. I had my ram up to 1,104 @ 1.96 volts at one time.
Hmmm.Quote:
Originally Posted by jazzwitherspoon
VDD 2.8 ,, HT2.8v and leave PCI=E and Southbridge alone AUTO.
Set CPU and NB to 1.5v for both. @ Stock clocks..
Keep HTT200 and make shure NB and HT are 2000.
Set Ram to 800 and Ganged. Use Manual timing and make shure T2 is set. everything else auto for now.
Boot into windows Chenck temps...If there good Proceed to raise Just the CPU multi ONLY until you are @3.0-3.2ghz. Which ever is Max then post Screen of temps. I bet youll get 3.1 easy. Tehn well go from there. Last thing to do will be to tighten Ram and or oc the Ram after we find what the CPU/nb can do.
Ive also noticed,,Quote:
Originally Posted by jazzwitherspoon
Your HT is linked to NB. I never do that unless i have already found how high my chip can run .. While your NB is @2250 =10x your HT should be 9x..making the HT2025mhz. You Ram Timing is also too tight. Temps are close to 55c , but will should be able to 3.2ghz.This may be your Max provoded we get it stable due to cooling used and Load Temp.
California ,SanBruno, The New Capital of You Tube:rofl:Quote:
Originally Posted by charged3800z24
Quote:
Originally Posted by jazzwitherspoon
3.2 -3.4 depending on cooler you use for Vista64..It stresses CPU a little More..Sometimes Using ganged can be better or even the other way around.. In XP GANGED get me 3.52ghz in Vista32bit UNganged gets me 3.52ghz. Phenom is just wierd with different Oses nothing is the same between any Os ive used.
Last Once you know what the CPU can do then Play with the HTT. @ 225 i would use the 667 divider with loos Ram (stock timing @ 2T and see if you can go higher but use Stock NB and HT. This means 9xmulti for both Not 10x while using 225 x13.5 cpu
Running the Ram @ 667 will eliminate it being tigh or Maxing out on the Divider When Raising the HTTabove 225- 230. Running 800 would limit your CPU over clock if too tight timing and or ram dosnt clock well.
Use 667divider and stock Timing for Now.
230 x 13.5 = 3.10ghz
235 x 13.5 = 3.17ghz
240 x 13.5 = 3.24ghz
667 divider @ 230 x 13.5.. NB/HT set to 9x = 2070mhz
667 divider @ 235 x 13.5.. NB/HT set to 9x = 2115mhz
667 divider @ 240 x 13.5.. NB/HT set to 8x = 1920mhz
If this works then you can Raise the NB up more..
I would use 1.45- 1.5v for both CPU/NB and Vdd2.8v No ACC yet.
2x2gigs puts more staian on IMC than 2gigs. My Oc is with 2gigs. If i run 4gigs i gotta up the HTvolts more and even NB to compensate.
1.28v is plenty for you to run safe 24/7.. The main thing is CPU/NB volts. Try you Overclock with NO ACC being used first. Then try simalar OC with ACC +2 and so on. It will take time .
Youll get it.
I am have tempted to load Vista 64bit..Just to see if it kills my OC...Win 64Bit has proved better on OCing then 32bit Vista and XP. I wonder if Vista 64 is just that much of a pain..Quote:
Originally Posted by demonkevy666
please do :)Quote:
Originally Posted by charged3800z24
I get 3.1ghz in XP. with no ACC. and 1.425 volts.
I am going to try your recs, but I did want to clear a couple things up first.
The screenshot I posted is just the highest stable OC I've been able to get. When trying to go higher I've only had the NB/HT at 2000 and FSB at 200. Ram has been set to 800 @ 5-5-5-18 2T at 2.1v (Ram is stated to run at 800 @ 4-4-4-12 2T at 2.0-2.1v). I've currently just been using the multiplier when going above 3000mhz.
I don't understand what you mean by setting HT to 2.8v. The highest the BIOS says I can set HT volts to is 1.40v.
Also, when I turn ACC off, I can't even boot into Windows at 16x200, even with vcore and nb up to 1.525. When ACC is set to auto I can run OCCT for about a minute before Windows crashes, with max temps at 56C at 1.525.
EDIT: I'm also going to do a clean install of XP 64. When demonk asked my OS it reminded me that my Vista 64 is a bootleg install, so I want to eliminate that as a possible source of problems, esp since I don't care about running XP vs. Vista.
Ooops Sry ( HT @ 1.28volts:D) and set the CORE PCI-E to 1.28v-1.32v,, this is the one that really counts.Quote:
Originally Posted by jazzwitherspoon
Funny i just discovered this in AOD,, that when i set the HT volts to 1.28 in Bios it did not Set the NB chipset volts to the Same.
The whole time i thought it did. The one that Actually Helps the Ram slots and Max Freqency is (Core PCI-E) I run it @ 1.32volts when using High NB and CPUclocks to keep things stable.
If i set HT to 1.26v the HTchipset is 1.26v. So in Fact the HTvolts are 100% seperate volts than the CORE PCI-E (NBchipset volts). On Previous Mobo's ive had the HTvolts and NBchipset volts were usually set by HTvolts. i dont know why i didnt notice earlier..
This is the NBvolts that is displayed to the lower right in AOD not the NBVID wich is CPU.
If you are running Lots of Ram and are overclocking i run the CORE PCI-E @1.28 - 1.32v depents on how high im pushing the Clocks..
Also just for fun,, Im @ 1.68vCPU and 1.65vNB and 1.28vHT,, 1.32vCorePci-e ,,Southbridge Auto.
Look at the settings AOD reports. Shows my CPU volts @ 1.49v.. But CPU-Z shows 1.73v. I know in MY bios its 1.73v in the Power Monitor menu.
the CPU/NBVID's are wrong too but HT //NB// Ram //southbridge read correct in AOD.. wierd stuff.
http://i168.photobucket.com/albums/u...0with1_68v.jpg
Your voltage scares me LOL..:p: I am afraid ..very afraid LOL...;)Quote:
Originally Posted by gOtVoltage
The VID setting read max 1.45 due to AOD's MAX value settings. I think you know this already..but if you set "<MaximumVCoreEnabled>1</MaximumVCoreEnabled>" in preferences file in AOD folder from "0" to "1" it will peak at 1.55max VID. This is true on both NB and CPU VID. Since I do not know a way to make it higher it stops at 1.55 which still will not show your "extreme" volts LOL
http://3800z24.info/Phenom/9950/32bit/3.4ghz_wPrime.JPG
UPDATE on 602bios,,
My MAX HTT(bus) 293 x 12:D @3.51ghz NB2300+ HT2300+
Ive been trying for 300 but this Bios nosedives after 293 . It will set CPU to 3900mhz no matter the CPU Multi or Ram divider i use. ive tried 8x and Low HT and Max HT :D even if i lower the Ram 294 is a no go ..
Patiently waiting for next Bios. im determined to get HTT300 . I have not been able to do HTT300 on ANY AM2+ Mobo yet with Phenom B3.
http://i168.photobucket.com/albums/u...93_602BIOS.jpg
Phenom is quit fun to Oc you never know what you can expect.. My previos High HTT was 292:rofl: ,, 2hours to get 1+mhz but again im @3.516ghz vs 3.50ghz.. little things do count alot:yepp:
@ gOtVoltage...
Nice as always...hey, did you ever show a pic of your cooling setup? How do you keep 1.7v's cool :p: I run the Swiftech Apogee kit all stock.
ok this is my over clock , i didnt touch the Volts for CPU yet
http://i51.photobucket.com/albums/f3...yOverClock.jpg
good start...you gonna try any more? Maybe some added v's and multi OC?Quote:
Originally Posted by XRogerX
Hello to all. This is my first post :)
I'm starting to build a PII rig. As a Intel user i'm kind of lost with the products available for the am2+ .
My last AMD was a AMD XP 2000+ :D Still working!
Ok, my question is... is this, in fact, the best board for AM2+ available in the market?
I've been reading everything and i find mix and match opinions... :)
Thank you in advance,
from Portugal
Pedro S.
Quote:
Originally Posted by charged3800z24
Im nerves i dont want to blow anything right now, but i can tell you this i can get it to 3.1 it boots but not stable
i can get to the desktop and whne it finishes loading everything it reboots right away and i even raised the cpu volts to 1.4 and still reboots so i dont know what to do about that
Hmm, what OS you have installed? is it a 64bit XP or Vista?Quote:
Originally Posted by XRogerX
I have the MA790GP-DS4H and this M3A79-T board. I feel this board is very stable and has a lot of options...My other board is what they used to do the massive OCing with the Phenom II 940 which will be out soon. It has good potential.Quote:
Originally Posted by Postmodum
i have XP pro x86
Well guys for those that didnt know, my M3A79-T died, don't know what went wrong, but while I put the water blocks on the board it never booted back up. After days of testing and swapping parts, I came to the conclusion, it was the board.
I am RMA'ing this board and getting a Phenom II early next year. But for now I got me a Core i7 setup. What do you guys think?
All I can say is if you guys thought overclocking a Phenom was hard, don't get an i7, so many new terms and stuff, I'm sweating balls trying to figure this thing out!!!
I just want to know dose it feel different at all ?Quote:
Originally Posted by Chicken Patty
naw bro, for your everyday use, no. Remember even with a dual core, how much faster can your everyday use be?Quote:
Originally Posted by demonkevy666
But benchmarking its a whole different story!
Sorry to hear about the Asus..Quote:
Originally Posted by Chicken Patty
Which i7 you get? with 8 threads..it is a beast...no doubt fun to bench. I thought about getting i7, but the wife is holding my funds till after christmas LOL...I am hitting Phenom II as soon as it is available. I have boards waiting on it.
I got the Core i7 920, it does have 8 threads.Quote:
Originally Posted by charged3800z24
Check out a run in 3dmark with the CPU at default clocks, everything in the BIOS on auto, the only thing overclocked was the card at the same clocks as I ran with the Phenom.
I bettered my score without overclocking the CPU, imagine when I bring the CPU up to over 4 GHz :eek:
The best with my Phenom was 15447 at 3.4 GHz
http://img530.imageshack.us/img530/5...1100je9.th.jpg
Thats great but coming from a guy who has had just about every intel chip for the last 3 year. I bet if no one told you which motherboard and chip was in your system you would be hard pressed to tell them without looking, benching is just that benching.Quote:
Originally Posted by Chicken Patty
Well i really didnt want o post pics of my Uber 10year old case ,,Quote:
Originally Posted by charged3800z24
neW case in january. I still cant decide what i want.. HAF is very roomy. Also would enable to have 2xtripple inside while having a DVD and few HD's:D

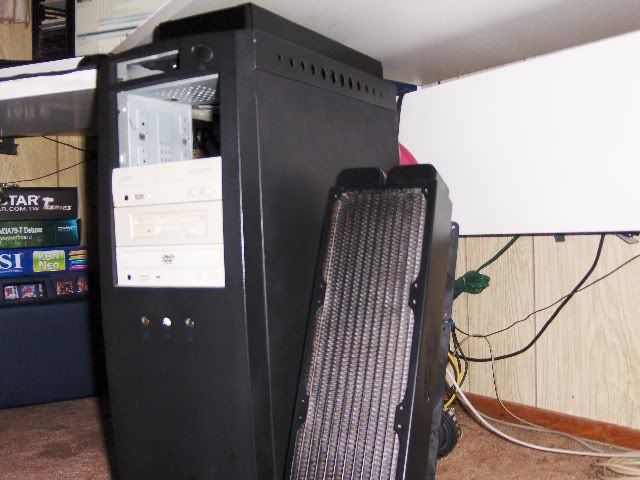

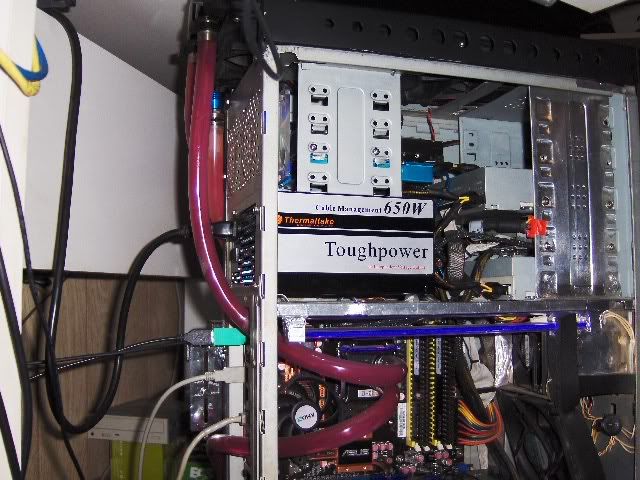

My uber Rugged Looking bench rig,, best $89 bucks that has (10years of AMD Overclocking and still going):ROTF:

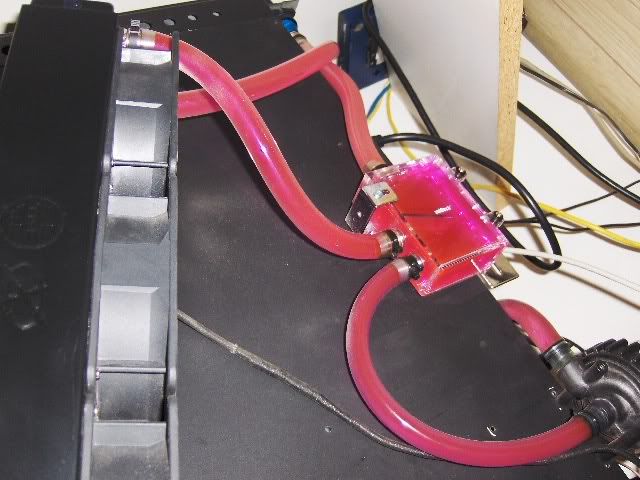

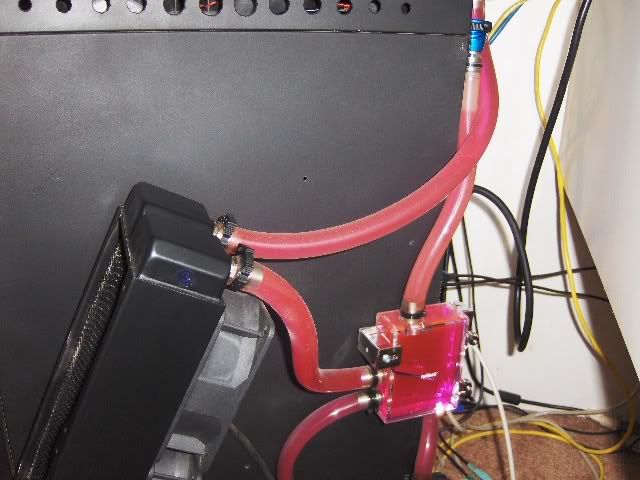

To keep on topic i use a Tripple BIX3 twocore on top with a Feser Xchangertripple on the side. The 655 is mounted oudside case at bottom .
The 655 and D-tek (Fusion V1)I flow modded and am using Tygon 1/2"-3/4"od and masterclear. Swifty res with Fill port added.
Simple yet effective for non cooled water. This is what allows me to crank the 9950 and see whtat the 79-T has to offer. i cant wait for 45nm,then i will transfer everything to new Case .
Sry for the Bright pics..Nothin pretty but it just works:yepp:
http://i168.photobucket.com/albums/u...rrellpc005.jpg
http://i168.photobucket.com/albums/u...rrellpc003.jpg
http://i168.photobucket.com/albums/u...rrellpc002.jpg
http://i168.photobucket.com/albums/u...rrellpc001.jpg
I think it's mainly because the CPU score. Unfortunately the CPU score has a pretty high influence on the final score. Compare the SM2.0 and HDR/SM3.0 scores only. ;)Quote:
Originally Posted by Chicken Patty
If you can. http://prohardver.hu/dl/s/v1.gifQuote:
Originally Posted by Chicken Patty
I had my cpu-z says those volts (1.728) once I can get 3.2ghz. I could have probably go more, but I didn't push up the other volts you did.Quote:
Originally Posted by gOtVoltage
that setting was fully stable, but I hit 70C load in 3dmark06. Even at those temps I was rock stable.
My chip is a psycho. only get's unstable above somewhere in the above 72C-78C lol insane on air yes but who cares phenom II is almost here.
lapping this chip and putting it under water would probably be the only way to get low temperatures. I don't have that kinda funding. :/
CP
Sorry to hear about your Phenom rig :( hope you have better luck with your new rig :)
yeah, got rid of my stability problems with HD4850, did VPU-recover very often when i was gaming.. the fault was NB-frequency, it was 2350MHz which was too much apparently, now 2250MHz and runned about an hour without problems. Also im running 11x282HTT now and seems to work fine, some performance gain is noticeable. Also little weird.. my temps have lowered from yesterday, its now idling 40C with CPU Tweak on, OFF gives 33C :D 3.1GHz@1.4Vcore
well my sm2 and sm3 scores are over 300-400 points with the CPU at 2.9 GHz compared to the Phenom at 3.4 GHz. Regardless this chip is just crazy! its fast as f**k. From the looks of it, the PHenom II won't be giving it a run neither, i've seen some benchmarks with the i7 920 with hyperthreading disabled, meaning on 4 threads, and it still murders the Phenom II scores at a much lower clock. What AMD needs is the Phenom FX!!!! Now that will definitely be a different story.Quote:
Originally Posted by Oliverda
For now I won't hit 4 GHz, but once I put it under water i'm sure I can. It's nature for these chips to hit 4 GHz
thanks dude, well the new rig so far is awesome, but don't worry. I'll be up and running on an AMD rig soon. :up:Quote:
Originally Posted by merkk1
in 3dmark06 intel always scores higher then AMD in the cpu bench part.Quote:
Originally Posted by Chicken Patty
I don't think so. You see all those Core 2 Duos at like 5 GHz that kill Phenoms in super pI and such, tell them to score higher in 3dmark, its less processing power whichever way you put it bro.Quote:
Originally Posted by demonkevy666
http://www.youtube.com/watch?v=r3uns6n-PDoQuote:
Originally Posted by Chicken Patty
and look this run was 3.6ghz
I'm pretty sure none of the phenom here have ever gotten to anywhere near 5,600 point cpu points.
not mention it's also is clock basis lol
of course not that high of a clock, but lower clocks like 3.3 GHz and under, I took a lot of Q6600's out of the game with my Phenom.Quote:
Originally Posted by demonkevy666
Look at this benchmark over on TPU and look at the quad core list, some clock for clock, they fall short of the Phenom
here is the quadcore list. Look in the bold area, thats where it gets interesting.
1. giorgos th. - Core i7 Extreme 965 4806 MHz - 5.208 sec.
2. Binge - Core i7 920 4400 MHz - 5.834
3. Jupiter - Core i7 920 4000 MHz - 6.174
4. msgclb - Core i7 920 4074 MHz - 6.374
5. sno.lcn - Core 2 Extreme QX9650 5040 MHz - 8.547
6. Chicken Patty - Core i7 920 3102 MHz - 9.375
7. MetalRacer - Core 2 Quad Q9550 4010 MHz - 9.715
8. sno.lcn - Core 2 Quad Q6600 4604 MHz - 9.844
9. DOM - Xeon X3350 3802 MHz - 10.186
10. fatguy1992 - Core 2 Quad Q6600 4005 MHz - 10.249
11. BATOFF - Core 2 Quad Q6600 3915 MHz - 10.500
12. kyle2020 - Core 2 Quad Q6600 4005 MHz - 10.578
13. CrAsHnBuRnXp - Xeon x3350 3800 MHz - 10.601
14. mlee49 - Core 2 Quad Q9450 3760 MHz - 10.843
15. RadeonX2 - Core 2 Quad Q6600 4000 MHz - 10.813
16. dadi_oh - Core 2 Quad Q6600 3960 MHz - 10.922
17. Chicken Patty - Phenom 9950 3412 MHz - 11.250
18. Meizuman - Phenom 9950 3448 MHz 11.296
19. Binge - Core 2 Quad Q9550 3400 MHz - 11.317
20. wolf - Core 2 Quad Q6600 3600 MHz - 11.317
21. trickson - Core 2 Quad Q6600 3601 MHz - 11.401
22. Bytor - Phenom 9850 3240 MHz - 11.817
23. fullinfusion - Phenom 9850 3105 MHz - 12.292
24. LeMoose - Phenom 9950 3009 MHz - 12.719
25. xubidoo - Core 2 Quad Q6600 3200 MHz - 12.979
Nice... I thought about adding another RAD...I have all my gear outboard as well. hear is a pic I took just after I got it up and running on the gigabyte board..The RAD is on top of the case, for some reason I forgot to get it in the pic. I have put in the asus since then and cleaned up the mess LOLQuote:
Originally Posted by gOtVoltage
http://3800z24.info/Phenom/9950/apogee_h20_1.JPG
Edit: Hear it is on the Asus...for such a lil RAD and less then a $100USD, this thing does me very well
http://3800z24.info/Phenom/9950/apogee_H20_asus.JPG
I'm not sure on this at all. Anyway an i7 rig is more expensive than a Phenom II.Quote:
Originally Posted by Chicken Patty
So, good luck for your new rig and good bye!
just peak at this thread, obviously at first people had instability issues and all but towards the last pages, notice everybody in there is at least at 4ghz, i'm at 3.4 Ghz @ only 1.2v. Still working.Quote:
Originally Posted by Oliverda
http://forums.techpowerup.com/showthread.php?t=76464
Ok, right. But please don't forget that this is the Asus M3A79-T Deluxe thread and not the i7 vs. Phenom II. You don't have to gain us over that you've made a good choice when you switched to i7. ;)Quote:
Originally Posted by Chicken Patty
I really don't know how you would say that. Are you serious? I'm definitely ending my discussion with you now, remember I was not the one that said "if you can go over 4GHz" i was just simply trying to prove something.Quote:
Originally Posted by Oliverda
Keep in mind before saying things like that, that this is ASUS M3A79-T Deluxe thread, take care now :up:
Also, keep in min, I still own a M3A79-T and a Phenom.
Sorry, I thought to this post in the first place:Quote:
Originally Posted by Chicken Patty
Quote:
Originally Posted by Chicken Patty
Hey, my Phenom II will pwn your i7..LOL... seriously,. I don't think it is bad to mention your new setup, U have been in this thread a while and added a good bit. sometimes a thread can become a place for us guys just to BS a lil..just as long as we don't get to off topic. I will most likely have an i7 this next year as well...but also a Phenom II on this Asus board...I am glad I bought it. Nothing against my MA790GP..Quote:
Originally Posted by Chicken Patty
now back on topic...has anyone figure out how to stop the auto OC on the PCIe? It seems to love 124mhz...LOL I have set it manually in bios and even deleted the config file in AOD.
I've just noticed that the multiprocessor speedup is much lower in CB with this board than with my former boards. :confused: Could anyone please run the CB like me? Thanks in advance.
Yeah, bro I only shared some feedback from what i'm experiencing with the new setup. In no way was I bashing AMD or saying the Phenom was a bad CPU, I still have a phenom and will buy a Phenom II when released. If certain people cannot take handle some feedback, thats not my fault. and if I said that i am getting better scores with my i7 I only say that because it is true. While I had my phenom I did add lots of valuable benchmarks and have helped and continue to help anybody I Can trying to overclock a Phenom.Quote:
Originally Posted by charged3800z24
Good luck guys, i'll join you guys again when I get my Phenom II, don't want nobody having a titty attack.
Certain people are not millionaire. I think completely unnecessary to buy Phenom II beside the i7 because it won't be giving it a run neither and the i7 still murders the Phenom II scores at a much lower clock. :ROTF:Quote:
Originally Posted by Chicken Patty
http://faior.miumau.net/cb.JPG
This CPU is crappy.
:rolleyes:Quote:
Originally Posted by faior
Meanwhile I've foud the reason. It's behing the CPU Tweak option. When I turn off this option the 1 CPU bench's score decreases but the x CPU is not. In this case the speedup is around 3.90x because the 1 CPU score is lower. It would be good to compare results with other boards without this CPU Tweak option.
It wont clock :mad: !Quote:
Originally Posted by Oliverda
.:(
Ran em some time ago. See here.Quote:
Originally Posted by Oliverda
3.2/2.0GHz
http://www.abload.de/thumb/cb10xai7.jpghttp://www.abload.de/thumb/setupa45d.jpg
3.2/2.4GHz
http://www.abload.de/thumb/setupii65.jpghttp://www.abload.de/thumb/cb10dce1.jpg
This is getting really weird! .. :D Just ran 1024M wprime bench and cinebench multicore bench with 287x11.5 = 3300MHz at 1.4Vcore without ACC. Little while ago it wasnt stable enough even to run superpi1m.. now all this, I think it doesnt like big multipliers, is this normal? Also ran 5hours aod stability test last night at 3240MHz with small multiplier.
http://faior.miumau.net/3.3wprime.JPG
Look @ the Ram Divider thats being used at High HTT.. Makes a differance.Quote:
Originally Posted by faior
Mine is Half divider 1/2 @ 3.51ghz @ 293 x 12.5 My ram is is on 800 divider (Not 1066) @ 6-4-4-15 ,, 1173mhz:D
are you taking about AIR or W/C Faior
Im going with air, TRUE 120 cooler.Quote:
Originally Posted by XRogerX
gotvoltage, you mean its memory divider problem or smth? Yeah its 800 divider i used there, last time it was 1066. Perhaps its the problem.. or not. Im going to try the older bios later on, if I get a hang of stablity too. :)
Btw, whats the thing with the memory overclock? I get better results from many benches with memory only 800MHz versus 1140MHz.. and when clocking from 1066 above the points starts to lower in different benches.. weird?
All depends on How how the NB is . the Timing at 800 MHZ plays a role too.. 1066divider usually likes 5-5-5- or higher especially above 1100mhz. Some apps like it some dont. Ganged and Ganged is also a factor as some programs run better in ganged and some run better in unganged.Quote:
Originally Posted by faior
I usually set the sytem up to perform at what I play the most . If i game Tighter timing High NB allows more response along with High HT.
Movies and or heavy apps 1066mhz and unganged can optimize the ram for bigger loads with stock HT and High to meduium NB..
Just see what programs or games you like most and set your rig . If you game,, Low latency is key with High Bandwidth.. You just need to find the happy medium .
Phenom has lots of ways to tweak and by all means theres no easy way . Unless maybe one keeps the system stock . Then you would just boot and play what ever and never know its true performance :rofl:
Im a performance person ( Stock) is a unknown wierd language to me.
you drunk? .. :DQuote:
Originally Posted by gOtVoltage
But to the subject, the timings were the same 5-5-5-5-15-2T unganged for both frequencies, and NB speed was too the same(2400MHz).. thats why I think its a little odd. Oh well, im getting day by day more into this system, I like it very much. :)
Its just little sad that I still cant get this 247 stable above 3.1GHz, still the rebooting issue.. it just comes under heavy cpu-load no matter what I try. :/ And the older bios wont boot at all if I try to clock.. even 15x200 fails to boot. Just black screen.. and have to clear the cmos by jumper to get it back on.
Well well, now to sleep and then some more testing until my phenom 2 arrives ;)
Now I have got the settings about right for 3.1GHz and maxed the performance for that(all I can do for now). 3dmark06 cpu gives 4600-4610 now. Cinebench gives about 9950 and wprime 32M 12.4sec, superpi 1m 24.5sec. And this is for 24/7 stable.
Hmmm the NB could have been under stress @ 2400 when running 1140mhz..Thus can slow down the CPU L3 /Slower results if the NB is close to max . While @ 800mhz it can handle the lower freqency just fine with out slowing down the NB.Quote:
Originally Posted by faior
Also the Ram Divider being used can affect the NB L3 speed @ 800 vs 1140 even if the NB speed is the same.
@3.5ghz,,My ram @ 1173 is faster on the 1/2 Ram divider vs the 3/8ths Ram divider even at the same NBspeeds Same CPU Speed . The thing that changed was the CPUxmulti and Ram multi @ 1173.
@ 3.5ghz 293x 12 gives me a 1/2 ram multi.
@ 3.5ghz 220x 15.5 gives me a 3/8ths ram mutli but slower latency.
The cpu multi affects what multi the ram runs on. This could explain what your seeing happen when running 1140 vs 800 in the same Ganged or Unganged mode.
Na ,,
not Thunk yet ,,
to early to Drink.
Update,, Using Vista32bit ,, it can run 5200HT total:D I tried with XP and didnt think i could get the same results. I havnt tried for High Clocks with HIGH HT since. I just wanted to see how much HT would go with High NB on this OS. Not too shabby .
3380mhz with 2600NB and 2600HT Ram1040mhz
http://i168.photobucket.com/albums/u..._5200total.jpg
3500mhz with 2600NB and 2600HT Ram1040mhz
http://i168.photobucket.com/albums/u...00_3500mhz.jpg
3523mhz with 2610NB and 2610HT RAM 1044mhz
Highest stable Clocks with Vista32bit.
This is my max best for everything HIGH:yepp:
http://i168.photobucket.com/albums/u...10_3523mhz.jpg
OMG i tried this just for KICKS 3537mhz 2620NB 2620HT
This set up scares me lol. Ok no more i quit! This made me Beer foam,, Ive never ran 2600+NB and HT over 3.5ghz Never, Need More beer and that was with XP. Vista 32bit just shocked me real good !
http://i168.photobucket.com/albums/u...0NB_2620HT.jpg
Theres not to much more i can get with this 9950 and im waiting for 45nm before i bite on another chip.. This has been the Most Pleasing system for me out of all Phenom to date ive tested. It can truly Clock in more ways than one.. Phenom offers a lot to play with.
This ASUS 79-T is a real Joy to make boogy if ya know what i mean. I cant wait to see what newer Asus bioses will bring with B3 and the New 45's to boot:up:
I couldnt rember if i had posted HIGH HT with this Mobo ,,sorry if its a repost.
gOtVolTage:D
LOL, man those are some sick nb/ht clocks. I cant say i've had mine over 2.2, mostly because i never felt the need. You think it has any effect on benchies? I wouldnt think it would too much, for the simple reason cpu-mem is on a dedicated bus outside of the htt/nb, so i usually drop my multis on them so they're dont interfere with anything. So far i've got this 9850 benching at 3450ish, highest cpuz valid was 3534, but given the fact that i ran at 3534, got the validation, and didnt crash right away, is telling me this chip has got some more balls, next stop, 3.6 :D
BTW, i figured out how to hit 1.9vcore, believe it or not, 1.7vcore from the bios is 1.5vid with +.2v boost from asus, AMD OD let me ramp the vid upto 1.55 with the +.2v boost. vcore from cpuz was showing ~1.83, with 2.8v VDD, running wPrime brought it up to just shy of 1.9, like 1.893 i think. Of course, everything shut down from a thermal overload, thought i bricked the chip for a minute, then it booted up lol. Checked my logs and the temps went from 33c to 84c in about 5 seconds, fried eggs anyone? :rofl:
gOtVoltage:
PUT DOWN THE BEER AND STEP AWAY FROM THE BIOS :rofl:
Dude, I agree the Asus 79-T is probably the best AM2+ board out right now...
If nothing else, you make me confident it can handle some punishment. :up:
Funny,,
Im trying for 18000 in 3Dmark06 with my Single old 3870x2 i grabbed back from my Neighbor..
So far 17900:mad: When i hit 18000 ill stop:rofl:
This thing Rocks @ 3537 and 2620NB 2620HT,, Its cranking:D
Few more Beers ,,few hours later:D
I never though id see this,, Now im Done,,
:toast::toast2::toast:
http://i168.photobucket.com/albums/u...30_3550mhz.jpg
The 3870x2 on Stock Air ASUS 79-T rocks..this card would not go above 918/1099mhz on any other mobo i tried @ 3.5ghz.. its way above that with no Voltmods.
Unbelievable, this Mobo let My Vidcard oc like Crazy even with cpu@3550mhz with high NB //HT. This hardware has never ran this High on any other Mobo to Date,, Including GX3/SB750 and 78-T. This is Night and day overclocks from all mobos ive used with 9950 and 3870x2.
ALL AMD Baby,, beer talking ,,Good Night now that i Broke 18000:up:
http://service.futuremark.com/compare?3dm06=9249738
Only mod ,,i used MX2 on both GPU's with stock ram pads.
http://i168.photobucket.com/albums/u...537mhz9950.jpg
I just Bench alittle ,, then Raised 1mhz at a time.. i truly didnt think it would work this good. I think I found the sweet spot.
Same BIOS SETTINGS USED for all OC,,except only Raisng HTT and CPUxmulti from 3380mhz-3550mhz
http://i168.photobucket.com/albums/u...omputer001.jpg
http://i168.photobucket.com/albums/u...omputer003.jpg
http://i168.photobucket.com/albums/u...omputer002.jpg
Kept Ram on Auto timing and Ganged but only used the Highest freqency My Ram would allow for all speeds achieved.
This is my 24/7 volts that i used with My Old TA770,,only differance is ACC+4 to achieve a 100+mhz Oc over the Ta770.Im Happy and Yes ACC really works. I just had to give it a chance after many mess ups with the 403 and 502 bios. The 602 is sweet.
hey all,
i wanted to give amd a chance and sold the asus p5k pro, e6300 and some 3gb ram to a friend. i bought a m3a79-t, amd x2 5050e, 2x2gb ram which do around 475-500mhz cl5 with 2.1v.
now i'm messing around with this setup as my first amd system for overclocking since, ehm, ever ;-)
i'm really not familiar with it and can't find any overclocking results with this 5050e.
how much voltage can these cpu's take? is there any degrading noticed so far with amd chips? i read that this is a x2 with a phenom core, is this true? and if so can i compare the clocks/volts between the 5050e and phenoms?
what i really want to say is: is there anything i _must_ know to get good results from this board and/or the cpu?
thank you very much at least for reading this ;)
junkY
p.s.: i bought the cpu because i didn't want to spend too much money right now cause i'll the phenom 2.
hey, welcome to AMD..again..:) The 5050e is a Brisbane and is not based on the agena(Phenom) core. I run 1.44v through my X2 4200+ (Brisbane). sits at 3.0ghz from 2.3 stock. never went higher tho.Quote:
Originally Posted by oc_junkY
I see what i can find i just set myself a personal record Lol and i sais i was Done..Quote:
Originally Posted by oc_junkY
:woot::party::toast2:
ALL time best with 9950(140watt) this Mobo Rocks
http://valid.canardpc.com/show_oc.php?id=464378
"Hondaguy ",,
this is my Best! No More Left. Its maxed..this made me Open last Beer Lol:D
http://i168.photobucket.com/albums/u...70_3604mhz.jpg
Exciting clock gOtVoltage :D
here's a little result so far:
http://img126.imageshack.us/img126/4...0mhzjn1.th.jpg
This is a 1.4v set in bios, which is the maximum voltage i can set for cpu vcore btw. why is this?
When do i have to raise the NB/HT voltage and when the NB/Core voltage?
When i raise the bus speed and lower the multi, do i have to raise voltage at all or do i only have to raise those voltages when the "HT Link" speed gets faster?
Do i have any advantage of a high bus speed with a low ht multi? and does this ht link effect the cpu so that i have to raise the cpu vcore?
so many questions, i hope i'm not already going on your nerves ;)
320htt is good! id bump the multi back up a few and lower ram/ht link and push the htt from there to see if you can get higher core clock
i'll try that. is the ht link hold back by cpu or nb?Quote:
Originally Posted by crazydiamond
Quote:
Originally Posted by oc_junkY
Your off to a good start,,
Ht can only go as High as NB By NB,,it can not go above NB's highest freqency. But the Nb can go above and beyond HT.
Concentrate on Clocking up the CPU with close to Stock HT/NB..Use a nice low Ram divider that keeps ram below or close to 800mhz. this way you know the ram wont hold you back.
I Only Raise the HT voltage if the Sytem starts becoming unstable. I usually keep it @1.28v is a safe range. Stock is 1.26v
The CORE /Nb I set to 1.32v (stock is 1.26v)this will help the CPU Clock hihger especially when the NB goes High.
You can run 1.32-1.34v fairly safe on CORE-NBchipset..this helps stabilizes the ram Slots on Mobo helping the NB on the CPU/IMC. Especially when running tigh or High freqency ram.
You can go above 1.4v with 79-T.
You will need to Disable Voltage monitoring in Power menu if you go above 1.6v.:D I usually set the VDD @2.8v and raise the CPUvolts first then when i Oc the NB i slowly raise the NBvoltage(cpu) as i raise the NB evey 200mhz..
Try to Clock with ACC off first. If i feel im at Max Clocks(unstable after a while) may need just a little volts ,,Ill then use ACC +2 or maybe +4.
Oops,,Note: NBvoltage and Freqency will only apply if you have Agena/Deneb..PhenomI PhenomII core type CPU's..You should not need to worry about setting those options. You will need to Raise the CORE/nbvolts ..thats the Chipset on the Mobo which controls the ram slots. it helps with all X2's and Phenoms. I would not have been able to Clock my 6000+ up to 3.5ghz F3 with out it on any mobo.
Make Shure your are using Manual Overclocking Mode NOT STANDARD MODE too.
Hope that helps,
gOtVolTage
So I've got my mobo/cpu/sheit up and running and I have a couple of questions. I've read through this thread (well, at least about 20 pages) and the manual etc and I'm not sure about the answer;
1) Is there a performance (or other) benefit to AHCI?
2) Can I simply enable AHCI although everything (WinXPx64) is installed already or will I "loose" my OS installation?
3) I find no info on the eSATA hot-swap. It only says it's possible. Is there any particular procedure for making it work?
Any help would be sexy!
thanks,
mattias
Wow thanks for all the info guys this mobo sure is awsome and im sure it would be kick ass for the Deneb chip to come .
he is on a dual core until pII gOtVoltage :D
oc junky, ht link afaik doesnt affect performance until it drops very low, and can help increase stability if kept around 1000, too high can cause instabilities. like gotvoltage said, keep the ram divider low and ht link low and see how high you can push your htt with your 13 multi. i think as long as your mem speeds stay in spec (they go up w/ htt) and your ht link stays around 1000 you should be able to find your max core clock (need to bump nbV, vdimm, vcore). then from there you can pick a multi/htt/mem combination to get you close to your max core clock and that will also oc your nb and ram
I too have the m3a79-t dlx board paired with a 9850BE. Im usuing crucial dominators with the stock 5-5-5-15-2t @2.2v and a visiontek 4850. Im having issues getting it to go above 3.2 (200 bus 16x mult @ 1.48v cpu/nb stock nb/ht speed ACC 4%) If i go above it, say to 17x mult my 3 and 4 cores fail at self test in prim 95.
Right now im running at 3420 with my mem timings at the above, the mem div at 1:2, mult at 15, bus at 228, acc still at 4% HT/NB @ 2280 with voltages at 1.6 for both CPU/NB running stable (to me stable is running WoW for over an hour :-D)but 3 and 4 core still failing.
I can never run half mults (i.e. 15.5) My cpu is h2o cooled.
Anyone have any pointers on how i can squeeze some more out of this thing? i'm seeing people get 3.5 - 3.6 What are you 9850 owners out there getting as far as settings??
Quote:
Originally Posted by emersonsc
1st ,,
use 1.65v for CPU and keep NB @ 1.55v this will even out the voltage in the CPU better..Your temps will be the same. The CPU needs more and NB less.
Second,,
CORE PCIE @ 1.32v.. This makes it easier on the IMC at high loads.Helped my Dominators alot.
@ Gnaged vs Unganged ..
Mine gave Me Oc problems above 3.45ghz running on the 533 divider. Vipers with same settings can run cpu to 3.6ghz. The dominators really held me back and i had the D9 version.
Mater of fact im running@ 4-4-4-5 24 2t unganged with Vipers where the Dominators would only do 5-6-6-5 20 2T..
I can Run Unganged with tigh ttiming and faster overall speed at high Overclocks,,Where as Ganged would crash my nb or cause unstibilities at the same exact Clocks/freqency..It one big crapshoot i tell ya.
If two cores are failing and going at the same time i would say they dont have enuff Vcor for 3.4ghz. If it was just one core id say the chip is maxed:D.
Your Chip may like higher htt with low CPux more. Your water cooled so hopefully temps arnt the issue.
will try that thank you
how would i get my vcore up?Quote:
Originally Posted by gOtVoltage
and what is CPux?
also, w/recommended voltages, 3 and 4 both still fail right away in prime 95 :-/
CPuX = CPU multiplyer for short.Quote:
Originally Posted by emersonsc
Use VDD 2.8v
In the power options in Bios You want to disable CPU voltage monitoring
Menu should look like this..Scroll down to Vcorevoltage and disable it .. this way it wont stop the booup with a volt warning.
http://i168.photobucket.com/albums/u...andpets011.jpg
Then you can set the CPU voltage to 1.65v
And NBvoltage lower to 1.55v instead of 1.6v..I use 1.6vnbvolts only when running higher than 2400mhzNb
maybe try More or less ACC+/-
well i was doing some adjustments on the mutiplier... and im pretty sure my mobo just took a s***t on me... it restarted as normal after saving the changes, went to boot into windows, and just restarted, i got my asus splash screen, then... black screen. I tried to clear the cmos... nothing.
try a battery pull?
should i wait any specific amount of time before putting it back in?
Quote:
Originally Posted by emersonsc
What Bios are you Running? soundslike the 503? I use the 602 .
Sometime that can happen if it dosnt like a HT or NB setting.. if CPU Multi or something does not set right it can happen. Ive also noticed that sometimes if i am running high HTT and the Multi i use can cause the CPU to set 3900mhz and still but then black screen before windows logo:D There are some bugs depending on what is set.. you may have just seen that. If it resets the Bios you are good. I always check my temps and Volts before clocing Bios just to make shure i dint set something wrong before saving.
I can also run this CPU and Mobo @ max volts . Im using the Stock CHIPSET heatpipe too..
Check you Bios revision..if you have never flashed that Mobo..the 302 and 503 have dont that to me At stock Volts before ,,But i had set wrong Ht or Ram divider to where the memory crapped out..
Man probally DOMINATORS,, dosnt get along with mobo,,
Dang it ,, you reminded me about this..
Do you have other Ram besides the Dominators to use?
When ever my Dominators would act up with this mobo it resulted in a black screen and No powering on .. Problem i had to remove ram and put in another Brand.
For some reason when ever the Oc reset the Bios it would reset the Ram volts to 1.8v (default jdec) It would no longer be 2.2v which is needed to run above 800mhz on the Dominators i had.
So i installed my 9600 Vipers and have never had to deal with anymore.
Yeah its not doing ANYTHING. i push the power, and my fans/pump turn on, HDD spin-up, optical spins and thats it. The two red LEDs on my 4850 that are usual lit stay on for a sec or two then shut off. Black screen on monitor. And yeah, the dominators are the only thing i have :-( I thought about getting http://microcenter.com/single_produc...uct_id=0288096 as they are my only option other than waiting till mid next week for them to arrive from newegg...
EDIT: im using the newest bios, the 602 which i just flashed earlier today.
emersonsc: Did you try booting with only 1 stick of ram? Sometimes that helps... But it doesn't sound good, sorry bro... :(
I tried that. witching one out with the other and no go... and this point what would you guys think it is? Ram, CPU, or Mobo?
id try to unplug psu/flip switch so its off,,, clear cmos & pull battery for half hour or so, make sure all cables are in tight etc and try it again. if nothing happens still i'd lean toward cpu being the culprit as the mobo is still takin/sendin power but dont hold me to it :D
If your running the board outside of the case you can look at the underside of the board and see if you notice any hot spots under the FET's....
Did you hear a pop or notice a burning smell? As long as you weren't much over 1.55 on Vcore I doubt you killed the CPU (although the IMC's are kind of sensitive to high voltage). What PSU are you running? If the PSU died you can usually just put you nose by it and sniff, if it died it's usually pretty obvious..
FWIW, you can try running the system bare minimum (unless the PSU smells burnt, if thats the case I'd stop right now and not try anymore). By bare minimum, I mean just the boot drive, 1 stick of ram and the VC...
Personally, I'm not sure I would spend that much cash on those RAM's until I knew for sure what died..
I think its the CPU... the vcore was around 1.65-.68 i didnt hear any pops but when it tried to boot into windows is when it went blank and never came back... if thats the case hell i might as well let this damn thing sit untill the denebs come out in jan... no sence wasting another $200 on a chip to turn around and spend it again a month later...
sometimes when i have similar things happen w/ everything turning on but no signal to monitor i can get it back by hitting the reset button a few times on front of pc. may sound wierd but one day i didnt feel like pullin it out to clear cmos so i restarted it, same thing, restarted it, same thing, restarted it, same thing, hit the restart button a couple times quick before it could even try to post and then wah-lahh itll post and i get in and put my settings stable and get out quick or just set them to defaults quick and start over. not tryin to get your hopes up here lol but figure what do you got to lose
Quote:
Originally Posted by crazydiamond
Ive actually done that with some mobo's too...
Besides Ram and the Volts he was using ,, i dont think its fried. ive had a few good black screens with mine...Several things can cause a no boot ,, spin the fans with no beeps and have a black screen senario.
Also mentioned the led's on his 4850...those should never be on..Maybe a blink right when the power is turned on. But never should any LED's be on period for that card.
So that makes me wonder if the card locked or a monitor signal issue Now. I wouldnt be surpized if the 4850 died or if the PCI-E connector or PSU is at fault..
One thing to try for getting a viewable screen,,
If Your using DVI unplug it from card and unplug monitor. Use a DVI to anolog connector if you can and see itf it boots that way.. By swiching from DVI to anolog or vise versa can unlock a stuck or confused Monitor or Video card.
You havnt mentioned anything about any beep errors so i presume its booting with just blank screen (No Signal) If you wait like two minutes after powering on do you hear a single beep for windows? You know the lenth of boot up into windows then a single beep with HD light going and fans?
Also When Clear CMOS make shure the jump pin is back at the 1-2 setting not 2-3 setting... I Clear it with the PSU OFF and UNPLUGGED.. I leave it in the Clear MODE 2-3clear for a few Minutes and then set back to 1-2keep .
You may even want to pull the 4850 and reseat it..Tricks Mobo to resetting IRQ's if something went wacko in the boot department.
Dont give up..
Ive had bad days plenty of em... I Even had two days last week were i couldnt boot (though my old 3870x2 was toast(all lit up). Only to find i had a broken PCI-E pin on the Plug from my PSU cable(wire snapped from pin at solder under sleave). I guess i pulled to hard Removing the 3870x2 one day swapping the GTX260:D
Has anyone seen a waterblock on this board on the NB on top of the stock cooler unit? How it would be connnected I am not sure, but I thought I saw pictures on other boards people doing this?
Am I seeing things and/or are these people crazy?
I would think cooling that huge copper block which is attached to the SB/Mosfet would be reasonable.
Thoughts???
I contacted AMD today for an RMA... lets hope it goes through
You 'could' attach something over the top of the NB by taking out the little clips that hold the stock nb in place, and going through the wholes with some threaded rod, and bolting it down that way. I doubt any stock mounting gear that you would get would have long enough studs to account for the extra height of the stock heatsink. I think most of them assume your going to go directly on the die, though you might luck out. But ya, anything is possible with the right tools ;)
Although im not sure exactly how practical it would be. Obviously it would help some, but just looking at mine, there's not really alot of surface area as the top of the stock NB blocks isnt flat across, its just those two side strips of copper. I think for the most part the design is meant to pull the heat away, upto the mosfet sink, to get blown off by the cpu heatsink or some other fan and out the back of the case. Your still way better off to get rid of the stock setup and put any blocks directly onto the nb.
Ordered one M3A79-T Deluxe for Deneb, till then im sure i can find a use for this mobo .....
/me looks at 9850 :bsod: :explode2:
/offtopic managed to push my 9850BE on ASUS M2N SLI Deluxe to this CPU was actually at 3260 on all 4 cores :cool:
Hoping to squeeze a little more life from it.
I assumed that would be the best approach is to remove, but when looking at the chip that is under the stock block it is so small and the block surface is much bigger and then you have to contend with the little chips that are lower then the chip that the stock cooler had a pad stuck to it to also worry about. Who knows....Quote:
Originally Posted by Cluster
I've done just that.Quote:
Originally Posted by cdnbum88
I didnt want to remove the stock cooler on the board so i used a koolance waterblock on the NB heatsink
This is on a M3A32-MVP
What are temps on the NB?Quote:
Originally Posted by evilSuRGe
Did you just get some longer screws to attach?
Yeah what were your stock temps vs h2o temps on your NB? I've got the m3a79-t dlx with the all in one heat pipe cooling crap on it, and since i dont feel like dumping over $100 on three water blocks right now, i want to at least get my NB cooler
The temps are at 42-46C with the block.Quote:
Originally Posted by cdnbum88
They were around 46-52c before with the heat pipes
Its the Koolance GPU-200 and the screws were long enough barely.
The block is a bit big and the screws are at a angle.
I have the M3A79-T coming today so i might just take the heatsink off the m3a32-mvp and shave it down some so the block makes contact with the center of the heatsink. whats touching the block is just the sides of the heatsink .Same contact points it makes with the heatpipes.
Let us know what you get with the new board.Quote:
Originally Posted by evilSuRGe
BTW what where you OCing to if at all? I was pushing 3.5 with my cpu on water and soon to have my gpu...and I think my NB temps where in the 40's.
Oliverda, is that TRUE 120 cooler? Whats your temps?
i think i found the reason for the weird "downclocking" iīm experiencing when running prime95 for a few minutes.
itīs the mosfet/nb cooling...
even at 3.2ghz idling itīs getting so hot that u canīt really touch it.
just for fun i tried putting the stock amd coolerfan that came with my 9950 on the mosfet heatsink. that way i could pass 3dmark vantage runs at 3.4ghz without having those weird hiccups during the cpu-test (guess that was because of the "downclocking" when the mosfets or the nb exceeded a certain temp). that lil 90mm fan went up to 4900rpm during the benchmark so that heatpipe thing getīs really hot and i think i need to put it under water too.
iīm going to use a watercool sw-17 on the mosfets and nsb-3 on both the nb and sb. iīm hoping my 3x120mm rad can take all that heat (cpu,4870x2,mosfets,nb,sb).
i was seeing my NB temps go into the 50šs with the factory heat pipes on my board, the M3A32 had the same issue, once I watercooled it, never saw 50šs again, the NB on these boards tend to run a bit hot I would say. Just for kicks, here is a pic of when I had the M3A32 running on waterQuote:
Originally Posted by cdnbum88
In case you are wondering why the video card is all the way at the bottom is because it was the only slot that did not interfere with the radiator and the SB water block, that was the old case, new case does not have this problem, however I have the 4870 now which is on factory cooling still and so is the board as well.
http://img68.imageshack.us/img68/787...izedej2.th.jpg
Just the PCB part or the traces or both jet black.
Going to give wife the MSI DK790GX plat and pick up an ASUS.
Last build was NF2 A7N8X and I had hell of a time getting Corsair mem to work and chipset was extremely flaky. Bad ASUS because they made board seem like it overclock MB. So I'm very timid about this board. but keep hearing so many good reviews, aahh what the hell, I'll go for it.
But must be very black :D
David
P.S. I loved that board if only for the soundforce chip with dobly encoding. Would have made I nice htpc, but alas I killed it.
Quote:
Originally Posted by kazgirl
Ill take it your name is David? Well so is mine :up:Quote:
Originally Posted by Eternalightwith
Anyhow, dude, I heard alot of bad things about ASUS boards lately, but I do not regret one bit buying my M3A79-T. THe board is exceptional in my eyes. Only reason why its dead now, is I hit the back of the PCB while removing the factory heatsink assembly to watercool the Vregs, NB, and SB. The board never posted again, which is whY I got the intel rig. I already RMA'ed the board, should be back shortly after the release of Phenom II's. So you know what im planning to do :)
