05-26-2009, 03:07 PM
sheaga

Hi Guy's i'm looking for some help i have a Asus P5Q deluxe with the Q9650 VID 1.2375 on water, can't seem to get it any higher then 3.9 with 465 bus. here are my settings hope you can help me get in the 4's with a good bus.
AI tweaker
CPU RATIO 8.5
FSB FREQUENCY 465
PCIE FREQUENCY 101
FSB STRAP TO NB 400MHZ
DRAM FERQ DDR2-930MHZ
ALL DRAM SKEW'S AUTO
DRAM TIMING CONTROL AUTO
DRAMSTATIC READ CONTROL AUTO
DRAM READ TRAINING AUTO
MEM. OC CHARGER AUTO
AI CLOCK TWISTER AUTO
AI TRANSACTION BOOSTER AUTO
CPU VOLTAGE 1.275
CPU GTL VOLTAGE REF 0/2 .68
CPU GTL VOLTAGE REF 1/3 .68
CPU PLL VOLTAGE 1.58
FSB TERMINATION VOLTAGE 1.34
DRAM VOLTAGE 1.96
NB VOLTAGE 1.36
NB GTL REF .67
SB VOLTAGE AUTO
PCIE SATA VOLTAGE AUTO
LOAD LINE CALIBRATION ENABLED
CPU SPREAD SPECTRUM DISABLED
PCIE SPREAD SPECTRUM DISABLED
CPU CLOCK SKEW DELAY 100 PS
NB CLOCK SKEW DELAY 200 PS
CPU MARGIN ENHANCEMENT OPTIMIZED

ADVANCED TAB
CPU RATIO 8.5
C1E SUPPORT DISABLED
MAX CPUID VALUE LIMIT DISABLED
INTEL VIRTUALIZATION TECH ENABLED
CPU FUNCTION ENABLED
EXECUTE DISABLE BIT ENABLED

HOPE YOU CAN HELP!!!!!!!!!!
05-26-2009, 03:24 PM
M40TURBO

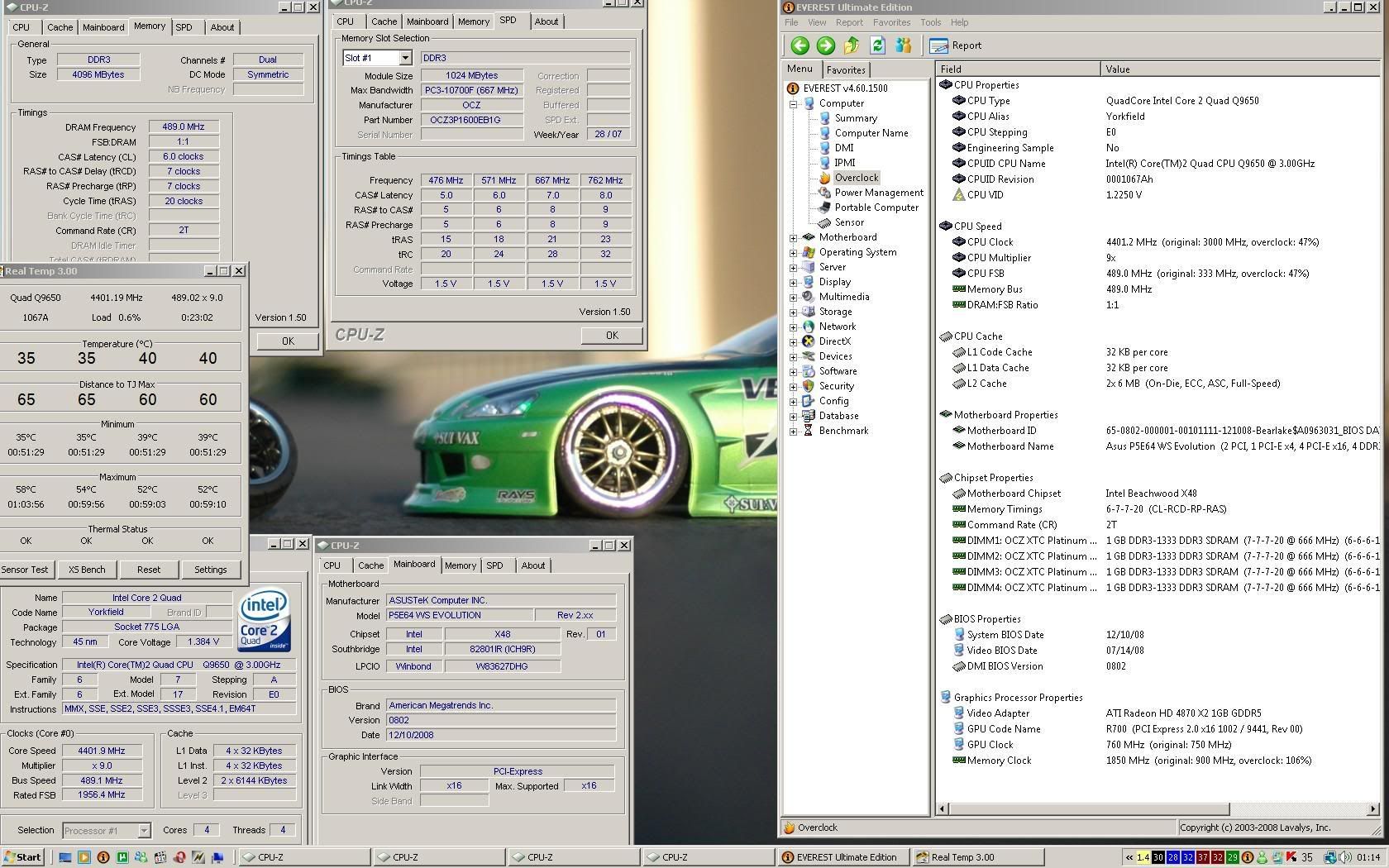

My system's att 4,4Ghz now. Only adjusted the vcore and the vtt. Vcore 1.40v vdrop to 1,38v and vtt 1,44v. Anyone have any suggestions on settings for ram timing\volt, NB SB volts.. It's not prime stable, but stable enough to play games and run 3dmark. Anything that can be adjusted so i might get to oc the 4870x2 some.. Just abit of oc and i get fragmets. Tried 4.5 just for fun but no go..
Put the volt up to 1,435vcore 1,48vtt.. Time to get a one of these maybe :D

1 - extreme
2 - dq6
3 - ud3p

http://img.photobucket.com/albums/v2...r/system-2.jpg
05-26-2009, 03:57 PM
jas420221

Quote:

Originally Posted by sheaga

Hi Guy's i'm looking for some help i have a Asus P5Q deluxe with the Q9650 VID 1.2375 on water, can't seem to get it any higher then 3.9 with 465 bus. here are my settings hope you can help me get in the 4's with a good bus.
AI tweaker
CPU RATIO 8.5
FSB FREQUENCY 465
PCIE FREQUENCY 101
FSB STRAP TO NB 400MHZ
DRAM FERQ DDR2-930MHZ
ALL DRAM SKEW'S AUTO
DRAM TIMING CONTROL AUTO
DRAMSTATIC READ CONTROL AUTO
DRAM READ TRAINING AUTO
MEM. OC CHARGER AUTO
AI CLOCK TWISTER AUTO
AI TRANSACTION BOOSTER AUTO
CPU VOLTAGE 1.275
CPU GTL VOLTAGE REF 0/2 .68
CPU GTL VOLTAGE REF 1/3 .68
CPU PLL VOLTAGE 1.58
FSB TERMINATION VOLTAGE 1.34
DRAM VOLTAGE 1.96
NB VOLTAGE 1.36
NB GTL REF .67
SB VOLTAGE AUTO
PCIE SATA VOLTAGE AUTO
LOAD LINE CALIBRATION ENABLED
CPU SPREAD SPECTRUM DISABLED
PCIE SPREAD SPECTRUM DISABLED
CPU CLOCK SKEW DELAY 100 PS
NB CLOCK SKEW DELAY 200 PS
CPU MARGIN ENHANCEMENT OPTIMIZED

ADVANCED TAB
CPU RATIO 8.5
C1E SUPPORT DISABLED
MAX CPUID VALUE LIMIT DISABLED
INTEL VIRTUALIZATION TECH ENABLED
CPU FUNCTION ENABLED
EXECUTE DISABLE BIT ENABLED

HOPE YOU CAN HELP!!!!!!!!!!

Try adding some core voltage. You are up almost 1Ghz barely over stock volts.

Any reason your multi is at 8.5 instead of 9?
05-26-2009, 04:20 PM
Hoss331

Quote:

Originally Posted by sheaga

Hi Guy's i'm looking for some help i have a Asus P5Q deluxe with the Q9650 VID 1.2375 on water, can't seem to get it any higher then 3.9 with 465 bus. here are my settings hope you can help me get in the 4's with a good bus.

HOPE YOU CAN HELP!!!!!!!!!!

Try this out.

AI tweaker
CPU RATIO 9.0
FSB FREQUENCY 456
PCIE FREQUENCY 100
FSB STRAP TO NB 400MHZ
DRAM FERQ DDR2-912MHZ
ALL DRAM SKEW'S AUTO
DRAM TIMING CONTROL AUTO
DRAMSTATIC READ CONTROL AUTO
DRAM READ TRAINING AUTO
MEM. OC CHARGER AUTO
AI CLOCK TWISTER AUTO
AI TRANSACTION BOOSTER AUTO
CPU VOLTAGE 1.30
CPU GTL VOLTAGE REF 0/2 .635 - .645
CPU GTL VOLTAGE REF 1/3 .635 - .645
CPU PLL VOLTAGE 1.54
FSB TERMINATION VOLTAGE 1.30
DRAM VOLTAGE 1.96
NB VOLTAGE 1.36
NB GTL REF .665
SB VOLTAGE AUTO
PCIE SATA VOLTAGE AUTO
LOAD LINE CALIBRATION ENABLED
CPU SPREAD SPECTRUM DISABLED
PCIE SPREAD SPECTRUM DISABLED
CPU CLOCK SKEW DELAY 0 PS
NB CLOCK SKEW DELAY 0 PS
CPU MARGIN ENHANCEMENT OPTIMIZED
05-26-2009, 09:37 PM
siyah

Quote:

Originally Posted by M40TURBO

My system's att 4,4Ghz now. Only adjusted the vcore and the vtt. Vcore 1.40v vdrop to 1,38v and vtt 1,44v. Anyone have any suggestions on settings for ram timing\volt, NB SB volts.. It's not prime stable, but stable enough to play games and run 3dmark. Anything that can be adjusted so i might get to oc the 4870x2 some.. Just abit of oc and i get fragmets. Tried 4.5 just for fun but no go..
Put the volt up to 1,435vcore 1,48vtt.. Time to get a one of these maybe :D

1 - extreme
2 - dq6
3 - ud3p

http://img.photobucket.com/albums/v2...r/system-2.jpg

because i have it prime stabil many hours Q9650@4,40ghz :D

http://www.abload.de/img/44primestabilxgd7.jpg
05-27-2009, 03:26 PM
sheaga

Thanks Hoss331 it works gr8, is there anything eles i can do?
05-27-2009, 06:41 PM
andressergio

hey guys

i keep playing with my Q9650 and the GTX285 awesome card keeps going up and up, i also played with the Q9650 at 510x9

http://img30.imageshack.us/img30/804...vgaoc3xp32.jpg

Cheers
Sergio
05-27-2009, 10:02 PM
Hoss331

Quote:

Originally Posted by sheaga

Thanks Hoss331 it works gr8, is there anything eles i can do?

Have you checked to see if its stable yet? Your chip may or may not need that much vcore so if thats stable try raising the fsb more. On my Dlx. for that FSB I used 1.2312vc, 1.54pll, 1.26vtt, 1.28nb, cpu gtls @ .635, nb gtl at .665. I was only using 4gb of ram so you probably wont be able run the nb I did but you may be able to lower it some. Also if you havent set the PL you should be able to lower it 2 steps down from auto.
05-28-2009, 12:09 AM
Nevin

I made stable 4320 Mhz with my new Q9650 . Batch L826B006 VID 1.20
[IMG]http://img198.imageshack.us/img198/5276/9x480.jpg[/IMG]
I think it can reach 4600 Mhz (9x511) but I do not have a clue how to do it. So please can someone to post a template for MIIF .
05-28-2009, 03:15 AM
andressergio

Quote:

Originally Posted by Nevin

I made stable 4320 Mhz with my new Q9650 . Batch L826B006 VID 1.20
[IMG]http://img198.imageshack.us/img198/5276/9x480.jpg[/IMG]
I think it can reach 4600 Mhz (9x511) but I do not have a clue how to do it. So please can someone to post a template for MIIF .

that's a very nice vid Nevin :up:

cheers
Sergio
05-28-2009, 05:20 AM
greg.m

Guys whats the limit for fsbvtt for 24/7 use with our q9650?

I need arround 1.5 real for 500fsb, is it ok?

Here is my "achievement":)

http://img25.imageshack.us/img25/5386/skrmklippl.jpg
http://img25.imageshack.us/img25/9559/skrmklipp2.jpg
05-28-2009, 05:34 AM
radaja

Quote:

Originally Posted by Nevin

I made stable 4320 Mhz with my new Q9650 . Batch L826B006 VID 1.20
[IMG]http://img198.imageshack.us/img198/5276/9x480.jpg[/IMG]
I think it can reach 4600 Mhz (9x511) but I do not have a clue how to do it. So please can someone to post a template for MIIF .

that will be a tall order for the MIIF(511fsb)very few even get 500 with the Q9650.i know grnfinger has done it,might check the MIIF thread i think he made a template.good luck.
oh and very nice OC there,you got a great chip with a nice vid:D
05-29-2009, 11:12 AM
NapalmV5

just noon here and already past 80+F ambient

http://img32.imageshack.us/img32/5056/97572449.th.jpg

ep45-extreme/thermalright ifx14/2x low rpm fan/fully loaded system

holding up pretty cool.. so much for summer temps :)
05-29-2009, 11:34 AM
BababooeyHTJ

Sergio, nice card you have there. The clocks on that 285 are very impressive.
05-29-2009, 12:46 PM
greg.m

Quote:

Originally Posted by NapalmV5

just noon here and already past 80+F ambient

http://img32.imageshack.us/img32/5056/97572449.th.jpg

ep45-extreme/thermalright ifx14/2x low rpm fan/fully loaded system

holding up pretty cool.. so much for summer temps :)

NapalmV5 i saw some of your posts/threads and i see that you run with high fsb vtt. I did the same and could successfully hit 500fsb:) - 1.5fsbvtt^^^. From your experience is it "safe" to run with 1.5-1.6 fsbvtt?
05-29-2009, 01:23 PM
andressergio

Quote:

Originally Posted by BababooeyHTJ

Sergio, nice card you have there. The clocks on that 285 are very impressive.

thx mate :up:
05-29-2009, 03:02 PM
greg.m

Here comes some goood stuff:D

http://img5.imageshack.us/img5/9289/skrmklippcrazy.jpg

i decided to burn everything i have :rofl:
05-29-2009, 03:11 PM
OC Nub

Great clocks with that GTX andressergio!!!
05-29-2009, 03:21 PM
andressergio

Quote:

Originally Posted by OC Nub

Great clocks with that GTX andressergio!!!

thanks mate :up:
05-29-2009, 03:24 PM
andressergio

Quote:

Originally Posted by greg.m

Here comes some goood stuff:D

http://img5.imageshack.us/img5/9289/skrmklippcrazy.jpg

i decided do burn everything i have :rofl:

nice score mate :up:
05-29-2009, 03:33 PM
greg.m

Quote:

Originally Posted by andressergio

nice score mate :up:

Thanx bro :)
05-29-2009, 04:42 PM
radaja

greg.m,very nicely done:D
05-29-2009, 04:55 PM
greg.m

Quote:

Originally Posted by radaja

greg.m,very nicely done:D

Thanx mate;)
05-29-2009, 10:37 PM
NapalmV5

Quote:

Originally Posted by greg.m

NapalmV5 i saw some of your posts/threads and i see that you run with high fsb vtt. I did the same and could successfully hit 500fsb:) - 1.5fsbvtt^^^. From your experience is it "safe" to run with 1.5-1.6 fsbvtt?

ive been running the 1.2125vider no less than 1.6vtt for 7/7+ months now

it shouldve died/badly degraded by now going by the intelli myths around

run it @ ~1.6vtt and enjoy the benefits :toast:

edit: i see you are enjoying your q9650

nice results.. another :toast:
05-30-2009, 12:33 AM
NapalmV5

Quote:

Originally Posted by andressergio

hey guys

i keep playing with my Q9650 and the GTX285 awesome card keeps going up and up, i also played with the Q9650 at 510x9

http://img30.imageshack.us/img30/804...vgaoc3xp32.jpg

Cheers
Sergio

nice going mate :toast:

unmodded evga gtx 285 2gb ftw stock/air cooling.. all air cooling

http://img507.imageshack.us/img507/1084/50575655.jpg
