Ive been fiddling with my chip a lot of late including removing the IHS. My load temps never go over 33c which is awesome. The main thing is this is where I have seemed to max out. I really really want to get this chip benchable at 3ghz but its not gonna let me unless I am totally missing something. here is a pic of some minor test I did this morning. The core voltage is at 1.71 which was for testing reasons. It does this same speed @ 1.61.
http://img148.imageshack.us/img148/236/29727pl.th.jpg
My final results on air and phase change:
OS - Windows XP Home
Mainboard - DFI NF4 Ultra-D
CPU - San Diego 3700+ 1MB L2 "CABGE 0515SPMW"
Cooling -
(1) "402 Xtreme" built by Chilly1 - single stage -40C load @ 1.76v
SPi 32M @ 3388Mhz
SP2004 (Prime95 GUI) @ 3300Mhz
(2) Thermalright XP-90 / 92mm Sanyo Denki - ambient 22C
SPi 32M @ 2963Mhz
SP2004 (Prime95 GUI) @ 2904Mhz
My 3700+ at work (caskad'chilled) :
http://service.futuremark.com/compare?2k1=8654713
Here is my lowered Mhz since I discoverd that there is a divider issue with these SD cores. Anyhow I think this vcore and speed isnt too bad. Ballistix 4000 will be here tomarrow so I may be able to go after that 3ghz on WC ive wanted since I got this chip. Oh and the IHS is removed hense the low temps.
http://img99.imageshack.us/img99/832...153v5jx.th.jpg
tomorrow I'll try 3138MHz with occt and prime at 1.52-1.53v on wcooling
http://membres.lycos.fr/cpulloverclo...e/4.44.610.gif
http://membres.lycos.fr/cpulloverclo...tique/3383.gif
http://membres.lycos.fr/cpulloverclo...tique/occt.gif
Update : 3700+@3547Mhz 3D benchable :
http://www.xtremesystems.org/forums/...ad.php?t=69151
I got my new "best friend" VapoChill LS on wednesday (Mod by Hatemi). :)
SuperPi 1M 25s 3230Mhz
3263Mhz
SuperPi 8M 4min44s 3230Mhz
Test-Zone at Home.
DFI nF4 Ultra-D
A64 3700+ San Diego CABGE 0516TPAW (Load -7C/ Idle -22C) 1.696V
VapoChill LS (Load -46C)
2x256Mb Corsair XMS3500
Maxtor 40Gt
aOpen52x32x52 CD-RW
Ati Rage PCI :p:
Hec 350W :p:
don't know if this comes in handy
0505 VPMW 11*250 1.61V
0511 XPAW water 10*290 1.64V
0512 XPMW air 1.55V 2750 zalman
0512 XPMW air 2,897.17 @1.536Vcore with a XP90c
0512 XPMW subzero 11*295
0512 XPMW air 11*268 1.69V
0515 VPMW 271x10 @1.40 Vcore
0515 VPMW 11*275 1.65Vcore
0515 VPMW air 2750@1.55W Zalman CNPS-7000Cu
0515 VPMW water 10*265
0515 VPMW air 255 x 11 = 2805mhz 1.55v Thermaltake Silent Tower heatpipe CL-P0025
0515 SPMW air 10*285 XP-90
0515 SPMW subzero 11*306 1.74V
0515 SPMW subzero 292x11 vapo ls 1.68V
0515 SPMW subzero 11*290 1.73V mach1
0515 SPMW air 2863mhz
0515 SPMW 11*255 Thermalright XP-120 with 120mm Panaflo at 110cfm
0515SPMW water 10*290
0515 air 11*262 XP-120
0515 SPMW water 11*260 1.68V
0515 SPMW 10*290 1.52V
0516 TPAW air 11*277 1.71V
0516 TPAW water 11*270 1.61V
0516 TPAW 11*219 1.2V
0516 TPAW 10*275 1.47
0516 tpaw 10*299 1.58V
0516 TPAW water 11*265 1.61V
0516 TPAW air 10*290 1.6V
starting now at page 5 but i am a bit bored
0515 VPMW 271x10 @1.40 Vcore
0515 VPMW 11*275 1.65Vcore
0515 VPMW air 2750@1.55W Zalman CNPS-7000Cu
0515 VPMW water 10*265
0515 VPMW air 255 x 11 = 2805mhz 1.55v Thermaltake Silent Tower heatpipe CL-P0025
It looks like mine isnt listed there. I have 1st post second page so I was suprised to see it missing. Just as a update it is now at 260x11 @ 1.55v Water cooled no IHS. 100% stable. I know that it is 100% because if you can play BF2 for hrs without a crash it doesnt get anymore stable then that. If it gets colder out I can get 265*11 without crashes but its near 100F lately and my AC isnt keeping up.
here are all my screenies
http://www.overclocking-masters.com/...pic.php?id=595
an example
http://membres.lycos.fr/cpulloverclo...e/2.10.187.gif
Evening to those who remember me from the old days - Hi Saaya :)
Just got myself a new setup after 2 years away and she is going nicely. 3700+ CABGE 0516MPM with an Ultra-D on default cooling and AS Ceramique and default TIM on chipset.
Seems pretty stable afteer 2 weeks. I can run 250fsb for about 10 mins but then prime fails but this screenie has been running for nearly a week now 24/7 so Im happy until I get some new cooling...possibly one of those xp120 or something....:)
Im still finding all the timings and dividers quite complicated but should learn them all in time. I have been a little selfish and have never strayed from those ram timings in finding my OC....I just cant bear to have loose timings :D The trust Hyperx PC3500 with BH-5 chips are still running strong after 3 years in my hands :)
Anyways, heres a screenie :)
See you around a little more often :)
ps
Look at my sig to see how long its been since I was here.... havt had that system since Jan 2004 ;)
Results of new FX-57 phase change
(week 16 )
stock cooler
http://img348.imageshack.us/img348/3...default9kd.jpg
http://img348.imageshack.us/img348/7432/1551jn.jpg
my configs to use 24/7
http://img143.imageshack.us/img143/2...fig18jn.th.jpg
Prommy cooled
http://img345.imageshack.us/img345/2807/cpu29050xq.jpg
http://img345.imageshack.us/img345/9...alus0pz.th.jpg
http://img345.imageshack.us/img345/7012/cpu32210re.jpg
max 1.55v.
just my first test
stock cooling.
http://img146.imageshack.us/img146/9...nin1srt4zv.jpg
Nice one on the 3.8 Ghz!
:clap:
-3700+ SD
-Kingston HyperX BH5
-6600GT PCI Express
-500W A-Open PSU
-Watercooled..Asetek Triple Raditor System.
Idle testing @ 2.42Ghz
http://www.sa3doc.za.net/3700/temps%20(Medium).JPG
Cpu was Loading @ 37/38c @ 2.9Ghz.. side of copper cpu block temp was 29c...
Super Pi
http://www.sa3doc.za.net/3700/28.172%20(Medium).JPG
Memory Bandwidth is not too good.
3200+ got 8006 @ 283 * 10 = 2830Mhz
Here is my Sandy 3700+ @ 271 * 11 = 2988Mhz
http://www.sa3doc.za.net/3700/memban...20(Medium).JPG
Suicide Shot.. (Well 3Ghz shot ;))
http://www.sa3doc.za.net/3700/cpu-3005.JPG
Didnt try more..testing for now.. :D

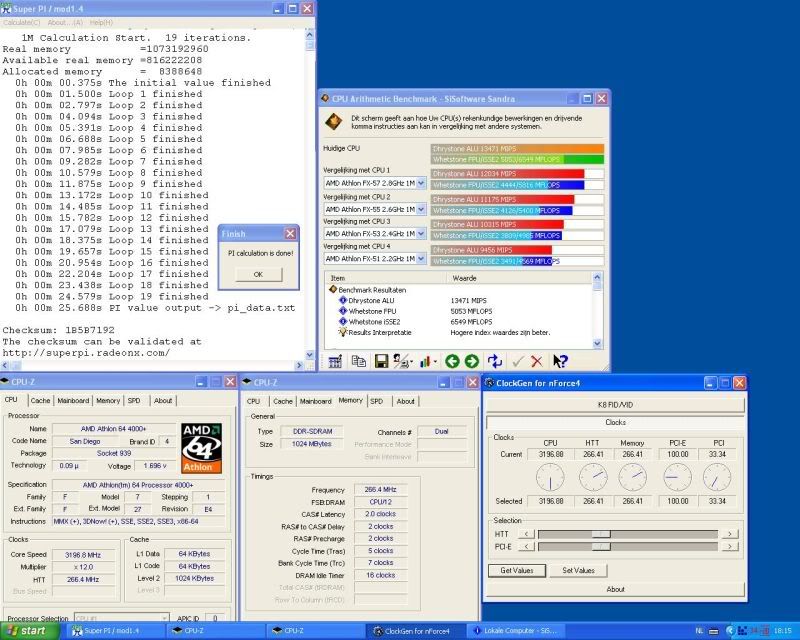

Here is a little update:
SD 4000+
DFI LP NF4 Ultra
4000 Redlines
Cooled by Vapo
http://www.xtremesystems.org/forums/...chmentid=35106
