09-28-2010, 01:34 PM
chew*

Quote:

Originally Posted by theoldtimer

I figured someone would be posting up some big numbers with this MB by now? Is everyone too busy or is there a problem with the MB? I've seen a few result at lower clocks but that's about it. Maybe the results are posted some place else and I haven't found them yet?:shrug:

No ln2 no ln2 results :shrug:
09-28-2010, 05:01 PM
theoldtimer

You still have the early CH4E you were testing chew*or have they sent you a new one? To bad you don't have any LN2, I have some LN2 but not the CH4E, at least not until maybe this weekend.:D
09-28-2010, 07:55 PM
chew*

Quote:

Originally Posted by theoldtimer

You still have the early CH4E you were testing chew*or have they sent you a new one? To bad you don't have any LN2, I have some LN2 but not the CH4E, at least not until maybe this weekend.:D

I have a retail now, just been busy testing intel boards lately.

give the 560 x2 a spin in the c4e in a few days i guess.
09-29-2010, 10:23 AM
FlanK3r

some Namegt result is at section Xtreme Overclocking...
09-29-2010, 12:34 PM
G.Foyle

Check out the link in my sig for some subzero pics and results :)
09-30-2010, 07:19 AM
=SOC= Admiral

Getting mine later today. Will post back after she is assembled. Newegg was the first to have up for purchase so they got my money. Today is going to be a long day of class. :brick: :zombie: :brick:
09-30-2010, 12:11 PM
AMD_PBz

After the OC3D Review & Video I'm feeling about as confident in this board as I am keeping solid foods down at the moment.
I hate being sick
09-30-2010, 04:30 PM
=SOC= Admiral

Ok I got it but there is one goof up I notice in the manual. 1. Old version of the manual E5987 2. Item 4 on the layout components it lists LGA1366 CPU socket in the table. Other than that I need to stop drooling over this thing.
10-02-2010, 06:12 AM
theoldtimer

I have the CH4E which was shipped with the 243 bios now where do I get the newer bios? Just in case the 243 doesn't work out.:D
10-02-2010, 06:20 AM
MacClipper

Right here,
http://www.ziddu.com/download/118018...-0402.rar.html

Have been cleared to share this with everyone so enjoy. :D
10-02-2010, 06:35 AM
=SOC= Admiral

After installation of the Board drivers windows acts funny and crashes so I have a feeling that my driver disk I was sent is bad and am going to pull the drivers from ASUS directly. I really hope it isnt a problem with the board.
10-02-2010, 06:46 AM
theoldtimer

Quote:

Originally Posted by MacClipper

Right here,
http://www.ziddu.com/download/118018...-0402.rar.html

Have been cleared to share this with everyone so enjoy. :D

Thanks MacClipper.:up::)
10-02-2010, 07:27 AM
=SOC= Admiral

More behavior: Computer crashes while starting windows after installing the Nvidia Driver.

what section of device manager is the hydralogix in. I have in safemode a problem in Other devices and PCI Device under PCI Slot 27

Answer: Refers to the HydraLogix chip which I could only install the drivers through safe mode, after the drivers were installed windows works just fine.
10-02-2010, 07:48 AM
AMD_PBz

http://www.lucidlogix.com/download/d...1071285949.pdf
Might be worth a read if you haven't yet
10-02-2010, 08:09 AM
=SOC= Admiral

Im still in the process of installing software and haven't gotten to adobe yet. I only just got windows to work after installing the Hydra driver.
10-03-2010, 11:19 AM
lowfat

Quote:

Originally Posted by MacClipper

Simplified summary of PCI-e slot usage
(hope I got it correct)

http://i173.photobucket.com/albums/w...e/68f8e2fd.jpg

A - ATI
N - nVidia
X - miXed

Max. video card modes
1 card - x16
2 cards - x16 x16
3 cards - x16 x16 x16
4 cards - x16 x16 x8 x8
With 3 or 4 video cards installed, slot 3 can still support another card in x1 mode.

So let me see if I got this right. If I wanted to run w/ three GTX460's I would want to use slot 1,4,5?

I would really like to try 3-4 GTX460's to see how well it scales.
10-03-2010, 05:15 PM
MacClipper

I have tried slots 1, 2 and 4 without issue, runs at x16 modes for all 3 cards - has better spacing this way too.
10-03-2010, 05:38 PM
Praz

Slots 1, 2 and 4 is what the manual suggests also.
10-03-2010, 06:42 PM
lowfat

Well then I may have to buy my first AMD system in a very long time and try some 3-4 way GTX460 action. With the layout of this board I could fit 4 videocards, my ioXtreme, and my soundcard no problem. I don't suppose anyone has tried a GTX460 1GB + a GTX460 768MB together?
10-03-2010, 06:50 PM
theoldtimer

I ran a few tests this afternoon more of a shakedown than anything else. The system appears to be alright so far. I didn’t really hammer anything but I did want to clock the processor up a little so I tested under chilled water to save some time.

I guess I should have researched this systems combination a little more before I bought it? I remember reading somewhere a while back about the HydraLogix and dual GPU graphics cards not working together or at least something to that effect. I don’t remember in what combination of installed GFX cards that applied to at that time but I must have forgotten all about it?

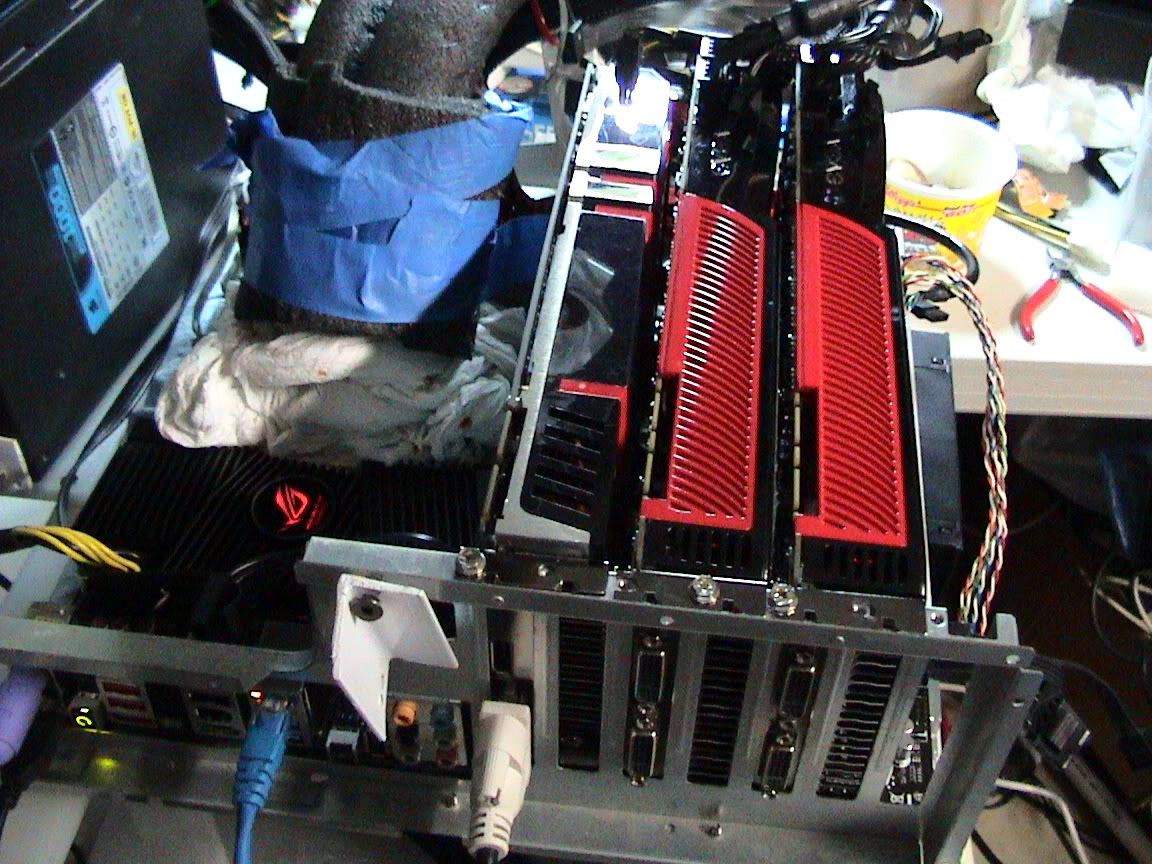

Fast forward to today and my first test which I had planned as a mixed GFX card Vantage test. I installed my Asus 5970 into slot one and two Evga GTX 260’s in slots two and four. When I started Vantage I was greeted with the message “Hydralogix does not work in crossfire mode” (the 5970’s two GPU’s being internally crossfired). I removed the 5970 and installed a 5870 which allowed Vantage to run. I didn’t try the 5970 in slot 2 which may allow it to work with the HydraLogix controller in the X mode for all I know, maybe tomorrow.

I’m not stating in any way that the Crosshair IV Extreme with the HydraLogix controller is a bad product. I’m simply saying that using the GFX card configuration stated above that my 5970 would not work with HydraLogix controller. What I did notice though was that during the graphic test in Vantage the FPS would drop dramatically and at times the image on the screen would stop for the better part of a second before speeding back up.

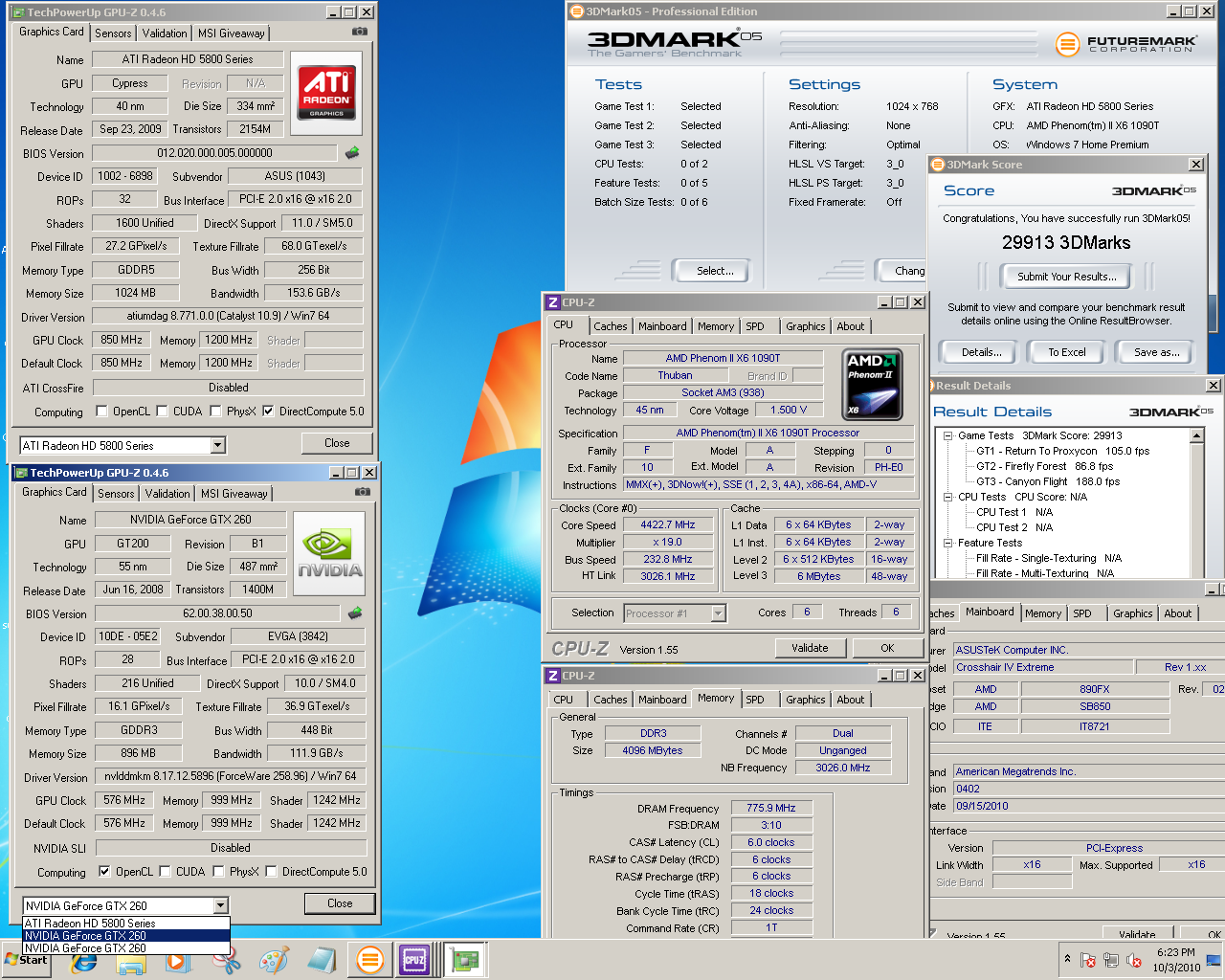

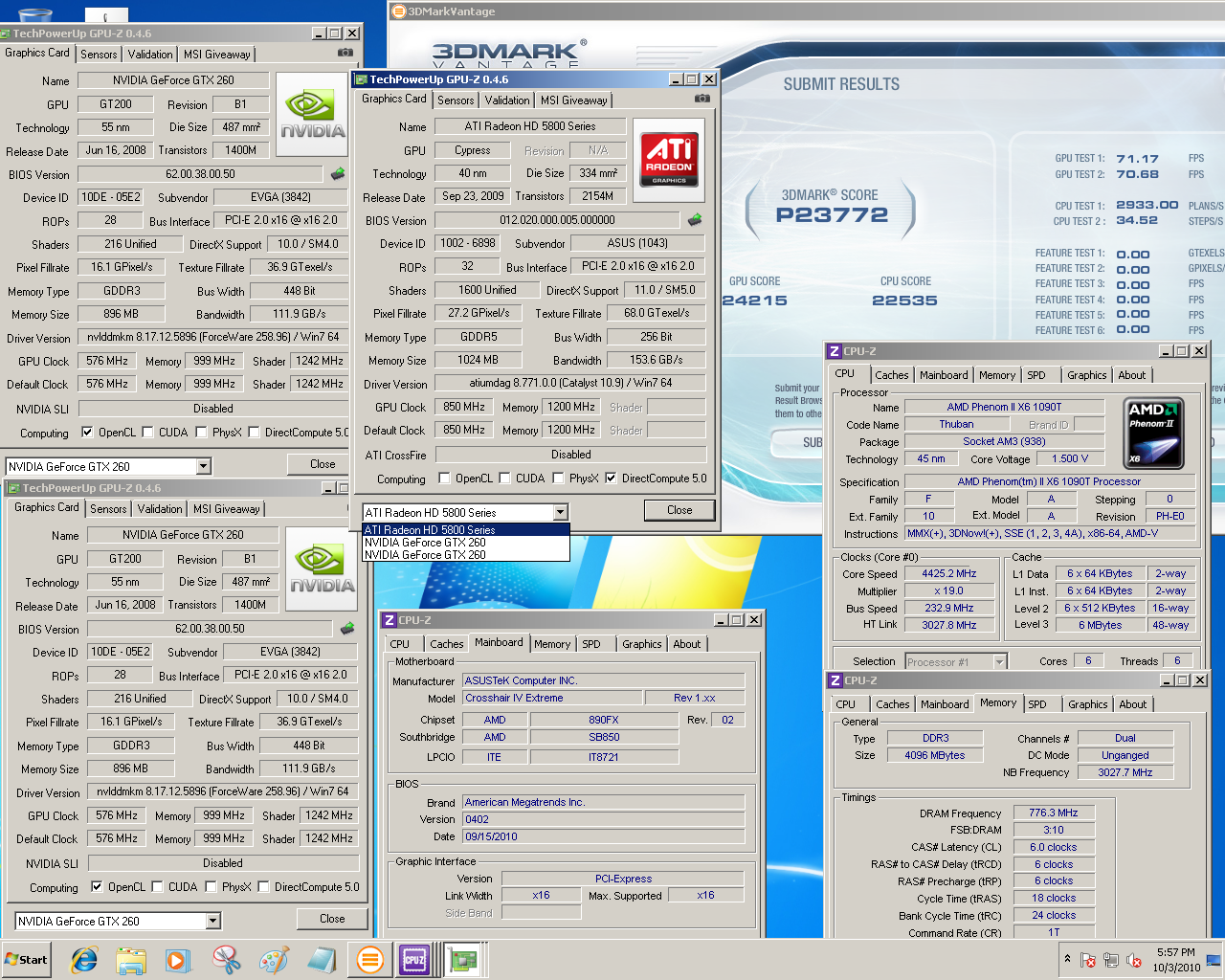

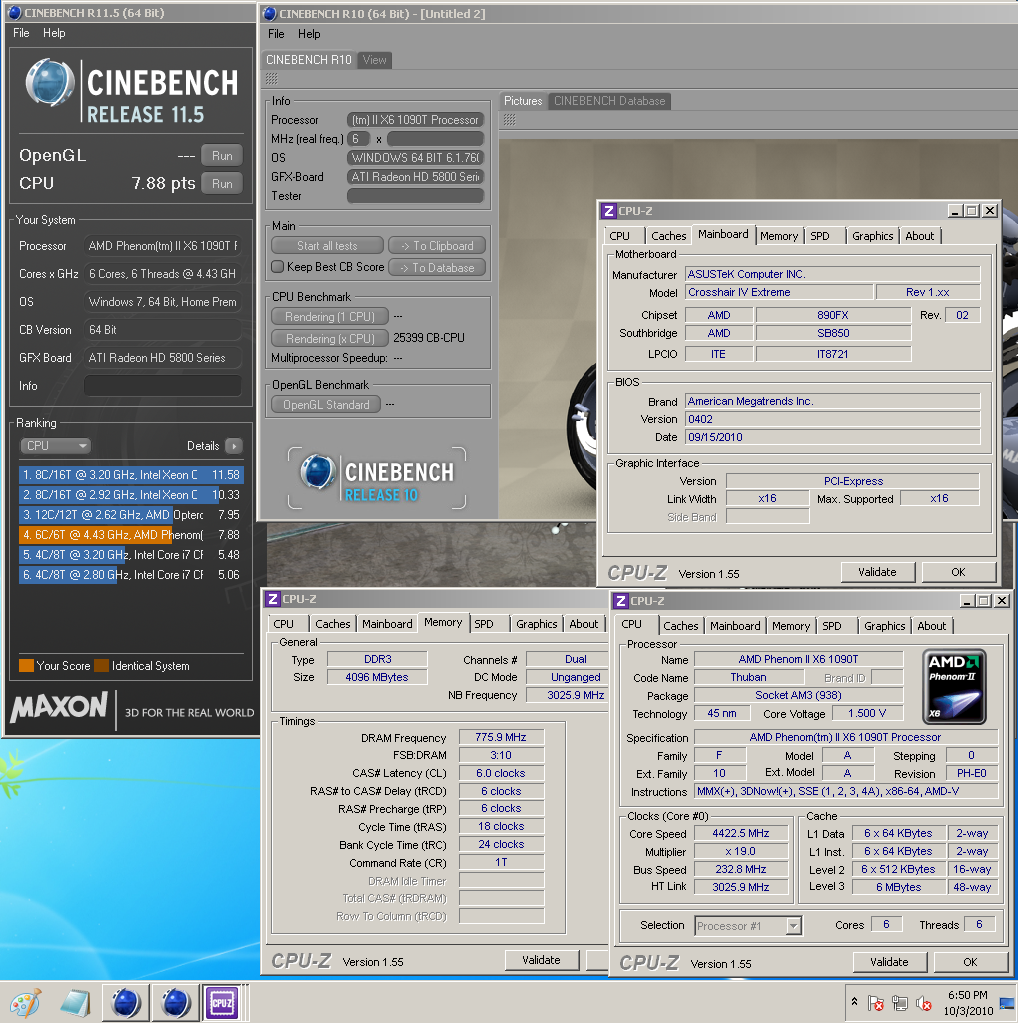

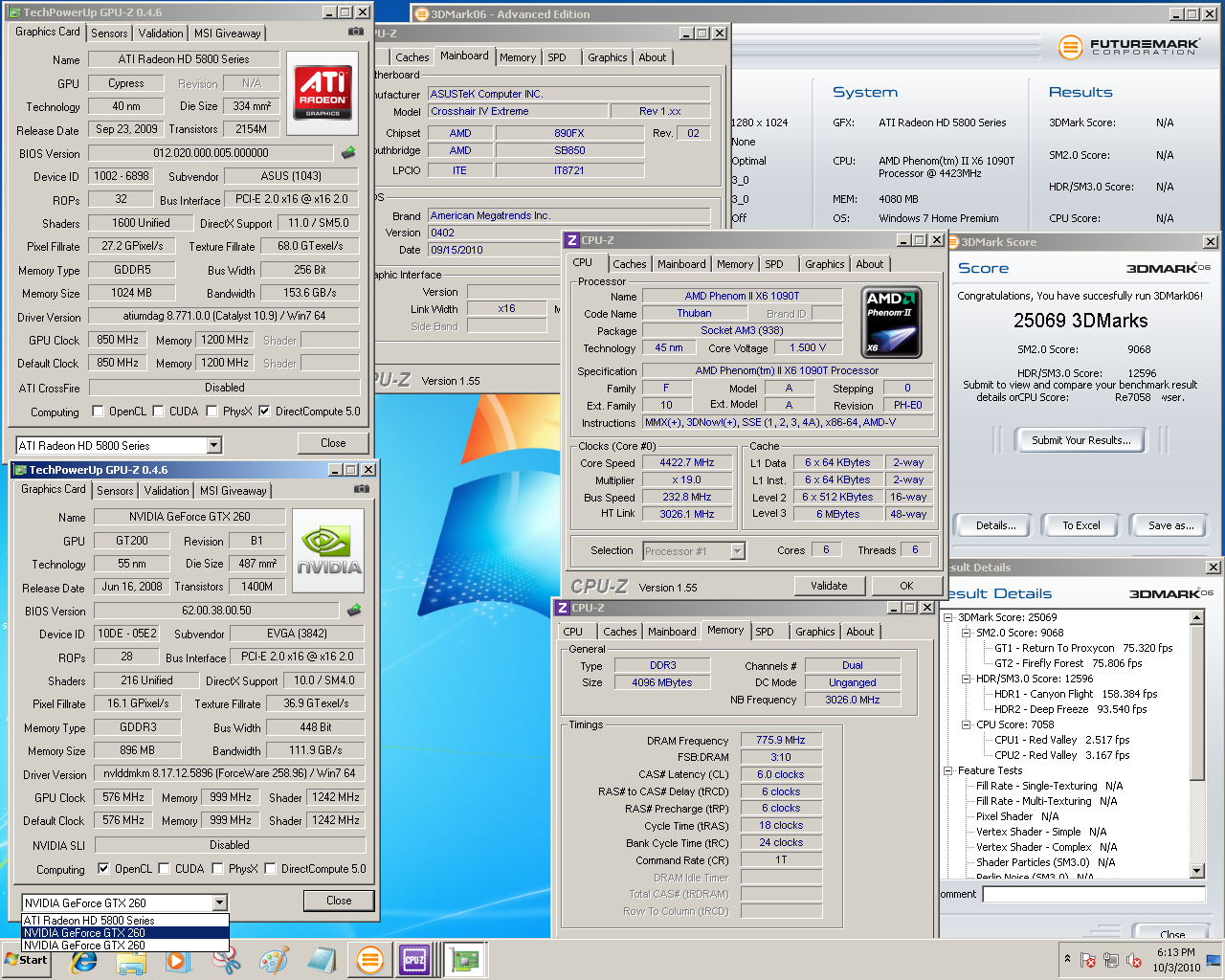

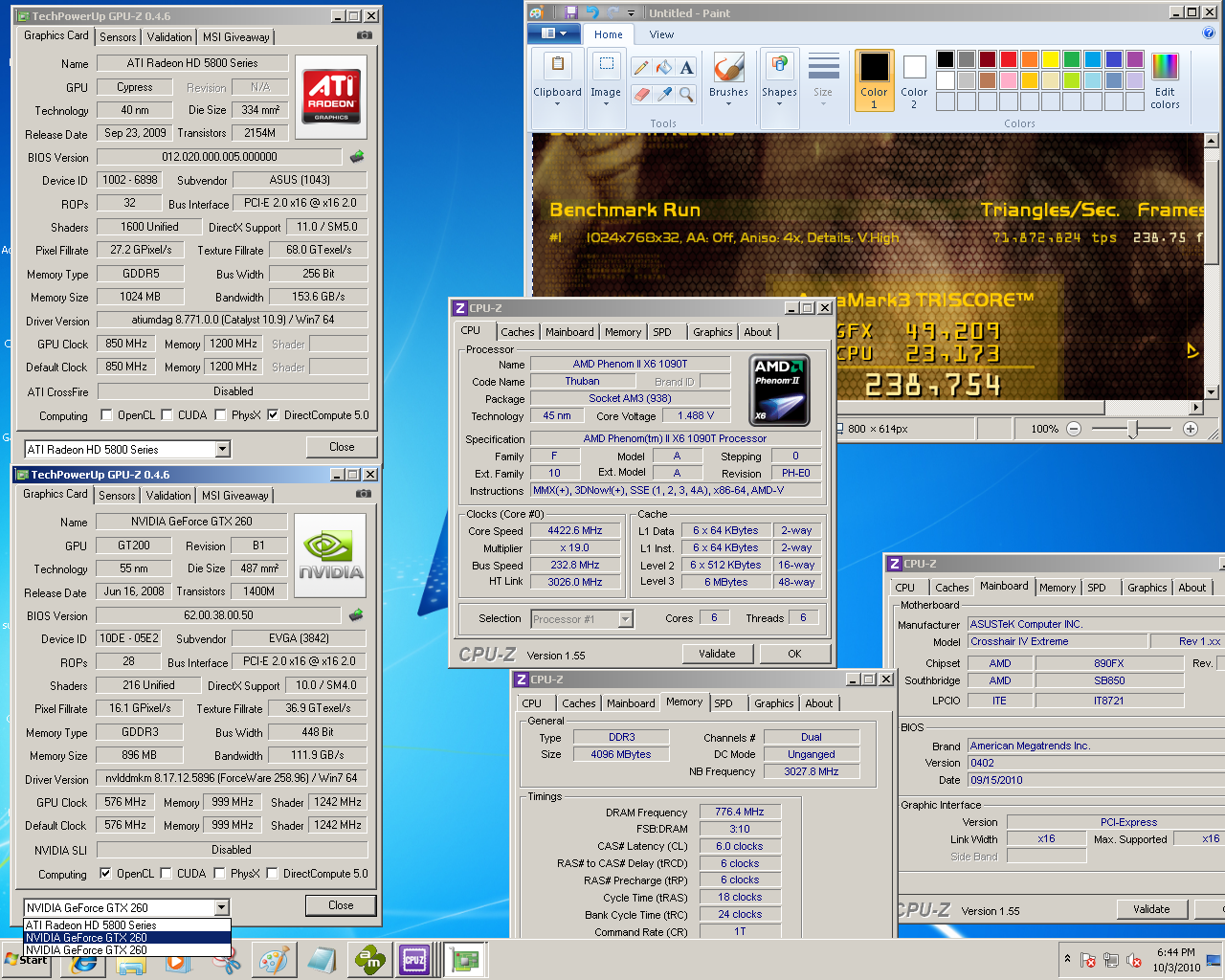

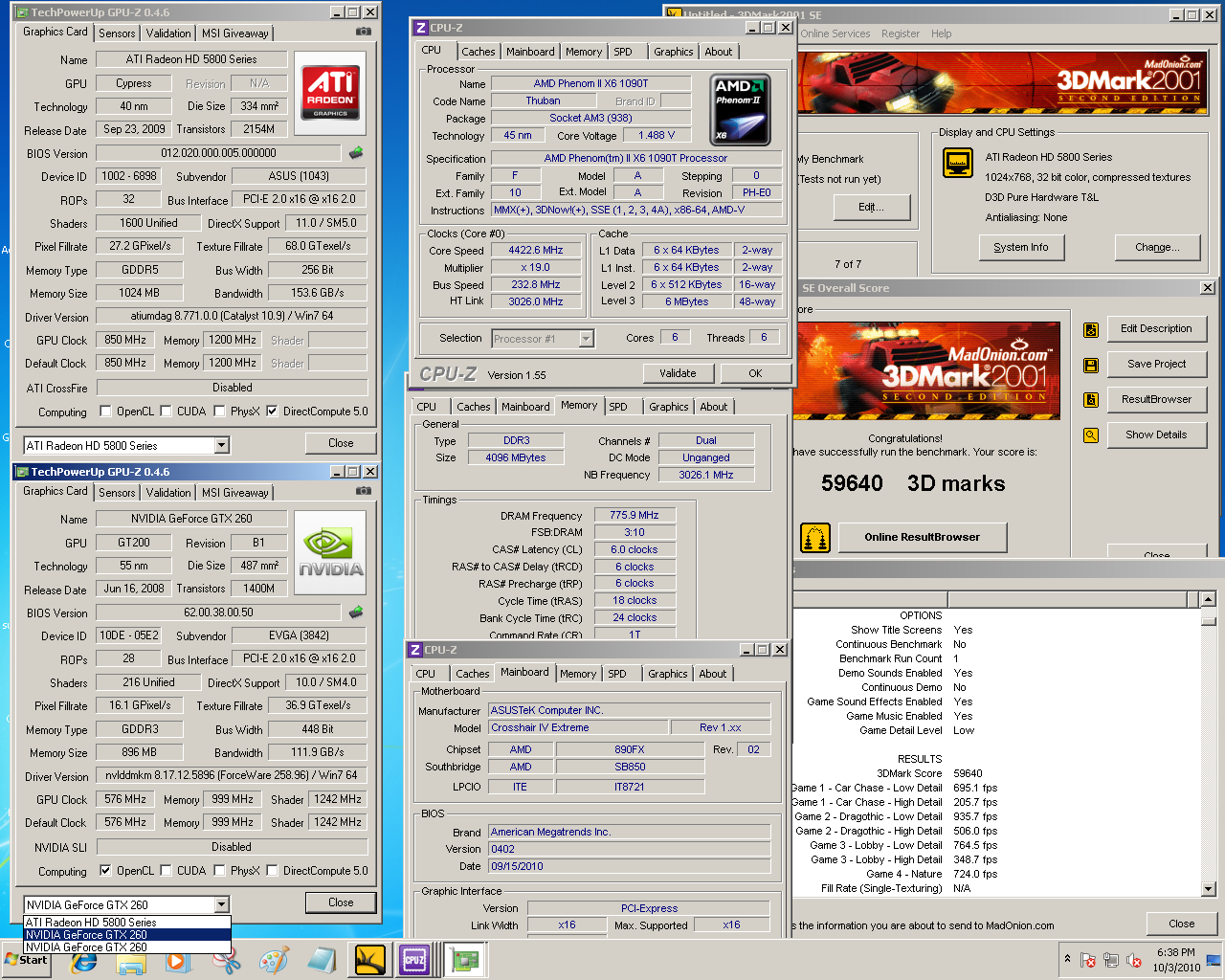

Oh well the shakedown test results are below. Each test was on run once. The GFX cards are at default clocks.

http://i262.photobucket.com/albums/i...e/DSC01247.jpg

http://i262.photobucket.com/albums/i...Hz-vantage.png

http://i262.photobucket.com/albums/i...4425MHz-06.png

http://i262.photobucket.com/albums/i...4425MHz-05.png

http://i262.photobucket.com/albums/i...4425MHz-01.png

http://i262.photobucket.com/albums/i...425MHz-AM3.png

http://i262.photobucket.com/albums/i...-104425MHz.png
10-03-2010, 07:35 PM
charged3800z24

Hey Oltimer, Show off, :p: nice runs with the mixed setup. should have tried cinebench OpenGL test.
10-04-2010, 07:04 AM
=SOC= Admiral

Ill do some benching later today. My CPU is at 3.64GHz because my memory does not want to clock. But Mac with the FSB have you noticed at all on the Original bios that the FSB will weirdly be set .9 above what its suppose to be? Say I set 260FSB in bios but in CPUZ I get 260.9 returned, so I tried it with 259 and I got 259.9 returned. Also when will asus release a new bios for the board?

Oldtimer during my preliminary testing I got the same stuttering where the fps would drop to 1 but it would go right back up to 80+FPS right after.

Edit: Preliminary benching
CPU: 1055T @3.64
Main GPU: GTX470 700/1400/1674
GPU2: GTX275 720/1620/1242

Dirver: 258.96 WHQL
PhysX on CPU: P21295
http://service.futuremark.com/compare?3dmv=2576633

PhysX on GPU: P26219
http://service.futuremark.com/compare?3dmv=2576707

Driver: 260.63 BETA

Hydra Enabled PhysX on CPU: P17136
http://service.futuremark.com/compare?3dmv=2579150

Hydra Enabled PhysX on GPU: P20012
http://service.futuremark.com/compare?3dmv=2579203

Hydra Disabled: P19933 (Just the GTX470 PhysX 275)
http://service.futuremark.com/compare?3dmv=2579103

Vantage 1.0.2 Hydra Enabled 258.96
P26573 - http://service.futuremark.com/compare?3dmv=2579287

Please tell me what other benching and results that I get you would like me to test for or add.
10-04-2010, 07:27 AM
Praz

Quote:

Originally Posted by theoldtimer

When I started Vantage I was greeted with the message “Hydralogix does not work in crossfire mode” (the 5970’s two GPU’s being internally crossfired). I removed the 5970 and installed a 5870 which allowed Vantage to run. I didn’t try the 5970 in slot 2 which may allow it to work with the HydraLogix controller in the X mode for all I know, maybe tomorrow.

Dual core graphic cards not being support by the Hydra chip should be in both the owner's manual and the release notes from Lucid.
10-05-2010, 05:49 PM
theoldtimer

Quote:

Originally Posted by charged3800z24

Hey Oltimer, Show off, :p: nice runs with the mixed setup. should have tried cinebench OpenGL test.

Thanks, I have some OpenGL test results but I think I'm going to start a new thread for the results. This thread is many pages deep now and very general.

Quote:

Originally Posted by =SOC= Admiral

Oldtimer during my preliminary testing I got the same stuttering where the fps would drop to 1 but it would go right back up to 80+FPS right after.

Please tell me what other benching and results that I get you would like me to test for or add.

My CH4E tests Vantage fine in A and N mode but the problem shows up in the Mixed or X mode of HydraLogix.
I think I'm going to start a new thread for CH4E test results as I have so many now that I haven't posted. You or anyone else with a CH4E will be more than welcome to post any test results in that thread.:)

Quote:

Originally Posted by Praz

Dual core graphic cards not being support by the Hydra chip should be in both the owner's manual and the release notes from Lucid.

I've searched the manual and although I may have overlooked a notation about the X2 GFX cards, I didn't see it. :shrug: I didn't research Lucid's release notes.
10-15-2010, 08:16 AM
lowfat

Was looking through the manual and it claims that using 4 GPU's on the HydraLogix isn't a possibility. :down:
