Murdermod Zeus style

Its a "Alphacool LCD-Display 240x128 Pixel Blue neg (Balck Frame) for 5.25inch Bay" I think from looking at the pictures im sure Zeus will confirm this later

But I'm certain that is what it is.

If it is Zeus can you do a picture of the back of it, if possible. I would like to know what the connectors are.

Ninja

Hope this helps "exemay"

Quote:

---

Originally Posted by Darkninja462

You got a better view of your special LED placement ?

Ninja

---

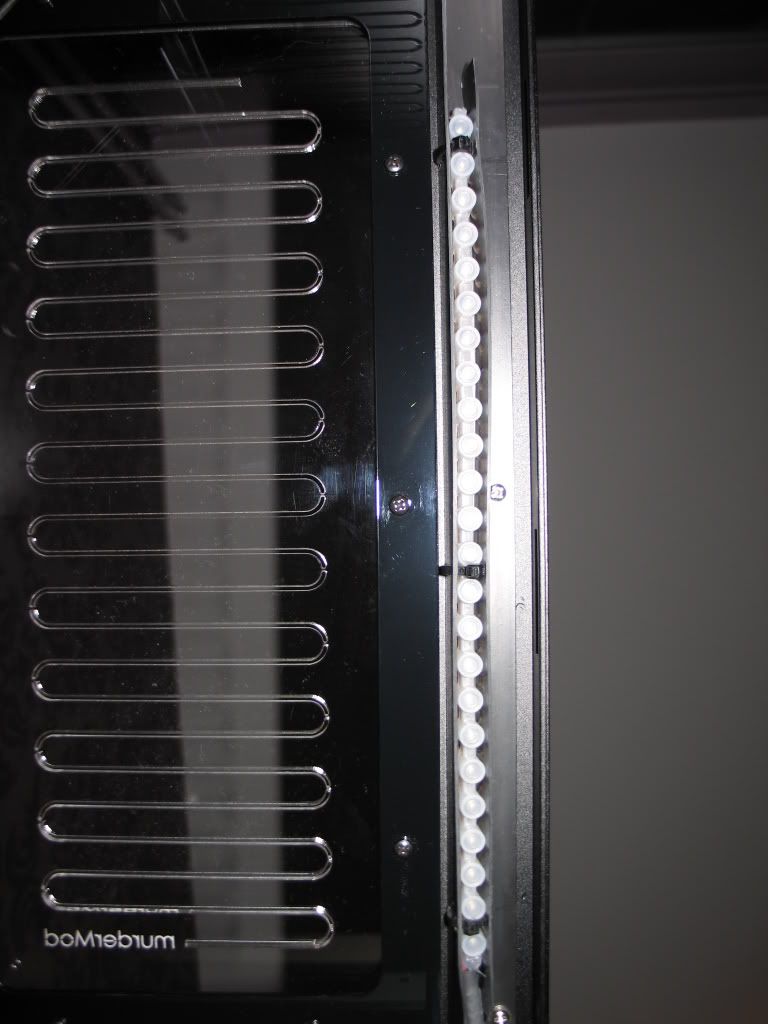

This is the best shot i could make in a dark room

http://img.photobucket.com/albums/v6...d/IMG_5756.jpg

Quote:

---

Originally Posted by exemay

this build is looking very nice indeed, i just gotta ask, what is that big LCD screen you got on the front of your case?

---

http://www.alphacool.com/shop/Displa...ack--3832.html

It can display all sorts of things but the main purpose is to monitor my temps and voltages.

Quote:

---

Originally Posted by Darkninja462

Its a "Alphacool LCD-Display 240x128 Pixel Blue neg (Balck Frame) for 5.25inch Bay" I think from looking at the pictures im sure Zeus will confirm this later

But I'm certain that is what it is.

If it is Zeus can you do a picture of the back of it, if possible. I would like to know what the connectors are.

Ninja

Hope this helps "exemay"

---

http://www.alphacool.com/shop/images...2__25411_3.jpg

It only has an usb-b connector on the back.
It comes with a normal usb cable but i modded (and sleeved off course) a usb cable so that i could connect it internally at the usb headers on the motherboard.

Quote:

---

Originally Posted by Zeus

http://www.alphacool.com/shop/images/product_images/popup_images/3832_2__25411_3.jpg

It only has an usb-b connector on the back.
It comes with a normal usb cable but i modded (and sleeved off course) a usb cable so that i could connect it internally at the usb headers on the motherboard.

---

Its a shame that usb plug come out towards the case, I think it would be much better pointing down or up.

Much more convenient in my opinion, but still an awesome display.

Ninja

Yeah, or even sideways. Fortunately i don't need the space behind the display and if needed i could easily mount a hdd vertically behind it.

The display is fun, i had it display some logo's and it looked great but the programs that should be supported by the alphcool sofware aren't my favorite to say the least. MBM5 :sick:, Asus Probe II (couldn't get that one to work) Everest Ultimate v3.50 and Speedfan (couldn't get that one to work either) It also supports RivaTuner which is nice.

I'm gonna have to spend some more time with the software to get it running the way i want it though.

Ahh ok sounds good how do you get it to display items ? is it simple ? i was looking at getting one from my build but that USB connection turned me against the idea loool.

I like the idea of re-wiring to go in the USB mobo header is an awesome idea

Ninja

Quote:

---

Originally Posted by Zeus

http://img.photobucket.com/albums/v6...d/IMG_5693.jpg

---

think to ask permission first :D

there is one hell awesome photo mate, love the way you take that pic...it will be nice for it to be my wallpaper, Zeus :up:

outstanding result so far, just wanna see more and more !!! and now ! i'm really regret why i'm not take the TJ07 in the first place :shakes:

one more thing Zeus, want to know what extender that you using there between rad and the BP 90', just bought a used pump from someone from australia, never thought he also including one of that BP 90' fitting in package, after i tried to put on my MCR320, somehow it alway lockups into down direction, cant get it to go up position...:(

thx

@anubis....
Could you use rotary fittings ?

Ninja

Quote:

---

Originally Posted by Darkninja462

@anubis....
Could you use rotary fittings ?

Ninja

---

in the first place, yeah :rolleyes:...but it stuck with my PSU, which is koolance 90 rotary, im using LL V2000, and i switch the PSU mount into same direction as TJ07 does, cause it will give more space for the rads ..:shrug:

Wow what attention to detail detail detail very nice :yepp:

thanks for the response on the LCD screen, i was just intrigued as to what it is...but now im thinking about getting one! hehe....is there anyway you can turn it into a temp display, or fan speed display, or is it just for asthetic's?

Quote:

---

Originally Posted by anubis_is_evil

in the first place, yeah :rolleyes:...but it stuck with my PSU, which is koolance 90 rotary, im using LL V2000, and i switch the PSU mount into same direction as TJ07 does, cause it will give more space for the rads ..:shrug:

---

if youve switched the PSU in the V2000 case, then surely the PSU is at the top of the compartment, and sits above the radiators? im doing this and have room for two 120.4's if i had the money for them...:shrug:

Quote:

---

Originally Posted by exemay

thanks for the response on the LCD screen, i was just intrigued as to what it is...but now im thinking about getting one! hehe....is there anyway you can turn it into a temp display, or fan speed display, or is it just for asthetic's?

---

Yea it can do all of thoes things and more:

Quote:

---

The Software enables it to display System information,
like Temperature or Memory use, and also the possibilitiy to show graphics.
With the help of the software you can display external data (i.e) Winamp or Mainboard-Monitor results.
The possibilities are endless!
Example for use:

Displaying system temps, CPU, CPU-load,
Networking Stats, Memory use, Winamp Titles,
News-Feeds (i.e. BBC-World), Game Stats,
Email details,... etc,etc.

---

Quote from the site.

Ninja

dam that seems very tempting.....is it very hard to program etc?? i think i may get one :D

Quote:

---

Originally Posted by anubis_is_evil

think to ask permission first :D

there is one hell awesome photo mate, love the way you take that pic...it will be nice for it to be my wallpaper, Zeus :up:

outstanding result so far, just wanna see more and more !!! and now ! i'm really regret why i'm not take the TJ07 in the first place :shakes:

one more thing Zeus, want to know what extender that you using there between rad and the BP 90', just bought a used pump from someone from australia, never thought he also including one of that BP 90' fitting in package, after i tried to put on my MCR320, somehow it alway lockups into down direction, cant get it to go up position...:(

thx

---

No problem for a wallpaper bro. ;)

The extender is just a G3/8-G1/4 adapter as the Thermochills are using G3/8 thread, that' s all.

Quote:

---

Originally Posted by Lu(ky

Wow what attention to detail detail detail very nice :yepp:

---

Thank you. ;)

Quote:

---

Originally Posted by exemay

thanks for the response on the LCD screen, i was just intrigued as to what it is...but now im thinking about getting one! hehe....is there anyway you can turn it into a temp display, or fan speed display, or is it just for asthetic's?

---

Yes that's the main purpose for me really. As said, it can display MBM5, speedfan, Evereste Ultimate v3.50 and Asus Probe II among other things, so there's plenty of options to make it a temp/fanspeed display. :)

hey zeus i was looking at your build log and where do you the u channel for those holes you made

Quote:

---

Originally Posted by ILikeCosmosS

hey zeus i was looking at your build log and where do you the u channel for those holes you made

---

Not sure about your question but i think you mean the rubber moulding.

Dont know where you're from Petra's has 'm:

http://www.petrastechshop.com/neruedtrmo.html

This is a bit thick but nice stuff.

I used the one from Highflow.nl:

http://www.highflow.nl/modding/panel...-trim-1m-.html

That one is smaller and a bit more subtile, both do a fine job though.

Quote:

---

Originally Posted by Zeus

Well, Preiscompany was by far the cheapest, that's why i went with them. Shot them an email in english yesterday but haven't heard from them yet, ...

---

Hi Zeus,

if you take a look at http://geizhals.at/eu/?sb=4417, you will see that this company has a bad reputation for handling warranty requests. Maybe to send them mails twice a day would speed up the process a little bit ... ;)

But do yourself a favor and check this reputation list first, before you place another order. I can recommend K&M, like Nils already did. We have a local shop here in Nuremberg, where I always buy my hardware and never had problems with RMA requests.

Your worklog is very interesting and I'm really curious how a finished MurderMod with a normal ATX board (not inverted) will look like. In my opinion it is harder to run all the tubing in a non inverted ATX environment.

Quote:

---

Originally Posted by M@tze

Hi Zeus,

if you take a look at http://geizhals.at/eu/?sb=4417, you will see that this company has a bad reputation for handling warranty requests. Maybe to send them mails twice a day would speed up the process a little bit ... ;)

But do yourself a favor and check this reputation list first, before you place another order. I can recommend K&M, like Nils already did. We have a local shop here in Nuremberg, where I always buy my hardware and never had problems with RMA requests.

Your worklog is very interesting and I'm really curious how a finished MurderMod with a normal ATX board (not inverted) will look like. In my opinion it is harder to run all the tubing in a non inverted ATX environment.

---

Thanks man. I wish i had checked their reputation before i ordered but it's too late for that now.
Yesterday i got a reply from them saying i should contact Silverstone Netherlands and do rma via them.
What good of an advice is that as there doesn't even exsist a department of Silverstone in the Netherlands, there's just Silverstone Europe, situated in Germany-- of all places, lol!

I already contacted them but they could not help me, they're not doing rma for things like PSU's they say.

K&M is ok but they don't sell Silverstone PSU's unfortunately.

Just wish me luck with that lazy reseller. :(

Quote:

---

Originally Posted by Zeus

K&M is ok but they don't sell Silverstone PSU's unfortunately.

---

Ok, that is a problem, I didn't check this before.

But I can also recommend Alternate, a lot of my friends and colleagues are ordering there and they have also a shop in the Netherlands http://www.alternate.nl! :clap:

Why did'nt you order from them?

Erm...that psu i ordered was €134 at Preiscompany and €159 at Alternat here in NL, that's why.

Now i regret, Alternate is only a 30 miniute drive from my place. :(

Love the LED placement. I actually have the exact same ones at the exact same place :D

Great mind think alike :)

Hey Al, i think this is the best placement for the LEDs. I tried different placements but this came out best. ;)

Decided to give the PSU one more try before wrapping her up and send her right back.

After some strange noise she came alive..the fan spun up but it kept making ticking/clicking sounds. I stopped the fan to see if it was the fan making this sound but it wasn't.

Then i decided to measure on the molex once again, 5V was indeed 5V, joy!
12v...21.4V!! :eek:

I'm so glad i did not connect my system to it. :yepp:

I finally got green light to send it back, let's hope the new one will be here soon.

thx zeus :)

Zeus, i really have to say you have a very interesting worklog....very nice setup...

And i have to thank you about mentioning the Hiflow.nl webshop...I was not aware of it, while I recently searched for a EU shop to have Bitspower fittings and other stuff not available in my country.....It has great stuff and i was just informed that it ships to Greece...

Thanx...Keep up with your work...
