Got a strange but minor issue. Using OCCT, the app is reading 5.16v on the core....I have version 2.0.1 that is seems others are using, but I am not getting proper vcore readings. I do not have CPU-Z or ET6 running, so they shouldn't be interfering. If I run P95 with cpu-z open, I can see my vcore doesn't budge with LLC enabled, but wouldn't mind seeing how the OCCT graph compares.
Any ideas?
NM: removed and reinstalled it and now the values stay when I change them.
Got me one also, glad I did after reading this thread. I'm on a budget and its my 1st Intel setup, so hope it goes well.Quote:
Originally Posted by 36Chambers
BTW does this support Xenon? I know they prob cant but it should work right?
i have the same problem tooQuote:
Originally Posted by SPQQKY
Uninstall OCCT, then reinstall it and then when you change the values in the monitoring tab, it should stick. Don't know if there is a glitch during install or what, but once I reinstalled the app, my values stuck.Quote:
Originally Posted by godto
LLC works great on my board, too bad I've got a crappy e8400.
hey has any one try,d to flash the f5 beta for ud3r...it wont work for me and its also written in german or dutch...i all ready flashed my board like 4 times with no problem....lol i also try,d to flash my ud3r into a ud3p but the flash utillity in the bios will read it from the floppy but then it say,s bios id dosnt match and it wont boot the bios....i swear i read that hicookie flashed his ud3r into a ud3p maybe he did it in dos or i read his post wrong or something....
He probably flashed in DOS. When you download the f5 beta, double click it and then select the top box "Extrahiren" or "extract" and it will extract the bios to a folder that you select "Durchsuchen" or "browse".
dOES ANYONE WHAT TO TRY AND HELP ME EXCEED 500 fsb FOR 24/7 oc? i AM AT 500 right now and it is stable and safe on all fronts (voltage and temps). I would like to see if I could get a bit higher.
After reading the 20 pages of info I'm on a quest for a UD3P MB.I'll be keeping all the rest of my rig,just changing the MB.I hope i can see some good OC's like everyone else:yepp:
EP45-UD3R-F5.rar fileQuote:
Originally Posted by VOID WARRANTY
Are you saying it detects a BIOS ID mismatch and wont flash the UD3P bios or that it will flash it, but when you restart after flashing it wont boot the bios?Quote:
Originally Posted by VOID WARRANTY
To flash the BIOS of another board, you'd have to use DOS and force it to ignore BIOS ID mismatch. However this is really risky and you may brick your board.
I just bought myself a gigabyte ep45-ud3r mobo , i also have a q6600 (G0) and 2x2gb corsair dominator 1066.
I want to o/c the cpu to 3,6 , but it is the first time i use a gigabyte mobo and i'm not familiar with the settings.
Could someone suggest the settings i should use in the bios (voltages , gtls , tips , e.t.c.) ?
Thanks in advance.
Also , should i use the f4 or the f5a bios ?

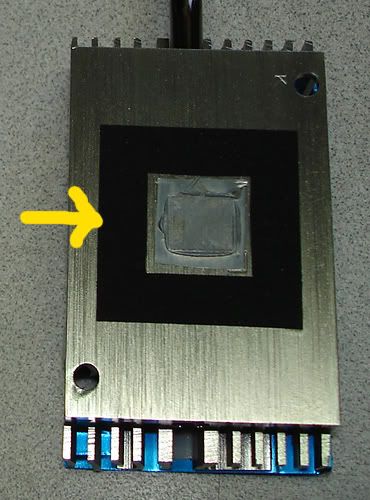

Can someone please tell me how thick this foam/rubber pad is that I have indicated in the pic?
http://i266.photobucket.com/albums/i...3PNBHSedit.jpg
Also when you screw the NB heatsink on, do the screws bottom out limiting the mounting pressure or is it possible to over-tighten the screws?
Could someone point out the real different between the UD3P and UD3R?I'm looking at gigabytes site and the only thing i see is that the 3R doesn't have the two PCIe slots and ultra TPM<--- whatever that is. I remember reading something about TPM in the 20 pages but for the life of me can't remember,hehehe I have CRS syndrome:ROTF:
The differences are right on the front page of this thread.
I found that but i don't know what those feature are. I tried to google then but didn't come up with anything.:shrug:
CrossfireQuote:
Originally Posted by Barry
Dual lan
TPM
Home theater
On the front page........:shrug:
To install a 3rd party NB cooler or Waterblock I would strongly recommend to get this:Quote:
Originally Posted by CryptiK
Microcool Core Rubber Protector
The problem is it's out of stock everywhere.

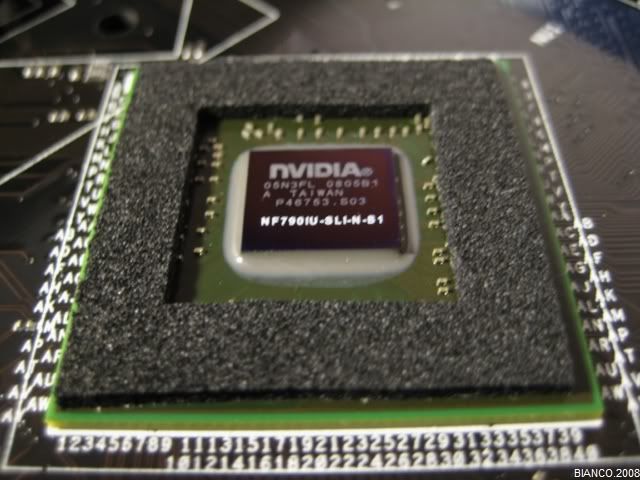

It will look like this prior to block installation:
http://i253.photobucket.com/albums/h...esIMG_3738.jpg
* Courtesy BIANCO
thanks spooky i got F5 to work...but i didnt like it so i went back to F4...every thing needed more volts to stay stable at 4.45ghz...:shakes:...maybe it will work better for quadsQuote:
Originally Posted by SPQQKY
Any help here ?Quote:
Originally Posted by mathewgx
I can stable with small FFT with this Voltage in F7a but I have to adjust some
Advanced Clock Control to like this
CPU Clock Drive...........................: [800mv]
PCI Express Clock Drive...................: [900mv]
CPU Clock Skew (ps).......................: [50ps ]
MCH Clock Skew (ps).......................: [100ps ]
But after I pass small FFT and then go to Blend it's fail immediately with the same voltage setting .....:confused: I'm quiet sure my ram can run with 530 Clock fine may I 'll back to F4 or F3 .... again
@VOID WARRANTY: I agree with you that F5 require more volt to get stable
I need your help. I tried to flash a mod vista bios for the ud3r and the result was that it messed up. The board doesn't boot , it makes one long sound (which i found to indicate a cmos error). I tried to clearmos , take out the battery but nothing.
Is there any way that i could recover it ? It seems that the dual bios doesn't work.
I read that in asus p5q mobos , you can swift the bios chips. Is it possible with the ud3r?
Please , i need really need your help.
hey i really cant complain though....$110 board and its one of the best overclocking p45,s you can get your hands on....they could of easily sold these boards for more money.....and they seem to love quad core,s according to the forum...it sure handled my E8400..:D
Finally got mine working (had to do long clear CMOS, good from there) and this is what I just typed in and am running on..
Before you say weak, I've not OCed an Intel platform since my old 2.53B. also, there's no voltage changes, nothing but FSB change. I'm not displeased. It also happens to be under the stock low profile cooler-you know, the one so small you can install it on the motherboard tray and then still slide it in a Lian-Li, it's so small.
+1 for those Gigabyte guys know this.
I OCed Abit and Asus but no idea about Gigabyte and my G0 Q6600. I was building SFF with everything listed in my sig but smoke damage(no damage to PC parts :clap:) to home, my wife hurting her back, my 11months old stomach virus, daughter cold all in same week then birthday, living in hotel for 2 weeks.....etc etc etc I don't have time to finish that project and it will be stopped indefintely untill everything settles down. I've ordered Lian-Li A05B, GA-EP45-UD3P and will be ordering 4x2GB G.Skill Pi Black probably tomorrow or day after. I'm not going to mod this much if at all for some time but still want to OC. I had stable 3.6Ghz with Asus P5E-VM HDMI but seems Gigabyte BIOS is way different than anything I've seen and seems more complicated(Yes, I'm still noob :() Anyone able to help out here? Maybe cookiecutter BIOS to base as starting point? and max setting(voltage or what not) would be icing on cake.
TIA
Quote:
Originally Posted by mathewgx
I just got this MB yesterday and have to say its pretty sweet so far. On auto voltages I have it running at 4.2 ghz and have had it to 4.5 ghz on auto.
The thing I can't figure out is what the voltage selections under the Vcore menu are.
How do I know what to add to up it?
The choices are:
auto
normal
.5648
.5689
and so on.
How do I know??
Thanks
by-tor,those are just increments, keep pushing + /- till you get the voltage you want.by the way i love the avatar! go snow dog
So to say to set the vcore to 1.36v, what increment would I use?Quote:
Originally Posted by radaja
PS: Snowdog's asleep at the foot of the bed....we're buddy's now and don't fight over good and evil anymore!
i think it will be 1.39 in bios if llc is enabled. so keep pushing the + button till you reach 1.38 - 1.39 somewhere in that area.
+ button? In bios? I'm feeling a little lost now...Quote:
Originally Posted by radaja
I'm not at the tech station now.. I'm driving west on I-64 towards Williamsburg, VA. I'm chatting at 75 mph...llooolz
the plus & minus buttons on the keyboard.
aaahhh I see... duh... do I need to select the normal setting and not auto then use the keys?
How do you like that cellshock memory? I was thinking about getting some for this MB. I had my ballistix tracers running @ 1280 mhz on it last night on 500 fsb.
push + past auto,past normal and then keep pushig till you hit desired voltage
What is the consensus on the best BIOS for the UD3P? F5 isn't as good as F4 and I don't want to keep flashing beta's to find the best one, my time is limited.
@by-tor the cell shocks are awesome,right now though im running one of my mushin pc-8000 with them for a total of 3 gigs, they seem to be playing nice together.i just got them (muskin) but one stick is bad
Here is what I got after an RMA of the first UD3P I had.
http://valid.x86-secret.com/show_oc.php?id=454056
nice villainstone!
YAY I just ordered a UD3P :D
If MCH in Bios is the north bridge voltage.
Is ICH the south bridge voltage?
Yes, ICH is SB Voltage, since manufatures isolated the PLL from SBQuote:
Originally Posted by By-Tor
no need more to add voltage on this Chip.
TY....Quote:
Originally Posted by hicookie
yea well i think the f5 beta for the ud3r corrupted and killed my wd caiar black...its still under neweggs 30 day warranty...i still need to call them about it...i should tell them the board is bad also :ROTF: and how dare it kill my hard drive..then i can just buy a ud3pQuote:
Originally Posted by zaer0
heres my latest. bios settings are pll 1.57 / vtt 1.26 / nbv 1.38 / vdimm 2.26 / vcore 1.38 /http://i38.tinypic.com/nmjhht.jpghttp://i37.tinypic.com/e5puvk.jpg
oh yea...its f-ing great in my neck of the woods newegg gave me a total refund on my ud3r...and they waved the restocking fee...you got love newegg...and lol the operator said he was sorry like 7 times...then i told him that they just dont make hard drives the way they used to...so i guess im going to get the ud3p now when i get my money...oh and get this i left a note in the motherboard manual for who ever ends up buying the board as an open box...:D...i told em to send me a message at xtreme systems forum...epic
I was able to 4.75 ghz on my e8500 E0 with 500 FSB..
My highest FSB so far is 525.
This MB is very smooth and forgiving for all my OCing screw ups...
http://i37.tinypic.com/nqx0eo.jpg
burp i flashed to the new beta bios its total crap. only good thing is that i can now select my stick to boot but for a quadcore f4 still is the best bios imo.
You don't like F7a? I am using it now and it works much better than F5 official did, but I honestly don't recall if it's any better than the F4 it shipped with.Quote:
Originally Posted by Elektrosadist
F5 totally sucked, I had to crank the voltages up considerably to get as stable as I was with F4, so I just decided to try the F7a and it is good enough.
ET6 stops working in Vista x64 after it runs about an hour. DLed the latest version, but didn't help. Runs continuously in XP without a problem. Anyone else experience this? Is this an app problem or Vista issue I can fix?
by-tor is it stable,if so that is very nice. i wish mine could clock that high. well it probally can , i just dont have the skills to pay the overclocking bills
So F7a and F4 are currently the best for quads? Is there any F6x BIOS?
Oh no... Nowhere near stable. Just wanted to see how high I could get it... I did leave it there for a little bit and it did run fine...Quote:
Originally Posted by radaja
F6 for EP45-UD3PQuote:
Originally Posted by ghost_recon88
Haven't heard much about it. Most have been sticking with the F7a. Tweaktown has links to the latest beta BIOS.
Be careful,this is only for UD3PQuote:
Originally Posted by SPQQKY
I'm havim a problem here and need help to solve it!
My rig:
E8400 C0
UD3P
Gskill PC2-6400HK 2gb
So, i'm trying to find the best stable spot to 24/7.
The problem is, when i set fsb above 475, the board won't post, actualy it gives a continuous short beeps.A've already tried give more voltage, and loose even more the timmings but no sucess!
Here's my setting:
Code:MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster ...............: TURBO
CPU Clock Ratio ..........................: 8x
Fine CPU Clock Ratio.....................:.0.5
CPU Frequency ...........................: 4.08GHz (480x8.5)
Clock Chip Control
Standard Clock Control
CPU Host Clock Control..................: [Enabled]
CPU Host Frequency (Mhz) ............: 480Mhz
PCI Express Frequency (Mhz) .........: 100
C.I.A.2 .................................:[Disabled]
Advanced Clock Control [Press Enter]
CPU Clock Drive...........................: <<< 800mV
PCI Express Clock Drive.................: <<< 900mV
CPU Clock Skew (ps)....................: <<< 0ps
MCH Clock Skew (ps)...................: <<< 0ps
DRAM Performance Control
Performance Enhance...................: [STANDARD]
Extreme Memory Profile (X.M.P.).....: Auto
(G)MCH Frequency Latch...............: [333]
System Memory Multiplier ..............: 2.2B
Memory Frequency (Mhz) ..............: 960
DRAM Timing Selectable ................: [Manual]
Standard Timing Control
CAS Latency Time........................5
tRCD .........................................5
tRP'...........................................5
tRAS..........................................15
Advanced Timing Control
tRRD...........................................3
tWTR..........................................3
tWR............................................6
tRFC...........................................40
tRTP...........................................3
Command Rate (CMD) ....................:2
Driving Strength Profiles
Driving Strength ............................ 1066
Channel A/B
Static tRead Value.........................:8
tRD Phase0 Adjustment...................Auto
tRD Phase1 Adjustment...................:Auto
tRD Phase2 Adjustment .................:Auto
tRD Phase3 Adjustment..................:Auto
Trd2rd(Different Rank)....................:Auto
Twr2wr(Different Rank)...................:Auto
Twr2rd(Different Rank)...................:Auto
Trd2wr(Same/Diff Rank)..................:Auto
Dimm1 Clock Skew Control...............:Auto ps
Dimm2 Clock Skew Control...............:Auto ps
Motherboard Voltage Control
Voltage Type.………... Manual
CPU
CPU Vcore….……….........................:1.3875
CPU Termination…..... 1.200V*.......: 1.3
CPU PLL…………………....1.500V*.......: 1.57
CPU Reference………....0.760V*.......: Auto
MCH/ICH
MCH Core…………….....1.100V...........: 1.36
MCH Reference….…….0.760V...........; 0.703
MCH/DRAM Ref.…......0.900V...........: Auto
ICH I/O……………….....1.550V............: Normal
ICH Core…………...……1.100V............: Normal
DRAM
DRAM Voltage ……....1.800V............: 2.22V
DRAM Termination .…0.900V............: 1.11V
Channel A Reference 0.900V............: Auto
Channel B Reference 0.900V............: Auto
Advanced Settings
Limit CPUID Max. to 3.....................: [Disabled]
No-Execute Memory Protect............: [Enabled]
CPU Enhanced Halt (C1E)................: [Disabled]
C2/C2E State Support....................: [Disabled]
x C4/C4E State Support..................: n/a
CPU Thermal Monitor 2(TM2) ...........: [Enabled]
CPU EIST Function.........................: [Disabled]
Virtualization Technology................: [Disabled]
Integrated Peripherals
Legacy USB Storage Detect ..............[Enable]
What do you think it might be?With 475fsb and these setting i get a 12h orthos stable on blend test.Voltages are already a litlle above needed.
By the way i'm using F7a bios.
Get rid of the .5 multiplier and set XMP to disabled. Also, 4GHz may be close to limit on a C0 stepping or just your particular cpu. Is LLC enabled? Do not use normal settings in voltages section, use auto or set manually. Try auto in advanced timing control except for command rate.
Yes, LLC is enabled.I've tried those settings but no success.Thoght the beeping is gone now, but no POST.Quote:
Originally Posted by SPQQKY
The weird fact is that it happens above 475.With 476 fsb it won't post!Strange!My guess is that there is some setting left in Auto that is changing past 475fsb and is crashing the board, but i'm not seeing whitch one!
Now settings are like this:
Any guess?Code:MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster ...............: TURBO
CPU Clock Ratio ..........................: 8x
Fine CPU Clock Ratio.....................:.0.0
CPU Frequency ...........................: 3.84GHz (480x8.5)
Clock Chip Control
Standard Clock Control
CPU Host Clock Control..................: [Enabled]
CPU Host Frequency (Mhz) ............: 480Mhz
PCI Express Frequency (Mhz) .........: 100
C.I.A.2 .................................:[Disabled]
Advanced Clock Control [Press Enter]
CPU Clock Drive...........................: <<< 800mV
PCI Express Clock Drive.................: <<< 900mV
CPU Clock Skew (ps)....................: <<< 0ps
MCH Clock Skew (ps)...................: <<< 0ps
DRAM Performance Control
Performance Enhance...................: [STANDARD]
Extreme Memory Profile (X.M.P.).....: Disabled
(G)MCH Frequency Latch...............: [333]
System Memory Multiplier ..............: 2.0B
Memory Frequency (Mhz) ..............: 960
DRAM Timing Selectable ................: [Manual]
Standard Timing Control
CAS Latency Time........................5
tRCD .........................................5
tRP'...........................................5
tRAS..........................................15
Advanced Timing Control
tRRD...........................................Auto
tWTR..........................................Auto
tWR............................................Auto
tRFC...........................................Auto
tRTP...........................................Auto
Command Rate (CMD) ....................:2
Driving Strength Profiles
Driving Strength ............................ Auto
Channel A/B
Static tRead Value.........................:Auto
tRD Phase0 Adjustment...................Auto
tRD Phase1 Adjustment...................:Auto
tRD Phase2 Adjustment .................:Auto
tRD Phase3 Adjustment..................:Auto
Trd2rd(Different Rank)....................:Auto
Twr2wr(Different Rank)...................:Auto
Twr2rd(Different Rank)...................:Auto
Trd2wr(Same/Diff Rank)..................:Auto
Dimm1 Clock Skew Control...............:Auto ps
Dimm2 Clock Skew Control...............:Auto ps
Motherboard Voltage Control
Voltage Type.………... Manual
CPU
CPU Vcore….……….........................:1.3875
CPU Termination…..... 1.200V*.......: 1.3
CPU PLL…………………....1.500V*.......: 1.57
CPU Reference………....0.760V*.......: Auto
MCH/ICH
MCH Core…………….....1.100V...........: 1.36
MCH Reference….…….0.760V...........; 0.703
MCH/DRAM Ref.…......0.900V...........: Auto
ICH I/O……………….....1.550V............: Auto
ICH Core…………...……1.100V............: Auto
DRAM
DRAM Voltage ……....1.800V............: 2.22V
DRAM Termination .…0.900V............: 1.11V
Channel A Reference 0.900V............: Auto
Channel B Reference 0.900V............: Auto
Advanced Settings
Limit CPUID Max. to 3.....................: [Disabled]
No-Execute Memory Protect............: [Enabled]
CPU Enhanced Halt (C1E)................: [Disabled]
C2/C2E State Support....................: [Disabled]
x C4/C4E State Support..................: n/a
CPU Thermal Monitor 2(TM2) ...........: [Enabled]
CPU EIST Function.........................: [Disabled]
Virtualization Technology................: [Disabled]
Integrated Peripherals
Legacy USB Storage Detect ..............[Disabled]
Quote:
Originally Posted by Soft Maniac
try this setting below and post back.
=====================================
Clock Chip Control
Standard Clock Control
CPU Host Clock Control..................: [Enabled]
CPU Host Frequency (Mhz) ............: 480Mhz
PCI Express Frequency (Mhz) .........: Auto
C.I.A.2 .................................:[Disabled]
DRAM Performance Control
Performance Enhance...................: [STANDARD]
Extreme Memory Profile (X.M.P.).....: Auto
(G)MCH Frequency Latch...............: Auto
System Memory Multiplier ..............: 2.0B
Memory Frequency (Mhz) ..............: 960
DRAM Timing Selectable ................: [Manual]
Standard Timing Control
CAS Latency Time........................5
tRCD .........................................5
tRP'...........................................5
tRAS..........................................15
Advanced Timing Control
tRRD...........................................Aut o
tWTR..........................................Auto
tWR............................................Aut o
tRFC...........................................Aut o
tRTP...........................................Aut o
Command Rate (CMD) ..................Auto
Driving Strength Profiles
Driving Strength ............................ Auto
Channel A/B
Static tRead Value.........................:Auto
tRD Phase0 Adjustment...................Auto
tRD Phase1 Adjustment...................:Auto
tRD Phase2 Adjustment .................:Auto
tRD Phase3 Adjustment..................:Auto
Trd2rd(Different Rank)....................:Auto
Twr2wr(Different Rank)...................:Auto
Twr2rd(Different Rank)...................:Auto
Trd2wr(Same/Diff Rank)..................:Auto
Dimm1 Clock Skew Control...............:Auto ps
Dimm2 Clock Skew Control...............:Auto ps
Motherboard Voltage Control
Voltage Type.………... Manual
CPU
CPU Vcore….……….........................:1.3875
CPU Termination…..... 1.200V*.......: 1.30v <<<<< 1st change this value to 1.20V (or Normal) and go to the "MCH Reference" setting and then change its value setting to 0.74v, and then and come back and change this to 1.30v.
CPU PLL…………………....1.500V*.......: 1.57
CPU Reference………....0.760V*.......: Normal
MCH/ICH
MCH Core…………….....1.100V...........: 1.30v
MCH Reference….…….0.760V...........????? <<<<<
MCH/DRAM Ref.…......0.900V...........: Normal (or Auto)
ICH I/O……………….....1.550V............: Normal (or Auto)
ICH Core…………...……1.100V............: Normal (or Auto)
DRAM
DRAM Voltage ……....1.800V............: 2.20V
DRAM Termination .…0.900V............: Normal (or Auto)
Channel A Reference 0.900V............: Normal (or Auto)
Channel B Reference 0.900V............: Normal (or Auto)
For setting visit this site
Didn't work!
What did work was setting (G)MCH Frequency Latch to [400]!
Now is up and running!Testing orthos for 10 minutes now!
Looks like this ram like 400 latch!I've never been able to get this fsb in this board and now i know why!
stasio...any plan on gigabyte fixing the buggered S3. I just got EP45T-Extreme few day ago. The S3 still doesnt work properly with quad when oc to 9x500 and 8.5x500 just like UD3P. It wont post and just keep rebooting when wake it up.Quote:
Originally Posted by stasio
I start to think that all p45 gigabyte mobos has this problem. Is it fixable or just a plain flaw?
What is the highest FSB on this board? Anybody hit 600FSB?
oh didn't knew that i was or am on f6a. F5 sucked, F4pi also. for my quad the best so fr was f4. But i will try f7a then. if that works as smooth as f4 im a happy monkey.Quote:
Originally Posted by SPQQKY
does anyone have, or no where to get bios F3 for the UD3P?
f7a is heaps better than f6a. now i can run FSB 500 with DDR2 1200 again.
I'm getting pretty sick and tired of bios after bios for the UD3P....mean while their has only been one official bios update for the UD3R. I mean cmon gigabyte its not like we are talking a $300 motherboard vs. a $100. If I knew the support was gonna be so good for the UD3p vs the UD3r, I wouldve paid the xtra $20!
There never was an F3 release for the UD3P. First release BIOS was F4 and now F5. There are a few betas out as well.Quote:
Originally Posted by radaja
There are two official BIOS for the UD3R and two for the UD3P. There are two more beta for the UD3P vs the beta for the UD3R. So there are really only two additional for the "premier" board and there still only beta.Quote:
Originally Posted by The Viper
UD3R = F3 - F4 - F5 beta
UD3P = F4 - F5 - F6 beta - F6d beta -F7a beta
@SPQQKY, thanks. after searching all threads pertaining to this board,it finally hit me! then checked back here and you confirmed it for me
let me revise my statement...their are 2x as many beta bios for the ud3p as their are for the ud3r. Im just a little frustrated, for heaven sakes the difference in pricing between these boards is around $20.Quote:
Originally Posted by SPQQKY
Chill man UD3P is the hottest board atm. Of course Gigabyte will be trying to fix/improve that one first. UD3R just doesn't have the demand that the UD3P does. Simple to comprehend over this way. These boards shouldn't break the bank. Just order a UD3P if you want the mainstream and you'll then have 2 boards for less money than any 1 of the closest P45 Competitors. Nothing wrong with having an extra $99 backup board in case u ever have a failure.Quote:
Originally Posted by The Viper
I wanted to buy a EP45-UD3P for Christmas, to replace my P35C-DS3R which tops out at about 480Mhz FSB with my E8400.
The only reason for this is the Board-Limitation of 1.3V MCH-Core
But seeing many having problems over 475Mhz with the UD3P makes myself overthinking the decision.
Deal or no deal? :confused:
regards
problems over 475fsb? what
what gigabyte ud3 thread were you reading...it dosnt sound like it was this one..:rofl:Quote:
Originally Posted by pest
Sure there are 95% where it works perfectly, but there's always the probability that i get one of those 5% ("many" was the wrong word)Quote:
Originally Posted by VOID WARRANTY
I'll buy that freakin' board, but expect, that i'll return at you if it doesn't work at 500x8 :D
there,s always that 5% chance of getting a bunk board...no matter what model or brand it is..then you have the 25% of people that dont know what there doing even when they have a great board....or there only one setting short of there overclock...this is the hottest p45 to get right now...with out spending over $200...money aside...these new gigabytes are ware the candy,s atQuote:
Originally Posted by pest
Quote:
Originally Posted by radaja
Quote:
Originally Posted by VOID WARRANTY
Quote:
Originally Posted by VOID WARRANTY
:yepp: Listen to them. :yepp:
i never have P35C-DS3R but been running a dual-core both 65nm and 45nm at 500FSB+ on a couple of P35-DS4's rev,1.0 boards for quite some while (since the board's released) now, no problem. so as far as i can tell it appears that your problem about getting your CPU over 475MHz FSB with the Gigabyte P35 based board can be not because of the motherboard.Quote:
Originally Posted by pest
about Gigabyte P45 UD3x boards, i'm not just yet a real fan of any mothertboard's model or makers, but i just find it a bit irritating when hearing things like that, and i was going to ask you the same, where are you getting the idea that it's able to go to only 475 FSB (and not more), otherwise, there will be a problem with your overclocking?
What about Quad Cores?Quote:
Originally Posted by CryptiK
Thx
Quote:
Originally Posted by pest
hey pest...I can sell you my UD3P if you interested. Still working fine like day 1 and capable of 500fsb+. They are going to ebay.de this weekend.
This EPT-Extreme + DDR3 is sweet. No more bs 1300 ram limit and 12k read + 44ns latency. Worth the play before a mature LGA 1366 chips come out.
View Single PostQuote:
Originally Posted by fatguy1992
The P35C is a DDR2/DDR3 Comboboard.Quote:
Originally Posted by pangingIII
That is the first reason why it's hard to get a decent FSB.
The second one is the limitation of MCH to 1.3V.
It is working at 500+ fsb, but why should i use a PL > 12, just to crush that mark. :shrug:, With my config at 472Mhz i get ~9000mb/s Everest-Read, and I think this is very well for a board like this.
I'm no expert when it comes to overclocking, but look at the last site of the 8800GT vMod thread to see what i'm able to do with my stuff :yepp:
Quote:
about Gigabyte P45 UD3x boards, i'm not just yet a real fan of any mothertboard's model or makers, but i just find it a bit irritating when hearing things like that, and i was going to ask you the same, where are you getting the idea that it's able to go to only 475 FSB (and not more), otherwise, there will be a problem with your overclocking?
As I already wrote, i only want to be sure ;), because I've very limited amounts of "free" money, and getting a board just to push FSB +20Mhz is already a bit crazy.
I'm not one of those 25% who don't know what they're doing, so you got me convinced.
If you have some pics of Prime-Blend running > 500fsb, PM me.Quote:
Originally Posted by Sparda
But i think, buying it from someone from germany is the less stressing way.
Warranty and such... ;)
maybe pest was refering to soft maniac's post,he was having trouble goiing over 475fsb but he figured it out.
PL12 at 500 FSB ?
well my UD3R is able to run 1:1 and PL8 above 500 FSB.
the Static tRead Value (tRD, or Performance level) setting has to do with RAM that are using on the system as well, not just the board's chipset and vdimm/MCH voltage setting.
as of my testing right now with a mixed RAM kits running at CAS4,
the tRD value of 8 can be set in BIOS to upto 519 FSB and the system boots into Windows just fine,
above 519MHz the PL9 setting is needed (system won't boot otherwise).
http://img376.imageshack.us/img376/4...5202522ky2.png
BTW, pest, if i can recall, it's been since Jan-Feb but i'll try to get some old BIOS settings that i used to use with the P35-DS4s and E8200/E6750,
but i think i was able set PL7 on my P35-DS4 running 500 FSB and 1:1 at DDR2-1000 4-4-4-x timing.
it must have been, i meant "some" and wrote many...it's been awhile since using english :rolleyes:Quote:
Originally Posted by radaja
I'm using PL8 at 472, and i'm with SetFSB able to Prime95-Blend at 505Mhz PL9 about 2h, not much worse than yours, but my firefox and system-services under Vista64 are occasionally crashingQuote:
Originally Posted by pangingIII
1.3V MCH is moderate for P35, wish i could push this a bit :(
Maybe it would work with a PL < 12, but the performance would always be inferior to my actual setting, and maybe i'm too dumb to do it right :D
second reason...i need to have something new to play with :up:
pangingIII thats awesome pl 8 1/1. for the longest time i was having problem running pl9 1/1 at 500 fsb. but now im able to do it at pl9. now im going to try pl 8 500fsb 1/1. it,s sad that my maxII can only run pl 10 1/1(thats the lowest pl it can do at 500 fsb 1/1).
ThanksQuote:
Originally Posted by Sparda
Thanks, radaja.Quote:
Originally Posted by radaja
500fsb at pl8 seems to be stable enough...
but it looks like for 4x1GB RAM the everest results are not that good.
http://img178.imageshack.us/img178/2...5225015cx2.png
i don't have any more better ddr2 modules available right now but this two kits still working and gives me 533FSB 1:1 at PL8 within Windows, but it's just not anywhere near stable.
http://img514.imageshack.us/img514/7...6023652gn0.png
yea, but it's amazing that it even boots into windows
the new gigabyte GA-EP45T-UD3P that runs ddr3 is out neweggs got it.:D..http://www.newegg.com/Product/Produc...82E16813128369
get this it says ddr3 2200mhz oc.
http://www.gigabyte.com.tw/Products/...ProductID=2936
heres my best so far.pll-1.57 / vtt-1.28 / nbv-1.38 / vdimm 2.24 /
http://i33.tinypic.com/5oy3wl.jpg
http://i36.tinypic.com/ej75f4.jpg
ive got a quick question
how safe would it really be to run this 24/7? there is a LOT of fud regarding voltages and temps, and i honestly dont know what to believe regarding what is safe and what is too much
http://img171.imageshack.us/img171/1659/73896284jg0.png (i've dropped ram to 1.98v and vtt to 1.34 and am still stable)
i have no qualms running this for benchmarking and when i need some extra power, but im considering dropping it down to maybe 3.8-3.9 for daily use if it would greatly enhance the longetivity of my board and chip.
I wouldnt have a problem running that 24/7. I run the same vcore and much higher volts than you everywhere else for my 24/7 setup.
Hi,
Any news on the S3 resume problems on UD3P ? any bios updates ?
If anything is holding you back, it must be the Kingston sticks. Those Gskill 8500 HKs should be good enough for 600FSB 1:1.Quote:
Originally Posted by pangingIII
@pangingIII,could you post your advanced memory settings in the bios on that 500fsb pl8 1:1 run. i cant seem to be able to get it to run pl8.would very much appreciate it.thank you
Nice price TOO ! for a DDR3 MoBoQuote:
Originally Posted by VOID WARRANTY
AFAIK, this P45 based boards are known to have at least PL 9/10 when running 1:1 at 500FSB and above,Quote:
Originally Posted by Shiranui Gen-An
and i think i was talking about having tRD/PL 8 at above 500FSB, it seems to me that i need using CL4 to get it, and that kinston kit is pc2-9600 hyperx and it can do better than the gskill 8500 HK kit in running CAS4-4-4.
in advanced timing control settings...Quote:
Originally Posted by radaja
i just set tRD to 8 and rest of the subtiming to
3
3
6
30
3.
and rest of the settings in there are set to Auto's include the drive strength setting.
in the Standard Timing Control of the main M.I.T. page, i set the (G)MCH Frequency Latch to auto and memory multiplier to 2.0D, Turbo and 4-4-4-10 timings.
pangingIII,thanks. i finally was able to run 500fsb pl8 1:1 here it is in the first pic.the second and third pics are a test of the difference between temperatures when i turn off my airconditioned cooling setup. http://i37.tinypic.com/30a46ci.jpgall settings are the same in these two runs just AC is turned off in one http://i33.tinypic.com/2d82e7m.jpg http://i33.tinypic.com/x26rn9.jpg
Here is my pl8. This board is amazing. Using 2x2gb Gskill Pi 2.1v
http://img515.imageshack.us/img515/6324/pl8xr1.jpg
Nice Run Nugzo, I just wonder why your scores are still below mine on my old faithful DFI x48 with less Mhz then you :shrug:Quote:
Originally Posted by nugzo
I got a UD3P too but only touching it next year.
X48 ? Maybe that is why. I cant recall seeing any P45 doing this well 1:1.Quote:
Originally Posted by Jor3lBR
You're welcome. the result looks nice.Quote:
Originally Posted by radaja
here's mine with 2 sticks RAM (i was trying PL8 setting and using 4 sticks and mixed RAM modules before) i hope this below result is came out better.
http://img122.imageshack.us/img122/7...7065928bf1.png
