I would if i could :shakes:Quote:
Originally Posted by Salamndar
I defaulted clocks so I could reinstall windows. Now I can't even get 166MHz blck. Exact same settings.
Printable View
I would if i could :shakes:Quote:
Originally Posted by Salamndar
I defaulted clocks so I could reinstall windows. Now I can't even get 166MHz blck. Exact same settings.
Quick questions guys, Is it normal for the Classified Mosfet heatsinks to be finger-burning hot during stress tests?
atm, Im priming at 4.3Ghz, vcore 1.29V
Should be cooled by fresh air directed there by a fan. ;)
That's ugly ! :(Quote:
Originally Posted by lowfat
Yeah, if you do not get sufficient airflow over them, they can get pretty hot.Quote:
Originally Posted by ottoyu34
Nice chip, by the way! What batch is it?
I really don't get it. At first this thing was an overclocking dream now I seriously can't get 166MHz bclk out of this thing. Didn't change a thing.
does anyone have any "dirty" settings i can shoot for, im gettin the phase hooked up tomorrow afternoon and i havent played with i7s before and i keep noticing mention of blck. anyone with some spare time able to shoot me some info?
Try reseting CMOS, Happened to me on both the X58-Extreme and the R2E!Quote:
Originally Posted by lowfat
Good luck :up:
I've done it no less than 50 times :p:Quote:
Originally Posted by Salamndar
Will throw it on air cooling tomorrow to see if it fairs any better. By the end of the night it wouldn't even successfully post at stock clocks. It would do the whole overclocking failed thing. :ROTF:
Condensation in socket?
From my own experience with this board (760) i gotto say it is a bit spooky and no fun at all.. testing stuff and adjusting them with E-leet, running linx all mem 50x stable, then adjusting settings in bios.. run linx again fail in 1 loop.. weird....
with out vdroop the vcore volt goes up and with vdroop it goes down.. vdramm overvolts.. and vtt in E-leet also overvolts..qpi set in E-leet shows 0,5 difference in cpu-z and so on, cant run mem 2:8 at all !! (trust me tried every way possible) vreg temp in E-leet are off big time.. all in all.. its difficult to pin the right volts on this board, at least for me it is :)
Tell me about it, the first day I got the mobo, it hated my OCZ blade DDR3 2000 and refused to some times even boot unless I remove one stick, and the first time I ran memtest it gave me thousands of errors!Quote:
Originally Posted by AceBaran
Reset the CMOS twice fixed every thing though!
OHHH and I got my EK Classified waterblock.....SEXY SEXY SEXY!!!:yepp:
I have it packed w/ vaseline. And it will post on a failed overclock. But after I go in to the bios, save, then reboot, it would fail again. Even on default clocks.Quote:
Originally Posted by SAE
Weird behavior. Did you try to reflash BIOS?
Ya, I updated last night. Going to throw a Megahalem on it to see it starts working any better.Quote:
Originally Posted by SAE
G'luck, mate. :up:
Pics? :DQuote:
Originally Posted by Salamndar
Well I don't know what the problems but throwing it on air fixed it :D And it is going to stay that way until the cascade is done I am afraid.
Would love to, but I might post some when I recieve my new ST1500 PSU !Quote:
Originally Posted by H2O
increased my max bclk by 10mhz :)

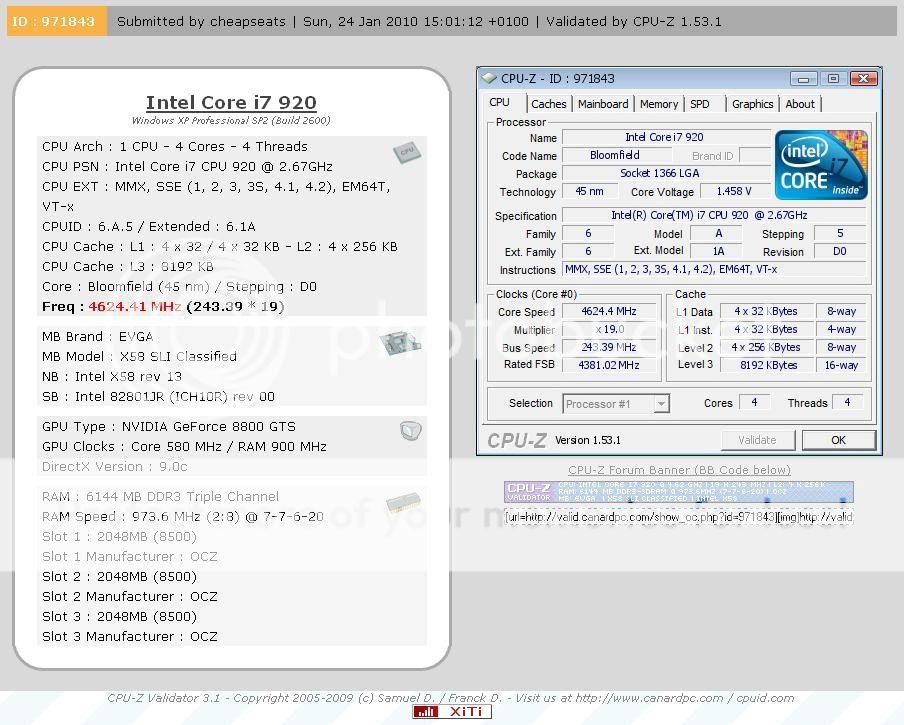

http://valid.canardpc.com/cache/banner/971843.png
http://i447.photobucket.com/albums/q...7620_cpuzv.jpg

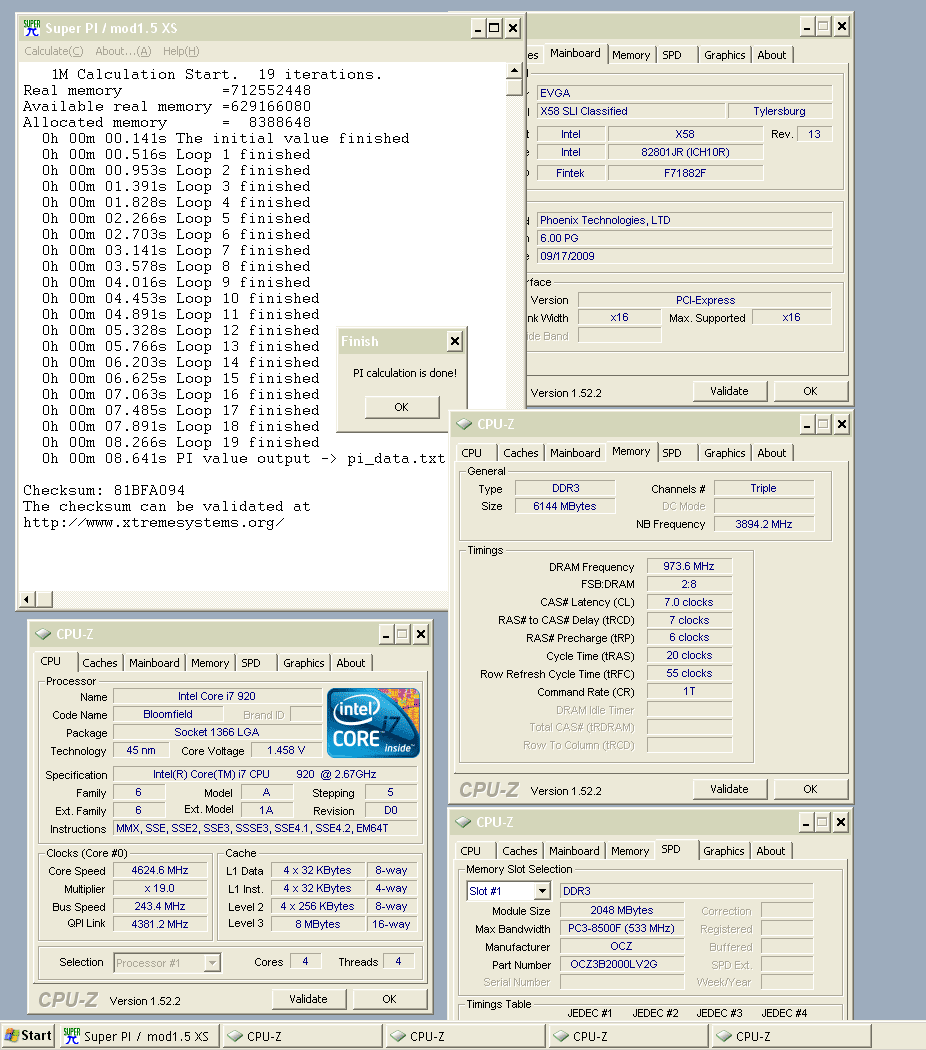

http://i447.photobucket.com/albums/q...0_1M_8s641.gif
S61A
boot 241bclk:
pcie 110
CPU impedance less (not sure if i need this)
QPI comp less
clock skew 100
QPI mode 4.8g
just using 16x uncore - high 'minimum' vTT seems because of bclk :shrug:
vTT @ 241 16xun (3.85ghz un) 2:8 = 1.60V min to boot Windows + 32M
compared to:
vTT @ 225 20xun (4.50ghz un) 2:8 = 1.60v 32M
vTT @ 201 20xun (4.01ghz un) 2:10 = 1.425V Prime
1.8 PLLs @ 1.50v
QPI PLL + IOH vcores 1.1V
eleet to 244 .. 1.625 vTT @ 244, but 245 freezes after about 20 seconds idle.
Very good with 4 cores Enabled. My Record is 243-4 I think but with only 2 cores enabled.Quote:
Originally Posted by cheapseats

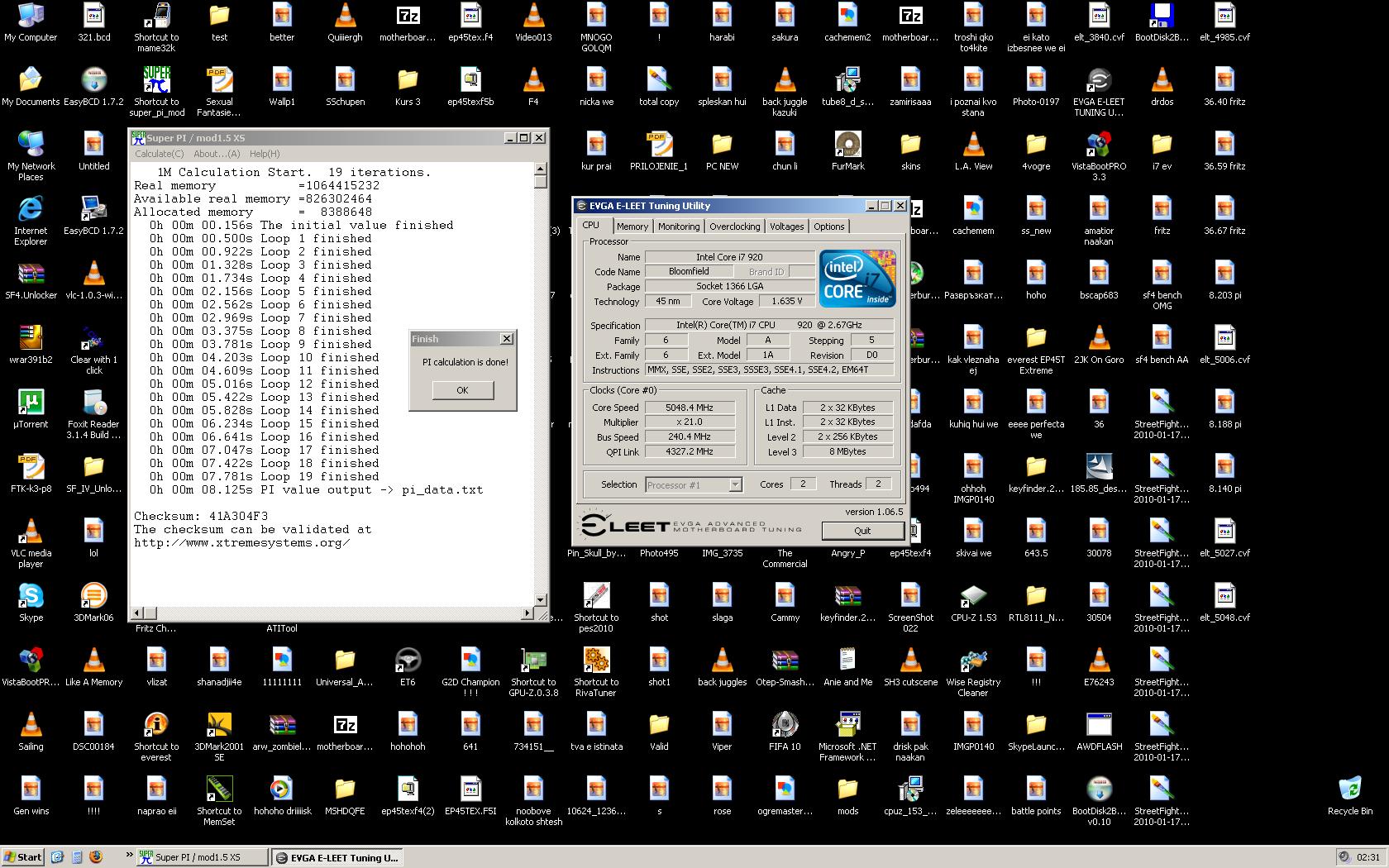

This is my record for freq and bclk.
http://store.picbg.net/pubpic/1D/01/...37a9c01d01.JPG
I know the time is not good but i just wanted to pass 5+GHz and this is on water at -1 ambient :D.
thanks :) and congrats for 5048mhz :up:Quote:
Originally Posted by The_Game
i'm not going very far with 21x CPU: even 2 cores still haven't got past 234x21 for validation (just freezes @ 235x21)
2 core / no HT
http://valid.canardpc.com/cache/banner/976364.png
4 core / HT
http://valid.canardpc.com/cache/banner/976392.png

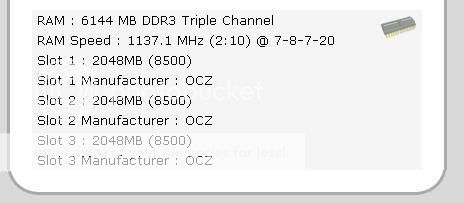

memory :D
http://valid.canardpc.com/cache/banner/976429.png
http://i447.photobucket.com/albums/q...8720_cpuzv.jpg
Can someone tell me what the 4E error is?
If i go in the bios and overclock, F10 save and exit and on boot up it hangs on the classified logo screen and gives the code 4E. Hit reset and it boots into windows no problem with my overclocked settings ???????
:eek:... on @air???Quote:
Originally Posted by cheapseats
I'll be receiving my new PSU the Silverstone ST1500 today !! :D
Can't wait to install it and hopefully end the Cold boot issue I'm having with the CWT based PSUs !!! :yepp:
